Seat Alhambra 2012 Owner's Manual

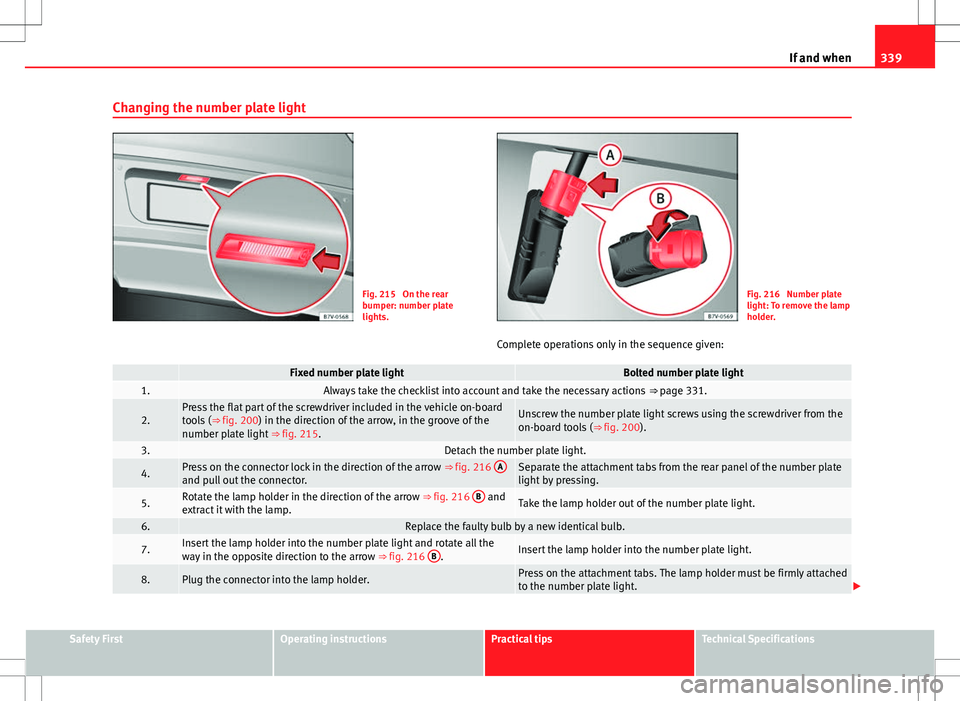

339
If and when
Changing the number plate light
Fig. 215 On the rear
bumper: number plate
lights.Fig. 216 Number plate
light: To remove the lamp
holder.
Complete operations only in the sequence given:
Fixed number plate lightBolted number plate light1.Always take the checklist into account and take the necessary actions ⇒ page 331.
2.Press the flat part of the screwdriver included in the vehicle on-board
tools (⇒ fig. 200) in the direction of the arrow, in the groove of the
number plate light ⇒ fig. 215.Unscrew the number plate light screws using the screwdriver from the
on-board tools (⇒ fig. 200).
3.Detach the number plate light.
4.Press on the connector lock in the direction of the arrow ⇒ fig. 216 Aand pull out the connector.Separate the attachment tabs from the rear panel of the number plate
light by pressing.
5.Rotate the lamp holder in the direction of the arrow
⇒ fig. 216 B and
extract it with the lamp.Take the lamp holder out of the number plate light.
6.Replace the faulty bulb by a new identical bulb.
7.Insert the lamp holder into the number plate light and rotate all the
way in the opposite direction to the arrow ⇒ fig. 216 B.Insert the lamp holder into the number plate light.
8.Plug the connector into the lamp holder.Press on the attachment tabs. The lamp holder must be firmly attached
to the number plate light.

Safety FirstOperating instructionsPractical tipsTechnical Specifications

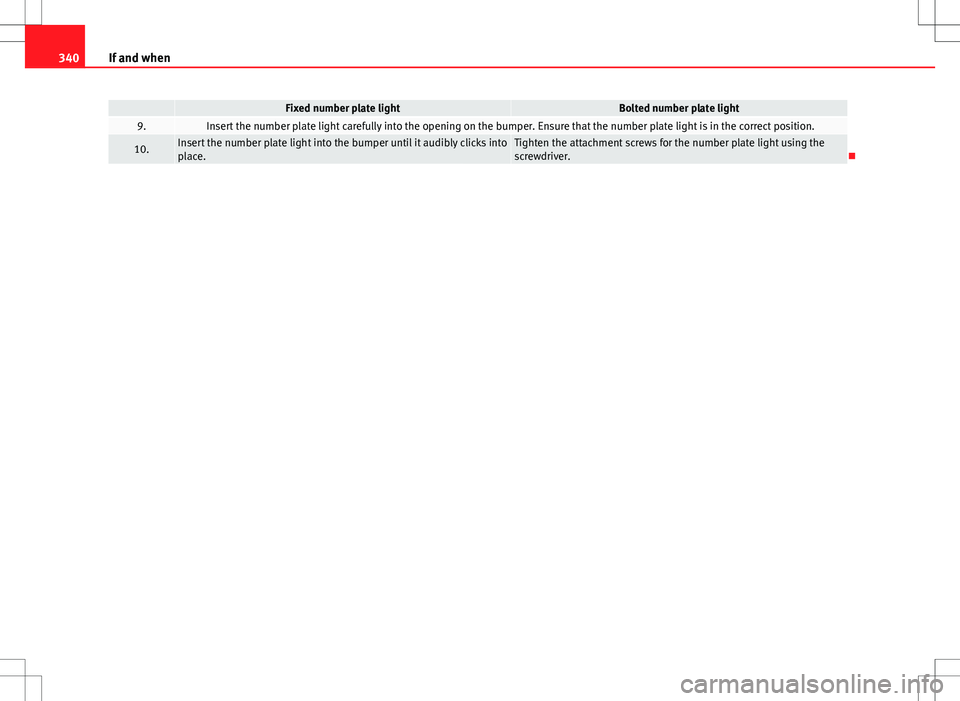

340If and when
Fixed number plate lightBolted number plate light9.Insert the number plate light carefully into the opening on the bumper. Ensure that the number plate light is in the correct position.
10.Insert the number plate light into the bumper until it audibly clicks into
place.Tighten the attachment screws for the number plate light using the
screwdriver.

341
If and when

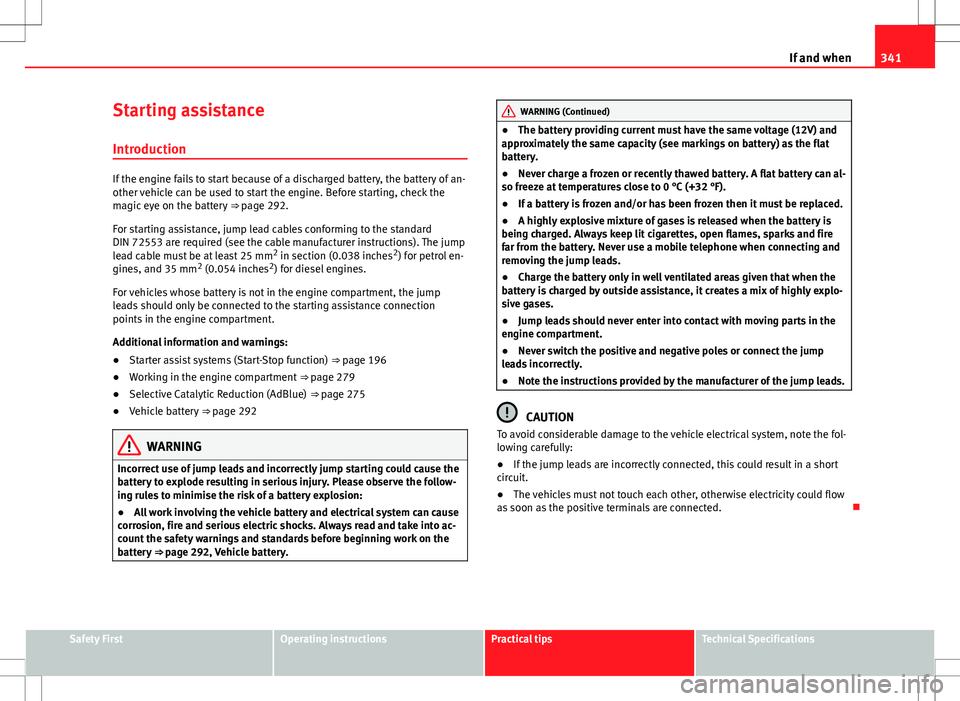

Starting assistance
Introduction
If the engine fails to start because of a discharged battery, the battery of an-
other vehicle can be used to start the engine. Before starting, check the
magic eye on the battery ⇒ page 292.
For starting assistance, jump lead cables conforming to the standard
DIN 72553 are required (see the cable manufacturer instructions). The jump
lead cable must be at least 25 mm 2
in section (0.038 inches 2
) for petrol en-
gines, and 35 mm 2
(0.054 inches 2
) for diesel engines.
For vehicles whose battery is not in the engine compartment, the jump
leads should only be connected to the starting assistance connection
points in the engine compartment.
Additional information and warnings:
● Starter assist systems (Start-Stop function) ⇒ page 196
● Working in the engine compartment ⇒ page 279
● Selective Catalytic Reduction (AdBlue) ⇒ page 275
● Vehicle battery ⇒ page 292
WARNING
Incorrect use of jump leads and incorrectly jump starting could cause the
battery to explode resulting in serious injury. Please observe the follow-
ing rules to minimise the risk of a battery explosion:
● All work involving the vehicle battery and electrical system can cause
corrosion, fire and serious electric shocks. Always read and take into ac-
count the safety warnings and standards before beginning work on the
battery ⇒ page 292, Vehicle battery.
WARNING (Continued)
● The battery providing current must have the same voltage (12V) and
approximately the same capacity (see markings on battery) as the flat
battery.
● Never charge a frozen or recently thawed battery. A flat battery can al-
so freeze at temperatures close to 0 °C (+32 °F).
● If a battery is frozen and/or has been frozen then it must be replaced.
● A highly explosive mixture of gases is released when the battery is
being charged. Always keep lit cigarettes, open flames, sparks and fire
far from the battery. Never use a mobile telephone when connecting and
removing the jump leads.
● Charge the battery only in well ventilated areas given that when the
battery is charged by outside assistance, it creates a mix of highly explo-
sive gases.
● Jump leads should never enter into contact with moving parts in the
engine compartment.
● Never switch the positive and negative poles or connect the jump
leads incorrectly.
● Note the instructions provided by the manufacturer of the jump leads.
CAUTION
To avoid considerable damage to the vehicle electrical system, note the fol-
lowing carefully:
● If the jump leads are incorrectly connected, this could result in a short
circuit.
● The vehicles must not touch each other, otherwise electricity could flow
as soon as the positive terminals are connected. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

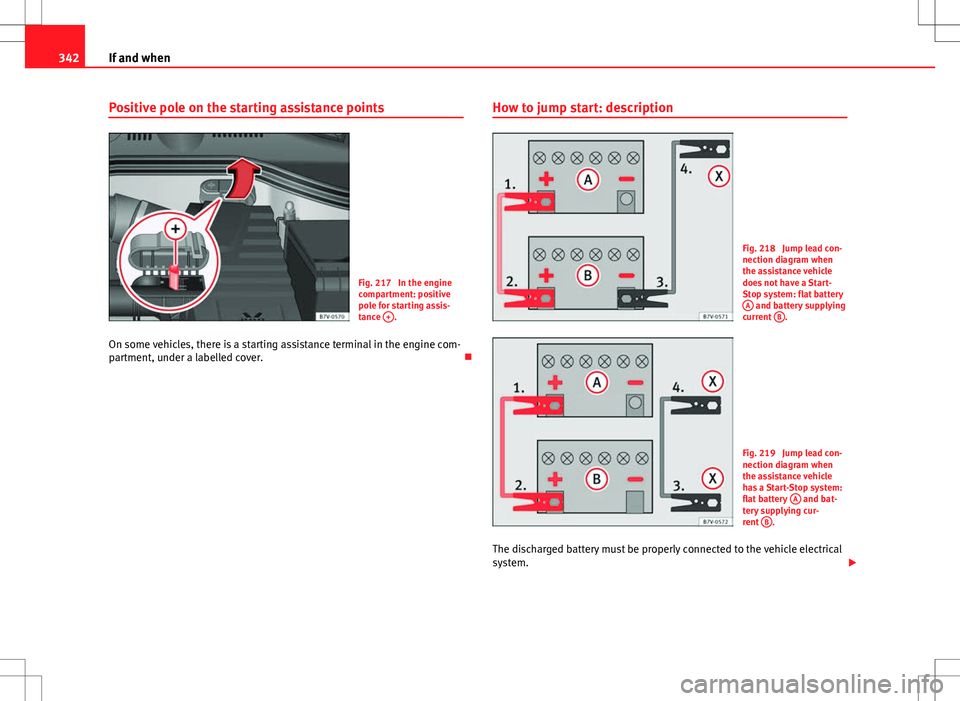

342If and when
Positive pole on the starting assistance points
Fig. 217 In the engine
compartment: positive
pole for starting assis-
tance +
.
On some vehicles, there is a starting assistance terminal in the engine com-
partment, under a labelled cover. How to jump start: description
Fig. 218 Jump lead con-
nection diagram when
the assistance vehicle
does not have a Start-
Stop system: flat battery
A
and battery supplying
current B.
Fig. 219 Jump lead con-
nection diagram when
the assistance vehicle
has a Start-Stop system:
flat battery A
and bat-
tery supplying cur-
rent B
.
The discharged battery must be properly connected to the vehicle electrical
system. 

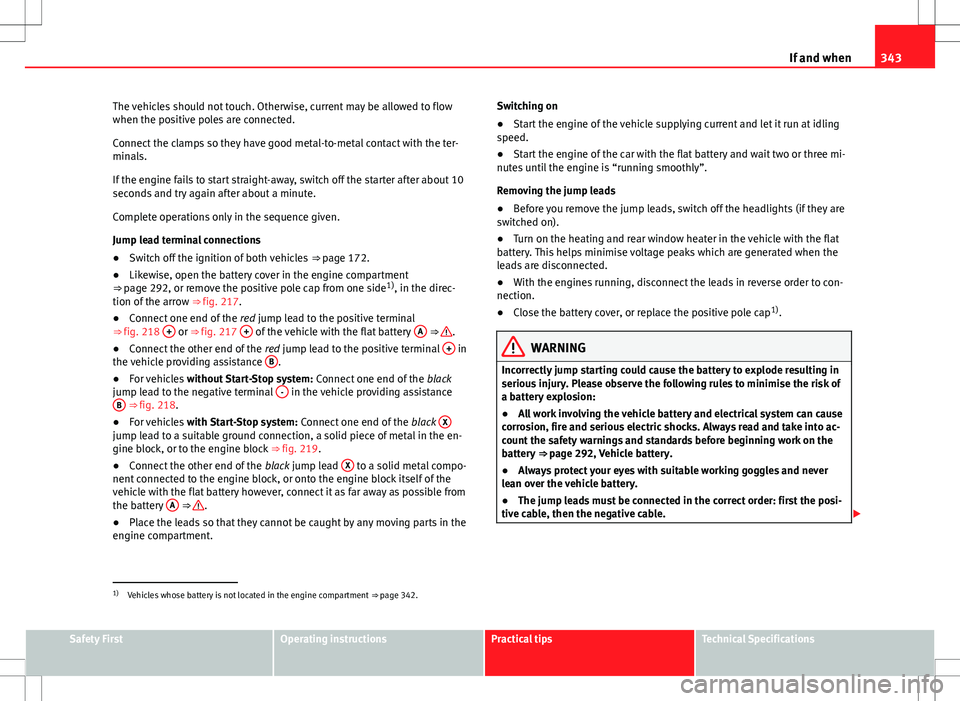

343
If and when
The vehicles should not touch. Otherwise, current may be allowed to flow
when the positive poles are connected.
Connect the clamps so they have good metal-to-metal contact with the ter-
minals.
If the engine fails to start straight-away, switch off the starter after about 10
seconds and try again after about a minute.
Complete operations only in the sequence given.
Jump lead terminal connections
● Switch off the ignition of both vehicles ⇒ page 172.
● Likewise, open the battery cover in the engine compartment
⇒  page 292, or remove the positive pole cap from one side 1)
, in the direc-
tion of the arrow ⇒ fig. 217.
● Connect one end of the red jump lead to the positive terminal
⇒  fig. 218 +
or ⇒ 
fig. 217 + of the vehicle with the flat battery A ⇒ .
● Connect the other end of the red jump lead to the positive terminal + in
the vehicle providing assistance B.
● For vehicles without Start-Stop system: Connect one end of the black
jump lead to the negative terminal -
in the vehicle providing assistance
B ⇒ fig. 218.
● For vehicles with Start-Stop system: Connect one end of the black X
jump lead to a suitable ground connection, a solid piece of metal in the en-
gine block, or to the engine block
⇒ fig. 219.
● Connect the other end of the black jump lead X
to a solid metal compo-
nent connected to the engine block, or onto the engine block itself of the
vehicle with the flat battery however, connect it as far away as possible from
the battery A
⇒ .
● Place the leads so that they cannot be caught by any moving parts in the
engine compartment. Switching on
●
Start the engine of the vehicle supplying current and let it run at idling
speed.
● Start the engine of the car with the flat battery and wait two or three mi-
nutes until the engine is “running smoothly”.
Removing the jump leads
● Before you remove the jump leads, switch off the headlights (if they are
switched on).
● Turn on the heating and rear window heater in the vehicle with the flat
battery. This helps minimise voltage peaks which are generated when the
leads are disconnected.
● With the engines running, disconnect the leads in reverse order to con-
nection.
● Close the battery cover, or replace the positive pole cap 1)
.
WARNING
Incorrectly jump starting could cause the battery to explode resulting in
serious injury. Please observe the following rules to minimise the risk of
a battery explosion:
● All work involving the vehicle battery and electrical system can cause
corrosion, fire and serious electric shocks. Always read and take into ac-
count the safety warnings and standards before beginning work on the
battery ⇒ page 292, Vehicle battery.
● Always protect your eyes with suitable working goggles and never
lean over the vehicle battery.
● The jump leads must be connected in the correct order: first the posi-
tive cable, then the negative cable. 
1)
Vehicles whose battery is not located in the engine compartment ⇒ page 342.
Safety FirstOperating instructionsPractical tipsTechnical Specifications

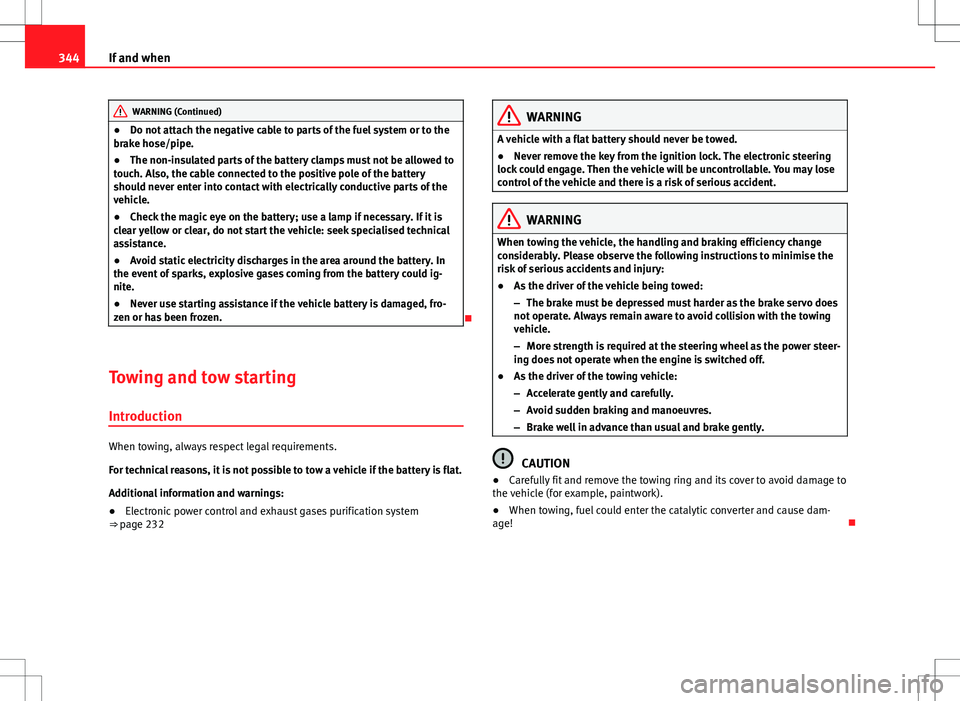

344If and when
WARNING (Continued)
● Do not attach the negative cable to parts of the fuel system or to the
brake hose/pipe.
● The non-insulated parts of the battery clamps must not be allowed to
touch. Also, the cable connected to the positive pole of the battery
should never enter into contact with electrically conductive parts of the
vehicle.
● Check the magic eye on the battery; use a lamp if necessary. If it is
clear yellow or clear, do not start the vehicle: seek specialised technical
assistance.
● Avoid static electricity discharges in the area around the battery. In
the event of sparks, explosive gases coming from the battery could ig-
nite.
● Never use starting assistance if the vehicle battery is damaged, fro-
zen or has been frozen.

Towing and tow starting Introduction
When towing, always respect legal requirements.
For technical reasons, it is not possible to tow a vehicle if the battery is flat.
Additional information and warnings:
● Electronic power control and exhaust gases purification system
⇒  page 232
WARNING
A vehicle with a flat battery should never be towed.
● Never remove the key from the ignition lock. The electronic steering
lock could engage. Then the vehicle will be uncontrollable. You may lose
control of the vehicle and there is a risk of serious accident.
WARNING
When towing the vehicle, the handling and braking efficiency change
considerably. Please observe the following instructions to minimise the
risk of serious accidents and injury:
● As the driver of the vehicle being towed:
– The brake must be depressed must harder as the brake servo does
not operate. Always remain aware to avoid collision with the towing
vehicle.
– More strength is required at the steering wheel as the power steer-
ing does not operate when the engine is switched off.
● As the driver of the towing vehicle:
– Accelerate gently and carefully.
– Avoid sudden braking and manoeuvres.
– Brake well in advance than usual and brake gently.
CAUTION
● Carefully fit and remove the towing ring and its cover to avoid damage to
the vehicle (for example, paintwork).
● When towing, fuel could enter the catalytic converter and cause dam-
age! 

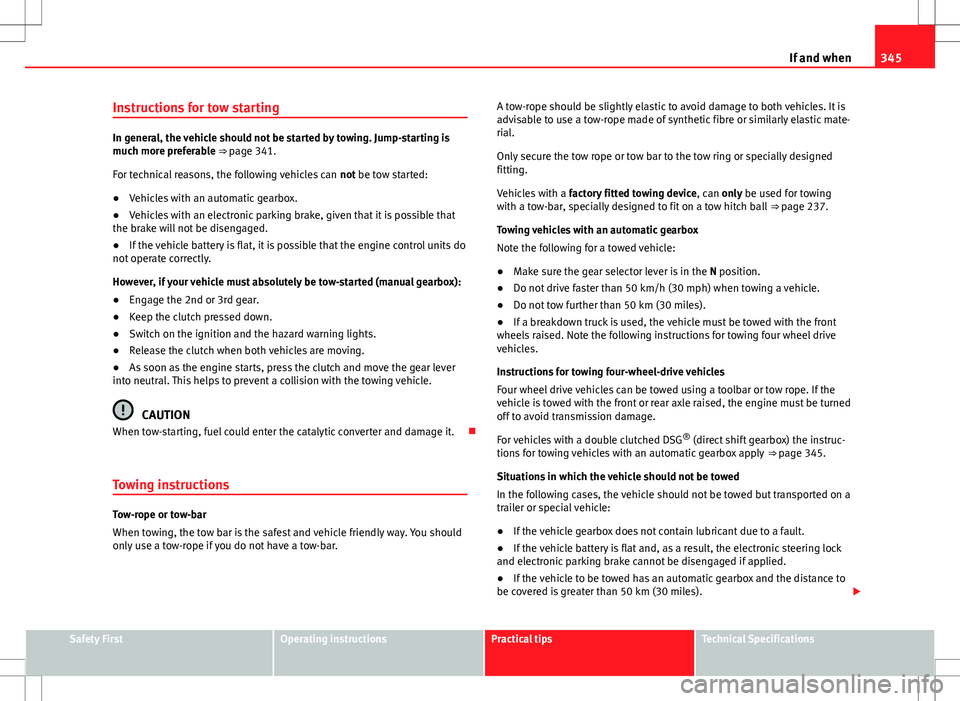

345
If and when
Instructions for tow starting
In general, the vehicle should not be started by towing. Jump-starting is
much more preferable ⇒  page 341.
For technical reasons, the following vehicles can not be tow started:
● Vehicles with an automatic gearbox.
● Vehicles with an electronic parking brake, given that it is possible that
the brake will not be disengaged.
● If the vehicle battery is flat, it is possible that the engine control units do
not operate correctly.
However, if your vehicle must absolutely be tow-started (manual gearbox):
● Engage the 2nd or 3rd gear.
● Keep the clutch pressed down.
● Switch on the ignition and the hazard warning lights.
● Release the clutch when both vehicles are moving.
● As soon as the engine starts, press the clutch and move the gear lever
into neutral. This helps to prevent a collision with the towing vehicle.
CAUTION
When tow-starting, fuel could enter the catalytic converter and damage it. 
Towing instructions
Tow-rope or tow-bar
When towing, the tow bar is the safest and vehicle friendly way. You should
only use a tow-rope if you do not have a tow-bar. A tow-rope should be slightly elastic to avoid damage to both vehicles. It is
advisable to use a tow-rope made of synthetic fibre or similarly elastic mate-
rial.
Only secure the tow rope or tow bar to the tow ring or specially designed
fitting.
Vehicles with a
factory fitted towing device , can only be used for towing
with a tow-bar, specially designed to fit on a tow hitch ball ⇒ page 237.
Towing vehicles with an automatic gearbox
Note the following for a towed vehicle:
● Make sure the gear selector lever is in the N position.
● Do not drive faster than 50 km/h (30 mph) when towing a vehicle.
● Do not tow further than 50 km (30 miles).
● If a breakdown truck is used, the vehicle must be towed with the front
wheels raised. Note the following instructions for towing four wheel drive
vehicles.
Instructions for towing four-wheel-drive vehicles
Four wheel drive vehicles can be towed using a toolbar or tow rope. If the
vehicle is towed with the front or rear axle raised, the engine must be turned
off to avoid transmission damage.
For vehicles with a double clutched DSG ®
(direct shift gearbox) the instruc-
tions for towing vehicles with an automatic gearbox apply ⇒ page 345.
Situations in which the vehicle should not be towed
In the following cases, the vehicle should not be towed but transported on a
trailer or special vehicle:
● If the vehicle gearbox does not contain lubricant due to a fault.
● If the vehicle battery is flat and, as a result, the electronic steering lock
and electronic parking brake cannot be disengaged if applied.
● If the vehicle to be towed has an automatic gearbox and the distance to
be covered is greater than 50 km (30 miles). 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

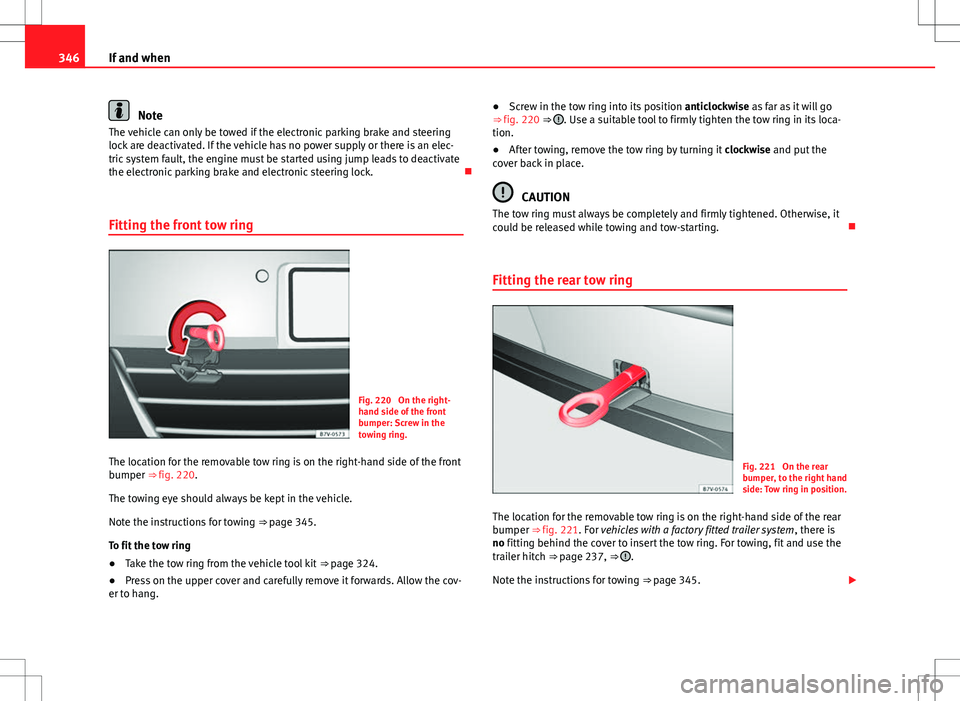

346If and when
Note
The vehicle can only be towed if the electronic parking brake and steering
lock are deactivated. If the vehicle has no power supply or there is an elec-
tric system fault, the engine must be started using jump leads to deactivate
the electronic parking brake and electronic steering lock. 
Fitting the front tow ring
Fig. 220 On the right-
hand side of the front
bumper: Screw in the
towing ring.
The location for the removable tow ring is on the right-hand side of the front
bumper ⇒ fig. 220. The towing eye should always be kept in the vehicle.
Note the instructions for towing ⇒ page 345.
To fit the tow ring
● Take the tow ring from the vehicle tool kit ⇒ page 324.
● Press on the upper cover and carefully remove it forwards. Allow the cov-
er to hang. ●
Screw in the tow ring into its position anticlockwise as far as it will go
⇒ fig. 220 ⇒ 
. Use a suitable tool to firmly tighten the tow ring in its loca-
tion.
● After towing, remove the tow ring by turning it clockwise and put the
cover back in place.
CAUTION
The tow ring must always be completely and firmly tightened. Otherwise, it
could be released while towing and tow-starting. 
Fitting the rear tow ring
Fig. 221 On the rear
bumper, to the right hand
side: Tow ring in position.
The location for the removable tow ring is on the right-hand side of the rear
bumper ⇒ fig. 221. For vehicles with a factory fitted trailer system , there is
no fitting behind the cover to insert the tow ring. For towing, fit and use the
trailer hitch ⇒ page 237, ⇒ 
.
Note the instructions for towing ⇒ page 345. 

347
If and when
Fitting the tow ring to the rear for vehicles without factory fitted tow hitch
● Take the tow ring from the on-board tools ⇒ page 324.
● Press on the upper cover and carefully remove it back. This may require
some strength. Allow the cover to hang.
● Screw in the tow ring into its position anticlockwise as far as it will go
⇒ 
. Use a suitable tool to firmly tighten the tow ring in its location.
● After towing, remove the tow ring by turning it clockwise and put the
cover back in place.
CAUTION
● The tow ring must always be completely and firmly tightened. Other-
wise, it could be released while towing and tow-starting.
● Vehicles with a factory fitted towing device, can only be used for towing
with a tow-bar, specially designed to fit on a tow hitch ball. Otherwise, the
tow hitch ball and the vehicle may be damaged. Otherwise, a tow rope
should be used. 
Towing advice
Towing requires some experience, especially when using a tow-rope. Both
drivers should be familiar with the technique required for towing. For this
reason, inexperienced drivers should abstain.
While driving, avoid excessive traction forces and jerking. When towing on
an unpaved road, there is always a risk of overloading and damaging the
anchorage points.
If the vehicle is towed, with the hazard warning lights on and the ignition
switched on, the turn signal may be used to indicate changes of direction.
Simply operate the turn indicator lever as usual. Meanwhile, the hazard
warning lights will go off. When the turn signal lever is returned to the rest
position, the hazard warning lights will be turned on automatically. Notes for the driver of the towed vehicle
●
Leave the ignition on to avoid locking the steering wheel, to release the
electronic parking brake and to activate the turn signal indicators, the horn
as well as the window wipers and window washers.
● As the power assisted steering does not work if the engine is not run-
ning, you will need more strength to steer than normally.
● The brake must be depressed must harder as the brake servo does not
operate. Avoid hitting the towing vehicle.
● Note the instructions and information contained in the instruction man-
ual for the vehicle to be towed.
Notes for the driver of the towing vehicle
● Accelerate gently and carefully. Avoid sudden manoeuvres.
● Brake well in advance than usual and brake gently.
● Note the instructions and information contained in the instruction man-
ual for the vehicle to be towed. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

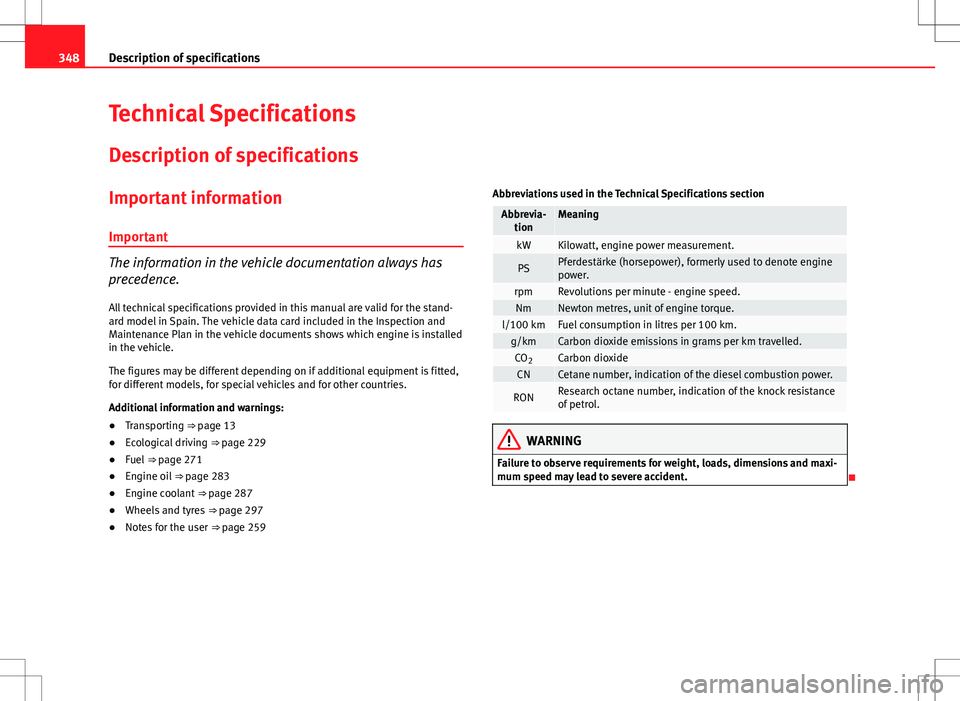

348Description of specifications
Technical Specifications
Description of specifications
Important information
Important
The information in the vehicle documentation always has
precedence. All technical specifications provided in this manual are valid for the stand-
ard model in Spain. The vehicle data card included in the Inspection and
Maintenance Plan in the vehicle documents shows which engine is installed
in the vehicle.
The figures may be different depending on if additional equipment is fitted,
for different models, for special vehicles and for other countries.
Additional information and warnings:
● Transporting ⇒ page 13
● Ecological driving ⇒ page 229
● Fuel ⇒ page 271
● Engine oil ⇒ page 283
● Engine coolant ⇒ page 287
● Wheels and tyres ⇒ page 297
● Notes for the user ⇒ page 259 Abbreviations used in the Technical Specifications section
Abbrevia-
tionMeaning
kWKilowatt, engine power measurement.
PSPferdestärke (horsepower), formerly used to denote engine
power.
rpmRevolutions per minute - engine speed.NmNewton metres, unit of engine torque.l/100 kmFuel consumption in litres per 100 km.g/kmCarbon dioxide emissions in grams per km travelled.CO2Carbon dioxideCNCetane number, indication of the diesel combustion power.
RONResearch octane number, indication of the knock resistance
of petrol.
WARNING
Failure to observe requirements for weight, loads, dimensions and maxi-
mum speed may lead to severe accident.

