Instrument panel Control and warning lamps
The control and warning lamps are indicators of warnings, ⇒ , faults ⇒ or certain functions. Some control and warning lamps come on when the ig-
nition is switched on, and go out when the engine starts running, or while
driving.
Depending on the model, additional text messages may be viewed on the
instrument panel display. These may be purely informative or they may be
advising of the need for action ⇒ page 57, Instruments. 
30
31
3233

326If and when

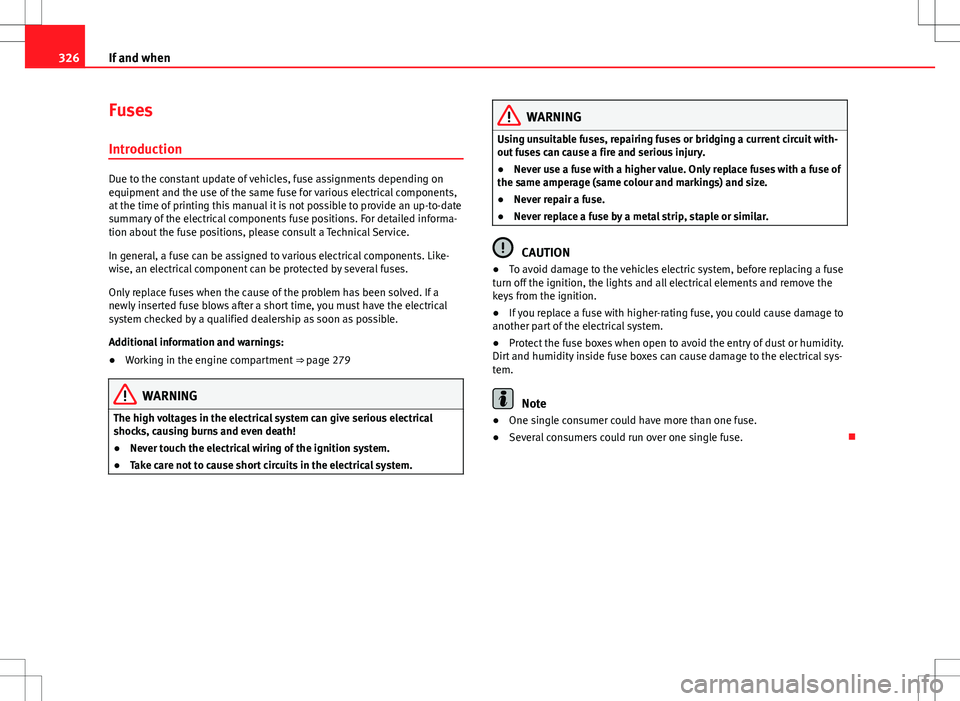

Fuses
Introduction
Due to the constant update of vehicles, fuse assignments depending on
equipment and the use of the same fuse for various electrical components,
at the time of printing this manual it is not possible to provide an up-to-date
summary of the electrical components fuse positions. For detailed informa-
tion about the fuse positions, please consult a Technical Service.
In general, a fuse can be assigned to various electrical components. Like-
wise, an electrical component can be protected by several fuses.
Only replace fuses when the cause of the problem has been solved. If a
newly inserted fuse blows after a short time, you must have the electrical
system checked by a qualified dealership as soon as possible.
Additional information and warnings:
● Working in the engine compartment ⇒ page 279
WARNING
The high voltages in the electrical system can give serious electrical
shocks, causing burns and even death!
● Never touch the electrical wiring of the ignition system.
● Take care not to cause short circuits in the electrical system.
WARNING
Using unsuitable fuses, repairing fuses or bridging a current circuit with-
out fuses can cause a fire and serious injury.
● Never use a fuse with a higher value. Only replace fuses with a fuse of
the same amperage (same colour and markings) and size.
● Never repair a fuse.
● Never replace a fuse by a metal strip, staple or similar.
CAUTION
● To avoid damage to the vehicles electric system, before replacing a fuse
turn off the ignition, the lights and all electrical elements and remove the
keys from the ignition.
● If you replace a fuse with higher-rating fuse, you could cause damage to
another part of the electrical system.
● Protect the fuse boxes when open to avoid the entry of dust or humidity.
Dirt and humidity inside fuse boxes can cause damage to the electrical sys-
tem.
Note
● One single consumer could have more than one fuse.
● Several consumers could run over one single fuse. 

327
If and when
Vehicle fuses
Fig. 201 On the driver-
side dashboard: fuse box
cover.
Fig. 202 In the engine
compartment: fuse box
cover.
Only replace fuses with a fuse of the same amperage (same colour and
markings) and size. Identifying fuses by colours
ColourAmp ratingpurple3light brown5Brown7,5Red10Blue15Yellow20White or transparent25Green30orange40
To open the dashboard fuse box
●
To remove the cover, move the activation lever in the lower part to the
right ⇒ fig. 201.
● For right-hand drive vehicles, move the lever to the left.
To open the engine compartment fuse box
● Open the bonnet  ⇒ page 279.
● Move the attachment tabs forwards, in the direction indicated by the ar-
row to release the fuse box cover ⇒ fig. 202.
● Then lift the cover out.
● To fit the cover, place it on the fuse box. Push the attachment tabs back,
in the opposite direction indicated by the arrow until they click audibly into
place.
In is possible that there are more fuses behind a cover in the lower left-hand
side of the luggage compartment. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

328If and when
CAUTION
● Always carefully remove the fuse box covers and refit them correctly to
avoid problems with your vehicle.
● Protect the fuse boxes when open to avoid the entry of dust or humidity.
Dirt and humidity inside fuse boxes can cause damage to the electrical sys-
tem.
Note
In the vehicle, there are more fuses than those indicated in this chapter.
These should only be changed by a specialised workshop. 
Replacing a blown fuse
Fig. 203 Image of a
blown fuse.
Fig. 204 Removing or fit-
ting a fuse.
Preparation
● Switch off the ignition, lights and all electrical equipment.
● Open the corresponding fuse box ⇒ page 327
Identifying a blown fuse
A fuse is blown if its metal strip is ruptured ⇒ fig. 203.
Point a lamp at the fuse. This will make it easier to see if the fuse is blown.
To replace a fuse
● If necessary, remove the plastic pincers from the fuse box cover.
● For small fuses, insert the pincers from above ⇒ fig. 204 A
.
● For larger fuses , insert the pincers from one side of the fuse B.
● Remove the relevant fuse.
● Replace the blown fuse by one with an identical amperage rating (same
colour and markings) and identical size ⇒ 
.
● Replace the cover. 

331
If and when
Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
Checking the bulbs of a trailer
For vehicles with the factory fitted trailer system, certain trailer lights are al-
so controlled if the socket is correctly connected.
A fault on a trailer turn indicator is indicated on the instrument panel by the
indicator blinking twice as fast (  or ) ⇒ page 95.
● General fault of all indicators on one side.
● Fault in one tail light (on some models, also the registration light).
● Fault in two brake lights.
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
● Never ignore the warning lamps or text messages.
● Stop the vehicle safely as soon as possible.
CAUTION
Failure to heed the warning lamps and text messages when they appear
may result in faults in the vehicle.
Note
A fault in the LED on the tail lights will not be indicated. However, if the fault
affects all the LEDs then this will be indicated by the indicator . Information for replacing bulbs
Checklist
To replace a bulb, carry out the following operations always in the order giv-
en ⇒ 
:
Park the vehicle a safe distance from traffic and on suitable ground.
Connect the electronic parking brake ⇒ page 185.
Turn the light switch to position 0 ⇒ page 95.
Move the gear lever into the neutral position ⇒ page 95.
Automatic gearbox: Move selector lever to position P ⇒ page 176.
Stop the engine and remove the key from the ignition ⇒ page 172.
Manual gearbox: Select a gear ⇒ page 176.
Wait until all of the passenger compartment lights are turned off
⇒ page 95.
Allow the corresponding bulb to cool. Visually inspect fuses to see if any are blown ⇒ page 326.
Replace the bulb according to the instructions ⇒ 
. Bulbs should only
be replaced by new identical models. Bulb information is displayed on
the bulb socket or on the bulb itself.
In general, never touch the bulb glass directly. The heat of the bulb
would cause the fingerprint to evaporate and condense on the reflector.
This will impair the brightness of the headlight.
Check if the new bulb is working. If the bulb is not working, it may not
have been correctly fitted, it could be damaged or the connector may
not be correctly connected.
Every time a bulb for the headlights is replaced, visit a specialised
workshop to check the headlights. 
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Safety FirstOperating instructionsPractical tipsTechnical Specifications

G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 289
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Specifications . . . . . . . . . . . . . . . . . . . . . . . 289
Engine fault . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Engine management . . . . . . . . . . . . . . . . . . . . 232 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 232
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Checking the oil level . . . . . . . . . . . . . . . . . 285
Consumption . . . . . . . . . . . . . . . . . . . . . . . 286
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Filler opening . . . . . . . . . . . . . . . . . . . . . . . 285
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Specifications . . . . . . . . . . . . . . . . . . . . . . . 284
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 285
ESC See "Assisted braking systems" . . . . . . . . 191
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . 265
Exhaust gas purification system . . . . . . . . . . . 232 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 232
Exterior aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 112 Automatically folding exterior mirrors . . . 112
Controlling function . . . . . . . . . . . . . . . . . . 113
Synchronised mirror adjustment . . . . . . . . 112
Vehicle care . . . . . . . . . . . . . . . . . . . . . . . . 249
Extinguisher Driving with a trailer . . . . . . . . . . . . . . . . . . 238
F
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 134 Fault
Electric windows . . . . . . . . . . . . . . . . . . . . . . 90
Park assist system . . . . . . . . . . . . . . . . . . . 205
Parking sensor system . . . . . . . . . . . . . . . . 201
Rear assist . . . . . . . . . . . . . . . . . . . . . . . . . 211
Fault memory Connector . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Faults Air conditioner . . . . . . . . . . . . . . . . . . . . . . 162
Panorama sliding sunroof . . . . . . . . . . . . . . 92
Filling capacity AdBlue tank . . . . . . . . . . . . . . . . . . . . . . . . 276
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . 268 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 269
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . 269
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Refilling precautions . . . . . . . . . . . . . . . . . 271
Filter pre-heater . . . . . . . . . . . . . . . . . . . . . . . . 273
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 318
Fire extinguishers . . . . . . . . . . . . . . . . . . . . . . . 318
First-aid kit Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Fitting Tow hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Folding down rear seats Load space . . . . . . . . . . . . . . . . . . . . . . . . . 128 Folding in exterior mirrors . . . . . . . . . . . . . . . . 112
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Folding the backrest of the front passenger
seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Four-wheel-drive Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Front airbags See "Airbag system" . . . . . . . . . . . . . . . . . . 33
Front passenger airbag Deactivating using the key switch . . . . . . . . 35
See "Airbag system" . . . . . . . . . . . . . . . . . . 31
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271 Depending on the engine . . . . . . . . . . . . . 272
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Filling the tank . . . . . . . . . . . . . . . . . . . . . . 270
Information on consumption . . . . . . . . . . . 274
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Type of fuel . . . . . . . . . . . . . . . . . . . . . . . . . 272
Fuel consumption Economic driving . . . . . . . . . . . . . . . . . . . . 229
Why does fuel consumption increase? . . . 233
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 269
Fuel tank flap Closure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Function control Tow hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326 Fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
Identification using colours . . . . . . . . . . . . 327
Identifying blown fuses . . . . . . . . . . . . . . . 328
375
Index
