Seat Alhambra 2013 Workshop Manual

49
Child safety
Lifting the cushion
● Pull the unlock lever ⇒ Fig. 29 A
on the cushion in the direction of the
arrow 1.
● Fold both sides B up in the direction of the arrow 2.
● Push the cushion C back in the direction of the arrow 3 until it engag-
es.
Fitting the side head restraint
● Fold the seat backrest of the rear seat forwards ⇒ page 117.
● Remove the head restraint.
● Make sure the belt guide handle on the window side is on the side head
restraint ⇒ page 49.
● Insert the guide rods ⇒ Fig. 30 1
of the head restraint into the guides
on the side head restraint 2.
● Insert the head restraint and the side head restraint into the guides on
the corresponding seat backrest B
.
● Push the head restraint down as far as it will go.
● Fold the seat backrest of the rear seat back.
● Pull the rear seat and the seat backrest to check whether they are en-
gaged properly. Seat belt routing on the integrated child seat
Fig. 31 Integrated child
seats. Adjusting the seat
belt
Fig. 32 Integrated child
seats. seat belt routing
with guide handle
Using the guide handle ⇒ Fig. 32, position the seat belt so that the shoul-
der part of the belt lies on the centre of the child's shoulder. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

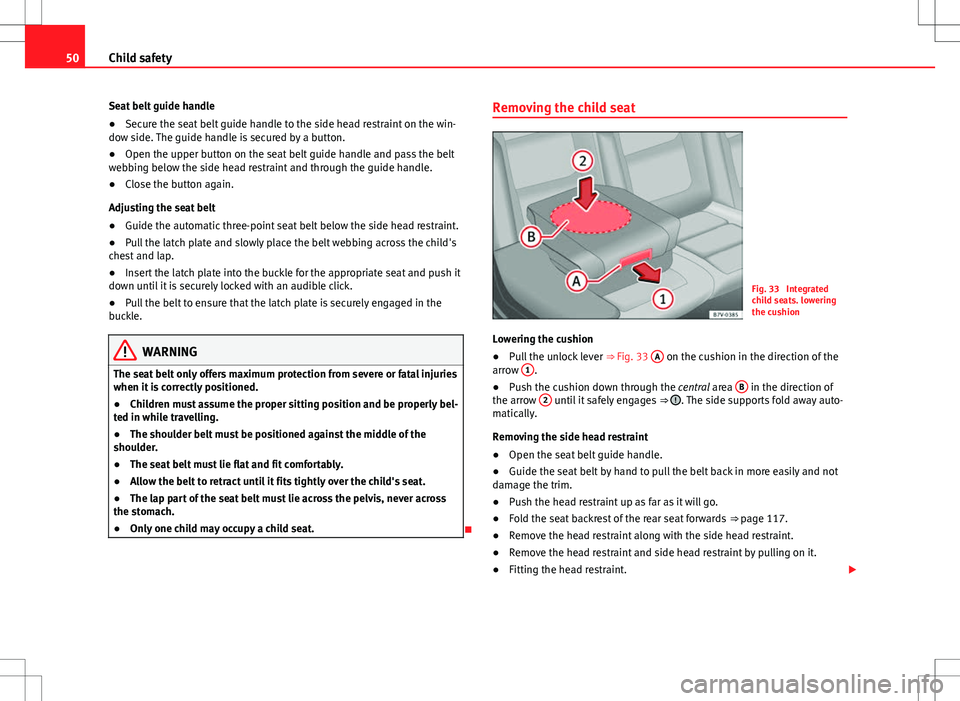

50Child safety
Seat belt guide handle
● Secure the seat belt guide handle to the side head restraint on the win-
dow side. The guide handle is secured by a button.
● Open the upper button on the seat belt guide handle and pass the belt
webbing below the side head restraint and through the guide handle.
● Close the button again.
Adjusting the seat belt
● Guide the automatic three-point seat belt below the side head restraint.
● Pull the latch plate and slowly place the belt webbing across the child's
chest and lap.
● Insert the latch plate into the buckle for the appropriate seat and push it
down until it is securely locked with an audible click.
● Pull the belt to ensure that the latch plate is securely engaged in the
buckle.
WARNING
The seat belt only offers maximum protection from severe or fatal injuries
when it is correctly positioned.
● Children must assume the proper sitting position and be properly bel-
ted in while travelling.
● The shoulder belt must be positioned against the middle of the
shoulder.
● The seat belt must lie flat and fit comfortably.
● Allow the belt to retract until it fits tightly over the child's seat.
● The lap part of the seat belt must lie across the pelvis, never across
the stomach.
● Only one child may occupy a child seat.
 Removing the child seat
Fig. 33 Integrated
child seats. lowering
the cushion
Lowering the cushion
● Pull the unlock lever
⇒ Fig. 33 A
on the cushion in the direction of the
arrow 1.
● Push the cushion down through the central area B in the direction of
the arrow 2 until it safely engages
⇒ . The side supports fold away auto-
matically.
Removing the side head restraint
● Open the seat belt guide handle.
● Guide the seat belt by hand to pull the belt back in more easily and not
damage the trim.
● Push the head restraint up as far as it will go.
● Fold the seat backrest of the rear seat forwards
⇒ page 117.
● Remove the head restraint along with the side head restraint.
● Remove the head restraint and side head restraint by pulling on it.
● Fitting the head restraint. 

51
Child safety
CAUTION
When lowering the integrated child seat, only press on the centre of the
cushion 2
. Otherwise the cushion could bend and not engage properly. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

52Cockpit

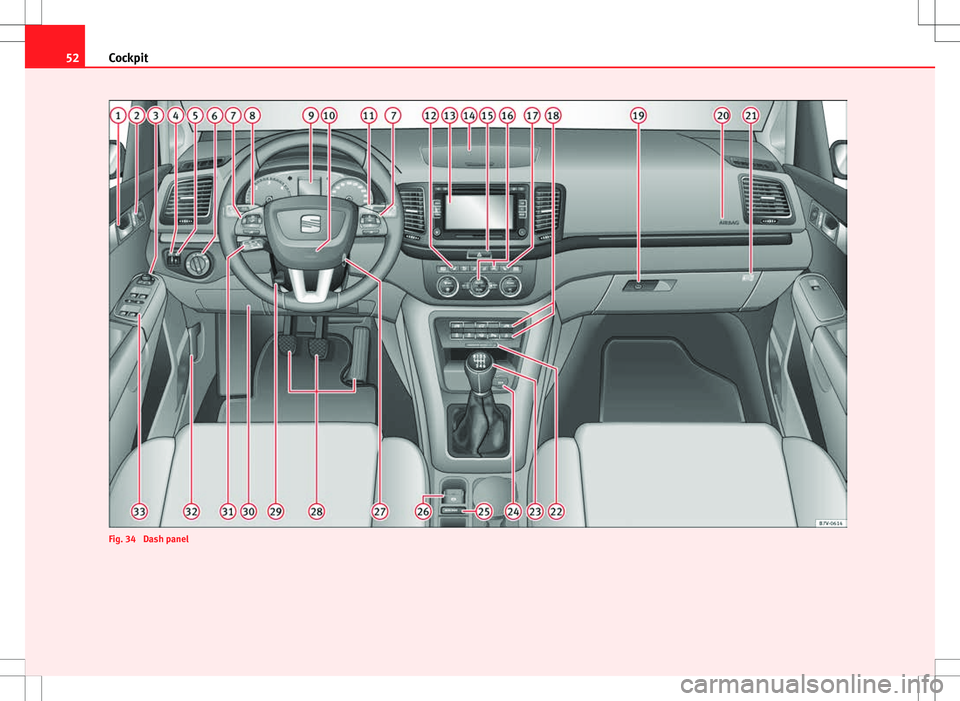

Fig. 34 Dash panel

53
Cockpit
Operating instructions Cockpit
Overview Overview of the dash panel
This overview will help you to familiarise yourself with the
controls and displays. Door release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Central lock button    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Switch for adjusting the exterior mirrors . . . . . . . . . . . . . . . . . . . .110
– Exterior mirror adjustment     
– Heated exterior mirrors 
– Folding exterior mirrors 
Instrument panel controls and lighting control  . . . . . . . . . . .95
Headlamp range adjustment  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Light switch  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
– Light off - -
– Automatic dipped beam headlight control - -
– Side/dipped lights  
– Fog lights  
Controls on the multi-function steering wheel . . . . . . . . . . . . . . .62
– Volume control for radio, navigation system and phone
conversations  – 
– Radio mute or voice control activation 
1
23
456
7
–
Activate telephone main menu or accept an incoming call

– SEAT information system control buttons , , OK, 
Lever for . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
– Main beam headlights 
– Headlight flasher 
– Turn signals 
– Parking lights 
Instrument panel:
– Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
– Digital display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
– Control and warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Horn (works only when the ignition is on)/Front driver airbag 32
Windscreen wiper/ windscreen wash lever . . . . . . . . . . . . . . . . . .105
– Windscreen wipers  – 
– Intermittent wipe 
– “Brief wipe” x
– Windscreen wipers 
– Automatic windscreen wash/wipe 
– Rear window wiper 
– Automatic rear window wash/wipe 
– Lever with buttons for controlling the SEAT information
system - , / . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Left seat heating controls  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
8
9
1011
12
Safety FirstOperating instructionsPractical tipsTechnical Specifications

54Cockpit
Radio or navigation system (fitted at factory) ⇒ Booklet Ra-
dio or ⇒ Booklet Navigation system
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Hazard warning lights switch  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Switches for:
– Electronic manual air conditioning . . . . . . . . . . . . . . . . . . . . . .156
– Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Right seat heating controls  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Button for:
– Anti-slip regulation (ASR)  . . . . . . . . . . . . . . . . . . . . . . . . . . 184
– Start/stop operation  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
– Parking distance warning system (Park Pilot)  . . . . . . . . . . 199
– Park Assist system  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
– Tyre pressure monitor   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
– Opening the rear lid  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
– Opening and closing of electric sliding doors  . . . . . . . . . 80
Locking lever to open glove compartment . . . . . . . . . . . . . . . . . .141
Position of passenger front airbag on the dash panel . . . . . . .32
Key-operated switch in glove compartment for deactivating
front passenger front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Passenger front airbag off warning lamp . . . . . . . . . . . . . . . . . . .32
Lever for:
– Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
– Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
12 Volt power socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Auto Hold Switch - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Electronic parking brake switch  . . . . . . . . . . . . . . . . . . . . . . . . . 184
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Steering column adjustment lever . . . . . . . . . . . . . . . . . . . . . . . . . . 10
13
141516
1718
192021
2223
242526272829
Fuse box cover
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Lever for:
– Cruise control system (CCS)  –  –  –  / -
- / -- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Open bonnet lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Controls for:
– Electric windows  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
– Childproof locks  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Note
● Some of the items of equipment listed here are fitted only on certain
model versions or are optional extras.
● In versions with the steering wheel on the right, the layout of the control
elements is somewhat different. But the symbols assigned to the controls
correspond to the symbols used in the versions with the steering wheel on
the left 
Instrument panel Control and warning lamps
The control and warning lamps are indicators of warnings, ⇒ , faults ⇒ or certain functions. Some control and warning lamps come on when the ig-
nition is switched on, and switch off when the engine starts running, or
while driving.
Depending on the model, additional text messages may be viewed on the
instrument panel display. These may be purely informative or they may be
advising of the need for action ⇒ page 57, Instruments. 
30
31
3233

55
Cockpit
Depending upon the equipment fitted in the vehicle, instead of a warning
lamp, sometimes a symbol may be displayed on the instrument panel.
When certain control and warning lamps are lit, an audible warning is also
heard.
Red symbols
SymbolMeaning ⇒ See

 Do not continue driving!
The electronic parking brake is on, the brake
fluid level is too low or the brake system is faul-
ty.
⇒ page 184
 Do not continue driving!
Fault in the engine cooling system.⇒ page 286
 Do not continue driving!
Engine oil pressure too low.⇒ page 282

 Do not continue driving!
At least one of the vehicles doors is open, or is
not correctly closed.⇒ page 80
 Do not continue driving!
The rear lid is open or is incorrectly closed.⇒ page 83
 Do not continue driving!
Fault in the steering.⇒ page 168
Engine cannot be started again!
"AdBlue" level too low.⇒ page 274
Driver or passenger has not fastened seat belt.⇒ page 21
Use the foot brake!
Change
⇒ page 175
Brake
⇒ page 184
Faulty generator.⇒ page 291
Yellow symbols
SymbolMeaning ⇒ See
Front brake pads worn.
⇒ page 184lights: ESC malfunction or off.flashes: ESC working.
ASR manually deactivated.
ABS faulty or does not work.
Electronic parking brake faulty.⇒ page 184
Rear fog light switched on.⇒ page 95
lights: Driving light totally or partially faulty.⇒ page 329flashes: Fault in the adaptive light system.⇒ page 95
Fault in catalytic converter.
⇒ page 231lights: pre-ignition of diesel engine.flashes: Fault in engine management.
Fault in engine management.
Diesel particulate filter blocked
Fault in the steering system.⇒ page 168
Tyre pressure too low.⇒ page 296Fault in the tyre pressure gauge.⇒ page 224
Level of windscreen washer fluid too low.⇒ page 105
Fuel tank almost empty.⇒ page 267 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

56Cockpit
SymbolMeaning ⇒ See
flashes: Engine oil sensor faulty.⇒ page 282lights: Insufficient engine oil.
Fault in airbag system and seat belt tensioners.⇒ page 32

Front passenger front airbag is disabled ( PAS-
SENGER AIRBAG  ).⇒ page 32
Top up "AdBlue", or there is a fault in the "AdBl-
ue" system.⇒ page 274
Fuel tank not closed correctly.⇒ page 267
Lane assist is switched on, but not active.⇒ page 217
Green symbols
SymbolMeaning ⇒ See

Left or right turn signal.⇒ page 95
Hazard warning lights on.⇒ page 315
Use the foot brake!
Change
⇒ page 175
Brake
⇒ page 184
Cruise control operating.⇒ page 213
Lane assist is switched on and active.⇒ page 217
Blue symbols
SymbolMeaning ⇒ See
Main beam on or flasher on.⇒ page 95
Headlight adjustment (Light Assist) on.
Other control lamps
SymbolMeaning ⇒ See
Electronic immobiliser active.⇒ page 171
Service interval display⇒ page 61
Mobile telephone is connected via Bluetooth to
the original telephone device.⇒ Book-
let Bluetooth
System
Mobile telephone battery charge meter. Availa-
ble only for pre-installed factory-fitted devices.
Freezing warning. The outside temperature is
lower than +4 °C (+39 °F).⇒ page 59
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
● Never ignore the warning lamps or text messages.
● Stop the vehicle safely as soon as possible.
● Park the vehicle away from the traffic, ensuring that there are no easi-
ly inflammable materials under the vehicle which could come into contact
with the exhaust system (e.g. dry grass, fuel). 

57
Cockpit
WARNING (Continued)
● A faulty vehicle represents a risk of accident for the driver and for oth-
er road users. If necessary, switch on the hazard warning lamps and put
out the warning triangle to advise other drivers.
● Before opening the bonnet, switch off the engine and allow it to cool.
● In any vehicle, the engine compartment is a hazardous area and could
cause severe injuries ⇒ page 278.
CAUTION
Failure to heed the control lamps and text messages when they appear may
result in faults in the vehicle. Instruments
Introduction
Additional information and warnings:
● Control and warning lamps ⇒ page 54
● Gear engaged display (automatic gearbox) ⇒ page 175
● Instructions for inspection intervals ⇒ Booklet Maintenance Programme
WARNING
Any distraction may lead to an accident, with the risk of injury.
● Do not operate the instrument panel controls when driving.

View of instrument panel
Fig. 35 Instrument panel, on dash panel
Details of the instruments ⇒ Fig. 35: 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

58Cockpit
Clock set button 1)
.
– Press button 
to select the hour or minute display.
– To continue setting the time, press button 0.0 / SET
7. Hold button
down to scroll through the numbers quickly.
– Press button 
again to end the clock setting.
Rev counter (with the engine running, in thousands of revolutions per
minute).
The beginning of the red zone of the rev counter indicates the maxi-
mum speed in any gear after running-in and with the engine hot. How-
ever, it is advisable to change up a gear or move the selector lever to D
(or lift your foot off the accelerator) before the needle reaches the red
zone ⇒ 
.
Engine coolant temperature display  ⇒ page 286.
Displays on the screen ⇒ page 58.
Fuel reserve display ⇒ page 267.
Speedometer.
Reset knob for trip recorder (trip).
– Press button 0.0 / SET
to reset to zero.
CAUTION
To prevent damage to the engine, the rev counter needle should only re-
main in the red zone for a short period of time.
For the sake of the environment
Changing up a gear in time reduces fuel consumption and noise. 
1
2
34567
Displays on screen
A variety of information can be viewed on the instrument panel display
⇒ 
Fig. 35 4, depending on the vehicle equipment:
● Warning and information texts
● Mileage
● Time
● Outside temperature
● Compass
● Selector lever positions ⇒ page 175
● Recommended gear (manual gearbox) ⇒ page 175
● Multifunction display (MFI) and menus for different setting options
⇒ page 62
● Service interval display ⇒ page 61
● Second speed display (menu Configuration) ⇒ page 62
● Start/Stop operation indicator ⇒ page 59
Warning and information texts
The system runs a check on certain components and functions when the ig-
nition is switched on and while the vehicle is moving. Faults in the opera-
tion are displayed on the screen using red and yellow symbols and messag-
es on the instrument panel display ( ⇒ page 54) and, in some cases, with
audible warnings. The display may vary according to the type of instrument
panel fitted. 
1)
Depending on the vehicle equipment, it is also possible to set the time using the settings
menu on the instrument panel display ⇒ page 67.
