8Safe driving
● Check that the lights and turn signals operate correctly.
● Check the tyre pressures ( ⇒ page 296) and level of fuel ( ⇒ page 267).
● Ensure there is good visibility through all the windows.
● Make sure that all objects and bags in the storage compartments, in the
luggage compartment and, where applicable, on the roof, are securely fas-
tened ⇒ page 13.
● Ensure there is nothing obstructing the free passage of the foot pedals.
● Use child retention systems appropriate for the child's body weight and
height ⇒ page 40.
● Correctly adjust front seat, head rests and rear vision mirrors to suit your
height ⇒ page 10.
● Wear close-fitting shoes which do not prevent you from using the pedals
correctly.
● The driver's floor mat should be fixed to the floor, leaving the pedal area
unobstructed.
● Before starting out, ensure you are correctly seated and remain in this
position throughout the journey. This applies to all passengers in the vehi-
cle ⇒ page 10.
● Correctly fasten your seat belt before starting to drive and keep it se-
curely fastened throughout the journey. This applies to all passengers in the
vehicle ⇒ page 21.
● Never carry more passengers than the number of available seats and
seat belts in your vehicle.
● Never drive with impaired faculties (for example, due to medication, al-
cohol or drugs).
● Do not allow yourself to be distracted from the traffic, for example, to re-
set or switch on a menu, by other passengers or to answer a phone call.
● Always try to adapt the speed of the vehicle and your style of driving to
the condition of the ground or the road and to weather and traffic condi-
tions.
● Observe the highway code and speed limits. ●
On long journeys, rest at regular intervals (at least every two hours).
● If carrying animals, make sure they are correctly restrained in accord-
ance with their weight and size.
WARNING
Always observe traffic regulations and speed limits and try to anticipate
traffic movements. Correctly anticipating traffic situations may mean the
difference between arriving safe and sound at your destination or having
a serious accident.
Note
Regular servicing of your vehicle not only helps to keep it in good working
order but also helps to ensure road safety. Therefore, please ensure the ve-
hicle is taken for service as indicated in the Maintenance Programme. If the
vehicle is subjected to hard use, it may require certain maintenance work
before the next service date. Hard use may involve frequent driving in traffic
jams, driving in dusty areas or frequent use of the tow bar. For further infor-
mation, please refer to a Technical Service or specialised workshop. 
Driving abroad
Check list
In some countries, certain safety regulations and requirements are in force
relating to exhaust gas emissions, which differ from the technical character-
istics of the vehicle. Before travelling abroad, SEAT recommends you con-
sult a Technical Service about the legal requirements and the following
points:
● Does the vehicle need technical modifications for driving abroad, for ex-
ample, adjustment of the headlamps?
● Does the vehicle have all the tools, diagnostics equipment and spare
parts required for inspections and repairs? 

53
Cockpit
Operating instructions Cockpit
Overview Overview of the dash panel
This overview will help you to familiarise yourself with the
controls and displays. Door release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Central lock button    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Switch for adjusting the exterior mirrors . . . . . . . . . . . . . . . . . . . .110
– Exterior mirror adjustment     
– Heated exterior mirrors 
– Folding exterior mirrors 
Instrument panel controls and lighting control  . . . . . . . . . . .95
Headlamp range adjustment  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Light switch  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
– Light off - -
– Automatic dipped beam headlight control - -
– Side/dipped lights  
– Fog lights  
Controls on the multi-function steering wheel . . . . . . . . . . . . . . .62
– Volume control for radio, navigation system and phone
conversations  – 
– Radio mute or voice control activation 
1
23
456
7
–
Activate telephone main menu or accept an incoming call

– SEAT information system control buttons , , OK, 
Lever for . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
– Main beam headlights 
– Headlight flasher 
– Turn signals 
– Parking lights 
Instrument panel:
– Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
– Digital display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
– Control and warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Horn (works only when the ignition is on)/Front driver airbag 32
Windscreen wiper/ windscreen wash lever . . . . . . . . . . . . . . . . . .105
– Windscreen wipers  – 
– Intermittent wipe 
– “Brief wipe” x
– Windscreen wipers 
– Automatic windscreen wash/wipe 
– Rear window wiper 
– Automatic rear window wash/wipe 
– Lever with buttons for controlling the SEAT information
system - , / . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Left seat heating controls  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
8
9
1011
12
Safety FirstOperating instructionsPractical tipsTechnical Specifications

69
Cockpit
Convenience menuFunctionRear vision mirror adjustmentTilts passenger mirror downwards when reverse gear is engaged. This enables the driver to see the edge of the pavement,
for example ⇒ page 110.
Exterior mirror adjust.If synchronised adjustment is selected, when the driver side exterior mirror is adjusted, the passenger exterior mirror is also
moved.
Factory settingsSome functions of the Convenience submenu will be reset to the factory value.BackThe Configuration menu is displayed again.
Lights & visibility submenu
Lights & visi-
bility menuFunction
Coming HomeThis permits the adjustment of the time the headlamps
stay on after locking or unlocking the vehicle, the function
can also be connected or disconnected here ⇒ page 100.Leaving Home
Footwell lightThis permits the adjustment of the brightness of the foot-
well lighting when the doors are open, the function can al-
so be connected or disconnected here
Convenience
turn signalsSwitching convenience turn signals on and off When the
convenience turn signals are connected, when the turn
signal is switched on, these flash at least three times
⇒ page 95.
Factory set-
tingsAll the configurations in the submenu Lights & visibility are
reset to the predefined factory values.
Tourist lightHeadlamp adjustment for countries in which vehicles are
driven on the other side of the road. When the mark is acti-
vated, the headlamps of a left-hand drive vehicle are ad-
justed for driving on the left. This function must only be
used for a short period.
BackThe Configuration menu is displayed again. Personal convenience settings
When two people use a vehicle, SEAT recommends that each person always
uses “their” own remote control key. When the ignition is switched off, or
the vehicle is locked, the personal convenience settings are stored and au-
tomatically allocated to the vehicle key
⇒ page 62.
The values of the personalised convenience settings of the following menu
options are allocated to the vehicle key: ■ Parking heating menu
■ Configuration Menu
■ Time
■ Language
■ Units
■ Convenience settings menu
■ Door unlock (individual opening, Auto Lock)
■ Convenience handling of windows
■ Rear vision mirror adjustment
■ Lights & visibility settings menu
■ Coming home and Leaving home
■ Footwell light
■ Convenience turn signals 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

95
Lights and visibility
Lights and visibility
Lights Introduction
The legal requirements regarding the use of vehicle lights in each country
must be observed.
The driver is personally responsible for the correct use and adjustment of
the lights in all situations.
Additional information and warnings:
● SEAT information system ⇒ page 62
● Changing bulbs ⇒ page 329
WARNING
If the headlights are set too high and the main beam is not used correct-
ly, there is a risk of dazzling or distracting other road users. This could
result in a serious accident.
● Always make sure that the headlights are correctly adjusted.
● Never use the main beam or flashed headlamps as this could dazzle
other drivers.
 Control lamps
lights upPossible causeSolution

Driving light totally or partially
faulty.
Replace the corresponding
bulb ⇒ page 329.
If all the bulbs are OK, the vehi-
cle should be taken to a speci-
alised workshop if necessary.
Fault in adaptive light.⇒ page 99.
Rear fog light switched on.⇒ page 98.
Fog lights switched on
 
Left or right turn signal.
The control lamp flashes twice
as fast when a vehicle or trailer
turn signal is faulty.If necessary, check the vehicle
and trailer lighting.
Main beam on or flasher on.⇒ page 96.
Headlight adjustment (Light
Assist) on.⇒ page 98.
flashesPossible causeSolution
Fault in the adaptive light sys-
tem.Contact a specialised work-
shop ⇒ page 98.
Several warning and control lamps should light up for a few seconds when
the ignition is switched on, signalling that the function is being verified.
They will switch off after a few seconds.

Safety FirstOperating instructionsPractical tipsTechnical Specifications

100Lights and visibility
● If the windscreen is damaged by the impact from a stone in the camera's
field of vision
● If the camera's field of vision is misted up, dirty or covered by a sticker,
snow or ice.
WARNING
The greater comfort that the headlight adjustment provides (automatic
also) must not cause you to take risks. The system is not a replacement
for driver awareness.
● Always monitor the lights yourself and adjust them depending on the
light, visibility and traffic conditions.
● The headlight adjustment (automatic also) may not correctly detect
all situations and in certain situations may only provide limited function.
● If the windscreen is damaged or modifications are made to the vehi-
cle lighting, this may harm the functioning of the headlight adjustment
(automatic also), for example, if additional headlight are fitted.
Note
Main beam and flashed headlights can be turned on and off manually at
any time with the turn signal and main beam lever ⇒ page 96.
Adhesive strips for headlights or adjusting headlights
In those countries where vehicles drive on the other side of the road to the
home country, the asymmetric dipped beam may dazzle drivers of oncom-
ing vehicles. Therefore, when driving abroad, adhesive strips should be at-
tached to the headlights or the headlights should be adjusted accordingly.
The direction of the headlights can be adjusted from the instrument panel,
in the Tourist light submenu of the Configuration menu
⇒ page 67. For those vehicles in which it is not possible to adjust the headlights from
the menu, adhesive strips are used to cover certain parts of the headlamp
cover or the headlights may be adjusted at a specialised workshop. For fur-
ther information, please refer to a specialised workshop. SEAT recommends
visiting a Technical Service.
Note
Use of the Tourist light option and the adhesives on the headlights is only
allowed if they are to be used for a short period of time. To modify the direc-
tion of the headlights permanently, please take the vehicle to a specialised
workshop. SEAT recommends visiting a Technical Service. 
“Coming home” and “Leaving home” function (guidance
lights)
The “Coming home” function should be switched on manually. However the
“Leaving home” function is automatically controlled by a photo sensor.
“Coming home”Necessary operations
To switch sys-
tem on:
– Switch off the ignition.
– Briefly flash the headlights for approximately one sec-
ond ⇒ page 96.
The “Coming home” lighting comes on when the driver
door is opened. The delay in switching off the headlights
is counted from when the last door or rear lid is closed.
To switch sys-
tem off:
– Automatically at the end of the delay period.
– Automatically, if 30 seconds after coming on, a vehicle
door rear lid remains open.
– If the light switch is turned to position .
– If the ignition is switched on. 

250Vehicle maintenance and cleaning

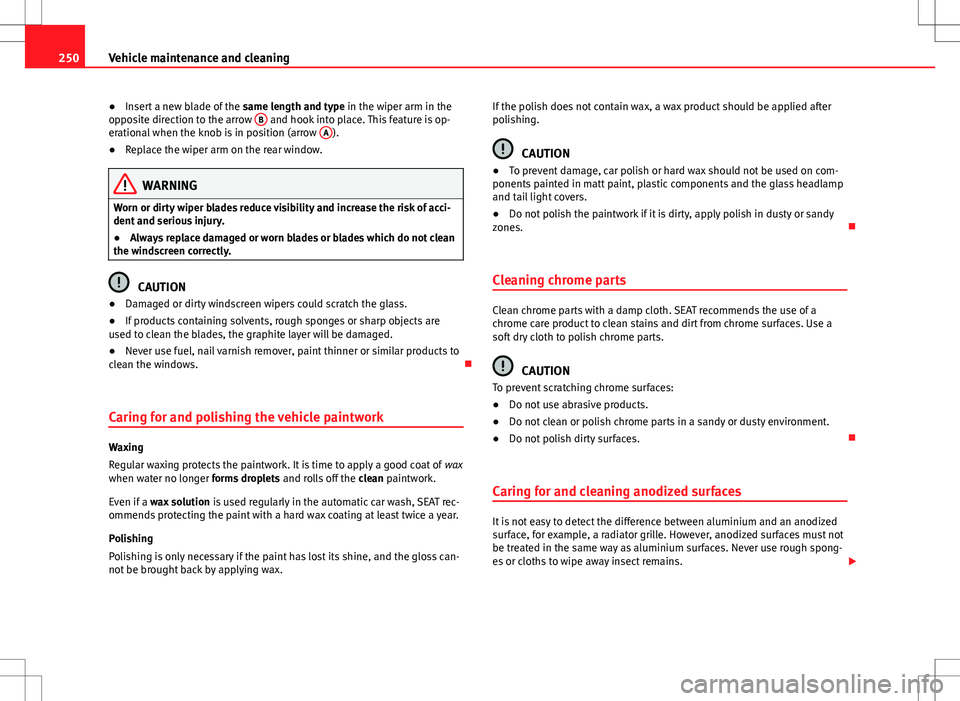

● Insert a new blade of the same length and type in the wiper arm in the
opposite direction to the arrow B
and hook into place. This feature is op-
erational when the knob is in position (arrow A).
● Replace the wiper arm on the rear window.
WARNING
Worn or dirty wiper blades reduce visibility and increase the risk of acci-
dent and serious injury.
● Always replace damaged or worn blades or blades which do not clean
the windscreen correctly.
CAUTION
● Damaged or dirty windscreen wipers could scratch the glass.
● If products containing solvents, rough sponges or sharp objects are
used to clean the blades, the graphite layer will be damaged.
● Never use fuel, nail varnish remover, paint thinner or similar products to
clean the windows. 
Caring for and polishing the vehicle paintwork
Waxing
Regular waxing protects the paintwork. It is time to apply a good coat of wax
when water no longer forms droplets and rolls off the clean paintwork.
Even if a wax solution is used regularly in the automatic car wash, SEAT rec-
ommends protecting the paint with a hard wax coating at least twice a year.
Polishing
Polishing is only necessary if the paint has lost its shine, and the gloss can-
not be brought back by applying wax. If the polish does not contain wax, a wax product should be applied after
polishing.
CAUTION
● To prevent damage, car polish or hard wax should not be used on com-
ponents painted in matt paint, plastic components and the glass headlamp
and tail light covers.
● Do not polish the paintwork if it is dirty, apply polish in dusty or sandy
zones. 
Cleaning chrome parts
Clean chrome parts with a damp cloth. SEAT recommends the use of a
chrome care product to clean stains and dirt from chrome surfaces. Use a
soft dry cloth to polish chrome parts.
CAUTION
To prevent scratching chrome surfaces:
● Do not use abrasive products.
● Do not clean or polish chrome parts in a sandy or dusty environment.
● Do not polish dirty surfaces. 
Caring for and cleaning anodized surfaces
It is not easy to detect the difference between aluminium and an anodized
surface, for example, a radiator grille. However, anodized surfaces must not
be treated in the same way as aluminium surfaces. Never use rough spong-
es or cloths to wipe away insect remains. 

329
If and when
Changing bulbs
Introduction
Changing bulbs requires a certain amount of manual skill. If you are unsure,
SEAT recommends that you consult a Technical Service or request assis-
tance from a specialist. In general, a specialist is required if other vehicle
components must be removed or if the discharge lamps must be replaced.
You should store spare light bulbs in the vehicle for safety-relevant lights.
Spare bulbs may be obtained from the Technical Services. In some coun-
tries, it is a legal requirement to carry spare bulbs in the vehicle.
Driving with faults and blown bulbs on the vehicle exterior lighting is
against the law.
Additional bulb specifications
The specifications of some headlamp bulbs and bulbs for the tail lamps fit-
ted at the factory may be different to those of conventional bulbs. Bulb in-
formation is displayed on the bulb socket or on the bulb itself.
Additional information and warnings:
● Lights and visibility ⇒ page 95
● Working in the engine compartment ⇒ page 278
● Vehicle tools ⇒ page 323
● Fuses ⇒ page 325
WARNING
If the road is not well-lit and the vehicle is not clearly visible to other
drivers, there is a risk of accident.
WARNING
Failure to replace bulbs correctly may cause serious accidents.
● Before carrying out any work in the engine compartment please read
and observe the warnings ⇒ page 278. In any vehicle, the engine com-
partment is a hazardous area and could cause severe injury.
● Discharge lamps work with high-voltage and can cause serious or fa-
tal injury if handled incorrectly.
● H7 and discharge lamps are highly pressurised and could explode
when being changed.
● Only replace the bulbs concerned when they have cooled.
● Never replace bulbs alone if you are not familiar with the operations
necessary. If you are not sure about procedures then visit a specialised
workshop to carry out the necessary work.
● Never touch the bulb glass directly. Fingerprints will be evaporated by
the heat of the operating bulb thus “fogging” up the reflector.
● The headlamp frameworks in the engine compartment and the tail
lamps contain sharp elements. Always protect your hands when chang-
ing bulbs.
CAUTION
After changing a bulb, if the rubber covers and plastic caps are not replaced
correctly on the headlamp framework, the electrical installation may be
damaged, especially if water is allowed to enter. 
Control lamp
lights upPossible causeSolution
A vehicle exterior lighting
bulb is not working.Replace the faulty bulb. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

333
If and when
To replace the xenon headlights bulb
Fig. 207 In the engine
compartment: Turn signal
cover
Fig. 208 Turn signal
lamp holder 1 and turn-
ing light 2
There is no need to remove the headlight to replace bulbs.
Complete operations only in the sequence given:
Turn signals 1Turning lights 2
1.Always take the checklist into account and take the necessary ac-
tions ⇒ page 330.
2.Open the bonnet  ⇒ page 278.
3.Rotate the cover ⇒  Fig. 207 in the direction of the arrow and remove
it.
4.
Rotate the lamp holder 1⇒ Fig. 208 to the left all the way
and pull it out backwards with
the bulb.Press the wire clip downwards
and pull the lamp holder 2
⇒ Fig. 208 out with the bulb.
5.Depending on the model, the bulb is removed directly from the
lamp holder or it may need to be rotated and then removed.
6.Replace the faulty bulb by a new identical bulb.
7.Place the bulb holder in the
headlight and rotate to the right
all the way.Place the lamp holder in the
headlight and pull the wire clip
upwards until it clicks into place.
8.Rotate the cover ⇒  Fig. 207 in the opposite direction to the arrow as
far as it will go.
Always seek the help of a specialist when changing the Xenon dipped beam
and main beam headlamps ⇒  in Introduction on page 329.
Note
The illustrations show the left hand headlight. The structure of the right
hand side headlight is symmetric. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

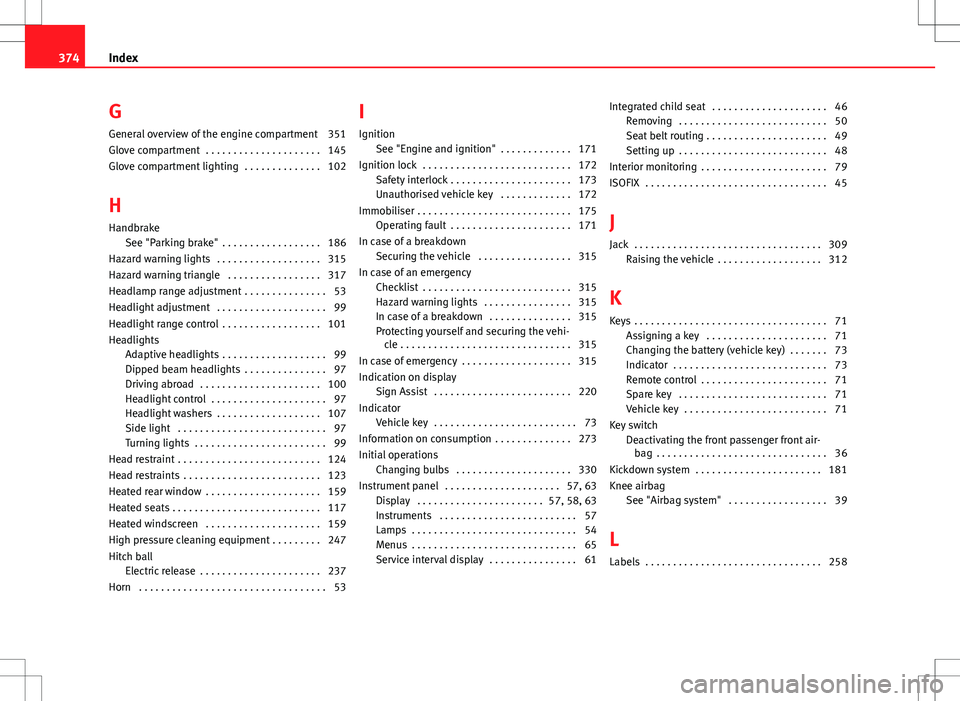

GGeneral overview of the engine compartment 351
Glove compartment . . . . . . . . . . . . . . . . . . . . . 145
Glove compartment lighting . . . . . . . . . . . . . . 102
H Handbrake See "Parking brake" . . . . . . . . . . . . . . . . . . 186
Hazard warning lights . . . . . . . . . . . . . . . . . . . 315
Hazard warning triangle . . . . . . . . . . . . . . . . . 317
Headlamp range adjustment . . . . . . . . . . . . . . . 53
Headlight adjustment . . . . . . . . . . . . . . . . . . . . 99
Headlight range control . . . . . . . . . . . . . . . . . . 101
Headlights Adaptive headlights . . . . . . . . . . . . . . . . . . . 99
Dipped beam headlights . . . . . . . . . . . . . . . 97
Driving abroad . . . . . . . . . . . . . . . . . . . . . . 100
Headlight control . . . . . . . . . . . . . . . . . . . . . 97
Headlight washers . . . . . . . . . . . . . . . . . . . 107
Side light . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Turning lights . . . . . . . . . . . . . . . . . . . . . . . . 99
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . 123
Heated rear window . . . . . . . . . . . . . . . . . . . . . 159
Heated seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Heated windscreen . . . . . . . . . . . . . . . . . . . . . 159
High pressure cleaning equipment . . . . . . . . . 247
Hitch ball Electric release . . . . . . . . . . . . . . . . . . . . . . 237
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 I
Ignition See "Engine and ignition" . . . . . . . . . . . . . 171
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 Safety interlock . . . . . . . . . . . . . . . . . . . . . . 173
Unauthorised vehicle key . . . . . . . . . . . . . 172
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 Operating fault . . . . . . . . . . . . . . . . . . . . . . 171
In case of a breakdown Securing the vehicle . . . . . . . . . . . . . . . . . 315
In case of an emergency Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Hazard warning lights . . . . . . . . . . . . . . . . 315
In case of a breakdown . . . . . . . . . . . . . . . 315
Protecting yourself and securing the vehi-cle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
In case of emergency . . . . . . . . . . . . . . . . . . . . 315
Indication on display Sign Assist . . . . . . . . . . . . . . . . . . . . . . . . . 220
Indicator Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Information on consumption . . . . . . . . . . . . . . 273
Initial operations Changing bulbs . . . . . . . . . . . . . . . . . . . . . 330
Instrument panel . . . . . . . . . . . . . . . . . . . . . 57, 63 Display . . . . . . . . . . . . . . . . . . . . . . . 57, 58, 63
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . 57
Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Service interval display . . . . . . . . . . . . . . . . 61 Integrated child seat . . . . . . . . . . . . . . . . . . . . . 46
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Seat belt routing . . . . . . . . . . . . . . . . . . . . . . 49
Setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Interior monitoring . . . . . . . . . . . . . . . . . . . . . . . 79
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
J Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309 Raising the vehicle . . . . . . . . . . . . . . . . . . . 312
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Assigning a key . . . . . . . . . . . . . . . . . . . . . . 71
Changing the battery (vehicle key) . . . . . . . 73
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Remote control . . . . . . . . . . . . . . . . . . . . . . . 71
Spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Key switch Deactivating the front passenger front air-bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Kickdown system . . . . . . . . . . . . . . . . . . . . . . . 181
Knee airbag See "Airbag system" . . . . . . . . . . . . . . . . . . 39
L
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
374 Index
