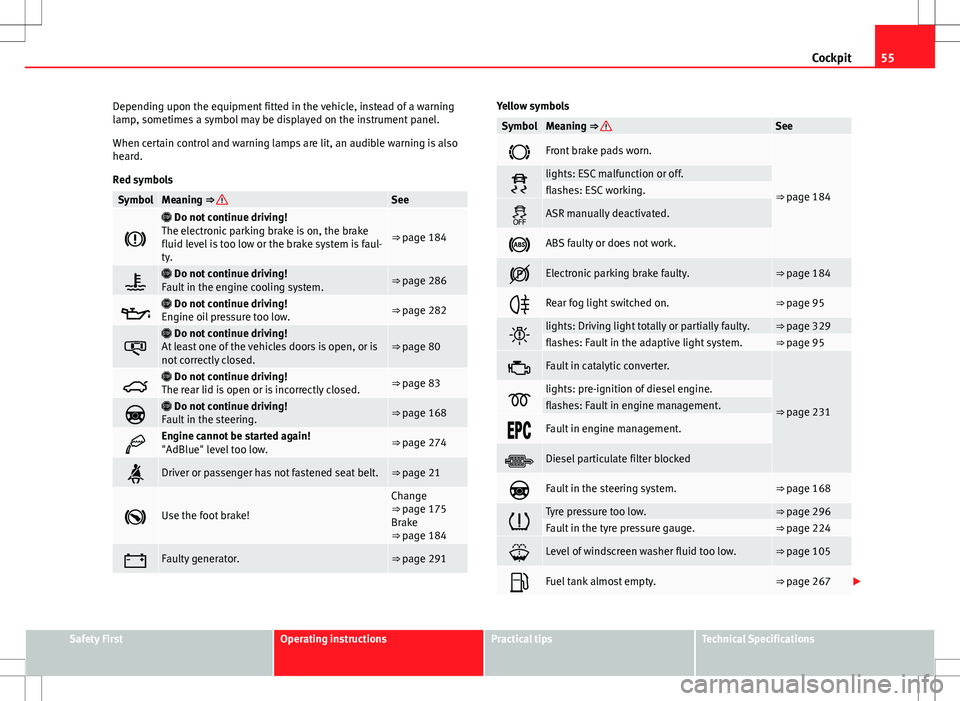

55
Cockpit
Depending upon the equipment fitted in the vehicle, instead of a warning
lamp, sometimes a symbol may be displayed on the instrument panel.
When certain control and warning lamps are lit, an audible warning is also
heard.
Red symbols
SymbolMeaning ⇒ See

 Do not continue driving!
The electronic parking brake is on, the brake
fluid level is too low or the brake system is faul-
ty.
⇒ page 184
 Do not continue driving!
Fault in the engine cooling system.⇒ page 286
 Do not continue driving!
Engine oil pressure too low.⇒ page 282

 Do not continue driving!
At least one of the vehicles doors is open, or is
not correctly closed.⇒ page 80
 Do not continue driving!
The rear lid is open or is incorrectly closed.⇒ page 83
 Do not continue driving!
Fault in the steering.⇒ page 168
Engine cannot be started again!
"AdBlue" level too low.⇒ page 274
Driver or passenger has not fastened seat belt.⇒ page 21
Use the foot brake!
Change
⇒ page 175
Brake
⇒ page 184
Faulty generator.⇒ page 291
Yellow symbols
SymbolMeaning ⇒ See
Front brake pads worn.
⇒ page 184lights: ESC malfunction or off.flashes: ESC working.
ASR manually deactivated.
ABS faulty or does not work.
Electronic parking brake faulty.⇒ page 184
Rear fog light switched on.⇒ page 95
lights: Driving light totally or partially faulty.⇒ page 329flashes: Fault in the adaptive light system.⇒ page 95
Fault in catalytic converter.
⇒ page 231lights: pre-ignition of diesel engine.flashes: Fault in engine management.
Fault in engine management.
Diesel particulate filter blocked
Fault in the steering system.⇒ page 168
Tyre pressure too low.⇒ page 296Fault in the tyre pressure gauge.⇒ page 224
Level of windscreen washer fluid too low.⇒ page 105
Fuel tank almost empty.⇒ page 267 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

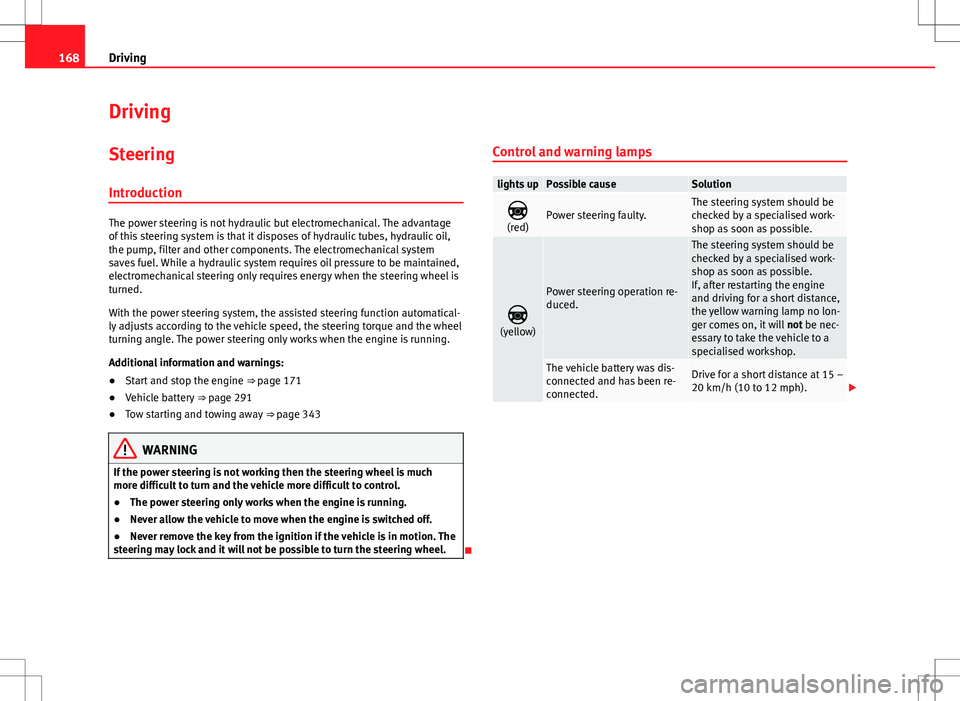

168Driving
Driving
SteeringIntroduction
The power steering is not hydraulic but electromechanical. The advantage
of this steering system is that it disposes of hydraulic tubes, hydraulic oil,
the pump, filter and other components. The electromechanical system
saves fuel. While a hydraulic system requires oil pressure to be maintained,
electromechanical steering only requires energy when the steering wheel is
turned.
With the power steering system, the assisted steering function automatical-
ly adjusts according to the vehicle speed, the steering torque and the wheel
turning angle. The power steering only works when the engine is running.
Additional information and warnings:
● Start and stop the engine ⇒ page 171
● Vehicle battery ⇒ page 291
● Tow starting and towing away ⇒ page 343
WARNING
If the power steering is not working then the steering wheel is much
more difficult to turn and the vehicle more difficult to control.
● The power steering only works when the engine is running.
● Never allow the vehicle to move when the engine is switched off.
● Never remove the key from the ignition if the vehicle is in motion. The
steering may lock and it will not be possible to turn the steering wheel.
 Control and warning lamps
lights upPossible causeSolution

(red)Power steering faulty.The steering system should be
checked by a specialised work-
shop as soon as possible.

(yellow)
Power steering operation re-
duced.
The steering system should be
checked by a specialised work-
shop as soon as possible.
If, after restarting the engine
and driving for a short distance,
the yellow warning lamp no lon-
ger comes on, it will not be nec-
essary to take the vehicle to a
specialised workshop.
The vehicle battery was dis-
connected and has been re-
connected.Drive for a short distance at 15 –
20 km/h (10 to 12 mph). 

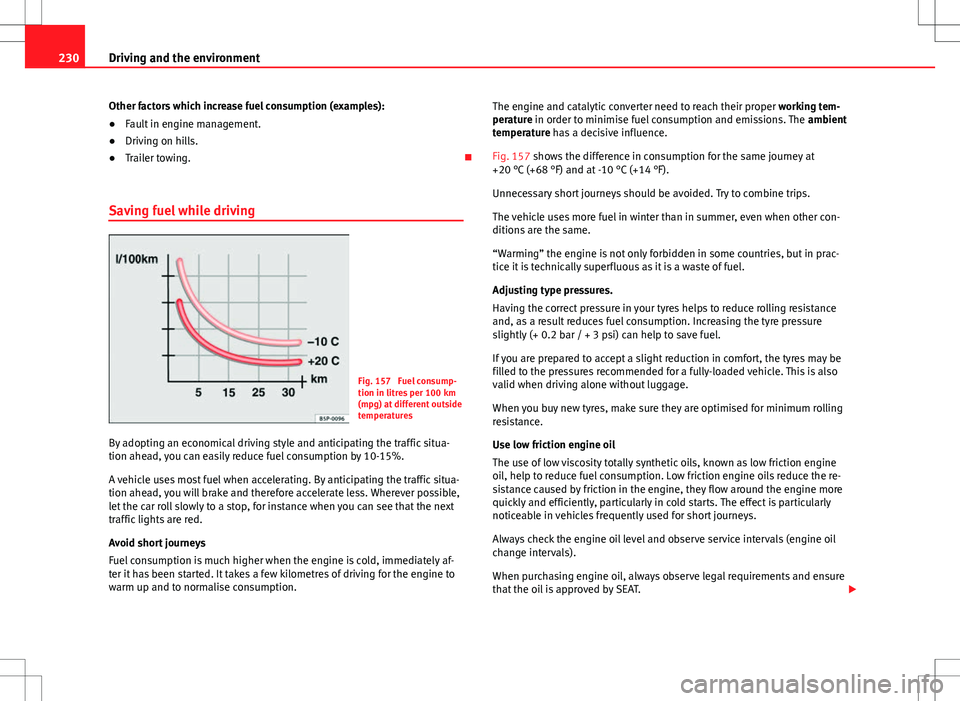

230Driving and the environment
Other factors which increase fuel consumption (examples):
●Fault in engine management.
● Driving on hills.
● Trailer towing. 
Saving fuel while driving
Fig. 157 Fuel consump-
tion in litres per 100 km
(mpg) at different outside
temperatures
By adopting an economical driving style and anticipating the traffic situa-
tion ahead, you can easily reduce fuel consumption by 10-15%.
A vehicle uses most fuel when accelerating. By anticipating the traffic situa-
tion ahead, you will brake and therefore accelerate less. Wherever possible,
let the car roll slowly to a stop, for instance when you can see that the next
traffic lights are red.
Avoid short journeys
Fuel consumption is much higher when the engine is cold, immediately af-
ter it has been started. It takes a few kilometres of driving for the engine to
warm up and to normalise consumption. The engine and catalytic converter need to reach their proper
working tem-
perature in order to minimise fuel consumption and emissions. The ambient
temperature has a decisive influence.
Fig. 157 shows the difference in consumption for the same journey at
+20 °C (+68 °F) and at -10 °C (+14 °F).
Unnecessary short journeys should be avoided. Try to combine trips.
The vehicle uses more fuel in winter than in summer, even when other con-
ditions are the same.
“Warming” the engine is not only forbidden in some countries, but in prac-
tice it is technically superfluous as it is a waste of fuel.
Adjusting type pressures.
Having the correct pressure in your tyres helps to reduce rolling resistance
and, as a result reduces fuel consumption. Increasing the tyre pressure
slightly (+ 0.2 bar / + 3 psi) can help to save fuel.
If you are prepared to accept a slight reduction in comfort, the tyres may be
filled to the pressures recommended for a fully-loaded vehicle. This is also
valid when driving alone without luggage.
When you buy new tyres, make sure they are optimised for minimum rolling
resistance.
Use low friction engine oil
The use of low viscosity totally synthetic oils, known as low friction engine
oil, help to reduce fuel consumption. Low friction engine oils reduce the re-
sistance caused by friction in the engine, they flow around the engine more
quickly and efficiently, particularly in cold starts. The effect is particularly
noticeable in vehicles frequently used for short journeys.
Always check the engine oil level and observe service intervals (engine oil
change intervals).
When purchasing engine oil, always observe legal requirements and ensure
that the oil is approved by SEAT. 

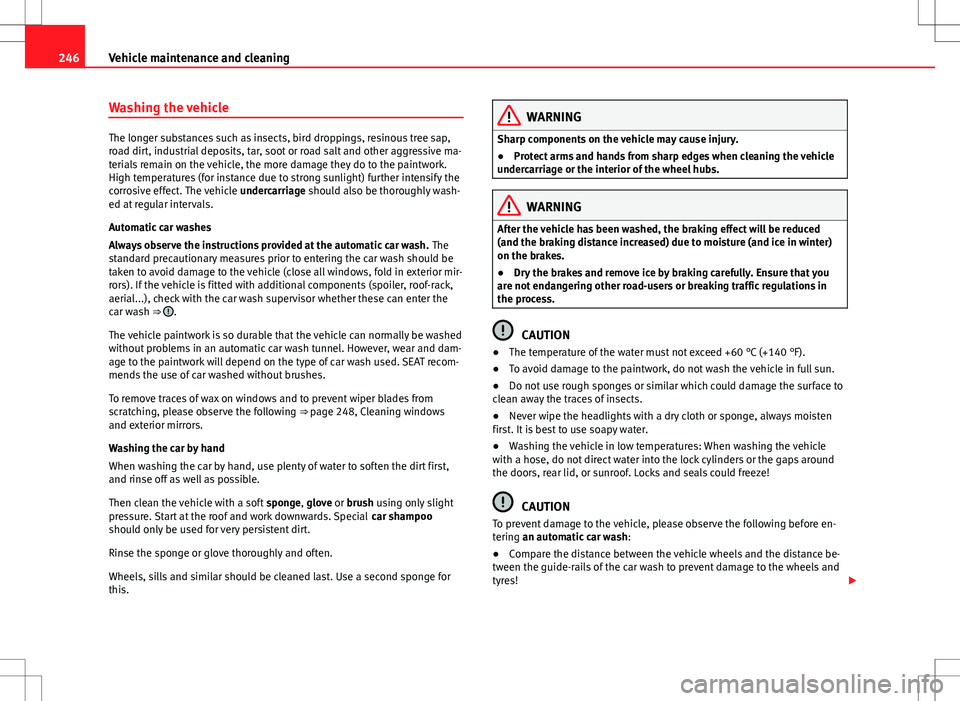

246Vehicle maintenance and cleaning
Washing the vehicle
The longer substances such as insects, bird droppings, resinous tree sap,
road dirt, industrial deposits, tar, soot or road salt and other aggressive ma-
terials remain on the vehicle, the more damage they do to the paintwork.
High temperatures (for instance due to strong sunlight) further intensify the
corrosive effect. The vehicle undercarriage should also be thoroughly wash-
ed at regular intervals.
Automatic car washes
Always observe the instructions provided at the automatic car wash. The
standard precautionary measures prior to entering the car wash should be
taken to avoid damage to the vehicle (close all windows, fold in exterior mir-
rors). If the vehicle is fitted with additional components (spoiler, roof-rack,
aerial...), check with the car wash supervisor whether these can enter the
car wash ⇒ 
.
The vehicle paintwork is so durable that the vehicle can normally be washed
without problems in an automatic car wash tunnel. However, wear and dam-
age to the paintwork will depend on the type of car wash used. SEAT recom-
mends the use of car washed without brushes.
To remove traces of wax on windows and to prevent wiper blades from
scratching, please observe the following ⇒ page 248, Cleaning windows
and exterior mirrors.
Washing the car by hand
When washing the car by hand, use plenty of water to soften the dirt first,
and rinse off as well as possible.
Then clean the vehicle with a soft sponge, glove or brush using only slight
pressure. Start at the roof and work downwards. Special car shampoo
should only be used for very persistent dirt.
Rinse the sponge or glove thoroughly and often.
Wheels, sills and similar should be cleaned last. Use a second sponge for
this.
WARNING
Sharp components on the vehicle may cause injury.
● Protect arms and hands from sharp edges when cleaning the vehicle
undercarriage or the interior of the wheel hubs.
WARNING
After the vehicle has been washed, the braking effect will be reduced
(and the braking distance increased) due to moisture (and ice in winter)
on the brakes.
● Dry the brakes and remove ice by braking carefully. Ensure that you
are not endangering other road-users or breaking traffic regulations in
the process.
CAUTION
● The temperature of the water must not exceed +60 °C (+140 °F).
● To avoid damage to the paintwork, do not wash the vehicle in full sun.
● Do not use rough sponges or similar which could damage the surface to
clean away the traces of insects.
● Never wipe the headlights with a dry cloth or sponge, always moisten
first. It is best to use soapy water.
● Washing the vehicle in low temperatures: When washing the vehicle
with a hose, do not direct water into the lock cylinders or the gaps around
the doors, rear lid, or sunroof. Locks and seals could freeze!
CAUTION
To prevent damage to the vehicle, please observe the following before en-
tering an automatic car wash :
● Compare the distance between the vehicle wheels and the distance be-
tween the guide-rails of the car wash to prevent damage to the wheels and
tyres! 

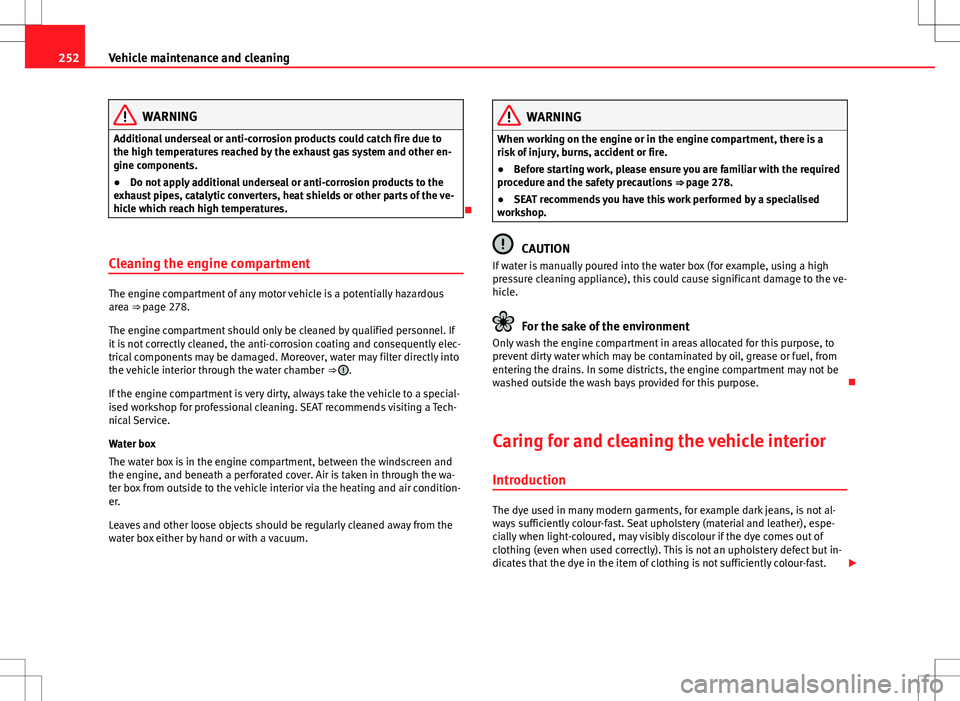

252Vehicle maintenance and cleaning
WARNING
Additional underseal or anti-corrosion products could catch fire due to
the high temperatures reached by the exhaust gas system and other en-
gine components.
● Do not apply additional underseal or anti-corrosion products to the
exhaust pipes, catalytic converters, heat shields or other parts of the ve-
hicle which reach high temperatures.

Cleaning the engine compartment
The engine compartment of any motor vehicle is a potentially hazardous
area ⇒ page 278. The engine compartment should only be cleaned by qualified personnel. If
it is not correctly cleaned, the anti-corrosion coating and consequently elec-
trical components may be damaged. Moreover, water may filter directly into
the vehicle interior through the water chamber ⇒ 
.
If the engine compartment is very dirty, always take the vehicle to a special-
ised workshop for professional cleaning. SEAT recommends visiting a Tech-
nical Service.
Water box
The water box is in the engine compartment, between the windscreen and
the engine, and beneath a perforated cover. Air is taken in through the wa-
ter box from outside to the vehicle interior via the heating and air condition-
er.
Leaves and other loose objects should be regularly cleaned away from the
water box either by hand or with a vacuum.
WARNING
When working on the engine or in the engine compartment, there is a
risk of injury, burns, accident or fire.
● Before starting work, please ensure you are familiar with the required
procedure and the safety precautions ⇒ page 278.
● SEAT recommends you have this work performed by a specialised
workshop.
CAUTION
If water is manually poured into the water box (for example, using a high
pressure cleaning appliance), this could cause significant damage to the ve-
hicle.
For the sake of the environment
Only wash the engine compartment in areas allocated for this purpose, to
prevent dirty water which may be contaminated by oil, grease or fuel, from
entering the drains. In some districts, the engine compartment may not be
washed outside the wash bays provided for this purpose. 
Caring for and cleaning the vehicle interior Introduction
The dye used in many modern garments, for example dark jeans, is not al-
ways sufficiently colour-fast. Seat upholstery (material and leather), espe-
cially when light-coloured, may visibly discolour if the dye comes out of
clothing (even when used correctly). This is not an upholstery defect but in-
dicates that the dye in the item of clothing is not sufficiently colour-fast. 

270Checking and refilling levels
Closing the fuel tank flap
● Screw on the tank cap clockwise until it you hear it click into position.
● Press the tank flap until you hear it click into place. The tank flap must
be flush with the body contour.
WARNING
Do not continue refilling once the fuel nozzle has switched itself off. The
fuel tank may be filled too much. As a result, fuel may spurt out and spill.
This could lead to a fire, explosion and severe injuries.
CAUTION
● Always remove any fuel spilled on the vehicle paintwork immediately to
avoid damage to the wheel housing, the tyre and vehicle paintwork.
For the sake of the environment
Spilt fuel can contaminate the environment. 
Refilling precautions
Information on bulb replacement ⇒ page 329.
Checklist
Never work on the engine or in the engine compartment if you are not famil-
iar with the operations to be carried out, the applicable safety standards
and especially if you do not have the instruments, liquids and tools neces-
sary ⇒ page 278, Working in the engine compartment! Have the work car-
ried out by a specialised workshop if you are uncertain. Check the following
regularly, preferably when you refuel:
● Windscreen washer fluid level ⇒ page 105
● Engine oil level ⇒ page 282 ●
Engine coolant level ⇒ page 286
● Brake fluid level ⇒ page 184
● Tyre pressure ⇒  page 296
● Vehicle lighting required to guarantee road safety:
Turn signals
Side lights, dipped beam headlights and main beam headlights
Rear lights
Brake lights
Rear fog light ⇒ page 97
WARNING
Not following the checklist prepared for your own safety could lead to ac-
cidents and severe injuries.
● Always follow the check list and perform the necessary operations.

Fuel Introduction
You will find a factory-fitted sticker containing information on the type of
fuel for your vehicle on the inside of the fuel tank flap.
Additional information and warnings:
● ⇒ Booklet Maintenance Programme
● Refuelling ⇒ page 267
● Engine and exhaust system management ⇒ page 231
–
–
–
–
–

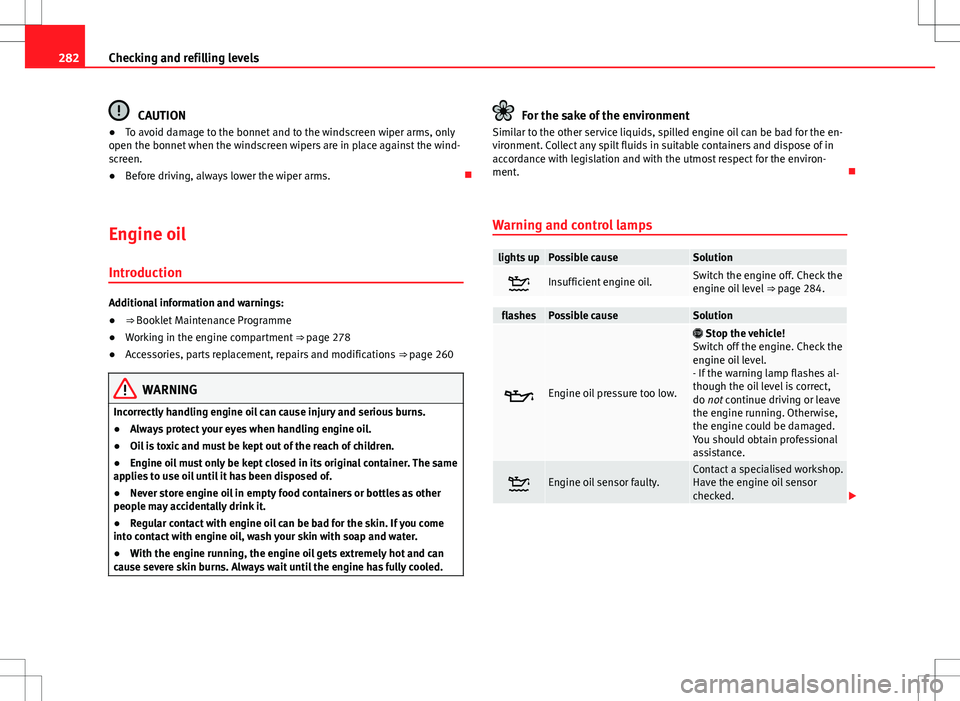

282Checking and refilling levels
CAUTION
● To avoid damage to the bonnet and to the windscreen wiper arms, only
open the bonnet when the windscreen wipers are in place against the wind-
screen.
● Before driving, always lower the wiper arms. 
Engine oil Introduction
Additional information and warnings:
● ⇒ Booklet Maintenance Programme
● Working in the engine compartment ⇒ page 278
● Accessories, parts replacement, repairs and modifications ⇒ page 260
WARNING
Incorrectly handling engine oil can cause injury and serious burns.
● Always protect your eyes when handling engine oil.
● Oil is toxic and must be kept out of the reach of children.
● Engine oil must only be kept closed in its original container. The same
applies to use oil until it has been disposed of.
● Never store engine oil in empty food containers or bottles as other
people may accidentally drink it.
● Regular contact with engine oil can be bad for the skin. If you come
into contact with engine oil, wash your skin with soap and water.
● With the engine running, the engine oil gets extremely hot and can
cause severe skin burns. Always wait until the engine has fully cooled.
For the sake of the environment
Similar to the other service liquids, spilled engine oil can be bad for the en-
vironment. Collect any spilt fluids in suitable containers and dispose of in
accordance with legislation and with the utmost respect for the environ-
ment. 
Warning and control lamps
lights upPossible causeSolution
Insufficient engine oil.Switch the engine off. Check the
engine oil level ⇒ page 284.
flashesPossible causeSolution
Engine oil pressure too low.
 Stop the vehicle!
Switch off the engine. Check the
engine oil level.
- If the warning lamp flashes al-
though the oil level is correct,
do not continue driving or leave
the engine running. Otherwise,
the engine could be damaged.
You should obtain professional
assistance.
Engine oil sensor faulty.Contact a specialised workshop.
Have the engine oil sensor
checked. 

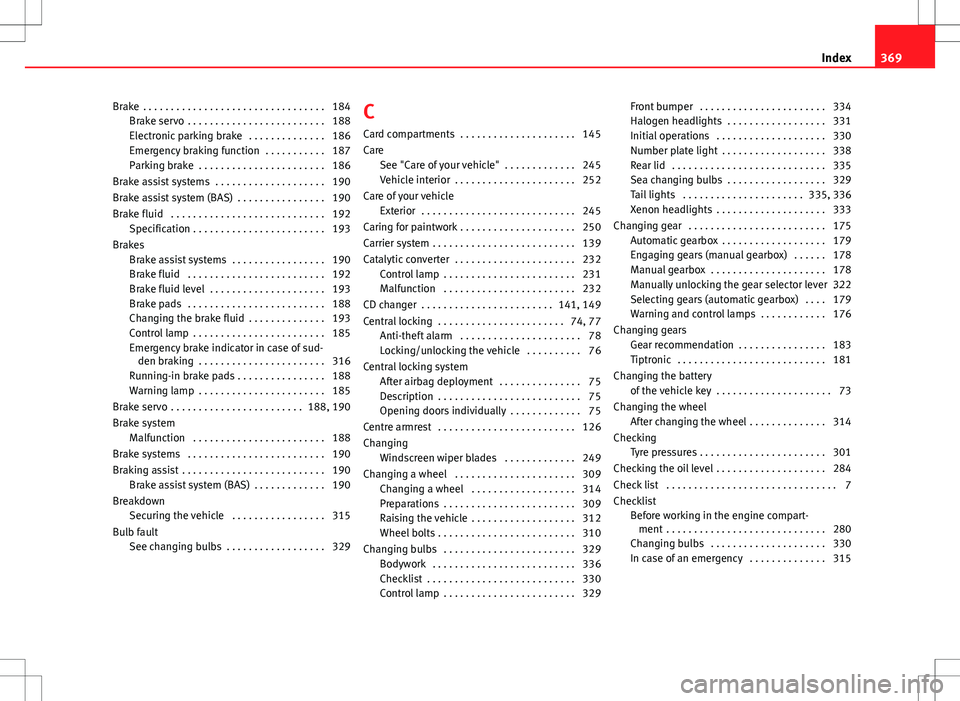

Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 188
Electronic parking brake . . . . . . . . . . . . . . 186
Emergency braking function . . . . . . . . . . . 187
Parking brake . . . . . . . . . . . . . . . . . . . . . . . 186
Brake assist systems . . . . . . . . . . . . . . . . . . . . 190
Brake assist system (BAS) . . . . . . . . . . . . . . . . 190
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 Specification . . . . . . . . . . . . . . . . . . . . . . . . 193
Brakes Brake assist systems . . . . . . . . . . . . . . . . . 190
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 192
Brake fluid level . . . . . . . . . . . . . . . . . . . . . 193
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 188
Changing the brake fluid . . . . . . . . . . . . . . 193
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 185
Emergency brake indicator in case of sud-den braking . . . . . . . . . . . . . . . . . . . . . . . 316
Running-in brake pads . . . . . . . . . . . . . . . . 188
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 185
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . 188, 190
Brake system Malfunction . . . . . . . . . . . . . . . . . . . . . . . . 188
Brake systems . . . . . . . . . . . . . . . . . . . . . . . . . 190
Braking assist . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Brake assist system (BAS) . . . . . . . . . . . . . 190
Breakdown Securing the vehicle . . . . . . . . . . . . . . . . . 315
Bulb fault See changing bulbs . . . . . . . . . . . . . . . . . . 329 C
Card compartments . . . . . . . . . . . . . . . . . . . . . 145
Care See "Care of your vehicle" . . . . . . . . . . . . . 245
Vehicle interior . . . . . . . . . . . . . . . . . . . . . . 252
Care of your vehicle Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Caring for paintwork . . . . . . . . . . . . . . . . . . . . . 250
Carrier system . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 232 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 231
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . 232
CD changer . . . . . . . . . . . . . . . . . . . . . . . . 141, 149
Central locking . . . . . . . . . . . . . . . . . . . . . . . 74, 77 Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . 78
Locking/unlocking the vehicle . . . . . . . . . . 76
Central locking system After airbag deployment . . . . . . . . . . . . . . . 75
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Opening doors individually . . . . . . . . . . . . . 75
Centre armrest . . . . . . . . . . . . . . . . . . . . . . . . . 126
Changing Windscreen wiper blades . . . . . . . . . . . . . 249
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . 309 Changing a wheel . . . . . . . . . . . . . . . . . . . 314
Preparations . . . . . . . . . . . . . . . . . . . . . . . . 309
Raising the vehicle . . . . . . . . . . . . . . . . . . . 312
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . 310
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . 329 Bodywork . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 329 Front bumper . . . . . . . . . . . . . . . . . . . . . . . 334
Halogen headlights . . . . . . . . . . . . . . . . . . 331
Initial operations . . . . . . . . . . . . . . . . . . . . 330
Number plate light . . . . . . . . . . . . . . . . . . . 338
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Sea changing bulbs . . . . . . . . . . . . . . . . . . 329
Tail lights . . . . . . . . . . . . . . . . . . . . . . 335, 336
Xenon headlights . . . . . . . . . . . . . . . . . . . . 333
Changing gear . . . . . . . . . . . . . . . . . . . . . . . . . 175 Automatic gearbox . . . . . . . . . . . . . . . . . . . 179
Engaging gears (manual gearbox) . . . . . . 178
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 178
Manually unlocking the gear selector lever . .322
Selecting gears (automatic gearbox) . . . . 179
Warning and control lamps . . . . . . . . . . . . 176
Changing gears Gear recommendation . . . . . . . . . . . . . . . . 183
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Changing the battery of the vehicle key . . . . . . . . . . . . . . . . . . . . . 73
Changing the wheel After changing the wheel . . . . . . . . . . . . . . 314
Checking Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . 301
Checking the oil level . . . . . . . . . . . . . . . . . . . . 284
Check list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Checklist Before working in the engine compart-ment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Changing bulbs . . . . . . . . . . . . . . . . . . . . . 330
In case of an emergency . . . . . . . . . . . . . . 315
369
Index

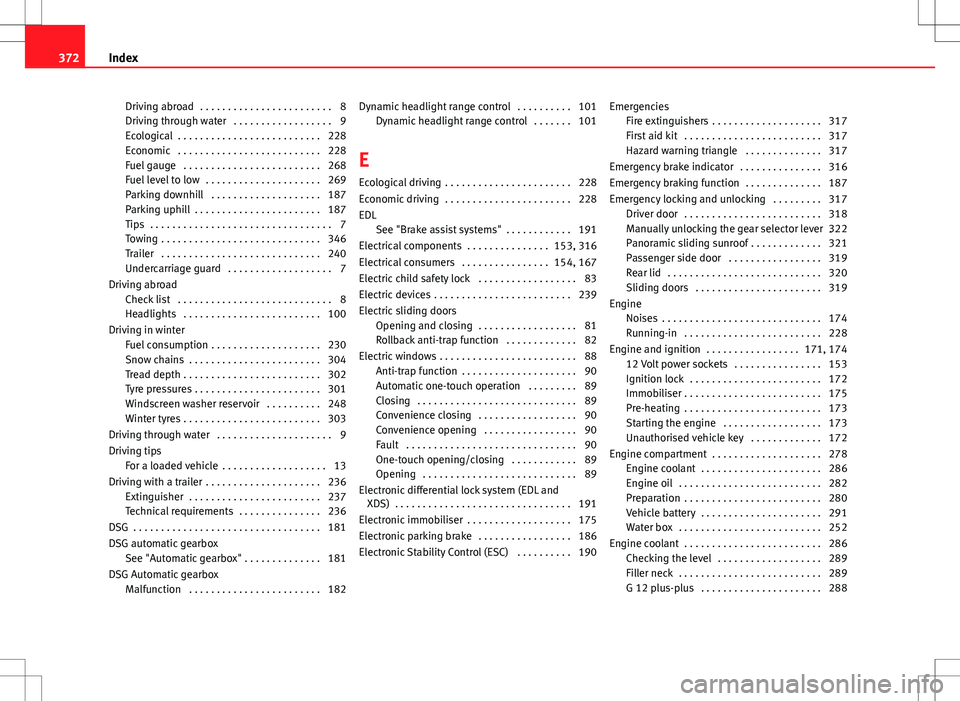

Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving through water . . . . . . . . . . . . . . . . . . 9
Ecological . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Economic . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . 268
Fuel level to low . . . . . . . . . . . . . . . . . . . . . 269
Parking downhill . . . . . . . . . . . . . . . . . . . . 187
Parking uphill . . . . . . . . . . . . . . . . . . . . . . . 187
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Undercarriage guard . . . . . . . . . . . . . . . . . . . 7
Driving abroad Check list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . 100
Driving in winter Fuel consumption . . . . . . . . . . . . . . . . . . . . 230
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . 304
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . 302
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . 301
Windscreen washer reservoir . . . . . . . . . . 248
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . 303
Driving through water . . . . . . . . . . . . . . . . . . . . . 9
Driving tips For a loaded vehicle . . . . . . . . . . . . . . . . . . . 13
Driving with a trailer . . . . . . . . . . . . . . . . . . . . . 236 Extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 237
Technical requirements . . . . . . . . . . . . . . . 236
DSG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
DSG automatic gearbox See "Automatic gearbox" . . . . . . . . . . . . . . 181
DSG Automatic gearbox Malfunction . . . . . . . . . . . . . . . . . . . . . . . . 182 Dynamic headlight range control . . . . . . . . . . 101
Dynamic headlight range control . . . . . . . 101
E
Ecological driving . . . . . . . . . . . . . . . . . . . . . . . 228
Economic driving . . . . . . . . . . . . . . . . . . . . . . . 228
EDL See "Brake assist systems" . . . . . . . . . . . . 191
Electrical components . . . . . . . . . . . . . . . 153, 316
Electrical consumers . . . . . . . . . . . . . . . . 154, 167
Electric child safety lock . . . . . . . . . . . . . . . . . . 83
Electric devices . . . . . . . . . . . . . . . . . . . . . . . . . 239
Electric sliding doors Opening and closing . . . . . . . . . . . . . . . . . . 81
Rollback anti-trap function . . . . . . . . . . . . . 82
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 88 Anti-trap function . . . . . . . . . . . . . . . . . . . . . 90
Automatic one-touch operation . . . . . . . . . 89
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Convenience closing . . . . . . . . . . . . . . . . . . 90
Convenience opening . . . . . . . . . . . . . . . . . 90
Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
One-touch opening/closing . . . . . . . . . . . . 89
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Electronic differential lock system (EDL and XDS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Electronic immobiliser . . . . . . . . . . . . . . . . . . . 175
Electronic parking brake . . . . . . . . . . . . . . . . . 186
Electronic Stability Control (ESC) . . . . . . . . . . 190 Emergencies
Fire extinguishers . . . . . . . . . . . . . . . . . . . . 317
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . 317
Hazard warning triangle . . . . . . . . . . . . . . 317
Emergency brake indicator . . . . . . . . . . . . . . . 316
Emergency braking function . . . . . . . . . . . . . . 187
Emergency locking and unlocking . . . . . . . . . 317 Driver door . . . . . . . . . . . . . . . . . . . . . . . . . 318
Manually unlocking the gear selector lever . .322
Panoramic sliding sunroof . . . . . . . . . . . . . 321
Passenger side door . . . . . . . . . . . . . . . . . 319
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Sliding doors . . . . . . . . . . . . . . . . . . . . . . . 319
Engine Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Running-in . . . . . . . . . . . . . . . . . . . . . . . . . 228
Engine and ignition . . . . . . . . . . . . . . . . . 171, 174 12 Volt power sockets . . . . . . . . . . . . . . . . 153
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . 172
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . 175
Pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . 173
Starting the engine . . . . . . . . . . . . . . . . . . 173
Unauthorised vehicle key . . . . . . . . . . . . . 172
Engine compartment . . . . . . . . . . . . . . . . . . . . 278 Engine coolant . . . . . . . . . . . . . . . . . . . . . . 286
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . 280
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . 291
Water box . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 286 Checking the level . . . . . . . . . . . . . . . . . . . 289
Filler neck . . . . . . . . . . . . . . . . . . . . . . . . . . 289
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 288
372 Index

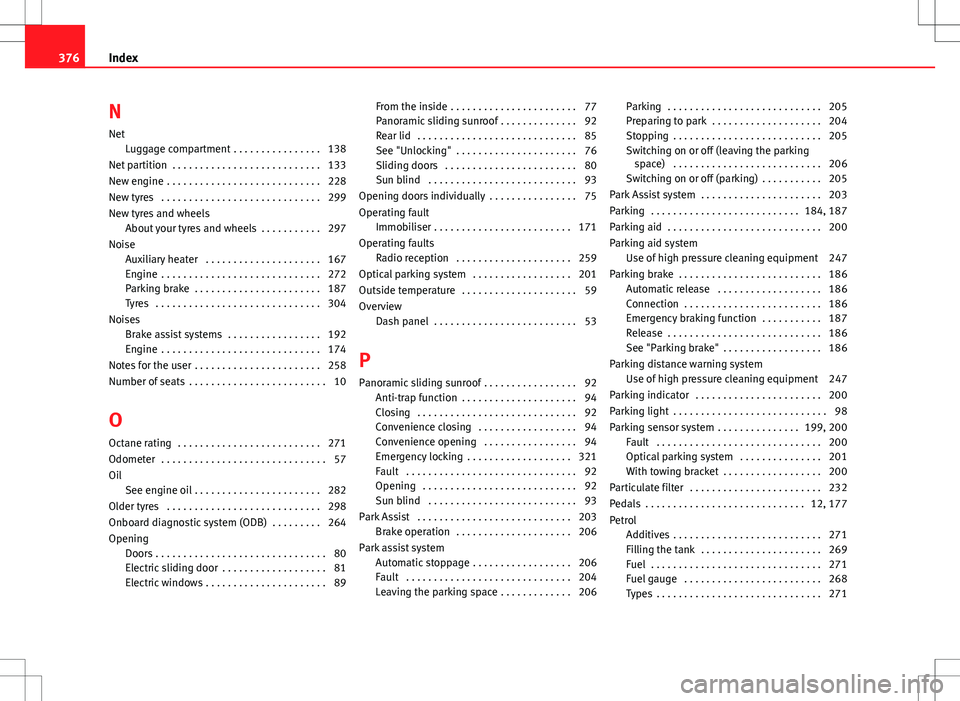

N
Net Luggage compartment . . . . . . . . . . . . . . . . 138
Net partition . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
New engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
New tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
New tyres and wheels About your tyres and wheels . . . . . . . . . . . 297
Noise Auxiliary heater . . . . . . . . . . . . . . . . . . . . . 167
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Parking brake . . . . . . . . . . . . . . . . . . . . . . . 187
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Noises Brake assist systems . . . . . . . . . . . . . . . . . 192
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Notes for the user . . . . . . . . . . . . . . . . . . . . . . . 258
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 10
O Octane rating . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Oil See engine oil . . . . . . . . . . . . . . . . . . . . . . . 282
Older tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Onboard diagnostic system (ODB) . . . . . . . . . 264
Opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Electric sliding door . . . . . . . . . . . . . . . . . . . 81
Electric windows . . . . . . . . . . . . . . . . . . . . . . 89 From the inside . . . . . . . . . . . . . . . . . . . . . . . 77
Panoramic sliding sunroof . . . . . . . . . . . . . . 92
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
See "Unlocking" . . . . . . . . . . . . . . . . . . . . . . 76
Sliding doors . . . . . . . . . . . . . . . . . . . . . . . . 80
Sun blind . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Opening doors individually . . . . . . . . . . . . . . . . 75
Operating fault Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . 171
Operating faults Radio reception . . . . . . . . . . . . . . . . . . . . . 259
Optical parking system . . . . . . . . . . . . . . . . . . 201
Outside temperature . . . . . . . . . . . . . . . . . . . . . 59
Overview Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . 53
P Panoramic sliding sunroof . . . . . . . . . . . . . . . . . 92 Anti-trap function . . . . . . . . . . . . . . . . . . . . . 94
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Convenience closing . . . . . . . . . . . . . . . . . . 94
Convenience opening . . . . . . . . . . . . . . . . . 94
Emergency locking . . . . . . . . . . . . . . . . . . . 321
Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Sun blind . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203 Brake operation . . . . . . . . . . . . . . . . . . . . . 206
Park assist system Automatic stoppage . . . . . . . . . . . . . . . . . . 206
Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Leaving the parking space . . . . . . . . . . . . . 206 Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Preparing to park . . . . . . . . . . . . . . . . . . . . 204
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Switching on or off (leaving the parking
space) . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Switching on or off (parking) . . . . . . . . . . . 205
Park Assist system . . . . . . . . . . . . . . . . . . . . . . 203
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . 184, 187
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Parking aid system Use of high pressure cleaning equipment 247
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Automatic release . . . . . . . . . . . . . . . . . . . 186
Connection . . . . . . . . . . . . . . . . . . . . . . . . . 186
Emergency braking function . . . . . . . . . . . 187
Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
See "Parking brake" . . . . . . . . . . . . . . . . . . 186
Parking distance warning system Use of high pressure cleaning equipment 247
Parking indicator . . . . . . . . . . . . . . . . . . . . . . . 200
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Parking sensor system . . . . . . . . . . . . . . . 199, 200 Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Optical parking system . . . . . . . . . . . . . . . 201
With towing bracket . . . . . . . . . . . . . . . . . . 200
Particulate filter . . . . . . . . . . . . . . . . . . . . . . . . 232
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 177
Petrol Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Filling the tank . . . . . . . . . . . . . . . . . . . . . . 269
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . 268
Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
376 Index
