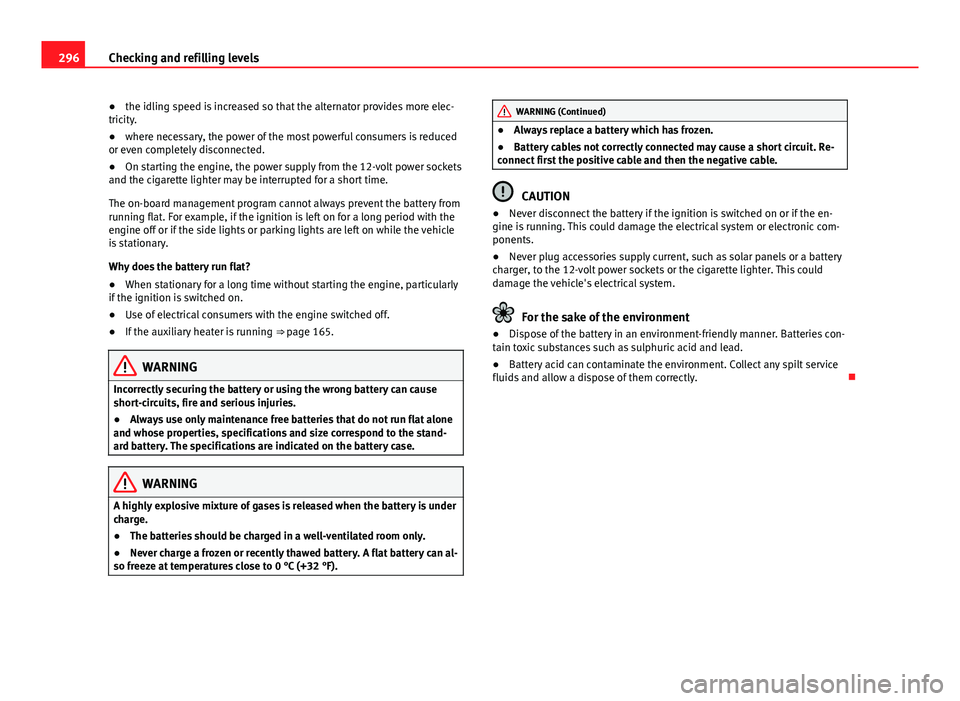

296Checking and refilling levels
● the idling speed is increased so that the alternator provides more elec-
tricity.
● where necessary, the power of the most powerful consumers is reduced
or even completely disconnected.
● On starting the engine, the power supply from the 12-volt power sockets
and the cigarette lighter may be interrupted for a short time.
The on-board management program cannot always prevent the battery from
running flat. For example, if the ignition is left on for a long period with the
engine off or if the side lights or parking lights are left on while the vehicle
is stationary.
Why does the battery run flat?
● When stationary for a long time without starting the engine, particularly
if the ignition is switched on.
● Use of electrical consumers with the engine switched off.
● If the auxiliary heater is running ⇒ page 165.
WARNING
Incorrectly securing the battery or using the wrong battery can cause
short-circuits, fire and serious injuries.
● Always use only maintenance free batteries that do not run flat alone
and whose properties, specifications and size correspond to the stand-
ard battery. The specifications are indicated on the battery case.
WARNING
A highly explosive mixture of gases is released when the battery is under
charge.
● The batteries should be charged in a well-ventilated room only.
● Never charge a frozen or recently thawed battery. A flat battery can al-
so freeze at temperatures close to 0 °C (+32 °F).
WARNING (Continued)
● Always replace a battery which has frozen.
● Battery cables not correctly connected may cause a short circuit. Re-
connect first the positive cable and then the negative cable.
CAUTION
● Never disconnect the battery if the ignition is switched on or if the en-
gine is running. This could damage the electrical system or electronic com-
ponents.
● Never plug accessories supply current, such as solar panels or a battery
charger, to the 12-volt power sockets or the cigarette lighter. This could
damage the vehicle's electrical system.
For the sake of the environment
● Dispose of the battery in an environment-friendly manner. Batteries con-
tain toxic substances such as sulphuric acid and lead.
● Battery acid can contaminate the environment. Collect any spilt service
fluids and allow a dispose of them correctly. 

310Wheels and tyres
Changing a wheel*
Introduction
The tyres mounted on the vehicle are anti-puncture. The wheels should only
be changed when switching from summer to winter tyres or vice-versa. See
⇒ page 303
You should only change the wheels yourself if the vehicle is parked in a safe
place, you are familiar with the procedure and you have all the necessary
tools! Otherwise, you should seek professional assistance.
Additional information and warnings:
● Vehicle key set ⇒ page 72
● Wheels and tyres ⇒ page 297
● Wheel trims ⇒ page 308
● Vehicle tools ⇒ page 324
WARNING
Changing a wheel can be dangerous, especially on the hard shoulder.
Please observe the following rules to minimise the risk of injury:
● Stop the vehicle safely as soon as possible. Park your vehicle as safe
distance from surrounding traffic to change a wheel.
● When changing a wheel, keep all passengers and particularly chil-
dren a safe distance away from the work area.
● Turn on the hazard warning lights to warn other road users.
● Ensure the ground on which you park is flat and solid. If necessary,
support the jack on a wide solid base.
● If you are changing a wheel yourself, you should be familiar with the
required procedure. Otherwise, you should seek professional assistance.
WARNING (Continued)
● Only use suitable tools that are not damaged when changing a wheel.
● Always stop the engine, turn on the electronic parking brake and
place the gear selector lever in position P, for an automatic gearbox, or
engage a gear for a manual gearbox to reduce the risk of the vehicle mov-
ing accidentally.
● Have the tightening torque of the wheel bolts checked as soon as
possible with a reliable torque wrench.

Preparations for changing a wheel
Check list
Before changing a wheel, complete the following operations in the order
given ⇒ 
:
Park the vehicle on an even and solid surface.
Connect the electronic parking brake ⇒ page 185.
Automatic gearbox: move the selector lever to position P ⇒ page 176.
Stop the engine and remove the key from the ignition ⇒ page 172.
Manual gearbox: Select a gear ⇒ page 176.
Have all vehicle occupants get out of the vehicle and wait in a safe
place (for example, behind the safety barrier).
Block the opposite wheel with wedges or a similar object.
When towing a trailer: unhook the trailer from the towing vehicle and
park it correctly.
If the luggage compartment is full: take the baggage out of the vehicle. Take the vehicle tool kit out of the luggage compartment.
Remove the wheel trims ⇒ page 308. 
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.

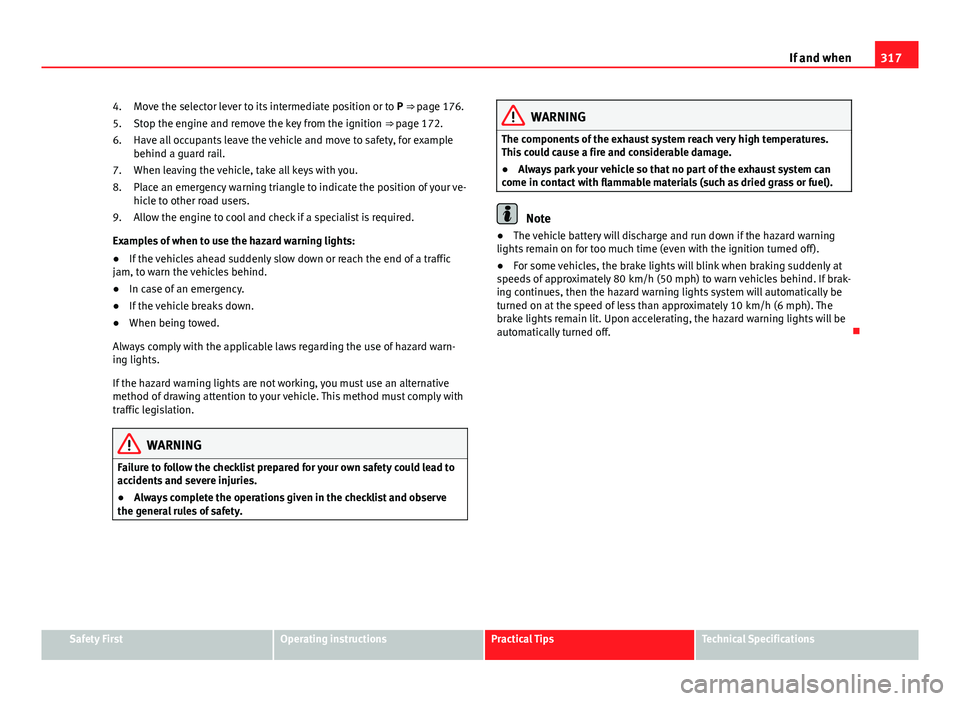

317
If and when
Move the selector lever to its intermediate position or to P ⇒ page 176.
Stop the engine and remove the key from the ignition ⇒ page 172.
Have all occupants leave the vehicle and move to safety, for example
behind a guard rail.
When leaving the vehicle, take all keys with you.
Place an emergency warning triangle to indicate the position of your ve-
hicle to other road users.
Allow the engine to cool and check if a specialist is required.
Examples of when to use the hazard warning lights:
● If the vehicles ahead suddenly slow down or reach the end of a traffic
jam, to warn the vehicles behind.
● In case of an emergency.
● If the vehicle breaks down.
● When being towed.
Always comply with the applicable laws regarding the use of hazard warn-
ing lights.
If the hazard warning lights are not working, you must use an alternative
method of drawing attention to your vehicle. This method must comply with
traffic legislation.
WARNING
Failure to follow the checklist prepared for your own safety could lead to
accidents and severe injuries.
● Always complete the operations given in the checklist and observe
the general rules of safety.
4.
5.
6.
7.
8.
9.WARNING
The components of the exhaust system reach very high temperatures.
This could cause a fire and considerable damage.
● Always park your vehicle so that no part of the exhaust system can
come in contact with flammable materials (such as dried grass or fuel).
Note
● The vehicle battery will discharge and run down if the hazard warning
lights remain on for too much time (even with the ignition turned off).
● For some vehicles, the brake lights will blink when braking suddenly at
speeds of approximately 80 km/h (50 mph) to warn vehicles behind. If brak-
ing continues, then the hazard warning lights system will automatically be
turned on at the speed of less than approximately 10 km/h (6 mph). The
brake lights remain lit. Upon accelerating, the hazard warning lights will be
automatically turned off. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

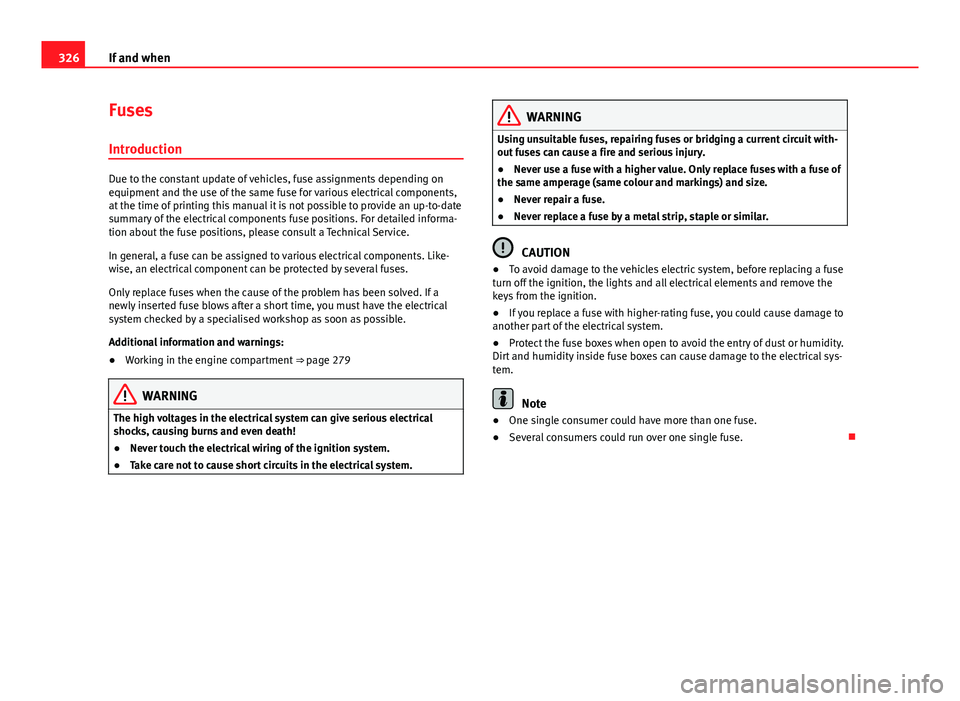

326If and when
Fuses
Introduction
Due to the constant update of vehicles, fuse assignments depending on
equipment and the use of the same fuse for various electrical components,
at the time of printing this manual it is not possible to provide an up-to-date
summary of the electrical components fuse positions. For detailed informa-
tion about the fuse positions, please consult a Technical Service.
In general, a fuse can be assigned to various electrical components. Like-
wise, an electrical component can be protected by several fuses.
Only replace fuses when the cause of the problem has been solved. If a
newly inserted fuse blows after a short time, you must have the electrical
system checked by a specialised workshop as soon as possible.
Additional information and warnings:
● Working in the engine compartment ⇒ page 279
WARNING
The high voltages in the electrical system can give serious electrical
shocks, causing burns and even death!
● Never touch the electrical wiring of the ignition system.
● Take care not to cause short circuits in the electrical system.
WARNING
Using unsuitable fuses, repairing fuses or bridging a current circuit with-
out fuses can cause a fire and serious injury.
● Never use a fuse with a higher value. Only replace fuses with a fuse of
the same amperage (same colour and markings) and size.
● Never repair a fuse.
● Never replace a fuse by a metal strip, staple or similar.
CAUTION
● To avoid damage to the vehicles electric system, before replacing a fuse
turn off the ignition, the lights and all electrical elements and remove the
keys from the ignition.
● If you replace a fuse with higher-rating fuse, you could cause damage to
another part of the electrical system.
● Protect the fuse boxes when open to avoid the entry of dust or humidity.
Dirt and humidity inside fuse boxes can cause damage to the electrical sys-
tem.
Note
● One single consumer could have more than one fuse.
● Several consumers could run over one single fuse. 

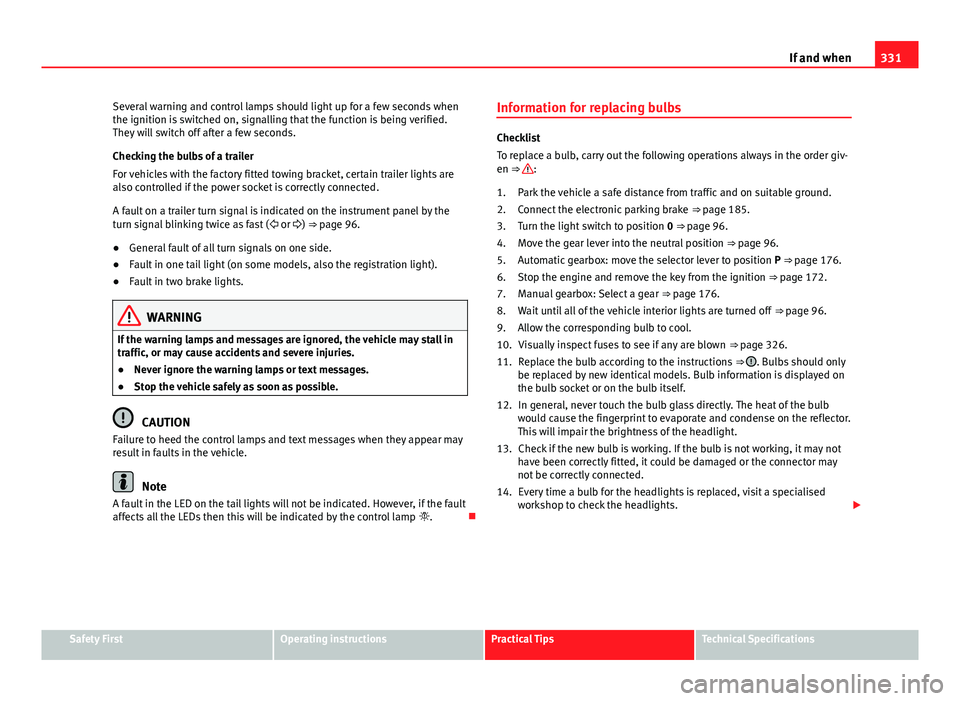

331
If and when
Several warning and control lamps should light up for a few seconds when
the ignition is switched on, signalling that the function is being verified.
They will switch off after a few seconds.
Checking the bulbs of a trailer
For vehicles with the factory fitted towing bracket, certain trailer lights are
also controlled if the power socket is correctly connected.
A fault on a trailer turn signal is indicated on the instrument panel by the
turn signal blinking twice as fast (  or ) ⇒ page 96.
● General fault of all turn signals on one side.
● Fault in one tail light (on some models, also the registration light).
● Fault in two brake lights.
WARNING
If the warning lamps and messages are ignored, the vehicle may stall in
traffic, or may cause accidents and severe injuries.
● Never ignore the warning lamps or text messages.
● Stop the vehicle safely as soon as possible.
CAUTION
Failure to heed the control lamps and text messages when they appear may
result in faults in the vehicle.
Note
A fault in the LED on the tail lights will not be indicated. However, if the fault
affects all the LEDs then this will be indicated by the control lamp . Information for replacing bulbs
Checklist
To replace a bulb, carry out the following operations always in the order giv-
en ⇒ 
:
Park the vehicle a safe distance from traffic and on suitable ground.
Connect the electronic parking brake ⇒ page 185.
Turn the light switch to position 0 ⇒ page 96.
Move the gear lever into the neutral position ⇒ page 96.
Automatic gearbox: move the selector lever to position P ⇒ page 176.
Stop the engine and remove the key from the ignition ⇒ page 172.
Manual gearbox: Select a gear ⇒ page 176.
Wait until all of the vehicle interior lights are turned off ⇒ page 96.
Allow the corresponding bulb to cool. Visually inspect fuses to see if any are blown ⇒ page 326.
Replace the bulb according to the instructions ⇒ 
. Bulbs should only
be replaced by new identical models. Bulb information is displayed on
the bulb socket or on the bulb itself.
In general, never touch the bulb glass directly. The heat of the bulb
would cause the fingerprint to evaporate and condense on the reflector.
This will impair the brightness of the headlight.
Check if the new bulb is working. If the bulb is not working, it may not
have been correctly fitted, it could be damaged or the connector may
not be correctly connected.
Every time a bulb for the headlights is replaced, visit a specialised
workshop to check the headlights. 
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Safety FirstOperating instructionsPractical TipsTechnical Specifications

332If and when
WARNING
Failure to follow the checklist prepared for your own safety could lead to
accidents and severe injuries.
● Always complete the operations given in the checklist and observe
the general rules of safety.CAUTION
Always remove and fit headlights carefully to avoid damage to the paint-
work and other vehicle parts. 

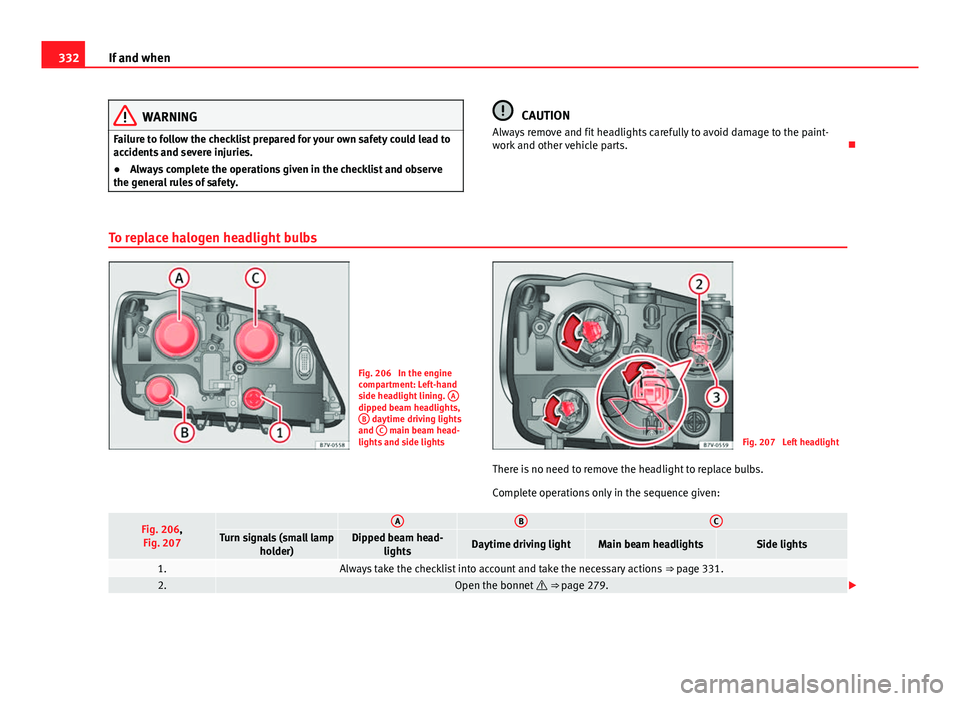

To replace halogen headlight bulbs
Fig. 206 In the engine
compartment: Left-hand
side headlight lining. A
dipped beam headlights,
B daytime driving lights
and C main beam head-
lights and side lightsFig. 207 Left headlight
There is no need to remove the headlight to replace bulbs.
Complete operations only in the sequence given:
Fig. 206, Fig. 207 ABCTurn signals (small lamp holder)Dipped beam head-lightsDaytime driving lightMain beam headlightsSide lights
1.Always take the checklist into account and take the necessary actions ⇒ page 331.2.Open the bonnet  ⇒ page 279. 

334If and when

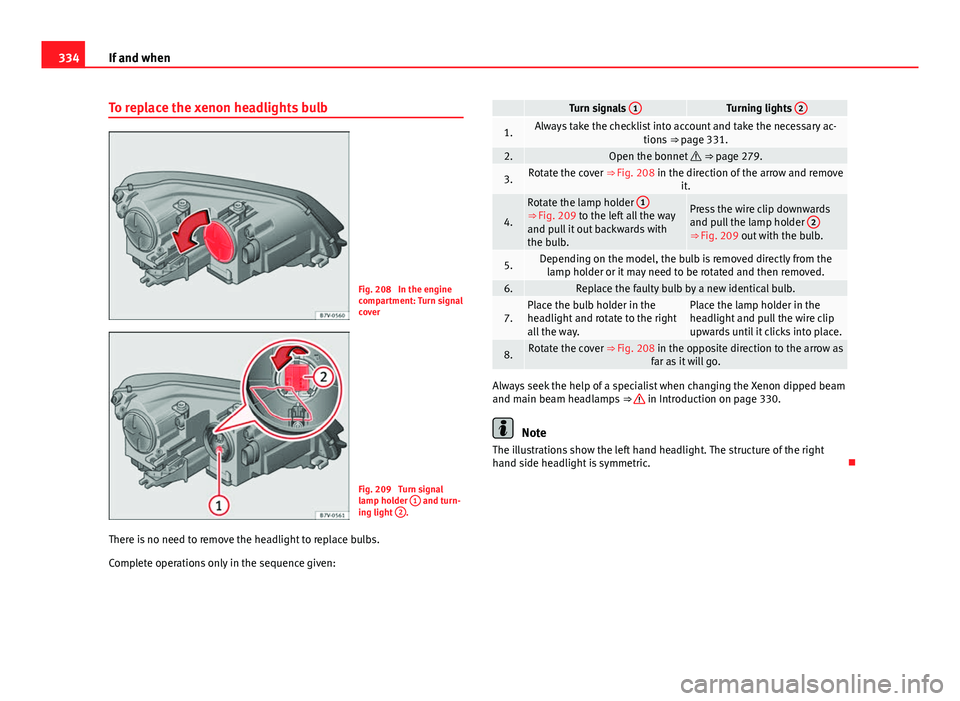

To replace the xenon headlights bulb
Fig. 208 In the engine
compartment: Turn signal
cover
Fig. 209 Turn signal
lamp holder 1 and turn-
ing light 2.
There is no need to remove the headlight to replace bulbs.
Complete operations only in the sequence given:
Turn signals 1Turning lights 2
1.Always take the checklist into account and take the necessary ac-
tions ⇒ page 331.
2.Open the bonnet  ⇒ page 279.
3.Rotate the cover ⇒  Fig. 208 in the direction of the arrow and remove
it.
4.
Rotate the lamp holder 1⇒ Fig. 209 to the left all the way
and pull it out backwards with
the bulb.Press the wire clip downwards
and pull the lamp holder 2
⇒ Fig. 209 out with the bulb.
5.Depending on the model, the bulb is removed directly from the
lamp holder or it may need to be rotated and then removed.
6.Replace the faulty bulb by a new identical bulb.
7.Place the bulb holder in the
headlight and rotate to the right
all the way.Place the lamp holder in the
headlight and pull the wire clip
upwards until it clicks into place.
8.Rotate the cover ⇒  Fig. 208 in the opposite direction to the arrow as
far as it will go.
Always seek the help of a specialist when changing the Xenon dipped beam
and main beam headlamps ⇒  in Introduction on page 330.
Note
The illustrations show the left hand headlight. The structure of the right
hand side headlight is symmetric. 

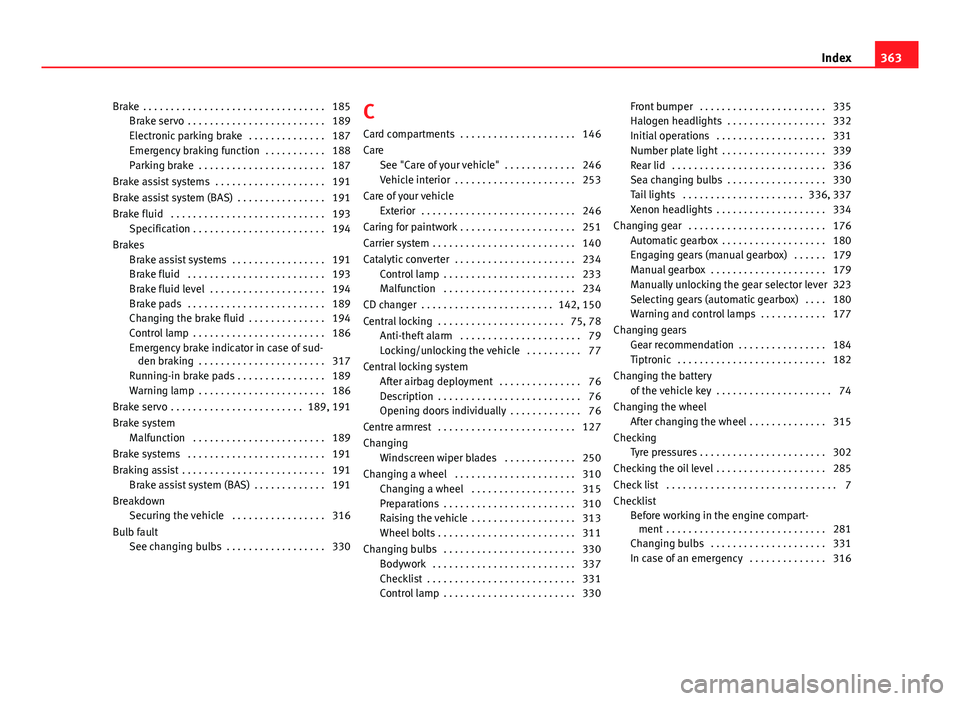

Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 189
Electronic parking brake . . . . . . . . . . . . . . 187
Emergency braking function . . . . . . . . . . . 188
Parking brake . . . . . . . . . . . . . . . . . . . . . . . 187
Brake assist systems . . . . . . . . . . . . . . . . . . . . 191
Brake assist system (BAS) . . . . . . . . . . . . . . . . 191
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193 Specification . . . . . . . . . . . . . . . . . . . . . . . . 194
Brakes Brake assist systems . . . . . . . . . . . . . . . . . 191
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 193
Brake fluid level . . . . . . . . . . . . . . . . . . . . . 194
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 189
Changing the brake fluid . . . . . . . . . . . . . . 194
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 186
Emergency brake indicator in case of sud-den braking . . . . . . . . . . . . . . . . . . . . . . . 317
Running-in brake pads . . . . . . . . . . . . . . . . 189
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 186
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . 189, 191
Brake system Malfunction . . . . . . . . . . . . . . . . . . . . . . . . 189
Brake systems . . . . . . . . . . . . . . . . . . . . . . . . . 191
Braking assist . . . . . . . . . . . . . . . . . . . . . . . . . . 191 Brake assist system (BAS) . . . . . . . . . . . . . 191
Breakdown Securing the vehicle . . . . . . . . . . . . . . . . . 316
Bulb fault See changing bulbs . . . . . . . . . . . . . . . . . . 330 C
Card compartments . . . . . . . . . . . . . . . . . . . . . 146
Care See "Care of your vehicle" . . . . . . . . . . . . . 246
Vehicle interior . . . . . . . . . . . . . . . . . . . . . . 253
Care of your vehicle Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Caring for paintwork . . . . . . . . . . . . . . . . . . . . . 251
Carrier system . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 234 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 233
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . 234
CD changer . . . . . . . . . . . . . . . . . . . . . . . . 142, 150
Central locking . . . . . . . . . . . . . . . . . . . . . . . 75, 78 Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . 79
Locking/unlocking the vehicle . . . . . . . . . . 77
Central locking system After airbag deployment . . . . . . . . . . . . . . . 76
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Opening doors individually . . . . . . . . . . . . . 76
Centre armrest . . . . . . . . . . . . . . . . . . . . . . . . . 127
Changing Windscreen wiper blades . . . . . . . . . . . . . 250
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . 310 Changing a wheel . . . . . . . . . . . . . . . . . . . 315
Preparations . . . . . . . . . . . . . . . . . . . . . . . . 310
Raising the vehicle . . . . . . . . . . . . . . . . . . . 313
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . 311
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . 330 Bodywork . . . . . . . . . . . . . . . . . . . . . . . . . . 337
Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 330 Front bumper . . . . . . . . . . . . . . . . . . . . . . . 335
Halogen headlights . . . . . . . . . . . . . . . . . . 332
Initial operations . . . . . . . . . . . . . . . . . . . . 331
Number plate light . . . . . . . . . . . . . . . . . . . 339
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Sea changing bulbs . . . . . . . . . . . . . . . . . . 330
Tail lights . . . . . . . . . . . . . . . . . . . . . . 336, 337
Xenon headlights . . . . . . . . . . . . . . . . . . . . 334
Changing gear . . . . . . . . . . . . . . . . . . . . . . . . . 176 Automatic gearbox . . . . . . . . . . . . . . . . . . . 180
Engaging gears (manual gearbox) . . . . . . 179
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 179
Manually unlocking the gear selector lever . .323
Selecting gears (automatic gearbox) . . . . 180
Warning and control lamps . . . . . . . . . . . . 177
Changing gears Gear recommendation . . . . . . . . . . . . . . . . 184
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Changing the battery of the vehicle key . . . . . . . . . . . . . . . . . . . . . 74
Changing the wheel After changing the wheel . . . . . . . . . . . . . . 315
Checking Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . 302
Checking the oil level . . . . . . . . . . . . . . . . . . . . 285
Check list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Checklist Before working in the engine compart-ment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Changing bulbs . . . . . . . . . . . . . . . . . . . . . 331
In case of an emergency . . . . . . . . . . . . . . 316
363
Index

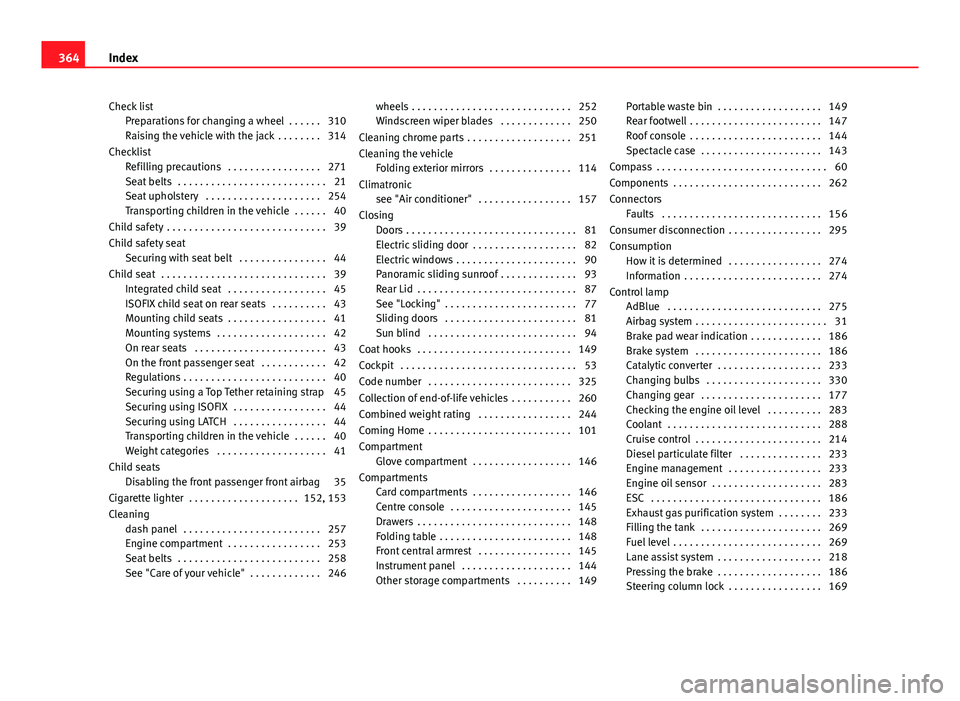

Check listPreparations for changing a wheel . . . . . . 310
Raising the vehicle with the jack . . . . . . . . 314
Checklist Refilling precautions . . . . . . . . . . . . . . . . . 271
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Seat upholstery . . . . . . . . . . . . . . . . . . . . . 254
Transporting children in the vehicle . . . . . . 40
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Child safety seat Securing with seat belt . . . . . . . . . . . . . . . . 44
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Integrated child seat . . . . . . . . . . . . . . . . . . 45
ISOFIX child seat on rear seats . . . . . . . . . . 43
Mounting child seats . . . . . . . . . . . . . . . . . . 41
Mounting systems . . . . . . . . . . . . . . . . . . . . 42
On rear seats . . . . . . . . . . . . . . . . . . . . . . . . 43
On the front passenger seat . . . . . . . . . . . . 42
Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Securing using a Top Tether retaining strap 45
Securing using ISOFIX . . . . . . . . . . . . . . . . . 44
Securing using LATCH . . . . . . . . . . . . . . . . . 44
Transporting children in the vehicle . . . . . . 40
Weight categories . . . . . . . . . . . . . . . . . . . . 41
Child seats Disabling the front passenger front airbag 35
Cigarette lighter . . . . . . . . . . . . . . . . . . . . 152, 153
Cleaning dash panel . . . . . . . . . . . . . . . . . . . . . . . . . 257
Engine compartment . . . . . . . . . . . . . . . . . 253
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . 258
See "Care of your vehicle" . . . . . . . . . . . . . 246 wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Windscreen wiper blades . . . . . . . . . . . . . 250
Cleaning chrome parts . . . . . . . . . . . . . . . . . . . 251
Cleaning the vehicle Folding exterior mirrors . . . . . . . . . . . . . . . 114
Climatronic see "Air conditioner" . . . . . . . . . . . . . . . . . 157
Closing Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Electric sliding door . . . . . . . . . . . . . . . . . . . 82
Electric windows . . . . . . . . . . . . . . . . . . . . . . 90
Panoramic sliding sunroof . . . . . . . . . . . . . . 93
Rear Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
See "Locking" . . . . . . . . . . . . . . . . . . . . . . . . 77
Sliding doors . . . . . . . . . . . . . . . . . . . . . . . . 81
Sun blind . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Code number . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Collection of end-of-life vehicles . . . . . . . . . . . 260
Combined weight rating . . . . . . . . . . . . . . . . . 244
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Compartment Glove compartment . . . . . . . . . . . . . . . . . . 146
Compartments Card compartments . . . . . . . . . . . . . . . . . . 146
Centre console . . . . . . . . . . . . . . . . . . . . . . 145
Drawers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Folding table . . . . . . . . . . . . . . . . . . . . . . . . 148
Front central armrest . . . . . . . . . . . . . . . . . 145
Instrument panel . . . . . . . . . . . . . . . . . . . . 144
Other storage compartments . . . . . . . . . . 149 Portable waste bin . . . . . . . . . . . . . . . . . . . 149
Rear footwell . . . . . . . . . . . . . . . . . . . . . . . . 147
Roof console . . . . . . . . . . . . . . . . . . . . . . . . 144
Spectacle case . . . . . . . . . . . . . . . . . . . . . . 143
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Connectors Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Consumer disconnection . . . . . . . . . . . . . . . . . 295
Consumption How it is determined . . . . . . . . . . . . . . . . . 274
Information . . . . . . . . . . . . . . . . . . . . . . . . . 274
Control lamp AdBlue . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . 31
Brake pad wear indication . . . . . . . . . . . . . 186
Brake system . . . . . . . . . . . . . . . . . . . . . . . 186
Catalytic converter . . . . . . . . . . . . . . . . . . . 233
Changing bulbs . . . . . . . . . . . . . . . . . . . . . 330
Changing gear . . . . . . . . . . . . . . . . . . . . . . 177
Checking the engine oil level . . . . . . . . . . 283
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Cruise control . . . . . . . . . . . . . . . . . . . . . . . 214
Diesel particulate filter . . . . . . . . . . . . . . . 233
Engine management . . . . . . . . . . . . . . . . . 233
Engine oil sensor . . . . . . . . . . . . . . . . . . . . 283
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Exhaust gas purification system . . . . . . . . 233
Filling the tank . . . . . . . . . . . . . . . . . . . . . . 269
Fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Lane assist system . . . . . . . . . . . . . . . . . . . 218
Pressing the brake . . . . . . . . . . . . . . . . . . . 186
Steering column lock . . . . . . . . . . . . . . . . . 169

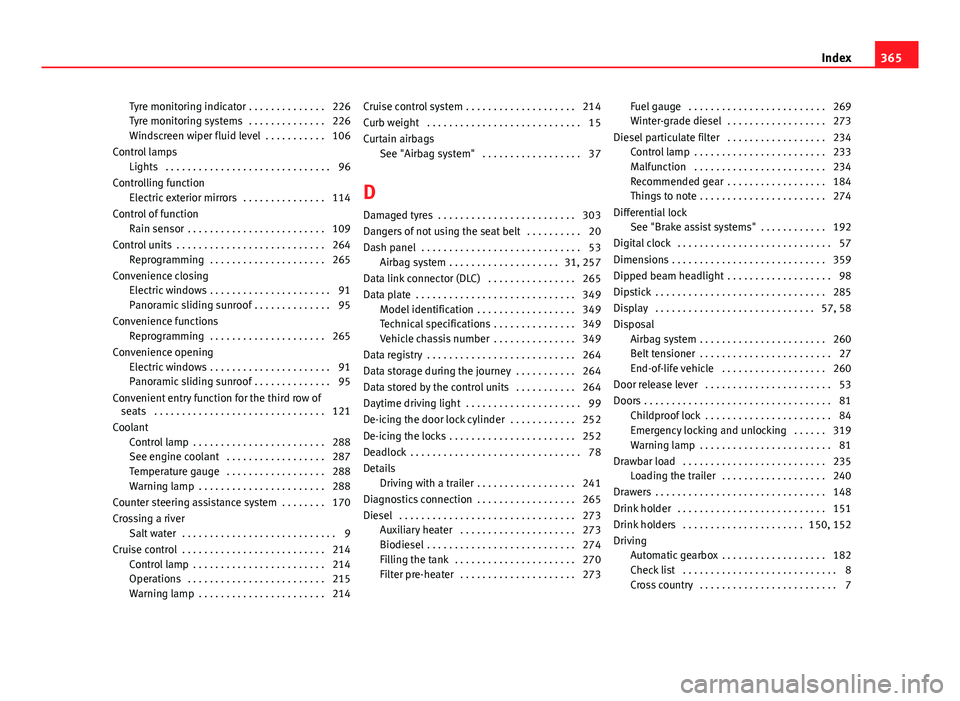

364 Index

Tyre monitoring indicator . . . . . . . . . . . . . . 226
Tyre monitoring systems . . . . . . . . . . . . . . 226
Windscreen wiper fluid level . . . . . . . . . . . 106
Control lamps Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Controlling function Electric exterior mirrors . . . . . . . . . . . . . . . 114
Control of function Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . 109
Control units . . . . . . . . . . . . . . . . . . . . . . . . . . . 264 Reprogramming . . . . . . . . . . . . . . . . . . . . . 265
Convenience closing Electric windows . . . . . . . . . . . . . . . . . . . . . . 91
Panoramic sliding sunroof . . . . . . . . . . . . . . 95
Convenience functions Reprogramming . . . . . . . . . . . . . . . . . . . . . 265
Convenience opening Electric windows . . . . . . . . . . . . . . . . . . . . . . 91
Panoramic sliding sunroof . . . . . . . . . . . . . . 95
Convenient entry function for the third row of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Coolant Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 288
See engine coolant . . . . . . . . . . . . . . . . . . 287
Temperature gauge . . . . . . . . . . . . . . . . . . 288
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 288
Counter steering assistance system . . . . . . . . 170
Crossing a river Salt water . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 214 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 214
Operations . . . . . . . . . . . . . . . . . . . . . . . . . 215
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 214 Cruise control system . . . . . . . . . . . . . . . . . . . . 214
Curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Curtain airbags
See "Airbag system" . . . . . . . . . . . . . . . . . . 37
D Damaged tyres . . . . . . . . . . . . . . . . . . . . . . . . . 303
Dangers of not using the seat belt . . . . . . . . . . 20
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Airbag system . . . . . . . . . . . . . . . . . . . . 31, 257
Data link connector (DLC) . . . . . . . . . . . . . . . . 265
Data plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349 Model identification . . . . . . . . . . . . . . . . . . 349
Technical specifications . . . . . . . . . . . . . . . 349
Vehicle chassis number . . . . . . . . . . . . . . . 349
Data registry . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Data storage during the journey . . . . . . . . . . . 264
Data stored by the control units . . . . . . . . . . . 264
Daytime driving light . . . . . . . . . . . . . . . . . . . . . 99
De-icing the door lock cylinder . . . . . . . . . . . . 252
De-icing the locks . . . . . . . . . . . . . . . . . . . . . . . 252
Deadlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Details Driving with a trailer . . . . . . . . . . . . . . . . . . 241
Diagnostics connection . . . . . . . . . . . . . . . . . . 265
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273 Auxiliary heater . . . . . . . . . . . . . . . . . . . . . 273
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Filling the tank . . . . . . . . . . . . . . . . . . . . . . 270
Filter pre-heater . . . . . . . . . . . . . . . . . . . . . 273 Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . 269
Winter-grade diesel . . . . . . . . . . . . . . . . . . 273
Diesel particulate filter . . . . . . . . . . . . . . . . . . 234 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 233
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . 234
Recommended gear . . . . . . . . . . . . . . . . . . 184
Things to note . . . . . . . . . . . . . . . . . . . . . . . 274
Differential lock See "Brake assist systems" . . . . . . . . . . . . 192
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
Dipped beam headlight . . . . . . . . . . . . . . . . . . . 98
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57, 58
Disposal Airbag system . . . . . . . . . . . . . . . . . . . . . . . 260
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . 27
End-of-life vehicle . . . . . . . . . . . . . . . . . . . 260
Door release lever . . . . . . . . . . . . . . . . . . . . . . . 53
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Childproof lock . . . . . . . . . . . . . . . . . . . . . . . 84
Emergency locking and unlocking . . . . . . 319
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 81
Drawbar load . . . . . . . . . . . . . . . . . . . . . . . . . . 235 Loading the trailer . . . . . . . . . . . . . . . . . . . 240
Drawers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Drink holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Drink holders . . . . . . . . . . . . . . . . . . . . . . 150, 152
Driving Automatic gearbox . . . . . . . . . . . . . . . . . . . 182
Check list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cross country . . . . . . . . . . . . . . . . . . . . . . . . . 7
365
Index
