Technical features

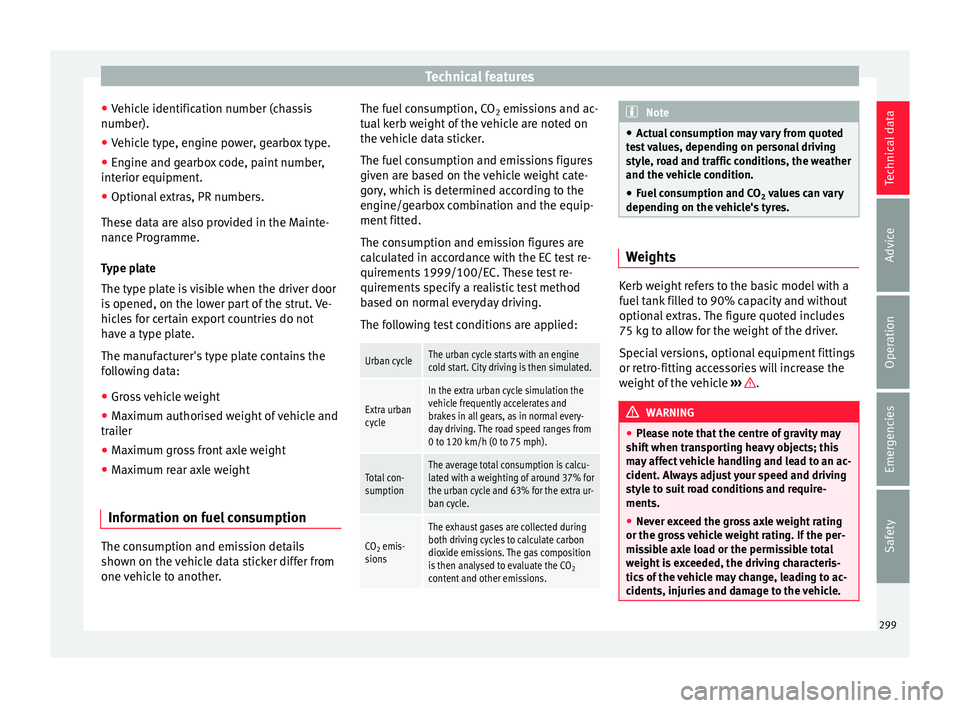

● Vehic
l
e identification number (chassis
number).
● Vehicle type, engine power, gearbox type.
● Engine and gearbox code, paint number,
interior equipment.
● Option

al extras, PR numbers.
These dat
a are also provided in the Mainte-
nance Programme.
Type plate
The type plate is visible when the driver door
is opened, on the lower part of the strut. Ve-
hicles for certain export countries do not
have a type plate.
The manufacturer's type plate contains the
following data:
● Gross vehicle weight
● Maximum authorised weight of vehicle and
trail
er
● Maximum gross front axle weight
● Maximum rear axle weight
Information on fuel consumption The consumption and emission details
sho
wn on the
v

ehicle data sticker differ from
one vehicle to another. The fuel consumption, CO
2 emiss

ions and ac-
tual kerb weight of the vehicle are noted on
the vehicle data sticker.
The fuel consumption and emissions figures
given are based on the vehicle weight cate-
gory, which is determined according to the
engine/gearbox combination and the equip-
ment fitted.
The consumption and emission figures are
calculated in accordance with the EC test re-
quirements 1999/100/EC. These test re-
quirements specify a realistic test method
based on normal everyday driving.
The following test conditions are applied:
Urban cycleThe urban cycle starts with an engine
cold start. City driving is then simulated.
Extra urban
cycle
In the extra urban cycle simulation the
vehicle frequently accelerates and
brakes in all gears, as in normal every-
day driving. The road speed ranges from
0 to 120 km/h (0 to 75 mph).
Total con-
sumptionThe average total consumption is calcu-
lated with a weighting of around 37% for
the urban cycle and 63% for the extra ur-
ban cycle.
CO 2 emis-
sions
The exhaust gases are collected during
both driving cycles to calculate carbon
dioxide emissions. The gas composition
is then analysed to evaluate the CO 2
content and other emissions. Note
● Act ua

l consumption may vary from quoted
test values, depending on personal driving
style, road and traffic conditions, the weather
and the vehicle condition.
● Fuel consumption and CO
2 value

s can vary
depending on the vehicle's tyres. Weights
Kerb weight refers to the basic model with a
f
uel
t

ank filled to 90% capacity and without
optional extras. The figure quoted includes
75 kg to allow for the weight of the driver.
Special versions, optional equipment fittings
or retro-fitting accessories will increase the
weight of the vehicle ››› .
WARNING
● Ple a

se note that the centre of gravity may
shift when transporting heavy objects; this
may affect vehicle handling and lead to an ac-
cident. Always adjust your speed and driving
style to suit road conditions and require-
ments.
● Never exceed the gross axle weight rating
or the gros
s vehicle weight rating. If the per-
missible axle load or the permissible total
weight is exceeded, the driving characteris-
tics of the vehicle may change, leading to ac-
cidents, injuries and damage to the vehicle. 299
Technical data
Advice
Operation
Emergencies
Safety

Technical data

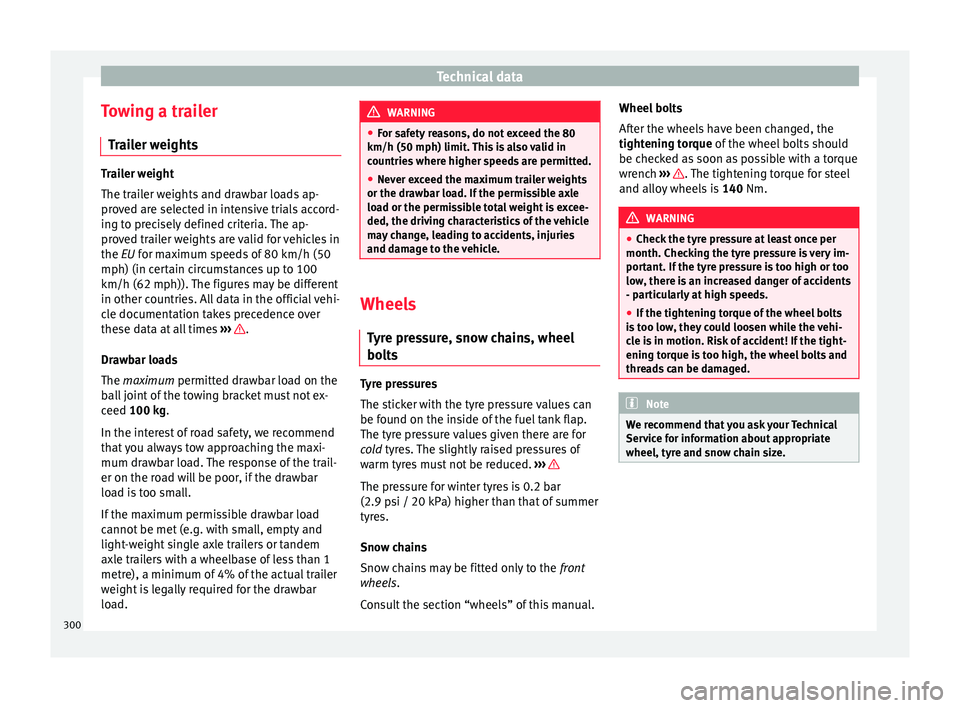

Towing a trailer Tr
ai
ler weights Trailer weight
The trai
l

er weights and drawbar loads ap-
proved are selected in intensive trials accord-
ing to precisely defined criteria. The ap-
proved trailer weights are valid for vehicles in
the EU for maximum speeds of 80 km/h (50
mph) (in certain circumstances up to 100
km/h (62 mph)). The figures may be different
in other countries. All data in the official vehi-
cle documentation takes precedence over
these data at all times ››› .
Dr a
wb

ar loads
The maximum permitted drawbar load on the
ball joint of the towing bracket must not ex-
ceed 100 kg.
In the interest of road safety, we recommend
that you always tow approaching the maxi-
mum drawbar load. The response of the trail-
er on the road will be poor, if the drawbar
load is too small.
If the maximum permissible drawbar load
cannot be met (e.g. with small, empty and
light-weight single axle trailers or tandem
axle trailers with a wheelbase of less than 1
metre), a minimum of 4% of the actual trailer
weight is legally required for the drawbar
load. WARNING
● For s af

ety reasons, do not exceed the 80
km/h (50 mph) limit. This is also valid in
countries where higher speeds are permitted.
● Never exceed the maximum trailer weights
or the drawb
ar load. If the permissible axle
load or the permissible total weight is excee-
ded, the driving characteristics of the vehicle
may change, leading to accidents, injuries
and damage to the vehicle. Wheels
Ty
r

e pressure, snow chains, wheel
bolts Tyre pressures
The s
tic
k

er with the tyre pressure values can
be found on the inside of the fuel tank flap.
The tyre pressure values given there are for
cold tyres. The slightly raised pressures of
warm tyres must not be reduced. ››› The pressure for winter tyres is 0.2 bar
(2.9 p
s
i / 20 kP

a) higher than that of summer
tyres.
Snow chains
Snow chains may be fitted only to the front
wheels.
Consult the section “wheels” of this manual. Wheel bolts
After the wheel

s have been changed, the
tightening torque of the wheel bolts should
be checked as soon as possible with a torque
wrench ››› . The tightening torque for steel
and al lo
y

wheels is 140 Nm. WARNING
● Check the ty

re pressure at least once per
month. Checking the tyre pressure is very im-
portant. If the tyre pressure is too high or too
low, there is an increased danger of accidents
- particularly at high speeds.
● If the tightening torque of the wheel bolts
is t
oo low, they could loosen while the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged. Note
We recommend that you ask your Technical
Serv ic

e for information about appropriate
wheel, tyre and snow chain size. 300

Technical features
Engine data P etr
o
l engine 1.4 110 kW (150 PS)
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/5,000-6,000250/1,500-3,5004/1,395Super 95 RON
ManualAutomatic
5 seats7 seats5 seats7 seats
Top speed (km/h)200 (VI)198 (VI)
Acceleration from 0-80 km/h (seconds)6.76.7
Acceleration from 0-100 km/h (seconds)9.99.9
Consumption (litres/100 km) / CO 2 emissions (g/km) urban7.9/182-1838.0/184-1858.0/186-1878.1/188-189
Consumption (litres/100 km) / CO
2 emissions (g/km) intercity5.5/129-1305.6/131-1325.8/135-1365.8/135-136
Consumption (litres/100 km) / CO
2 emissions (g/km) mixed6.4/148-1496.5/150-1516.6/154-1556.7/156-157
Maximum authorised weight (in kg)2,3002,4202,3402,430
Weight in running order (with driver) (in kg)1,7031,7551,7171,768
Maximum authorised weight on front axle (en kg)1,1901,1901,2001,200
Maximum authorised weight on rear axle (en kg)1,1601,2801,1601,280
Permitted roof load (in kg)100100
Maximum weight trailer without brakes (in kg)750750
Weight of trailer with brakes, gradients up to 8% (in kg)2,0002,000
Weight of trailer with brakes, gradients up to 12% (in kg)1,8001,800 301
Technical data
Advice
Operation
Emergencies
Safety

Technical data

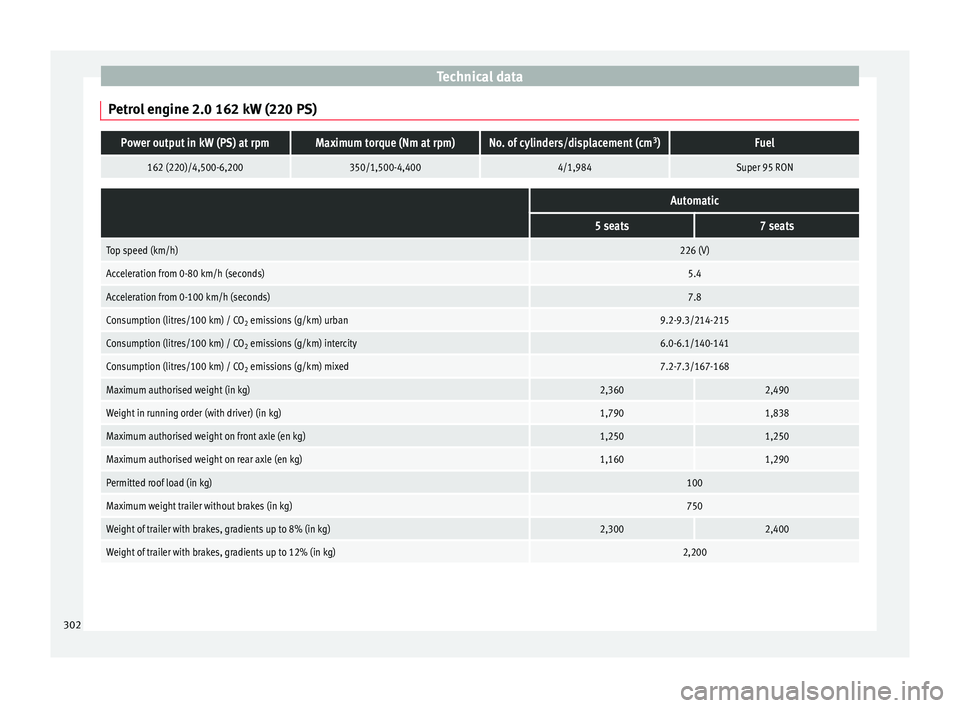

Petrol engine 2.0 162 kW (220 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
162 (220)/4,500-6,200350/1,500-4,4004/1,984Super 95 RON
Automatic
5 seats7 seats
Top speed (km/h)226 (V)
Acceleration from 0-80 km/h (seconds)5.4
Acceleration from 0-100 km/h (seconds)7.8
Consumption (litres/100 km) / CO 2 emissions (g/km) urban9.2-9.3/214-215
Consumption (litres/100 km) / CO
2 emissions (g/km) intercity6.0-6.1/140-141
Consumption (litres/100 km) / CO
2 emissions (g/km) mixed7.2-7.3/167-168
Maximum authorised weight (in kg)2,3602,490
Weight in running order (with driver) (in kg)1,7901,838
Maximum authorised weight on front axle (en kg)1,2501,250
Maximum authorised weight on rear axle (en kg)1,1601,290
Permitted roof load (in kg)100
Maximum weight trailer without brakes (in kg)750
Weight of trailer with brakes, gradients up to 8% (in kg)2,3002,400
Weight of trailer with brakes, gradients up to 12% (in kg)2,200 302

Technical features
Diesel engine 2.0 85 kW (115 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
85 (115)/3,500280/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CZ
5 seats7 seats
Top speed (km/h)184 (VI)
Acceleration from 0-80 km/h (seconds)8.4
Acceleration from 0-100 km/h (seconds)12.6
Consumption (litres/100 km) / CO 2 emissions (g/km) urban6.0-6.1/130-132
Consumption (litres/100 km) / CO
2 emissions (g/km) intercity4.5-4.6/117-119
Consumption (litres/100 km) / CO
2 emissions (g/km) mixed5.0-5.1/130-132
Maximum authorised weight (in kg)2,3902,520
Weight in running order (with driver) (in kg)1,7721,822
Maximum authorised weight on front axle (en kg)1,2601,260
Maximum authorised weight on rear axle (en kg)1,1801,310
Permitted roof load (in kg)100
Maximum weight trailer without brakes (in kg)750
Weight of trailer with brakes, gradients up to 8% (in kg)2,200
Weight of trailer with brakes, gradients up to 12% (in kg)2,000 303
Technical data
Advice
Operation
Emergencies
Safety

Technical data

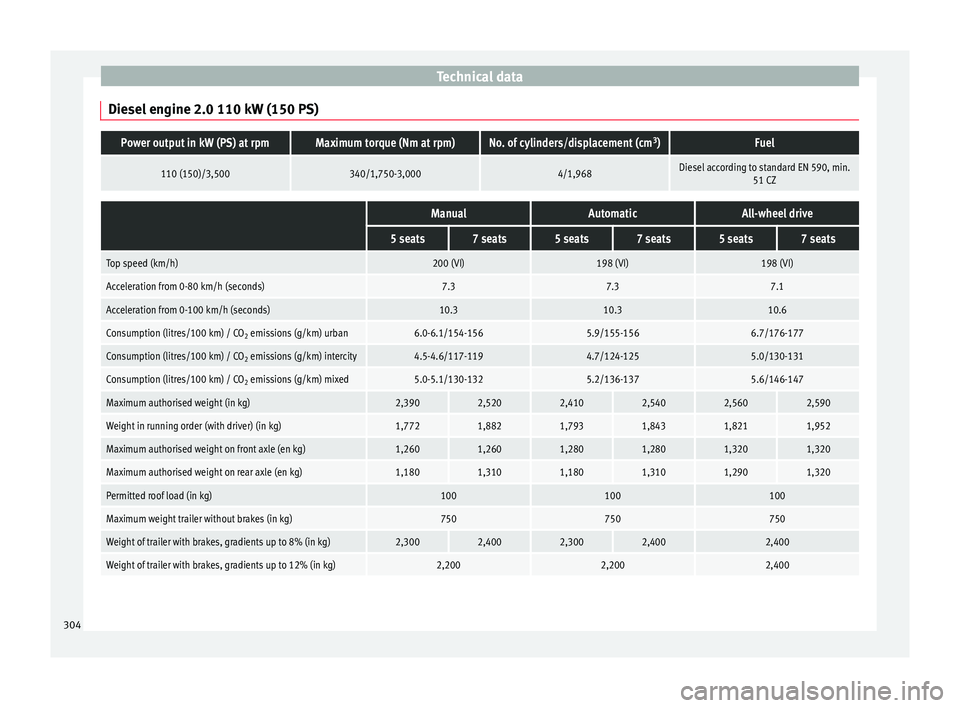

Diesel engine 2.0 110 kW (150 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/3,500340/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CZ
ManualAutomaticAll-wheel drive
5 seats7 seats5 seats7 seats5 seats7 seats
Top speed (km/h)200 (VI)198 (VI)198 (VI)
Acceleration from 0-80 km/h (seconds)7.37.37.1
Acceleration from 0-100 km/h (seconds)10.310.310.6
Consumption (litres/100 km) / CO 2 emissions (g/km) urban6.0-6.1/154-1565.9/155-1566.7/176-177
Consumption (litres/100 km) / CO
2 emissions (g/km) intercity4.5-4.6/117-1194.7/124-1255.0/130-131
Consumption (litres/100 km) / CO
2 emissions (g/km) mixed5.0-5.1/130-1325.2/136-1375.6/146-147
Maximum authorised weight (in kg)2,3902,5202,4102,5402,5602,590
Weight in running order (with driver) (in kg)1,7721,8821,7931,8431,8211,952
Maximum authorised weight on front axle (en kg)1,2601,2601,2801,2801,3201,320
Maximum authorised weight on rear axle (en kg)1,1801,3101,1801,3101,2901,320
Permitted roof load (in kg)100100100
Maximum weight trailer without brakes (in kg)750750750
Weight of trailer with brakes, gradients up to 8% (in kg)2,3002,4002,3002,4002,400
Weight of trailer with brakes, gradients up to 12% (in kg)2,2002,2002,400 304

Technical features

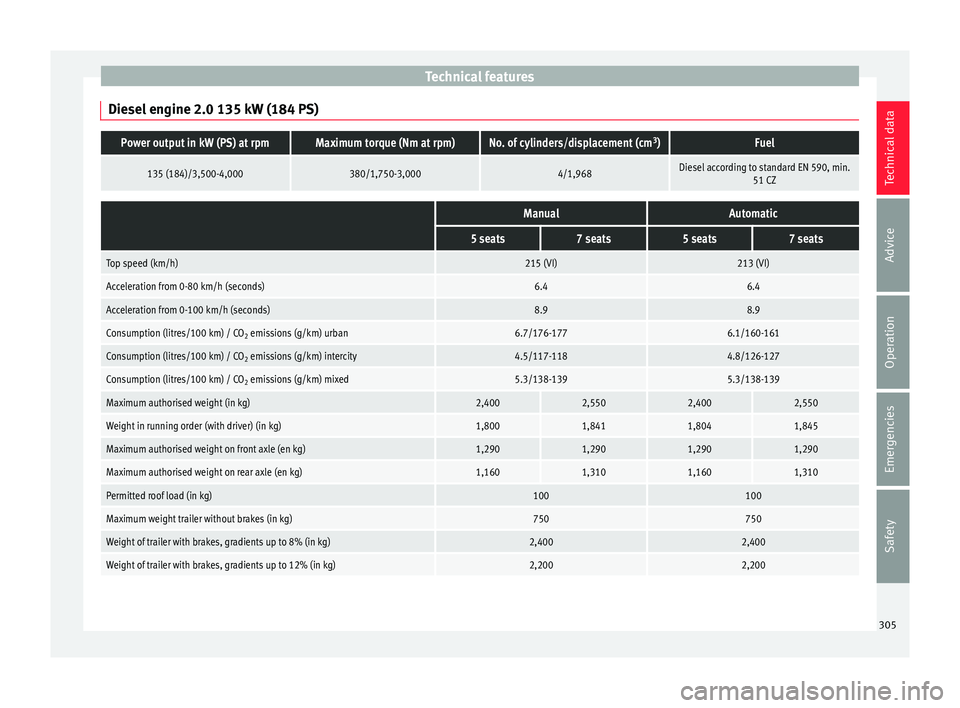

Diesel engine 2.0 135 kW (184 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
135 (184)/3,500-4,000380/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CZ
ManualAutomatic
5 seats7 seats5 seats7 seats
Top speed (km/h)215 (VI)213 (VI)
Acceleration from 0-80 km/h (seconds)6.46.4
Acceleration from 0-100 km/h (seconds)8.98.9
Consumption (litres/100 km) / CO 2 emissions (g/km) urban6.7/176-1776.1/160-161
Consumption (litres/100 km) / CO
2 emissions (g/km) intercity4.5/117-1184.8/126-127
Consumption (litres/100 km) / CO
2 emissions (g/km) mixed5.3/138-1395.3/138-139
Maximum authorised weight (in kg)2,4002,5502,4002,550
Weight in running order (with driver) (in kg)1,8001,8411,8041,845
Maximum authorised weight on front axle (en kg)1,2901,2901,2901,290
Maximum authorised weight on rear axle (en kg)1,1601,3101,1601,310
Permitted roof load (in kg)100100
Maximum weight trailer without brakes (in kg)750750
Weight of trailer with brakes, gradients up to 8% (in kg)2,4002,400
Weight of trailer with brakes, gradients up to 12% (in kg)2,2002,200 305
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Dimensions Fig. 256
Dimensions ALHAMBRA
A/BFront and rear projection (mm)968/966
CWheelbase (mm)2,919
DLength (mm)4,854
E/FFront/rear a)
track width (mm)1,569/1,617
GWidth (mm)1,904
HHeight at kerb weight (mm)1,720
Turning radius (m)11.9
a) This data will change depending on the type of wheel rim.
306

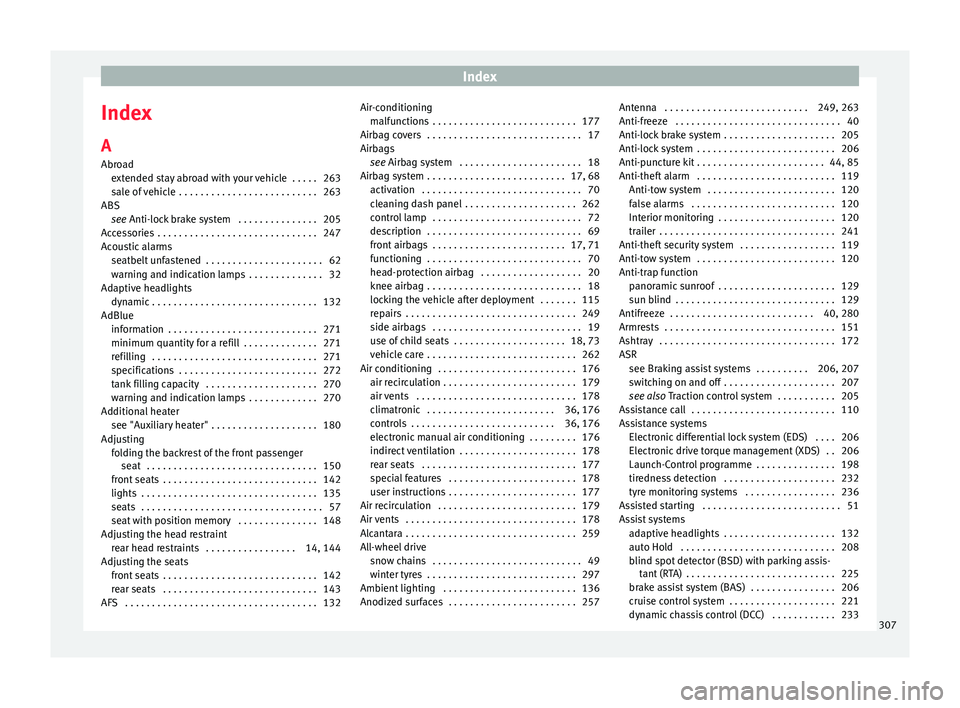

Index
Index
A
Abr o
a
d
extended stay abroad with your vehicle . . . . . 263
sale of vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 263
ABS see Anti-lock brake system . . . . . . . . . . . . . . . 205
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Acoustic alarms seatbelt unfastened . . . . . . . . . . . . . . . . . . . . . . 62
warning and indication lamps . . . . . . . . . . . . . . 32
Adaptive headlights dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
AdBlue information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
minimum quantity for a refill . . . . . . . . . . . . . . 271
refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 272
tank filling capacity . . . . . . . . . . . . . . . . . . . . . 270
warning and indication lamps . . . . . . . . . . . . . 270
Additional heater see "Auxiliary heater" . . . . . . . . . . . . . . . . . . . . 180
Adjusting folding the backrest of the front passengerseat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
seat with position memory . . . . . . . . . . . . . . . 148
Adjusting the head restraint rear head restraints . . . . . . . . . . . . . . . . . 14, 144
Adjusting the seats front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
AFS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 Air-conditioning
malfu nctions . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Airbags see Airbag system . . . . . . . . . . . . . . . . . . . . . . . 18
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 68 activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
cleaning dash panel . . . . . . . . . . . . . . . . . . . . . 262
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 17, 71
functioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
head-protection airbag . . . . . . . . . . . . . . . . . . . 20
knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
locking the vehicle after deployment . . . . . . . 115
repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
use of child seats . . . . . . . . . . . . . . . . . . . . . 18, 73
vehicle care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . 176 air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . 179
air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
climatronic . . . . . . . . . . . . . . . . . . . . . . . . 36, 176
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 176
electronic manual air conditioning . . . . . . . . . 176
indirect ventilation . . . . . . . . . . . . . . . . . . . . . . 178
rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
special features . . . . . . . . . . . . . . . . . . . . . . . . 178
user instructions . . . . . . . . . . . . . . . . . . . . . . . . 177
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
All-wheel drive snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . . . . 136
Anodized surfaces . . . . . . . . . . . . . . . . . . . . . . . . 257 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . 249, 263
Anti-freeze
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Anti-lock brake system . . . . . . . . . . . . . . . . . . . . . 205
Anti-lock system . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . . . . 44, 85
Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . . . . . 119 Anti-tow system . . . . . . . . . . . . . . . . . . . . . . . . 120
false alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Interior monitoring . . . . . . . . . . . . . . . . . . . . . . 120
trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Anti-theft security system . . . . . . . . . . . . . . . . . . 119
Anti-tow system . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Anti-trap function panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . 129
sun blind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 280
Armrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
ASR see Braking assist systems . . . . . . . . . . 206, 207
switching on and off . . . . . . . . . . . . . . . . . . . . . 207
see also Traction control system . . . . . . . . . . . 205
Assistance call . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Assistance systems Electronic differential lock system (EDS) . . . . 206
Electronic drive torque management (XDS) . . 206
Launch-Control programme . . . . . . . . . . . . . . . 198
tiredness detection . . . . . . . . . . . . . . . . . . . . . 232
tyre monitoring systems . . . . . . . . . . . . . . . . . 236
Assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Assist systems adaptive headlights . . . . . . . . . . . . . . . . . . . . . 132
auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
blind spot detector (BSD) with parking assis-tant (RTA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
brake assist system (BAS) . . . . . . . . . . . . . . . . 206
cruise control system . . . . . . . . . . . . . . . . . . . . 221
dynamic chassis control (DCC) . . . . . . . . . . . . 233 307

Index
lane assist system . . . . . . . . . . . . . . . . . . . . . . 222
optic al
p
arking system . . . . . . . . . . . . . . . . . . . 213
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
parking assistance . . . . . . . . . . . . . . . . . . . . . . 212
parking assistant (RTA) . . . . . . . . . . . . . . . . . . 225
Parking distance warning system . . . . . . . . . . 212
rear assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
rear View Camera . . . . . . . . . . . . . . . . . . . . . . . 217
sign Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
start assistance . . . . . . . . . . . . . . . . . . . . . . . . 208
traction control when accelerating (ASR) . . .206, 207
traffic signal detection . . . . . . . . . . . . . . . . . . . 230
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Automatic belt retractor . . . . . . . . . . . . . . . . . . . . . 67
Automatic car wash Switching Auto Hold off . . . . . . . . . . . . . . . . . . 209
switching the start assist off . . . . . . . . . . . . . . 209
Automatic dipped beam control . . . . . . . . . . . . . 132
Automatic gearbox driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
emergency release . . . . . . . . . . . . . . . . . . . . . . . 35
ignition key removal lock . . . . . . . . . . . . . . . . . 186
kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Auxiliary heater . . . . . . . . . . . . . . . . . . . . . 180, 269 automatic off . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
operating instructions . . . . . . . . . . . . . . . . . . . 183
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . 182
remote control . . . . . . . . . . . . . . . . . . . . . . . . . 181
remote control range . . . . . . . . . . . . . . . . . . . . 181
remote control: replacing the battery . . . . . . . 181
special features . . . . . . . . . . . . . . . . . . . . . . . . 180
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
things to note . . . . . . . . . . . . . . . . . . . . . . . . . . 183 Auxiliary heater remote control
auxili ary heater . . . . . . . . . . . . . . . . . . . . . . . . . 181
replacing the battery . . . . . . . . . . . . . . . . . . . . 181
B BAS see Brake assist systems . . . . . . . . . . . . . . . . . 206
Battery changing in the vehicle key . . . . . . . . . . . . . . . 113
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Belt height adjustment . . . . . . . . . . . . . . . . . . . . . 67
Belt tension device service and disposal . . . . . . . . . . . . . . . . . . . . . 68
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Belt tension limiter . . . . . . . . . . . . . . . . . . . . . . . . . 67
Belt tightening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Bicycle carrier Installing on tow hitch . . . . . . . . . . . . . . . . . . . 240
Maximum load . . . . . . . . . . . . . . . . . . . . . . . . . 240
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Blind spot detector (BSD) . . . . . . . . . . . . . . . . . . 225 control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 225
driving conditions . . . . . . . . . . . . . . . . . . . . . . 228
indication in the external rear view mirror . . . 226
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 opening and closing . . . . . . . . . . . . . . . . . . . . 274
Boot hatch emergency locking and unlocking . . . . . . . . . . . 10
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Brake assist systems . . . . . . . . . . . . . . . . . . . . . . 205
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 specification . . . . . . . . . . . . . . . . . . . . . . . . . . . 282 Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
brake a ssist systems . . . . . . . . . . . . . . . . . . . . 205
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
brake fluid level . . . . . . . . . . . . . . . . . . . . . . . . 283
brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193 brake servo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
changing the brake fluid . . . . . . . . . . . . . . . . . 283
electronic parking brake . . . . . . . . . . . . . . . . . 191
emergency braking function . . . . . . . . . . . . . . 192
running in new brake pads . . . . . . . . . . . . . . . 193
warning and indication lamps . . . . . . . . . . . . . 190
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 193, 205
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Braking brake assist system . . . . . . . . . . . . . . . . . . . . . 205
BSD see Blind spot detector . . . . . . . . . . . . . . . . . . 225
Bulb malfunction see Changing bulbs . . . . . . . . . . . . . . . . . . . . . . 91
C
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 windshield wiper fluid tank . . . . . . . . . . . . . . . 284
Card compartment . . . . . . . . . . . . . . . . . . . . . . . . 168
Caring for paintwork . . . . . . . . . . . . . . . . . . . . . . . 256
Caring for the vehicle exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . 203 Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
warning and indication lamps . . . . . . . . . . . . . 202
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221 see cruise control . . . . . . . . . . . . . . . . . . . . . . . . 32
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . 166, 171
308
