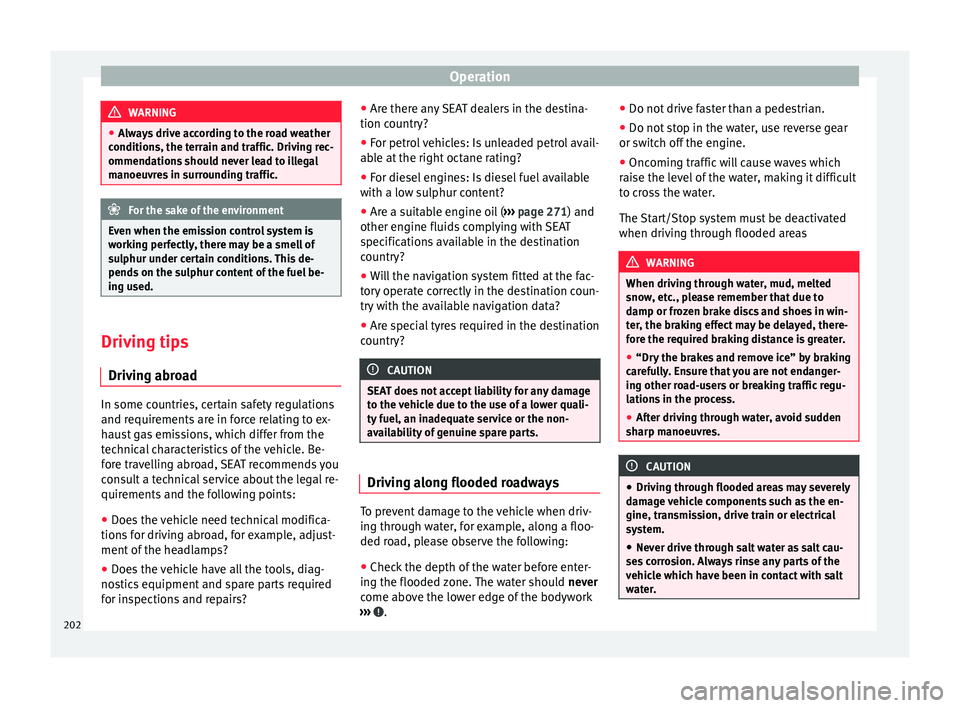

Page 204 of 320
Operation
WARNING
● Alw a
ys drive according to the road weather
conditions, the terrain and traffic. Driving rec-
ommendations should never lead to illegal
manoeuvres in surrounding traffic. For the sake of the environment
Even when the emission control system is
work in
g perfectly, there may be a smell of
sulphur under certain conditions. This de-
pends on the sulphur content of the fuel be-
ing used. Driving tips
Driv ing abr
oadIn some countries, certain safety regulations
and r
equir
ements
are in force relating to ex-
haust gas emissions, which differ from the
technical characteristics of the vehicle. Be-
fore travelling abroad, SEAT recommends you
consult a technical service about the legal re-
quirements and the following points:
● Does the vehicle need technical modifica-
tions f
or driving abroad, for example, adjust-
ment of the headlamps?
● Does the vehicle have all the tools, diag-
nostic
s equipment and spare parts required
for inspections and repairs? ●
Are there an
y SEAT dealers in the destina-
tion country?
● For petrol vehicles: Is unleaded petrol avail-
able at
the right octane rating?
● For diesel engines: Is diesel fuel available
with a low s
ulphur content?
● Are a suitable engine oil ( ›››
page 271) and
other engine fluids complying with SEAT
specifications available in the destination
country?
● Will the navigation system fitted at the fac-
tory
operate correctly in the destination coun-
try with the available navigation data?
● Are special tyres required in the destination
countr
y? CAUTION
SEAT does not accept liability for any damage
to the v
ehicle due to the use of a lower quali-
ty fuel, an inadequate service or the non-
availability of genuine spare parts. Driving along flooded roadways
To prevent damage to the vehicle when driv-
in
g thr
ough w
ater, for example, along a floo-
ded road, please observe the following:
● Check the depth of the water before enter-
ing the flooded z
one. The water should never
come above the lower edge of the bodywork
››› .●
Do not driv
e f
aster than a pedestrian.
● Do not stop in the water, use reverse gear
or switc
h off the engine.
● Oncoming traffic will cause waves which
raise the l
evel of the water, making it difficult
to cross the water.
The Start/Stop system must be deactivated
when driving through flooded areas WARNING
When driving through water, mud, melted
sno w
, etc., please remember that due to
damp or frozen brake discs and shoes in win-
ter, the braking effect may be delayed, there-
fore the required braking distance is greater.
● “Dry the brakes and remove ice” by braking
caref
ully. Ensure that you are not endanger-
ing other road-users or breaking traffic regu-
lations in the process.
● After driving through water, avoid sudden
sharp manoeu
vres. CAUTION
● Drivin g thr
ough flooded areas may severely
damage vehicle components such as the en-
gine, transmission, drive train or electrical
system.
● Never drive through salt water as salt cau-
ses c
orrosion. Always rinse any parts of the
vehicle which have been in contact with salt
water. 202

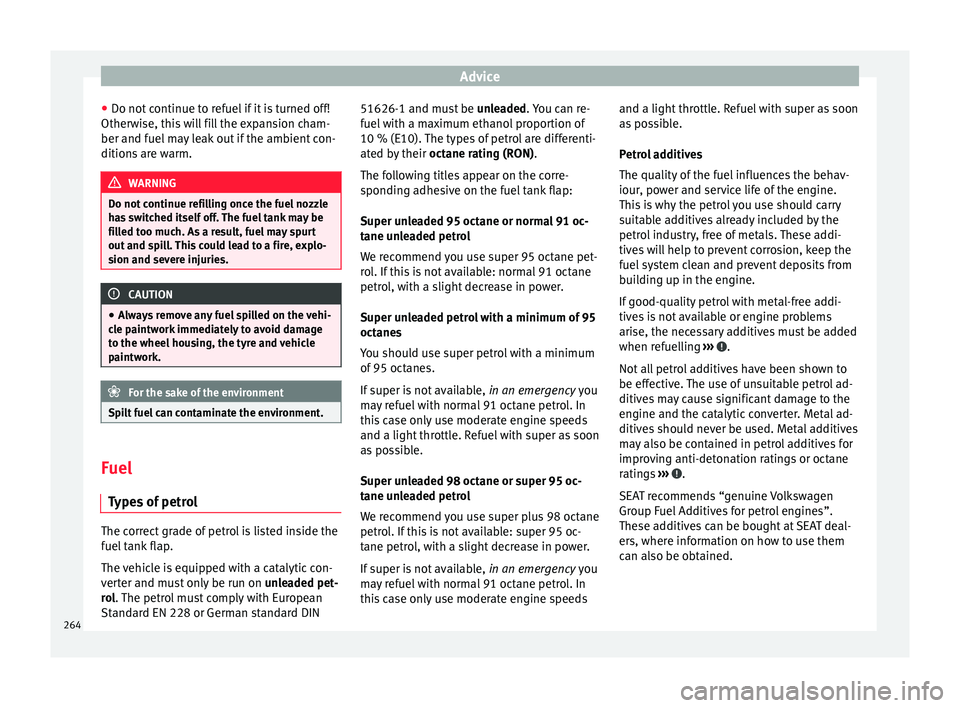

Page 266 of 320
Advice
● Do not c
ontinue t
o refuel if it is turned off!
Otherwise, this will fill the expansion cham-
ber and fuel may leak out if the ambient con-
ditions are warm. WARNING
Do not continue refilling once the fuel nozzle
ha s
switched itself off. The fuel tank may be
filled too much. As a result, fuel may spurt
out and spill. This could lead to a fire, explo-
sion and severe injuries. CAUTION
● Alw a
ys remove any fuel spilled on the vehi-
cle paintwork immediately to avoid damage
to the wheel housing, the tyre and vehicle
paintwork. For the sake of the environment
Spilt fuel can contaminate the environment. Fuel
Ty pe
s of petrol The correct grade of petrol is listed inside the
f
uel
t
ank flap.
The vehicle is equipped with a catalytic con-
verter and must only be run on unleaded pet-
rol. The petrol must comply with European
Standard EN 228 or German standard DIN 51626-1 and must be
unl
eaded. You can re-
fuel with a maximum ethanol proportion of
10 % (E10). The types of petrol are differenti-
ated by their octane rating (RON).
The following titles appear on the corre-
sponding adhesive on the fuel tank flap:
Super unleaded 95 octane or normal 91 oc-
tane unleaded petrol
We recommend you use super 95 octane pet-
rol. If this is not available: normal 91 octane
petrol, with a slight decrease in power.
Super unleaded petrol with a minimum of 95
octanes
You should use super petrol with a minimum
of 95 octanes.
If super is not available, in an emergency you
may refuel with normal 91 octane petrol. In
this case only use moderate engine speeds
and a light throttle. Refuel with super as soon
as possible.
Super unleaded 98 octane or super 95 oc-
tane unleaded petrol
We recommend you use super plus 98 octane
petrol. If this is not available: super 95 oc-
tane petrol, with a slight decrease in power.
If super is not available, in an emergency you
may refuel with normal 91 octane petrol. In
this case only use moderate engine speeds and a light throttle. Refuel with super as soon
as po
ssible.
Petrol additives
The quality of the fuel influences the behav-
iour, power and service life of the engine.
This is why the petrol you use should carry
suitable additives already included by the
petrol industry, free of metals. These addi-
tives will help to prevent corrosion, keep the
fuel system clean and prevent deposits from
building up in the engine.
If good-quality petrol with metal-free addi-
tives is not available or engine problems
arise, the necessary additives must be added
when refuelling ››› .
Not al
l
petrol additives have been shown to
be effective. The use of unsuitable petrol ad-
ditives may cause significant damage to the
engine and the catalytic converter. Metal ad-
ditives should never be used. Metal additives
may also be contained in petrol additives for
improving anti-detonation ratings or octane
ratings ››› .
S EA
T r
ecommends “genuine Volkswagen
Group Fuel Additives for petrol engines”.
These additives can be bought at SEAT deal-
ers, where information on how to use them
can also be obtained.
264

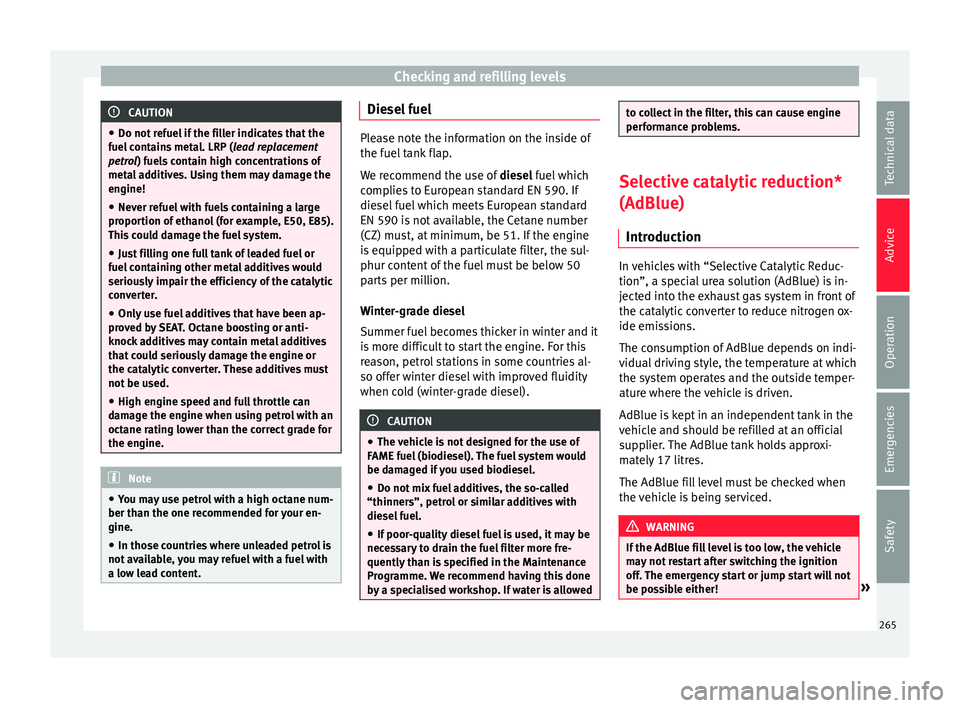

Page 267 of 320
Checking and refilling levels
CAUTION
● Do not r ef
uel if the filler indicates that the
fuel contains metal. LRP ( lead replacement
petrol) fuels contain high concentrations of
metal additives. Using them may damage the
engine!
● Never refuel with fuels containing a large
proportion of
ethanol (for example, E50, E85).
This could damage the fuel system.
● Just filling one full tank of leaded fuel or
fuel c
ontaining other metal additives would
seriously impair the efficiency of the catalytic
converter.
● Only use fuel additives that have been ap-
prov
ed by SEAT. Octane boosting or anti-
knock additives may contain metal additives
that could seriously damage the engine or
the catalytic converter. These additives must
not be used.
● High engine speed and full throttle can
damag
e the engine when using petrol with an
octane rating lower than the correct grade for
the engine. Note
● You m a
y use petrol with a high octane num-
ber than the one recommended for your en-
gine.
● In those countries where unleaded petrol is
not avai
lable, you may refuel with a fuel with
a low lead content. Diesel fuel
Please note the information on the inside of
the fuel
t
ank flap.
We recommend the use of diesel fuel which
complies to European standard EN 590. If
diesel fuel which meets European standard
EN 590 is not available, the Cetane number
(CZ) must, at minimum, be 51. If the engine
is equipped with a particulate filter, the sul-
phur content of the fuel must be below 50
parts per million.
Winter-grade diesel
Summer fuel becomes thicker in winter and it
is more difficult to start the engine. For this
reason, petrol stations in some countries al-
so offer winter diesel with improved fluidity
when cold (winter-grade diesel). CAUTION
● The v ehic
le is not designed for the use of
FAME fuel (biodiesel). The fuel system would
be damaged if you used biodiesel.
● Do not mix fuel additives, the so-called
“thinners”, petro
l or similar additives with
diesel fuel.
● If poor-quality diesel fuel is used, it may be
neces
sary to drain the fuel filter more fre-
quently than is specified in the Maintenance
Programme. We recommend having this done
by a specialised workshop. If water is allowed to collect in the filter, this can cause engine
perf
orm
ance problems. Selective catalytic reduction*
(AdBlue)
Introduction In vehicles with “Selective Catalytic Reduc-
tion”, a spec
i
al urea solution (AdBlue) is in-
jected into the exhaust gas system in front of
the catalytic converter to reduce nitrogen ox-
ide emissions.
The consumption of AdBlue depends on indi-
vidual driving style, the temperature at which
the system operates and the outside temper-
ature where the vehicle is driven.
AdBlue is kept in an independent tank in the
vehicle and should be refilled at an official
supplier. The AdBlue tank holds approxi-
mately 17 litres.
The AdBlue fill level must be checked when
the vehicle is being serviced. WARNING
If the AdBlue fill level is too low, the vehicle
ma y
not restart after switching the ignition
off. The emergency start or jump start will not
be possible either! » 265
Technical data
Advice
Operation
Emergencies
Safety
Page 296 of 320
Technical data
Technical data
T ec
hnic
al features
Important information Important The information in the vehicle documentation
alwa
y
s takes precedence over the informa-
tion in this Instruction Manual.
All technical specifications provided in this
documentation are valid for the standard
model in Spain. The vehicle data card inclu-
ded in the Maintenance Programme or the
vehicle registration documents shows which
engine is installed in the vehicle.
The figures may be different depending
whether additional equipment is fitted, for
different models, for special vehicles and for
other countries. Abbreviations used in the Technical Specifi-
cation
s
section
kWKilowatt, engine power measurement.
PSPferdestärke (horsepower), formerly
used to denote engine power.
rpmRevolutions per minute - engine speed.
NmNewton metres, unit of engine torque.
CZCetane number, indication of the diesel
combustion power.
RONResearch octane number, indication of
the knock resistance of petrol. Vehicle identification data
Fig. 254
Vehicle identification number. Vehicle identification number
The
v
ehic
le identification number (chassis
number) can be read from outside the vehicle through a viewer in the windscreen
›››
Fig. 254. This viewer is located in the lower
part of the windscreen. The vehicle identifica-
tion number (chassis number) is also stam-
ped on the right water drain channel. The wa-
ter drain channel is located between the sus-
pension tower and the wing. Open the bon-
net to read the vehicle identification number
››› page 268.
Vehicle data plate
The vehicle data plate is attached to the lug-
gage compartment, and contains the follow-
ing information:
● Vehicle identification number (chassis
number).
● Vehicle type, engine power, gearbox type.
● Engine and gearbox code, paint number,
interior equipment.
● Option
al extras, PR numbers.
These dat
a are also provided in the Mainte-
nance Programme.
Type plate
The type plate is visible when the driver door
is opened, on the lower part of the strut. Ve-
hicles for certain export countries do not
have a type plate.
The manufacturer's type plate contains the
following data:
294
Page 312 of 320

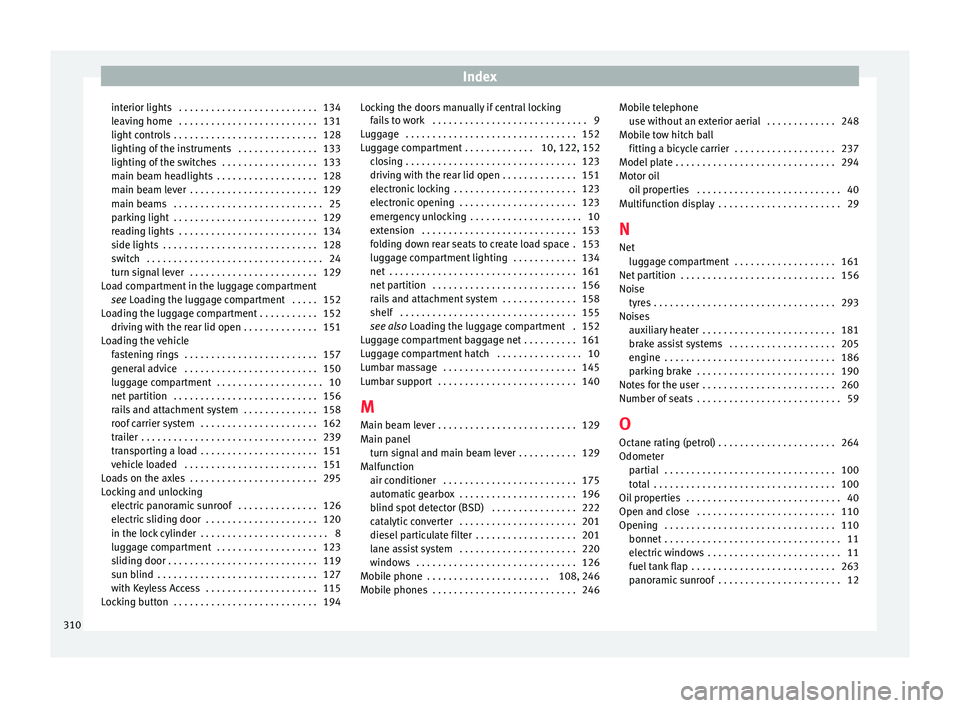

Index
interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . 134
l e
av
ing home . . . . . . . . . . . . . . . . . . . . . . . . . . 131
light controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
lighting of the instruments . . . . . . . . . . . . . . . 133
lighting of the switches . . . . . . . . . . . . . . . . . . 133
main beam headlights . . . . . . . . . . . . . . . . . . . 128
main beam lever . . . . . . . . . . . . . . . . . . . . . . . . 129
main beams . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
reading lights . . . . . . . . . . . . . . . . . . . . . . . . . . 134
side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . 129
Load compartment in the luggage compartment see Loading the luggage compartment . . . . . 152
Loading the luggage compartment . . . . . . . . . . . 152 driving with the rear lid open . . . . . . . . . . . . . . 151
Loading the vehicle fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 157
general advice . . . . . . . . . . . . . . . . . . . . . . . . . 150
luggage compartment . . . . . . . . . . . . . . . . . . . . 10
net partition . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
rails and attachment system . . . . . . . . . . . . . . 158
roof carrier system . . . . . . . . . . . . . . . . . . . . . . 162
trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
transporting a load . . . . . . . . . . . . . . . . . . . . . . 151
vehicle loaded . . . . . . . . . . . . . . . . . . . . . . . . . 151
Loads on the axles . . . . . . . . . . . . . . . . . . . . . . . . 295
Locking and unlocking electric panoramic sunroof . . . . . . . . . . . . . . . 126
electric sliding door . . . . . . . . . . . . . . . . . . . . . 120
in the lock cylinder . . . . . . . . . . . . . . . . . . . . . . . . 8
luggage compartment . . . . . . . . . . . . . . . . . . . 123
sliding door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
sun blind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
with Keyless Access . . . . . . . . . . . . . . . . . . . . . 115
Locking button . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 Locking the doors manually if central locking
fail s to work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Luggage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Luggage compartment . . . . . . . . . . . . . 10, 122, 152 closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
driving with the rear lid open . . . . . . . . . . . . . . 151
electronic locking . . . . . . . . . . . . . . . . . . . . . . . 123
electronic opening . . . . . . . . . . . . . . . . . . . . . . 123
emergency unlocking . . . . . . . . . . . . . . . . . . . . . 10
extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
folding down rear seats to create load space . 153
luggage compartment lighting . . . . . . . . . . . . 134
net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
net partition . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
rails and attachment system . . . . . . . . . . . . . . 158
shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
see also Loading the luggage compartment . 152
Luggage compartment baggage net . . . . . . . . . . 161
Luggage compartment hatch . . . . . . . . . . . . . . . . 10
Lumbar massage . . . . . . . . . . . . . . . . . . . . . . . . . 145
Lumbar support . . . . . . . . . . . . . . . . . . . . . . . . . . 140
M Main beam lever . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Main panel turn signal and main beam lever . . . . . . . . . . . 129
Malfunction air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . 175
automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 196
blind spot detector (BSD) . . . . . . . . . . . . . . . . 222
catalytic converter . . . . . . . . . . . . . . . . . . . . . . 201
diesel particulate filter . . . . . . . . . . . . . . . . . . . 201
lane assist system . . . . . . . . . . . . . . . . . . . . . . 220
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . 108, 246
Mobile phones . . . . . . . . . . . . . . . . . . . . . . . . . . . 246 Mobile telephone
use without an exterior aerial . . . . . . . . . . . . . 248
Mobile tow hitch ball fitting a bicycle carrier . . . . . . . . . . . . . . . . . . . 237
Model plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Motor oil oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Multifunction display . . . . . . . . . . . . . . . . . . . . . . . 29
N
Net luggage compartment . . . . . . . . . . . . . . . . . . . 161
Net partition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Noise tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Noises auxiliary heater . . . . . . . . . . . . . . . . . . . . . . . . . 181
brake assist systems . . . . . . . . . . . . . . . . . . . . 205
engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Notes for the user . . . . . . . . . . . . . . . . . . . . . . . . . 260
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
O Octane rating (petrol) . . . . . . . . . . . . . . . . . . . . . . 264
Odometer partial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Open and close . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 11
fuel tank flap . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 12
310
