Page 71 of 312

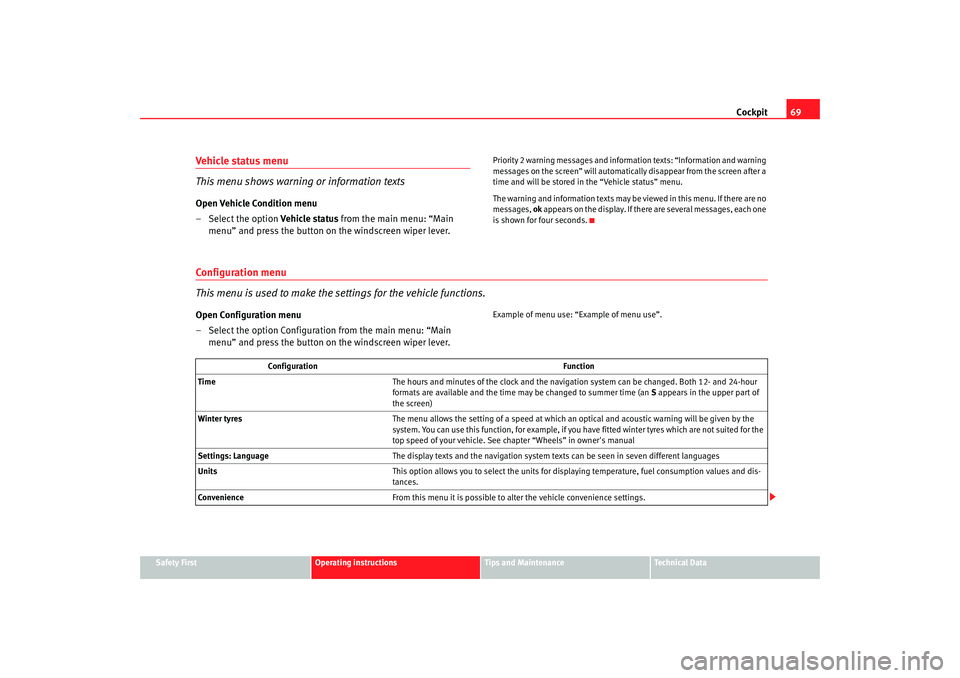

Cockpit69
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Vehicle status menu
This menu shows warning or information textsOpen Vehicle Condition menu
– Select the option Vehicle status from the main menu: “Main
menu” and press the button on the windscreen wiper lever.
Priority 2 warning messages and informat ion texts: “Information and warning
messages on the screen” will automatically disappear from the screen after a
time and will be stored in the “Vehicle status” menu.
The warning and information texts may be viewed in this menu. If there are no
messages, ok appears on the display. If there are several messages, each one
is shown for four seconds.
Configuration menu
This menu is used to make the settings for the vehicle functions.Open Configuration menu
– Select the option Configuratio n from the main menu: “Main
menu” and press the button on the windscreen wiper lever.
Example of menu use: “Example of menu use”.
Configuration Function
Time The hours and minutes of the clock and the navigation system can be changed. Both 12- and 24-hour
formats are available and the time may be changed to summer time (an S appears in the upper part of
the screen)
Winter tyres The menu allows the setting of a speed at which an optical and acoustic warning will be given by the
system. You can use this function, for example, if you have fitted winter tyres which are not suited for the
top speed of your vehicle. See chapter “Wheels” in owner's manual
Settings: Language The display texts and the navigation system texts can be seen in seven different languages
Units This option allows you to select the units for displaying temperature, fuel consumption values and dis-
tances.
Convenience From this menu it is possible to alter the vehicle convenience settings.
altea_xl ingles.book Seite 69 Donnerstag, 12. April 2007 12:56 12
Page 72 of 312
Cockpit
70
NoteFor electronic and vehicle equipment on e or more of these menus will be
displayed.Convenience menu
From this menu it is possible to alter the vehicle convenience settings.Open menu Convenience
– Choose the option Configuration from the main menu and press
the button on the windscreen wiper lever. – Choose the option
Convenience from the main menu and press
the button on the windscreen wiper lever.
Example of menu use: “Example of menu use”
Lights & visibility
From this menu it is it possible to alter the vehicle lighting settings: “Lights and visibility Menu”.
Display off Only emergency messages appear
Back This returns to the main menu
AA
AA
Convenience Function
Open doors Selective opening/ Complete opening
Self-locking
Self-unlocking
Audible warning function On / off (acoustic signal of centralised locking)
Convenience opening Off
All
1 door
Synchronized regulation of wing mirrors Synchronized/individual
Back This returns to the Configuration menu
altea_xl ingles.book Seite 70 Donnerstag, 12. April 2007 12:56 12
Page 73 of 312
Cockpit71
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Note
For electronic and vehicle equipment on e or more of these menus will be
displayed.Lights and visibility menu
From this menu it is it possible to alter the vehicle lighting settings.Open Lights and visibility Menu
– Select the option Configuration from the main menu: “Main
menu” and press button on the windscreen wiper lever. – Select the option
Lights & visibility from the menu and press
button on the windscreen wiper lever.
Example of menu use: “Example of menu use”
Note
For electronic and vehicle equipment on e or more of these menus will be
displayed.
AA
AA
Lights & visibility Function
Coming Home/
Leaving Home The lighting dura
tion may be modified, in steps of 10 seconds, from a minimum of 10 seconds to a maxi-
mum of 90 seconds
The function may also be deactivated.
Indicator conf. With the convenience mode activated, the indicator will blink at least three times when turned on.
Manufacturer's settings The manufacturer's predefined values for the functions of this menu are restored.
Back This returns to the Configuration menu
altea_xl ingles.book Seite 71 Donnerstag, 12. April 2007 12:56 12
Page 74 of 312
Cockpit
72Warning lampsOverview of the warning lamps
The warning lamps indicate a number of different functions and possible faults.
Fig. 47 Instrument panel with warning lamps. Some of
the items of equipment listed here are fitted only on
certain models/model years or are optional extras.
altea_xl ingles.book Seite 72 Donnerstag, 12. April 2007 12:56 12
Page 75 of 312
Cockpit73
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Item
Symbol Meaning of warning and control lamps Further information
Fuel level / reserve ⇒page 75
Coolant level / coolant temperature ⇒page 75
Rear fog light switched on ⇒page 76
Turn signals in operation ⇒page 76
Trailer turn signals in operation ⇒page 76
Main beam switched on ⇒page 76
Bulb defective ⇒page 77
Cruise control system switched on ⇒page 77
Washer fluid level ⇒page 77
Parking brake applied
or low brake fluid level or
fault in brake system ⇒
page 77
Engine oil pressure ⇒page 78
ABS system fault ⇒page 78
Pollen accumulation in the diesel engine particle filter ⇒page 79
Alternator fault ⇒page 79
A1A2A3A4A5A6A7A8A9A10A11A12A13A14
altea_xl ingles.book Seite 73 Donnerstag, 12. April 2007 12:56 12
Page 76 of 312
Cockpit
74
Fasten seat belts! ⇒page 19
Tyre pressure ⇒page 80
Engine fault (petrol engine) ⇒page 81
Glow plug system for diesel engine
If lit: preheating active
If flashing: engine fault ⇒
page 81
Airbag or belt tension device system fault or airbag disabled ⇒page 28 ⇒page 31
Fault in the emission control system ⇒page 81
If flashing: electronic stabilisation programme (ESP) is
working
If it remains lit: ESP malfunction or off ⇒
page 81
Operate foot brake ⇒page 82
Electromechanical steering ⇒page 82
Brake pad wear indicator ⇒page 82
Door open indicator ⇒page 82
SAFE Electronic immobiliser ⇒page 83
Item
Symbol Meaning of warning and control lamps Further information
A15A16A17A17A18A19A20A21A22A23A24
altea_xl ingles.book Seite 74 Donnerstag, 12. April 2007 12:56 12
Page 77 of 312
Cockpit75
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
WARNING
•
Failure to observe warning lamps and warning messages can result in
serious personal injury or damage to your vehicle.
•
The risk of an accident increases if your vehicle breaks down. Use a
warning triangle to draw the attention of other road users to your
stationary vehicle so that it does not represent a danger.
•
The engine compartment of any motor vehicle is a dangerous area!
Before you open the bonnet to work on the engine or in the engine compart-
ment, you must switch off the engine and allow it to cool to reduce the risk
of scalding or other injuries. Read and observe the relevant warnings
⇒ page 211.Note
•
The appropriate warning lamp for a fault will light up in vehicles without
warning or information texts in the display.
•
In vehicles with warning or information texts in the display, the appro-
priate warning lamp for a fault will ligh t up and a warning or information text
will also appear in the display.
Fuel level / reserve
This symbol lights up to indicate that the fuel tank is down to
the reserve level.This lights when only 7 litres of fuel re main in the tank (8 litres for four-wheel
drive vehicles). Also, an audible warning is given. This serves as a reminder
to fill up with fuel at the earliest opportunity ⇒page 208. The following information text is
displayed in the instrument panel
9): PLEASE
REFUEL! .
Coolant Level* / temperature
The warning lamp lights up if the coolant temperature is too
high or if the coolant level is too low.There is a fault if:•
The warning symbol does not go out again after a few seconds.
•
The warning lamp lights up or flashes while the vehicle is moving, while
three acoustic warning signals ⇒ are emitted.
This means that either the coolant level is too low or the coolant temperature
is too high.
Coolant temperature too high
The following information text is displayed in the instrument panel
10): CHECK
COOLANT INSTRUCTIONS MANUAL .
First look at the coolant temperature gauge. The coolant temperature is too
high if the needle is over the warning area on the dial. Stop the vehicle,
switch off the engine and wait for it to cool down. Check the coolant level.
If the coolant level is correct, the over heating may be caused by a malfunction
of the radiator fan. Check the radiator fan fuse and have it replaced if neces-
sary ⇒page 247.
If the warning lamp lights up again after driving on for a short distance, stop
the vehicle and switch off the engine . Contact an Authorised Service Centre
or a qualified workshop.
9)Depending on the model version10)Depending on the model version
altea_xl ingles.book Seite 75 Donnerstag, 12. April 2007 12:56 12
Page 78 of 312
Cockpit
76Coolant level too low
The following information text is displayed in the instrument panel
11): STOP
CHECK COOLANT INSTRUCTIONS MANUAL ⇒ page 218.
First look at the coolant temperature gauge. If the needle is in the normal
range, top up with coolant at the earliest opportunity ⇒ .
WARNING
•
If your vehicle is immobilised for any technical reasons, move it to a
safe distance from traffic. Turn off the engine, turn on the hazard lights and
place the warning triangle.
•
Never open the bonnet if you can see or hear steam or coolant escaping
from the engine compartment. Risk of scalding. Wait until you can no
longer see or hear escaping steam or coolant.
•
The engine compartment of any motor vehicle is a dangerous area!
Before carrying out any work in the engine compartment, switch off the
engine and allow it to cool down. Alwa ys note the corresponding warnings
⇒ page 211.
Rear fog light
This warning lamp lights up when the rear fog light is switched on
. Further
information ⇒page 111.
Turn sig nals
The warning lamp flashes when the turn signals are in oper-
ation.Depending on which turn signal is operated, either the left
or right
indi-
cator lamp flashes. Both warning lamps will flash at the same time when the
hazard warning lights are switched on.
If one turn signal fails, the warning lamp will start flashing twice as fast.
Further information on the turn signals ⇒page 116.
Trailer turn signals
This warning lamp also flashes when the turn signals are
operated while towing a caravan or trailer.The warning lamp
flashes when the turn signals are operated, provided a
trailer is correctly attached and connected to the vehicle.
The warning lamp will not flash if one of the turn signals on the trailer fails.
Main beam headlights
This warning lamp lights up when the main beams are on.The warning lamp
lights up when the main beams are on or when the
headlight flasher is operated.
Further information ⇒page 116.
11)Depending on the model version
altea_xl ingles.book Seite 76 Donnerstag, 12. April 2007 12:56 12
Page 79 of 312
Cockpit77
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Bulb defect
The warning lamp lights up when a bulb in the vehicle's exte-
rior lighting is defective.The warning lamp
lights up when a bulb in the vehicle's exterior lighting
(e.g. left-hand main beam) is defective.
The following information text is displayed in the instrument panel
12): LEFT
FULL LIGHT FAULT
Cruise control system*
The warning lamp comes on when the cruise control system
is switched on.The warning lamp
lights up when the cruise control system is switched on.
Further notes on the cruise control system ⇒page 176.
Washer fluid
This warning lamp lights up to indicate that the windscreen
washer level is too low.This serves as a reminder to fill up the reservoir at the earliest opportunity
⇒page 220.
The following information text is displayed in the instrument panel
display
13): REFILL WINDSCREEN WASHER FLUID.
Brake system* / handbrake
The warning lamp lights up if the handbrake is applied, if the
brake fluid level falls too low or if there is a fault in the brake
system.
This warning lamp
lights up if
•
If the handbrake is on
If you drive faster than 6 km/h with the handbrake on, the following message
will appear in the instrument panel display
14): HANDBRAKE ON. Also, an
audible warning is given.
•
If the brake fluid level is too low ⇒page 224
The following information text is displayed in the instrument panel
14): STOP
BRAKE FLUID INSTRUCTION MANUAL .
•
If there is a fault in the brake system
The following information text is displayed in the instrument panel
14): BRAKE
SYSTEM FAULT INSTRUCTIONS MANUAL
This warning lamp can light up together with the anti-lock brake system
warning lamp.
WARNING
•
Before opening the bonnet, read and observe the warnings on
⇒ page 211, “Working in the engine compartment”.
•
If the brake warning lamp does not go out, or if it lights up when
driving, the brake fluid level ⇒page 224, “Brake fluid” in the reservoir is
too low. Risk of accident. Stop the vehicle and do not drive on. Obtain tech-
nical assistance.
12)Depending on the model version13)Depending on the model version
14)Depending on the model version
altea_xl ingles.book Seite 77 Donnerstag, 12. April 2007 12:56 12
Page 80 of 312
Cockpit
78•
If the brake warning lamp
lights up together with the ABS warning
lamp
, the control function of the ABS could be out of action. This could
cause the rear wheels to lock quickly when you brake. This could cause the
rear to break away. Risk of skidding. Stop the vehicle and seek technical
assistance.
Engine oil pressure
This warning lamp indicates that the engine oil pressure is
too low.If this warning symbol starts to flash, and is accompanied by three audible
warnings, switch off the engine and check the oil level. If the oil level is too
low, add more engine oil ⇒page 214.
The following information text is displayed in the instrument panel
15): STOP
ENGINE OIL PRESSURE INSTRUCTIONS MANUAL .
If the symbol flashes although the oil level is correct, do not drive on. The
engine must not even run at idle speed. Obtain technical assistance.
Anti-lock brake system (ABS)
A warning lamp system monitors the ABS.
The warning lamp
should light up for a few seconds when the ignition is
switched on. It goes out again after the system has run through an automatic
test sequence. There is a fault in the ABS if:
•
The warning lamp
does not light up when the ignition is switched on.
•
The warning lamp does not go
out again after a few seconds.
•
The warning lamp lights up when the vehicle is moving.
The vehicle can still be braked in the normal way (except that the ABS control
function will not function). Please take the vehicle to a qualified workshop as
soon as possible. For further information on the ABS see the ⇒page 181.
If a fault occurs in the ABS, the ESP* warning lamp will also light up.
Brake system fault
If the ABS warning lamp
lights up together with the brake warning lamp
, this indicates not only a fault in the ABS function, but also a possible fault
in the brake system ⇒.
WARNING
•
Before opening the bonnet, read and observe the warnings on
⇒ page 211.
•
If the brake warning lamp
should light up together with the ABS
warning lamp
, stop the vehicle immediately and check the brake fluid
level in the reservoir ⇒page 224, “Brake fluid”. If the fluid level has
dropped below the “MIN” mark you must not drive on. Risk of accident.
Obtain technical assistance.
•
If the brake fluid level is correct, the fault in the brake system may have
been caused by a failure of the ABS system. This could cause the rear
wheels to lock quickly when you brake. This could cause the rear to break
away. Risk of skidding. Stop the vehicle and seek technical assistance.
15)Depending on the model versionWARNING (continued)
altea_xl ingles.book Seite 78 Donnerstag, 12. April 2007 12:56 12
