Cockpit
60Digital display in the instrument panelDisplay (without warning or information texts)
The display in the instrument panel shows, amongst other
things, the mileage and trip recorder as well as the selector
lever position.
Digital clock display ⇒page 59. On the right of the display: Selector
lever position display for the automatic gearbox*. The current position of
the selector lever or the gear which is engaged (for Tiptronic)* is high-
lighted.
Ambient temperature.
Distance display or flexible service interval display*.
Displayed categories*
The display in the instrument panel shows the mileage and
trip recorder as well as the selector lever position.
Clock: “Setting the time”. On the right of the display: Selector lever posi-
tion display for the automatic gearbox*. The actual position of the
selector lever or the gear which is engaged (for Tiptronic) are high-
lighted.
There are optional and automatic displays in this field.
– Optional indicators: e.g. those on the multi-function display (MFD)
– Automatic indicators: Information texts and warnings.
– Menus providing further information and which can be used to make diverse settings are also shown: “Instrument panel menus”
Ambient temperature:
Distance display or flexible service interval display.
Fig. 36 Detail of the
instrument cluster: screen
with different indicators
A1A2A3
Fig. 37 Digital display in
the instrument panel
A1A2A3A4
altea_freetrack_ingles.book Seite 60 Montag, 16. Februar 2009 10:48 10

Cockpit61
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Recommended gear display*
This display helps to save fuel.Use the gear display to save fuel. If you are driving in the correct gear, a dot
will be shown next to the gear display. If you are not in the correct gear, an
arrow will appear next to the gear display indicating whether you should
change up or down.Mileage display or Service Interval DisplayDistance display
The left-hand counter in the display registers the total amount of distance
covered by the vehicle.
The right-hand counter registers the short journeys. The last digit indicates
steps of 100 metres. The trip recorder counter may be reset by holding down
the reset button ⇒page 57, fig. 33 for a few seconds. Service interval display
A
Service pre-warning will appear in the mileage displays if a service is due
soon. A “spanner” symbol appears and the display “km” with the distance
that can be driven until the next service appointment is due. The display will
change after approximately 10 seconds. A “clock symbol” appears and the
number of days until the service appointment should be carried out. The
following message is shown in the instrument panel display: SERV. IN... KM
OR... DAYS . The service message will disappear approximately 20 seconds
after the ignition is switched on or the engine is running. The normal display
can be resumed by pressing the reset button on the trip counter or by
pressing the rocker switch of the MFI ⇒page 62, fig. 39 .
With the ignition switched on, you can call up the current service message by
pressing the trip counter reset knob for 2 seconds.
An overdue service is indicated by a minus sign in front of the mileage or day
information.
Fig. 38 Gear display
A6
AB
altea_freetrack_ingles.book Seite 61 Montag, 16. Februar 2009 10:48 10

Cockpit
62Display with multi-function display (MFD)*
The multi-function display (MFD) shows you information on
the journey and fuel consumption.
The multi-function system uses two automatic memories: 1 - Actual
memory and 2 - Total memory . The selected memory will be shown
in the upper right-hand corner of the display.
Selecting a memory
– When the ignition is on, briefly press button ⇒ fig. 39 on the
windscreen wiper lever to change from one memory to another or
press button on the steering wheel controls ⇒fig. 39 .
Resetting a memory
– Select the memory that you would like to reset.
– Hold down button on the windscreen wiper lever or button on the steering wheel controls for at least 2 seconds.The trip memory 1 collects the travel and consumption rates from the
moment the ignition is switched on until it is switched off. If the journey is
continued within two hours of switching off the ignition, the new values will
be added to the existing trip recorder memory. The memory will automatically
be deleted if the journey is interrupted for more than two hours.
The journey memory 2 collects the journey data for any number of individual
journeys (even if the ignition is switched off for longer than two hours) up to
a total of 99 hours and 59 minutes travel time, 9,999 km distance travelled
and 999 litres of fuel consumed. The memory will automatically be deleted if
one of the named values is reached.
Fig. 39 Rocker buttons A
and B. Steering wheel
controls.Fig. 40 Digital display in
the instrument panel
AA
AA
AA
AA
altea_freetrack_ingles.book Seite 62 Montag, 16. Februar 2009 10:48 10

Cockpit63
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Displays in the multi-function display (MFD)* You can switch between the following displays in the multi-function display
(MFD) by operating the rocker switch ⇒fig. 41 on the windscreen wiper
lever. Memory displays
•
Driving speed
•
Journey duration
•
Average speed
•
Distance
•
Distance to empty (the distance you can travel with the remaining fuel)
•
Average fuel consumption
•
Current fuel consumption
•
Ambient temperature display
•
Speed warning
Km/h - Driving speed
Driving speed is digitally shown on the display.
min - Journey duration
The display shows the amount of time which has elapsed since the ignition
was switched on.
The maximum display value in both memories is 99 hours and 59 minutes.
The memory will automatically be deleted once this value has been reached.
Økm/h - Average speed
The average speed will be shown after running a distance of approximately
100 metres. Dashes will appear in the display until that time. The display will
be updated every 5 seconds while the vehicle is in motion.
km - Distance travelled
The display shows the distance travelled since the ignition was switched on.
The maximum display value in both memories is 9999 km. The memory will
automatically be deleted once this value has been reached.
Fig. 41 Rocker buttons A
and B. Steering wheel
controls.Fig. 42 Digital instru-
ment panel display:
average fuel consumption
indicator.
AB
altea_freetrack_ingles.book Seite 63 Montag, 16. Februar 2009 10:48 10

Cockpit
64 Km - Fuel range
The fuel range is calculated using the figures for tank content and current fuel
consumption. It shows how far the vehicle can travel using the same condi-
tions as a reference.
Ø litre/100 km - Average fuel consumption
The average fuel consumption will be shown ⇒page 63, fig. 42 after a
distance of approximately 100 metres has been travelled. Dashes will appear
in the display until that time. The display will be updated every 5 seconds
while the vehicle is in motion. The amount of fuel used will not be shown.
ltr/100 km or ltr/hr - Current fuel consumption
The display will show the current fuel consumption in litre/km whilst the
vehicle is in motion or in litre/hour when the vehicle is in a stationary position
with the engine running.
Using this display you can see how your driving style affects fuel consump-
tion ⇒page 194.
Ambient temperature display
The measurement margin extends from -45°C to +58°C. At temperatures
lower than +4°C, an “ice crystal symbol” is displayed and a “warning” sounds
if the vehicle is moving at more than 20 km/h (ice warning). This symbol will
flash for about 10 seconds and remains lit until the exterior temperature rises
above +4°C or 6°C if it was already lit.
Set speed indicator
When driving at the required speed, enter the speed indicator mode and
press the button (Reset), the display remembers the indicated speed. If
the indicated speed is exceeded, a warning text is displayed on the screen
5)
and a warning signal sounds.
This may be deactivated by pressing the button (Reset). The speed may be altered using the rocker switch in steps of 5 km/h
within 5 seconds of the initial memory value.
WARNING
There could be black ice on the road surface even if the “snowflake symbol”
is not shown. You should, for this reason, not rely exclusively on this
display - Risk of accident!
Note
When the vehicle is stationary or travelling at very low speeds, the tempera-
ture displayed may be slightly higher than the actual ambient temperature as
a result of the heat radiated from the engine.Warning or information text in the display*
Faults are shown in the display with warning lamps and
warning/information reports.The system runs a check on certain components and functions when the igni-
tion is switched on and while the vehicle is moving. Functional faults are indi-
cated by symbols with warnings and information texts in the display. An
audible warning is given in certain cases.
Warning symbols
There are red warning symbols (priority 1) and yellow warning symbols
(priority 2)
Information text
In addition to warning messages given on a fault, you will receive information
in the display on procedures or will be asked to carry out certain tasks.
5)Depending on the model version, the message on the screen may vary and may be
represented by flashing of the speed indication or by a speed message.
AA
AA
AB
altea_freetrack_ingles.book Seite 64 Montag, 16. Februar 2009 10:48 10

Cockpit65
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Note
In the case of screens without warning or information texts, faults are indi-
cated exclusively by the warning lamps.Warning reports, Priority 1 (red)*If one of these faults occurs, the warning lamp will flash or light up and will
be accompanied by three audible warnings . This is a danger warning. Stop
the car and switch off the engine. Check the fault and correct it. Obtain profes-
sional assistance if necessary.
If several priority 1 faults are detected at the same time, the symbols will be
displayed one after the other for about 2 seconds at a time and will continue
until the fault is corrected.
No menus will be shown in the display for the duration of a priority 1 warning
report.
Examples of priority 1 warning reports (red)•
Brake system symbol
 with warning text STOP BRAKE FLUID
INSTRUCTION MANUAL or STOP BRAKE FAULT INSTRUCTION MANUAL
•
Coolant symbol
 with the warning text STOP SEE COOLANT SERVICE
MANUAL .
•
Engine oil pressure symbol

with the warning text STOP ENGINE OIL
PRESSURE LOW! SERVICE MANUAL .
Warning reports, Priority 2 (yellow)*If one of these faults occurs, the warning lamp lights up, and is accompanied
by one audible warning . The function should be checked as soon as possible. If several priority 2 warning reports are detected at the same time, the
symbols are displayed one after the other for about 2 seconds at a time. After
a set time, the information text will disappear and the symbol will be shown
as a reminder at the side of the display.
Priority 2
warning reports will not be shown until all Priority 1 warning
reports have been dealt with!
Examples of priority 2 warning reports (yellow):
6)
•
Fuel warning light with the information text PLEASE REFUEL.
•
Windscreen washer fluid symbol
 with the information text REFILL
WINDSCREEN WASHER FLUID . Refill the windscreen washer tank
⇒ page 224.
6)Depending on the version of the model.
altea_freetrack_ingles.book Seite 65 Montag, 16. Februar 2009 10:48 10

Cockpit

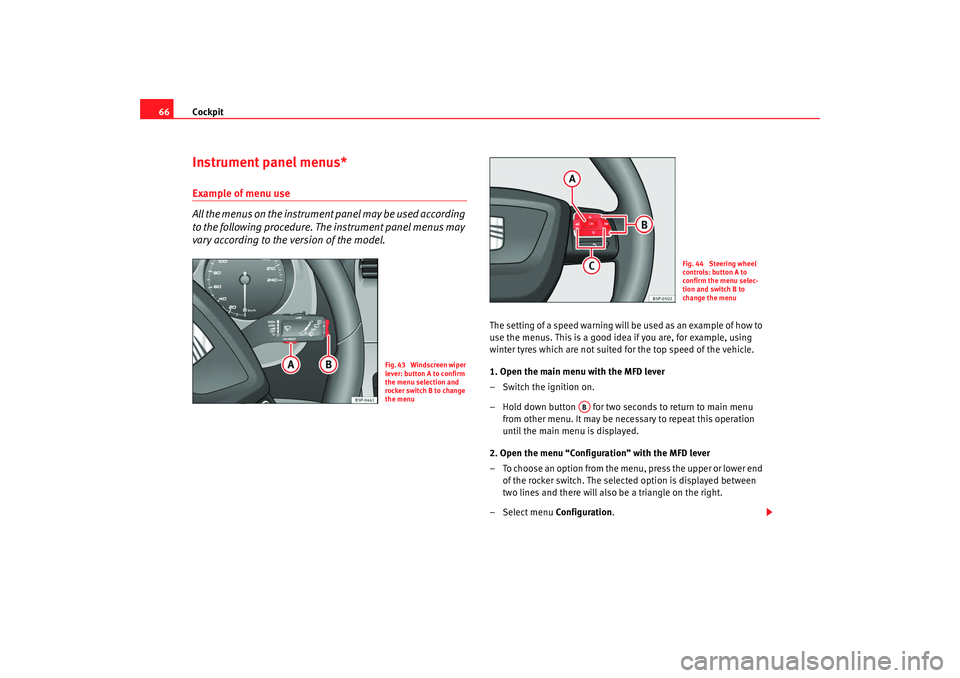

66Instrument panel menus*Example of menu use
All the menus on the instrument panel may be used according
to the following procedure. The instrument panel menus may
vary according to the version of the model.
The setting of a speed warning will be used as an example of how to
use the menus. This is a good idea if you are, for example, using
winter tyres which are not suited for the top speed of the vehicle.
1. Open the main menu with the MFD lever
– Switch the ignition on.
– Hold down button for two seconds to return to main menu
from other menu. It may be nece ssary to repeat this operation
until the main menu is displayed.
2. Open the menu “Configuration” with the MFD lever
– To choose an option from the menu, press the upper or lower end of the rocker switch. The selected option is displayed between
two lines and there will also be a triangle on the right.
– Select menu Configuration.
Fig. 43 Windscreen wiper
lever: button A to confirm
the menu selection and
rocker switch B to change
the menu
Fig. 44 Steering wheel
controls: button A to
confirm the menu selec-
tion and switch B to
change the menu
AB
altea_freetrack_ingles.book Seite 66 Montag, 16. Februar 2009 10:48 10

Cockpit67
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

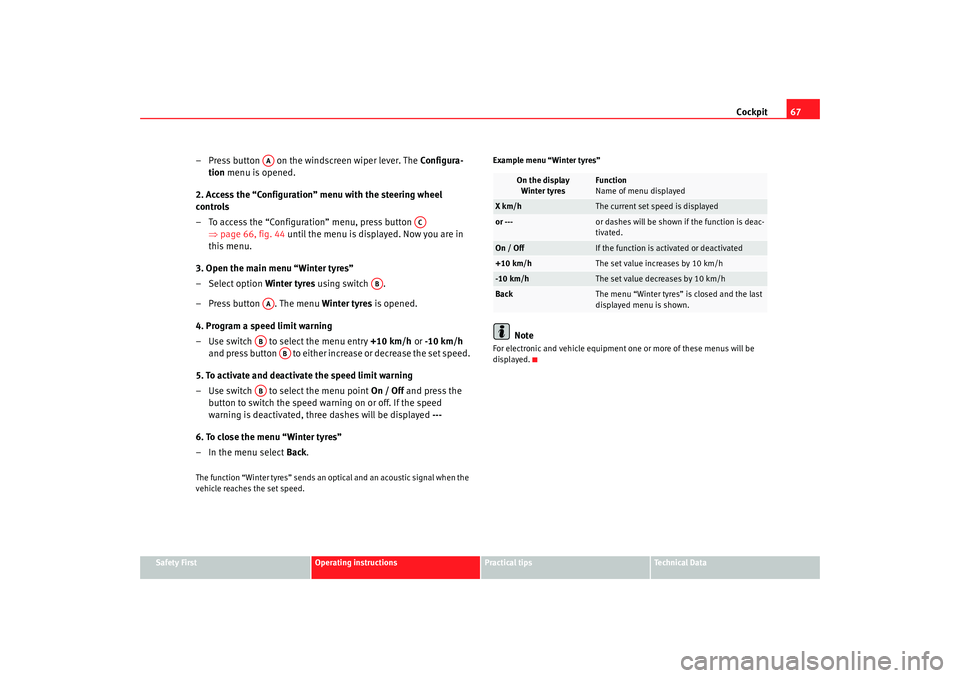

– Press button on the windscreen wiper lever. The Configura -
tion menu is opened.
2. Access the “Configuration” menu with the steering wheel
controls
– To access the “Configuration” menu, press button ⇒page 66, fig. 44 until the menu is displayed. Now you are in
this menu.
3. Open the main menu “Winter tyres”
– Select option Winter tyres using switch .
– Press button . The menu Winter tyres is opened.
4. Program a speed limit warning
– Use switch to select the menu entry +10 km/h or -10 km/h
and press button to either increase or decrease the set speed.
5. To activate and deactivate the speed limit warning
– Use switch to select the menu point On / Off and press the
button to switch the speed warning on or off. If the speed
warning is deactivated, three dashes will be displayed ---
6. To close the menu “Winter tyres”
– In the menu select Back.The function “Winter tyres” sends an optical and an acoustic signal when the
vehicle reaches the set speed. Example menu “Winter tyres”
Note
For electronic and vehicle equipment one or more of these menus will be
displayed.
AA
AC
AB
AA
AB
AB
AB
On the display
Winter tyres
Function
Name of menu displayed
X km/h
The current set speed is displayed
or ---
or dashes will be shown if the function is deac-
tivated.
On / Off
If the function is activated or deactivated
+10 km/h
The set value increases by 10 km/h
-10 km/h
The set value decreases by 10 km/h
Back
The menu “Winter tyres” is closed and the last
displayed menu is shown.
altea_freetrack_ingles.book Seite 67 Montag, 16. Februar 2009 10:48 10

Cockpit
68Main menu
The menu provides access to the different display functions
(only with the MFD lever).
Open main menu
– Switch the ignition on.
– Press and hold the eject button for at least 2 seconds. It may
be necessary to repeat this operation until the main menu is
displayed.
Select a menu from the main menu
– To choose an option from the menu, press the upper or lower end of rocker switch . The selected option is displayed between
two horizontal lines.
– Press button to select the entry.Example of menu use ⇒page 66
Fig. 45 Windscreen wiper
lever (MFD): button A to
confirm the menu selec-
t i o n an d ro cke r s wi t ch B t o
change the menuFig. 46 Digital instru-
ment panel display: Main
menu
Main menu
Function
Multi-function dis-
play
Change to the multi-function display (MFD): “Multi-
function display (MFD)”
Audio
The current station will be shown when the radio is
switched on.
Navigation
This menu is only available if the vehicle is fitted with
a navigation system. The navigation system must be
switched on. When the route guidance is activated,
the turning arrows and proximity bars are displayed.
The display is similar to that of the Navigation sys-
tem.
If the route guidance is not activated, the direction of
travel (compass) and the name of the street along
which you are driving are shown.
AB
AB
AA
altea_freetrack_ingles.book Seite 68 Montag, 16. Februar 2009 10:48 10

Cockpit69
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Note
For electronic and vehicle equipment one or more of these menus will be
displayed.
Multi-function display menu (MFD)
The multi-function display (MFD) shows you information on
the journey and fuel consumption.The multifunction display (MFD) has two automatic memories: 1 - Trip
memory and 2 - Total memory . The selected memory is shown on the upper
right hand section of the display ⇒ fig. 47 at all times.
Open the multifunction display menu
– Select the Multifunction display menu from the main menu ⇒page 68
and press the button on the windscreen wiper lever or the multifunc-
tion lever*.
Selecting a memory
– To change from one memory to another, briefly press button ⇒page 66, fig. 43 ⇒ page 66 on the windscreen wiper lever or the
button on the multifunction lever ⇒page 66, fig. 44 ⇒ page 66 while
the ignition is switched on.
Te l e p h o n e
This menu is only available if the vehicle is fitted with
a telephone mounted by the manufacturer: “Fixed tel-
ephone installation”
Ve hic le con di tion
This menu displays current warning or information
texts: “Vehicle status menu”
This option flashes when one of these texts is dis-
played.
Configuration
This option allows the time, the speed warning when
using winter tyres, units, language, independent
heating, the Light and visibility menu and the Con-
venience menu to be reset.
Fig. 47 Multifunction
display (MFD) instrument
panel display.
OK
AA
OK
altea_freetrack_ingles.book Seite 69 Montag, 16. Februar 2009 10:48 10
