Cockpit
80wheels to lock quickly when you brake. This could cause the rear to break
away. Risk of skidding. Stop the vehicle and seek technical assistance.Washer fluid

This warning lamp lights up to indicate that the windscreen
washer level is too low.This serves as a reminder to fill up the reservoir at the earliest opportunity
⇒ page 224.
The following message is shown on the instrument panel display*
11): REFILL
WINDSCREEN WASHER FLUID .
Alternator


This warning lamp signals a fault in the alternator.
The warning lamp
 lights up when the ignition is switched on. It should go
out when the engine has started running.
If the warning lamp  lights up while driving, the alternator is no longer
charging the battery. You should immediately drive to the nearest qualified
workshop.
You should avoid using electrical equipment that is not absolutely necessary
because this will drain the battery.
Tyre pressure*

The tyre pressure control system controls the tyre speed and
the frequency spectrum of each tyre.The tyre monitor
12) compares wheel revolutions and with this information,
the diameter of each wheel using the ESP sensors. If the diameter of a wheel
changes, the tyre monitor indicator lights  . The wheel diameter changes
when:
•
Tyre pressure is insufficient.
•
The tyre structure is damaged.
•
The vehicle is unbalanced because of a load.
•
The wheels of one axle are under more pressure (for example, driving with
a trailer or on extreme slopes).
•
The vehicle is fitted with snow chains.
•
The emergency wheel is fitted.
11)Depending on the version of the model.WARNING (continued)
12)Depending on the model version
Fig. 49 Centre console:
tyre monitor system
button
altea_freetrack_ingles.book Seite 80 Montag, 16. Februar 2009 10:48 10

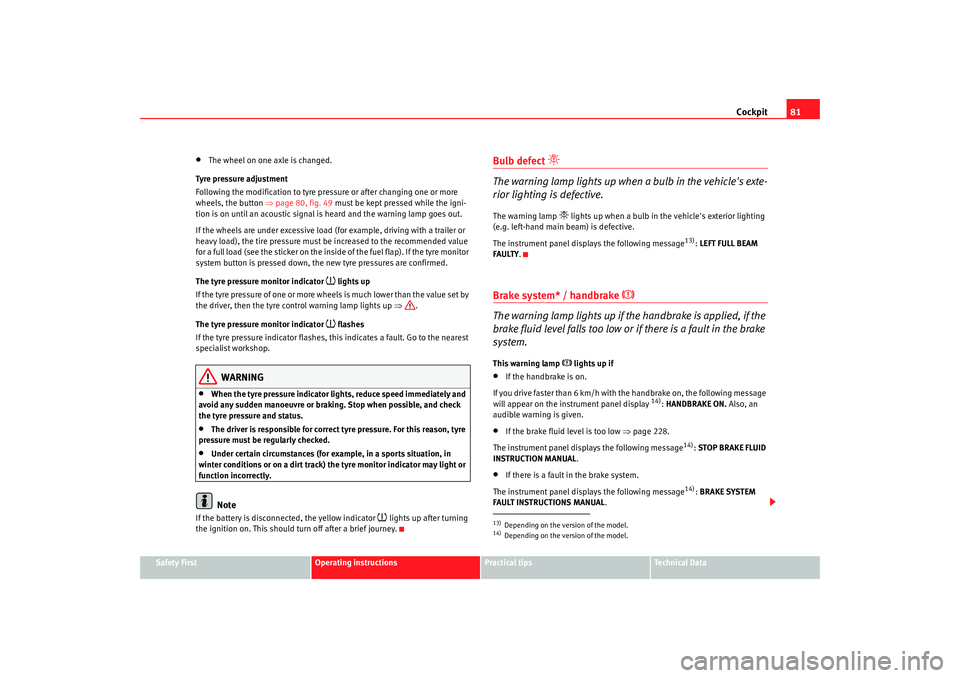

Cockpit81
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
•
The wheel on one axle is changed.
Tyre pressure adjustment
Following the modification to tyre pressure or after changing one or more
wheels, the button ⇒page 80, fig. 49 must be kept pressed while the igni-
tion is on until an acoustic signal is heard and the warning lamp goes out.
If the wheels are under excessive load (for example, driving with a trailer or
heavy load), the tire pressure must be increased to the recommended value
for a full load (see the sticker on the inside of the fuel flap). If the tyre monitor
system button is pressed down, the new tyre pressures are confirmed.
The tyre pressure monitor indicator
 lights up
If the tyre pressure of one or more wheels is much lower than the value set by
the driver, then the tyre control warning lamp lights up ⇒.
The tyre pressure monitor indicator  flashes
If the tyre pressure indicator flashes, this indicates a fault. Go to the nearest
specialist workshop.
WARNING
•
When the tyre pressure indicator lights, reduce speed immediately and
avoid any sudden manoeuvre or braking. Stop when possible, and check
the tyre pressure and status.
•
The driver is responsible for correct tyre pressure. For this reason, tyre
pressure must be regularly checked.
•
Under certain circumstances (for example, in a sports situation, in
winter conditions or on a dirt track) the tyre monitor indicator may light or
function incorrectly.Note
If the battery is disconnected, the yellow indicator
 lights up after turning
the ignition on. This should turn off after a brief journey.
Bulb defect

The warning lamp lights up when a bulb in the vehicle's exte-
rior lighting is defective.The warning lamp
 lights up when a bulb in the vehicle's exterior lighting
(e.g. left-hand main beam) is defective.
The instrument panel displays the following message
13): LEFT FULL BEAM
FAULTY .
Brake system* / handbrake


The warning lamp lights up if the handbrake is applied, if the
brake fluid level falls too low or if there is a fault in the brake
system.
This warning lamp
 lights up if
•
If the handbrake is on.
If you drive faster than 6 km/h with the handbrake on, the following message
will appear on the instrument panel display
14): HANDBRAKE ON. Also, an
audible warning is given.
•
If the brake fluid level is too low ⇒page 228.
The instrument panel displays the following message
14): STOP BRAKE FLUID
INSTRUCTION MANUAL .
•
If there is a fault in the brake system.
The instrument panel displays the following message
14): BRAKE SYSTEM
FAULT INSTRUCTIONS MANUAL .
13)Depending on the version of the model.14)Depending on the version of the model.
altea_freetrack_ingles.book Seite 81 Montag, 16. Februar 2009 10:48 10

Cockpit
82This warning lamp can light up together with the anti-lock brake system
warning lamp.
WARNING
•
Before opening the bonnet, read and observe the warnings on
⇒ page 215.
•
If the brake warning lamp does not go out, or if it lights up when
driving, the brake fluid level ⇒page 228, “Brake fluid” in the reservoir is
too low. Risk of accident. Stop the vehicle and do not drive on. Obtain tech-
nical assistance.
•
If the brake warning lamp
 lights up together with the ABS warning
lamp
, the control function of the ABS could be out of action. This could
cause the rear wheels to lock quickly when you brake. This could cause the
rear to break away. Risk of skidding. Stop the vehicle and seek technical
assistance.
Engine oil pressure

This warning lamp indicates that the engine oil pressure is
too low.If this warning symbol starts to flash, and is accompanied by three audible
warnings , switch off the engine and check the oil level. If the oil level is too
low, add more engine oil ⇒page 218.
The instrument panel displays the following message
15): STOP ENGINE OIL
PRESSURE INSTRUCTIONS MANUAL .
If the symbol flashes although the oil level is correct, do not drive on. The
engine must not even run at idle speed. Obtain technical assistance.
Cruise control system*

The warning lamp comes on when the cruise control system
is switched on.The warning lamp
 lights up when the cruise control system is switched on.
Further notes on the cruise control system ⇒page 180.
Indicator for open doors or tailgate*

This indicator lights if one of the doors or the tailgate is open.The warning light
 should go off when all the doors are closed correctly.
The system also works when the ignition is switched off. It should go off
approx. 15 seconds after the vehicle is locked.
Power steering system*

For vehicles with power steering, the level of steering assistance depends on
the vehicle's speed and on the steering angle.
The warning lamp should light up for a few seconds when the ignition is
switched on. It should go out once the engine is started.
If the battery is disconnected, the indicator remains lit, even with the engine
running. The warning light only goes off after a distance of approx. 50 m.
There is a fault in the electromechanical steering system if the lamp does not
go out or lights up whilst the vehicle is in motion. The indicator may appear
in two different colours to indicate faults. If it lights yellow, this indicates a
minor fault. If it lights red, seek workshop assistance immediately, if no
assistance is available stop driving. Stop the vehicle and seek technical
15)Depending on the version of the model.
altea_freetrack_ingles.book Seite 82 Montag, 16. Februar 2009 10:48 10

Cockpit83
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
assistance. The power steering does not work if the battery is flat or if the
engine is off (for example, for towing). You should take into account that you
will need considerably more power than normal to steer the vehicle if the
steering assistance is reduced or has failed completely.
For those vehicles fitted with ESP* the function “Recommended steering
manoeuvre” is included. See
⇒page 187.
Emission control system*


This warning lamp monitors the exhaust system.
Warning lamp
 flashes:
When there is misfiring that can damage the catalytic converter. Reduce
speed and drive carefully to the nearest qualified workshop to have the
engine checked.
The instrument panel displays the following message
16): EXHAUST GAS SEE
WORKSHOP
Warning lamp
 is lit:
If a fault has developed during driving which has reduced the quality of the
exhaust gas (e.g. lambda probe fault). Reduce speed and drive carefully to
the nearest qualified workshop to have the engine checked.
The following information text displayed in the instrument panel display :
EXHAUST GAS SEE WORKSHOP .
Electronic stabilisation programme (ESP)*

This warning lamp monitors the electronic stabilisation
programme.
This programme includes the ABS, EDL and TCS. This also includes the brake
assist system (BAS), automatic cleaning of the brake discs and the trailer
stability programme (TSP).
The warning lamp
 has the following functions:
•
It will light for about 2 seconds when the ignition is switched on while a
test of the function is carried out.
•
It flashes when the ESP is activated when driving.
•
It will light up continuously if there is a malfunction in the ESP.
•
It will also come on if a fault should occur in the ABS because the ESP
operates in conjunction with the ABS.
If the ESP warning lamp
 lights up and stays on after the engine is started,
this may mean that the control system has temporarily switched off the ESP.
In this case the ESP can be reactivated by switching the ignition off and then
on again. If the warning lamp goes out, this means the system is fully func-
tional.
If the ESP button is activated, the TCS function deactivates and the warning
lamp flashes.
16)Depending on the version of the model.
altea_freetrack_ingles.book Seite 83 Montag, 16. Februar 2009 10:48 10

Cockpit
84Differential lock fault (EDL)*
EDL operates along with the ABS in vehicles equipped with an
Electronic Stabilisation Program (ESP)*A malfunction in the EDL is indicated by the ABS warning lamp
. Please
take the vehicle to a qualified workshop as soon as possible. For further infor-
mation on the EDL ⇒page 188, “Electronic differential lock (EDL)*”.
Traction control system (TCS)*
The traction control system prevents the driven wheels from
spinning when the vehicle is acceleratingThe warning lamp lights up when the ignition is switched on and should turn
out after about 2 seconds.
When the TCS is operating while driving, the warning lamp flashes. If the
system is deactivated or if there is any fault in the same, the warning lamp will
remain lit.
It will also come on if a fault should occur in the ABS because the TCS oper-
ates in conjunction with the ABS. For further information, see ⇒page 185,
“Brakes”
If the TCS button is activated, the TCS function deactivates and the warning
lamp remains lit.
By pressing again, TCS function is reactivated and the warning lamp switched
off.
Operating the foot brake

The footbrake must be depressed when this warning lamp lights up. This is
necessary when the automatic gearbox* selector lever is moved out of the
positions P or N.Electronic immobiliser* “Safe”
This warning lamp flashes if an unauthorised key is used.Inside the key there is a chip that deactivates the electronic immobiliser auto-
matically when the key is inserted into the ignition. The immobiliser will be
activated again automatically as soon as you pull the key out of the ignition
lock.
The instrument panel displays the following message
17): SAFE . The vehicle
cannot be used in that case ⇒page 168.
The engine can, however, be started if the appropriate coded SEAT genuine
key is used.
Note
A perfect operation of the vehicle is ensured if genuine SEAT keys are used.17)Depending on the version of the model.
altea_freetrack_ingles.book Seite 84 Montag, 16. Februar 2009 10:48 10

Steering wheel controls*85
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Steering wheel controls*General informationThe steering wheel includes a multifunction module from where it is possible
to control the audio, telephone and radio navigation functions, and the auto-
matic gearbox*, without needing to distract the driver.
There are two versions of the multifunction module:
•
Audio version, to control the available audio functions from the steering
wheel.
•
Audio + Telephone version, to control the available audio functions and
the telephone system from the steering wheel.
Both versions may be used to control the Audio system (Radio, CD Audio, CD
mp3, CD Changer) and the radio / navigation System, in which case they also
control the Navigation system.
•
Version for automatic gearbox* ⇒page 175.
Audio systemSteering wheel audio version controls
Fig. 50 Controls on the
steering wheel
Fig. 51 Steering wheel
controls (depending on
version of model)
altea_freetrack_ingles.book Seite 85 Montag, 16. Februar 2009 10:48 10

Steering wheel controls*
86Button Radio CD/MP3/USB*/iPod*
AUX
a)
a)Only if the panel is in Audio menu.
Vol u m e u pVol u m e u pVol u m e u p
Vol u m e d ow n Vol u m e d ow nVol u m e d ow n
Search for next station Next track
Hold down: Fast forward No specified function
Search for last station Previous track
Hold down: Rewind No function specified
No function specified No function specifiedNo function specified
Silence PauseSilence
b)
b)Depending on the model version
Operates on Instrument panel display Operates on Instrument panel display Operates on Instrument panel display
Next preset
a)
Next track
a)
No function specified
a)
b)
Operates on Instrument panel display Operates on Instrument panel display Operates on Instrument panel display Previous preset
a)
Previous track
a)
No function specified
a)
b)
Next preset Change folderNo function specified
Change menu on instrument panel Change menu on instrument panelChange menu on instrument panel
b)
Previous preset Change folderNo function specified
Change menu on instrument panel Change menu on instrument panelChange menu on instrument panel
Operates on instrument panel Operates on instrument panelOperates on instrument panel
b)
Change source Change sourceChange source
Operates on instrument panel Operates on instrument panelOperates on instrument panel
AAABACADAEAFAGAHAIAJAKAL
altea_freetrack_ingles.book Seite 86 Montag, 16. Februar 2009 10:48 10

Steering wheel controls*87
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Steering wheel Audio + Telephone version controls
Fig. 52 Controls on the
steering wheel
Fig. 53 Steering wheel
controls (depending on
version of model)
ButtonRadio CD/MP3/USB*/iPod* AUXTELEPHONE
Volume up Volume upVolume upVolume up
Volume down Volume downVolume downVolume down
Search for next station Next track
Hold down: Fast forward No function specified No function specified
Search for last station Last track
Hold down:Rewind No function specified No function specified
Access telephone menu on instrument panel Access telephone menu on instrument
panel Access telephone menu on
instrument panel Make call
Accept incoming call End call
Hold down: reject incoming call
Enable voice recognition Enable voice recognitionEnable voice recognition Enable voice recognitionAAABACADAEAF
altea_freetrack_ingles.book Seite 87 Montag, 16. Februar 2009 10:48 10

Steering wheel controls*
88
Next preset
a)
Next track
a)
No function specified Movement on telephone menu
Address book / Last calls /
Calls received / Missed calls
Previous preset
a)
Previous track
a)
No function specified Movement on telephone menu
Address book / Last calls /
Calls received / Missed calls
Change menu on instrument panel Change menu on instrument panel Change menu on instrument
panel Change menu on instrument
panel
Change menu on instrument panel Change menu on instrument panel Change menu on instrument
panel Change menu on instrument
panel
Operates on instrument panel Operates on instrument panel Operates on instrument panel Confirm
Operates on instrument panel Operates on instrument panel Operates on instrument panel Return to MULTIFUNCTION DIS-
PLAY menu
a)Only if the instrument panel is in Audio menu.AGAHAIAJAKAL
altea_freetrack_ingles.book Seite 88 Montag, 16. Februar 2009 10:48 10

Steering wheel controls*89
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Radio navigation systemSteering wheel audio version controls
Fig. 54 Controls on the
steering wheel
Fig. 55 Steering wheel
controls (depending on
version of model)
ButtonRadio CD/MP3/USB*/iPod* AUXNAVIGATOR
Volume up Volume upVolume upVolume up
Volume down Volume downVolume downVolume down
Search for next station Next track
Hold down: Fast forward No function specified No function specified
Search for last station Last track
Hold down:Rewind No function specified No function specified
Access telephone menu on instrument panel Access telephone menu on instrument
panel Access telephone menu on
instrument panel No function specified
Enable voice recognition Enable voice recognitionEnable voice recognition Enable voice recognitionAAABACADAEAF
altea_freetrack_ingles.book Seite 89 Montag, 16. Februar 2009 10:48 10
