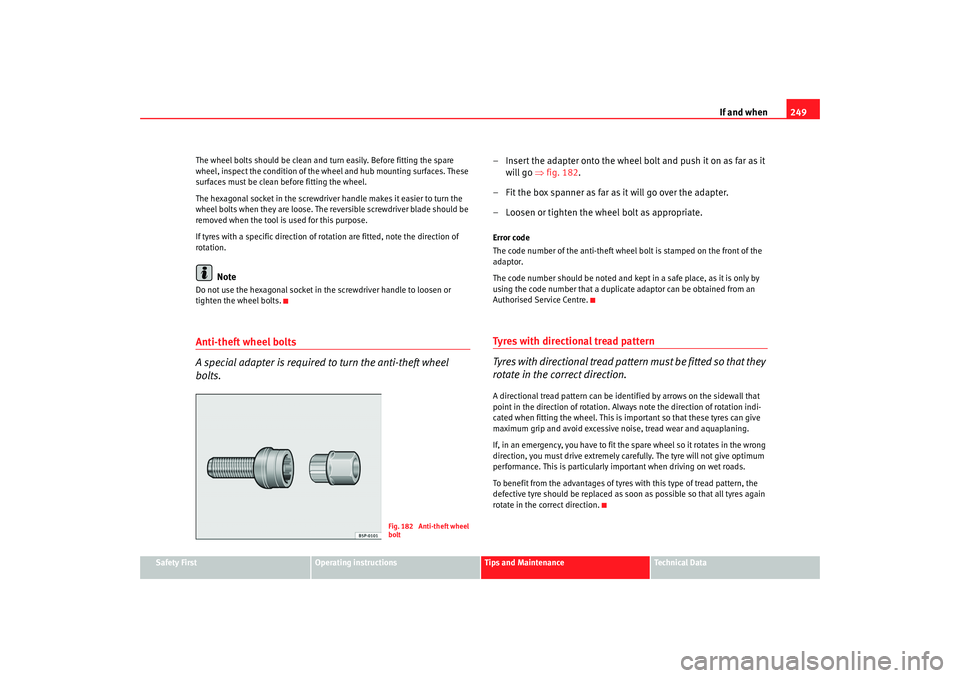

The wheel bolts should be clean and turn easily. Before fitting the spare
wheel, inspect the condition of the wheel and hub mounting surfaces. These
surfaces must be clean
before fitting the wheel.
The hexagonal socket in the screwdriver handle makes it easier to turn the
wheel bolts when they are loose. The reversible screwdriver blade should be
removed when the tool is used for this purpose.
If tyres with a specific direction of rotation are fitted, note the direction of
rotation.
Note
Do not use the hexagonal socket in the screwdriver handle to loosen or
tighten the wheel bolts.Anti-theft wheel bolts
A special adapter is required to turn the anti-theft wheel
bolts.
– Insert the adapter onto the wheel bolt and push it on as far as it will go ⇒fig. 182.
– Fit the box spanner as far as it will go over the adapter.
– Loosen or tighten the wheel bolt as appropriate.Error code
The code number of the anti-theft wheel bolt is stamped on the front of the
adaptor.
The code number should be noted and kept in a safe place, as it is only by
using the code number that a duplicat e adaptor can be obtained from an
Authorised Service Centre.Tyres with directional tread pattern
Tyres with directional tread pattern must be fitted so that they
rotate in the correct direction.A directional tread pattern can be ident ified by arrows on the sidewall that
point in the direction of rotation. Always note the direction of rotation indi-
cated when fitting the wheel. This is important so that these tyres can give
maximum grip and avoid excessive noise, tread wear and aquaplaning.
If, in an emergency, you have to fit the spare wheel so it rotates in the wrong
direction, you must drive extremely care fully. The tyre will not give optimum
performance. This is particularly important when driving on wet roads.
To benefit from the advantages of tyres with this type of tread pattern, the
defective tyre should be replaced as soon as possible so that all tyres again
rotate in the correct direction.
Fig. 182 Anti-theft wheel
bolt
altea_XL ingles.book Seite 249 Donnerstag, 13. September 2007 10:36 10

If and when

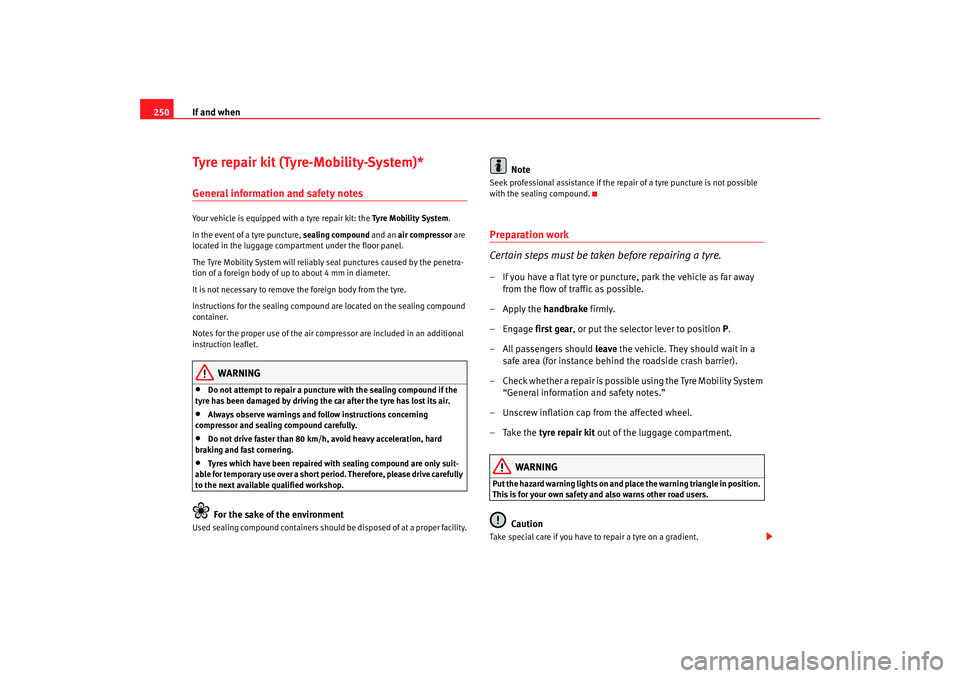

250Tyre repair kit (Tyre-Mobility-System)*General information and safety notesYour vehicle is equipped with a tyre repair kit: the Tyre Mobility System.
In the event of a tyre puncture, sealing compound and an air compressor are
located in the luggage compartment under the floor panel.
The Tyre Mobility System will reliably seal punctures caused by the penetra-
tion of a foreign body of up to about 4 mm in diameter.
It is not necessary to remove the foreign body from the tyre.
Instructions for the sealing compound are located on the sealing compound
container.
Notes for the proper use of the air comp ressor are included in an additional
instruction leaflet.
WARNING
•
Do not attempt to repair a puncture with the sealing compound if the
tyre has been damaged by driving the car after the tyre has lost its air.
•
Always observe warnings and follow instructions concerning
compressor and sealing compound carefully.
•
Do not drive faster than 80 km/h, avoid heavy acceleration, hard
braking and fast cornering.
•
Tyres which have been repaired with sealing compound are only suit-
able for temporary use over a short period. Therefore, please drive carefully
to the next available qualified workshop.For the sake of the environment
Used sealing compound cont ainers should be disposed of at a proper facility.
Note
Seek professional assistance if the repair of a tyre puncture is not possible
with the sealing compound.Preparation work
Certain steps must be taken before repairing a tyre.– If you have a flat tyre or puncture, park the vehicle as far away
from the flow of traffic as possible.
–Apply the handbrake firmly.
– Engage first gear, or put the selector lever to position P.
– All passengers should leave the vehicle. They should wait in a
safe area (for instance behind the roadside crash barrier).
– Check whether a repair is possible using the Tyre Mobility System “General information and safety notes.”
– Unscrew inflation cap from the affected wheel.
–Take the tyre repair kit out of the luggage compartment.
WARNING
Put the hazard warning lights on and place the warning triangle in position.
This is for your own safety and also warns other road users.
Caution
Take special care if you have to repair a tyre on a gradient.
altea_XL ingles.book Seite 250 Donnerstag, 13. September 2007 10:36 10

If and when251
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

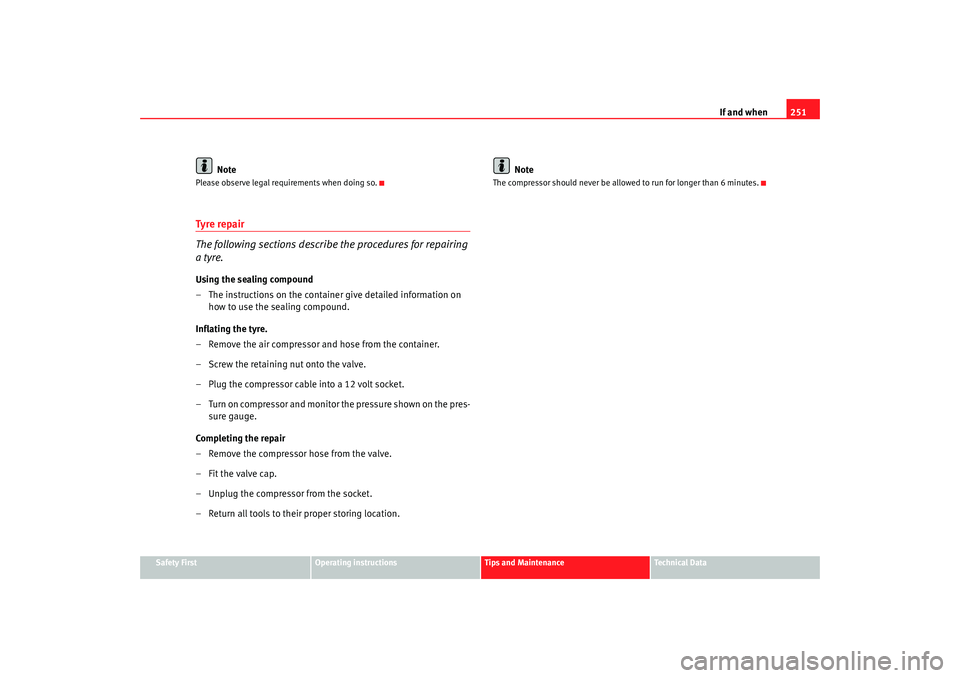

Note
Please observe legal requirements when doing so.Tyre repair
The following sections describe the procedures for repairing
a tyre.Using the sealing compound
– The instructions on the container give detailed information on
how to use the sealing compound.
Inflating the tyre.
– Remove the air compressor and hose from the container.
– Screw the retaining nut onto the valve.
– Plug the compressor cable into a 12 volt socket.
– Turn on compressor and monitor the pressure shown on the pres- sure gauge.
Completing the repair
– Remove the compressor hose from the valve.
– Fit the valve cap.
– Unplug the compressor from the socket.
– Return all tools to their proper storing location. Note
The compressor should never be allowed
to run for longer than 6 minutes.
altea_XL ingles.book Seite 251 Donnerstag, 13. September 2007 10:36 10

If and when

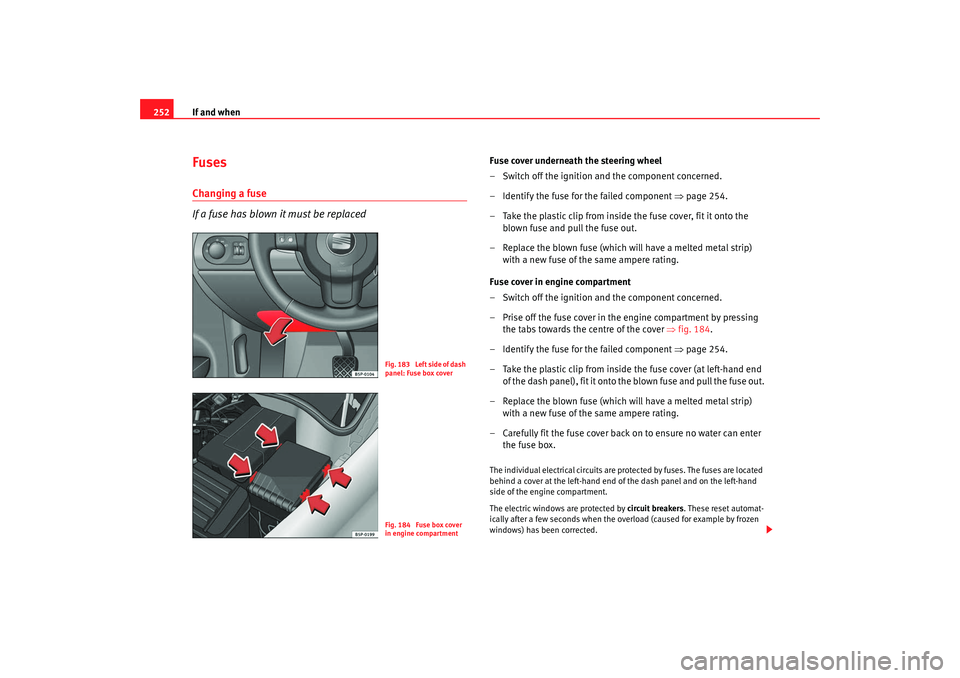

252FusesChanging a fuse
If a fuse has blown it must be replaced
Fuse cover underneath the steering wheel
– Switch off the ignition and the component concerned.
– Identify the fuse for the failed component ⇒page 254.
– Take the plastic clip from inside the fuse cover, fit it onto the blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
Fuse cover in engine compartment
– Switch off the ignition and the component concerned.
– Prise off the fuse cover in the engine compartment by pressing the tabs towards the centre of the cover ⇒fig. 184 .
– Identify the fuse for the failed component ⇒page 254.
– Take the plastic clip from inside the fuse cover (at left-hand end
of the dash panel), fit it onto the blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
– Carefully fit the fuse cover back on to ensure no water can enter the fuse box.The individual electrical circuits are protected by fuses. The fuses are located
behind a cover at the left-hand end of the dash panel and on the left-hand
side of the engine compartment.
The electric windows are protected by circuit breakers . These reset automat-
ically after a few seconds when the ov erload (caused for example by frozen
windows) has been corrected.
Fig. 183 Left side of dash
panel: Fuse box coverFig. 184 Fuse box cover
in engine compartment
altea_XL ingles.book Seite 252 Donnerstag, 13. September 2007 10:36 10

If and when253
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

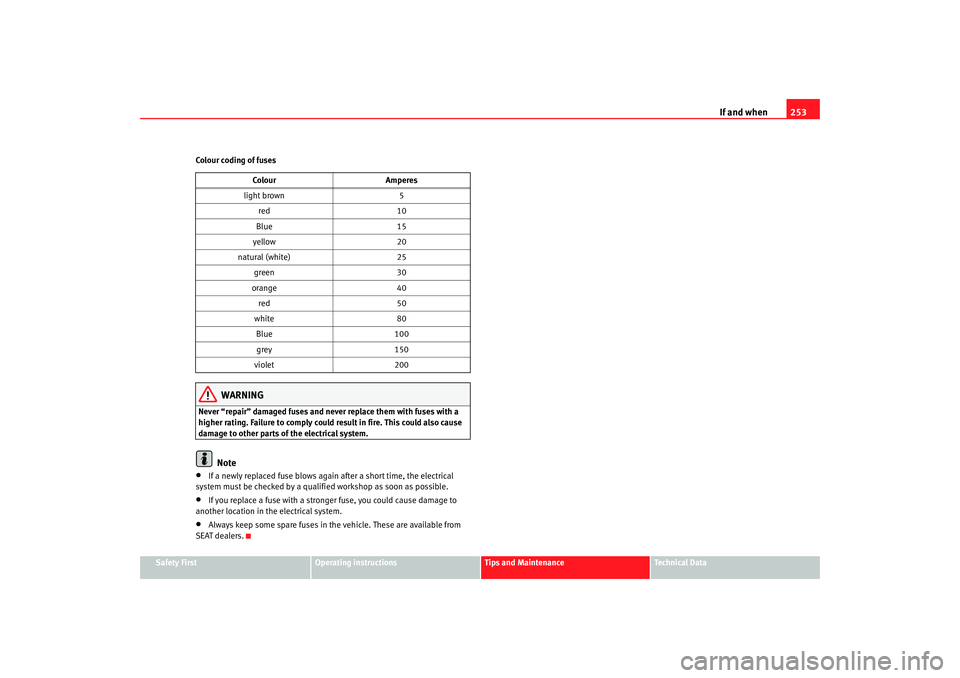

Colour coding of fuses
WARNING
Never “repair” damaged fuses and never replace them with fuses with a
higher rating. Failure to comply could result in fire. This could also cause
damage to other parts of the electrical system.
Note
•
If a newly replaced fuse blows again after a short time, the electrical
system must be checked by a qualified workshop as soon as possible.
•
If you replace a fuse with a stronger fuse, you could cause damage to
another location in the electrical system.
•
Always keep some spare fuses in the vehicle. These are available from
SEAT dealers. Colour
Amperes
light brown 5
red 10
Blue 15
yellow 20
natural (white) 25
green 30
orange 40
red 50
white 80
Blue 100
grey 150
violet 200
altea_XL ingles.book Seite 253 Donnerstag, 13. September 2007 10:36 10

If and when

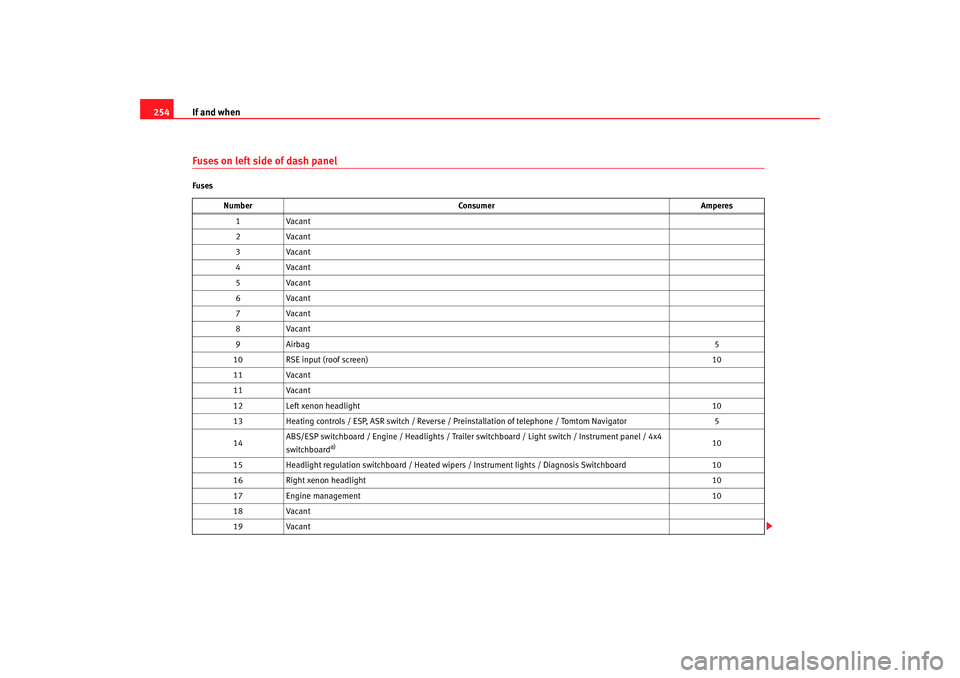

254Fuses on left side of dash panelFuses
Number Consumer Amperes
1V aca n t
2V aca n t
3V aca n t
4V aca n t
5V aca n t
6V aca n t
7V aca n t
8V aca n t
9 Airbag 5
10 RSE input (roof screen) 10
11 Vacant
11 Vacant
12 Left xenon headlight 10
13 Heating controls / ESP, ASR switch / Reverse / Preinstallation of telephone / Tomtom Navigator 5
14 ABS/ESP switchboard / Engine / Head
lights / Trailer switchboard / Light switch / Instrument panel / 4x4
switchboard
a)
10
15 Headlight regulation switchboard / Heated wiper s / Instrument lights / Diagnosis Switchboard 10
16 Right xenon headlight 10
17 Engine management 10
18 Vacant
19 Vacant
altea_XL ingles.book Seite 254 Donnerstag, 13. September 2007 10:36 10

If and when255
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

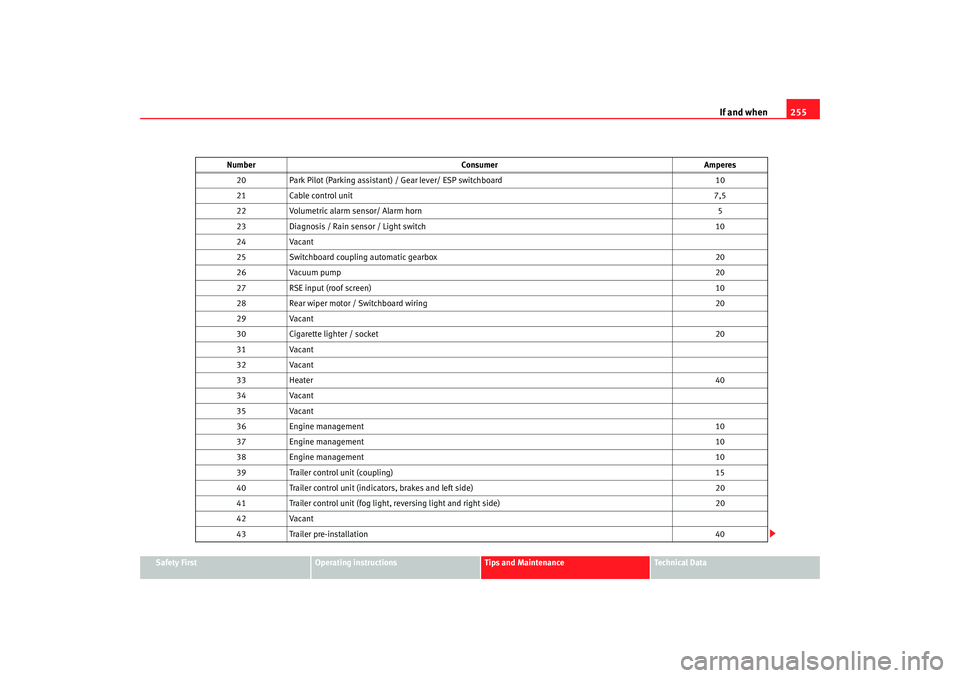

20
Park Pilot (Parking assistant) / Gear lever/ ESP switchboard 10
21 Cable control unit 7,5
22 Volumetric alarm sensor/ Alarm horn 5
23 Diagnosis / Rain sensor / Light switch 10
24 Vacant
25 Switchboard coupling automatic gearbox 20
26 Vacuum pump 20
27 RSE input (roof screen) 10
28 Rear wiper motor / Switchboard wiring 20
29 Vacant
30 Cigarette lighter / socket 20
31 Vacant
32 Vacant
33 Heater 40
34 Vacant
35 Vacant
36 Engine management 10
37 Engine management 10
38 Engine management 10
39 Trailer control unit (coupling) 15
40 Trailer control unit (indicators, brakes and left side) 20
41 Trailer control unit (fog light, reversing light and right side) 20
42 Vacant
43 Trailer pre-installation 40
Number
Consumer Amperes
altea_XL ingles.book Seite 255 Donnerstag, 13. September 2007 10:36 10

If and when
256Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list, while corr ect at the time of printing, is subject
to alterations. If discrepancies should occur, please refer to the sticker on the
inside of the fuse cover for the correct information for your model. 44

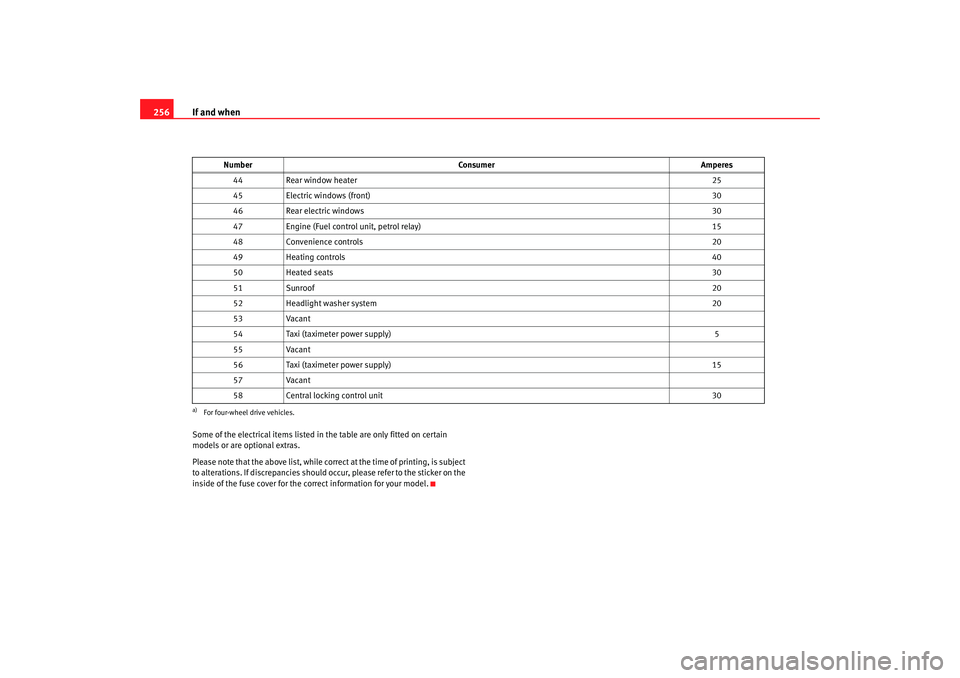

Rear window heater 25
45 Electric windows (front) 30
46 Rear electric windows 30
47 Engine (Fuel control unit, petrol relay) 15
48 Convenience controls 20
49 Heating controls 40
50 Heated seats 30
51 Sunroof 20
52 Headlight washer system 20
53 Vacant
54 Taxi (taximeter power supply) 5
55 Vacant
56 Taxi (taximeter power supply) 15
57 Vacant
58 Central locking control unit 30a)For four-wheel drive vehicles.
NumberConsumer Amperes
altea_XL ingles.book Seite 256 Donnerstag, 13. September 2007 10:36 10

If and when257
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

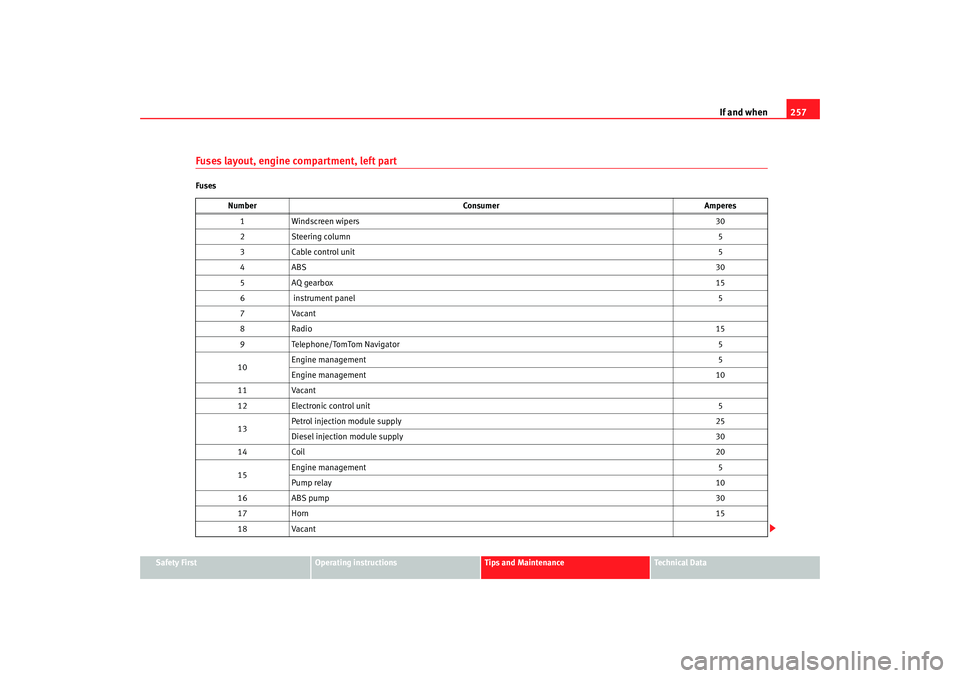

Fuses layout, engine compartment, left partFuses
Number Consumer Amperes
1 Windscreen wipers 30
2 Steering column 5
3 Cable control unit 5
4A BS 30
5 AQ gearbox 15
6 instrument panel 5
7 Vacant
8R ad io 15
9 Telephone/TomTom Navigator 5
10 Engine management
5
Engine management 10
11 Vacant
12 Electronic control unit 5
13 Petrol injection module supply
25
Diesel injection module supply 30
14 Coil 20
15 Engine management
5
Pump relay 10
16 ABS pump 30
17 Horn 15
18 Vacant
altea_XL ingles.book Seite 257 Donnerstag, 13. September 2007 10:36 10

If and when
258

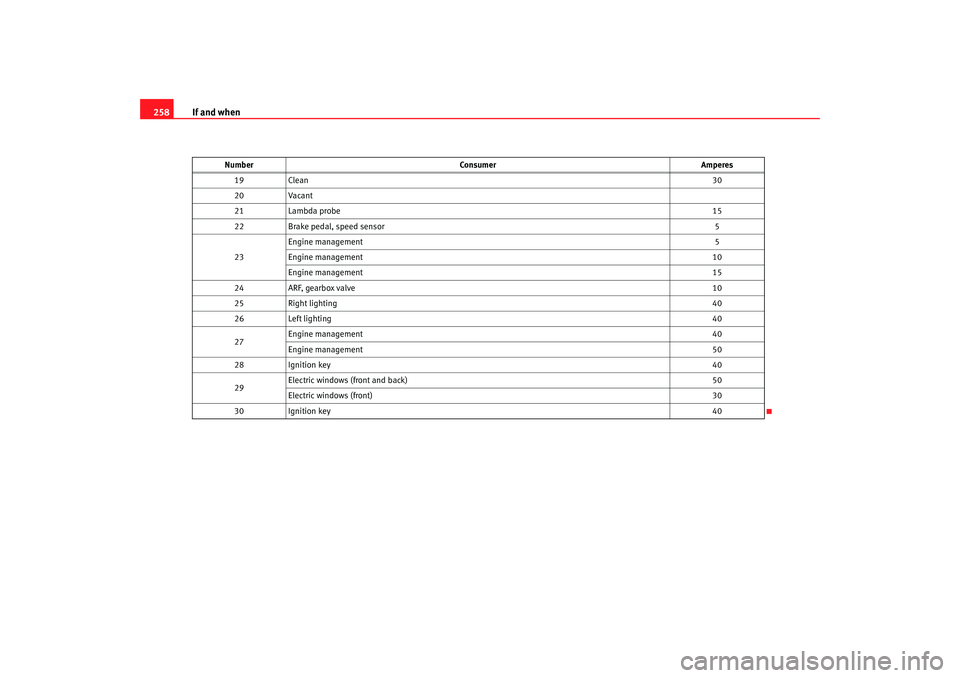

19 Clean 30
