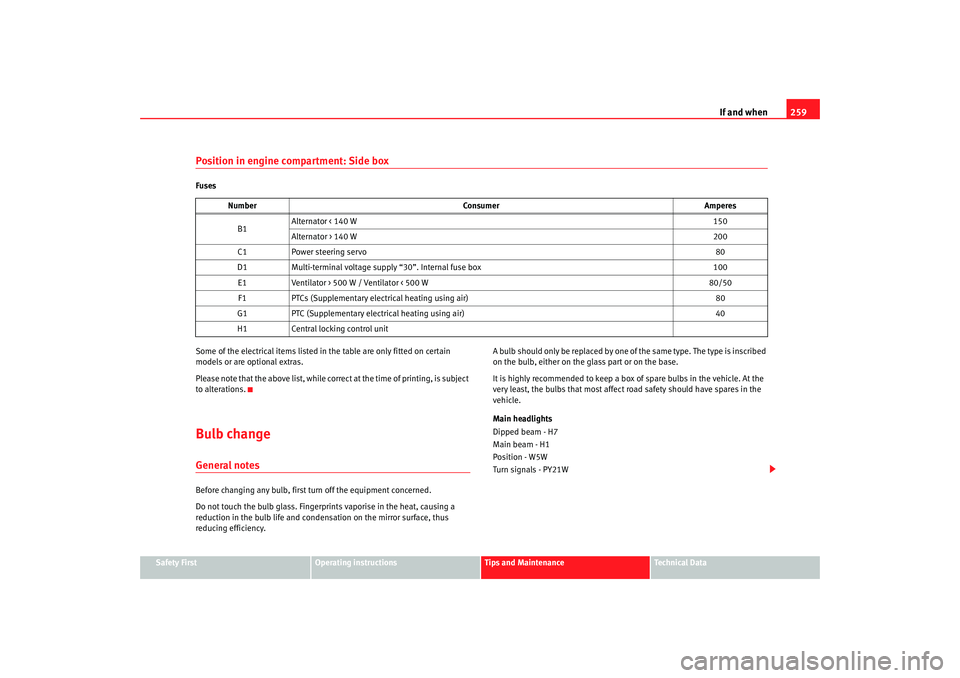

Position in engine compartment: Side boxFuses
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list, while correct at the time of printing, is subject
to alterations.Bulb changeGeneral notesBefore changing any bulb, first turn off the equipment concerned.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency. A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the bulbs that most affect road safety should have spares in the
vehicle.
Main headlights
Dipped beam - H7
Main beam - H1
Position - W5W
Turn signals - PY21W
Number
Consumer Amperes
B1 Alternator < 140 W
150
Alternator > 140 W 200
C1 Power steering servo 80
D1 Multi-terminal voltage supply “30”. Internal fuse box 100
E1 Ventilator > 500 W / Ventilator < 500 W 80/50
F1 PTCs (Supplementary electrical heating using air) 80
G1 PTC (Supplementary electrical heating using air) 40
H1 Central locking control unit
altea_XL ingles.book Seite 259 Donnerstag, 13. September 2007 10:36 10

If and when
260Xenon headlights
23)/self-directing
Dipped and full beam - D1S
24)
Flashes and extra full beam - H1
Position W5W
Turn signals PY21W
Fog lights
Fog lights - H3
Fixed rear light
Stop/Position - P21W
25)
Turn signals - P21W
Rear tailgate light unit
Fog light (driver's side) - P21W
Reverse (passenger's side) - P21W
Position - W5W
Side indicator
Side indicator - W5W
Registration plate light
Registration plate light - C5W
Note
•
Due to the difficulty in accessing the lamps, any replacement work should
be done by a SEAT dealer. However, the following is a description of how to
change the bulbs except for the fog lights and interior bulbs.

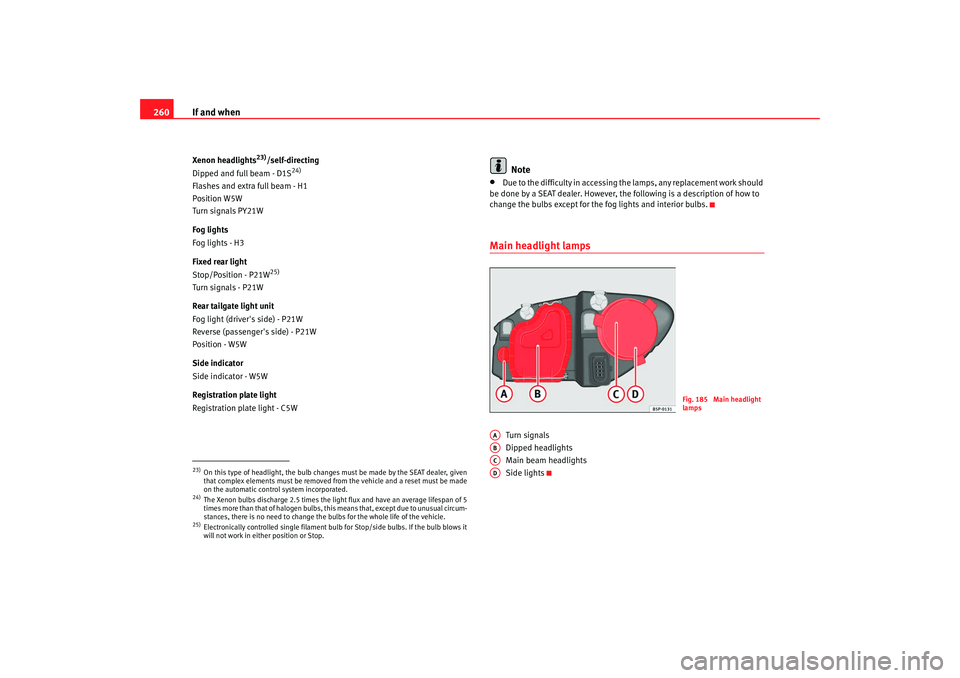

Main headlight lamps
Turn signals
Dipped headlights
Main beam headlights
Side lights
23)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.24)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halo gen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.25)Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it
will not work in either position or Stop.
Fig. 185 Main headlight
lamps
AAABACAD
altea_XL ingles.book Seite 260 Donnerstag, 13. September 2007 10:36 10

If and when261
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

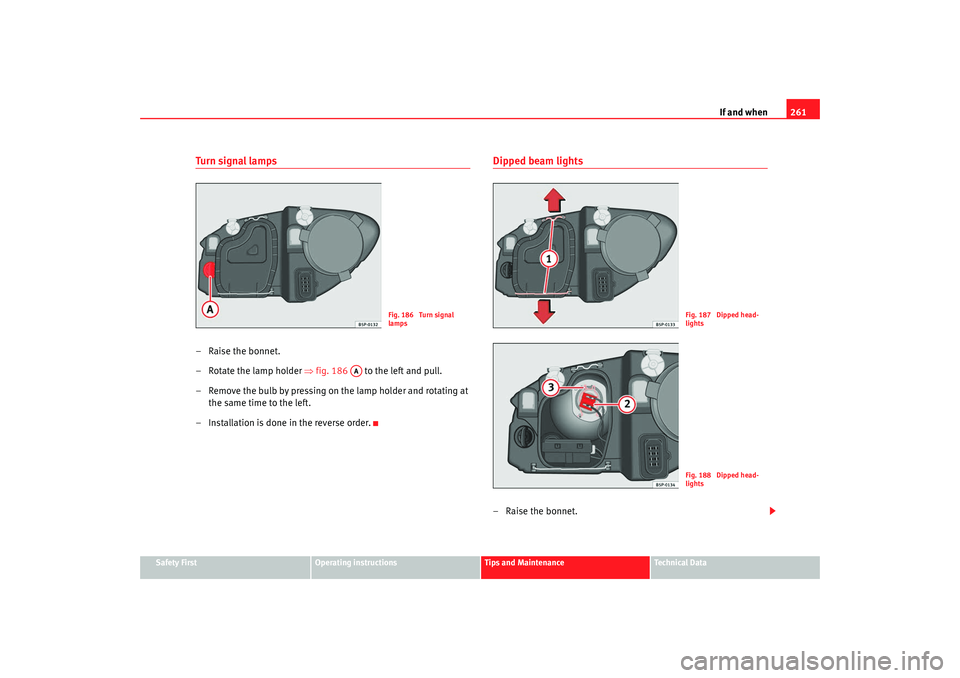

Turn signal lamps–Raise the bonnet.
– Rotate the lamp holder ⇒fig. 186 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped beam lights– Raise the bonnet.
Fig. 186 Turn signal
lamps
AA
Fig. 187 Dipped head-
lightsFig. 188 Dipped head-
lights
altea_XL ingles.book Seite 261 Donnerstag, 13. September 2007 10:36 10

If and when
262

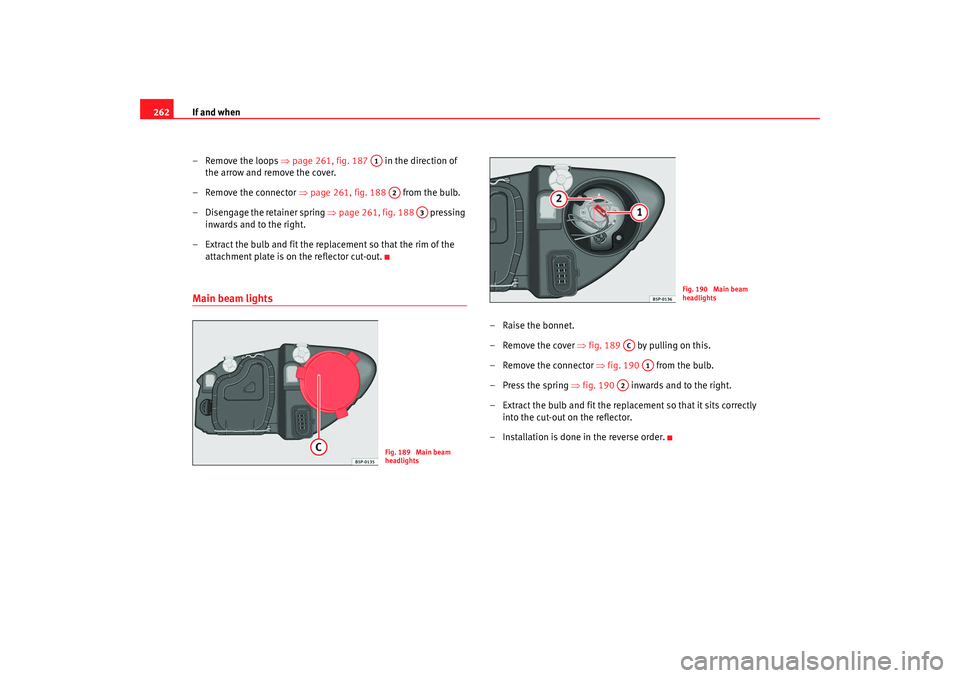

– Remove the loops ⇒page 261, fig. 187 in the direction of
the arrow and remove the cover.
– Remove the connector ⇒page 261, fig. 188 from the bulb.
– Disengage the retainer spring ⇒ page 261, fig. 188 pressing
inwards and to the right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Main beam lights
–Raise the bonnet.
– Remove the cover ⇒fig. 189 by pulling on this.
– Remove the connector ⇒fig. 190 from the bulb.
– Press the spring ⇒fig. 190 inwards and to the right.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
A1
A2
A3
Fig. 189 Main beam
headlights
Fig. 190 Main beam
headlights
AC
A1
A2
altea_XL ingles.book Seite 262 Donnerstag, 13. September 2007 10:36 10

If and when263
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

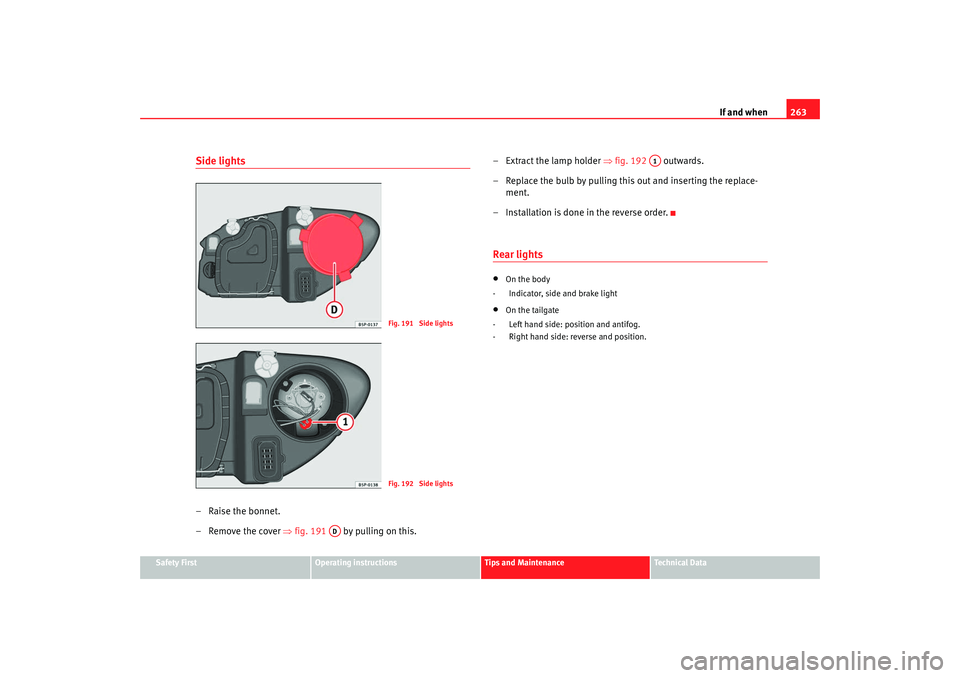

Side lights–Raise the bonnet.
– Remove the cover ⇒fig. 191 by pulling on this. – Extract the lamp holder
⇒fig. 192 outwards.
– Replace the bulb by pulling this out and inserting the replace- ment.
– Installation is done in the reverse order.
Rear lights•
On the body
- Indicator, side and brake light
•
On the tailgate
- Left hand side: position and antifog.
- Right hand side: reverse and position.
Fig. 191 Side lightsFig. 192 Side lights
AD
A1
altea_XL ingles.book Seite 263 Donnerstag, 13. September 2007 10:36 10

If and when
264Indicator, side and brake lights on the bodywork– Remove the cover of the luggage compartment lateral panel
⇒fig. 193. – Turn the lampholder to the left
⇒fig. 194.
– Extract the failed bulb and change it for a new one.
– To refit follow the steps in reverse order, taking special care when fitting the lamp holder.
Fig. 193 Lights on
vehicle bodyFig. 194 Lights on
vehicle body
altea_XL ingles.book Seite 264 Donnerstag, 13. September 2007 10:36 10

If and when265
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

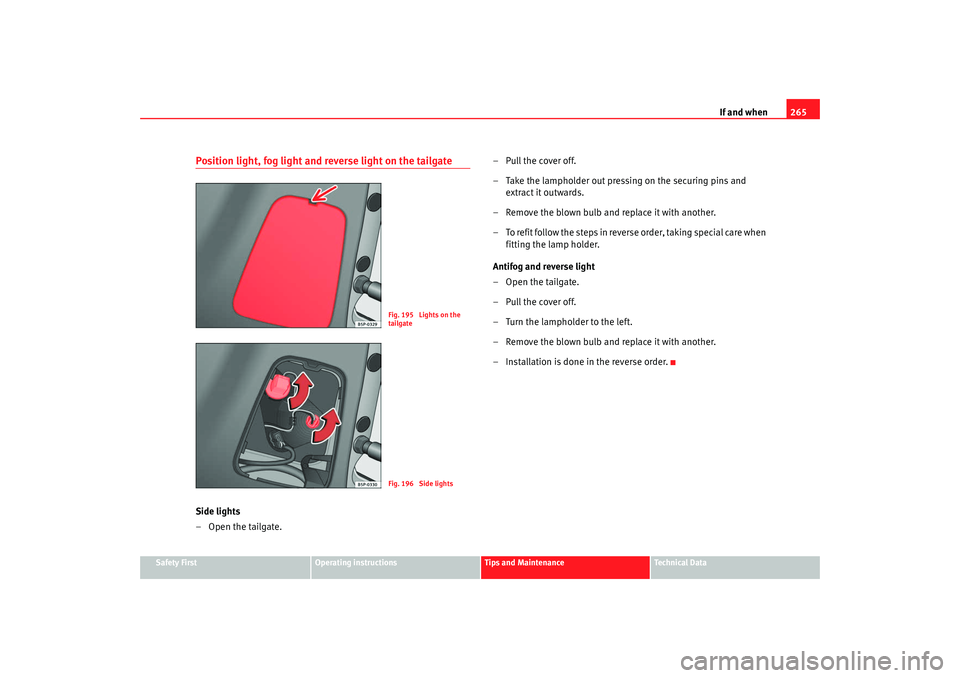

Position light, fog light and reverse light on the tailgateSide lights
– Open the tailgate. –Pull the cover off.
– Take the lampholder out pressing on the securing pins and
extract it outwards.
– Remove the blown bulb and replace it with another.
– To refit follow the steps in reverse order, taking special care when fitting the lamp holder.
Antifog and reverse light
–Open the tailgate.
–Pull the cover off.
– Turn the lampholder to the left.
– Remove the blown bulb and replace it with another.
– Installation is done in the reverse order.
Fig. 195 Lights on the
tailgateFig. 196 Side lights
altea_XL ingles.book Seite 265 Donnerstag, 13. September 2007 10:36 10

If and when

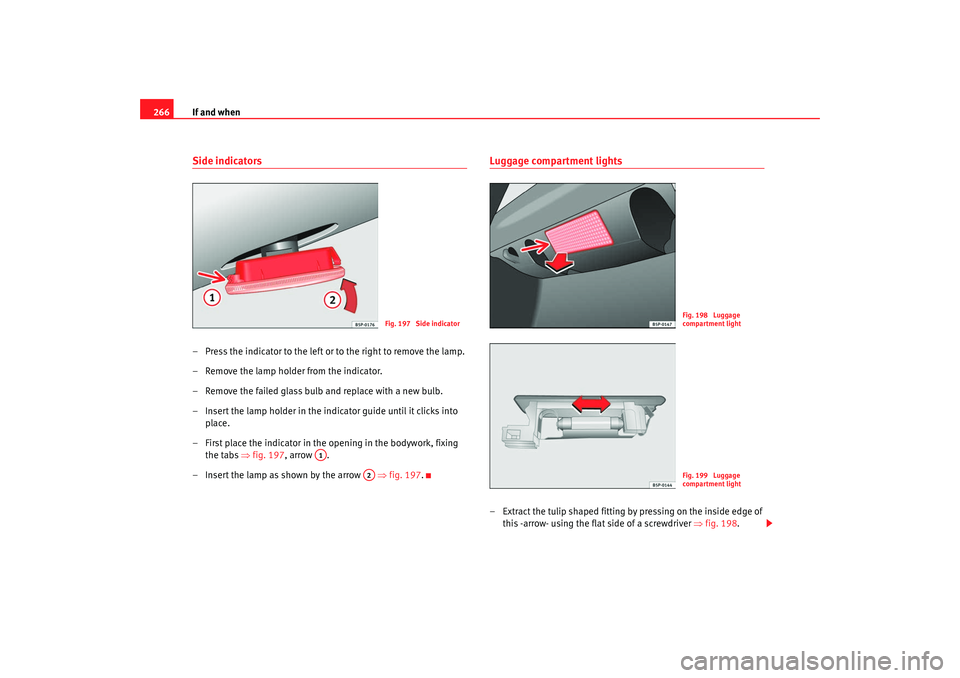

266Side indicators– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed glass bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into
place.
– First place the indicator in the opening in the bodywork, fixing the tabs ⇒fig. 197 , arrow .
– Insert the lamp as shown by the arrow ⇒fig. 197 .
Luggage compartment lights– Extract the tulip shaped fitting by pressing on the inside edge of
this -arrow- using the flat side of a screwdriver ⇒fig. 198.
Fig. 197 Side indicator
A1
A2
Fig. 198 Luggage
compartment lightFig. 199 Luggage
compartment light
altea_XL ingles.book Seite 266 Donnerstag, 13. September 2007 10:36 10

If and when267
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
– Press the lamp sideways and remove it from the allotment

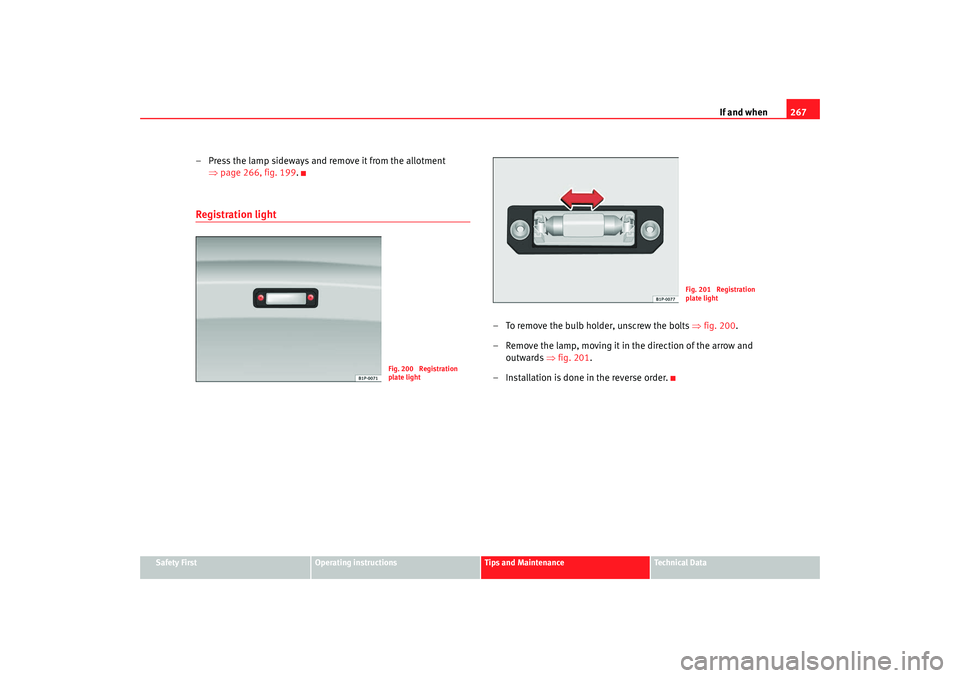

⇒page 266, fig. 199 .Registration light
– To remove the bulb holder, unscrew the bolts ⇒fig. 200.
– Remove the lamp, moving it in the direction of the arrow and outwards ⇒fig. 201.
– Installation is done in the reverse order.
Fig. 200 Registration
plate light
Fig. 201 Registration
plate light
altea_XL ingles.book Seite 267 Donnerstag, 13. September 2007 10:36 10

If and when
268Sunroof light– Carefully remove the lamp, using the flat side of the screwdriver,
as shown in the figure ⇒fig. 203 . – Remove the lamp, moving it in the direction of the arrow and
outwards ⇒fig. 203 .
Jump-startingJump leads
The jump lead must have a sufficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of anot her vehicle to start the engine.
Jump leads
Jump leads must comply with the standard DIN 72553 (see manufacturer's
documentation). The wire cross section must be at least 25 mm
2 for petrol
engines and at least 35 mm
2 for diesel engines.
Note
•
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
•
The discharged battery must be properly connected to the vehicles elec-
trical system.
Fig. 202 Removing
sunroof lightFig. 203 Removing
sunroof light
