General notes on the technical data

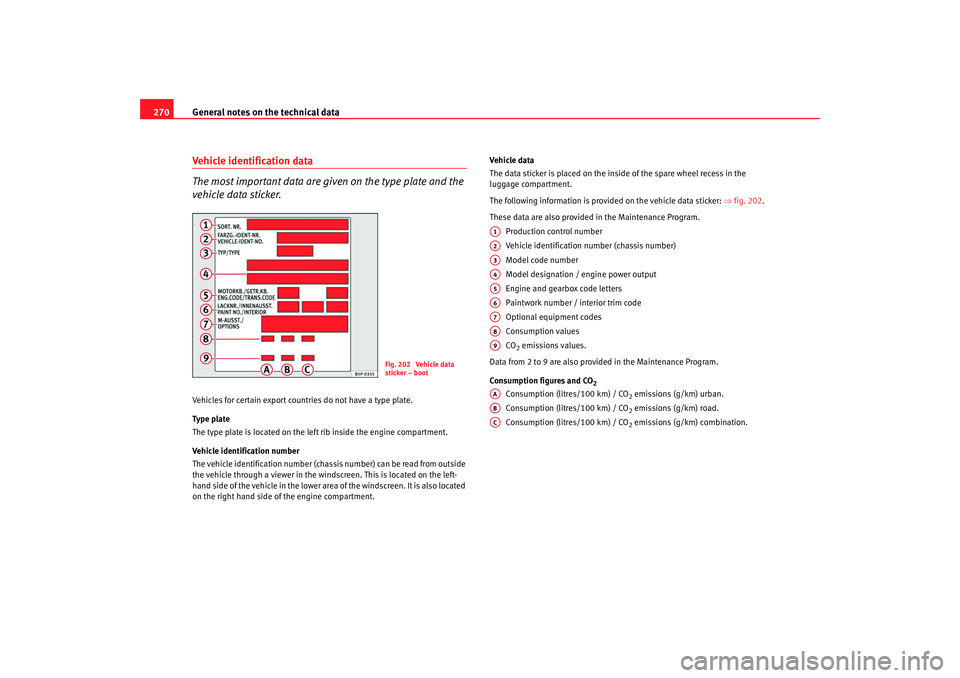

270Vehicle identification data
The most important data are given on the type plate and the
vehicle data sticker.Vehicles for certain export countries do not have a type plate.
Type plate
The type plate is located on the left rib inside the engine compartment.
Vehicle identification number
The vehicle identification number (chass is number) can be read from outside
the vehicle through a viewer in the windscreen. This is located on the left-
hand side of the vehicle in the lower area of the windscreen. It is also located
on the right hand side of the engine compartment. Vehicle data
The data sticker is placed on the inside of the spare wheel recess in the
luggage compartment.
The following information is provided on the vehicle data sticker:
⇒fig. 202 .
These data are also provided in the Maintenance Program. Production control number
Vehicle identification number (chassis number)
Model code number
Model designation / engine power output
Engine and gearbox code letters
Paintwork number / interior trim code
Optional equipment codes
Consumption values
CO
2 emissions values.
Data from 2 to 9 are also provided in the Maintenance Program.
Consumption figures and CO
2
Consumption (litres/100 km) / CO
2 emissions (g/km) urban.
Consumption (litres/100 km) / CO2 emissions (g/km) road.
Consumption (litres/100 km) / CO2 emissions (g/km) combination.
Fig. 202 Vehicle data
sticker – boot
A1A2A3A4A5A6A7A8A9AAABAC
AlteaXL_EN.book Seite 270 M ontag, 2. Februar 2009 12:26 12

General notes on the technical data 271
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

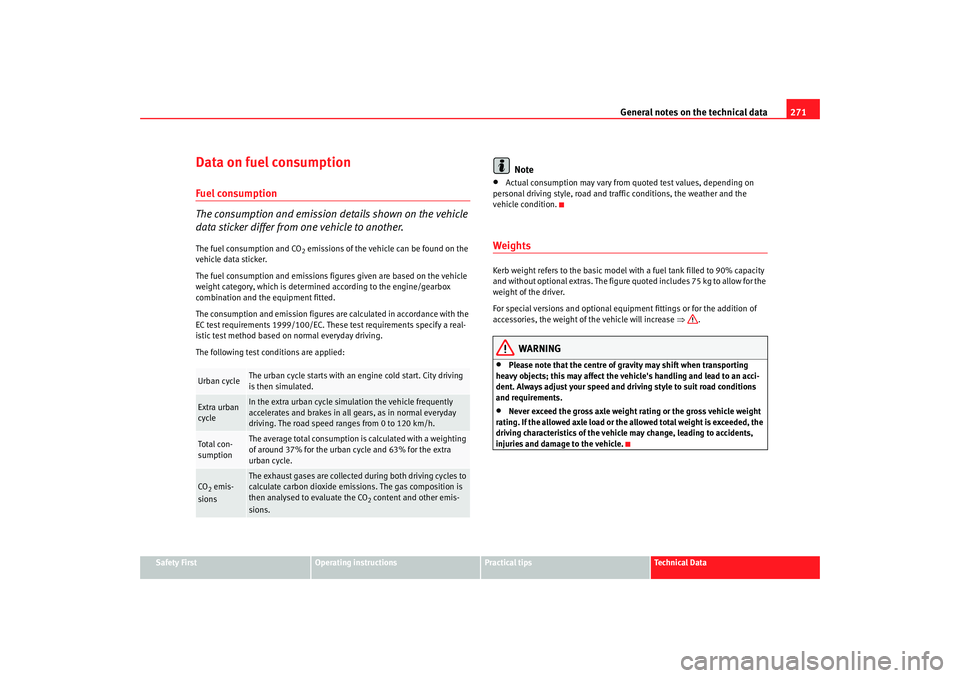

Data on fuel consumptionFuel consumption
The consumption and emission details shown on the vehicle
data sticker differ from one vehicle to another.The fuel consumption and CO
2 emissions of the vehicle can be found on the
vehicle data sticker.
The fuel consumption and emissions figures given are based on the vehicle
weight category, which is determine d according to the engine/gearbox
combination and the equipment fitted.
The consumption and emission figures ar e calculated in accordance with the
EC test requirements 1999/100/EC. These test requirements specify a real-
istic test method based on normal everyday driving.
The following test conditions are applied:
Note
•
Actual consumption may vary from quoted test values, depending on
personal driving style, road and traffic conditions, the weather and the
vehicle condition.
WeightsKerb weight refers to the basic model with a fuel tank filled to 90% capacity
and without optional extras. The figure quoted includes 75 kg to allow for the
weight of the driver.
For special versions and optional equipment fittings or for the addition of
accessories, the weight of the vehicle will increase ⇒.
WARNING
•
Please note that the centre of gravity may shift when transporting
heavy objects; this may affect the vehicle's handling and lead to an acci-
dent. Always adjust your speed and driving style to suit road conditions
and requirements.
•
Never exceed the gross axle weight rating or the gross vehicle weight
rating. If the allowed axle load or the allowed total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
Urban cycle
The urban cycle starts with an engine cold start. City driving
is then simulated.
Extra urban
cycle
In the extra urban cycle simulation the vehicle frequently
accelerates and brakes in all gears, as in normal everyday
driving. The road speed ranges from 0 to 120 km/h.
Total con-
sumption
The average total consumption is calculated with a weighting
of around 37% for the urba n cycle and 63% for the extra
urban cycle.
CO2 emis-
sions
The exhaust gases are collected during both driving cycles to
calculate carbon dioxide emissions. The gas composition is
then analysed to evaluate the CO
2 content and other emis-
sions.
AlteaXL_EN.book Seite 271 M ontag, 2. Februar 2009 12:26 12

General notes on the technical data

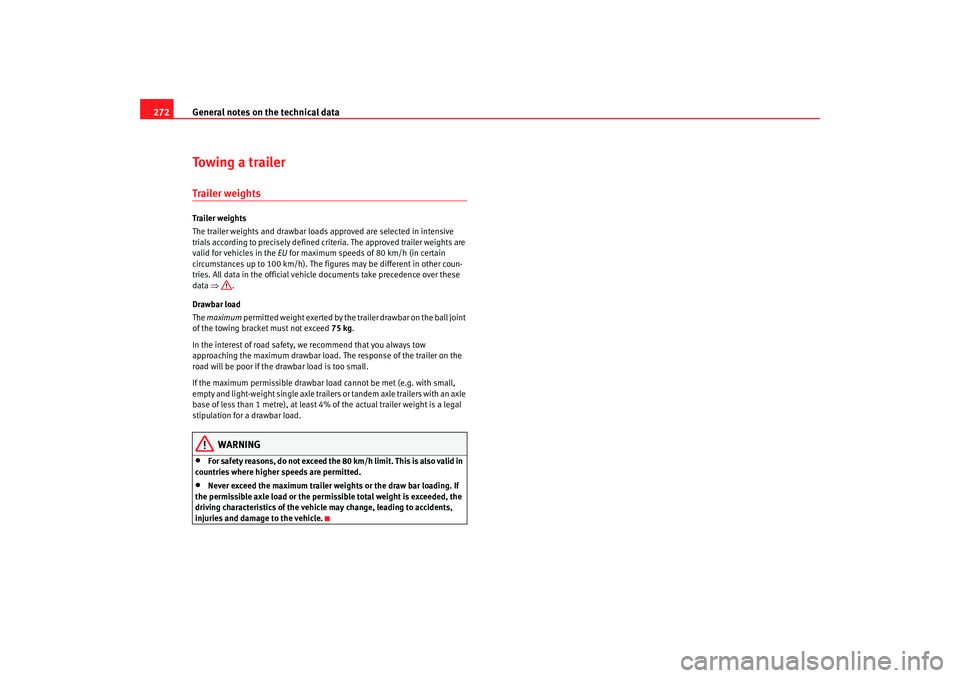

272To w i n g a t r a i l e rTrailer weightsTrailer weights
The trailer weights and drawbar loads approved are selected in intensive
trials according to precisely defined criteria. The approved trailer weights are
valid for vehicles in the EU for maximum speeds of 80 km/h (in certain
circumstances up to 100 km/h). The figu res may be different in other coun-
tries. All data in the official vehicl e documents take precedence over these
data ⇒ .
Drawbar load
The maximum permitted weight exerted by the trailer drawbar on the ball joint
of the towing bracket must not exceed 75 kg.
In the interest of road safety, we recommend that you always tow
approaching the maximum drawbar load. The response of the trailer on the
road will be poor if the drawbar load is too small.
If the maximum permissible drawbar loa d cannot be met (e.g. with small,
empty and light-weight single axle trailers or tandem axle trailers with an axle
base of less than 1 metre), at least 4% of the actual trailer weight is a legal
stipulation for a drawbar load.
WARNING
•
For safety reasons, do not exceed the 80 km/h limit. This is also valid in
countries where higher speeds are permitted.
•
Never exceed the maximum trailer weights or the draw bar loading. If
the permissible axle load or the permissible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
AlteaXL_EN.book Seite 272 M ontag, 2. Februar 2009 12:26 12

Technical Data273
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

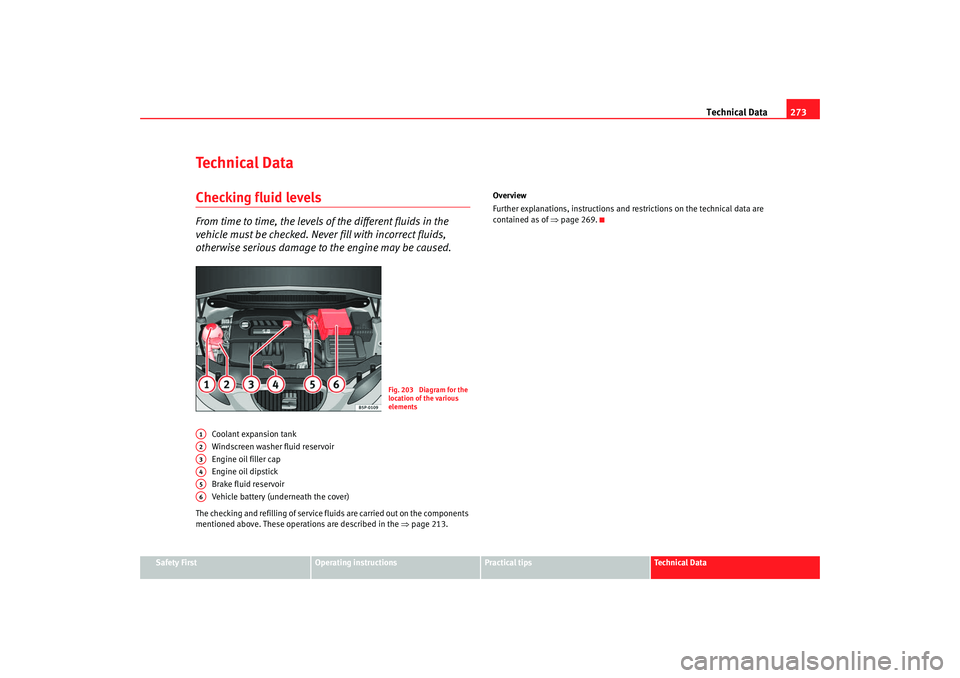

Te c h n i c a l D a t aChecking fluid levelsFrom time to time, the levels of the different fluids in the
vehicle must be checked. Never fill with incorrect fluids,
otherwise serious damage to the engine may be caused.
Coolant expansion tank
Windscreen washer fluid reservoir
Engine oil filler cap
Engine oil dipstick
Brake fluid reservoir
Vehicle battery (underneath the cover)
The checking and refilling of service fluids are carried out on the components
mentioned above. These operations are described in the ⇒page 213. Overview
Further explanations, instructions and restrictions on the technical data are
contained as of
⇒page 269.
Fig. 203 Diagram for the
location of the various
elements
A1A2A3A4A5A6
AlteaXL_EN.book Seite 273 M ontag, 2. Februar 2009 12:26 12

Technical Data

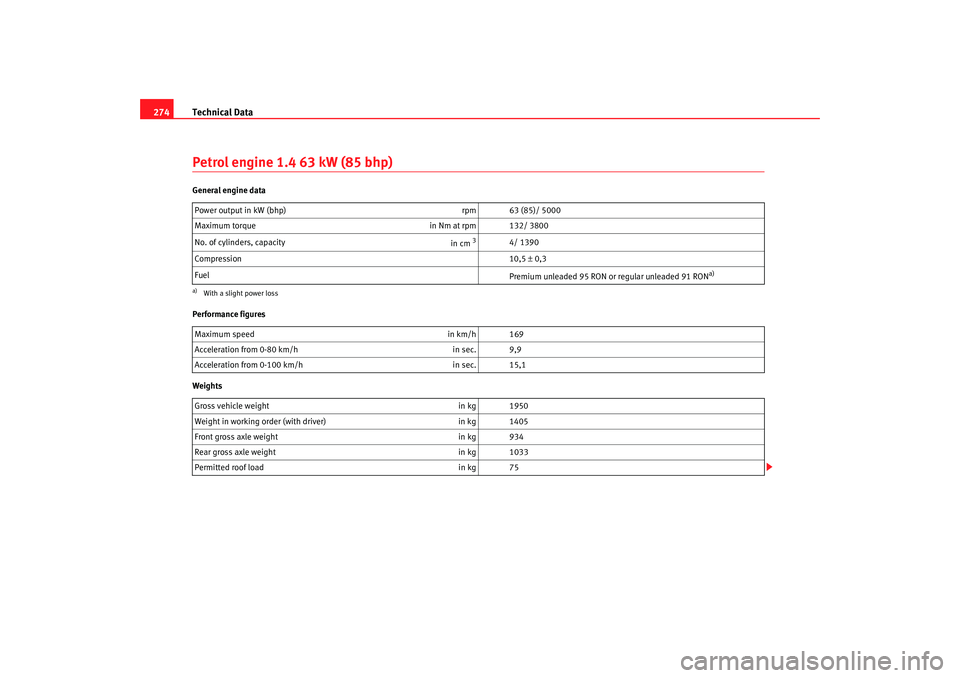

274Petrol engine 1.4 63 kW (85 bhp)General engine data
Performance figures
Weights Power output in kW (bhp)
rpm 63 (85)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5 ± 0,3
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 169
Acceleration from 0-80 km/h in sec. 9,9
Acceleration from 0-100 km/h in sec. 15,1
Gross vehicle weight in kg 1950
Weight in working order (with driver) in kg 1405
Front gross axle weight in kg 934
Rear gross axle weight in kg 1033
Permitted roof load in kg 75
AlteaXL_EN.book Seite 274 Montag, 2. Februar 2009 12:26 12

Technical Data275
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

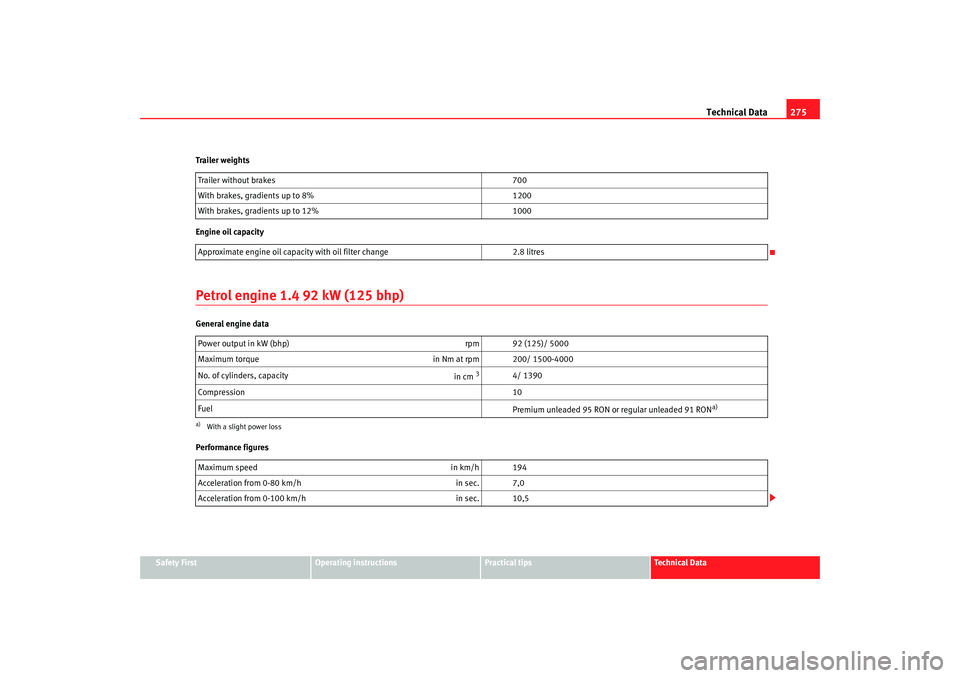

Trailer weights
Engine oil capacity
Petrol engine 1.4 92 kW (125 bhp)General engine data
Performance figures
Trailer without brakes
700
With brakes, gradients up to 8% 1200
With brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 2.8 litres
Power output in kW (bhp) rpm 92 (125)/ 5000
Maximum torque in Nm at rpm 200/ 1500-4000
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 194
Acceleration from 0-80 km/h in sec. 7,0
Acceleration from 0-100 km/h in sec. 10,5
AlteaXL_EN.book Seite 275 Montag, 2. Februar 2009 12:26 12

Technical Data
276Weights
Trailer weights

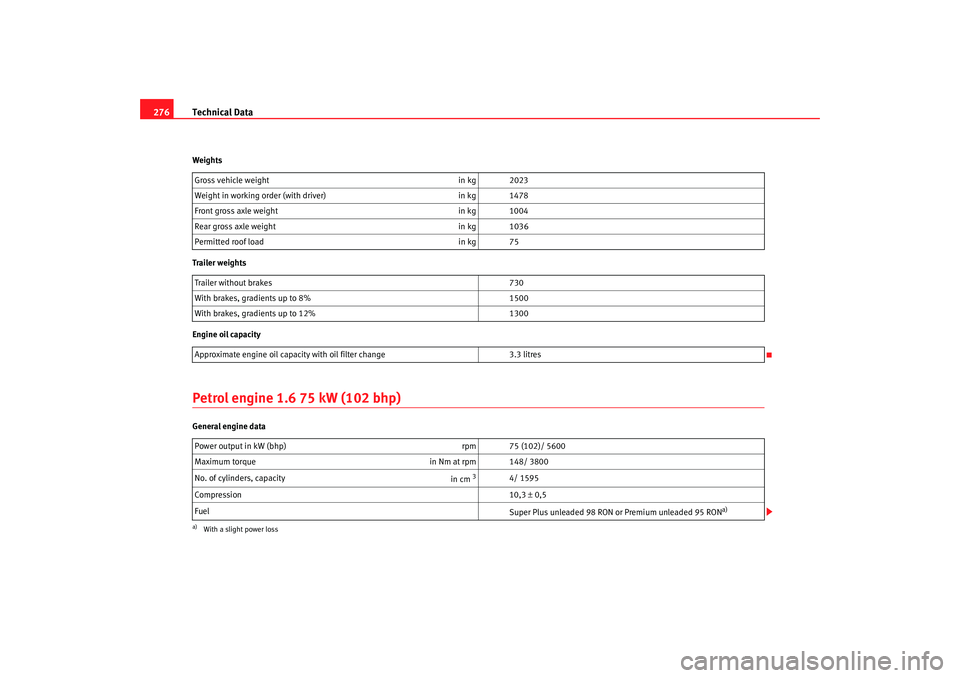

Engine oil capacityPetrol engine 1.6 75 kW (102 bhp)General engine data Gross vehicle weight
in kg 2023
Weight in working order (with driver) in kg 1478
Front gross axle weight in kg 1004
Rear gross axle weight in kg 1036
Permitted roof load in kg 75
Trailer without brakes 730
With brakes, gradients up to 8% 1500
With brakes, gradients up to 12% 1300
Approximate engine oil capacity with oil filter change 3.3 litres
Power output in kW (bhp) rpm 75 (102)/ 5600
Maximum torque in Nm at rpm 148/ 3800
No. of cylinders, capacity in cm
3
4/ 1595
Compression 10,3 ± 0,5
Fuel Super Plus unleaded 98 RON or Premium unleaded 95 RON
a)
a)With a slight power loss
AlteaXL_EN.book Seite 276 M ontag, 2. Februar 2009 12:26 12

Technical Data277
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

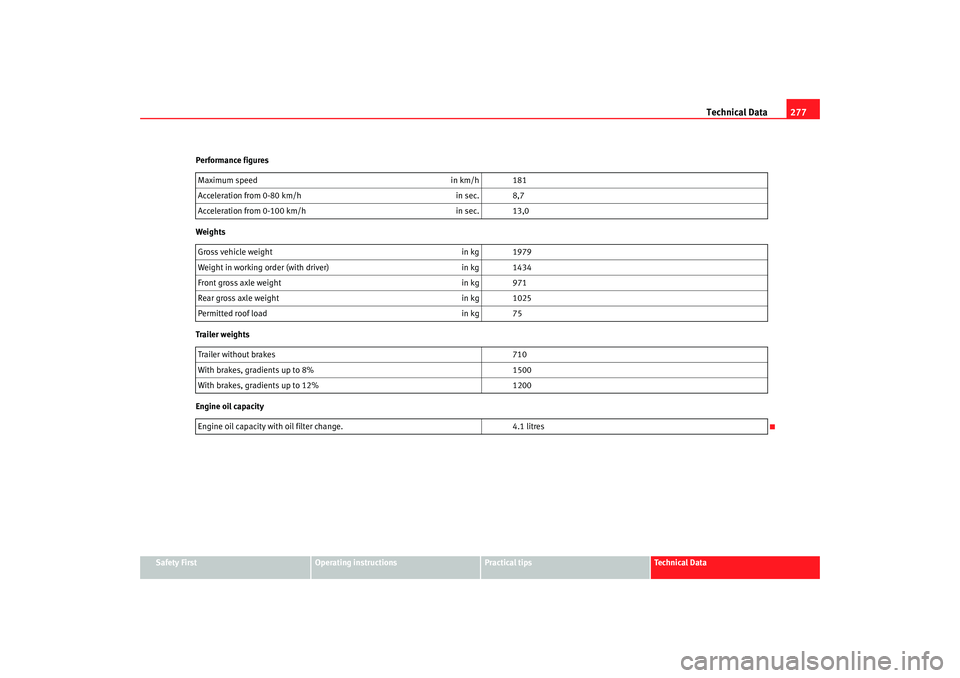

Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 181
Acceleration from 0-80 km/h in sec. 8,7
Acceleration from 0-100 km/h in sec. 13,0
Gross vehicle weight in kg 1979
Weight in working order (with driver) in kg 1434
Front gross axle weight in kg 971
Rear gross axle weight in kg 1025
Permitted roof load in kg 75
Trailer without brakes 710
With brakes, gradients up to 8% 1500
With brakes, gradients up to 12% 1200
Engine oil capacity with oil filter change. 4.1 litres
AlteaXL_EN.book Seite 277 Montag, 2. Februar 2009 12:26 12

Technical Data

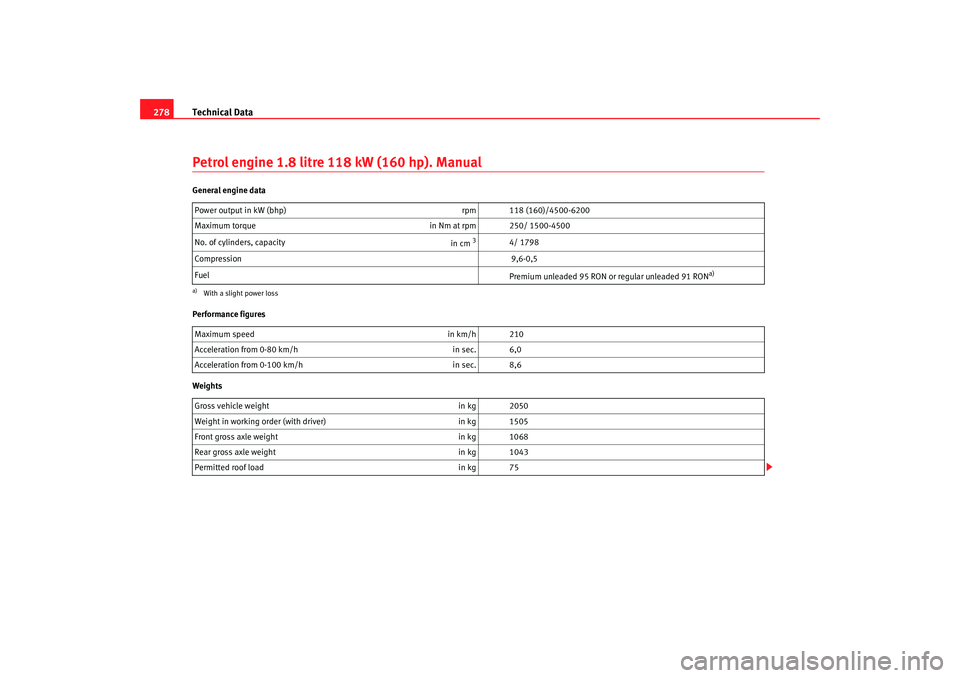

278Petrol engine 1.8 litre 118 kW (160 hp). ManualGeneral engine data
Performance figures
Weights Power output in kW (bhp)
rpm 118 (160)/4500-6200
Maximum torque in Nm at rpm 250/ 1500-4500
No. of cylinders, capacity in cm
3
4/ 1798
Compression 9,6-0,5
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 210
Acceleration from 0-80 km/h in sec. 6,0
Acceleration from 0-100 km/h in sec. 8,6
Gross vehicle weight in kg 2050
Weight in working order (with driver) in kg 1505
Front gross axle weight in kg 1068
Rear gross axle weight in kg 1043
Permitted roof load in kg 75
AlteaXL_EN.book Seite 278 Montag, 2. Februar 2009 12:26 12

Technical Data279
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

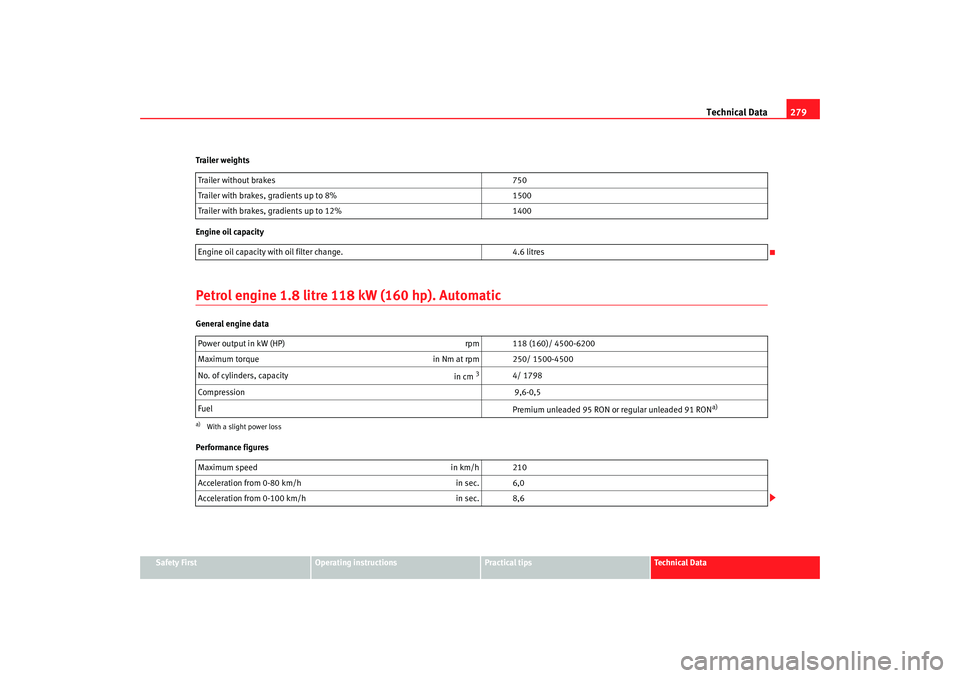

Trailer weights
Engine oil capacity
Petrol engine 1.8 litre 118 kW (160 hp). AutomaticGeneral engine data
Performance figures
Trailer without brakes
750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.6 litres
Power output in kW (HP) rpm 118 (160)/ 4500-6200
Maximum torque in Nm at rpm 250/ 1500-4500
No. of cylinders, capacity in cm
3
4/ 1798
Compression 9,6-0,5
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 210
Acceleration from 0-80 km/h in sec. 6,0
Acceleration from 0-100 km/h in sec. 8,6
AlteaXL_EN.book Seite 279 Montag, 2. Februar 2009 12:26 12
