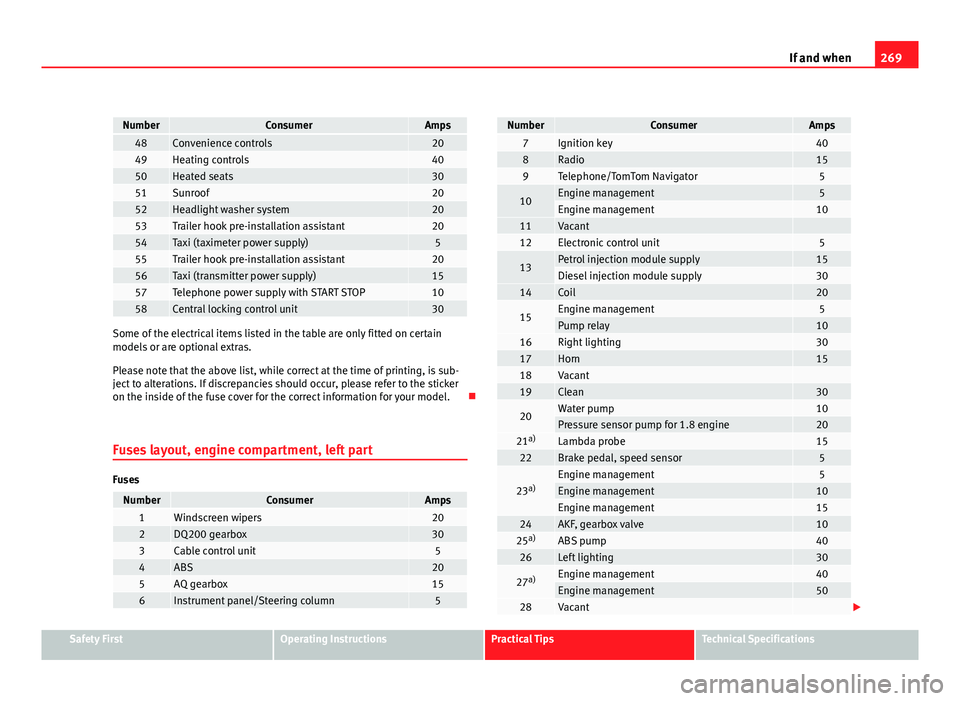

NumberConsumerAmps48Convenience controls2049Heating controls4050Heated seats3051Sunroof2052Headlight washer system2053Trailer hook pre-installation assistant2054Taxi (taximeter power supply)555Trailer hook pre-installation assistant2056Taxi (transmitter power supply)1557Telephone power supply with START STOP1058Central locking control unit30
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list, while correct at the time of printing, is sub-
ject to alterations. If discrepancies should occur, please refer to the sticker
on the inside of the fuse cover for the correct information for your model. 
Fuses layout, engine compartment, left part
Fuses
NumberConsumerAmps1Windscreen wipers202DQ200 gearbox303Cable control unit54ABS205AQ gearbox156Instrument panel/Steering column5
NumberConsumerAmps7Ignition key408Radio159Telephone/TomTom Navigator5
10Engine management5Engine management1011Vacant 12Electronic control unit5
13Petrol injection module supply15Diesel injection module supply3014Coil20
15Engine management5Pump relay1016Right lighting3017Horn1518Vacant 19Clean30
20Water pump10Pressure sensor pump for 1.8 engine2021 a)Lambda probe1522Brake pedal, speed sensor5
23a)Engine management5Engine management10Engine management1524AKF, gearbox valve1025a)ABS pump4026Left lighting30
27a)Engine management40Engine management5028Vacant

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

270If and when
NumberConsumerAmps
29a)Electric windows (front and back)50Electric windows (front)3030Ignition key50a)
Ampere rating according to motorisation 

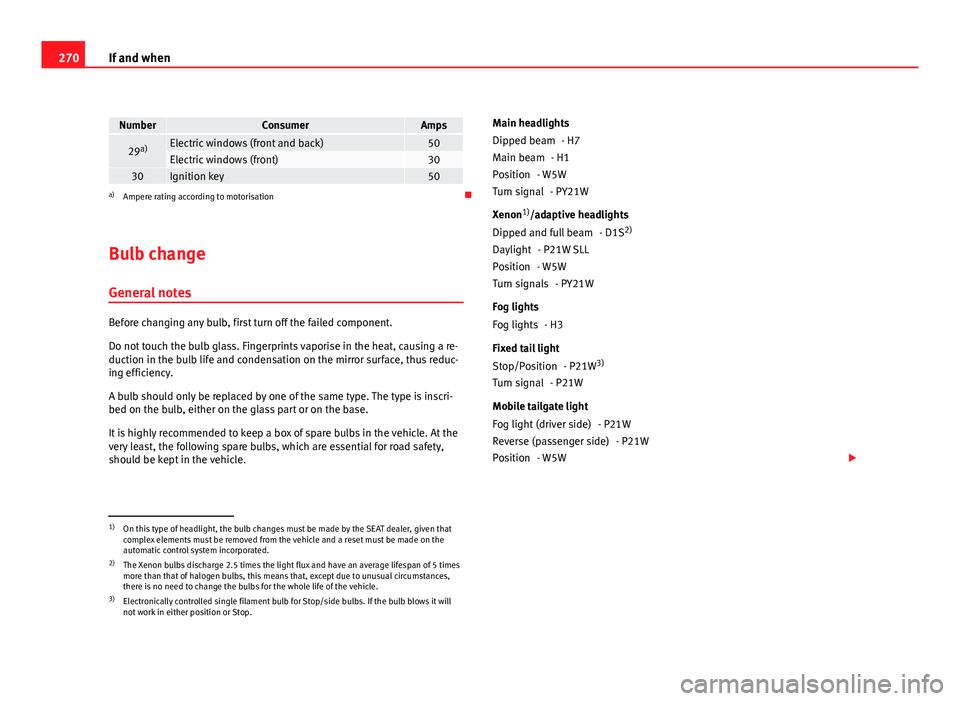

Bulb change General notes
Before changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a re-
duction in the bulb life and condensation on the mirror surface, thus reduc-
ing efficiency.
A bulb should only be replaced by one of the same type. The type is inscri-
bed on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the following spare bulbs, which are essential for road safety,
should be kept in the vehicle. Main headlights
- H7
- H1
- W5W - PY21W
Xenon 1)
/adaptive headlights
- D1S2)
- P21W SLL
- W5W - PY21W
Fog lights - H3
Fixed tail light - P21W3)
- P21W
Mobile tailgate light - P21W- P21W
- W5W 
Dipped beam
Main beam
Position
Turn signal
Dipped and full beam
Daylight
Position
Turn signals
Fog lights
Stop/Position
Turn signal
Fog light (driver side)
Reverse (passenger side)
Position
1)
On this type of headlight, the bulb changes must be made by the SEAT dealer, given that
complex elements must be removed from the vehicle and a reset must be made on the
automatic control system incorporated.
2) The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5 times
more than that of halogen bulbs, this means that, except due to unusual circumstances,
there is no need to change the bulbs for the whole life of the vehicle.
3) Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it will
not work in either position or Stop.

271
If and when
Side turn signal - W5W
Number plate light - C5W
Note
● Depending on weather conditions (cold or wet), the front lights, the fog
lights, the tail lights and the turn signals may be temporarily misted. This
has no influence on the useful life of the lighting system. By switching on
the lights, the area through which the beam of light is projected will quickly
be demisted. However, the edges may continue to be misted.
● Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning properly. This is not only in the inter-
est of your own safety, but also that of all other road users.
● Due to the difficulty in accessing some of the bulbs, any replacement
work should be done by a SEAT dealer. However, the following is a descrip-
tion of how to change the lamps except for the fog lights* and interior
lamps. 

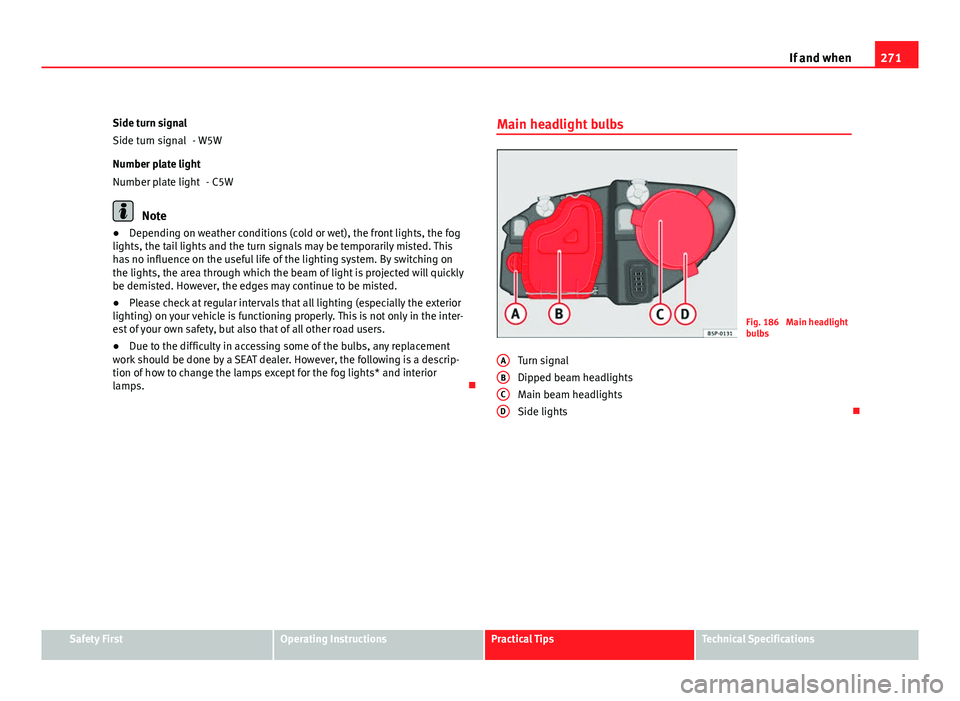

Side turn signal
Number plate light
Main headlight bulbs
Fig. 186 Main headlight
bulbs
Turn signal
Dipped beam headlights
Main beam headlights
Side lights 
A
BCD
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

272If and when

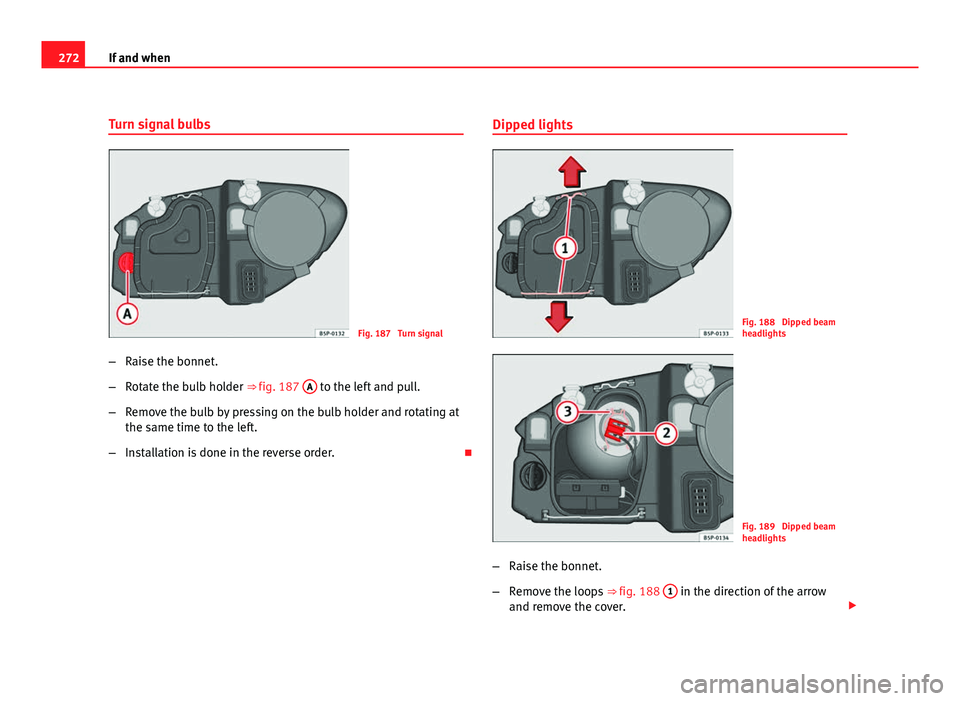

Turn signal bulbs
Fig. 187 Turn signal
– Raise the bonnet.
– Rotate the bulb holder ⇒ fig. 187 A
to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at
the same time to the left.
– Installation is done in the reverse order. Dipped lights
Fig. 188 Dipped beam
headlights
Fig. 189 Dipped beam
headlights
– Raise the bonnet.
– Remove the loops ⇒ fig. 188 1
in the direction of the arrow
and remove the cover. 

273
If and when

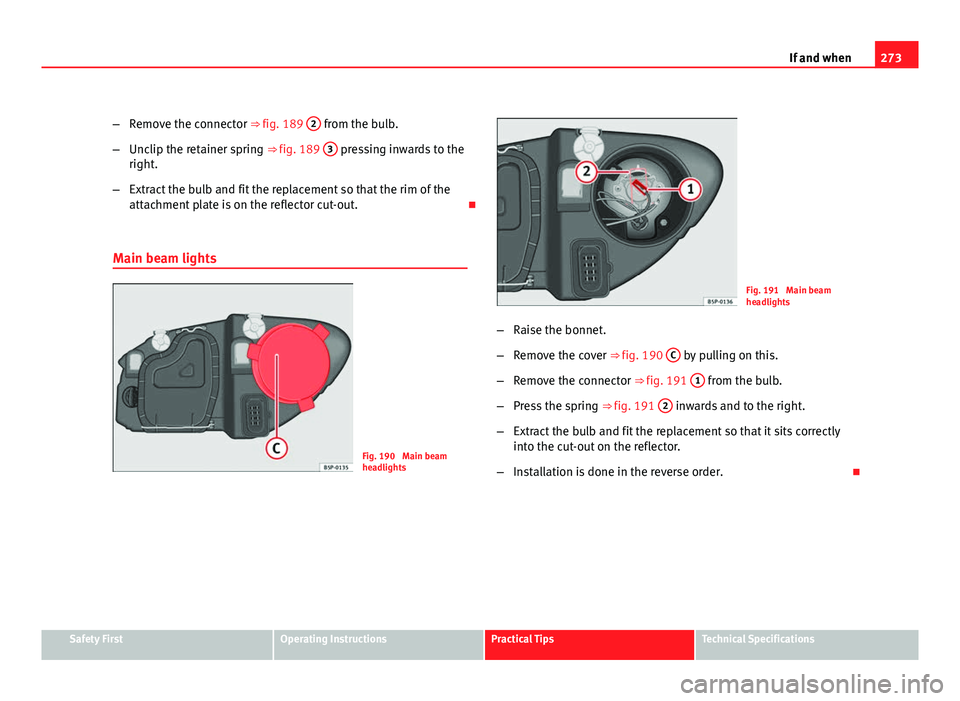

– Remove the connector ⇒ fig. 189 2
from the bulb.
– Unclip the retainer spring ⇒ fig. 189 3
pressing inwards to the
right.
– Extract the bulb and fit the replacement so that the rim of the
attachment plate is on the reflector cut-out. 
Main beam lights
Fig. 190 Main beam
headlights
Fig. 191 Main beam
headlights
– Raise the bonnet.
– Remove the cover ⇒ fig. 190 C
by pulling on this.
– Remove the connector ⇒ fig. 191 1
from the bulb.
– Press the spring ⇒ fig. 191 2
inwards and to the right.
– Extract the bulb and fit the replacement so that it sits correctly
into the cut-out on the reflector.
– Installation is done in the reverse order. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

274If and when

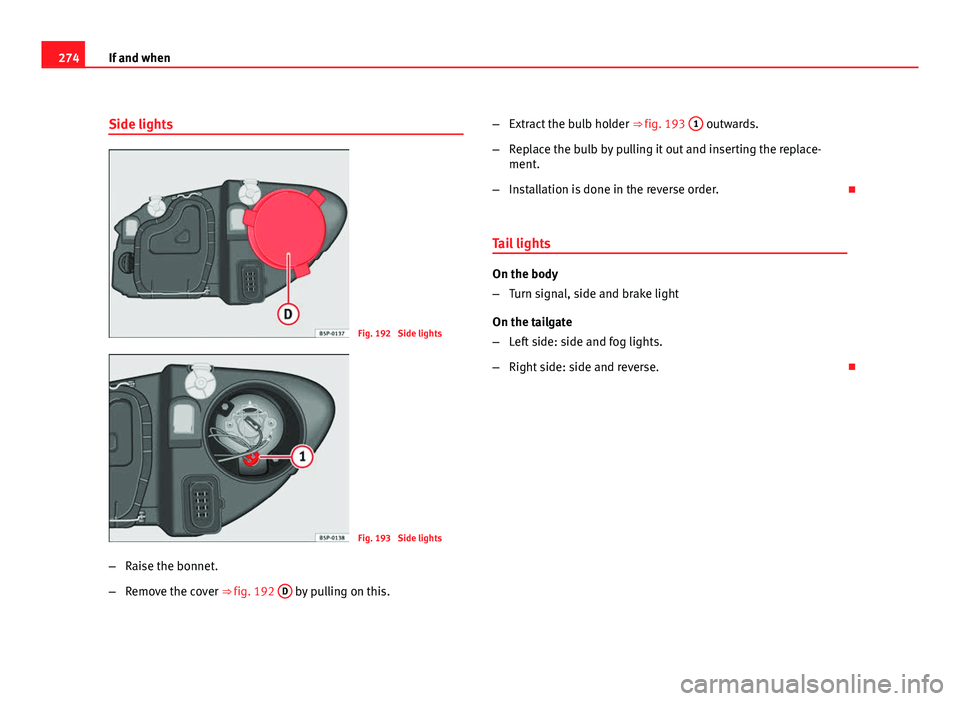

Side lights
Fig. 192 Side lights
Fig. 193 Side lights
– Raise the bonnet.
– Remove the cover ⇒ fig. 192 D
by pulling on this. –
Extract the bulb holder ⇒ fig. 193 1
outwards.
– Replace the bulb by pulling it out and inserting the replace-
ment.
– Installation is done in the reverse order. 
Tail lights
On the body
– Turn signal, side and brake light
On the tailgate
– Left side: side and fog lights.
– Right side: side and reverse. 

275
If and when

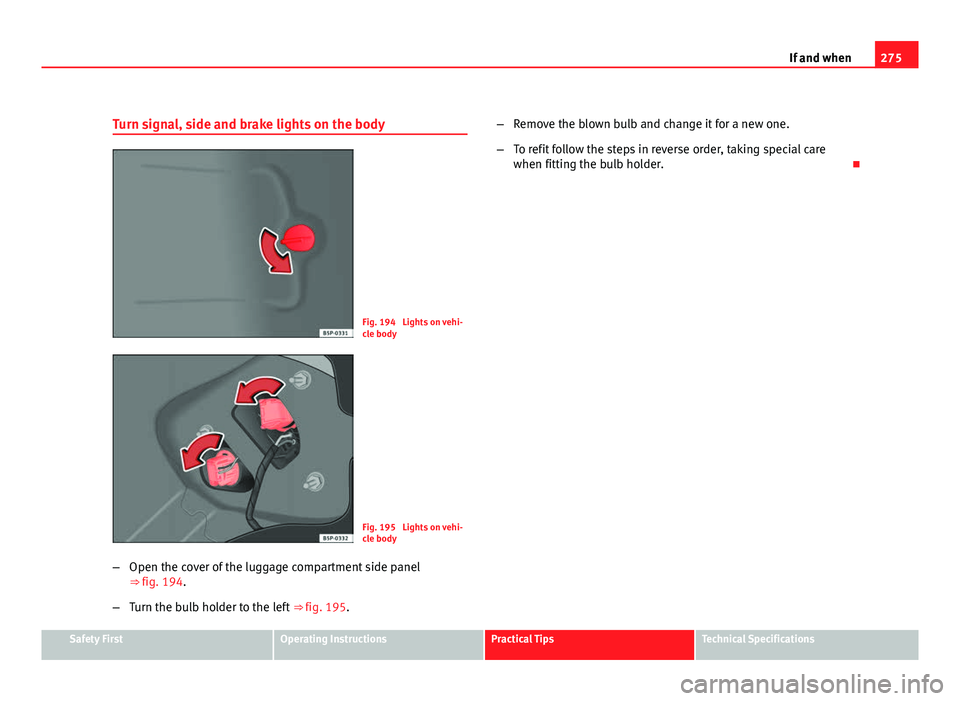

Turn signal, side and brake lights on the body
Fig. 194 Lights on vehi-
cle body
Fig. 195 Lights on vehi-
cle body
– Open the cover of the luggage compartment side panel
⇒ fig. 194.
– Turn the bulb holder to the left ⇒ fig. 195. –
Remove the blown bulb and change it for a new one.
– To refit follow the steps in reverse order, taking special care
when fitting the bulb holder. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

276If and when

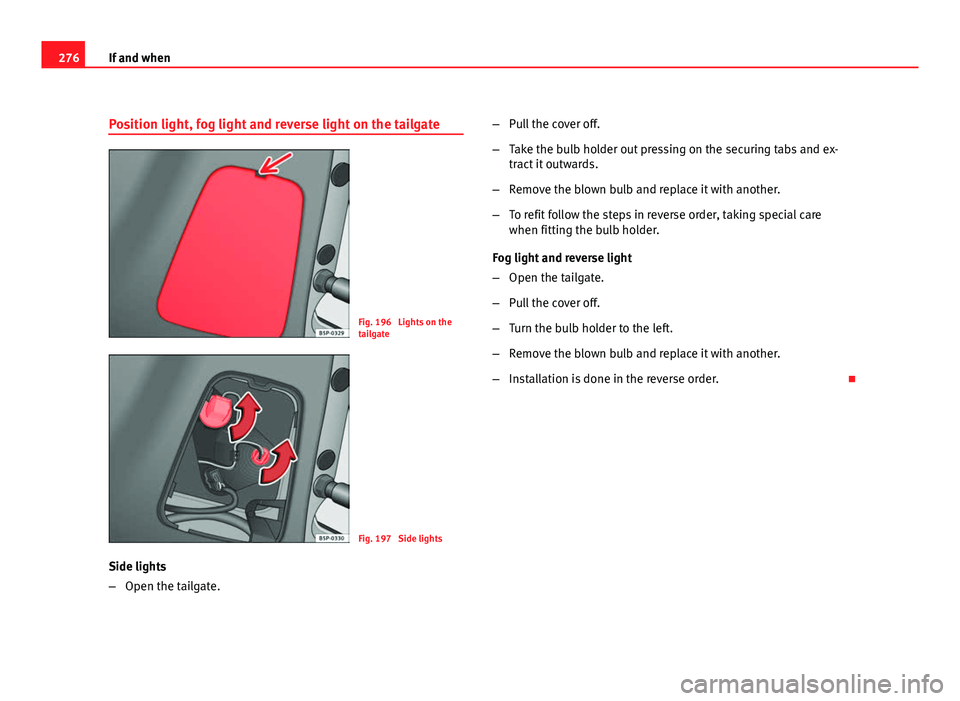

Position light, fog light and reverse light on the tailgate
Fig. 196 Lights on the
tailgate
Fig. 197 Side lights
Side lights
– Open the tailgate. –
Pull the cover off.
– Take the bulb holder out pressing on the securing tabs and ex-
tract it outwards.
– Remove the blown bulb and replace it with another.
– To refit follow the steps in reverse order, taking special care
when fitting the bulb holder.
Fog light and reverse light
– Open the tailgate.
– Pull the cover off.
– Turn the bulb holder to the left.
– Remove the blown bulb and replace it with another.
– Installation is done in the reverse order. 

277
If and when

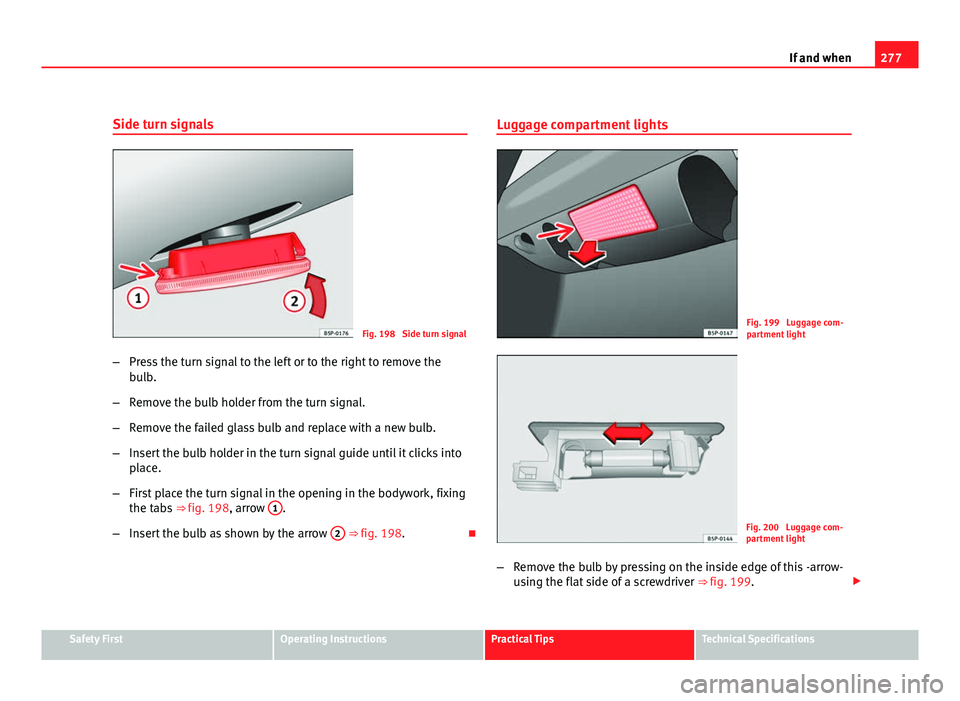

Side turn signals
Fig. 198 Side turn signal
– Press the turn signal to the left or to the right to remove the
bulb.
– Remove the bulb holder from the turn signal.
– Remove the failed glass bulb and replace with a new bulb.
– Insert the bulb holder in the turn signal guide until it clicks into
place.
– First place the turn signal in the opening in the bodywork, fixing
the tabs ⇒ fig. 198, arrow 1
.
– Insert the bulb as shown by the arrow 2
⇒ fig. 198.Luggage compartment lights
Fig. 199 Luggage com-
partment light
Fig. 200 Luggage com-
partment light
– Remove the bulb by pressing on the inside edge of this -arrow-
using the flat side of a screwdriver ⇒ fig. 199.
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

278If and when
–Press the bulb sideways and remove it from the housing
⇒ fig. 200. 

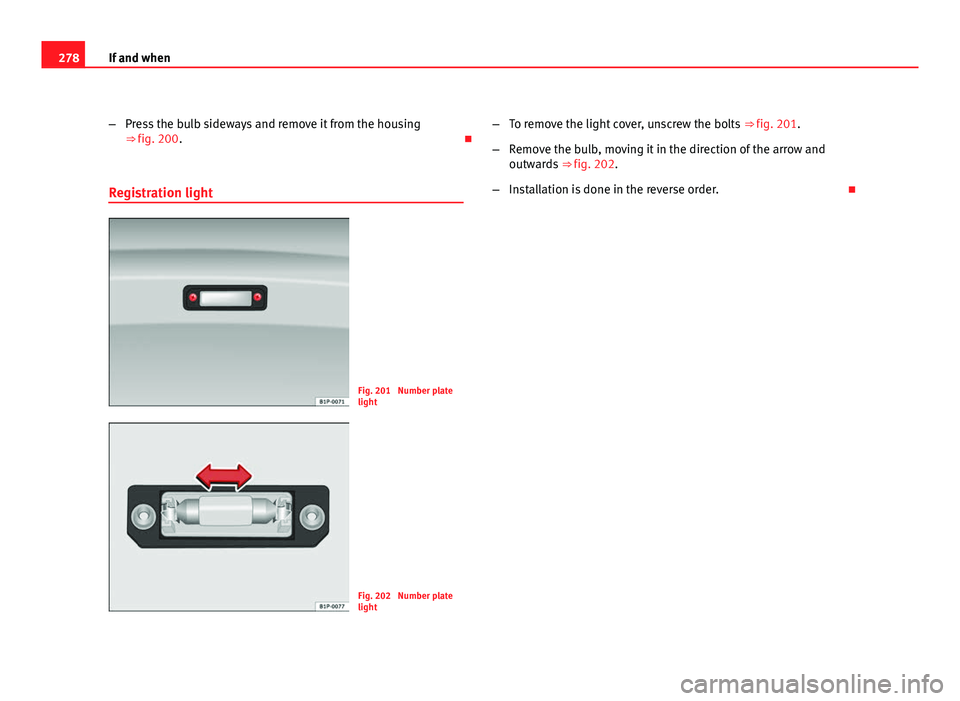

Registration light
Fig. 201 Number plate
light
Fig. 202 Number plate
light –
To remove the light cover, unscrew the bolts ⇒ fig. 201.
– Remove the bulb, moving it in the direction of the arrow and
outwards ⇒ fig. 202.
– Installation is done in the reverse order. 
