Technical features

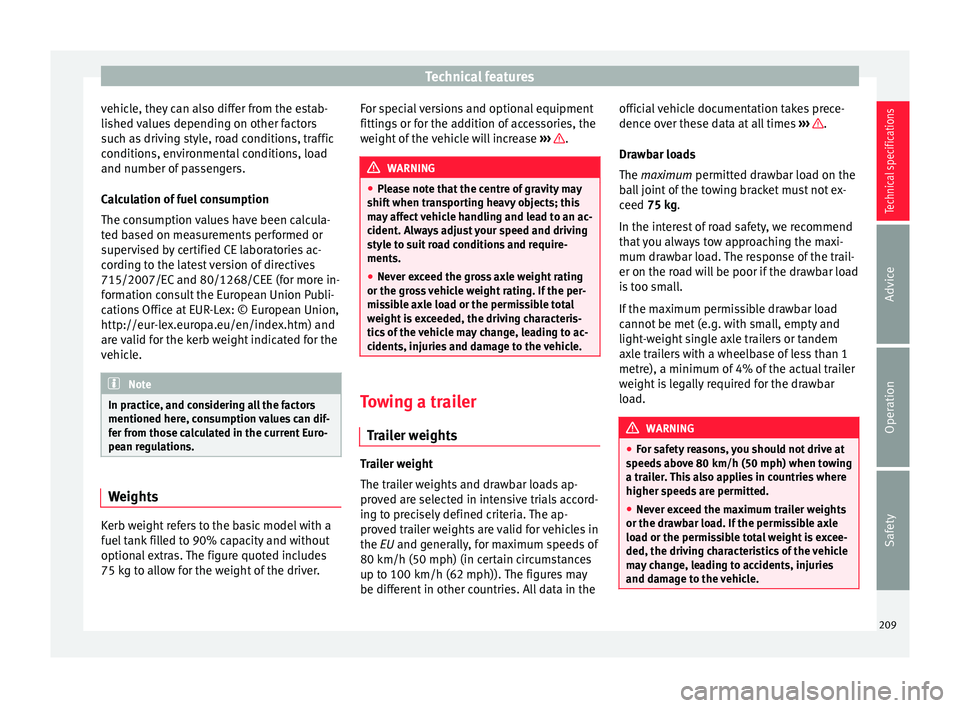

vehicle, they can also differ from the estab-
lished values depending on other factors
such as driving style, road conditions, traffic
conditions, environmental conditions, load
and number of passengers.
Calculation of fuel consumption
The consumption values have been calcula-
ted based on measurements performed or
supervised by certified CE laboratories ac-
cording to the latest version of directives
715/2007/EC and 80/1268/CEE (for more in-
formation consult the European Union Publi-
cations Office at EUR-Lex: © European Union,
http://eur-lex.europa.eu/en/index.htm) and
are valid for the kerb weight indicated for the
vehicle. Note
In practice, and considering all the factors
mentioned here, consumption values can dif-
fer from those calculated in the current Euro-
pean regulations. Weights
Kerb weight refers to the basic model with a
fuel tank filled to 90% capacity and without
optional extras. The figure quoted includes
75 kg to allow for the weight of the driver. For special versions and optional equipment
fittings or for the addition of accessories, the
weight of the vehicle will increase
››› .
WARNING
● Please note that the centre of gravity may
shift when transporting heavy objects; this
may affect vehicle handling and lead to an ac-
cident. Always adjust your speed and driving
style to suit road conditions and require-
ments.
● Never exceed the gross axle weight rating
or the gross vehicle weight rating. If the per-
missible axle load or the permissible total
weight is exceeded, the driving characteris-
tics of the vehicle may change, leading to ac-
cidents, injuries and damage to the vehicle. Towing a trailer
Trailer weights Trailer weight
The trailer weights and drawbar loads ap-
proved are selected in intensive trials accord-
ing to precisely defined criteria. The ap-
proved trailer weights are valid for vehicles in
the
EU
and generally, for maximum speeds of
80 km/h (50 mph) (in c ertain circumstances
up to 100 km/h (62 mph)). The figures may
be different in other countries. All data in the official vehicle documentation takes prece-
dence over these data at all times
››› .
Drawbar loads
The maximum
permitted drawbar load on the
b

all joint of the towing bracket must not ex-
ceed
75 kg.
In the interest of road safety, we recommend
that you always tow approaching the maxi-
mum drawbar load. The response of the trail-
er on the road will be poor if the drawbar load
is too small.
If the maximum permissible drawbar load
cannot be met (e.g. with small, empty and
light-weight single axle trailers or tandem
axle trailers with a wheelbase of less than 1
metre), a minimum of 4% of the actual trailer
weight is legally required for the drawbar
load. WARNING
● For safety reasons, you should not drive at
speeds above 80 km/h (50 mph) when towing
a trailer. This also applies in countries where
higher speeds are permitted.
● Never exceed the maximum trailer weights
or the drawbar load. If the permissible axle
load or the permissible total weight is excee-
ded, the driving characteristics of the vehicle
may change, leading to accidents, injuries
and damage to the vehicle. 209Technical specifications
Advice
Operation
Safety

Technical specifications

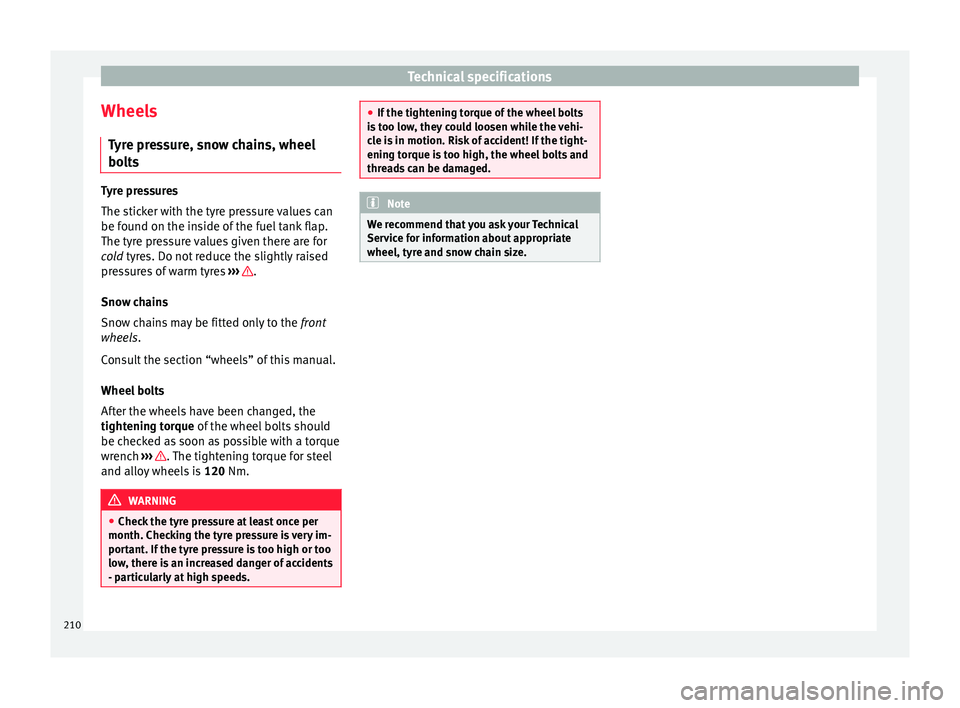

Wheels Tyre pressure, snow chains, wheel
bolts Tyre pressures
The sticker with the tyre pressure values can
be found on the inside of the fuel tank flap.
The tyre pressure values given there are for
cold tyres. Do not reduce the slightly raised
pr
e
ssures of warm tyres ››› .
Snow chains
Snow chains may be fitted only to the front
wheels .
C on

sult the section “wheels” of this manual.
Wheel bolts
After the wheels have been changed, the
tightening torque
of the wheel bolts should
be checked as soon as possible with a torque
wrench ››› . The tightening torque for steel
and alloy wheels is 120 Nm. WARNING
● Check the tyre pressure at least once per
month. Checking the tyre pressure is very im-
portant. If the tyre pressure is too high or too
low, there is an increased danger of accidents
- particularly at high speeds. ●
If the tightening torque of the wheel bolts
is too low, they could loosen while the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged. Note
We recommend that you ask your Technical
Service for information about appropriate
wheel, tyre and snow chain size. 210

Technical features

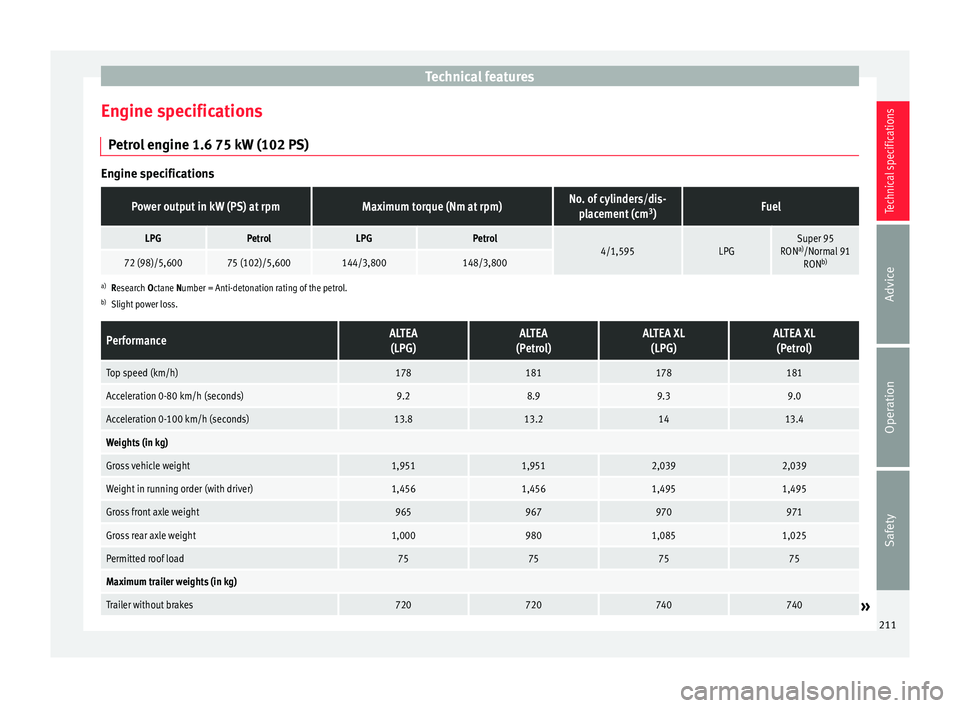

Engine specifications Petrol engine 1.6 75 kW (102 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/dis-
placement (cm 3
)Fuel
LPGPetrolLPGPetrol4/1,595LPGSuper 95
RON a)
/Normal 91
RON b)
72 (98)/5,60075 (102)/5,600144/3,800148/3,800
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
PerformanceALTEA
(LPG)ALTEA
(Petrol)ALTEA XL (LPG)ALTEA XL(Petrol)
Top speed (km/h)178181178181
Acceleration 0-80 km/h (seconds)9.28.99.39.0
Acceleration 0-100 km/h (seconds)13.813.21413.4
Weights (in kg)
Gross vehicle weight1,9511,9512,0392,039
Weight in running order (with driver)1,4561,4561,4951,495
Gross front axle weight965967970971
Gross rear axle weight1,0009801,0851,025
Permitted roof load75757575
Maximum trailer weights (in kg)
Trailer without brakes720720740740» 211
Technical specifications
Advice
Operation
Safety

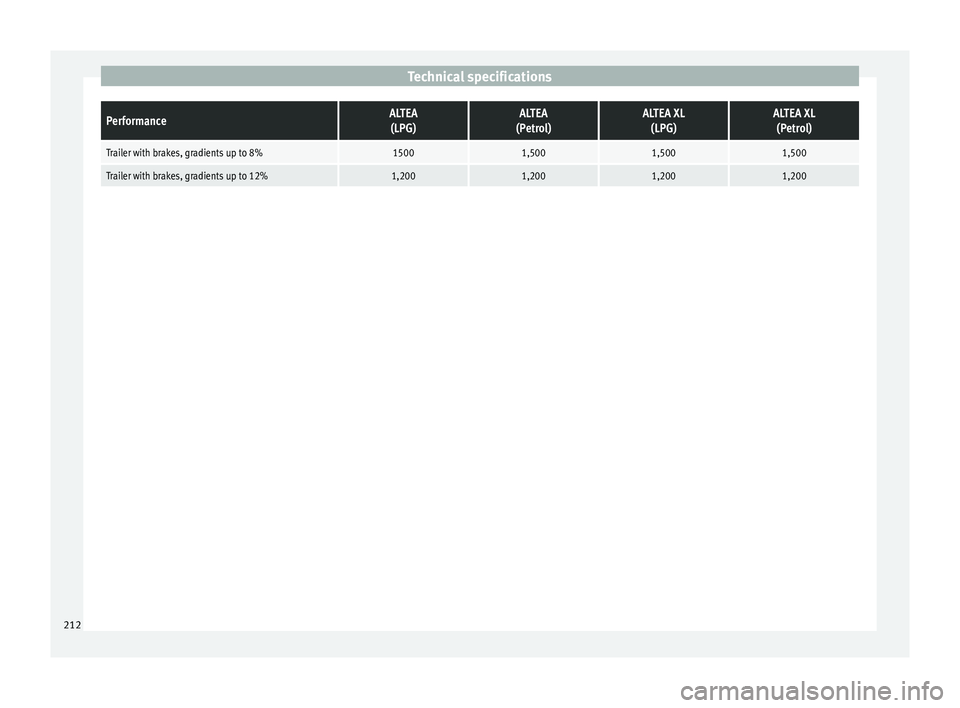

Technical specificationsPerformanceALTEA
(LPG)ALTEA
(Petrol)ALTEA XL (LPG)ALTEA XL(Petrol)
Trailer with brakes, gradients up to 8%15001,5001,5001,500
Trailer with brakes, gradients up to 12%1,2001,2001,2001,200 212

Technical features
Petrol engine 1.2 77 kW (105 PS) Start-Stop Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
77 (105)/5,000175/1,550-4,1004/1,197Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
PerformanceALTEAALTEA XL
Top speed (km/h)184184
Acceleration 0-80 km/h (seconds)7.37.5
Acceleration 0-100 km/h (seconds)11.311.6
Weights (in kg)
Gross vehicle weight1,8801,939
Weight in running order (with driver)1,3601,395
Gross front axle weight970980
Gross rear axle weight9801,025
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes680690
Trailer with brakes, gradients up to 8%1,5001,500
Trailer with brakes, gradients up to 12%1,2001,200 213
Technical specifications
Advice
Operation
Safety

Technical specifications

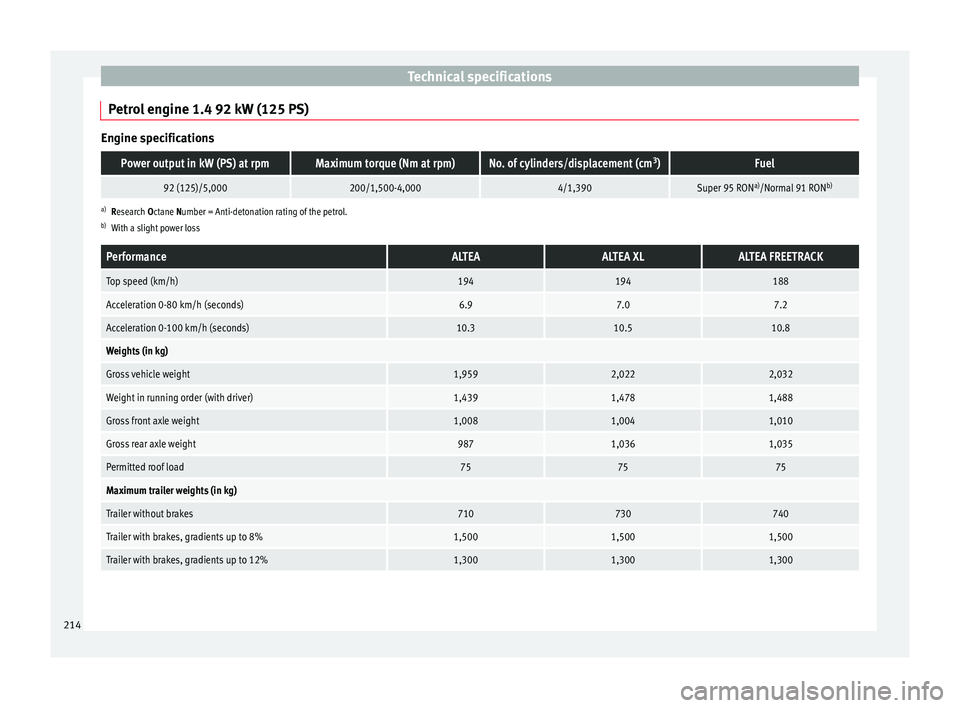

Petrol engine 1.4 92 kW (125 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
92 (125)/5,000200/1,500-4,0004/1,390Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
PerformanceALTEAALTEA XLALTEA FREETRACK
Top speed (km/h)194194188
Acceleration 0-80 km/h (seconds)6.97.07.2
Acceleration 0-100 km/h (seconds)10.310.510.8
Weights (in kg)
Gross vehicle weight1,9592,0222,032
Weight in running order (with driver)1,4391,4781,488
Gross front axle weight1,0081,0041,010
Gross rear axle weight9871,0361,035
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes710730740
Trailer with brakes, gradients up to 8%1,5001,5001,500
Trailer with brakes, gradients up to 12%1,3001,3001,300 214

Technical features

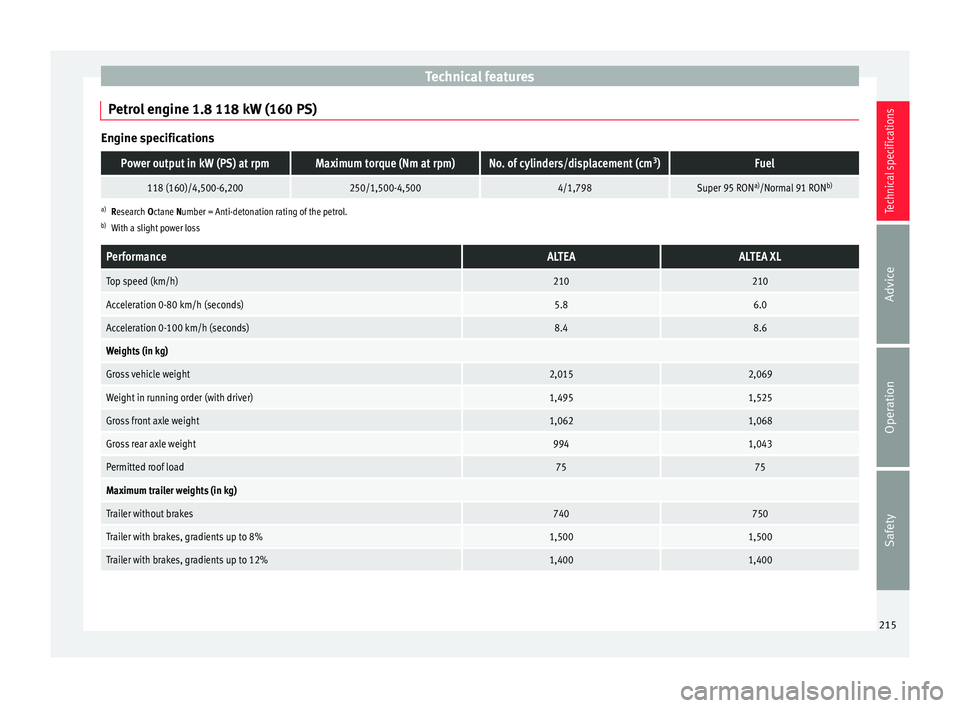

Petrol engine 1.8 118 kW (160 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
118 (160)/4,500-6,200250/1,500-4,5004/1,798Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
PerformanceALTEAALTEA XL
Top speed (km/h)210210
Acceleration 0-80 km/h (seconds)5.86.0
Acceleration 0-100 km/h (seconds)8.48.6
Weights (in kg)
Gross vehicle weight2,0152,069
Weight in running order (with driver)1,4951,525
Gross front axle weight1,0621,068
Gross rear axle weight9941,043
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes740750
Trailer with brakes, gradients up to 8%1,5001,500
Trailer with brakes, gradients up to 12%1,4001,400 215
Technical specifications
Advice
Operation
Safety

Technical specifications

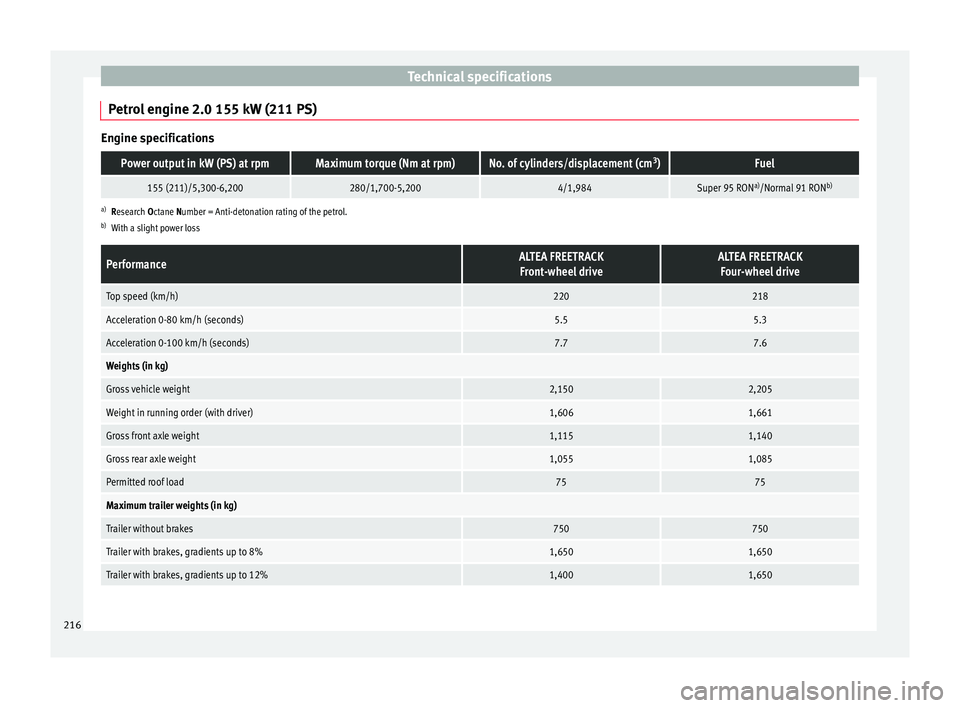

Petrol engine 2.0 155 kW (211 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
155 (211)/5,300-6,200280/1,700-5,2004/1,984Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
PerformanceALTEA FREETRACK
Front-wheel driveALTEA FREETRACK Four-wheel drive
Top speed (km/h)220218
Acceleration 0-80 km/h (seconds)5.55.3
Acceleration 0-100 km/h (seconds)7.77.6
Weights (in kg)
Gross vehicle weight2,1502,205
Weight in running order (with driver)1,6061,661
Gross front axle weight1,1151,140
Gross rear axle weight1,0551,085
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes750750
Trailer with brakes, gradients up to 8%1,6501,650
Trailer with brakes, gradients up to 12%1,4001,650 216

Technical features

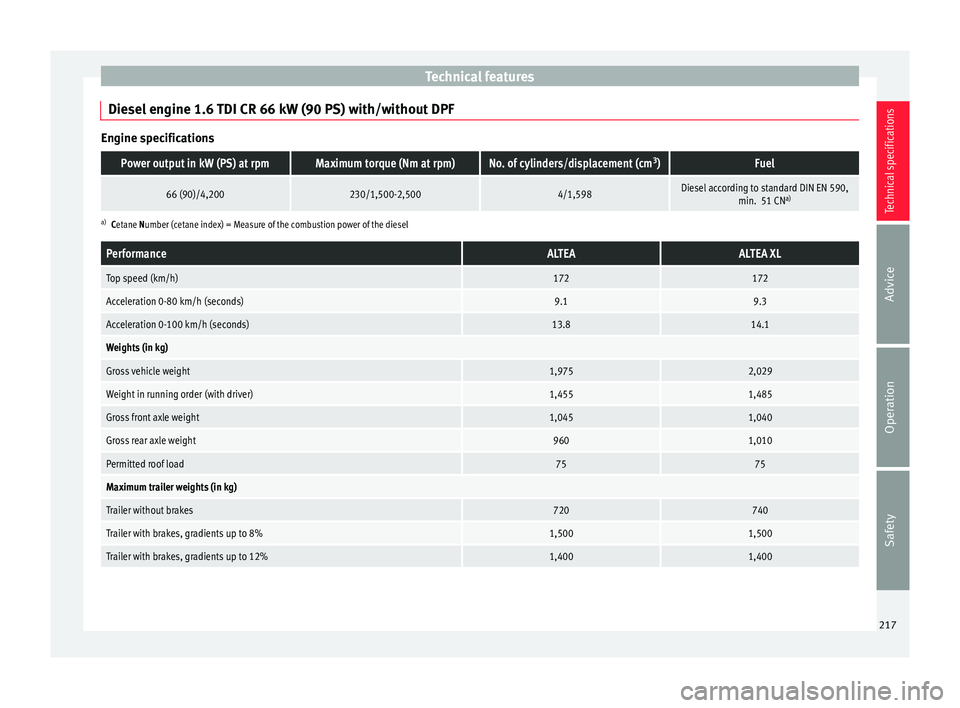

Diesel engine 1.6 TDI CR 66 kW (90 PS) with/without DPF Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
66 (90)/4,200230/1,500-2,5004/1,598Diesel according to standard DIN EN 590,
min. 51 CNa)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
PerformanceALTEAALTEA XL
Top speed (km/h)172172
Acceleration 0-80 km/h (seconds)9.19.3
Acceleration 0-100 km/h (seconds)13.814.1
Weights (in kg)
Gross vehicle weight1,9752,029
Weight in running order (with driver)1,4551,485
Gross front axle weight1,0451,040
Gross rear axle weight9601,010
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes720740
Trailer with brakes, gradients up to 8%1,5001,500
Trailer with brakes, gradients up to 12%1,4001,400 217
Technical specifications
Advice
Operation
Safety

Technical specifications

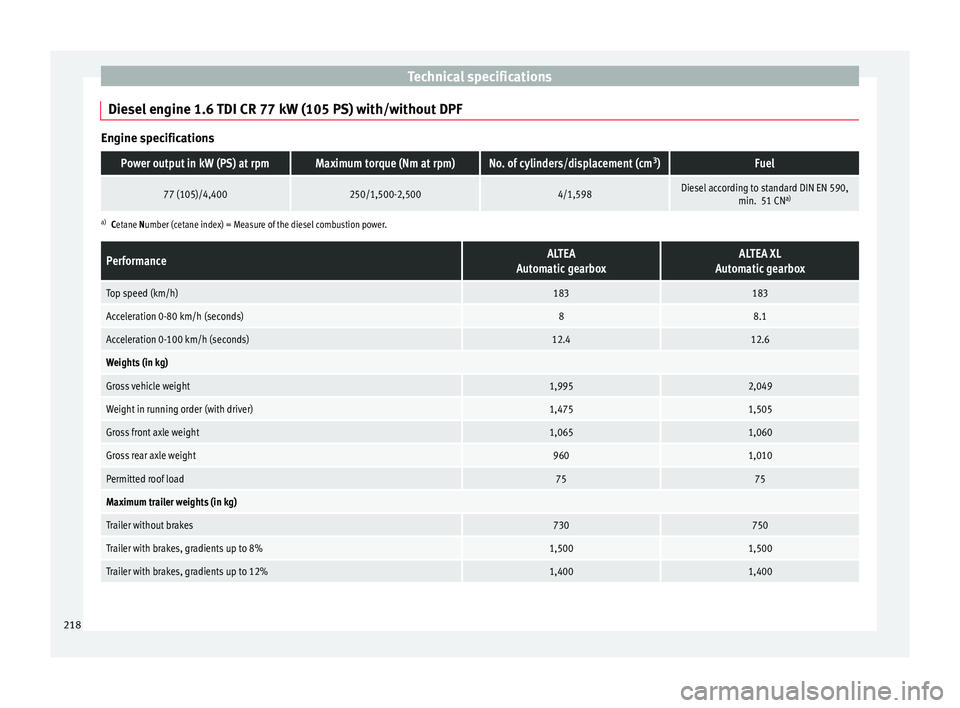

Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPF Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
77 (105)/4,400250/1,500-2,5004/1,598Diesel according to standard DIN EN 590,
min. 51 CNa)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
PerformanceALTEA
Automatic gearboxALTEA XL
Automatic gearbox
Top speed (km/h)183183
Acceleration 0-80 km/h (seconds)88.1
Acceleration 0-100 km/h (seconds)12.412.6
Weights (in kg)
Gross vehicle weight1,9952,049
Weight in running order (with driver)1,4751,505
Gross front axle weight1,0651,060
Gross rear axle weight9601,010
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes730750
Trailer with brakes, gradients up to 8%1,5001,500
Trailer with brakes, gradients up to 12%1,4001,400 218
