Transport and practical equipment
●
Never e x
ceed the allowed axle weights or
allowed maximum weight. If said weights are
exceeded, the driving characteristics of the
vehicle may change, leading to accidents, in-
juries and damage to the vehicle.
● Please note that the centre of gravity may
shift when tr
ansporting heavy objects; this
may affect vehicle handling and lead to an ac-
cident. Therefore, it is essential to adjust
your speed and driving style accordingly, to
avoid accidents.
● Never leave your vehicle unattended, espe-
cia
lly when the rear lid is open. Children
could climb into the luggage compartment,
closing the door behind them; they will be
trapped and run the risk of death.
● Never allow children to play in or around
the vehic
le. Close and lock all the doors and
the rear lid when you leave the vehicle. Be-
fore you lock the vehicle, make sure that
there are no adults or children in the vehicle.
● Please observe the notes on the ›››
page 75. CAUTION
Hard objects on the rear shelf could chafe
again s

t the wires of the heating element in
the heated rear window and cause damage. Note
● The tyr e pr

essure must be adjusted accord-
ing to the load. When necessary, check the
tyre pressures on the adhesive label stuck to the back of the front left door frame
›› ›

page 284.
● Air circulation in the vehicle helps reduce
foggin
g of the windows. Used air escapes
through ventilation slits in the side trim of
the luggage compartment. Ensure that the
ventilation slots are never covered.
● Straps for securing the load to the fasten-
ing ring
s* are commercially available from ac-
cessory shops. Rear shelf
Fig. 165
In the luggage compartment: remov-
in g and in
s

talling the rear shelf. Fig. 166
In the luggage compartment: remov-
ing and in s

talling the rear shelf. Removing
● Detach the cord loops ››
›
Fig. 165 B from
their hook s
A .
● Remove the rear shelf from the side sup-
por ts
›

›› Fig. 166 by pulling it upwards and
then take it out.
Storing the rear shelf
Depending on the equipment, once the lug-
gage compartment shelf has been removed,
it can be stored under the boot's variable
floor ››› page 161.
● Remove the side cover sliding it upwards
and plac
e the shelf in the bottom.
● Replace the side cover.
To remo
ve it proceed in reverse order. »
159
Technical data
Advice
Operation
Emergencies
Safety

Operation
Fitting
● Insert the cover horizontally so that the “re-
c e
s
s” fits onto the axis of the supports
››› Fig. 166 and press down until it engages.
● Hook the loops ›››
Fig. 165 B to the rear
lid. WARNING
Do not place heavy or hard objects on the
re ar shelf

, because they will endanger the ve-
hicle occupants in case of sudden braking. CAUTION
● Bef or

e closing the rear lid, ensure that the
rear shelf is correctly fitted.
● An overloaded luggage compartment could
mean that
the rear shelf is not correctly seat-
ed and it may be bent or damaged.
● If the luggage compartment is overloaded,
remov
e the tray. Note
● Ens ur

e that, when placing items of clothing
on the luggage compartment cover, rear visi-
bility is not reduced. Fastening rings*

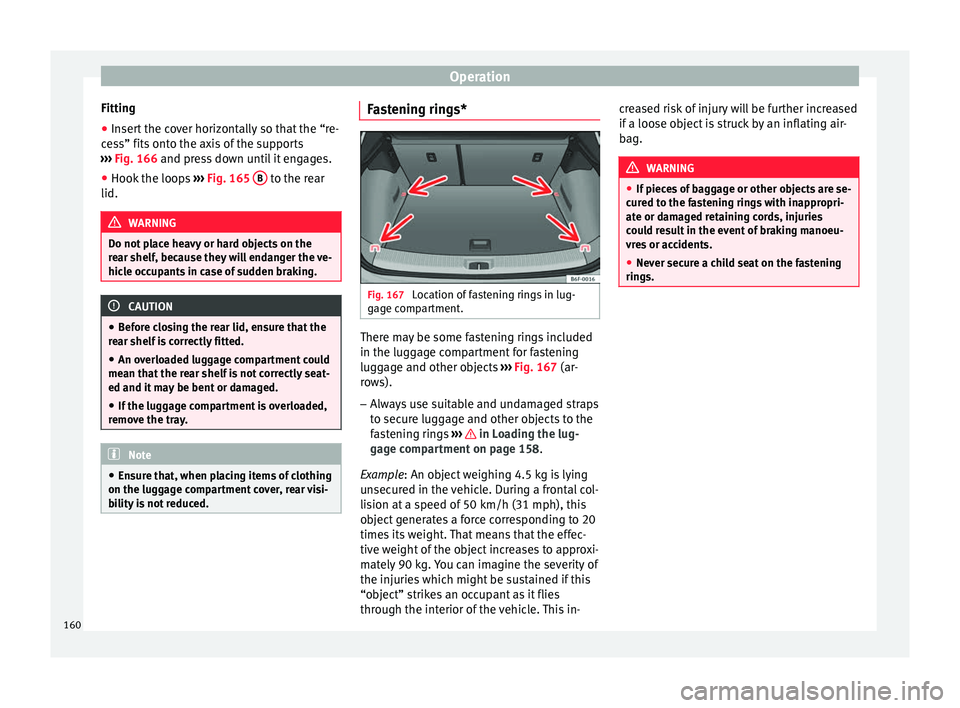

Fig. 167
Location of fastening rings in lug-
g ag
e c

ompartment. There may be some fastening rings included
in the lug
g
ag

e compartment for fastening
luggage and other objects ››› Fig. 167 (ar-
rows).
– Always use suitable and undamaged straps
to secur

e luggage and other objects to the
fastening rings ››› in Loading the lug-
g ag
e c

ompartment on page 158.
Example: An object weighing 4.5 kg is lying
unsecured in the vehicle. During a frontal col-
lision at a speed of 50 km/h (31 mph), this
object generates a force corresponding to 20
times its weight. That means that the effec-
tive weight of the object increases to approxi-
mately 90 kg. You can imagine the severity of
the injuries which might be sustained if this
“object” strikes an occupant as it flies
through the interior of the vehicle. This in- creased risk of injury will be further increased
if a loose o

bject is struck by an inflating air-
bag. WARNING
● If piec e

s of baggage or other objects are se-
cured to the fastening rings with inappropri-
ate or damaged retaining cords, injuries
could result in the event of braking manoeu-
vres or accidents.
● Never secure a child seat on the fastening
rings. 160

Transport and practical equipment
Luggage compartment variable floor Fig. 168
Luggage compartment variable
floor:  r ai
sed po
sition;  lowered position. Fig. 169
Luggage compartment variable
floor: sloped po s

ition. Variable floor in the high position
●
Lift the floor using handle ››
›
Fig. 168 1 and pull it back until the front of the floor has
f
u
l
ly passed the supports 2 .
● Move the floor forward over the supports as
f ar a
s

the rear seat backrest and then lower
the floor with the handle 1 .
V ari
ab

le floor in the low position
● Lift the floor using handle 1 and pull it
b ac
k

until the supports 2 have fully passed
the fr ont
p
art of the floor.
● Now match the front part with the lower
groov
es of the supports and slide the floor
forwards as far as the rear seat backrest and
lower the floor at the same time with the han-
dle 1 .Variable floor in the tilted position
When the
v
ari

able floor is tilted you can ac-
cess the spare wheel/anti-puncture kit area.
● Lift the variable floor in the high position
usin
g handle 1 , pull it up and push it to-
w ar
d
s the backrest of the rear seats until the
floor folds along the hinge line and the mov-
able part of the floor is resting on itself.
● Rest the floor on its housings ›››
Fig. 169
(arrows). WARNING
During a sudden driving or braking manoeu-
vre, or in the ev ent

of an accident, objects
could be flung though the interior and cause
serious or fatal injuries.
● Always secure objects, even when the lug-
gage c
ompartment floor is properly lifted.
● Only objects that do not protrude more
than 2/3 the height of
the floor may be car-
ried between the rear seat and the raised lug-
gage compartment floor.
● Only objects that do not weigh than ap-
prox
imately 7.5 kg may be carried between
the rear seat and the raised luggage compart-
ment floor. CAUTION
● The max imum w

eight that can be loaded on
the luggage compartment variable floor in
the top position is 150 kg. » 161
Technical data
Advice
Operation
Emergencies
Safety

Operation
●
Do not l et
the luggage compartment floor
fall when closing it. Always carefully guide it
downwards in a controlled manner. Other-
wise, the lining and the floor of the luggage
compartment could be damaged. Note
SEAT recommends the use of straps to secure
o b j

ects to retaining rings. Roof carrier*
Intr oduction The vehicle roof has been designed to opti-
mi
se aer
ody

namics. For this reason, cross
bars or conventional roof carrier systems can-
not be secured to the roof water drains.
As the roof water drains are integrated in the
roof to reduce air resistance, only SEAT-ap-
proved cross bars and roof carrier systems
can be used.
Cases in which cross bars and the roof carri-
er system should be disassembled.
● When they are not used.
● When the vehicle is washed in a car wash.
● When the vehicle height exceeds the maxi-
mum height, for e x

ample, in some garages. WARNING
When heavy or bulky loads are transported
on the roof c

arrier system, car driving per-
formance is affected, as the centre of gravity
shifts and there is greater wind resistance.
● Always secure the load properly using belts
or retainin
g straps that are suitable and in a
good condition.
● Bulky, heavy, long or flat loads have a neg-
ative effect
on aerodynamics, the centre of
gravity and driving performance.
● Avoid sudden braking and manoeuvres.
● Adapt your speed and driving style at all
times t
o suit visibility, weather, road and traf-
fic conditions. CAUTION
● Remo v

e the cross bars and the roof carrier
system before entering a car wash.
● Vehicle height is increased by the installa-
tion of cr
oss bars or a roof carrier system and
the load secured on them. For this purpose,
check that your vehicle's height does not sur-
pass the headspace limit, for example, for un-
derpasses or for entering garage doors.
● Any cross bars, roof carrier systems or
load
s secured to them must not interfere with
the roof aerial or block the path of the rear
lid.
● On opening the rear lid make sure that it
does not
knock into the roof load. For the sake of the environment
When cross bars and a roof carrier system are
ins t

alled, the increased air resistance means
that the vehicle uses more fuel. Attach the cross bars and the roof car-
rier sys
t

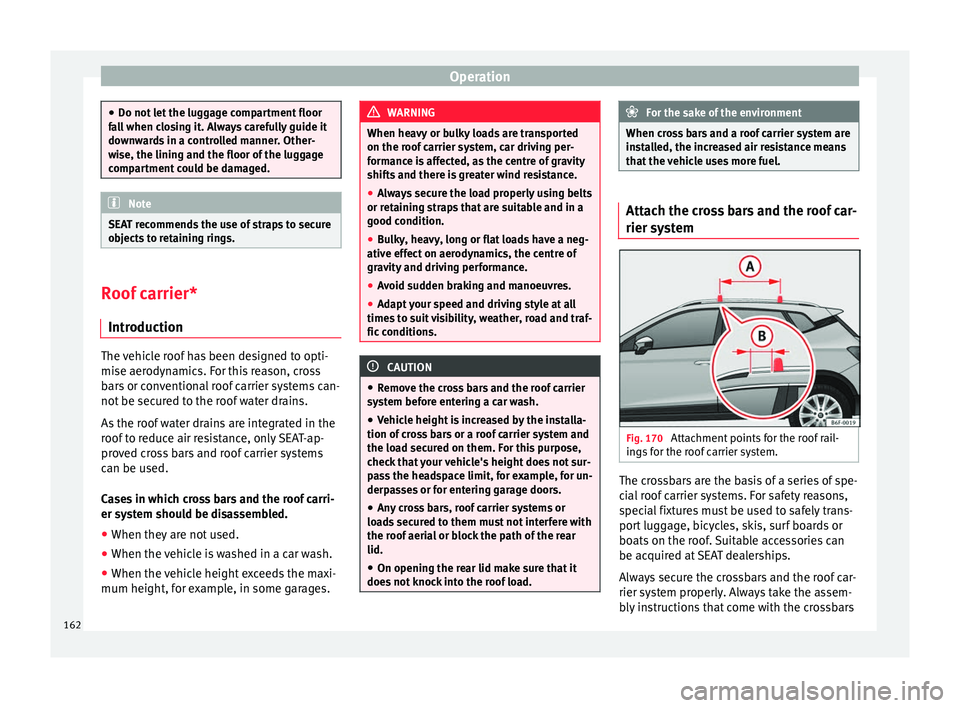

em Fig. 170
Attachment points for the roof rail-
in g
s

for the roof carrier system. The crossbars are the basis of a series of spe-
c
i
al

roof carrier systems. For safety reasons,
special fixtures must be used to safely trans-
port luggage, bicycles, skis, surf boards or
boats on the roof. Suitable accessories can
be acquired at SEAT dealerships.
Always secure the crossbars and the roof car-
rier system properly. Always take the assem-
bly instructions that come with the crossbars
162

Transport and practical equipment
and the roof carrier system in question into
ac c
ou
nt.
The crossbars are assembled on the roof rail-
ings. The distance between cross bars
››› Fig. 170 A should be 75 cm and the dis-
t anc
e betw

een the cross bars and the brack-
ets of the roof railings B should be 5 cm.
WARNING
Incorrect attachment and use of the cross-
bar s

and the roof carrier system may cause
the whole system to detach from the roof and
cause an accident and injuries.
● Always take the manufacturer assembly in-
structions
into account.
● Use only crossbars and the roof carrier sys-
tem when they ar
e in perfect condition and
are properly secured.
● Secure the crossbars and the roof carrier
syst
em properly.
● Check threaded joints and attachments
travel
ling and if necessary tighten them after
you have travelled a short distance. When
making long trips, check the threaded joints
whenever you stop for a rest.
● Always fit the special roof carrier systems
correctly
for wheels, skis and surfboards, etc.
● Do not modify or repair the crossbars or
roof c
arrier system. Note
Always read the assembly instructions that
come w ith the c

rossbars and the roof carrier
system carefully and keep them in the vehi-
cle. Loading the roof carrier system
The load can only be secured if the crossbars
and the roof
c

arrier system are properly in-
stalled ››› .
Max imum authori

sed roof load
The maximum permissible roof load is 75 kg.
This figure comes from the combined weight
of the roof carrier, the cross bars and the load
itself on the roof ››› .
A lw
a

ys check the weight of the roof carrier
system, the cross bars and the weight of the
load to be transported and weigh them if
necessary. Never exceed the maximum au-
thorised roof load.
If you are using cross bars and a roof carrier
with a lower weight rating, you will not be
able to carry the maximum authorised roof
load. In this case, do not exceed the maxi-
mum weight limit for the roof carrier which is
listed in the fitting instructions. Distributing a load
Distrib

ute loads uniformly and secure them
correctly ››› .
Chec k
att

achments
Once the cross bars and roof carrier system
have been installed, check the bolted con-
nections and attachments after a short jour-
ney and subsequently with a certain frequen-
cy. WARNING
Exceeding the maximum authorised roof load
can r e

sult in accidents and considerable vehi-
cle damage.
● Never exceed the maximum authorised
load on the r
oof and on the axles or the vehi-
cle's maximum authorised weight.
● Never exceed the load capacity of the cross
bars
and the roof carrier system, even if the
maximum authorised roof load has not been
reached.
● Secure heavy items as far forward as possi-
ble and di
stribute the vehicle load uniformly. WARNING
If the load is loose or not secured, it could fall
from the r oof

carrier system or cause acci-
dents and injuries.
● Always use belts or retaining straps that
are suit
able and in a good condition.
● Secure the load properly. 163
Technical data
Advice
Operation
Emergencies
Safety

Operation
Air conditioning
He atin
g,
ventilation and cool-
ing
General notes Read the additional information carefully
›› ›

 page 51
Pollution filter
The pollution filter (a combined particulate
filter and active carbon filter) serves as a bar-
rier against impurities in the outside air, in-
cluding dust and pollen.
For the climate control system to work with
maximum efficiency, the pollution filter must
be replaced at the specified intervals in the
Maintenance Programme.
If the filter loses efficiency prematurely due
to use in areas reaching very high pollution
levels, the pollen filter must be changed
more frequently than stated in the Service
Schedule. WARNING
Reduced visibility through the windows in-
cr e

ases the risk of serious accidents.
● Always ensure that all windows are free of
ice and sno
w, and that they are not fogged, so as to maintain good visibility of everything
outs
ide.
● The m

aximum heat output required to de-
fros
t windows as quickly as possible is only
available when the engine has reached its
normal running temperature. Only drive when
you have good visibility.
● Always ensure that you use the heating
syst
em, fresh air system, air conditioner and
the heated rear window to maintain good visi-
bility to the outside.
● Never leave the air recirculation on for a
long period of time. If
the cooling system is
switched off and air recirculation mode
switched on, the windows can mist over very
quickly, considerably limiting visibility.
● Switch air recirculation mode off when it is
not requir
ed. WARNING
Stuffy or used air will increase fatigue and re-
duce driv er c

oncentration possibly resulting
in a serious accident.
● Never leave the fresh air fan turned off or
use the air rec
irculation for long periods of
time; the air in the vehicle interior will not be
refreshed. CAUTION
● If y

ou suspect that the air conditioner is
damaged, switch it off with the A/C button to prevent further damage and have it checked
by
a s

pecialised workshop.
● Repairs to the air conditioner require spe-
cia
list knowledge and special tools. There-
fore, we recommend you to take the vehicle
to a specialised workshop. Note
● If the humidity and t

emperature outside the
vehicle are high, condensation can drip off
the evaporator in the cooling system and
form a pool underneath the vehicle. This is
normal and does not indicate a leak.
● Keep the air intake slots in front of the
winds
creen free of snow, ice and leaves to en-
sure heating and cooling are not impaired,
and to prevent the windows from misting
over.
● The air from the vents flows through the ve-
hicle int
erior and is extracted by slots in the
luggage compartment designed for this pur-
pose. Therefore, you should avoid obstruct-
ing these slots with any kind of object.
● The air conditioner operates most effective-
ly with the w
indows closed. However, if the
temperature inside the vehicle is excessive
because of the sun, the air inside can be
cooled faster by opening the windows for a
short time.
● Do not smoke while air recirculation mode
is on, a
s smoke drawn into the air condition-
ing system leaves residue on the evaporator,
producing a permanent unpleasant odour. 164

Air conditioning
●
At lo w out
side temperatures, the compres-
sor switches off automatically and cannot be
switched on even with the AUTO button.
● It is advisable to turn on the air condition-
ing at l

east once a month, to lubricate the
system gaskets and prevent leaks. If a de-
crease in the cooling capacity is detected, a
Technical Service should be consulted to
check the system.
● To ensure correct operation, the grilles on
both sides
of the screen must not be obstruc-
ted. ●
When the engine i s

under extreme strain,
switch off the compressor for a moment. Economic use of the air conditioning
When the air conditioning is switched on, the
compr
e

ssor consumes engine power and has
influence on fuel consumption. Consider the
following points in order to have the system
operating in the minimum possible time. ●
If the v

ehicle interior has overheated due to
an excessive solar radiation, it is best to
open the windows or doors to allow the hot
air to escape.
● While in motion, the air conditioning
should not
be switched on if the windows are
open.
Air outlets Fig. 171
Air vents. To ensure proper heating, cooling and venti-
l
ation in the
v

ehicle interior, air vents
››› Fig. 171 1 should remain open.
●
The outl ets
c
an be closed or opened sepa-
rately using the slats and the air flow direc-
ted according to need. There are other additional, non-adjustable air
vents in the d
ash panel 2 , in the footwell
and in the r e
ar ar
ea of the interior. »
165
Technical data
Advice
Operation
Emergencies
Safety

Operation

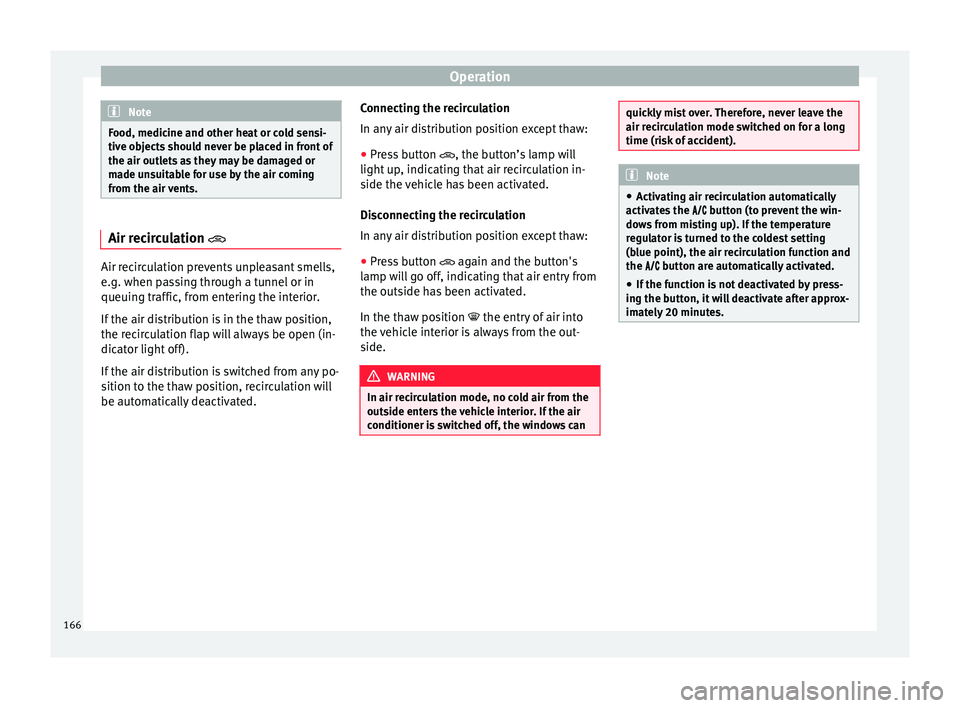

Note
Food, medicine and other heat or cold sensi-
tive o b
jects should never be placed in front of
the air outlets as they may be damaged or
made unsuitable for use by the air coming
from the air vents. Air recirculation 
Air recirculation prevents unpleasant smells,
e.g. when p
a

ssing through a tunnel or in
queuing traffic, from entering the interior.
If the air distribution is in the thaw position,
the recirculation flap will always be open (in-
dicator light off).
If the air distribution is switched from any po-
sition to the thaw position, recirculation will
be automatically deactivated. Connecting the recirculation
In any
air di

stribution position except thaw:
● Press button , the button’s
lamp will
light up, indicating that air recirculation in-
side the vehicle has been activated.
Disconnecting the recirculation
In any air distribution position except thaw:
● Press button  again and the butt
on's
lamp will go off, indicating that air entry from
the outside has been activated.
In the thaw position  the entry of air into
the vehicle interior is always from the out-
side. WARNING
In air recirculation mode, no cold air from the
outs ide ent

ers the vehicle interior. If the air
conditioner is switched off, the windows can quickly mist over. Therefore, never leave the
air rec
ir

culation mode switched on for a long
time (risk of accident). Note
● Activ atin

g air recirculation automatically
activates the  button (to prevent the win-
dows from misting up). If the temperature
regulator is turned to the coldest setting
(blue point), the air recirculation function and
the  button are automatically activated.
● If the function is not deactivated by press-
ing the butt
on, it will deactivate after approx-
imately 20 minutes. 166

Air conditioning
Heating and fresh air C ontr
o
ls Fig. 172
Heating controls on the dash panel. Temperature regulator
››
›
page 167.
Blower control. There are four speed set-
tings for the blower. The blower should
always be set at the lowest speed when
driving slowly.
Air distribution regulator.
Heated rear window.
Air distribution
Control 3 for setting the flow of air in the re-
quir ed dir
ection.


– Air distribution towards the windscreen
in order to demist. 1 2
3

 – Air di
stribution to upper body.
 – Air di

stribution to footwell
 – Air distribution to the windscreen and
the footwell. WARNING
● For y

our safety, the windows should never
be fogged up or covered with snow or ice.
This is essential to ensure good visibility.
Please familiarise yourself with the correct
operation of the heating and ventilation sys-
tem, including the demist/defrost functions
for the windows. Note
● Ple a

se consider the general notes
››› page 164. Functions
Ventilating the vehicle interior
The des
ir

ed temperature inside the vehicle
cannot be lower than the ambient tempera-
ture.
● Turn the temperature selector
›› ›

Fig. 172 1 anti-clockwise.
»
167
Technical data
Advice
Operation
Emergencies
Safety

Operation

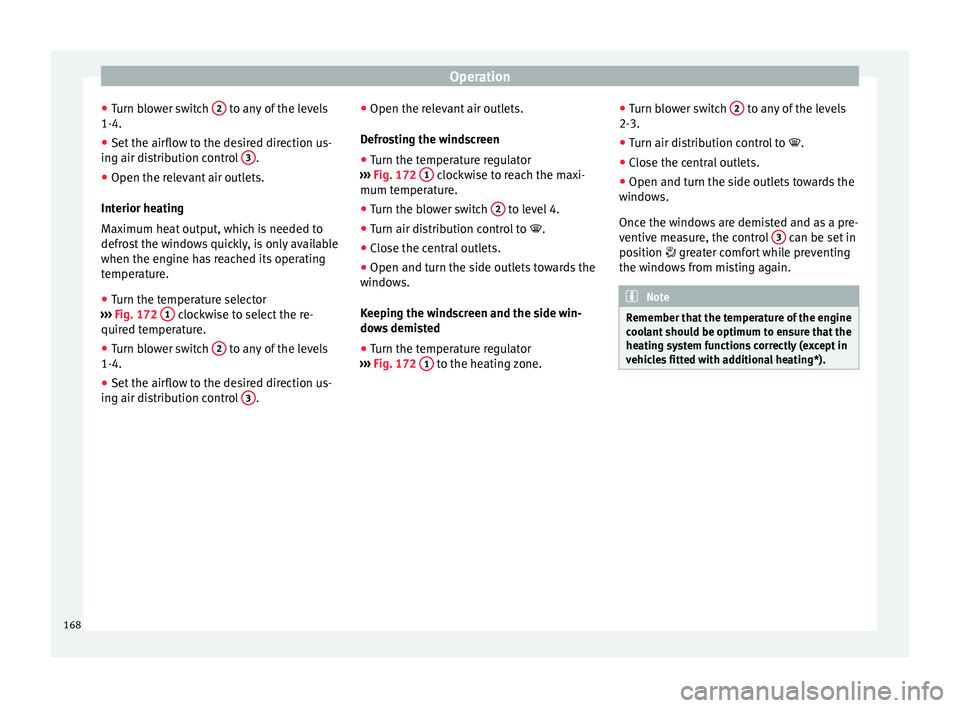

● Turn b
lo
wer switch 2 to any of the levels
1-4.
● Set the airflow to the desired direction us-
in g air di
s

tribution control 3 .
● Open the relevant air outlets.
Int erior he
atin

g
Maximum heat output, which is needed to
defrost the windows quickly, is only available
when the engine has reached its operating
temperature.
● Turn the temperature selector
›››
Fig. 172 1 clockwise to select the re-
quir ed t
emper
ature.
● Turn blower switch 2 to any of the levels
1-4.
● Set the airflow to the desired direction us-
in g air di
s

tribution control 3 .●
Open the r el
ev

ant air outlets.
Defrosting the windscreen ● Turn the temperature regulator
›››
Fig. 172 1 clockwise to reach the maxi-
mum t emper
at
ure.
● Turn the blower switch 2 to level 4.
● Turn air distribution control to .
● Close the central outlets.
● Open and turn the side outlets towards the
w indo
w

s.
Keeping the windscreen and the side win-
dows demisted
● Turn the temperature regulator
›››
Fig. 172 1 to the heating zone.
●
Turn b
lo

wer switch 2 to any of the levels
2-3.
● Turn air distribution control to .
● Close the central outlets.
● Open and turn the side outlets towards the
w indo
w

s.
Once the windows are demisted and as a pre-
ventive measure, the control 3 can be set in
po s
ition

 greater comfort while preventing
the windows from misting again. Note
Remember that the temperature of the engine
coo l

ant should be optimum to ensure that the
heating system functions correctly (except in
vehicles fitted with additional heating*). 168
