Seat Arona 2020 Owner's Manual

Help with parking and manoeuvring
Visual indication segments Fig. 256
Parking Aid display on the Easy Con-
nect syst em screen. The optical indication of the segments works
as f
oll
ows:
Whit e segments:
the obstacle is more
than approx. 30 cm away from the path
or in the direction opposite to travel.
Yellow segments: the obstacles lie on
the vehicle

Driving
Trailer mode Fig. 257
Parking assist display on the screen
with tr ailer att
ached. On vehicles with a factory-fitted trailer hitch,
when the tr
ail
er is connect ed, the r
ear sen-
sors will not activ
ate when reverse gear is en-
gaged or button  is pressed. Therefore, any
objects behind or to the side of the vehicle
will not be indicated on the screen and no
audio signals will sound.
The screen will only display objects detected
at the front, and the vehicle

Help with parking and manoeuvring

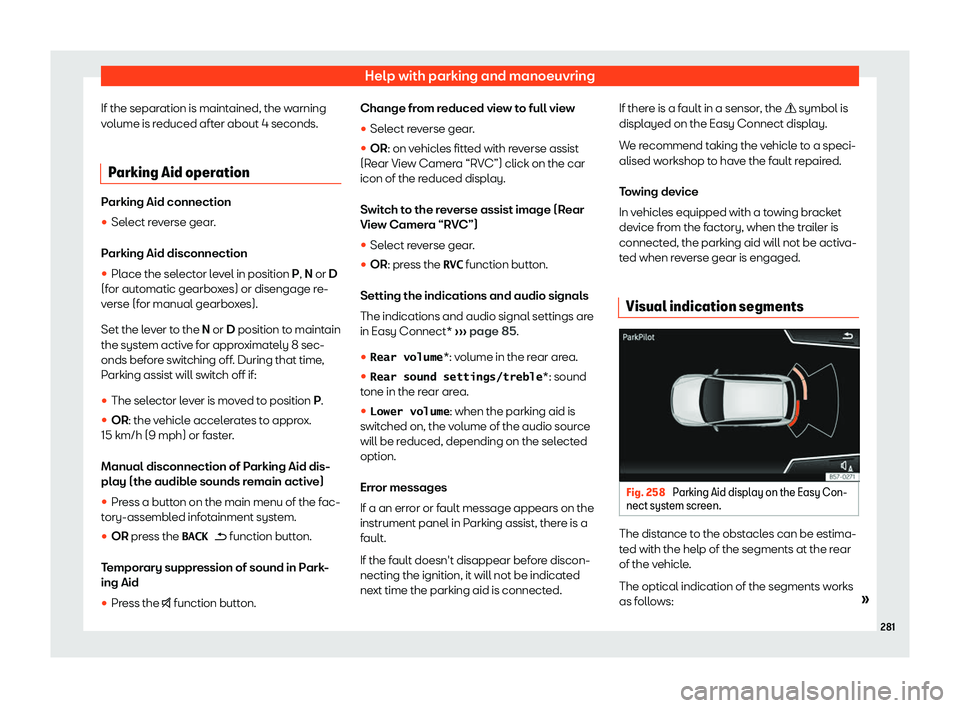

If the separation is maintained, the warning
v olume is r
educed aft er about 4 seconds.
P arking Aid oper
ationParking Aid connection

Driving
White segments: the obst acl
e is mor e
than appr o
x. 30 cm away from the path
or in the direction opposite to travel.
They are also displayed when the elec-
tronic parking brake is activated.
Yellow segments: the obstacles lie on
the vehicle

Help with parking and manoeuvring
Note

Driving

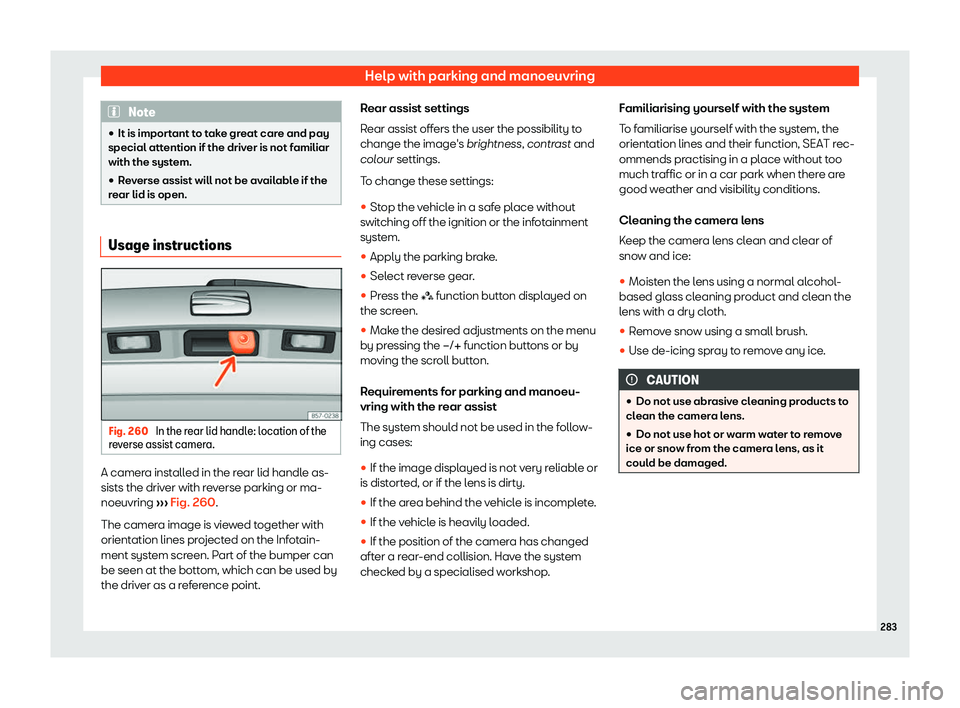

Parking and manoeuvring with re-
v erse assist Fig. 261
Display on the Easy Connect system
scr een: guide lines. Meaning of the orientation lines

Towing bracket device*
Towing bracket device*
T r
ail er mode
Intr oduction Take into account country-specific regula-
tions about driving with a trailer and the use
of a to wing br
acket.
The vehicle has been developed primarily for
carrying people, although it can also be used
to tow a trailer if fitted with the corresponding
technical equipment. This additional load has
an effect on the useful life, fuel consumption
and vehicle performance and in some cases
can reduce the service intervals.
Driving with a trailer requires more force from
the vehicle, and thus more concentration
from the driver.
In winter, winter tyres should be fitted on both
the vehicle and the trailer.
Maximum vertical load technically permit-
ted on the coupling device
The maximum technically permitted vertical
load of the trailer

Driving

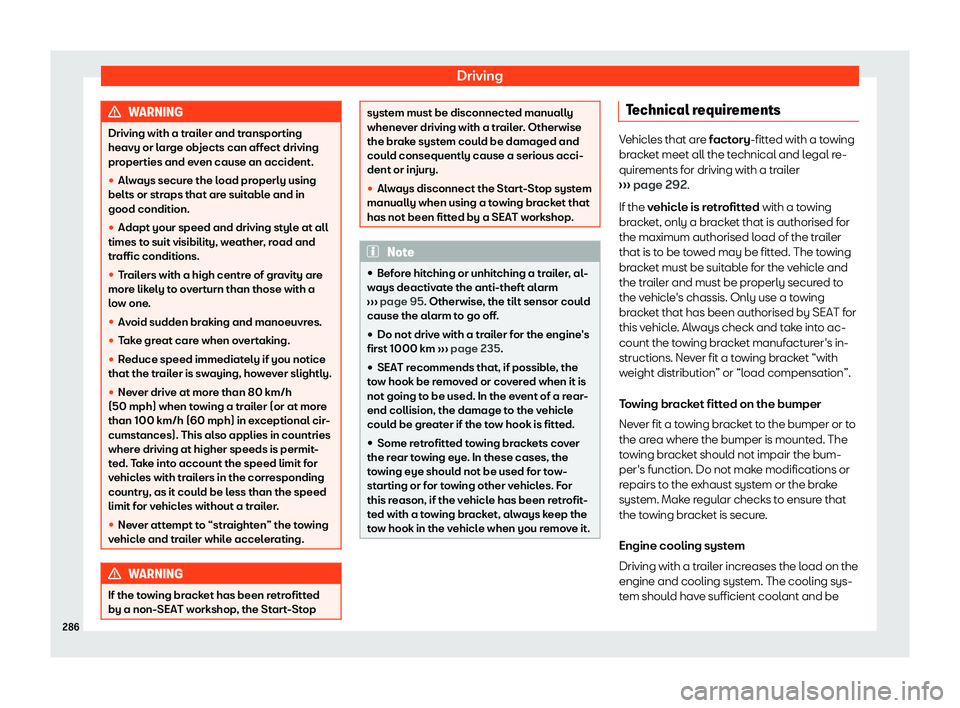

WARNING
Driving with a trailer and transporting
heavy or large objects can aff ect driving
pr
operties and even cause an accident.

Towing bracket device*

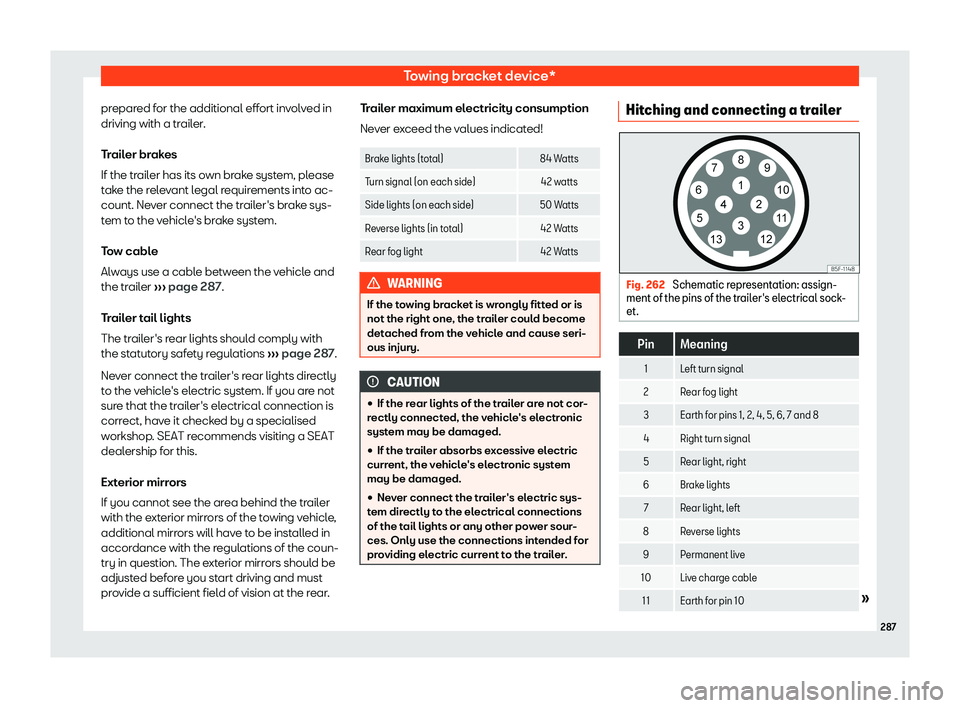

prepared for the additional effort involved in
driving with a tr ail
er.
T r
ailer brakes
If the trailer has its own brake system, please
take the relevant legal requirements into ac-
count. Never connect the trailer

Driving

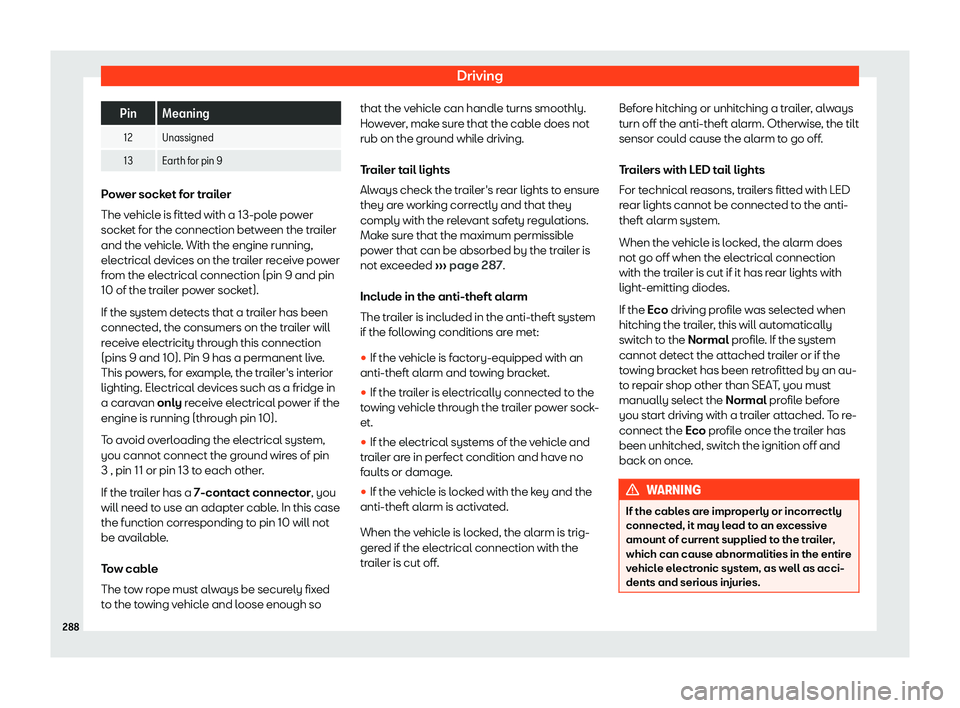

Pin Meaning
12 Unassigned
13 Earth for pin 9 Power socket for trailer
The vehicle is fitted with a 13-pol
e po
wer
socket for the connection between the trailer
and the vehicle. With the engine running,
electrical devices on the trailer receive power
from the electrical connection (pin 9 and pin
10 of the trailer power socket).
If the system detects that a trailer has been
connected, the consumers on the trailer will
receive electricity through this connection
(pins 9 and 10). Pin 9 has a permanent live.
This powers, for example, the trailer
