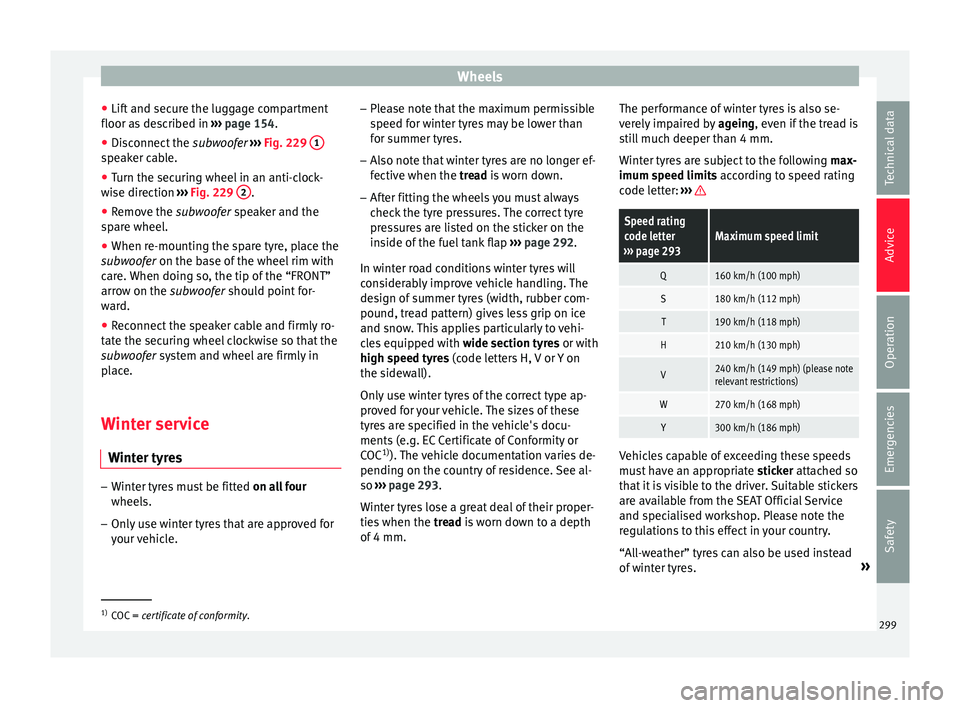

Wheels
● Lif t
and secure the luggage compartment
floor as described in ››› page 154.
● Disconnect the sub
woofer ››› Fig. 229 1 speaker cable.
●
Turn the securing wheel in an anti-clock-
w i

se direction ››› Fig. 229 2 .
● Remove the s ub

woofer speaker and the
spare wheel.
● When re-mounting the spare tyre, place the
sub
woofer on the base of the wheel rim with
care. When doing so, the tip of the “FRONT”
arrow on the subwoofer should point for-
ward.
● Reconnect the speaker cable and firmly ro-
tat
e the securing wheel clockwise so that the
subwoofer system and wheel are firmly in
place.
Winter service
Wint
er tyres –
Winter tyres must be fitted on al

l four
wheels.
– Only use winter tyres that are approved for
your

vehicle. –
Ple
ase note that the maximum permissible
speed for winter tyres may be lower than
for summer tyres.
– Also note that winter tyres are no longer ef-
fectiv

e when the tread is worn down.
– After fitting the wheels you must always
chec

k the tyre pressures. The correct tyre
pressures are listed on the sticker on the
inside of the fuel tank flap ››› page 292.
In winter road conditions winter tyres will
considerably improve vehicle handling. The
design of summer tyres (width, rubber com-
pound, tread pattern) gives less grip on ice
and snow. This applies particularly to vehi-
cles equipped with wide section tyres or with
high speed tyres (code letters H, V or Y on
the sidewall).
Only use winter tyres of the correct type ap-
proved for your vehicle. The sizes of these
tyres are specified in the vehicle's docu-
ments (e.g. EC Certificate of Conformity or
COC 1)
). The vehicle documentation varies de-
pending on the country of residence. See al-
so ››› page 293.
Winter tyres lose a great deal of their proper-
ties when the tread is worn down to a depth
of 4 mm. The performance of winter tyres is also se-
ver

ely impaired by ageing, even if the tread is
still much deeper than 4 mm.
Winter tyres are subject to the following max-
imum speed limits according to speed rating
code letter: ›››
Speed rating
code letter
››› page 293Maximum speed limit
Q160 km/h (100 mph)
S180 km/h (112 mph)
T190 km/h (118 mph)
H210 km/h (130 mph)
V240 km/h (149 mph) (please note
relevant restrictions)
W270 km/h (168 mph)
Y300 km/h (186 mph) Vehicles capable of exceeding these speeds
mu
s

t have an appropriate sticker attached so
that it is visible to the driver. Suitable stickers
are available from the SEAT Official Service
and specialised workshop. Please note the
regulations to this effect in your country.
“All-weather” tyres can also be used instead
of winter tyres. »1)
COC = certificate of conformity.
299
Technical data
Advice
Operation
Emergencies
Safety

Technical specifications

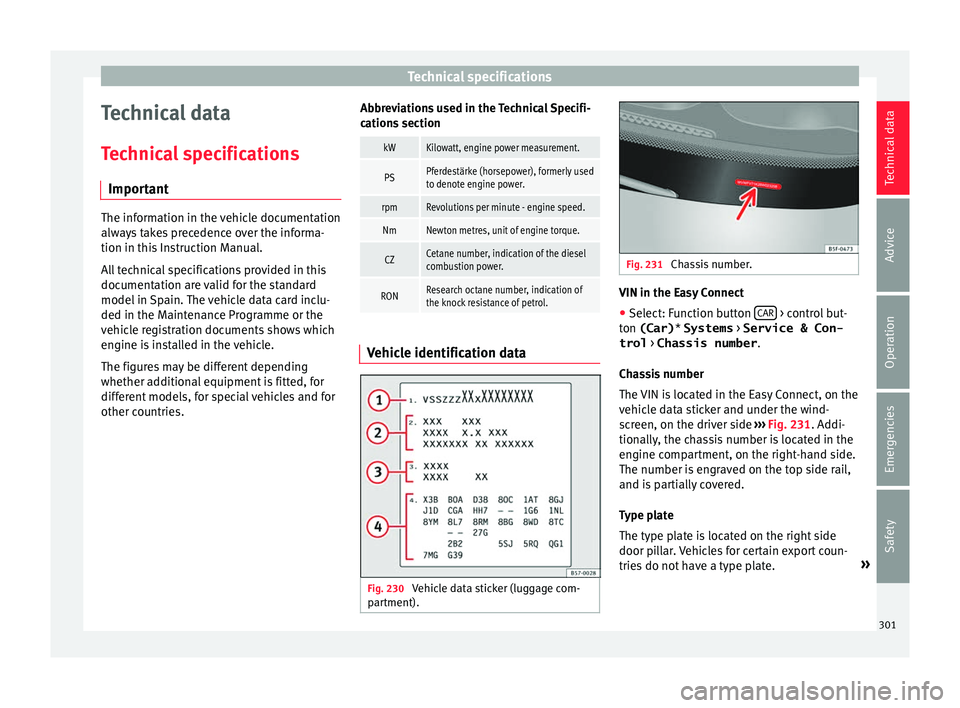

Technical data
T ec
hnical specifications
Important The information in the vehicle documentation
alw
a

ys takes precedence over the informa-
tion in this Instruction Manual.
All technical specifications provided in this
documentation are valid for the standard
model in Spain. The vehicle data card inclu-
ded in the Maintenance Programme or the
vehicle registration documents shows which
engine is installed in the vehicle.
The figures may be different depending
whether additional equipment is fitted, for
different models, for special vehicles and for
other countries. Abbreviations used in the Technical Specifi-
c
ation

s section
kWKilowatt, engine power measurement.
PSPferdestärke (horsepower), formerly used
to denote engine power.
rpmRevolutions per minute - engine speed.
NmNewton metres, unit of engine torque.
CZCetane number, indication of the diesel
combustion power.
RONResearch octane number, indication of
the knock resistance of petrol. Vehicle identification data
Fig. 230
Vehicle data sticker (luggage com-
p ar

tment). Fig. 231
Chassis number. VIN in the Easy Connect
● Select: Function button CAR > control but-
t on (Car)
* Systems > Service & Con-
trol > Chassis number .
Ch

assis number
The VIN is located in the Easy Connect, on the
vehicle data sticker and under the wind-
screen, on the driver side ››› Fig. 231. Addi-
tionally, the chassis number is located in the
engine compartment, on the right-hand side.
The number is engraved on the top side rail,
and is partially covered.
Type plate
The type plate is located on the right side
door pillar. Vehicles for certain export coun-
tries do not have a type plate. »
301
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Vehicle data sticker
The v
ehicle data sticker is under the carpet
trim in the luggage compartment, in the
spare wheel well. A sticker with the vehicle
data is attached to the inside cover of the
Maintenance Programme.
The following information is provided on the
vehicle data sticker: ››› Fig. 230
Vehicle identification number (chassis
number)
Vehicle type, model, capacity, engine
type, finish, engine power and gearbox
type
Engine code, gearbox code, external
paint code and internal equipment code
Optional extras and PR numbers
Identifying letters
The identifying letters of the engine can be
viewed on the instrument panel when the en-
gine is switched off and the ignition is on.
● Hold down the 0.0/SET
4
› ›
›
Fig. 115 but-
ton for more than 15 seconds. 1 2
3
4 Information on fuel consump-
tion
Fuel

consumption Approved consumption values are derived
fr
om me

asurements performed or supervised
by certified EU laboratories, according to the
legislation in force at the time (for more infor-
mation, see the Publications Office of the Eu-
ropean Union on the EUR-Lex website: © Eu-
ropean Union, http://eur-lex.europa.eu/) and
apply to the specified vehicle characteristics.
The values relating to fuel consumption and
CO 2 emissions can be found in the documen-
tation provided to the purchaser of the vehi-
cle at the time of purchase.
Fuel consumption and CO 2 emissions depend
on the equipment/features of each individual
vehicle, as well as on the driving style, road
conditions, traffic conditions, environmental
conditions, load or number of passengers. Note
In practice, and considering all the factors
mentioned her e, c

onsumption values can dif-
fer from those calculated in the current Euro-
pean regulations. Weights
Kerb weight refers to the basic model with a
f
uel

tank filled to 90% capacity and without
optional extras. The figure quoted includes
75 kg to allow for the weight of the driver.
Special versions, optional equipment fittings
or retro-fitting accessories will increase the
weight of the vehicle ››› .
WARNING
● Ple

ase note that the centre of gravity may
shift when transporting heavy objects; this
may affect vehicle handling and lead to an ac-
cident. Always adjust your speed and driving
style to suit road conditions and require-
ments.
● Never exceed the gross axle weight rating
or the gro
ss vehicle weight rating. If the per-
missible axle load or the permissible total
weight is exceeded, the driving characteris-
tics of the vehicle may change, which could
lead to accidents, injuries and damage to the
vehicle. 302

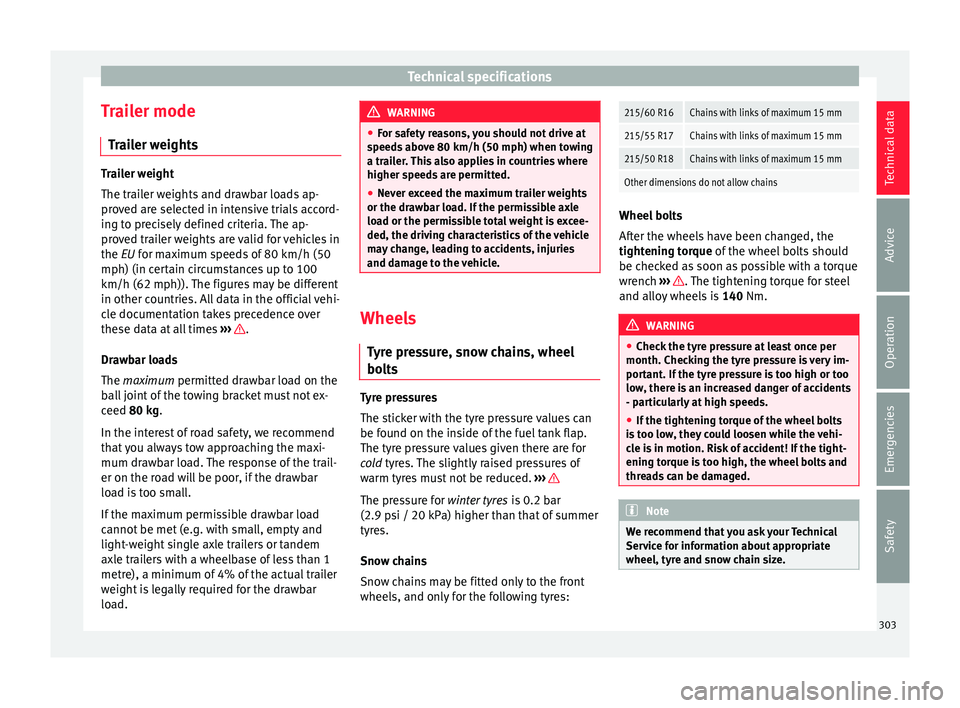

Technical specifications
Trailer mode Tr
ailer weights Trailer weight
The tr
ai

ler weights and drawbar loads ap-
proved are selected in intensive trials accord-
ing to precisely defined criteria. The ap-
proved trailer weights are valid for vehicles in
the EU for maximum speeds of 80 km/h (50
mph) (in certain circumstances up to 100
km/h (62 mph)). The figures may be different
in other countries. All data in the official vehi-
cle documentation takes precedence over
these data at all times ››› .
Dr a

wbar loads
The maximum permitted drawbar load on the
ball joint of the towing bracket must not ex-
ceed 80 kg.
In the interest of road safety, we recommend
that you always tow approaching the maxi-
mum drawbar load. The response of the trail-
er on the road will be poor, if the drawbar
load is too small.
If the maximum permissible drawbar load
cannot be met (e.g. with small, empty and
light-weight single axle trailers or tandem
axle trailers with a wheelbase of less than 1
metre), a minimum of 4% of the actual trailer
weight is legally required for the drawbar
load. WARNING
● For s

afety reasons, you should not drive at
speeds above 80 km/h (50 mph) when towing
a trailer. This also applies in countries where
higher speeds are permitted.
● Never exceed the maximum trailer weights
or the dra
wbar load. If the permissible axle
load or the permissible total weight is excee-
ded, the driving characteristics of the vehicle
may change, leading to accidents, injuries
and damage to the vehicle. Wheels
Ty

re pressure, snow chains, wheel
bolts Tyre pressures
The s
tic

ker with the tyre pressure values can
be found on the inside of the fuel tank flap.
The tyre pressure values given there are for
cold tyres. The slightly raised pressures of
warm tyres must not be reduced. ››› The pressure for win
t

er tyres is 0.2 bar
(2.9 psi / 20 kPa) higher than that of summer
tyres.
Snow chains
Snow chains may be fitted only to the front
wheels, and only for the following tyres:
215/60 R16Chains with links of maximum 15 mm
215/55 R17Chains with links of maximum 15 mm
215/50 R18Chains with links of maximum 15 mm
Other dimensions do not allow chains Wheel bolts
Af
t

er the wheels have been changed, the
tightening torque of the wheel bolts should
be checked as soon as possible with a torque
wrench ››› . The tightening torque for steel
and al lo

y wheels is 140 Nm. WARNING
● Chec k

the tyre pressure at least once per
month. Checking the tyre pressure is very im-
portant. If the tyre pressure is too high or too
low, there is an increased danger of accidents
- particularly at high speeds.
● If the tightening torque of the wheel bolts
is

too low, they could loosen while the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged. Note
We recommend that you ask your Technical
Ser v

ice for information about appropriate
wheel, tyre and snow chain size. 303
Technical data
Advice
Operation
Emergencies
Safety

Technical data

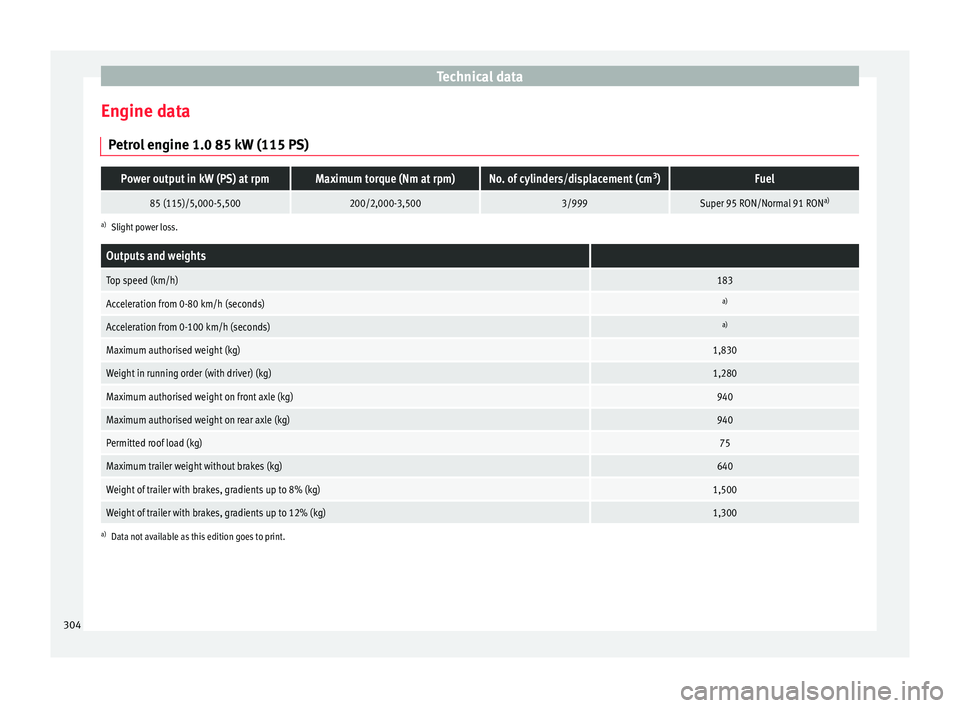

Engine data P etr
ol engine 1.0 85 kW (115 PS)
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
85 (115)/5,000-5,500200/2,000-3,5003/999Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weights
Top speed (km/h)183
Acceleration from 0-80 km/h (seconds)a)
Acceleration from 0-100 km/h (seconds)a)
Maximum authorised weight (kg)1,830
Weight in running order (with driver) (kg)1,280
Maximum authorised weight on front axle (kg)940
Maximum authorised weight on rear axle (kg)940
Permitted roof load (kg)75
Maximum trailer weight without brakes (kg)640
Weight of trailer with brakes, gradients up to 8% (kg)1,500
Weight of trailer with brakes, gradients up to 12% (kg)1,300
a)
Data not available as this edition goes to print. 304

Technical specifications

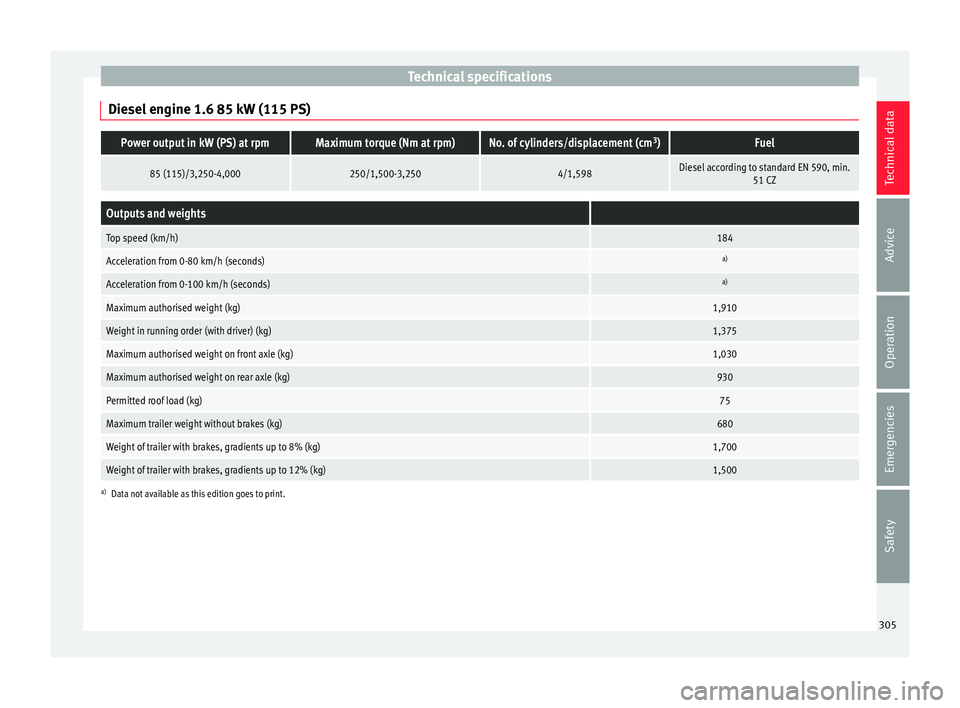

Diesel engine 1.6 85 kW (115 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
85 (115)/3,250-4,000250/1,500-3,2504/1,598Diesel according to standard EN 590, min.
51 CZ
Outputs and weights
Top speed (km/h)184
Acceleration from 0-80 km/h (seconds)a)
Acceleration from 0-100 km/h (seconds)a)
Maximum authorised weight (kg)1,910
Weight in running order (with driver) (kg)1,375
Maximum authorised weight on front axle (kg)1,030
Maximum authorised weight on rear axle (kg)930
Permitted roof load (kg)75
Maximum trailer weight without brakes (kg)680
Weight of trailer with brakes, gradients up to 8% (kg)1,700
Weight of trailer with brakes, gradients up to 12% (kg)1,500
a)Data not available as this edition goes to print. 305
Technical data
Advice
Operation
Emergencies
Safety

Technical data

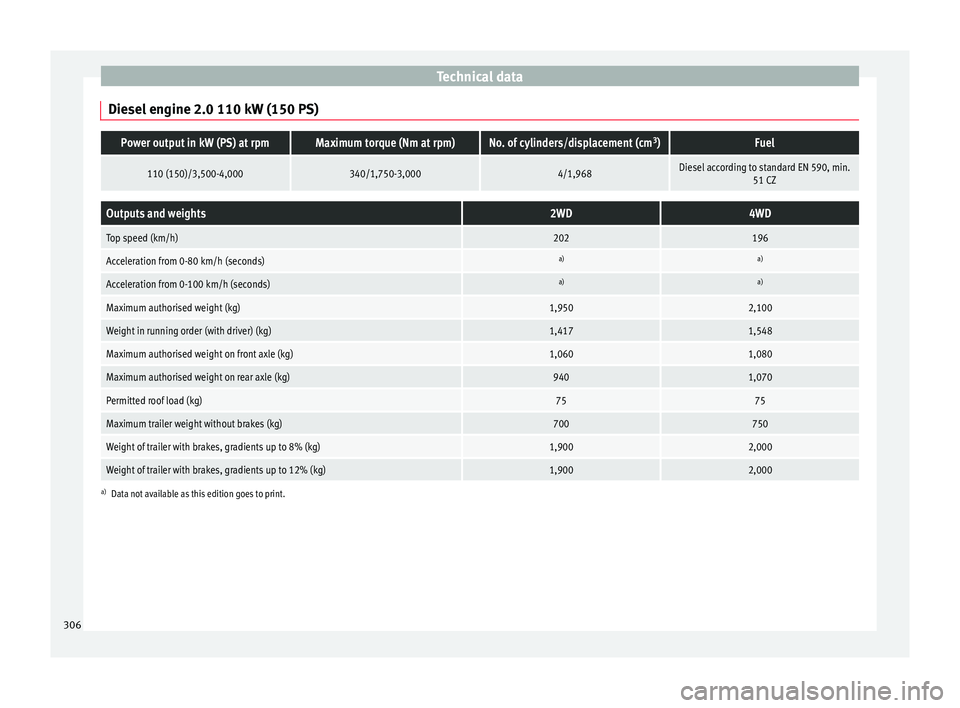

Diesel engine 2.0 110 kW (150 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/3,500-4,000340/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CZ
Outputs and weights2WD4WD
Top speed (km/h)202196
Acceleration from 0-80 km/h (seconds)a)a)
Acceleration from 0-100 km/h (seconds)a)a)
Maximum authorised weight (kg)1,9502,100
Weight in running order (with driver) (kg)1,4171,548
Maximum authorised weight on front axle (kg)1,0601,080
Maximum authorised weight on rear axle (kg)9401,070
Permitted roof load (kg)7575
Maximum trailer weight without brakes (kg)700750
Weight of trailer with brakes, gradients up to 8% (kg)1,9002,000
Weight of trailer with brakes, gradients up to 12% (kg)1,9002,000
a)Data not available as this edition goes to print. 306

Technical specifications

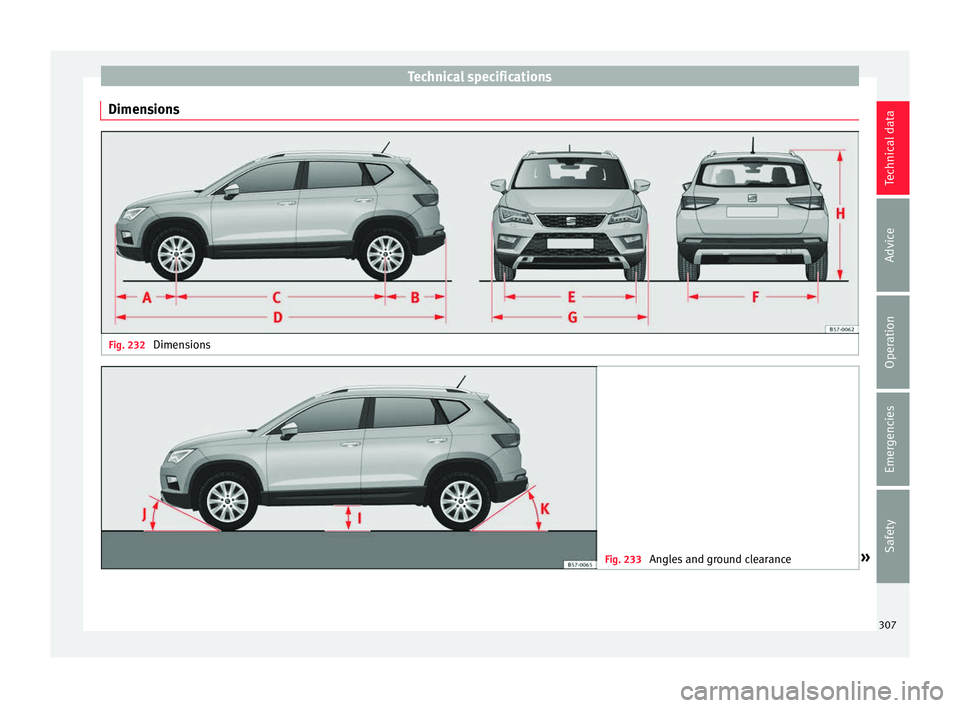

Dimensions Fig. 232
Dimensions Fig. 233
Angles and ground clearance » 307Technical data
Advice
Operation
Emergencies
Safety

Technical data›››

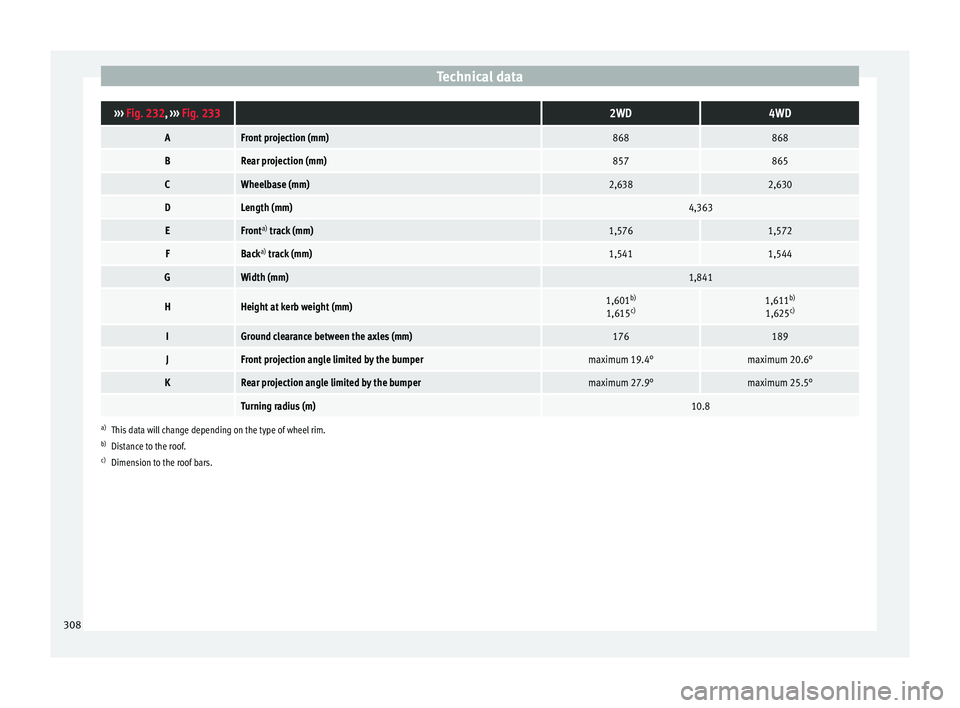

Fig. 232, ››› Fig. 233 2WD4WD
AFront projection (mm)868868
BRear projection (mm)857865
CWheelbase (mm)2,6382,630
DLength (mm)4,363
EFront a)
track (mm)1,5761,572
FBack a)
track (mm)1,5411,544
GWidth (mm)1,841
HHeight at kerb weight (mm)1,601 b)
1,615 c)1,611b)
1,625 c)
IGround clearance between the axles (mm)176189
JFront projection angle limited by the bumpermaximum 19.4°maximum 20.6°
KRear projection angle limited by the bumpermaximum 27.9°maximum 25.5°
Turning radius (m)10.8
a)
This data will change depending on the type of wheel rim.
b) Distance to the roof.
c) Dimension to the roof bars.
308

Index
replacing the battery of the
vehicle key . . . . . . . . . . . . . . . . . . . . . . . 120
Reset the trip recorder . . . . . . . . . . . . . . . . . . . . . 105
Retaining hooks . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Retrofitting towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 263
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . 102, 103
Reverse gear (automatic gearbox) . . . . . . . . . . . 177
Rims Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 54
Roll-back function Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Roof carrier system . . . . . . . . . . . . . . . . . . . . . . . . 154
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156 technical data . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Roof luggage rack attach the cross bars . . . . . . . . . . . . . . . . . . . . 155
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
RTA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Running-in new engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Running in new brake pads . . . . . . . . . . . . . . . . . . . . . . . . 172
new tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
S Safe driving safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Safelock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 see also Anti-theft security system . . . . . . . . . 112
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
deactivating the front passenger airbag . . . . . . 15
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Safety information
Knee airbag s . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Safety instructions head-protection airbags . . . . . . . . . . . . . . . . . . 76
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
using child seats . . . . . . . . . . . . . . . . . . . . . 17, 79
Safety interlock for ignition key . . . . . . . . . . . . . . 165
Safety notes Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . 72
Using seat belts . . . . . . . . . . . . . . . . . . . . . . . . . 69
Saving fuel inertia mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Saving tips (efficiency programme) . . . . . . . . . . . 34
Seat electric seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Seat belt position for pregnant women . . . . . . . . . . . . . . . . . . . . . . 13
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 71
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
protective function . . . . . . . . . . . . . . . . . . . . . . . 69
purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68, 73
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
unfastened . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . 14, 72
SEAT Drive Profile . . . . . . . . . . . . . . . . . . . . . . . . . 225
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Seats adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
rear seat backrest . . . . . . . . . . . . . . . . . . . . . . . 146
Selective catalytic reduction see Exhaust purification system (diesel) . . . . 279
Selective unlocking system . . . . . . . . . . . . . . . . . 114
Selector lever lock . . . . . . . . . . . . . . . . . . . . . . . . 178 Selector lever (automatic gearbox)
malf unction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
manual release . . . . . . . . . . . . . . . . . . . . . . . . . . 41
positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Service intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Service notification: read . . . . . . . . . . . . . . . . . . . . 36
Side airbags description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 75
Side Assist PLUS . . . . . . . . . . . . . . . . . . . . . . . . . . 216 see Side Assist PLUS . . . . . . . . . . . . . . . . . . . . 216
Signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Sitting position driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Sliding panoramic sunroof . . . . . . . . . . . . . . . . . . 12
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 56, 303 four-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . 274
Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Spanner symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Special characteristics Area View system . . . . . . . . . . . . . . . . . . . . . . . 249
high-pressure cleaning devices . . . . . . . . . . . . 258
tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . 86, 87
towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86, 88
Special Characteristics Trailer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . 193, 194 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
display message . . . . . . . . . . . . . . . . . . . . . . . . 194
operate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Speed warning device . . . . . . . . . . . . . . . . . . . . . . 35
Sport Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Stabilisation of the towing vehicle and trailer . . 262
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
318
