Checking and refilling levels

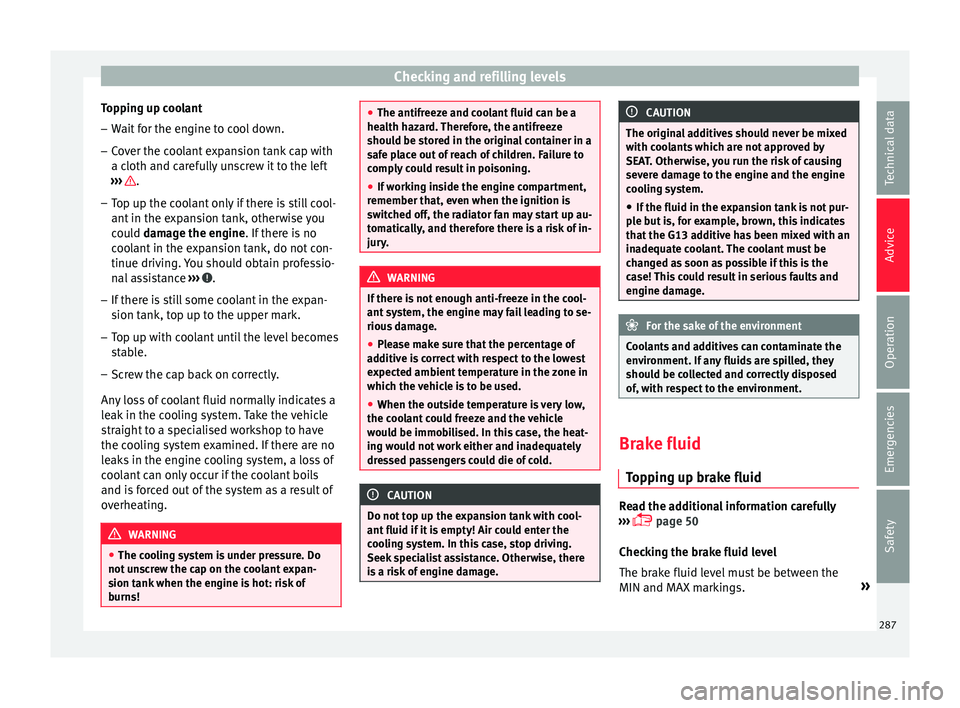

Topping up coolant
– Wait for the engine to cool down.
– Cover the coolant expansion tank cap with
a c loth and c
arefully unscrew it to the left
››› .
– Top up the coolant only if there is still cool-
ant in the e

xpansion tank, otherwise you
could damage the engine. If there is no
coolant in the expansion tank, do not con-
tinue driving. You should obtain professio- nal assistance ››› .
– If there is still some coolant in the expan-
sion t

ank, top up to the upper mark.
– Top up with coolant until the level becomes
st

able.
– Screw the cap back on correctly.
Any
loss of coolant fluid normally indicates a
leak in the cooling system. Take the vehicle
straight to a specialised workshop to have
the cooling system examined. If there are no
leaks in the engine cooling system, a loss of
coolant can only occur if the coolant boils
and is forced out of the system as a result of
overheating. WARNING
● The c oo

ling system is under pressure. Do
not unscrew the cap on the coolant expan-
sion tank when the engine is hot: risk of
burns! ●
The antifr eez

e and coolant fluid can be a
health hazard. Therefore, the antifreeze
should be stored in the original container in a
safe place out of reach of children. Failure to
comply could result in poisoning.
● If working inside the engine compartment,
remember th
at, even when the ignition is
switched off, the radiator fan may start up au-
tomatically, and therefore there is a risk of in-
jury. WARNING
If there is not enough anti-freeze in the cool-
ant sy

stem, the engine may fail leading to se-
rious damage.
● Please make sure that the percentage of
ad
ditive is correct with respect to the lowest
expected ambient temperature in the zone in
which the vehicle is to be used.
● When the outside temperature is very low,
the coo
lant could freeze and the vehicle
would be immobilised. In this case, the heat-
ing would not work either and inadequately
dressed passengers could die of cold. CAUTION
Do not top up the expansion tank with cool-
ant fluid if

it is empty! Air could enter the
cooling system. In this case, stop driving.
Seek specialist assistance. Otherwise, there
is a risk of engine damage. CAUTION
The original additives should never be mixed
w ith c

oolants which are not approved by
SEAT. Otherwise, you run the risk of causing
severe damage to the engine and the engine
cooling system.
● If the fluid in the expansion tank is not pur-
pl

e but is, for example, brown, this indicates
that the G13 additive has been mixed with an
inadequate coolant. The coolant must be
changed as soon as possible if this is the
case! This could result in serious faults and
engine damage. For the sake of the environment
Coolants and additives can contaminate the
en v

ironment. If any fluids are spilled, they
should be collected and correctly disposed
of, with respect to the environment. Brake fluid
Top

ping up brake fluid Read the additional information carefully
› ›

›  page 50
Checking the brake fluid level
The brake fluid level must be between the
MIN and MAX markings. »
287
Technical data
Advice
Operation
Emergencies
Safety

Advice

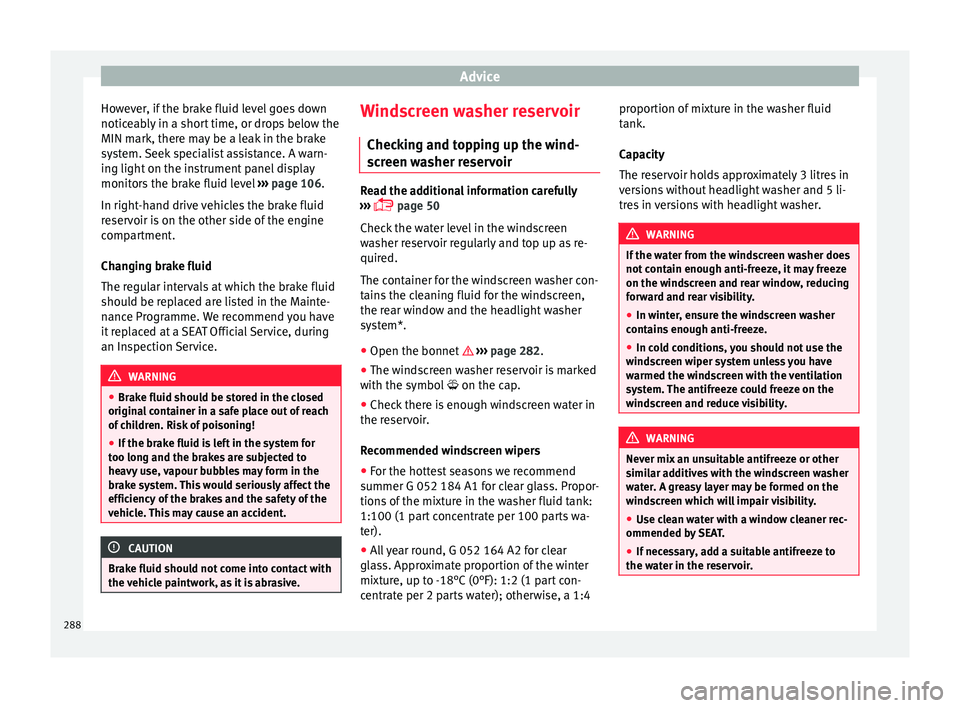

However, if the brake fluid level goes down
notic e
ably in a short time, or drops below the
MIN mark, there may be a leak in the brake
system. Seek specialist assistance. A warn-
ing light on the instrument panel display
monitors the brake fluid level ››› page 106.
In right-hand drive vehicles the brake fluid
reservoir is on the other side of the engine
compartment.
Changing brake fluid
The regular intervals at which the brake fluid
should be replaced are listed in the Mainte-
nance Programme. We recommend you have
it replaced at a SEAT Official Service, during
an Inspection Service. WARNING
● Br ak

e fluid should be stored in the closed
original container in a safe place out of reach
of children. Risk of poisoning!
● If the brake fluid is left in the system for
too lon
g and the brakes are subjected to
heavy use, vapour bubbles may form in the
brake system. This would seriously affect the
efficiency of the brakes and the safety of the
vehicle. This may cause an accident. CAUTION
Brake fluid should not come into contact with
the v

ehicle paintwork, as it is abrasive. Windscreen washer reservoir
Chec k

ing and topping up the wind-
screen washer reservoir Read the additional information carefully
› ›

›  page 50
Check the water level in the windscreen
washer reservoir regularly and top up as re-
quired.
The container for the windscreen washer con-
tains the cleaning fluid for the windscreen,
the rear window and the headlight washer
system*.
● Open the bonnet  ›
›
›
page 282.
● The windscreen washer reservoir is marked
with the symbo
l  on the cap.
● Check there is enough windscreen water in
the re
servoir.
Recommended windscreen wipers
● For the hottest seasons we recommend
summer G 052 184 A1 f
or clear glass. Propor-
tions of the mixture in the washer fluid tank:
1:100 (1 part concentrate per 100 parts wa-
ter).
● All year round, G 052 164 A2 for clear
gla
ss. Approximate proportion of the winter
mixture, up to -18°C (0°F): 1:2 (1 part con-
centrate per 2 parts water); otherwise, a 1:4 proportion of mixture in the washer fluid
tank.
C

apacity
The reservoir holds approximately 3 litres in
versions without headlight washer and 5 li-
tres in versions with headlight washer. WARNING
If the water from the windscreen washer does
not c

ontain enough anti-freeze, it may freeze
on the windscreen and rear window, reducing
forward and rear visibility.
● In winter, ensure the windscreen washer
cont
ains enough anti-freeze.
● In cold conditions, you should not use the
wind
screen wiper system unless you have
warmed the windscreen with the ventilation
system. The antifreeze could freeze on the
windscreen and reduce visibility. WARNING
Never mix an unsuitable antifreeze or other
s imi

lar additives with the windscreen washer
water. A greasy layer may be formed on the
windscreen which will impair visibility.
● Use clean water with a window cleaner rec-
ommended by
SEAT.
● If necessary, add a suitable antifreeze to
the wat
er in the reservoir.288

Checking and refilling levels
CAUTION
● Do not mi
x cleaning products recommen-
ded by SEAT with other products. This could
lead to flocculation and may block the wind-
screen washer jets.
● When topping up service fluids, make abso-
lutely
certain that you fill the fluids into the
correct reservoirs. Using the wrong fluids
could cause serious malfunctions and engine
damage!
● Not having windscreen wiper fluid reduces
vi

sibility through the windscreen, and leads
to loss of visibility in headlights in models
with headlight washer. Battery
Gener a

l information Read the additional information carefully
› ›

›  page 50.
The battery is located in the engine compart-
ment and is almost maintenance-free. It is
checked as part of the Inspection Service.
Nevertheless, check the terminals are clean
and have the correct tightening torque, espe-
cially in summer and winter.
Disconnecting the battery
The battery should only be disconnected in
exceptional cases. When the battery is dis- connected, some of the vehicle's functions
are “lo

st” (››› table on page 289). These
functions will require resetting after the bat-
tery is reconnected.
Deactivate the anti-theft alarm* before you
disconnect the battery Otherwise the alarm
will be triggered.
FunctionReprogramming
One-touch function of
the electric windows››› page 128, One-touch
opening and closing.
Remote control key
If the vehicle does not re-
spond to the key, they
should be synchronised
››› page 120.
Digital clock››› page 104.
ESC warning lampAfter driving for a few me-
tres, the warning lamp goes
out again. If the vehicle is not used for long periods
The
v

ehicle has a system for monitoring the
current consumption when the engine is left
unused for long periods of time ››› page 274.
Some functions, such as the interior lights, or
the remote door opening, may be temporarily
disabled to prevent the battery from running
flat. These functions will come back on as
soon as the ignition is switched on and the
engine started. Winter conditions
Durin

g the winter, the starting power may be
reduced, and if necessary, the battery should
be charged ››› in Important safety warn-
in g

s for handling a vehicle battery on
page 290
Important safety warnings for han-
dling a
vehicle battery All work on batteries requires specialist
kno
wl

edge. Please refer to a SEAT Official
Service or a workshop specialising in batter-
ies: risk of burns or exploding battery!
The battery must not be opened. Never try to
change the fluid level of the battery. Other-
wise explosive gas is released from the bat-
tery that could cause an explosion. 
Wear eye protection.

Battery acid is very corrosive and caustic. Wear
protective gloves and eye protection. In the event
of electrolyte splashes, rinse off with plenty of
water.

Fires, sparks, open flames and smoking are pro-
hibited.

The battery should only be charged in a well-ven-
tilated zone. Risk of explosion!

Keep children away from acid and batteries!»
289
Technical data
Advice
Operation
Emergencies
Safety

Index
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . 54 sub
sequent work . . . . . . . . . . . . . . . . . . . . . . . . 56
Changing bulbs number plate light . . . . . . . . . . . . . . . . . . . . . . . 98
Changing gear engaging gears (manual gearbox) . . . . . . . . . 176
Changing settings CAR menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Changing the blades . . . . . . . . . . . . . . . . . . . . . . . 85
Changing the wiper blades . . . . . . . . . . . . . . . . . . 60
Charging the battery . . . . . . . . . . . . . . . . . . . . . . 290
Checking levels engine compartment . . . . . . . . . . . . . . . . . . . . 282
Child-proof locking electric windows . . . . . . . . . . . . . . . . . . . . . . . . 126
Child seat Categorisation in groups . . . . . . . . . . . . . . . . . . 81
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 80 ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
safety instructions . . . . . . . . . . . . . . . . . . . . 17, 79
securing with seat belt . . . . . . . . . . . . . . . . . . . . 18
Top Tether system . . . . . . . . . . . . . . . . . . . . . 19, 22
City Emergency braking function . . . . . . . . . . . . . 211
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266 alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
carbon parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Easy Connect control panel . . . . . . . . . . . . . . . 270
Exhaust pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
leather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
natural leather . . . . . . . . . . . . . . . . . . . . . . . . . 271
plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Radio display . . . . . . . . . . . . . . . . . . . . . . . . . . 270
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
washing the vehicle . . . . . . . . . . . . . . . . . . . . . 266 wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
windo
ws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
sun blind (sunroof) . . . . . . . . . . . . . . . . . . . . . . 129
sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Clutch (warning lamp) . . . . . . . . . . . . . . . . . . . . . 183
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Connectivity Box . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Control and warning lamps diesel particulate filter . . . . . . . . . . . . . . . . . . . 186
emission control . . . . . . . . . . . . . . . . . . . . . . . . 187
remote control (auxiliary heater) . . . . . . . . . . . 162
Control lamps AdBlue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
blind spot detector (BSD) . . . . . . . . . . . . . . . . 220
Hill Descent Control . . . . . . . . . . . . . . . . . . . . . 190
parking assistant (RTA) . . . . . . . . . . . . . . . . . . 220
speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
tow hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 256
Controls and displays general instrument panel . . . . . . . . . . . . . . . . . 101
Controls on the steering wheel operating the audio system and telephone . . 109
Coolant checking level . . . . . . . . . . . . . . . . . . . . . . . . . . 286
cooling system checking coolant . . . . . . . . . . . . . . . . . . . . . . . 286 Cooling system
Coo lant temperature gauge . . . . . . . . . . . . . . . 105
topping up coolant . . . . . . . . . . . . . . . . . . . . . . 286
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Correct position . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Correct sitting position front passenger . . . . . . . . . . . . . . . . . . . . . . . . . 64
rear seat passengers . . . . . . . . . . . . . . . . . . . . . 65
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . 36, 193 operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Cruise control system . . . . . . . . . . . . . . . . . . . . . . 193 Warning and indication lamp . . . . . . . . . . . . . 193
D Dangers in not using the seat belt . . . . . . . . . . . . 70
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Data sticker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Deactivating the front passenger front airbag . . . 15
Deactivation of front airbag . . . . . . . . . . . . . . . . . . 77
Defective bulbs changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 93
Diesel diesel particulate filter . . . . . . . . . . . . . . . . . . . 186
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Diesel particulate filter malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Direction of rotation tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102, 103
Display messages speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
311

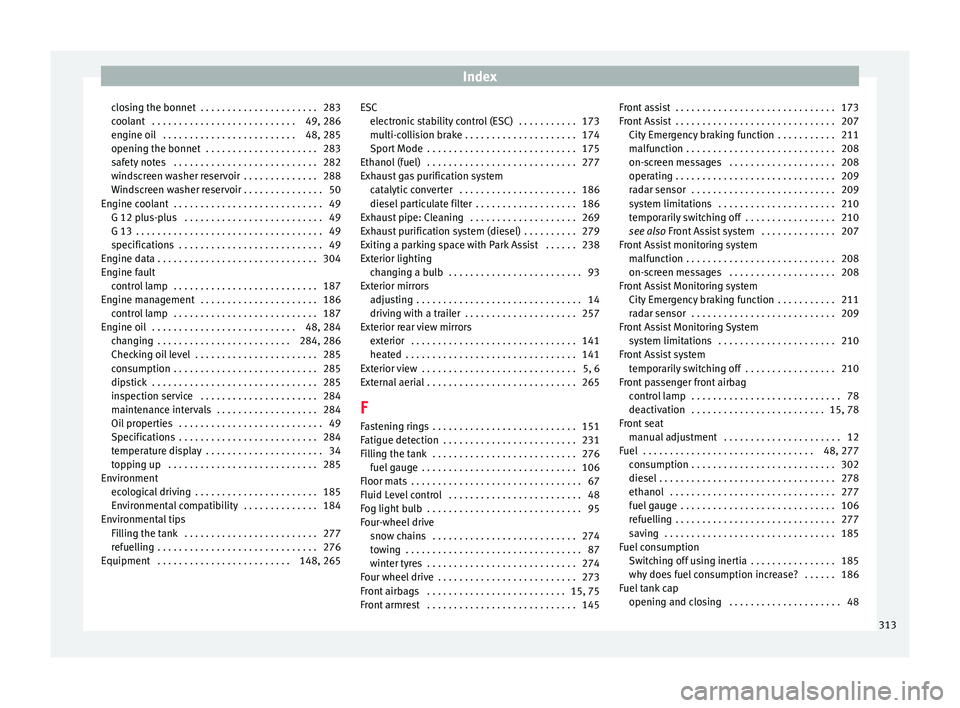

Index
closing the bonnet . . . . . . . . . . . . . . . . . . . . . . 283
c oo
lant . . . . . . . . . . . . . . . . . . . . . . . . . . . 49, 286
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . 48, 285
opening the bonnet . . . . . . . . . . . . . . . . . . . . . 283
safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
windscreen washer reservoir . . . . . . . . . . . . . . 288
Windscreen washer reservoir . . . . . . . . . . . . . . . 50
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . 49
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Engine fault control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Engine management . . . . . . . . . . . . . . . . . . . . . . 186 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 48, 284 changing . . . . . . . . . . . . . . . . . . . . . . . . . 284, 286
Checking oil level . . . . . . . . . . . . . . . . . . . . . . . 285
consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
inspection service . . . . . . . . . . . . . . . . . . . . . . 284
maintenance intervals . . . . . . . . . . . . . . . . . . . 284
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 284
temperature display . . . . . . . . . . . . . . . . . . . . . . 34
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Environment ecological driving . . . . . . . . . . . . . . . . . . . . . . . 185
Environmental compatibility . . . . . . . . . . . . . . 184
Environmental tips Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . 277
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 148, 265 ESC
electr onic stability control (ESC) . . . . . . . . . . . 173
multi-collision brake . . . . . . . . . . . . . . . . . . . . . 174
Sport Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Exhaust gas purification system catalytic converter . . . . . . . . . . . . . . . . . . . . . . 186
diesel particulate filter . . . . . . . . . . . . . . . . . . . 186
Exhaust pipe: Cleaning . . . . . . . . . . . . . . . . . . . . 269
Exhaust purification system (diesel) . . . . . . . . . . 279
Exiting a parking space with Park Assist . . . . . . 238
Exterior lighting changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 93
Exterior mirrors adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
driving with a trailer . . . . . . . . . . . . . . . . . . . . . 257
Exterior rear view mirrors exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 6
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
F Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Fatigue detection . . . . . . . . . . . . . . . . . . . . . . . . . 231
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 276 fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Fluid Level control . . . . . . . . . . . . . . . . . . . . . . . . . 48
Fog light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Four-wheel drive snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Four wheel drive . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 75
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 Front assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Front
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
City Emergency braking function . . . . . . . . . . . 211
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
on-screen messages . . . . . . . . . . . . . . . . . . . . 208
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
system limitations . . . . . . . . . . . . . . . . . . . . . . 210
temporarily switching off . . . . . . . . . . . . . . . . . 210
see also Front Assist system . . . . . . . . . . . . . . 207
Front Assist monitoring system malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
on-screen messages . . . . . . . . . . . . . . . . . . . . 208
Front Assist Monitoring system City Emergency braking function . . . . . . . . . . . 211
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Front Assist Monitoring System system limitations . . . . . . . . . . . . . . . . . . . . . . 210
Front Assist system temporarily switching off . . . . . . . . . . . . . . . . . 210
Front passenger front airbag control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
deactivation . . . . . . . . . . . . . . . . . . . . . . . . . 15, 78
Front seat manual adjustment . . . . . . . . . . . . . . . . . . . . . . 12
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48, 277 consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Fuel consumption Switching off using inertia . . . . . . . . . . . . . . . . 185
why does fuel consumption increase? . . . . . . 186
Fuel tank cap opening and closing . . . . . . . . . . . . . . . . . . . . . 48
313

Index
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
w int
er conditions . . . . . . . . . . . . . . . . . . . . . . . 289
Vehicle care natural leather . . . . . . . . . . . . . . . . . . . . . . . . . 271
windscreen wipers service position . . . . . . . . . 60
Vehicle interior monitoring and anti-tow system 123 activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Vehicle seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Vehicle tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Vertical load on the coupling . . . . . . . . . . . . . . . . 255
Vertical load on the trailer coupling loading the trailer . . . . . . . . . . . . . . . . . . . . . . . 261
W Warning and control lamps . . . . . . . . . . . . . 38, 106 adaptive cruise control . . . . . . . . . . . . . . . . . . . 199
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
applying the brake . . . . . . . . . . . . . . . . . 199, 208
ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
audible warning signal . . . . . . . . . . . . . . . . . . 106
Cruise control system (CCS) . . . . . . . . . . . . . . . 193
electromechanical steering . . . . . . . . . . . . . . . 273
engine management . . . . . . . . . . . . . . . . . . . . 187
engine pre-heating/fault system . . . . . . . . . . . 187
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
for seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
instrument panel . . . . . . . . . . . . . . . . . . . . . 38, 40
instrument panel display . . . . . . . . . . . . . . . . . . 39
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
tyre monitoring system . . . . . . . . . . . . . . . . . . 296 Warning lamps
AdBlue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
s
peed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Warning symbols see Warning and control lamps . . . . . . . . . . . . 106
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . 266 sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
special characteristics . . . . . . . . . . . . . . . . . . . 118
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Wheel changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Wheel balance . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303 anti-theft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
loosening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
tightening torque . . . . . . . . . . . . . . . . . . . . . . . 295
Wheel cover removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291, 303 central wheel trim . . . . . . . . . . . . . . . . . . . . . . . . 54
chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54, 56
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
new wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
temporary spare wheel . . . . . . . . . . . . . . . . . . 298
Wheel spanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Windows electric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Electric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
removing ice . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Window wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Window wiper blade . . . . . . . . . . . . . . . . . . . . . . . . 25 windscreen and rear window wiper blades
ch anging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Windscreen and rear window wiper blades . . . . . 85
Windscreen washer . . . . . . . . . . . . . . . . . . . 50, 139
Windscreen washer water Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Windscreen wiper . . . . . . . . . . . . . . . . . . . . . . . . . 139 Heated windscreen washer jets . . . . . . . . . . . . 139
window wiper lever . . . . . . . . . . . . . . . . . . . . . . 139
Windscreen wiper and rear window wiper sys- tems
service position . . . . . . . . . . . . . . . . . . . . . . . . . 60
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . . . . 25 functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
headlight washer system . . . . . . . . . . . . . . . . . 139
Lifting the wiper blade . . . . . . . . . . . . . . . . . . . . 60
rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
replacing the wiper blades . . . . . . . . . . . . . . . . 60
service position . . . . . . . . . . . . . . . . . . . . . . . . . 60
special characteristics . . . . . . . . . . . . . . . . . . . 139
Winter conditions battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
defrosting the windows . . . . . . . . . . . . . . . . . . 269
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Taking care of your vehicle . . . . . . . . . . . . . . . . 266
tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Winter driving sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Winter operation headlight washers . . . . . . . . . . . . . . . . . . . . . . 140
Heated windscreen washer jets . . . . . . . . . . . . 139
Salt on the roads . . . . . . . . . . . . . . . . . . . . . . . 140
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299 four-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . 274 321
