Seat Ateca 2018 Owner's Guide

The essentials

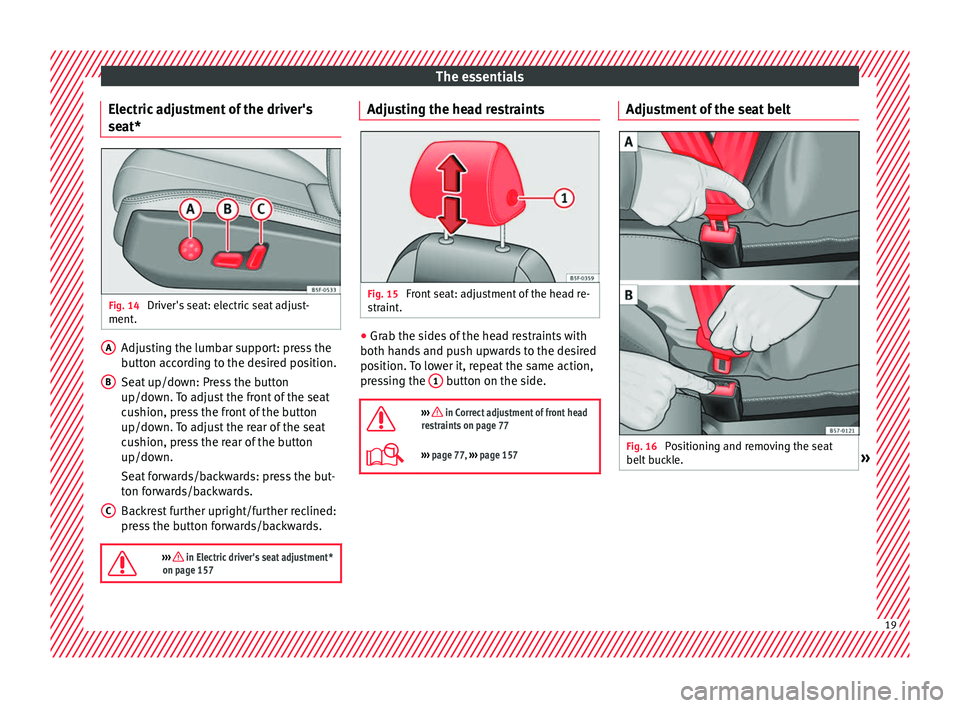

Electric adjustment of the driver's
se at* Fig. 14
Driver's seat: electric seat adjust-
ment . Adjusting the lumbar support: press the
b
utt
on ac
cording to the desired position.
Seat up/down: Press the button
up/down. To adjust the front of the seat
cushion, press the front of the button
up/down. To adjust the rear of the seat
cushion, press the rear of the button
up/down.
Seat forwards/backwards: press the but-
ton forwards/backwards.
Backrest further upright/further reclined:
press the button forwards/backwards.

››› in Electric driver's seat adjustment*
on page 157 A
B
C Adjusting the head restraints
Fig. 15
Front seat: adjustment of the head re-
s tr
aint

. ●
Grab the sides of the head restraints with
both h and
s

and push upwards to the desired
position. To lower it, repeat the same action,
pressing the 1 button on the side.

››› in Correct adjustment of front head
restraints on page 77
››› page 77, ››› page 157 Adjustment of the seat belt
Fig. 16
Positioning and removing the seat
belt b
uc
kle. » 19

The essentials
Fig. 17
Correct seat belt and head restraint
pos ition
s, viewed from front and the side. To adjust the seat belt around your should-
er
s, a
dju

st the height of the seats.
The shoulder part of the seat belt should be
well centred over it, never over the neck. The
seat belt lies flat and fits comfortably on the
upper part of the body.
The lap part of the seat belt lies across the
pelvis, never across the stomach. The seat
belt lies flat and fits comfortably on the pel-
vis.

››› page 80
››› page 82 Seat belt tensioners
During a collision, the seat belts on the front
seats
and s

ide rear seats 1)
tighten automati-
cally.
The tensioner can be triggered only once.

››› in Maintenance and disposal of belt
tensioners on page 84
››› page 83 Adjusting the exterior mirrors
Fig. 18
Detail of the driver door: control for
the e xt
erior mirr

or. Adjusting the exterior mirrors: Turn the knob
t
o the c
orr

esponding position: Turning the knob to the desired posi-
tion, adjus

t the mirrors on the driver
side (L, left) and the passenger side (R,
right) to the direction desired.
Depending on the equipment fitted on
the vehicle, the mirrors may be heated
according to the outside temperature.
Folding in mirrors.

››› in Adjusting the exterior rear-view
mirrors on page 156
››› page 155 Adjusting the steering wheel
Fig. 19
Lever in the lower left side of the
s t
eerin

g column. L/R


1)
Depending on version/market. 20

The essentials
● Adju s
tin
g the position of the steering
wheel: Pull the ››› Fig. 19 1 lever down,
mo v
e the s
teering wheel to the desired posi-
tion and lift the lever back up until it locks.

››› in Adjusting the steering wheel po-
sition on page 75 Airbags
Fr ont
airb

ags Fig. 20
Driver airbag located in steering
wheel . Fig. 21
Front passenger airbag located in
d ash p

anel. The front airbag for the driver is located in
the s
t
eerin

g wheel ››› Fig. 20 and the airbag
for the front passenger is located in the dash
panel ››› Fig. 21. Airbags are identified by the
word “AIRBAG”.
When the driver and front passenger airbags
are deployed, the covers remain attached to
the steering wheel and dashboard, respec-
tively ››› Fig. 20 ››› Fig. 21.
In conjunction with the seat belts, the front
airbag system gives the front occupants ad-
ditional protection for the head and chest in » 21

The essentials
the event of a severe frontal collision ››
› in
Fr ont
airb
ags on page 86.
Their special design allows the controlled es-
cape of the propellant gas when an occupant
puts pressure on the bag. Thus, the head and
chest are protected by the airbag. After the
collision, the airbag deflates sufficiently to
allow visibility.

››› page 86 Deactivating the front passenger front
airb
ag Fig. 22
Front passenger front airbag switch. Fig. 23
Dash panel: control lamp for deactiva-
ted fr ont
passenger airbag in centre console. To deactivate the front passenger front air-
b
ag:
● Sw it

ch the ignition off.
● Open the door on the front passenger side.
● Insert the key into the slot of the switch for
deactivatin
g the front passenger airbag
››› Fig. 22. About 3/4 of the key should enter;
this is as far as it will go.
● Turn the key gently to the  position. If
y

ou have difficulty, ensure that you have in-
serted the key as far as it will go.
● Close the front passenger door.
● Check, with the ignition switched on, that
the   contro
l lamp remains lit where it
says      in the centre of the
dash panel ››› Fig. 23. 
››› in Activation and deactivation of
front passenger airbag* on page 89
››› page 88 22

The essentials
Knee airbag* Fig. 24
On the driver side: location of the
knee airb ag Fig. 25
On the driver side: radius of action of
the knee airb ag.The knee airbag is located on the driver side
belo
w the d
a
sh panel ››› Fig. 24. Airbags are
identified by the word “AIRBAG”.
The area framed in red (deployment area)
››› Fig. 25 is covered by the knee airbag when it is deployed. Objects should never be
plac

ed or mounted in this area.

››› page 86 Side airbags*
Fig. 26
Side airbag in driver's seat. Fig. 27
Illustration of completely inflated side
airb ag
s

on the left side of the vehicle. The side airbags are located in the driver's
se
at
and fr

ont passenger seat backrests
››› Fig. 26. The locations are identified by the
text “AIRBAG” in the upper region of the
backrests.
In conjunction with the seat belts, the side
airbag system provides additional protection
for the upper body in the event of a severe
side collision ››› in Side airbags* on
p ag
e 86

.
In a side collision, the side airbags reduce
the risk of injury to passengers to the areas
of the body facing the impact. In addition to
their normal protection, the seat belts also
hold the passengers in the event of a side
collision; this is how these airbags provide
maximum protection.

››› page 86 23

The essentials
Head-protection airbags* Fig. 28
Location of head-protection airbags. The head-protection airbags are located on
both s
ide
s
in the interior above the doors
››› Fig. 28 and are identified with the text
“AIRBAG”.
In conjunction with the seat belts, the head-
protection airbag system gives the vehicle
occupants additional protection for the head
and upper body in the event of a severe side
collision ››› in Curtain airbags* on
p ag
e 87

.

››› in Curtain airbags* on page 87 Child seats
Impor t
ant

information regarding the
front passenger's airbag Fig. 29
Airbag stickers - version 1: on the
p a
s

senger-side sun blind  and on the rear
frame of the front passenger's door . Fig. 30
Airbag stickers - version 2: on the
p a
s

senger-side sun blind  and on the rear
frame of the front passenger's door . A sticker with important information about
the p
a
s

senger airbag is located on the pas-
senger's sun visor and/or on the passenger
side door frame.

››› in Important information regarding
the front passenger's airbag on page 91
››› page 90 24

The essentials
Securing child seats Fig. 31
On the rear seats: Possible installations
for the c hi
ld seat. Figure
›››
Fig. 31
A shows the basic child re-
s tr
aint

system mounting using lower retain-
ing rings and the upper retaining strap. Fig-
ure ››› Fig. 31 B shows the child restraint
sy s
t

em mounting using the vehicle seat belt.
The seat belt may be used to secure univer-
sal type child seats to the vehicle seats
marked with a U in the table below.
● In a front passenger seat without height ad-
justment
: It is necessary to place the front
passenger seat in its rearmost position 1)
.
● In a front passenger seat with height ad-
justment
: it is necessary to place the front passenger seat in its rearmost and highest
position
1)
.
T

o correctly use a child seat in the back, the
front backrest must be adjusted so that there
is no contact with the child seat in the back
in the case that it goes opposite to the direc-
tion of the car. In the case of front facing re-
straint systems, the front backrest must be
adjusted so that there is no contact with the
child's feet.
To adjust the passenger seat to accommo-
date a child's seat and get the seat belt in a perfect position, adjust the passenger back-
res
t as far forward as possible 1)
.
If a semi-universal type chair is to be instal-
led, in which the method of attachment to
the car is through the seat belt and support
bracket, it should never be installed in the
central rear seat as the ground clearance is
lower than in other places and the support
bracket will not allow the seat to remain suffi-
ciently stable.
The systems include the child restraint sys-
tem mounting with an upper retaining strap
(Top Tether) and lower anchoring points on
the seat. »1)
Compliance with current national legislation and
the manuf act

urer's instructions is required when us-
ing or installing child seats. 25

The essentialsWeight group
Seating position
Front passenger seat
a)Rear side seatRear central seatb)
airbag onairbag off
Group 0 to 10 kgXU
c)UU
Group 0+ to 13 kgXUc)UU
Group I 9 to 18 kgXUc)UU
Group II 15 to 25 kgXUF c)UFUF
Group III 22 to 36 kgXUFc)UFUF
X: It is not compatible to install chairs in this configuration.
U: Suitable for universal restraint systems for use in this weight group.
UF: Acceptable for front-facing universal-category child restraint systems approved for this mass group.
a)
Compliance with current national legislation and the manufacturer's instructions is required when using or installing child seats.
b) For semi-universal chairs where the securing system is the car safety belt and the support bracket, do not use them in the centre rear seat.
c) Seats without height adjustment should be placed in their rearmost position. Seats with height adjustment should be placed in their rearmost and highest position.
››› in Safety instructions on page 91Securing child seats with “ISOFIX” and Top Tether*
Child seats can be secured quickly, easily
and s
af
ely

on the rear outer seats with the
“ISOFIX” and Top Tether* system.
Two “ISOFIX” retaining rings are fitted on
each rear seat. In some vehicles, the rings
are secured to the seat frame and, in others,
they are secured to the rear floor. The “ISO- FIX” rings are located between the rear seat
back
rest and the seat cushioning ››› Fig. 32.
The Top Tether* rings are located on the rear
part of the backrests of the rear seats (be-
hind the seat backrest or in the boot)
››› Fig. 33. To understand the compatibility of the "ISO-
FIX" syst
ems in the vehicle, consult the table
below.
The body weight permitted and information
regarding sizes A to F is indicated on the la-
bel on child seats with “ universal” or “semi-
universal” certification. 26

The essentialsWeight groupSize classElectrical equip-
ment
Vehicle Isofix positions
Front passenger seatRear side seatRear central seatairbag onairbag off
Baby carrierFISO/L1XXXX
GISO/L2XXXX
Group 0 to 10 kgEISO/R1XXILX
Group 0+ to 13 kg
EISO/R1XXILX
DISO/R2XXILX
CISO/R3XXILX
Group I 9 to 18 kg
DISO/R2XXILX
CISO/R3XXILX
BISO/F2XXIUF/ILX
B1ISO/F2XXXIUF/ILX
AISO/F3XXIUF/ILX
Group II 15 to 25 kg------ ------
Group III 22 to 36 kg------ ------
IUF: Suitable for forward-facing ISOFIX universal child restraint systems approved for use in this mass group.
IL: Suitable for certain ISOFIX child restraint systems (CRSs) listed in the attached list. This relates to ISOFIX CRSs that can be for the specific vehicle, restricted or semi-universal
categories.
: ISOFIX position not suitable for ISOFIX child restraint systems for this weight group or size class. 
››› in Safety instructions on page 91
27

The essentials
Securing child seats with the “ISOFIX/i-Size” ISOFIX System Fig. 32
ISOFIX/iSize securing rings. You are obliged to follow the seat manufac-
tur
er's
instructions.
● Press the child seat onto the “ISOFIX” re-
taining rin
gs ››› Fig. 32 until the child seat is
heard to engage securely. If the child seat is
equipped with Top Tether* anchor points, se-
cure it to the correspondent ring ››› Fig. 33.
Observe the manufacturer's instructions.
● Pull on both sides of the child seat to en-
sure th
at it is properly anchored. Child seats with the “ISOFIX” and Top Tether*
attachment

system are available from Techni-
cal Services.

Vehicle i-Size positions
Front passenger seatRear side seatRear central seatairbag onairbag off
Child restraint system approved under ECE R129XXi-UX
i-U Valid position for front-facing and rear-facing child restraint systems approved under ECE R129.
X: Invalid position for child restraint systems approved under ECE R129. 28
