If and when249
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Turn signal lamps–Raise the bonnet.
– Rotate the lamp holder ⇒fig. 179 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped beam lights– Raise the bonnet
Fig. 179 Turn signal
lamps
AA
Fig. 180 Dipped head-
lightsFig. 181 Dipped head-
lights
AlteaXL_ingles_02_06 Seite 249 Dienstag, 1. August 2006 11:11 11

If and when
250
– Remove the loops ⇒page 249, fig. 180 in the direction of
the arrow and remove the cover.
– Remove the connector ⇒page 249, fig. 181 from the bulb.
– Disengage the retainer spring ⇒ page 249, fig. 181 pressing
inwards and to the right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Main beam lights
–Raise the bonnet.
– Remove the cover ⇒fig. 182 by pulling on this.
– Remove the connector ⇒fig. 183 from the bulb.
– Press the spring ⇒fig. 183 inwards and to the right.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
A1
A2
A3
Fig. 182 Main beam
headlights
Fig. 183 Main beam
headlights
AC
A1
A2
AlteaXL_ingles_02_06 Seite 250 Dienstag, 1. August 2006 11:11 11

If and when251
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Side lights–Raise the bonnet.
– Remove the cover ⇒fig. 184 by pulling on this. – Extract the lamp holder
⇒fig. 185 outwards.
– Replace the bulb by pulling this out and inserting the replace- ment.
– Installation is done in the reverse order.
Rear lights•
On the body
- -Indicator, side and brake light
•
On the tailgate
- Left hand side: side and foglight.
- Right hand side: side and reverse light.
Fig. 184 Side lightsFig. 185 Side lights
AD
A1
AlteaXL_ingles_02_06 Seite 251 Dienstag, 1. August 2006 11:11 11

If and when
252Indicator, side and brake lights on the bodywork– Open the cover of the luggage compartment lateral panel
⇒fig. 186. –Turn the lampholder anti-clockwise ⇒
fig. 187.
– Extract the failed bulb and change it for a new one.
– To refit follow the steps in reverse order, taking special care when fitting the lamp holder.
Fig. 186 Lights on
vehicle bodyFig. 187 Lights on
vehicle body
AlteaXL_ingles_02_06 Seite 252 Dienstag, 1. August 2006 11:11 11

If and when253
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Position light, fog light and reverse light on the tailgateSide lights
– Open the tailgate. –Pull the cover off.
– Take the lampholder out pressing on the securing pins and
extract it outwards.
– Extract the failed bulb and change it for a new one.
– To refit follow the steps in reverse order, taking special care when fitting the lamp holder.
Fog light and reversing light
–Open the tailgate.
–Pull the cover off.
– Turn the lampholder anti-clockwise.
– Extract the failed bulb and change it for a new one.
– Installation is done in the reverse order.
Fig. 188 Lights on the
tailgateFig. 189 Side lights
AlteaXL_ingles_02_06 Seite 253 Dienstag, 1. August 2006 11:11 11

If and when
254Side indicators– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed glass bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into
place.
– First place the indicator in the opening in the bodywork, fixing the tabs ⇒fig. 190 , arrow .
– Insert the lamp as shown by the arrow ⇒fig. 190 .
Luggage compartment lights– Extract the tulip shaped fitting by pressing on the inside edge of
this -arrow- using the flat side of a screwdriver ⇒fig. 191.
Fig. 190 Indicator
A1
A2
Fig. 191 Luggage
compartment lightFig. 192 Luggage
compartment light
AlteaXL_ingles_02_06 Seite 254 Dienstag, 1. August 2006 11:11 11

If and when255
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

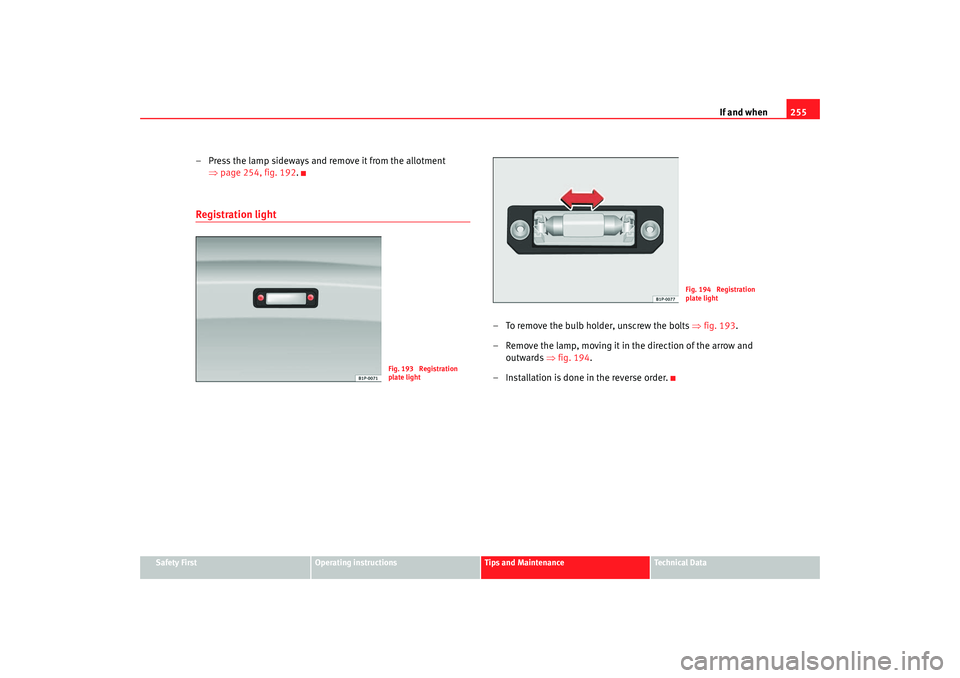

– Press the lamp sideways and remove it from the allotment
⇒page 254, fig. 192 .Registration light
– To remove the bulb holder, unscrew the bolts ⇒fig. 193.
– Remove the lamp, moving it in the direction of the arrow and outwards ⇒fig. 194.
– Installation is done in the reverse order.
Fig. 193 Registration
plate light
Fig. 194 Registration
plate light
AlteaXL_ingles_02_06 Seite 255 Dienstag, 1. August 2006 11:11 11

If and when
256Sunroof light– Carefully remove the lamp, using the flat side of the screwdriver,
as shown in the figure ⇒fig. 196 . – Remove the lamp, moving it in the direction of the arrow and
outwards ⇒fig. 196 .
Jump-startingJump leads
The jump lead must have a sufficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of anot her vehicle to start the engine.
Jump leads
Jump leads must comply with the standard DIN 72553 (see manufacturer’s
documentation). The wire cross section must be at least 25 mm
2 for petrol
engines and at least 35 mm
2 for diesel engines.
Note
•
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
•
The discharged battery must be properly connected to the vehicles elec-
trical system.
Fig. 195 Removing
sunroof lightFig. 196 Removing
sunroof light
AlteaXL_ingles_02_06 Seite 256 Dienstag, 1. August 2006 11:11 11

If and when257
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
How to jump startIn ⇒ fig. 197, the flat battery is and the charged battery .
Jump lead terminal connections
– Switch off the ignition on both vehicles ⇒.
1. Connect one end of the red jump lead to the positive ⇒fig. 197
terminal of the vehicle with the flat battery ⇒.
2. Connect the other end of the red jump lead to the positive terminal in the vehicle providing assistance.
3. Connect one end of the black jump lead to the negative terminal on the battery of the vehicle providing assistance. 4. Connect the other end of the black jump lead to a solid metal
component which is bolted on to the engine block, or onto the
engine block itself of the vehicle with the flat battery. Do not
connect it to a point near the battery ⇒.
5. Position the leads in such a way that they cannot come into contact with any moving parts in the engine compartment.
Starting
6. Start the engine of the vehicle with the boosting battery and let
it run at idling speed.
7. Start the engine of the car with the flat battery and wait one or two minutes until the engine is “running”.
Removing the jump leads
8. Before you remove the jump leads, switch off the headlights (if they are switched on).
9. Turn on the heater blower and rear window heater in the vehicle with the flat battery. This helps minimise voltage peaks that are
generated when the leads are disconnected.
10. When the engine is running, disconnect the leads in reverse order to the details given above.
Connect the battery clamps so they ha ve good metal-to-metal contact with
the battery terminals.
If the engine fails to start, switch off the starter after about 10 seconds and
try again after about half a minute.
Fig. 197 How to connect
the jump leads
AA
AB
A+
A+
A-
AX
AlteaXL_ingles_02_06 Seite 257 Dienstag, 1. August 2006 11:11 11

If and when
258
WARNING
•
Please note the safety warnings referring to working in the engine
compartment ⇒page 206, “Working in the engine compartment”.
•
The battery providing assistance must have the same voltage as the flat
battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.
•
Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.
•
Keep sparks, flames and lighted cigarettes away from batteries, danger
of explosion. Failure to comply could result in an explosion.
•
Observe the instructions provided by the manufacturer of the jump
leads.
•
Do not connect the negative cable from the other vehicle directly to the
negative terminal of the flat battery. The gas emitted from the battery could
be ignited by sparks. Danger of explosion.
•
Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.
•
The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead atta ched to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.
•
Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.
•
Do not bend over the batteries. This could result in chemical burns.Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
