133 Intelligent technology
Safety FirstControls and equipment Tips and Maintenance Technical Data
constantly compares them with the actual behaviour of the vehicle.
If the desired course is not being maintained (for instance, if the
car is starting to skid), then the ESP compensates automatically by
braking the appropriate wheel.
The forces acting on the braked wheel bring the vehicle back to a
stable condition. If the vehicle tends to oversteer, the system will
act on the front wheel on the outside of the turn.
N No
ot
te
e
•In order to ensure that ESP functions correctly, all four wheels must be
fitted with the same tyres. Any differences in the rolling radiusof the tyres
can cause the system to reduce engine power when this is not desired.
•Modifications to the vehicle (e.g. to the engine, the brake system, running
gear or any components affecting the wheels and tyres) could affectthe
efficiency of the ABS, EDL, ESP and TCS.
K
Anti-lock brake system (ABS)
The anti-lock brake system prevents the wheels locking during
braking
⇒chapter “Anti-lock brake system and traction control
ABS”.
K
Electronic differential lock (EDL)
The electronic differential lock helps prevent the loss of traction
caused if one of the driven wheels starts spinning.
EDL helps the vehicle to start moving, accelerate and climb a
gradient in slippery conditions where this may otherwise be
difficult or even impossible.
It uses the ABS sensors to monitor the speed of the driven wheels.
In case of an EDL fault the warning light for ABS lights up
⇒
chapter “Warning lamps”.
At speeds of up to approximately 80 km/h, it is able to balance out
differences in the speed of the driven wheels of approximately 100
rpm caused by a slippery road surface on one side of the vehicle. It
does this by braking the wheel which has lost traction and
distributing more driving force to the other driven wheel via the
differential.
To prevent the disc brake of the braked wheel from overheating,
the EDL cuts out automatically if subjected to excessive loads. The
vehicle will continue to function normally without EDL. For this
reason, the driver is not informed that the EDL has been switched
off.
The EDL will switch on again automatically when the brake has
cooled down.
• • IIt
t mmu
us
st
t bbe
e rre
em
me
em
mb
be
er
re
ed
d tth
ha
at
t TTC
CS
S cca
an
nn
no
ot
t dde
ef
fy
y tth
he
e lla
aw
ws
s oof
f pph
hy
ys
si
ic
cs
s.
. TTh
hi
is
s
s sh
ho
ou
ul
ld
d bbe
e kke
ep
pt
t iin
n mmi
in
nd
d,
, ppa
ar
rt
ti
ic
cu
ul
la
ar
rl
ly
y oon
n ssl
li
ip
pp
pe
er
ry
y aan
nd
d wwe
et
t rro
oa
ad
ds
s aan
nd
d wwh
he
en
n
t to
ow
wi
in
ng
g aa ttr
ra
ai
il
le
er
r.
.
• • AAl
lw
wa
ay
ys
s aad
da
ap
pt
t yyo
ou
ur
r ddr
ri
iv
vi
in
ng
g sst
ty
yl
le
e tto
o ssu
ui
it
t tth
he
e cco
on
nd
di
it
ti
io
on
n oof
f tth
he
e rro
oa
ad
ds
s aan
nd
d tth
he
e
t tr
ra
af
ff
fi
ic
c ssi
it
tu
ua
at
ti
io
on
n.
. DDo
o nno
ot
t lle
et
t tth
he
e eex
xt
tr
ra
a ssa
af
fe
et
ty
y aaf
ff
fo
or
rd
de
ed
d bby
y EES
SP
P tte
em
mp
pt
t yyo
ou
u iin
nt
to
o
t ta
ak
ki
in
ng
g aan
ny
y rri
is
sk
ks
s wwh
he
en
n ddr
ri
iv
vi
in
ng
g,
, tth
hi
is
s cca
an
n cca
au
us
se
e aac
cc
ci
id
de
en
nt
ts
s.
.
W
WA
AR
RN
NI
IN
NG
G

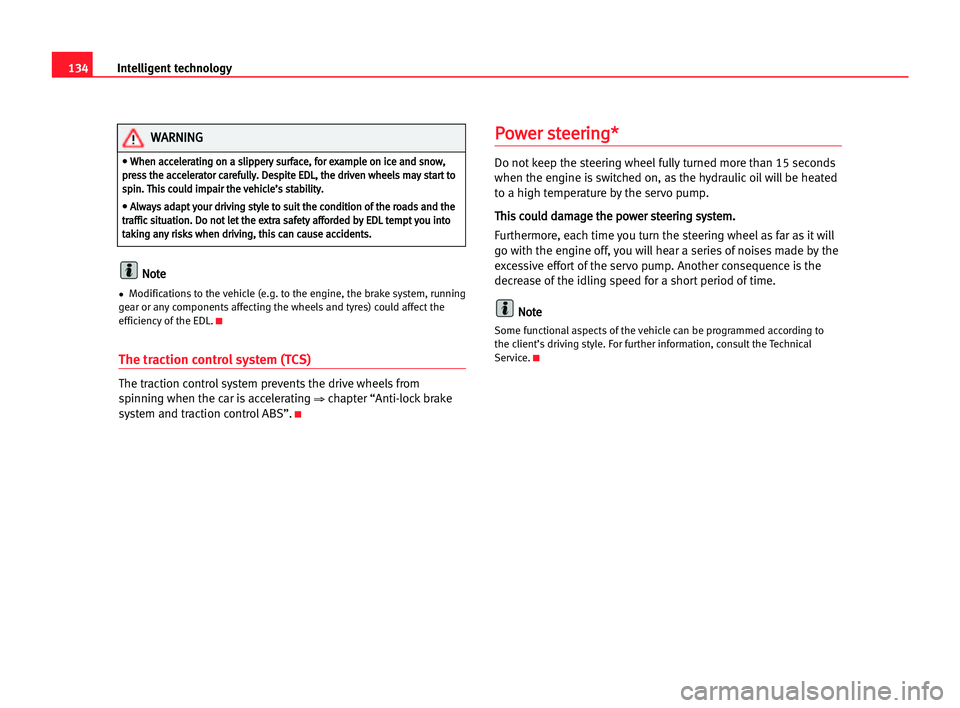

134Intelligent technology
N
No
ot
te
e
•Modifications to the vehicle (e.g. to the engine, the brake system, running
gear or any components affecting the wheels and tyres) could affect the
efficiency of the EDL.
K
The traction control system (TCS)
The traction control system prevents the drive wheels from
spinning when the car is accelerating
⇒chapter “Anti-lock brake
system and traction control ABS”.
K
P Po
ow
we
er
r sst
te
ee
er
ri
in
ng
g*
*
Do not keep the steering wheel fully turned more than 15 seconds
when the engine is switched on, as the hydraulic oil will be heated
to a high temperature by the servo pump.
T Th
hi
is
s cco
ou
ul
ld
d dda
am
ma
ag
ge
e tth
he
e ppo
ow
we
er
r sst
te
ee
er
ri
in
ng
g ssy
ys
st
te
em
m.
.
Furthermore, each time you turn the steering wheel as far as it will
go with the engine off, you will hear a series of noises made by the
excessive effort of the servo pump. Another consequence is the
decrease of the idling speed for a short period of time.
N No
ot
te
e
Some functional aspects of the vehicle can be programmed according to
the client’s driving style. For further information, consult the Technical
Service.
K
• • WWh
he
en
n aac
cc
ce
el
le
er
ra
at
ti
in
ng
g oon
n aa ssl
li
ip
pp
pe
er
ry
y ssu
ur
rf
fa
ac
ce
e,
, ffo
or
r eex
xa
am
mp
pl
le
e oon
n iic
ce
e aan
nd
d ssn
no
ow
w,
,
p pr
re
es
ss
s tth
he
e aac
cc
ce
el
le
er
ra
at
to
or
r cca
ar
re
ef
fu
ul
ll
ly
y.
. DDe
es
sp
pi
it
te
e EED
DL
L,
, tth
he
e ddr
ri
iv
ve
en
n wwh
he
ee
el
ls
s mma
ay
y sst
ta
ar
rt
t tto
o
s sp
pi
in
n.
. TTh
hi
is
s cco
ou
ul
ld
d iim
mp
pa
ai
ir
r tth
he
e vve
eh
hi
ic
cl
le
e’
’s
s sst
ta
ab
bi
il
li
it
ty
y.
.
• • AAl
lw
wa
ay
ys
s aad
da
ap
pt
t yyo
ou
ur
r ddr
ri
iv
vi
in
ng
g sst
ty
yl
le
e tto
o ssu
ui
it
t tth
he
e cco
on
nd
di
it
ti
io
on
n oof
f tth
he
e rro
oa
ad
ds
s aan
nd
d tth
he
e
t tr
ra
af
ff
fi
ic
c ssi
it
tu
ua
at
ti
io
on
n.
. DDo
o nno
ot
t lle
et
t tth
he
e eex
xt
tr
ra
a ssa
af
fe
et
ty
y aaf
ff
fo
or
rd
de
ed
d bby
y EED
DL
L tte
em
mp
pt
t yyo
ou
u iin
nt
to
o
t ta
ak
ki
in
ng
g aan
ny
y rri
is
sk
ks
s wwh
he
en
n ddr
ri
iv
vi
in
ng
g,
, tth
hi
is
s cca
an
n cca
au
us
se
e aac
cc
ci
id
de
en
nt
ts
s.
.
W
WA
AR
RN
NI
IN
NG
G

135 Your vehicle and the environment
Safety FirstControls and equipment Tips and Maintenance Technical Data
Y
Yo
ou
ur
r vve
eh
hi
ic
cl
le
e aan
nd
d tth
he
e een
nv
vi
ir
ro
on
nm
me
en
nt
t
T
Th
he
e ffi
ir
rs
st
t 11,
,5
50
00
0 kkm
m –– aan
nd
d aaf
ft
te
er
rw
wa
ar
rd
ds
s
Running-in
During the first few operating hours the engine internal friction is
higher than later on when all the moving parts have bedded down.
How well this running-in process is done depends to a
considerable extent on the way the vehicle is driven during the first
1,500 km.
K
Up to 1,000 kilometres
the following general rules apply:
•D Do
o nno
ot
t uus
se
e ffu
ul
ll
l tth
hr
ro
ot
tt
tl
le
e
•D Do
o nno
ot
t ddr
ri
iv
ve
e ffa
as
st
te
er
r tth
ha
an
n 33/
/4
4 oof
f tto
op
p ssp
pe
ee
ed
d
•A Av
vo
oi
id
d hhi
ig
gh
h een
ng
gi
in
ne
e ssp
pe
ee
ed
ds
s
•Trailer towing should if possible be avoided.
From 1,000 – 1,500 km
The speed can be gradually increased to the road or engine
maximum.
K
During and after the running-in period the following
applies:
•Do not overrev the engine when cold – either in neutral or in the
gears.
All speeds and revs given are only valid when engine isp pr
ro
op
pe
er
rl
ly
y
w wa
ar
rm
m
.
F Fo
or
r tth
he
e ssa
ak
ke
e oof
f tth
he
e een
nv
vi
ir
ro
on
nm
me
en
nt
t
Do not drive with the engine speed unnecessarily high – changing up
early helps to save fuel, reduces noise and protects the environment⇒"Environment friendly and economical driving" chapter.
•Do not let engine labour – change down when engine no longer
runs smoothly.
K
• • NNe
ew
w tty
yr
re
es
s mmu
us
st
t aal
ls
so
o bbe
e ““r
ru
un
n iin
n”
” bbe
ec
ca
au
us
se
e tth
he
ey
y ddo
o nno
ot
t hha
av
ve
e mma
ax
xi
im
mu
um
m
a ad
dh
he
es
si
io
on
n aat
t tth
he
e sst
ta
ar
rt
t.
. TTh
hi
is
s mmu
us
st
t bbe
e tta
ak
ke
en
n iin
nt
to
o aac
cc
co
ou
un
nt
t bby
y ddr
ri
iv
vi
in
ng
g cca
ar
re
ef
fu
ul
ll
ly
y
d du
ur
ri
in
ng
g tth
he
e ffi
ir
rs
st
t 110
00
0 kkm
m.
.
• • NNe
ew
w bbr
ra
ak
ke
e lli
in
ni
in
ng
gs
s mmu
us
st
t aal
ls
so
o bbe
e rru
un
n iin
n aan
nd
d ddo
o nno
ot
t hha
av
ve
e tth
he
e oop
pt
ti
im
mu
um
m
f fr
ri
ic
ct
ti
io
on
n ppr
ro
op
pe
er
rt
ti
ie
es
s ddu
ur
ri
in
ng
g tth
he
e ffi
ir
rs
st
t 220
00
0 kkm
m.
. TTh
he
e ssl
li
ig
gh
ht
tl
ly
y rre
ed
du
uc
ce
ed
d bbr
ra
ak
ki
in
ng
g
W
WA
AR
RN
NI
IN
NG
G
e ef
ff
fe
ec
ct
t cca
an
n bbe
e cco
om
mp
pe
en
ns
sa
at
te
ed
d ffo
or
r bby
y mmo
or
re
e ppr
re
es
ss
su
ur
re
e oon
n tth
he
e bbr
ra
ak
ke
e ppe
ed
da
al
l.
. TTh
hi
is
s
a al
ls
so
o aap
pp
pl
li
ie
es
s wwh
he
en
n nne
ew
w lli
in
ni
in
ng
gs
s hha
av
ve
e bbe
ee
en
n ffi
it
tt
te
ed
d.
.
K
W WA
AR
RN
NI
IN
NG
G ((c
co
on
nt
ti
in
nu
ue
ed
d)
)

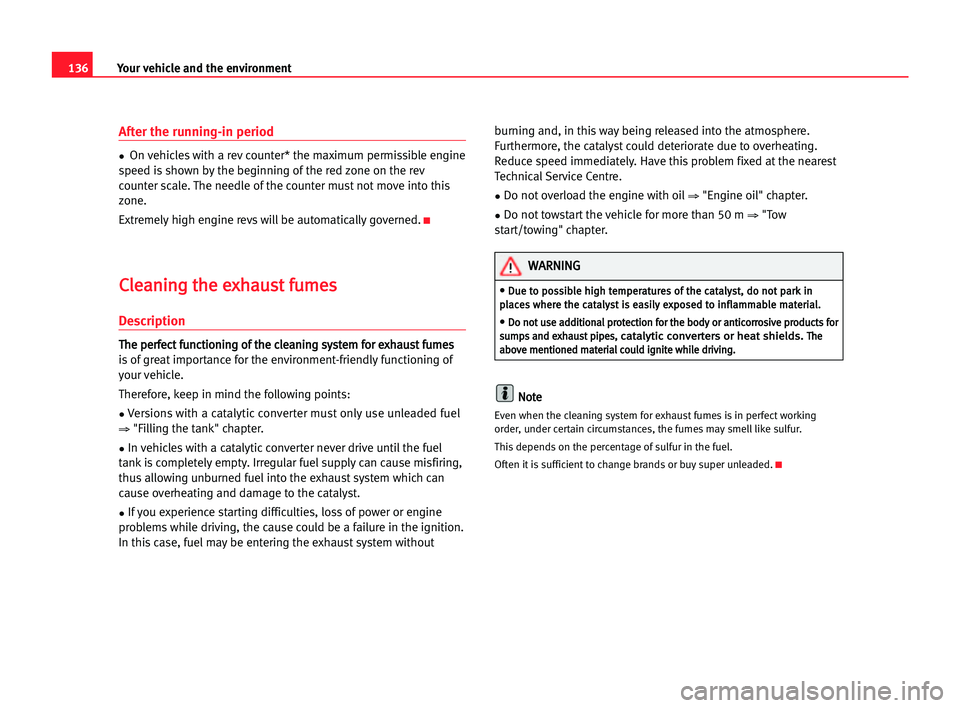

136Your vehicle and the environment
After the running-in period
•On vehicles with a rev counter* the maximum permissible engine
speed is shown by the beginning of the red zone on the rev
counter scale. The needle of the counter must not move into this
zone.
Extremely high engine revs will be automatically governed.
K
C Cl
le
ea
an
ni
in
ng
g tth
he
e eex
xh
ha
au
us
st
t ffu
um
me
es
s
Description
T
Th
he
e ppe
er
rf
fe
ec
ct
t ffu
un
nc
ct
ti
io
on
ni
in
ng
g oof
f tth
he
e ccl
le
ea
an
ni
in
ng
g ssy
ys
st
te
em
m ffo
or
r eex
xh
ha
au
us
st
t ffu
um
me
es
s
is of great importance for the environment-friendly functioning of
your vehicle.
Therefore, keep in mind the following points:
•Versions with a catalytic converter must only use unleaded fuel
⇒"Filling the tank" chapter.
•In vehicles with a catalytic converter never drive until the fuel
tank is completely empty. Irregular fuel supply can cause misfiring,
thus allowing unburned fuel into the exhaust system which can
cause overheating and damage to the catalyst.
•If you experience starting difficulties, loss of power or engine
problems while driving, the cause could be a failure in the ignition.
In this case, fuel may be entering the exhaust system withoutburning and, in this way being released into the atmosphere.
Furthermore, the catalyst could deteriorate due to overheating.
Reduce speed immediately. Have this problem fixed at the nearest
Technical Service Centre.
•Do not overload the engine with oil
⇒"Engine oil" chapter.
•Do not towstartthe vehicle for more than 50 m
⇒"Tow
start/towing" chapter.
N No
ot
te
e
Even when the cleaning system for exhaust fumes is in perfect working
order, under certain circumstances, the fumes may smell like sulfur.
This depends on the percentage of sulfur in the fuel.
Often it is sufficient to change brands or buy super unleaded.
K
•D Du
ue
e tto
o ppo
os
ss
si
ib
bl
le
e hhi
ig
gh
h tte
em
mp
pe
er
ra
at
tu
ur
re
es
s oof
f tth
he
e cca
at
ta
al
ly
ys
st
t,
, ddo
o nno
ot
t ppa
ar
rk
k iin
n
p pl
la
ac
ce
es
s wwh
he
er
re
e tth
he
e cca
at
ta
al
ly
ys
st
t iis
s eea
as
si
il
ly
y eex
xp
po
os
se
ed
d tto
o iin
nf
fl
la
am
mm
ma
ab
bl
le
e mma
at
te
er
ri
ia
al
l.
.
•D
Do
o nno
ot
t uus
se
e aad
dd
di
it
ti
io
on
na
al
l ppr
ro
ot
te
ec
ct
ti
io
on
n ffo
or
r tth
he
e bbo
od
dy
y oor
r aan
nt
ti
ic
co
or
rr
ro
os
si
iv
ve
e ppr
ro
od
du
uc
ct
ts
s ffo
or
r
s su
um
mp
ps
s aan
nd
d eex
xh
ha
au
us
st
t ppi
ip
pe
es
s,
, c
ca
at
ta
al
ly
yt
ti
ic
c cco
on
nv
ve
er
rt
te
er
rs
s oor
r hhe
ea
at
t ssh
hi
ie
el
ld
ds
s.
.T
Th
he
e
a ab
bo
ov
ve
e mme
en
nt
ti
io
on
ne
ed
d mma
at
te
er
ri
ia
al
l cco
ou
ul
ld
d iig
gn
ni
it
te
e wwh
hi
il
le
e ddr
ri
iv
vi
in
ng
g.
.
W
WA
AR
RN
NI
IN
NG
G

137 Your vehicle and the environment
Safety FirstControls and equipment Tips and Maintenance Technical Data
E
En
nv
vi
ir
ro
on
nm
me
en
nt
t-
-f
fr
ri
ie
en
nd
dl
ly
y aan
nd
d eec
co
on
no
om
mi
ic
ca
al
l
d dr
ri
iv
vi
in
ng
g
General notes
Three factors determine the fuel consumption, the burden on the
environment and the wear on the engine, brakes and tyres:
•The personal driving style.
•The individual conditions of the use of the car.
•Technical prerequisites.
The fuel consumption can be reduced by 10 to 15 percent by
adopting a thoughtful and economic driving style. This chapter will
help you lower pollution and save money by following 10
suggestions.
K
Suggestion 1. Thoughtful driving style
The highest fuel consumption takes place during acceleration. If
you drive in a thoughtful manner you will have to brake less and,
therefore, accelerate less. You can also let the vehicle roll, i.e.
when you can foresee that the following traffic light will be red.
K
Suggestion 2. Changing gears saves energy
Another way to save fuel is to change up as quickly as possible. If
you drive with high engine revs the car will use up more energy.
The fig. 100shows the relation between the consumption (l/100
km) and speed (km/h) in first, second, third, fourth and fifth gear.
The following rules may be helpful. Never drive more than a few
meters in first gear. When you reach 2,000 revolutions, you should
change up.
If you drive a vehicle with an automatic gearbox, press the
accelerator pedal gently. Do not press it to the kick-down position.
This way, a consumption oriented program is automatically
selected. It changes up as soon as possible and takes longer to
change down.
K
30 50 70km/h
90
l/100km
1.
2.
3.
4.
5.
B45-354PFig. 100

138Your vehicle and the environment
Suggestion 3. Avoid driving at maximum speed
Try not to drive at maximum speed. The increase of fuel
consumption, exhaust pollution and noise is disproportionate at
high speeds.
The illustration shows the relation between consumption (l/100
km) and speed (km/h)
⇒fig. 101.
If only about 3 quarters of top speed is utilized, the fuel
consumption will be reduced by about half.
Suggestion 4. Decrease idling
It is worth switching off1)the engine in traffic jams, at railroad
crossings and at traffic lights with a long red light. The savings in
fuel after 30-40 seconds with the engine switched off is higher
than the fuel used to switch the engine on again.
K
Suggestion 5. Periodic revisions
Your fuel savings are guaranteed even before going on a trip with
periodic revisions by your Technical Service Centre. Proper engine
maintenance is not only a safety and maintenance issue but also a
fuel consumption issue.
Poor fine tuning of the engine may increase fuel consumption by
up to 10%.
Check the oil level every time you fill up. The oil consumption
depends largely on the engine load. Depending on the driving
style, the oil consumption can be up to 1.0 l/1000 km.
Another suggestion: You can also lower oil consumption by using
synthetic oils.
K
km/h
max
l/100km
B45-355PFig. 101
1)Statutory regulations must be respected.
D Dr
ri
iv
vi
in
ng
g aat
t hhi
ig
gh
h ssp
pe
ee
ed
ds
s dde
ec
cr
re
ea
as
se
es
s rro
oa
ad
d ssa
af
fe
et
ty
y.
.
K
W WA
AR
RN
NI
IN
NG
G

139 Your vehicle and the environment
Safety FirstControls and equipment Tips and Maintenance Technical Data
Suggestion 6. Avoid short drives
The engine and the catalytic converter must reach its optimum
functioning temperature in order to effectively reduce consumption
and toxic gas emissions.
The fuel consumption of a cold engine of a normal vehicle right
after the start is about 30-40 liters per 100 km. After about one
kilometer the consumption decreases to 20 liters. After about
f fo
ou
ur
r
kilometers the engine has warmed up and the consumption is
normal. For this reason, it is important to avoid short drives and
heating the vehicle’s engine when the vehicle is not moving. Drive
on quickly!
The ambient temperature also counts. The illustration shows the
difference in consumption (l/100km) for the same distance (km) at
+20°C and –10°C. Your vehicle’s consumption is higher in the
summer than in the winter
⇒fig. 102.K
Suggestion 7. Check the tyre pressure
Make sure that the tyres have always adequate pressure. Even half
a bar less increases the level of fuel consumption by 5 percent. If
the pressure is not correct, the tyres wear out faster due to an
excessive deformation and overheating which, in turn, will
decrease the driving performance.
Always check the tyre pressure when the tyre is cold.
In addition, do not drive year round with winter tyres. They make
more noise and increase fuel consumption by 10 percent. Change
to summer tyres on time.
K
Suggestion 8. Avoid unnecessary weight
Apart from driving habits and periodic revisions of your vehicle,
there are other ways to reduce fuel consumption:
A Av
vo
oi
id
d uun
nn
ne
ec
ce
es
ss
sa
ar
ry
y wwe
ei
ig
gh
ht
t
Every kilogram increases fuel consumption. For this reason, it is
worth checking your boot to avoid unnecessary weight.
Frequently, the roof rack will stay on the roof even though it is no
longer needed. Due to greater air resistance, an unloaded roof
rack at a speed of 100-120 km/h increases the consumption by
approx. 12%.
K
5+20°C –10°C
15 25km
30
l/100km
B45-356PFig. 102

140Your vehicle and the environment
Suggestion 9. Save electricity
The alternator generates electricity while driving. The more
electricity is used, the higher the fuel consumption.
The heated rear window, extra lights, the heater fan and air
conditioning* use a large amount of energy. The heated rear
window creates a consumption of approx. one liter for every 10
hours.
For this reason, disconnect electrical consumers as soon as they
are no longer needed. The alternator generates electricity when the
engine is running.
K
Suggestion 10. Written check-up
If you wish to reduce fuel consumption keep a trip book. It is not
much work and is worth while since it allows you to detect possible
consumption variations (positive or negative) on time and
intervene, if necessary. If you detect an increase in consumption
you should examine the driving conditions since the last filling.
K
T Tr
ra
ai
il
le
er
r tto
ow
wi
in
ng
g
What do you need to bear in mind when towing a trailer?
The vehicle is designed mainly to carry people and luggage.
However it may also be used to tow a trailer, as long as you fit it
with the technically appropriate equipment and you do not
exceed the maximum authorised weights
⇒“Technical Data”
chapter.Towing a trailer not only demands more from the car, but from the
driver too.
You should therefore strictly adhere to the service and running-in
instructions on the following pages.
T Te
ec
ch
hn
ni
ic
ca
al
l rre
eq
qu
ui
ir
re
em
me
en
nt
ts
s
•If the trailer to be towed has a 7-pin plug, an adapter cable can
be used which may be obtained in any Technical Service Centre.
Installation of a towing bracket at a later stage should be carried
out according to the instructions of the towing bracket
manufacturer.
I If
f aa ttr
ra
ai
il
le
er
r iis
s ffi
it
tt
te
ed
d aat
t aa lla
at
te
er
r sst
ta
ag
ge
e,
, yyo
ou
u ssh
ho
ou
ul
ld
d uus
se
e tth
he
e bbo
od
dy
y rre
ei
in
nf
fo
or
rc
ce
em
me
en
nt
t
s se
et
t dde
es
si
ig
gn
ne
ed
d bby
y SSE
EA
AT
T.
.
O Ot
th
he
er
rw
wi
is
se
e yyo
ou
u mma
ay
y sse
er
ri
io
ou
us
sl
ly
y dda
am
ma
ag
ge
e tth
he
e bbo
od
dy
y wwo
or
rk
k.
.
D Da
an
ng
ge
er
r oof
f aac
cc
ci
id
de
en
nt
t!
!
T To
o iin
ns
st
ta
al
ll
l tth
he
e tto
ow
w jjo
oi
in
nt
t,
, wwe
e rre
ec
co
om
mm
me
en
nd
d tth
ha
at
t yyo
ou
u vvi
is
si
it
t aa TTe
ec
ch
hn
ni
ic
ca
al
l SSe
er
rv
vi
ic
ce
e
C Ce
en
nt
tr
re
e.
.
K
W WA
AR
RN
NI
IN
NG
G

142Your vehicle and the environment
•In vehicles without air conditioning, the cooling system should
be reinforced if a towing device is fitted at a later stage.
Failure to do so will submit the engine to greater stress (steep
slopes, high temperatures, heavy towing loads, etc.) and result in
overheating of the engine. For more information, contact a
Technical Service Centre.
•When using a trailer on mountain routes you must bear in mind
that the tow loads given in the “Technical data” chapter are only
applicable for slopes of 10% to 12%. If you do not use the full tow
load you may drive up steeper slopes.
•The given trailer weights are only applicable for altitudes up
to 1000 m above sea level. As the engine output drops due to
the decreasing air density, the climbing ability must also be
reduced by 10% for each further 1000 m.
•Where possible make full use of the maximum permissible
drawbar weight on the ball of the towing bracket but do not exceed
it
⇒chapter “Technical Data”.
•While observing the permissible trailer and drawbar weight,
distribute the load in the trailer so that heavy objects are as near
as possible to the axle. The objects must also be secured so that
they cannot slip about.
•The tyre pressures on the towing vehicle must be adjusted for full
load conditions, and also check the pressures on the trailer.
•Headlight settings should be checked, with the trailer attached,
before beginning the journey and adjusted as necessary.
On vehicles with headlight beam control it is only necessary to turn
the knurled disc on the dash board in the appropriate direction.D Dr
ri
iv
vi
in
ng
g iin
ns
st
tr
ru
uc
ct
ti
io
on
ns
s
To obtain the best possible handling of vehicle and trailer, the
following should be noted:
• Try to avoid driving with an unladen vehicle and a loaded trailer.
If this cannot be avoided, only drive slowly to allow for the
unfavourable weight distribution.
• As driving stability of vehicle and trailer decreaseswhen the
speed increases do not drive at the maximum permissible top
speed in unfavourable road, weather or wind conditions –
particularly when going downhill.
In any case the speed must be reduced as soon as the trailer
shows the slightest sign of snaking. On no account try to stop the
snaking by accelerating.
• • FFo
or
r ssa
af
fe
et
ty
y rre
ea
as
so
on
ns
s oon
ne
e ssh
ho
ou
ul
ld
d nno
ot
t ddr
ri
iv
ve
e ffa
as
st
te
er
r tth
ha
an
n 880
0 kkm
m/
/h
h
( (5
50
0 mmp
ph
h)
).
. TTh
hi
is
s aal
ls
so
o aap
pp
pl
li
ie
es
s iin
n cco
ou
un
nt
tr
ri
ie
es
s wwh
he
er
re
e hhi
ig
gh
he
er
r ssp
pe
ee
ed
ds
s aar
re
e
p pe
er
rm
mi
it
tt
te
ed
d.
.
• Always brake in good time. If the trailer has an overrun brake,
apply the brakes gently at first then firmly. This will avoid the
jerking caused by the trailer wheels locking.
Change down before going down a steep hill so that the engine
can act as a brake.
• When a long climb in a low gear with extremely high engine revs
must be negotiated at exceptionally high ambient temperatures
the coolant temperature gauge must be observed. When the gauge
needle moves to the right end of the scale, the road speed must be
reduced immediately.
• The cooling effect of the radiator fan cannot be increased by
changing down, because the speed of the fan is not dependent on


143 Your vehicle and the environment
Safety FirstControls and equipment Tips and Maintenance Technical Data
the engine speed. One should therefore not change down even
when towing a trailer as long as the engine can cope without the
vehicle speed dropping too much.
K
General notes
• • DDu
ur
ri
in
ng
g tth
he
e rru
un
nn
ni
in
ng
g iin
n ppe
er
ri
io
od
d yyo
ou
u ssh
ho
ou
ul
ld
d aav
vo
oi
id
d tto
ow
wi
in
ng
g aa ttr
ra
ai
il
le
er
r iif
f
p po
os
ss
si
ib
bl
le
e.
.
• • IIt
t iis
s aad
dv
vi
is
sa
ab
bl
le
e tto
o hha
av
ve
e tth
he
e vve
eh
hi
ic
cl
le
e sse
er
rv
vi
ic
ce
ed
d bbe
et
tw
we
ee
en
n tth
he
e
I In
ns
sp
pe
ec
ct
ti
io
on
n iin
nt
te
er
rv
va
al
ls
s iif
f iit
t iis
s uus
se
ed
d ffr
re
eq
qu
ue
en
nt
tl
ly
y ffo
or
r tto
ow
wi
in
ng
g aa ttr
ra
ai
il
le
er
r.
.
• The trailer and drawbar load figures on the data plate of the
towing bracket are for test certification only. The correct figuresfor
the vehicle, which may be lower than the above figures, are given
in the vehicle documents and in this manual.
• When using the towing device the car’s empty weight is reduced,
and as a result its effective load is decreased.
• Observe all statutory requirements regarding the use of a
trailer.
K
D Dr
ri
iv
vi
in
ng
g aab
br
ro
oa
ad
d
Observations
If the vehicle is to be taken abroad, the following must also be
borne in mind:
• If the vehicle has a petrol engine and catalytic converter, one
must ensure that unleaded petrol will be available during the
journey
⇒"Filling the tank" chapter. The automobile clubs offer
information about the unleaded filling station network.
•In some countries it is possible that a vehicle model is sold under
conditions where some spare parts are not available or that the
Technical Services may only carry out limited repairs.
SEAT importers and distributors will gladly provide information
about the technical preparation of your vehicle in addition to
necessary maintenance and repair possibilities.
K
Cover headlights
When the vehicle is used in a country which drives on the opposite
side of the road to the home country, the asymmetric dipped
headlights will dazzle oncoming traffic.
To prevent this, the areas of the headlight lenses shown in the
illustration must be covered with an opaque adhesive strip.
When using a sharp object (i.e. a razor blade) to cut the tape, do
not do this directly on the headlights as you may scratch them.
