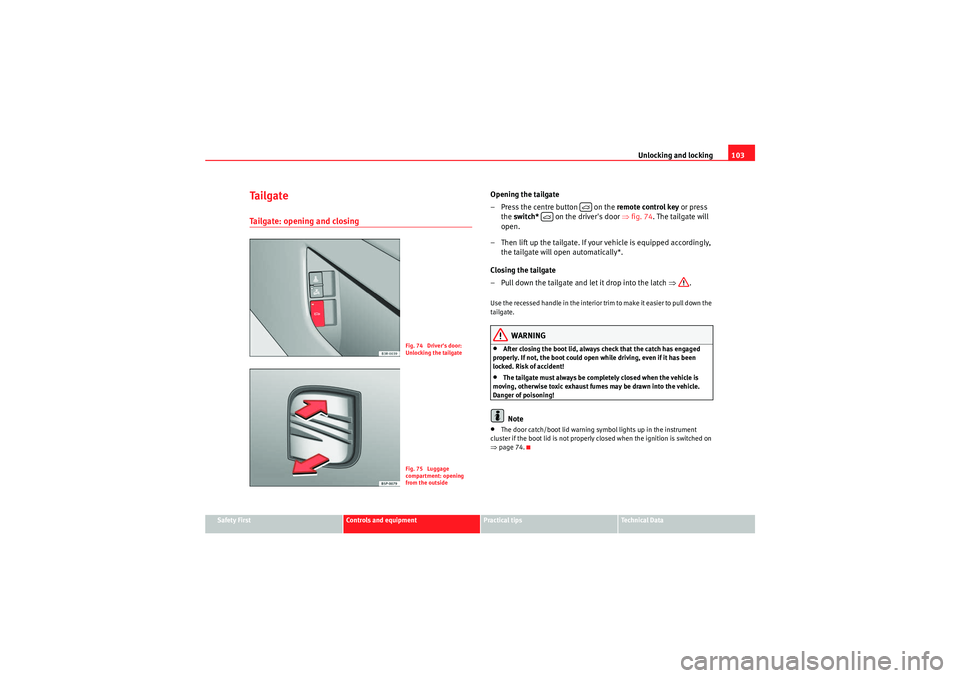

Ta i l g a t eTailgate: opening and closing
Opening the tailgate
– Press the centre button on the remote control key or press
the switch* on the driver's door ⇒fig. 74 . The tailgate will
open.
– Then lift up the tailgate. If your vehicle is equipped accordingly, the tailgate will open automatically*.
Closing the tailgate
– Pull down the tailgate and let it drop into the latch ⇒.Use the recessed handle in the interior trim to make it easier to pull down the
tailgate.
WARNING
•After closing the boot lid, always check that the catch has engaged
properly. If not, the boot could open while driving, even if it has been
locked. Risk of accident!•The tailgate must always be completely closed when the vehicle is
moving, otherwise toxic exhaust fumes may be drawn into the vehicle.
Danger of poisoning!Note
•The door catch/boot lid warning symbol lights up in the instrument
cluster if the boot lid is not properly closed when the ignition is switched on
⇒ page 74.
Fig. 74 Driver's door:
Unlocking the tailgateFig. 75 Luggage
compartment: opening
from the outside


Exeo_EN.book Seite 103 Freitag, 28. August 2009 10:14 10

Unlocking and locking105
Safety First
Controls and equipment
Practical tips
Technical Data
the current legal requirements. This certification forms the basis for official
approval for use in other countries.
Note
•The remote control is automatically disabled when the ignition is
switched on.•The function of the remote control may be impaired by interference from
other nearby radio signals (e.g. from a mobile phone or TV transmitter) if
these are in the same frequency range.Locking and unlocking the vehicleUnlocking the vehicle

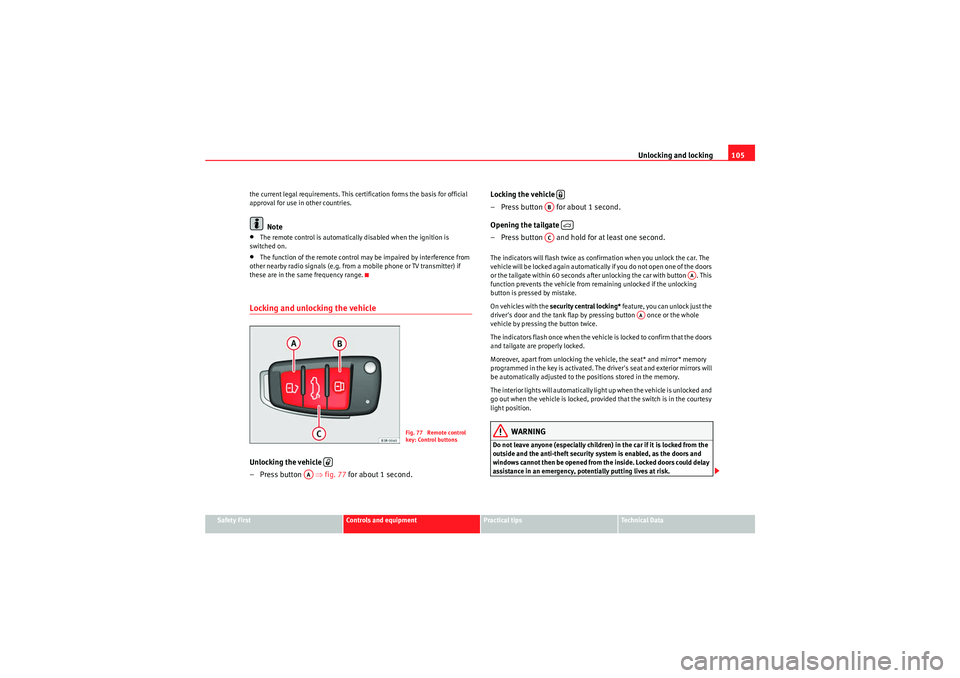

– Press button ⇒fig. 77 for about 1 second. Locking the vehicle
– Press button for about 1 second.
Opening the tailgate
– Press button and hold for at least one second.
The indicators will flash twice as confirmation when you unlock the car. The
vehicle will be locked again automatically if you do not open one of the doors
or the tailgate within 60 seconds after unlocking the car with button . This
function prevents the vehicle from remaining unlocked if the unlocking
button is pressed by mistake.
On vehicles with the
security central locking* feature, you can unlock just the
driver's door and the tank flap by pressing button once or the whole
vehicle by pressing the button twice.
The indicators flash once when the vehicle is locked to confirm that the doors
and tailgate are properly locked.
Moreover, apart from unlocking the vehicle, the seat* and mirror* memory
programmed in the key is activated. The driver's seat and exterior mirrors will
be automatically adjusted to the positions stored in the memory.
The interior lights will automatically light up when the vehicle is unlocked and
go out when the vehicle is locked, provided that the switch is in the courtesy
light position.
WARNING
Do not leave anyone (especially children) in the car if it is locked from the
outside and the anti-theft security system is enabled, as the doors and
windows cannot then be opened from the inside. Locked doors could delay
assistance in an emergency, potentially putting lives at risk.
Fig. 77 Remote control
key: Control buttons

AA

AB

AC
AA
AA
Exeo_EN.book Seite 105 Freitag, 28. August 2009 10:14 10

Unlocking and locking107
Safety First
Controls and equipment
Practical tips
Technical Data
•Doors•Tilt angle (tow-away protection)•Ignition•Radio (only with a factory-fitted SEAT radio)•Interior ⇒page 107
If any of the named areas are entered, the alarm will be triggered.
How is the alarm disabled?
The alarm can be switched off by unlocking the vehicle using the remote
control, or by switching on the ignition with the key, thus “disabling” the
alarm system. The alarm will also switch off when it comes to the end of its
cycle.
Indicators
The indicators flash briefly when the vehicle is locked to confirm that the
doors, the engine bonnet and the tailgate are properly closed and locked.
If the indicators do not flash, check the doors, the bonnet and the tailgate to
make sure they are properly closed. The indicators will also flash briefly if one
of the doors or the tailgate or engine bonnet are closed after the alarm system
has been enabled.
LED
When the vehicle is locked, the LED on the top of the driver's door trim will
flash rapidly for about 30 seconds and then continue flashing slowly. This is
to indicate that the anti-theft alarm system (including the interior monitor
and tow-away protection ) is operative. If the LED lights up continuously for
about 30 seconds when the vehicle is locked instead of flashing, this means
the alarm system is not working properly.Note
•To make sure that the alarm is fully operative when leaving the vehicle,
briefly check that all the doors and windows and the sun roof* are closed.
•The alarm is triggered immediately if one of the battery cables is discon-
nected while the alarm system is enabled.Interior monitoring*

The interior monitor triggers an alarm if it detects movement
inside the vehicle.You should disable the interior monitor if there is a possibility that
the alarm could be triggered, e.g. by a pet or by an object moving

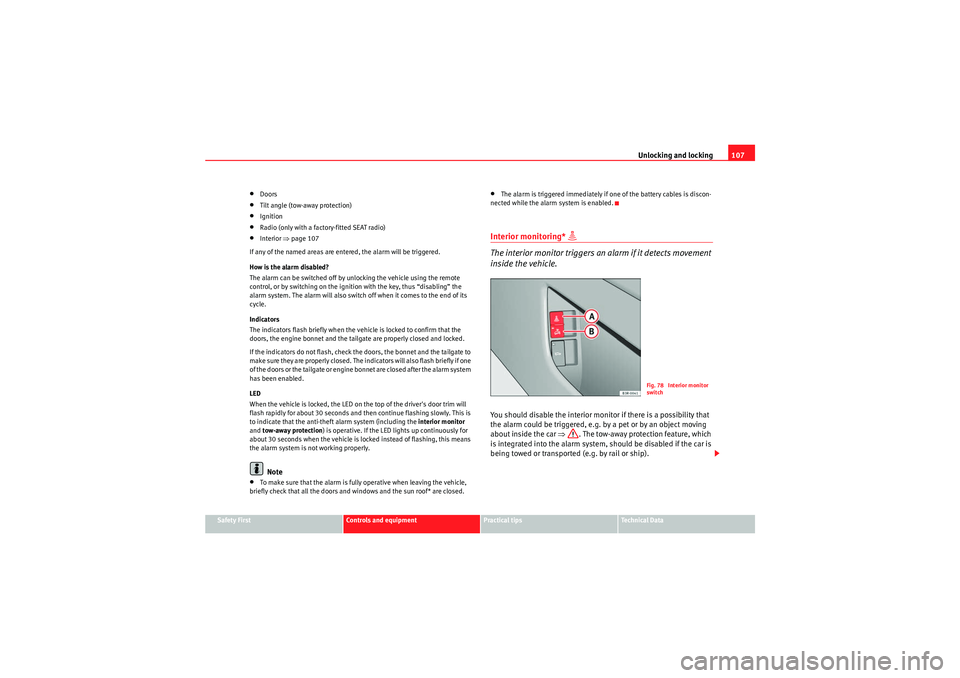

about inside the car ⇒ . The tow-away protection feature, which
is integrated into the alarm system, should be disabled if the car is
being towed or transported (e.g. by rail or ship).
Fig. 78 Interior monitor
switch
Exeo_EN.book Seite 107 Freitag, 28. August 2009 10:14 10

Unlocking and locking109
Safety First
Controls and equipment
Practical tips
Technical Data
use power-operated equipment (e.g. the electric windows), which could
lead to injuries. The window switches are only disabled when the driver's
door or the front passenger's door is opened.
•Never close the windows carelessly or in an uncontrolled manner as
this may cause bruising.•When locking the vehicle from the outside, make sure that nobody is
inside the vehicle, as the windows cannot be opened from the inside in an
emergency.

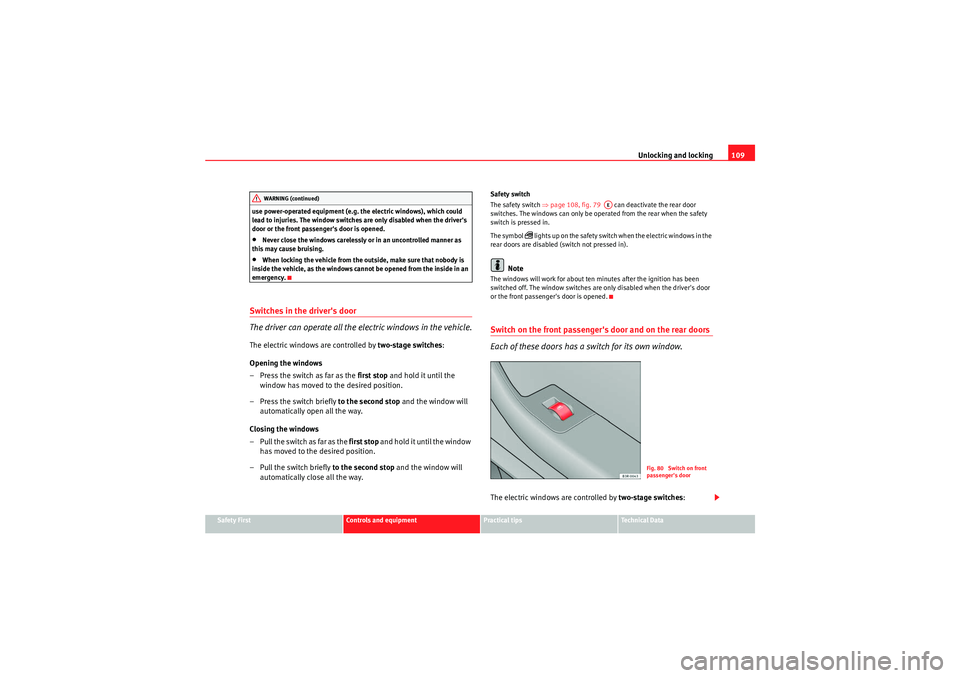

Switches in the driver's door
The driver can operate all the electric windows in the vehicle.The electric windows are controlled by two-stage switches:
Opening the windows
– Press the switch as far as the first stop and hold it until the
window has moved to the desired position.
– Press the switch briefly to the second stop and the window will
automatically open all the way.
Closing the windows
– Pull the switch as far as the first stop and hold it until the window
has moved to the desired position.
– Pull the switch briefly to the second stop and the window will
automatically close all the way.
Safety switch
The safety switch ⇒page 108, fig. 79 can deactivate the rear door
switches. The windows can only be operated from the rear when the safety
switch is pressed in.
The symbol
 lights up on the safety switch when the electric windows in the
rear doors are disabled (switch not pressed in).
Note
The windows will work for about ten minutes after the ignition has been
switched off. The window switches are only disabled when the driver's door
or the front passenger's door is opened.Switch on the front passenger's door and on the rear doors
Each of these doors has a switch for its own window.The electric windows are controlled by two-stage switches:
WARNING (continued)
AE
Fig. 80 Switch on front
passenger's door
Exeo_EN.book Seite 109 Freitag, 28. August 2009 10:14 10

Unlocking and locking111
Safety First
Controls and equipment
Practical tips
Technical Data
•Release the switch and then lift it again for one second. This will re-enable

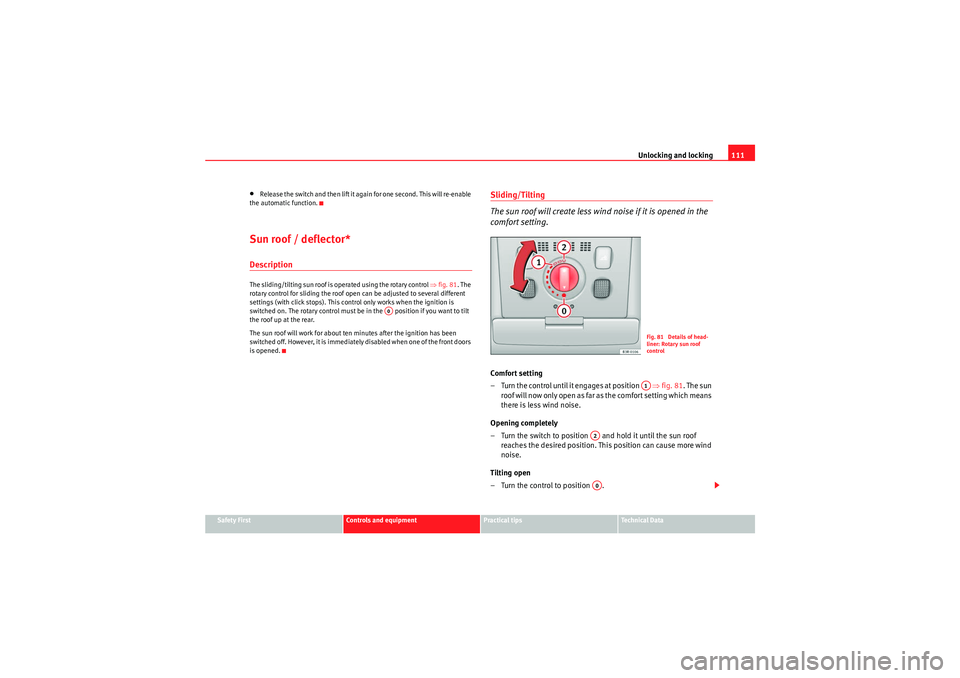

the automatic function.Sun roof / deflector*DescriptionThe sliding/tilting sun roof is operated using the rotary control ⇒fig. 81. The
rotary control for sliding the roof open can be adjusted to several different
settings (with click stops). This control only works when the ignition is
switched on. The rotary control must be in the position if you want to tilt
the roof up at the rear.
The sun roof will work for about ten minutes after the ignition has been
switched off. However, it is immediately disabled when one of the front doors
is opened.
Sliding/Tilting
The sun roof will create less wind noise if it is opened in the
comfort setting.Comfort setting
– Turn the control until it engages at position ⇒fig. 81 . The sun
r o o f wi ll n o w o n l y o p e n as fa r as t h e co m f o r t s e t t i n g w h i ch m e a n s
there is less wind noise.
Opening completely
– Turn the switch to position and hold it until the sun roof reaches the desired position. This position can cause more wind
noise.
Tilting open
– Turn the control to position .
A0
Fig. 81 Details of head-
liner: Rotary sun roof
controlA1
A2A0
Exeo_EN.book Seite 111 Freitag, 28. August 2009 10:14 10

Unlocking and locking113
Safety First
Controls and equipment
Practical tips
Technical Data

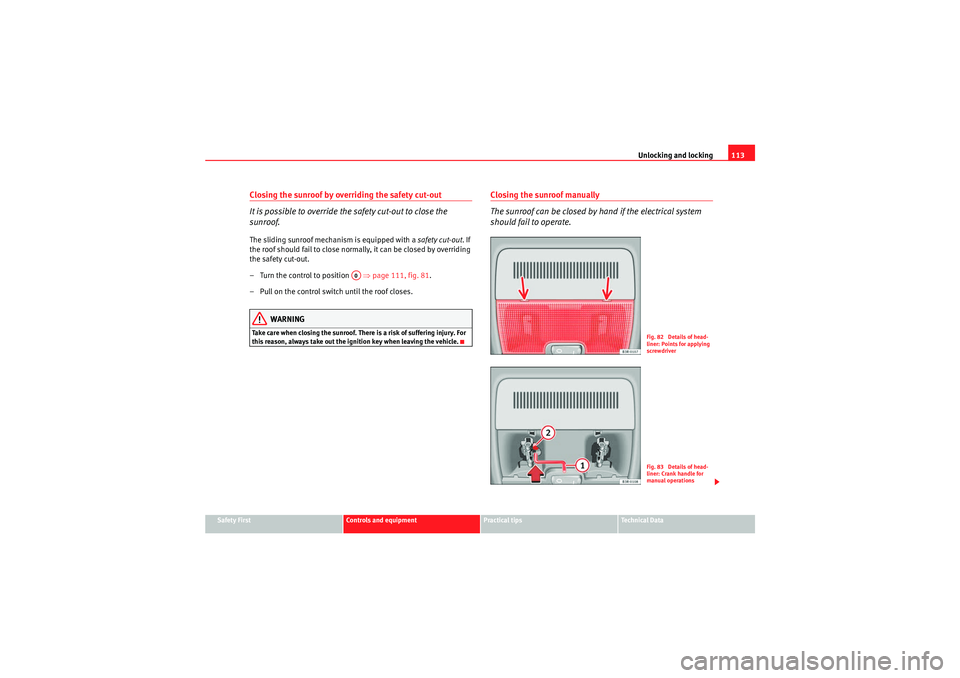

Closing the sunroof by overriding the safety cut-out
It is possible to override the safety cut-out to close the
sunroof.The sliding sunroof mechanism is equipped with a safety cut-out. If
the roof should fail to close normally, it can be closed by overriding
the safety cut-out.
– Turn the control to position ⇒page 111, fig. 81 .
– Pull on the control switch until the roof closes.
WARNING
Take care when closing the sunroof. There is a risk of suffering injury. For
this reason, always take out the ignition key when leaving the vehicle.
Closing the sunroof manually
The sunroof can be closed by hand if the electrical system
should fail to operate.
A0
Fig. 82 Details of head-
liner: Points for applying
screwdriverFig. 83 Details of head-
liner: Crank handle for
manual operations
Exeo_EN.book Seite 113 Freitag, 28. August 2009 10:14 10

Lights and visibility115
Safety First
Controls and equipment
Practical tips
Technical Data

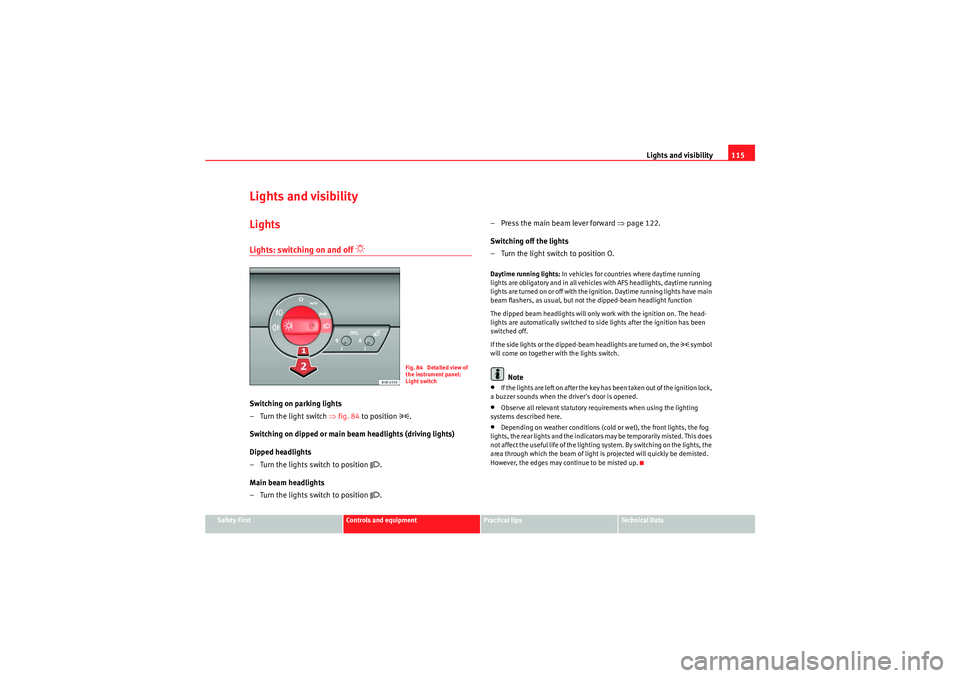

Lights and visibilityLightsLights: switching on and off

Switching on parking lights
– Turn the light switch ⇒fig. 84 to position
.
Switching on dipped or main beam headlights (driving lights)
Dipped headlights
– Turn the lights switch to position
.
Main beam headlights
– Turn the lights switch to position . – Press the main beam lever forward
⇒page 122.
Switching off the lights
– Turn the light switch to position O.
Daytime running lights: In vehicles for countries where daytime running
lights are obligatory and in all vehicles with AFS headlights, daytime running
lights are turned on or off with the ignition. Daytime running lights have main
beam flashers, as usual, but not the dipped-beam headlight function
The dipped beam headlights will only work with the ignition on. The head-
lights are automatically switched to side lights after the ignition has been
switched off.
If the side lights or the dipped-beam headlights are turned on, the
 symbol
will come on together with the lights switch.
Note
•If the lights are left on after the key has been taken out of the ignition lock,
a buzzer sounds when the driver's door is opened.•Observe all relevant statutory requirements when using the lighting
systems described here.•Depending on weather conditions (cold or wet), the front lights, the fog
lights, the rear lights and the indicators may be temporarily misted. This does
not affect the useful life of the lighting system. By switching on the lights, the
area through which the beam of light is projected will quickly be demisted.
However, the edges may continue to be misted up.
Fig. 84 Detailed view of
the instrument panel:
Light switch
Exeo_EN.book Seite 115 Freitag, 28. August 2009 10:14 10

Lights and visibility117
Safety First
Controls and equipment
Practical tips
Technical Data
headlight or anti-dazzle function from
working correctly or even from working
at all.
•The warning symbol
 will appear on the instrument panel if a malfunc-
tion occurs ⇒ page 80.
•Observe all relevant legal requirements when using the signalling and
lighting systems described here.Front fog lights

The light switch can also be used to turn on the front fog

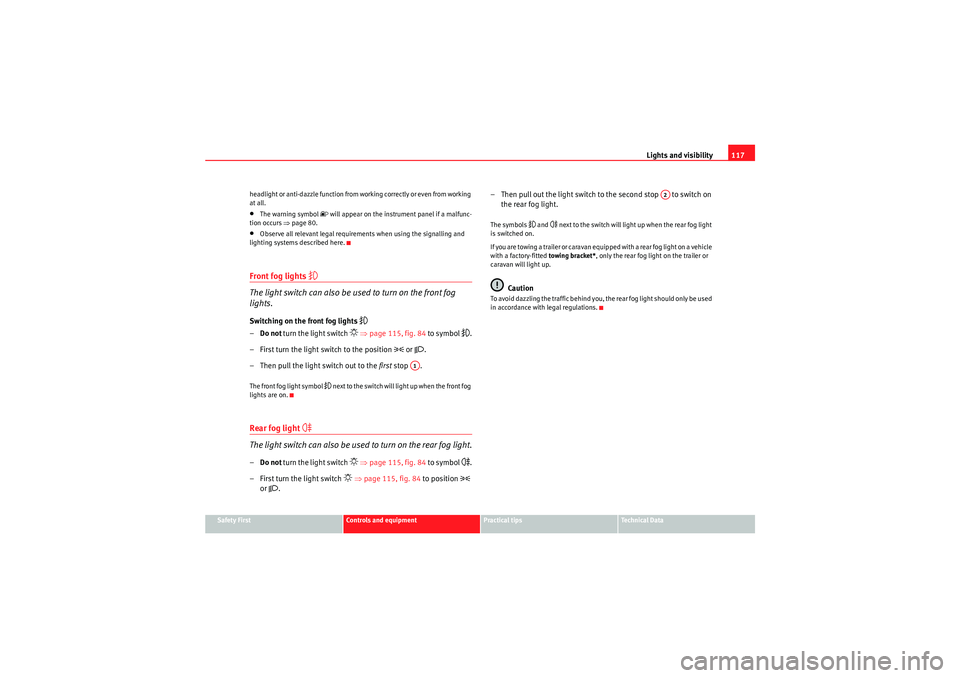

lights.Switching on the front fog lights

– Do not turn the light switch
 ⇒ page 115, fig. 84 to symbol
.
– First turn the light switch to the position
 or .
– Then pull the light switch out to the first stop .
The front fog light symbol
 next to the switch will light up when the front fog
lights are on.
Rear fog light

The light switch can also be used to turn on the rear fog light.– Do not turn the light switch
 ⇒ page 115, fig. 84 to symbol
.
– First turn the light switch
 ⇒ page 115, fig. 84 to position

or
. – Then pull out the light switch to the second stop to switch on
the rear fog light.
The symbols
 and
 next to the switch will light up when the rear fog light
is switched on.
If you are towing a trailer or caravan equipped with a rear fog light on a vehicle
with a factory-fitted towing bracket*, only the rear fog light on the trailer or
caravan will light up.
Caution
To avoid dazzling the traffic behind you, the rear fog light should only be used
in accordance with legal regulations.
A1
A2
Exeo_EN.book Seite 117 Freitag, 28. August 2009 10:14 10

Lights and visibility119
Safety First
Controls and equipment
Practical tips
Technical Data
Note
•If you always wish to use the coming home and leaving home functions,
you can leave them permanently switched on. As the system is controlled via
a light sensor, it will only work in dark conditions.•Permanent use of the coming home and leaving home functions, particu-
larly on short journeys, will increase the load on the battery. To make sure the
battery is always sufficiently charged, occasionally drive longer distances.•If the fog lights have been switched on by the coming home and leaving
home functions, they will always be switched off when you switch on the igni-
tion.•Observe all relevant legal requirements when using the signalling and

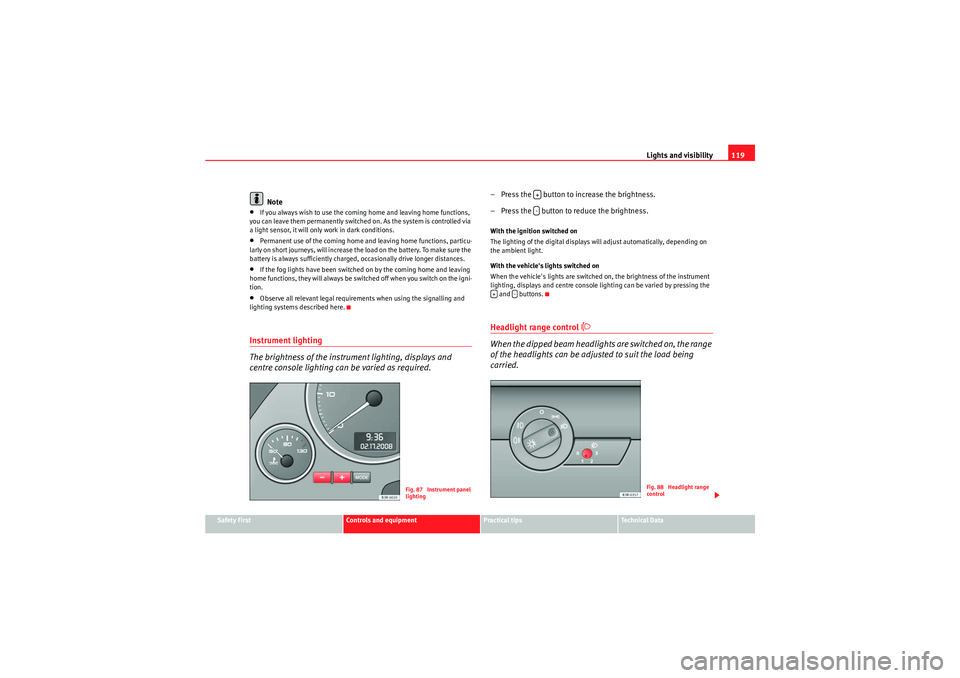

lighting systems described here.Instrument lighting
The brightness of the instrument lighting, displays and
centre console lighting can be varied as required.
– Press the button to increase the brightness.
– Press the button to reduce the brightness.With the ignition switched on
The lighting of the digital displays will adjust automatically, depending on
the ambient light.
With the vehicle's lights switched on
When the vehicle's lights are switched on, the brightness of the instrument
lighting, displays and centre console lighting can be varied by pressing the and buttons.Headlight range control

When the dipped beam headlights are switched on, the range
of the headlights can be adjusted to suit the load being
carried.
Fig. 87 Instrument panel
lighting
+-
+
-
Fig. 88 Headlight range
control
Exeo_EN.book Seite 119 Freitag, 28. August 2009 10:14 10

Lights and visibility121
Safety First
Controls and equipment
Practical tips
Technical Data
– Press the knob in again to prevent the setting from being
changed unintentionally.This button activates or deactivates the daytime running lights function. With
the function activated, when the ignition is switched on the daytime running
lights are turned on automatically.
Note
Please observe any relevant legal requirements which may apply in your

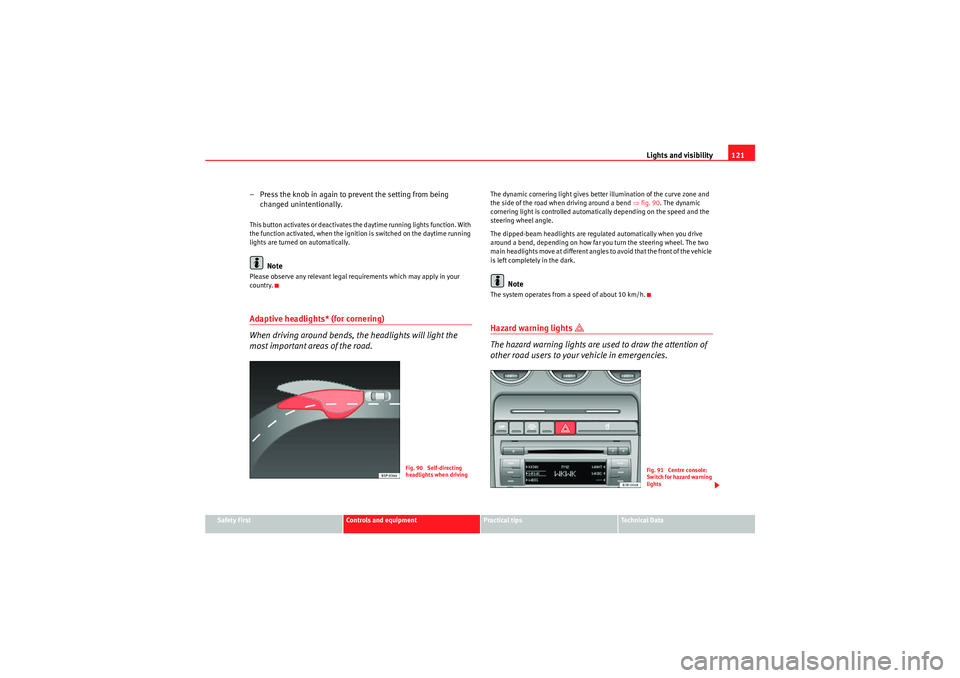

country.Adaptive headlights* (for cornering)
When driving around bends, the headlights will light the
most important areas of the road.
The dynamic cornering light gives better illumination of the curve zone and
the side of the road when driving around a bend ⇒fig. 90 . The dynamic
cornering light is controlled automatically depending on the speed and the
steering wheel angle.
The dipped-beam headlights are regulated automatically when you drive
around a bend, depending on how far you turn the steering wheel. The two
main headlights move at different angles to avoid that the front of the vehicle
is left completely in the dark.
Note
The system operates from a speed of about 10 km/h.Hazard warning lights

The hazard warning lights are used to draw the attention of
other road users to your vehicle in emergencies.
Fig. 90 Self-directing
headlights when driving
Fig. 91 Centre console:
Switch for hazard warning
lights
Exeo_EN.book Seite 121 Freitag, 28. August 2009 10:14 10
