–Unscrew bolts ⇒ page 268, fig. 200.
– Detach air duct from guide and take it out.Fitting the air duct
Once the bulb(s) for the right-side headlight have been
changed, the air duct must be re-installed.– Place the air duct in the correct position.
– First turn the two screws in lightly, then tighten both screws.
– Push the air duct into guide .
Bi-Xenon AFS headlight bulbs
Turn signal
Xenon headlight (dipped beam/main beam)
Side lights
DRL light
AA
AB
Fig. 201 Air duct on right
side of vehicle
AAAB
Fig. 202 Bi-Xenon AFS
headlight bulbs
AAABACAD
exeo_EN.book Seite 269 Montag, 30. August 2010 4:45 16

If and when
270Changing the DRL light bulb (daytime running light)
The procedure for changing the bulb is the same on both
sides.– Switch off the ignition and the lights.
– Raise the bonnet.
– Turn the bulb holder anti-clockwise, pulling it by the grip
⇒fig. 203 and removing the bulb holder and the bulb.
– Replace the blown bulb in the bulb holder (press and turn anti- clockwise to remove) with a new bulb (press and turn clockwise
to insert).
– Installation is done in the reverse order. Note
Although it is not necessary, previously remove the rigid cover
⇒page 272,
fig. 206 for easier day light bulb changes.

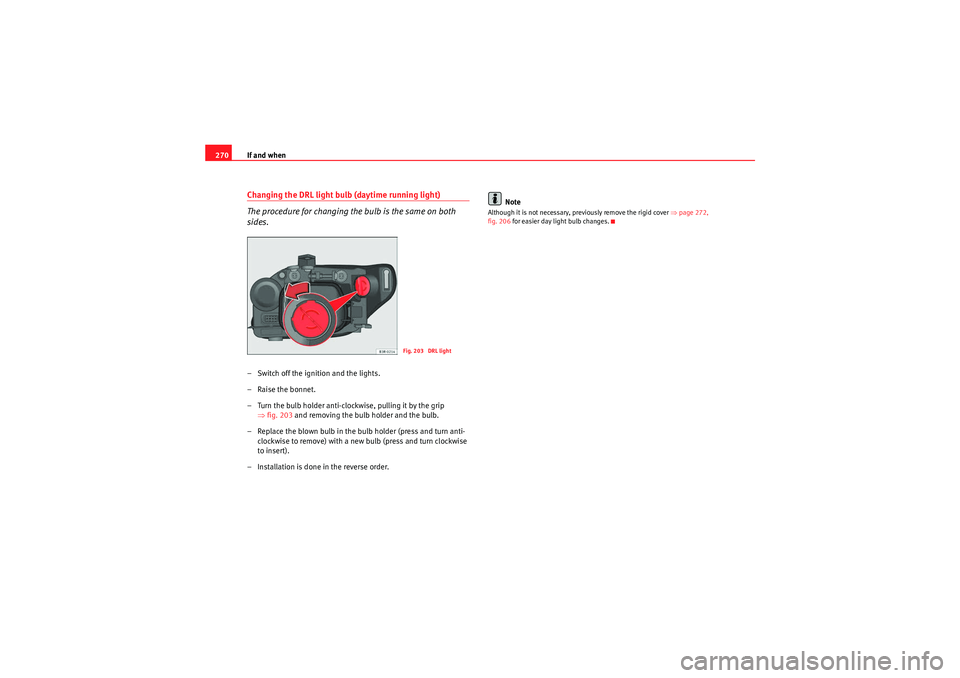

Fig. 203 DRL light
exeo_EN.book Seite 270 Montag, 30. August 2010 4:45 16

If and when271
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Changing the turn signal bulb
The procedure for changing the bulb is the same on both
sides.
– Switch off the ignition and the lights.
– Raise the bonnet.
– Pull the rubber cap ⇒fig. 204 to remove it.
– Remove the bulb holder by pulling on the grip and turning it anti- clockwise ⇒fig. 205 .
– Replace the blown bulb in the bulb holder (press and turn anti- clockwise to remove) with a new bulb (press and turn clockwise
to insert).
– Insert the bulb holder into the socket with the tab facing upwards and the grip horizontal. Press it against the socket and turn
clockwise. When changing the bulb, you can check the position
of the bulb through the headlight glass.
– Fit the rubber cap and tighten, making sure it fit properly into the headlight casing.
– Check whether the new bulb is working.

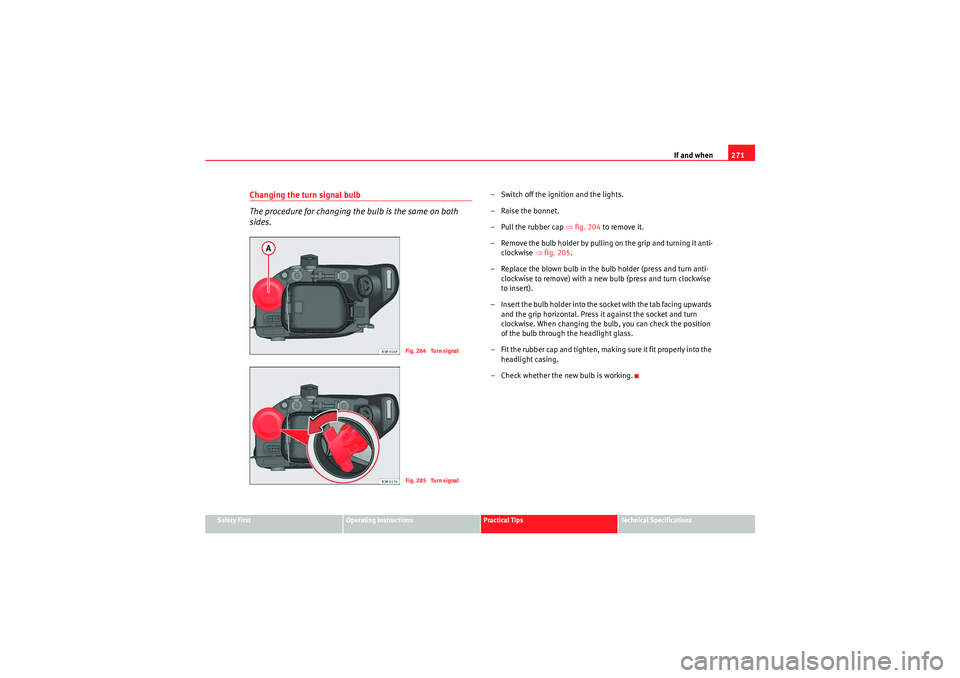

Fig. 204 Turn signalFig. 205 Turn signal
exeo_EN.book Seite 271 Montag, 30. August 2010 4:45 16

If and when
272Changing the side light bulb
The procedure for changing the bulb is the same on both
sides.
– Switch off the ignition and the lights.
– Raise the bonnet.
– Move the brace ⇒ fig. 206 in the direction of the arrow and
remove the rigid cover, separating the brace side and then
removing the two tabs from the other end of the cover.
– Remove the bulb holder by pulling on the grip ⇒fig. 207 (it can
also be removed by pulling on the bulb holder wires).
– Separate the bulb from the bulb holder by pulling both pieces anti-clockwise.
– Fit the new bulb by pressing on the bulb holder.
– Insert the bulb into the socket and press on the bulb holder grip.
– Fit the cover, first inserting the side tabs and then closing the cover and the brace. Make sure that the gasket sits well on the
casing cover during the operation.
– Check whether the new bulb is working.Changing the xenon bulbThe procedure for changing the bulb is the same on both sides.
WARNING
This type of bulb should be changed at a qualified workshop.
Fig. 206 Side lightFig. 207 Side light
A1
exeo_EN.book Seite 272 Montag, 30. August 2010 4:45 16

If and when273
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Changing tail light bulbs (on side panel)Overview of tail lightsTail lights on side panel•Brake light and side light•Side lights•Turn signal
Overview of tail lights. LED lampsTail lights on side panel•Brake light and side light•Side lights•Turn signalNote
•It is only possible to change the turn signal light.•If the warning lamp for the brake light or side light (LED lamp) lights up,
the tail light assembly should be replaced.•The failure of the lamp is only shown when the LED function goes out
completely. Sometimes, a LED will stop working, without displaying the
warning as the function continues to operate.
Fig. 208 Overview of tail
lights
Fig. 209 Overview of tail
lights
exeo_EN.book Seite 273 Montag, 30. August 2010 4:45 16

If and when
274Removing the tail light
To change the bulbs you must remove the tail light assembly.
Removing the light requires a certain degree of practical skill.
A special retaining screw is used to secure and guide the tail light.
– Check which of the bulbs is defective.
–Open the tailgate.
– Take the screwdriver out of the vehicle’s tool kit ⇒page 247.
– Use the flat-blade side of th e reversible screwdriver insert.
– Prise open the cover at the slot with the screwdriver ⇒ fig. 210
.
– Use a screwdriver to loosen the screw (arrow) located behind the cover.
– Gradually ease the tail light out of the housing ( ⇒fig. 211 posi-
tions and ) by pulling alternately in positions and .
– Remove the bulb holder ⇒page 275.
CautionTake care when removing the tail light to make sure there is no damage to the
paintwork or any of its components.
Note
Make sure you have a soft cloth ready to place under the glass on the tail
light, to avoid any scratches.
Fig. 210 Luggage
compartment: Location of
the bolt securing the tail
light unitFig. 211 Removing tail
light from side panel
A1
A2
A3
A4
A1
A2
exeo_EN.book Seite 274 Montag, 30. August 2010 4:45 16

If and when275
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Remove the bulb holder
When changing a bulb, you must first remove the bulb holder.There are three securing tabs on the inside of the tail light.
– Release the retaining tabs ⇒ fig. 212 .
– Take out the bulb holder.
– Change the defective bulb ⇒page 275 ⇒page 276.
WARNING
If a bulb is replaced in a tail light assembly with LED, do not pull too hard
on the bulb holder to avoid damaging the wiring of the LED module.
Changing bulbs
All bulbs can be changed easily in the bulb holder.The bulbs are secured with a bayonet fastener. The table below
gives an overview of the bulb positions.
– Lightly press the defective bulb into the bulb holder, then turn it
to the left and remove it.
– Fit the new bulb, pressing it into the bulb holder and turn it to the right as far as it will go.
– Use a cloth to remove any fingerp rints from the glass part of the
bulb.
– Check whether the new bulb is working.
– Re-install the bulb holder ⇒page 276.
Fig. 212 Retaining tabs
on reverse side of tail light
AA
Fig. 213 Position of the
bulbs in the bulb holder.
Example: Left tail light in
side panel
exeo_EN.book Seite 275 Montag, 30. August 2010 4:45 16

If and when
276Position of the bulbsChanging bulbs. LED lamps
All bulbs can be changed easily in the bulb holder.The bulb is secured with a bayonet fastener. The table below gives
an overview of the bulb positions.
– Lightly press the defective bulb into the bulb holder, then turn it
to the left and remove it. – Fit the new bulb, pressing it into the bulb holder and turn it to the
right as far as it will go.
– Use a cloth to remove any fingerp rints from the glass part of the
bulb.
– Check whether the new bulb is working.
– Re-install the bulb holder ⇒page 276.

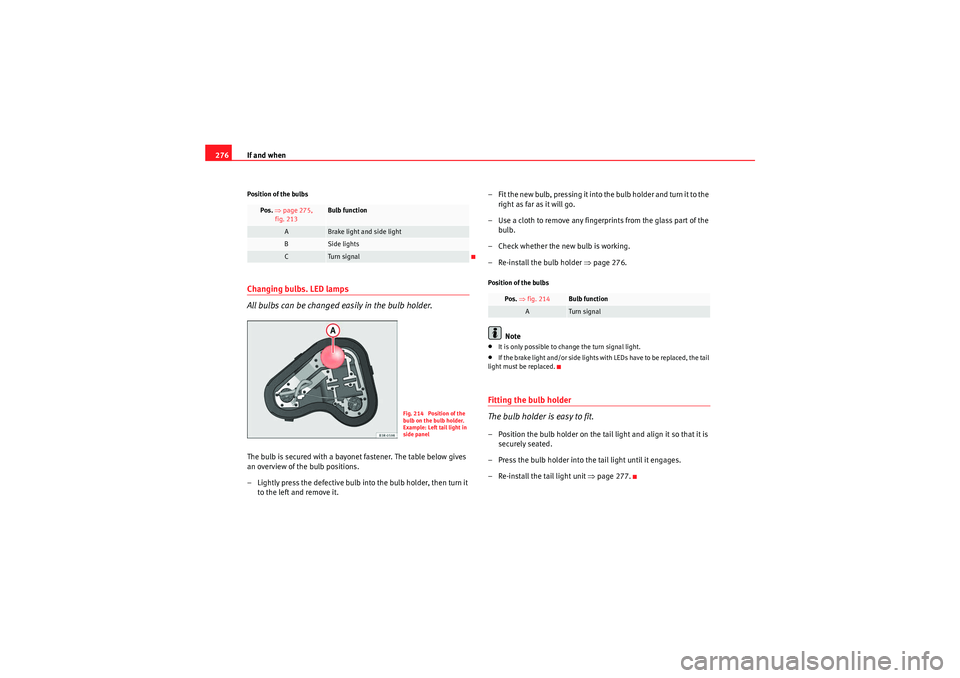

Position of the bulbs
Note
•It is only possible to change the turn signal light.•If the brake light and/or side lights with LEDs have to be replaced, the tail
light must be replaced.Fitting the bulb holder
The bulb holder is easy to fit.– Position the bulb holder on the tail light and align it so that it is securely seated.
– Press the bulb holder into the tail light until it engages.
– Re-install the tail light unit ⇒page 277.
Pos. ⇒ page 275,
fig. 213
Bulb function
A
Brake light and side light
B
Side lights
C
Turn signal
Fig. 214 Position of the
bulb on the bulb holder.
Example: Left tail light in
side panel
Pos. ⇒ fig. 214
Bulb function
A
Turn signal
exeo_EN.book Seite 276 Montag, 30. August 2010 4:45 16

If and when277
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Fitting the tail light unit
The tail light unit is easy to fit.
– First place the tail light unit in ⇒fig. 215 arrow in the
housing.
– Gently press the tail light unit against the housing, first in posi- tion and then in position , until that the clips engage firmly
in the rubber mountings.
– Apply gentle pressure to the front side of the tail light unit and secure using the screwdriver, from the luggage compartment
⇒fig. 216 .
– Try to move the tail light sideways to ensure it is correctly fitted.
– Replace the cover in the interior trim.
– Put the screwdriver back into the tool kit.
– Make sure that all bulbs for the tail lights are working.
CautionTake care when fitting the tail light unit to make sure there is no damage to
the paintwork or any of its components.
Fig. 215 Fitting the tail
light unitFig. 216 Luggage
compartment: Location of
the bolt securing the tail
light unit
A1
A2
A3
A1
A2
exeo_EN.book Seite 277 Montag, 30. August 2010 4:45 16

If and when
278Changing tail light bulbs (on tailgate)Overview of tail lightsTail lights on the tailgate•Side lights•Rear fog light•Reverse light
Overview of tail lights. LED lampsTail lights on the tailgate•Side lights•Rear fog light•Reverse lightNote
•It is only possible to change the reverse light.•If the warning lamp for the side light and/or rear fog light (LED lights)
lights up, the tail light assembly should be replaced.•The failure of the lamp is only shown when the LED function goes out
completely. Sometimes, a LED will stop working, without displaying the
warning as the function continues to operate.
Fig. 217 Overview of tail
lights
Fig. 218 Overview of tail
lights
