Seat Exeo ST 2009 Owner's manual

Technical Data299
Safety First
Controls and equipment
Practical tips
Technical Data
Weights
Trailer weights
Engine oil capacity
Diesel engine 2.0 l 88 kW (120 HP) CREngine specifications
Manual
Automatic
Gross vehicle weight in kg 20502075
Weight in working order (with driver) in kg 15651590
Gross front axle weight in kg 10901115
Gross rear axle weight in kg 10901090
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 750750
Trailer with brakes, gradients up to 8% 16001700
Trailer with brakes, gradients up to 12% 14001500
Approximate engine oil capacity with oil filter change 4.5 litres
Power output in kW (HP) rpm 88 (120) / 4000
Maximum torque in Nm at rpm 290 / 1750-2500
No. of cylinders, capacity in cm
3
4 / 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel
ExeoST_EN.book Seite 299 Donnerstag, 3. September 2009 12:24 12

Technical Data
300Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 198
Acceleration from 0-80 km/h in seconds 7,4
Acceleration from 0-100 km/h in seconds 10,9
Gross vehicle weight in kg 2050
Weight in working order (with driver) in kg 1565
Gross front axle weight in kg 1100
Gross rear axle weight in kg 1075
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1300
Approximate engine oil capacity with oil filter change 4.3 litres
ExeoST_EN.book Seite 300 Donnerstag, 3. September 2009 12:24 12

Technical Data301
Safety First
Controls and equipment
Practical tips
Technical Data
Diesel engine 2.0l 105 kW (143 HP)Engine specifications
Performance figures
Weights
Trailer weightsPower output in kW (HP)
rpm 105 (143) / 4200
Maximum torque in Nm at rpm 320 / 1750-2500
No. of cylinders/ capacity in cm
3
4 / 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 207
Acceleration from 0-80 km/h in seconds 6,6
Acceleration from 0-100 km/h in seconds 9,6
Gross vehicle weight in kg 2050
Weight in working order (with driver) in kg 1565
Gross front axle weight in kg 1100
Gross rear axle weight in kg 1075
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1600
ExeoST_EN.book Seite 301 Donnerstag, 3. September 2009 12:24 12

Technical Data
302Engine oil capacityDiesel engine 2.0l 125 kW (170 HP)Engine specifications
Performance figures
Weights Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (HP) rpm 125 (170) / 4200
Maximum torque in Nm at rpm 350 / 1750-2500
No. of cylinders/ capacity in cm
3
4 / 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 224
Acceleration from 0-80 km/h in seconds 6,1
Acceleration from 0-100 km/h in seconds 8,6
Gross vehicle weight in kg 2075
Weight in working order (with driver) in kg 1590
Gross front axle weight in kg 1115
Gross rear axle weight in kg 1090
Permitted roof load in kg 75
ExeoST_EN.book Seite 302 Donnerstag, 3. September 2009 12:24 12

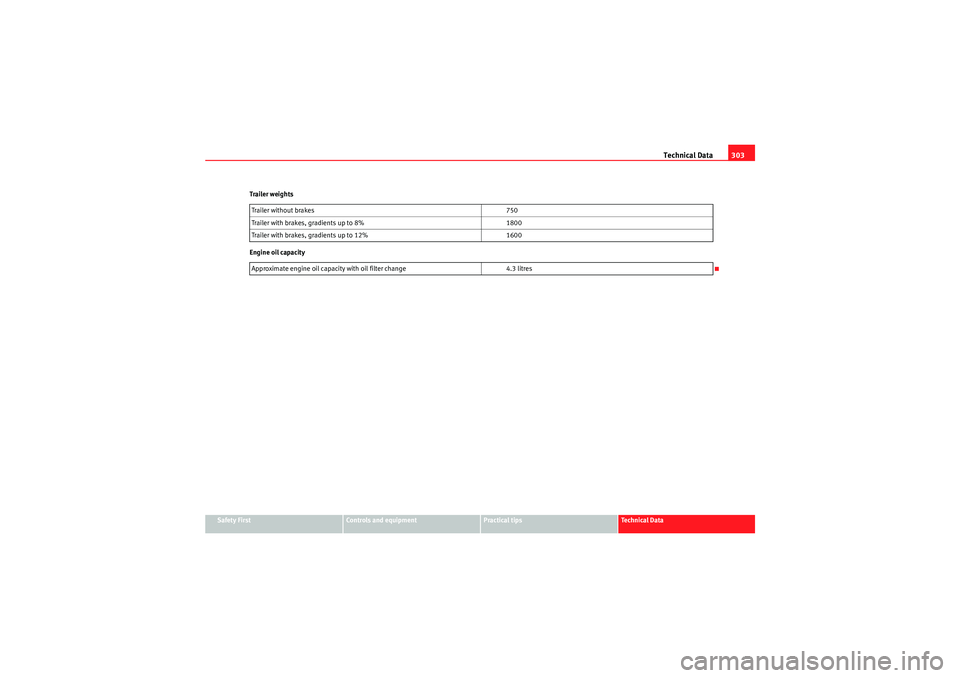

Technical Data303
Safety First
Controls and equipment
Practical tips
Technical Data
Trailer weights
Engine oil capacity
Trailer without brakes
750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1600
Approximate engine oil capacity with oil filter change 4.3 litres
ExeoST_EN.book Seite 303 Donnerstag, 3. September 2009 12:24 12

Technical Data
304Dimensions and capacities
Dimensions
Length, width 4,666 mm/ 1,772 mm
Height at kerb weight 1,454 mm with roof bars
Front and rear projection 976 mm/ 1,048 mm
Wheelbase 2,642 mm
Turning circle 11.2 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,522 mm 1,523 mm
Capacities
Fuel tank 70 l. Reserve 10 l.
Windscreen washer fluid container with headlight washer 4.8 l.
Ty re p re ss u re
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
ExeoST_EN.book Seite 304 Donnerstag, 3. September 2009 12:24 12
