Airbag system29
Safety First
Operating Instructions
Practical Tips
Technical Specifications
•Always adjust the front seats properly.
The danger of fitting a child seat on the front passenger seat
Rear-facing child seats must never be used on the front
passenger seat when the front passenger airbag is enabled.The front passenger airbag is a serious risk for a child if it is activated. The
front passenger seat is life threatening to a child if he/she is transpor ted in a
rear-facing child seat. Children up to 12 years old should always travel on the
rear seat.
If a rear-facing child seat is secured to the front passenger seat, an inflating
airbag can strike it with such force that it can cause critical or fatal injuries.
Therefore we strongly recommend you to transport children on the rear seats.
That is the safest place for children in the vehicle. Alternatively, the front
passenger airbag can be disabled with a key-operated switch ⇒page 44.
When transporting children, use a child seat appropriate to the age and size
of each child ⇒ page 46.
For those vehicles that do not include a key lock switch to disconnect the
airbag, the vehicle must be taken to a Technical Service.
WARNING
•If a child seat is secured to the front passenger seat, the risk to the child
of sustaining critical or fatal injuries in the event of an accident increases.•Never secure a rear-facing child seat to the front passenger seat if the
front passenger airbag is enabled. The child can suffer critical or fatal inju-
ries if the front passenger airbag is triggered.
•An inflating front passenger airbag can strike the rear-facing child seat
and hurl it with great force against the door, the roof or the backrest.•If, under special circumstances, it is necessary to transport a child in a
rear-facing child seat on the front passenger seat, it is absolutely essential
that you observe the following safety measures:
−Deactivate the front passenger airbag ⇒page 44, “Deactivating
airbags”.
− The child seat must be approved by the child seat manufacturer for
use on a front passenger seat with front or side airbag.
− Follow the installation instructions given by the child seat manufac-
turer and observe the safety instructions ⇒page 46, “Child safety”.
− Before properly installing the child seat, push the front passenger
seat completely backwards so that the greatest possible distance to
the front passenger airbag is ensured.
− Ensure that no objects prevent the front passenger seat from being
pushed completely back.
− The backrest of the front passenger seat must be in an upright
position.
Warning lamp for airbag and seat belt tensioner
T
This warning lamp monitors the airbag and seat belt
tensioner system.The warning lamp monitors all airbags and seat belt tensioners in the vehicle,
including control units and wiring connections.
WARNING (continued)
WARNING (continued)
ExeoST_EN.book Seite 29 Freitag, 3. September 2010 11:41 11

Airbag system
30Monitoring of airbag and belt tensioner system
Both the airbag and belt tensioner systems operation is constantly monitored
electronically. The warning lamp
T will light every time the ignition is
switched on until you attach your seatbelt.
The system must be checked when the warning lamp
T :
•does not light up when the ignition is switched on,•turns off and then lights up again after the ignition is switched on,•lights up or flashes while the vehicle is moving.
In the event of a malfunction, the warning lamp remains on continuously.
Have the system inspected immediately by a qualified workshop.
If any of the airbags are de-activated by the Authorised Service Centre, the
indicator lights for several seconds more after the verification and will turn off
if there is no fault.WARNING
•If there is a malfunction, the airbag and belt tensioner system cannot
properly perform its protective function.•If a malfunction occurred, have the system checked immediately by a
qualified workshop. Otherwise, in th e event of an accident, the airbag
system and belt tensioners may not be triggered, or may not be triggered
correctly.
Repairs, maintenance and disposal of airbagsThe parts of the airbag system are installed in various places in your vehicle.
If work is carried out on the airbag system or parts have to be removed and
fitted on the system when performing other repair work, parts of the airbag
system may be damaged. In the event of an accident this could cause the
airbag to inflate incorrectly or not inflate at all. The relevant safety requirements must be observed when the vehicle or
components of the airbag are scrapped
. Specialised workshops and vehicle
disposal centres are familiar with these requirements.
WARNING
•If repairs are not carried out by a professional, or if the airbags are used
incorrectl y, the ris k of severe or fatal inju ries is increase d. T he airbags may
fail to inflate, or could inflate in the wrong circumstances.•Do not cover or stick anything on the steering wheel hub or the surface
of the airbag unit on the passenger side of the dash panel, and do not
obstruct or modify them in any way.•It is important not to attach any objects such as cup holders or tele-
phone mountings to the surfaces covering the airbag units.•To clean the steering wheel or dash panel, you may use only a dry or a
water-moistened cloth. Never clean the dash panel and the airbag module
surface with cleaners containing solvents. Solvents cause the surface to
become porous. If the airbag triggered, plastic parts could become
detached and cause injuries.•Never attempt to repair, adjust, remove or install parts of the airbag
system.•Any work on the airbag system or removal and installation of the airbag
components for other repairs (such as repairs to the steering wheel) should
be performed only by a qualified wo rkshop. Qualified workshops have the
necessary tools, repair inform ation and qualified personnel.•We strongly recommend you to go to a qualified workshop for all work
on the airbag system.•Never attempt to alter the front bumper or the body.•The airbags provide protection for just one accident; replace them once
they have deployed.
ExeoST_EN.book Seite 30 Freitag, 3. September 2010 11:41 11

Airbag system31
Safety First
Operating Instructions
Practical Tips
Technical Specifications
For the sake of the environment
The airbags, which are a special type of waste, must be disposed of through
an authorised service, because they contain pyrotechnic elements.
ExeoST_EN.book Seite 31 Freitag, 3. September 2010 11:41 11

Airbag system
32Front airbagsDescription of front airbags
The airbag system is not a substitute for the seat belts.
The front airbag for the driver is located in the steering wheel ⇒fig. 17 and
the airbag for the front passenger is located in the dash panel ⇒fig. 18.
Airbags are identified by the word “AIRBAG”. On the driver side, the knee
airbag* is found in the footwell lining, under the instrument panel.
In conjunction with the seat belts, the front airbag system gives the front
occupants additional protection for the head and chest in the event of a
severe frontal collision ⇒ page 35, “Safety notes on the front airbag system”.
In addition to their normal function of restraining the occupants, the seat
belts also hold the driver and front passenger in a position where the airbags
can provide maximum protection in a frontal collision.
The airbag system is not a substitute for seat belts, but it is an integral part
of the vehicle's overall passive safety system. Please bear in mind that the
airbag system can only work effectively when the occupants are wearing their
seat belts correctly and have adjusted the head restraints properly. Therefore,
it is most important to wear the seat belts at all times, not only because this
is required by law in most countries, but also for your safety ⇒ page 18,
“Brief introduction”.

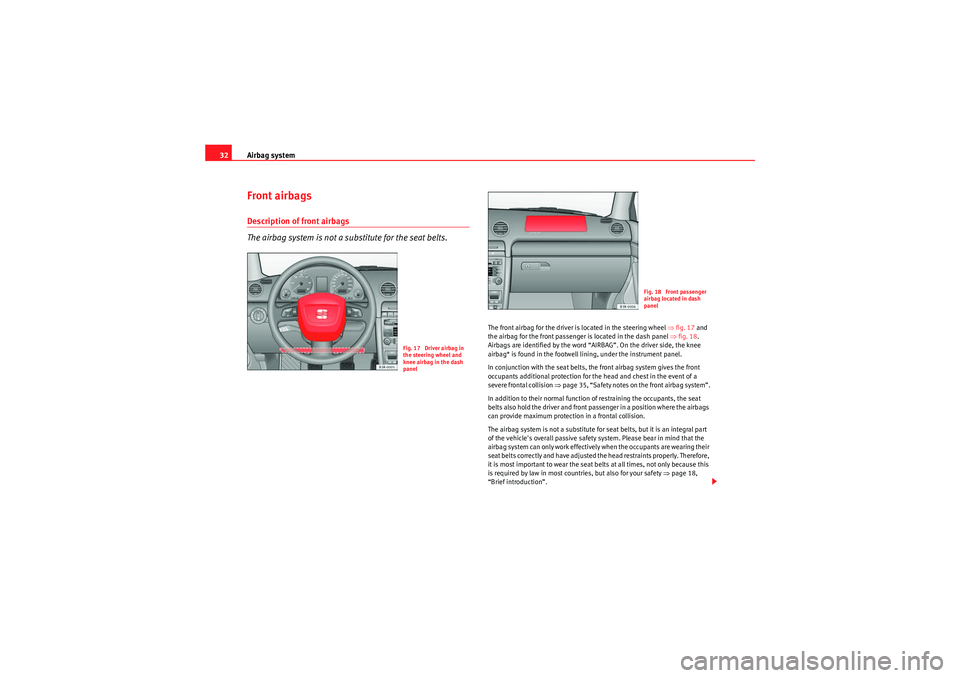

Fig. 17 Driver airbag in
the steering wheel and
knee airbag in the dash
panel
Fig. 18 Front passenger
airbag located in dash
panel
ExeoST_EN.book Seite 32 Freitag, 3. September 2010 11:41 11

Airbag system33
Safety First
Operating Instructions
Practical Tips
Technical Specifications
The main parts of the front airbag system are:
•an electronic control and monitoring system (control unit)•the two front airbags (airbag with gas generator) for the driver and front
passenger,•a knee airbag* for the driver,•a warning lamp
T on the instrument panel ⇒page 29
The airbag system operation is monitored electronically. The airbag warning
lamp will light up for a few seconds every time the ignition is switched on
(self-diagnosis).
There is a fault in the system if the warning lamp
T:
•does not light up when the ignition is switched on ⇒ page 29•turns off and then lights up again after the ignition is switched on,•lights up or flashes while the vehicle is moving.
The front airbag system will not be triggered if:•the ignition is switched off•there is a minor frontal collision,•there is a side collision,•there is a rear-end collision•the vehicle turns overWARNING
•The seat belts and airbags can only provide maximum protection if the
occupants are seated correctly ⇒page 10, “Proper sitting position for
occupants”.•If a fault has occurred in the airbag system, have the system checked
immediately by a qualified workshop. Otherwise, during a frontal collision
the system may fail to trigger, or not trigger correctly.
Operation of front airbags
Inflated airbags reduce the risk of head or chest injury.The airbag system is designed so that the airbags for the driver and front
passenger are triggered in a severe frontal collision.
In certain types of accident the front, curtain and side airbags may be trig-
gered together.
When the system is triggered, the airbags fill with a propellant gas and
deploy in front of the driver and front passenger ⇒ fig. 19. The fully deployed
airbags cushion the forward movement of the front occupants and help to
reduce the risk of injury to the head and the upper part of the body.
The special design of the airbag allows the controlled escape of the propel-
lant gas when an occupant puts pressure on the bag. Thus, the head and
chest are surrounded and protected by the airbag. After the collision, the
airbag deflates sufficiently to allow visibility.
The airbags deploy extremely rapidly, within thousandths of a second, to
provide additional protection in the event of an accident. A fine dust may
Fig. 19 Inflated front
airbags
ExeoST_EN.book Seite 33 Freitag, 3. September 2010 11:41 11

Airbag system
34develop when the airbag deploys. This is normal and it is not an indication of
fire in the vehicle.Airbag covers when the frontal airbags are triggeredT h e a i r b a g co v e r s f o l d o u t o f t h e s t e e r i n g w h e e l o r d as h p a n e l w h e n t h e d r i v e r
and front passenger airbags are triggered ⇒ fig. 20. The airbag covers
remain connected to the steering wheel or the dash panel.
Fig. 20 Airbag covers reacting when the front airbags
are triggered
ExeoST_EN.book Seite 34 Freitag, 3. September 2010 11:41 11

Airbag system35
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Safety notes on the front airbag system
If you use airbags correctly, they can considerably reduce the
risk of injury in many kinds of accident.
WARNING
•It is important for the driver and front passenger to keep a distance of
at least 25 cm from the steering wh eel or dash panel. If the minimum
distance is not observed then the airbags do not correctly protect the
vehicle occupants; risk of fatal injuries! In addition, the front seats and
head restraints must always be positioned correctly for the height of the
occupant.•If you are not wearing a seat belt, if you lean forward or to the side while
travelling or assume an incorrect sitting position, there is a substantially
increased risk of injury. This increased risk of injury will be further
increased if you are struck by an inflating airbag.•Never let a child travel on the front seat without an appropriate restraint
system. If the airbag is triggered in an accident, children can sustain
serious or fatal injuries from the airbag as it inflates ⇒page 46, “Child
safety”.•The deployment space between the front passengers and the airbags
must not in any case be occupied by other passenger, pets and objects.•The airbags provide protection for just one accident; replace them once
they have deployed.•It is also important not to attach any objects such as cup holders or
telephone mountings to the surfaces covering the airbag units.•Do not attempt to modify components of the airbag system in any
way.
Knee airbag*Description of the knee airbag
The airbag system provides additional protection to front seat
passengers if they are properly secured.The knee airbag for the driver is located in the dash panel underneath the
steering wheel. ⇒fig. 21 .
The knee airbag offers additional protection to the driver's knees and upper
and lower thigh areas as a supplement to the seat belts.
If the front airbags deploy, the knee airbag also deploys in severe frontal
collisions. ⇒page 33
Besides their normal safety function, seat belts help keep the driver in posi-
tion in case of a frontal collision so that the airbags can provide protection.
The airbag system is not a substitute for seat belts. It is, on the other hand,
part of the overall occupant safety system of your vehicle. Always remember
Fig. 21 Driver knee
airbag
ExeoST_EN.book Seite 35 Freitag, 3. September 2010 11:41 11

Airbag system
36that the airbag system can only help to protect you if you are wearing your
seat belt and wearing it properly.
Remember too that airbags will deploy only once and only in certain kinds of
accidents - your seat belts are always there to offer protection in those acci-
d e nts in whi ch ai r bags ar e n ot supp ose d to d e ploy o r whe n t he y hav e a lread y
deployed, for example when your vehicle strikes or is struck by another after
the first collision.
This is just one of the reasons why an airbag is not a substitute for the seat
belt. The airbag system works most effectively when used with the seat belts.
Therefore, always wear your seat belts correctly.
It is important to remember that while the airbag system is designed to
reduce the possibility of serious injuries, other injuries, for example,
swelling, bruising, and minor abrasions can also be associated with airbags.
The knee airbag system basically consists of:•The electronic control module•One inflatable airbag (airbag and gas generator) for the driver•An airbag indicator light on the instrument panel
The knee airbag system will not be triggered:•if the ignition is switched off•in frontal collisions when the deceleration measured by the control unit is
too low•in side collisions•in rear-end collisions•in rollovers•in the event of a system malfunction (hazard warning lights/turn signals
illuminated). ⇒page 65
WARNING
•Seat belts and the airbag system can only provide protection when
occupants are in the proper seating position.•If the airbag indicator light comes on when the vehicle is being used,
have the system inspected immediately by your Authorised Service Centre.
The airbag may not work properly when the vehicle acceleration in a side
collision is high enough to deploy the airbag. See also ⇒page 65.
How knee airbags work
The risk of injury to the leg area is reduced by fully deployed
knee airbags.The knee airbag system has been designed so that the airbag for the driver is
deployed in certain but not all frontal collisions.
Fig. 22 Inflated airbags
protect in a frontal colli-
sion.
ExeoST_EN.book Seite 36 Freitag, 3. September 2010 11:41 11

Airbag system37
Safety First
Operating Instructions
Practical Tips
Technical Specifications
If the front airbag deploys, the knee airbag also deploys in severe frontal colli-
sions.
When the system is deployed, the airbag starts to fill with a propellant gas,
and inflates between the lower part of the dash panel and the
driver.
⇒page 36, fig. 22
Although they are not a soft pillow, they can cushion the impact and in this
way they can help to reduce the risk of injury to the lower extremities.
All this takes place instantaneously, so fast that many people do not even
realise that the airbags have deployed. The airbags also inflate with a great
deal of force and it is important for occupant safety that nothing should be in
their way when they deploy.
Fully inf late d ai rb ags i n com binati on wit h pr op er ly wo r n s ea t b e lts slow d own
and limit the occupant's forward moveme nt and help to reduce the risk of
injury.
Important safety notes on the knee airbag system
Airbags are only additional safetyAlways wear seat belts correctly and drive in a proper seated position. There
is a lot of information that you and your passengers should know and do so
that the seat belts and airbags can provide additional protection.
WARNING
An inflating knee airbag can cause serious injuries. Wearing seat belts
incorrectly and improper seating positions increase the risk of serious
personal injury and death whenever a vehicle is being used.•The airbag system cannot protect you properly if you are seated too
close to any of the airbag locations. When adjusting the seat positions, it is important for the driver to keep the upper body and knees at the
following minimum safety distances:
−25 cm between the chest and the steering wheel/dash panel.
− 10 cm between the knees and the lower part of the dash panel.
•The risk of personal injury increases if you lean forward or to the side,
or if the seat is improperly positioned and you are not wearing your seat
belt. The risk increases even more should the airbag deploy.•Always make sure that the knee airbag can inflate without interference.
Objects between yourself and the airbag can increase the risk of injury in
an accident by interfering with the way the airbag deploys or by being
thrust into you as the airbag deploys.
−No objects of any kind should be carried in the footwell area in front
of the driver's seat. Bulky objects (shopping bags, for example) can
hinder or prevent proper deployment of the airbag. Small objects can
be thrown through the vehicle if the airbag deploys and injure you or
your passengers.•Make sure there are no cracks, deep scratches or other damage in the
area of the dash panel where the knee airbag is located.•If children are incorrectly seated, their risk of injury increases in the
case of an accident. ⇒page 46WARNING (continued)
ExeoST_EN.book Seite 37 Freitag, 3. September 2010 11:41 11

Airbag system
38Side airbags*Description of side airbags
The airbag system is not a substitute for the seat belts.The front side airbags are located in the driver seat and front passenger seat
backrests ⇒fig. 23 . The rear side airbags* are located in the rear wheel
housing lining. The locations are identified by the text “AIRBAG” in the upper
region of the backrests and in the rear wheel housing lining.
Together with the seat belts, the side airbag system gives the front seat occu-
pants additional protection for the upper body in the event of a severe side
collision ⇒ page 40, “Safety notes on the operation of the side airbag
system”.
In a side collision, the side airbags reduce the risk of injury to passengers on
the front seats to the areas of the body facing the impact. In addition to their
normal function of protecting the occupants in a collision, the seat belts also hold the passengers in the front seats and the outer rear seats in a position
where the side airbags can provide maximum protection.
The airbag system is not a substitute for seat belts, but it is an integral part
of the vehicle's overall passive safety system. Please bear in mind that the
airbag system can only work effectively when the occupants are wearing their
seat belts. Therefore, it is most important to wear the seat belts at all times,
not only because this is required by law in most countries, but also for your
safety
⇒page 18, “Brief introduction”.
The side airbag system will not be triggered if:
•the ignition is switched off•there is a minor side collision•there is a frontal collision•there is a rear-end collision•the vehicle turns over
The main parts of the airbag system are:•an electronic control and monitoring system (control unit)•The front side airbags in the backrests of the front seats and the rear side
airbags in the lining of the rear wheel housing•a warning lamp
T on the instrument panel ⇒page 29
The airbag system operation is monitored electronically. The airbag warning
lamp will light up for approx. 4 seconds every time the ignition is switched on
(self-diagnosis).
WARNING
•In a side collision, the side airbags will not work, if the sensors do not
correctly measure the pressure increase on the interior of the doors, due to
air escaping through the areas with holes or openings in the door panel.•Never drive the vehicle if the interior panels have been removed.
Fig. 23 Side airbag in
driver seat
ExeoST_EN.book Seite 38 Freitag, 3. September 2010 11:41 11
