Seat Ibiza 2018 MEDIA SYSTEM PLUS - NAVI SYSTEM

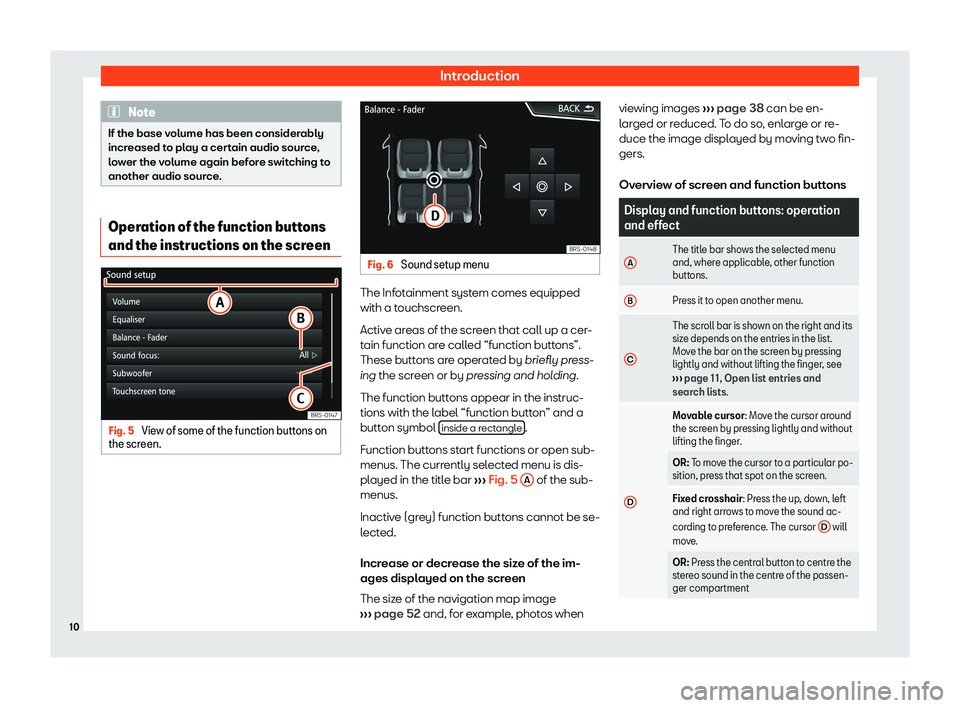

IntroductionNoteIf the base volume has been considerablyincreased to play a certain audio source,lower the volume again before switching to
another audio source.
Operation of the function buttons
and the instructions on the screen
Fig. 5
View of some of the function buttons on
the screen.
Fig. 6
Sound setup menu
The Infotainment system comes equipped
with a touchscreen.
Active areas of the screen that call up a cer-
tain function are called “function buttons”.
These buttons are operated by briefly press-
ing the screen or by pressing and holding .
The function buttons appear in the instruc- tions with the label “function button” and abutton symbol inside a rectangle
.
Function buttons start functions or open sub-
menus. The currently selected menu is dis- played in the title bar

IntroductionDisplay and function buttons: operation
and effectPress it on some lists to move up a level, one by one.BACK

IntroductionSubsequent chapters only explain thosefunctions that differ from those in the screenshown in the figure.
The input line with cursor is located in the top
bar of the screen. All inputs are displayed here.
Input windows for “free text input” In the input masks for open text, you may en-
ter letters, numbers and special characters in
any combination.
Input windows for selecting a saved entry
(e.g. selection of a destination address)
It is only possible to select a sequence of let-
ters, numbers and special characters that
matches a stored entry.
Suggestions for matching destinations ap- pear depending on the characters entered inthe input line

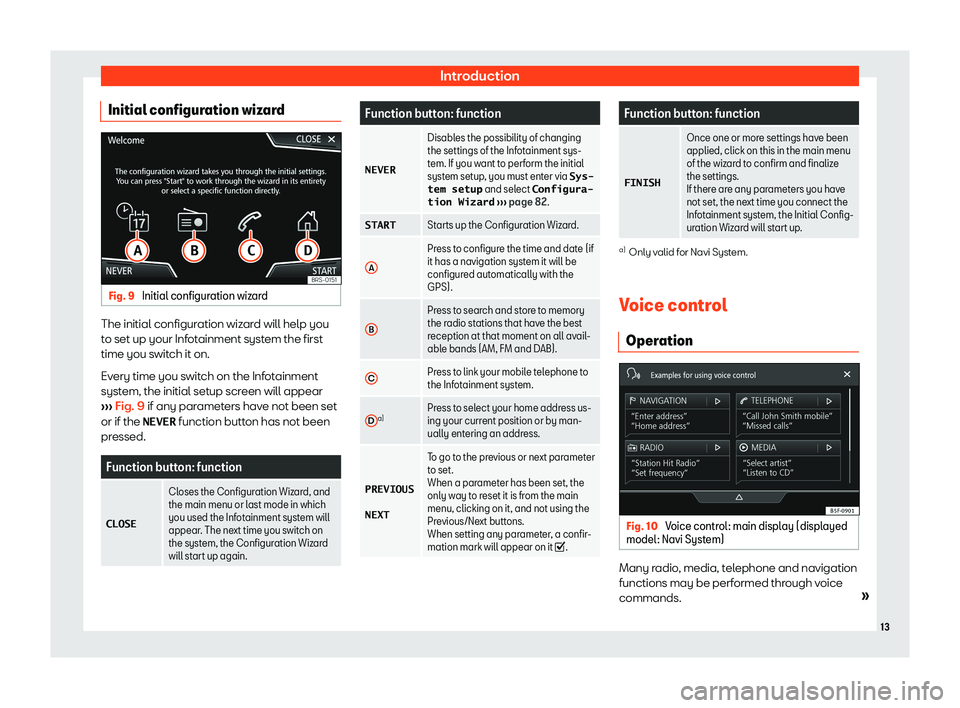

IntroductionInitial configuration wizardFig. 9
Initial configuration wizard
The initial configuration wizard will help you
to set up your Infotainment system the first time you switch it on.
Every time you switch on the Infotainment system, the initial setup screen will appear

IntroductionThe Infotainment system

Introduction

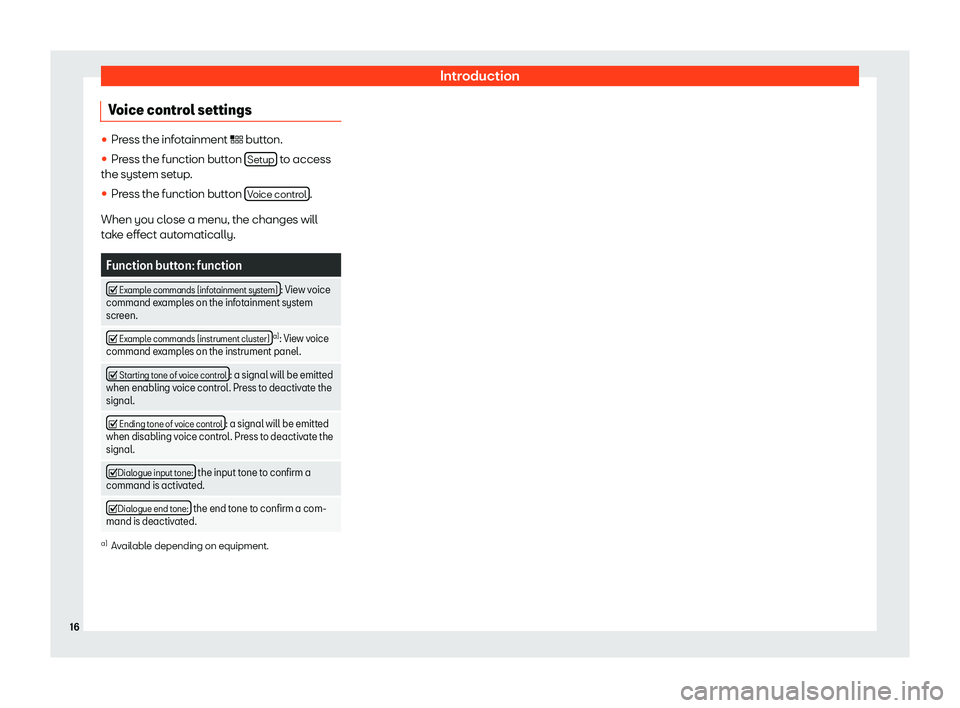

IntroductionVoice control settings

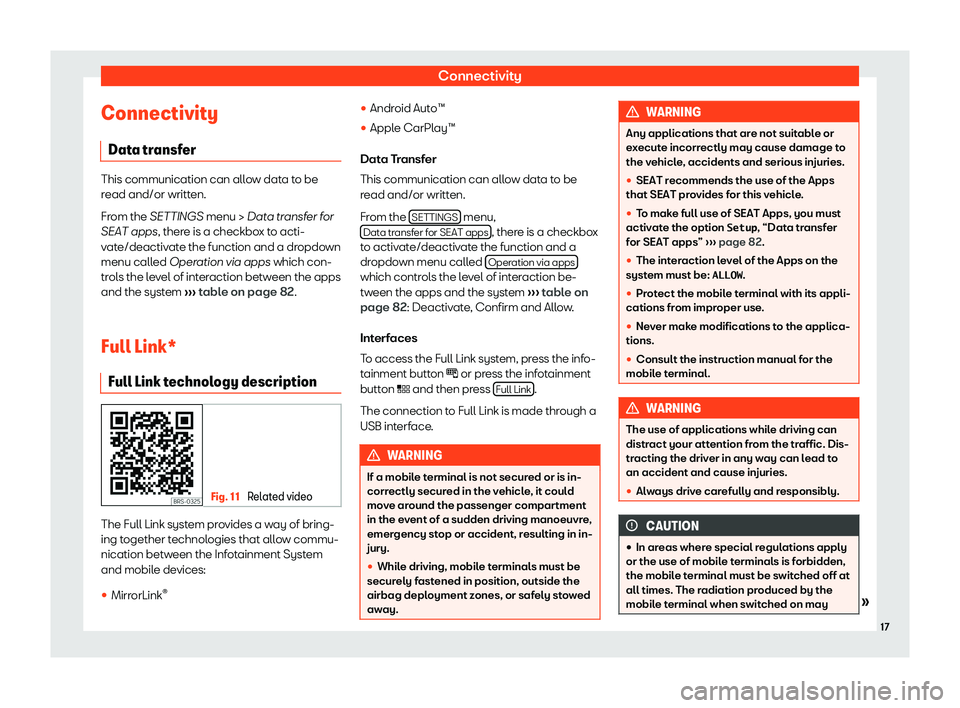

ConnectivityConnectivityData transfer
This communication can allow data to beread and/or written.
From the SETTINGS menu > Data transfer for
SEAT apps , there is a checkbox to acti-
vate/deactivate the function and a dropdown
menu called Operation via apps which con-
trols the level of interaction between the apps
and the system

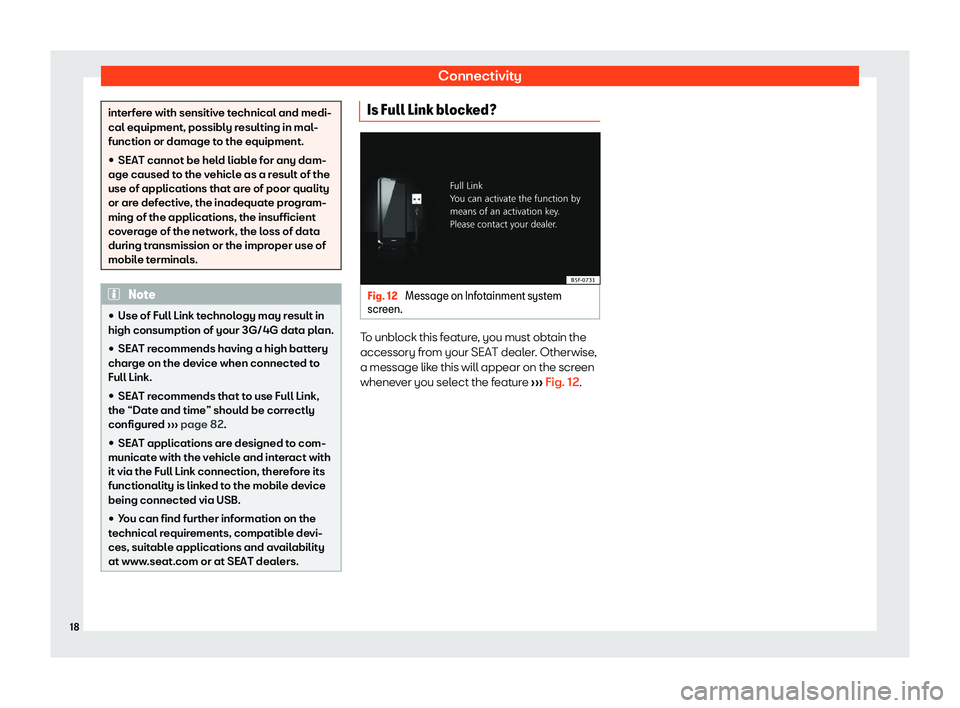

Connectivityinterfere with sensitive technical and medi-
cal equipment, possibly resulting in mal- function or damage to the equipment.

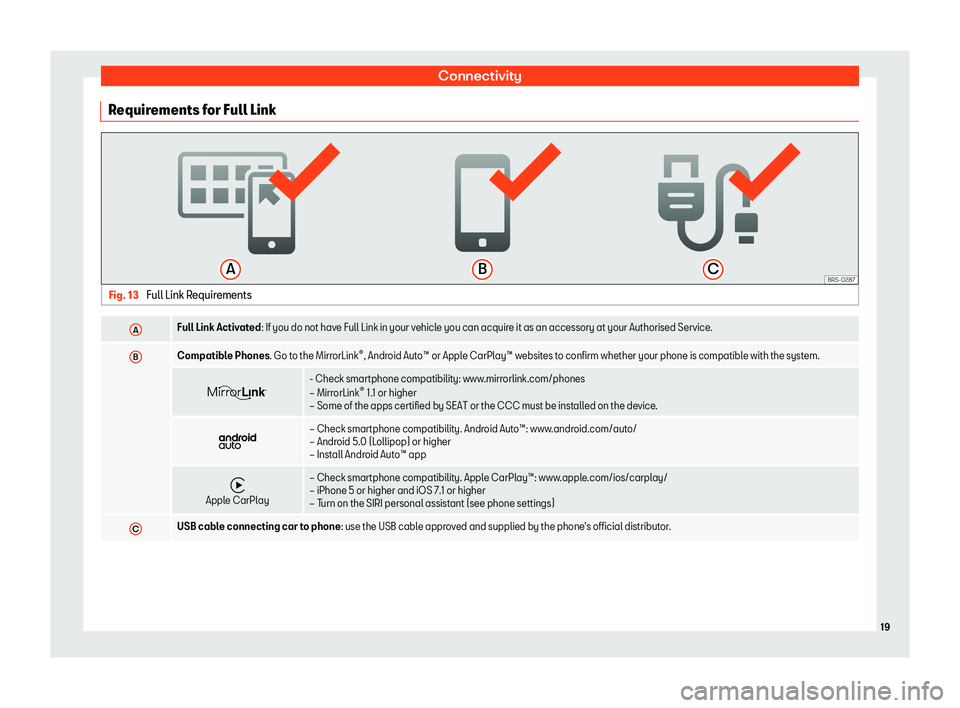

ConnectivityRequirements for Full LinkFig. 13
Full Link Requirements
AFull Link Activated: If you do not have Full Link in your vehicle you can acquire it as an accessory at your Authorised Service.BCompatible Phones . Go to the MirrorLink
