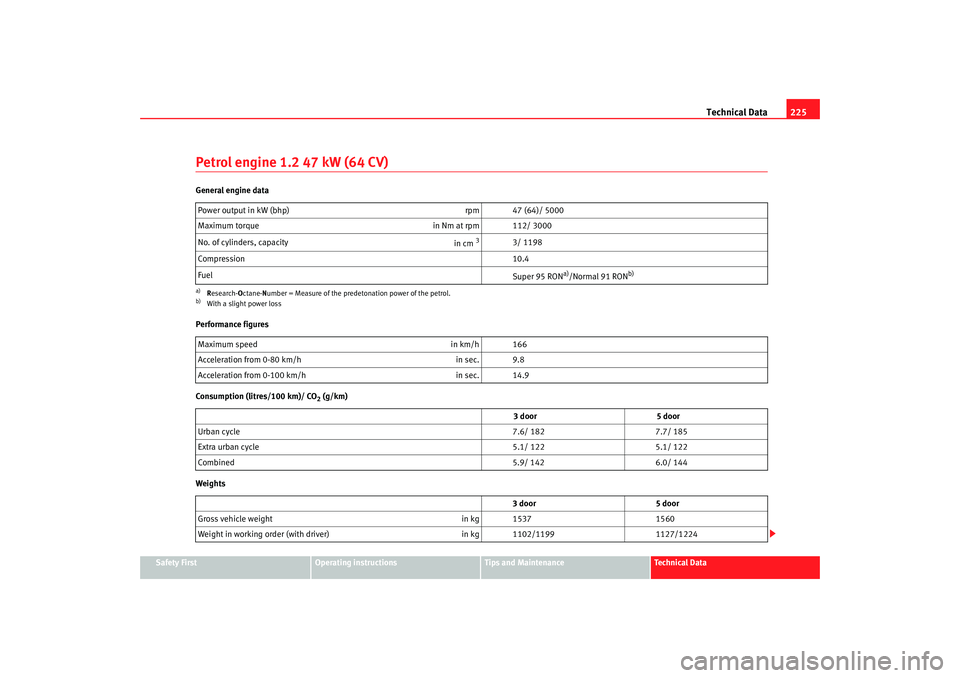

Technical Data225
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.2 47 kW (64 CV)General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights Power output in kW (bhp)
rpm 47 (64)/ 5000
Maximum torque in Nm at rpm 112/ 3000
No. of cylinders, capacity in cm
3
3/ 1198
Compression 10.4
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research-O ctane-Number = Mea sure of the pr
edetonation power of the petrol.
b)With a slight power lossMaximum speed in km/h 166
Acceleration from 0-80 km/h in sec. 9.8
Acceleration from 0-100 km/h in sec. 14.9
3 door 5 door
Urban cycle 7.6/ 182 7.7/ 185
Extra urban cycle 5.1/ 122 5.1/ 122
Combined 5.9/ 142 6.0/ 144
3 door 5 door
Gross vehicle weight in kg 15371560
Weight in working order (with driver) in kg 1102/11991127/1224
ibiza_ingles Seite 225 Mittwoch, 5. Oktober 2005 5:17 17

Technical Data231
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.8 20 VT 110 kW (150 CV)General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights Power output in kW (bhp)
rpm 110 (150)/ 5500
Maximum torque in Nm at rpm 220/ 1450-4500
No. of cylinders, capacity in cm
3
4/ 1781
Compression 9,5 ± 0,5
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research-O ctane-Number = Mea sure of the pr
edetonation power of the petrol.
b)Slight power lossMaximum speed in km/h 216
Acceleration from 0-80 km/h in sec. 5.8
Acceleration from 0-100 km/h in sec. 8.4
3 door 5 door
Urban cycle 10.8/259 10.9/262
Extra urban cycle 6.0/144 6.1/146
Combined 7.8/187 7.9/190
3 door 5 door
Gross vehicle weight in kg 16491698
Weight in working order (with driver) in kg 1229/12961278/1347
ibiza_ingles Seite 231 Mittwoch, 5. Oktober 2005 5:17 17

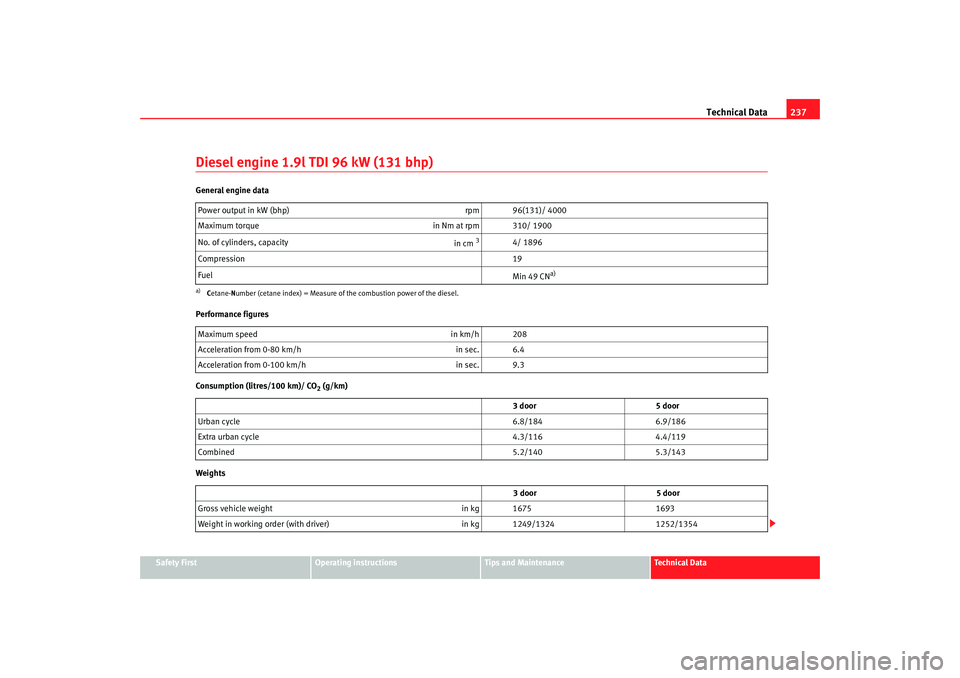

Technical Data237
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Diesel engine 1.9l TDI 96 kW (131 bhp)General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights Power output in kW (bhp)
rpm 96(131)/ 4000
Maximum torque in Nm at rpm 310/ 1900
No. of cylinders, capacity in cm
3
4/ 1896
Compression 19
Fuel Min 49 CN
a)
a)Cetane- Number (cetane inde x) = Measure of the combus tion power of the diesel.Maximum speed in km/h 208
Acceleration from 0-80 km/h in sec. 6.4
Acceleration from 0-100 km/h in sec. 9.3
3 door 5 door
Urban cycle 6.8/184 6.9/186
Extra urban cycle 4.3/116 4.4/119
Combined 5.2/140 5.3/143
3 door 5 door
Gross vehicle weight in kg 16751693
Weight in working order (with driver) in kg 1249/13241252/1354
ibiza_ingles Seite 237 Mittwoch, 5. Oktober 2005 5:17 17
