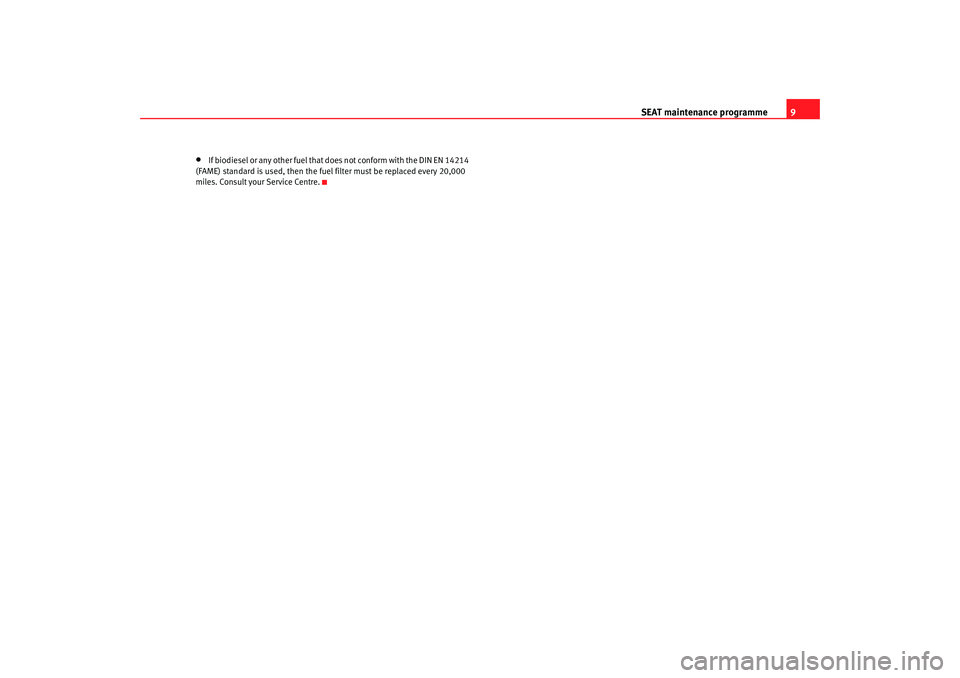

SEAT maintenance programme9
•
If biodiesel or any other fuel that does not conform with the DIN EN 14214
(FAME) standard is used, then the fuel filter must be replaced every 20,000
miles. Consult your Service Centre.
PM_ibiza_ibizaSC_ingles Seite 9 Montag, 1. September 2008 6:55 18
Page 12 of 43

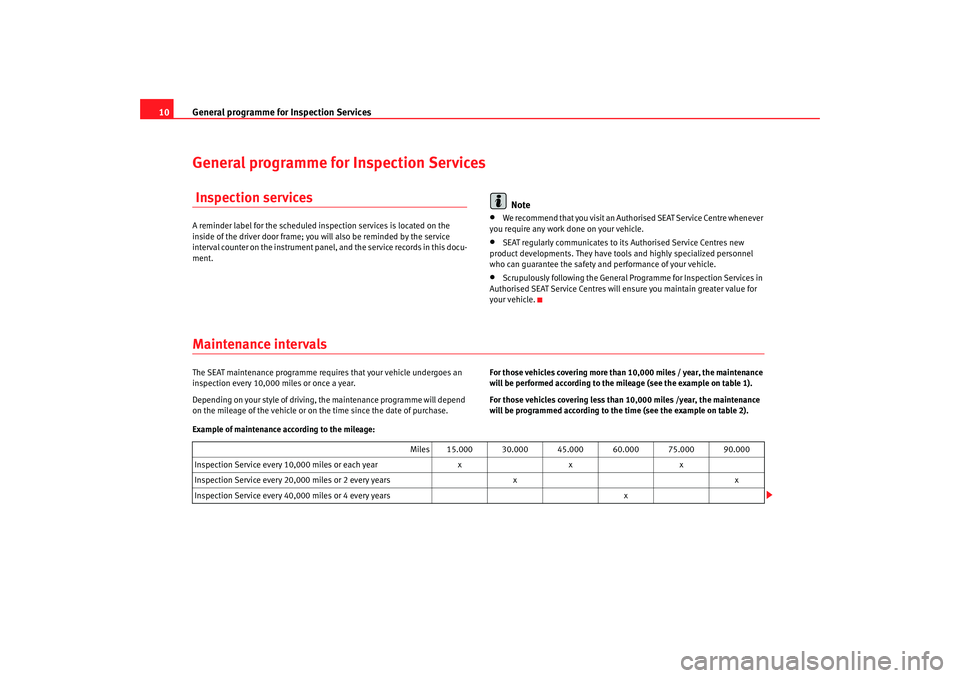

General programme for Inspection Services
10General programme for Inspection Services Inspection servicesA reminder label for the scheduled inspection services is located on the
inside of the driver door frame; you will also be reminded by the service
interval counter on the instrument pane l, and the service records in this docu-
ment.
Note
•
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle.
•
SEAT regularly communicates to its Authorised Service Centres new
product developments. They have tools and highly specialized personnel
who can guarantee the safety and performance of your vehicle.
•
Scrupulously following the General Programme for Inspection Services in
Authorised SEAT Service Centres will ensure you maintain greater value for
your vehicle.
Maintenance intervalsThe SEAT maintenance programme requires that your vehicle undergoes an
inspection every 10,000 miles or once a year.
Depending on your style of driving, the maintenance programme will depend
on the mileage of the vehicle or on the time since the date of purchase. For those vehicles covering more than 10,000 miles / year, the maintenance
will be performed according to the mileage (see the example on table 1).
For those vehicles covering less than 10,000 miles /year, the maintenance
will be programmed according to the time (see the example on table 2).
Example of maintenance according to the mileage:
Miles 15.000 30.000 45.000 60.000 75.000 90.000
Inspection Service every 10,000 miles or each year xx x
Inspection Service every 20,000 miles or 2 every years xx
Inspection Service every 40,000 miles or 4 every years x
PM_ibiza_ibizaSC_ingles Seite 10 Montag, 1. September 2008 6:55 18
Page 13 of 43

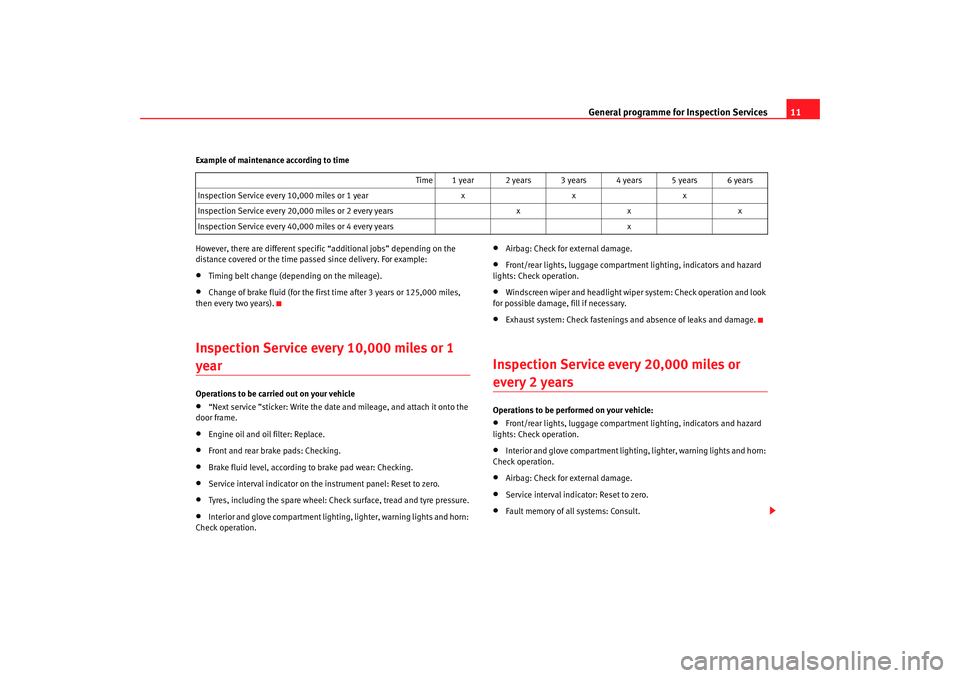

General programme for Inspection Services11
Example of maintenance according to time
However, there are different specific “additional jobs” depending on the
distance covered or the time passed since delivery. For example:•
Timing belt change (depending on the mileage).
•
Change of brake fluid (for the first time after 3 years or 125,000 miles,
then every two years).
Inspection Service every 10,000 miles or 1 yearOperations to be carried out on your vehicle•
“Next service ”sticker: Write the date and mileage, and attach it onto the
door frame.
•
Engine oil and oil filter: Replace.
•
Front and rear brake pads: Checking.
•
Brake fluid level, according to brake pad wear: Checking.
•
Service interval indicator on the instrument panel: Reset to zero.
•
Tyres, including the spare wheel: Chec k surface, tread and tyre pressure.
•
Interior and glove compartment lighting, lighter, warning lights and horn:
Check operation.
•
Airbag: Check for external damage.
•
Front/rear lights, luggage compartmen t lighting, indicators and hazard
lights: Check operation.
•
Windscreen wiper and headlight wiper system: Check operation and look
for possible damage, fill if necessary.
•
Exhaust system: Check fastenings and absence of leaks and damage.
Inspection Service every 20,000 miles or every 2 yearsOperations to be performed on your vehicle:•
Front/rear lights, luggage compartmen t lighting, indicators and hazard
lights: Check operation.
•
Interior and glove compartment lighting , lighter, warning lights and horn:
Check operation.
•
Airbag: Check for external damage.
•
Service interval indicator: Reset to zero.
•
Fault memory of all systems: Consult.
Time 1 year 2 years 3 years 4 years 5 years 6 years
Inspection Service every 10,000 miles or 1 year xxx
Inspection Service every 20,000 miles or 2 every years xxx
Inspection Service every 40,000 miles or 4 every years x
PM_ibiza_ibizaSC_ingles Seite 11 Montag, 1. September 2008 6:55 18
Page 14 of 43

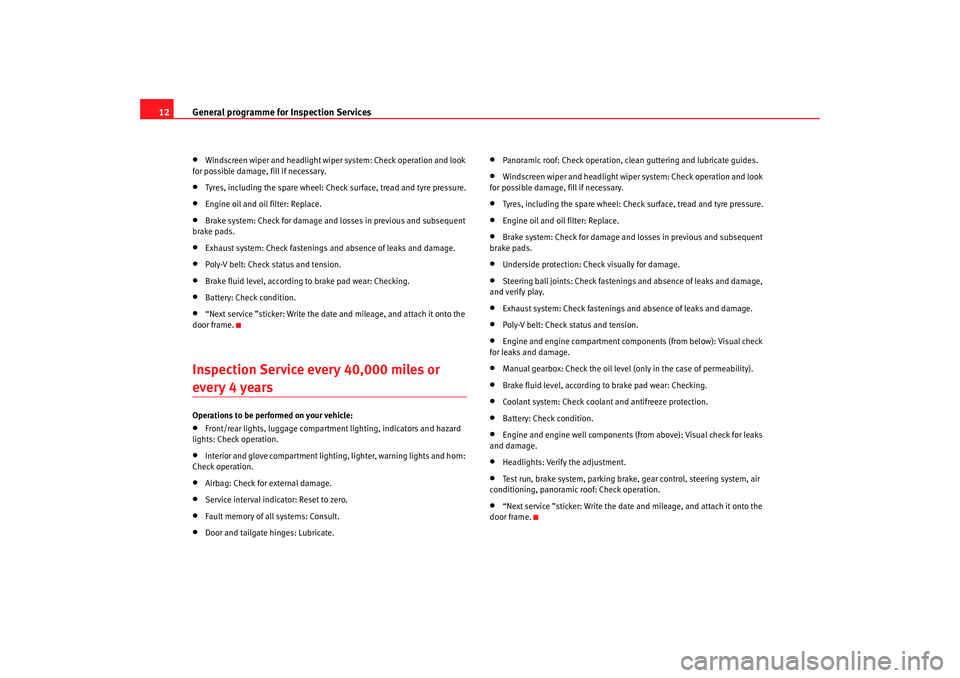

General programme for Inspection Services
12•
Windscreen wiper and headlight wiper system: Check operation and look
for possible damage, fill if necessary.
•
Tyres, including the spare wheel: Check surface, tread and tyre pressure.
•
Engine oil and oil filter: Replace.
•
Brake system: Check for damage and losses in previous and subsequent
brake pads.
•
Exhaust system: Check fastenings and absence of leaks and damage.
•
Poly-V belt: Check status and tension.
•
Brake fluid level, according to brake pad wear: Checking.
•
Battery: Check condition.
•
“Next service ”sticker: Write the date and mileage, and attach it onto the
door frame.
Inspection Service every 40,000 miles or every 4 yearsOperations to be performed on your vehicle:•
Front/rear lights, luggage compartment lighting, indicators and hazard
lights: Check operation.
•
Interior and glove compar tment lighting, lighter, warning lights and horn:
Check operation.
•
Airbag: Check for external damage.
•
Service interval indicator: Reset to zero.
•
Fault memory of all systems: Consult.
•
Door and tailgate hinges: Lubricate.
•
Panoramic roof: Check operation, cl ean guttering and lubricate guides.
•
Windscreen wiper and headlight wiper system: Check operation and look
for possible damage, fill if necessary.
•
Tyres, including the spare wheel: Check surface, tread and tyre pressure.
•
Engine oil and oil filter: Replace.
•
Brake system: Check for damage and losses in previous and subsequent
brake pads.
•
Underside protection: Check visually for damage.
•
Steering ball joints: Check fastenings and absence of leaks and damage,
and verify play.
•
Exhaust system: Check fastenings and absence of leaks and damage.
•
Poly-V belt: Check status and tension.
•
Engine and engine compartment comp onents (from below): Visual check
for leaks and damage.
•
Manual gearbox: Check the oil level (only in the case of permeability).
•
Brake fluid level, according to brake pad wear: Checking.
•
Coolant system: Check coolant and antifreeze protection.
•
Battery: Check condition.
•
Engine and engine well components (from above): Visual check for leaks
and damage.
•
Headlights: Verify the adjustment.
•
Test run, brake system, parking brake, gear control, steering system, air
conditioning, panoramic roof: Check operation.
•
“Next service ”sticker: Write the date and mileage, and attach it onto the
door frame.
PM_ibiza_ibizaSC_ingles Seite 12 Montag, 1. September 2008 6:55 18
Page 15 of 43
General programme for Inspection Services13

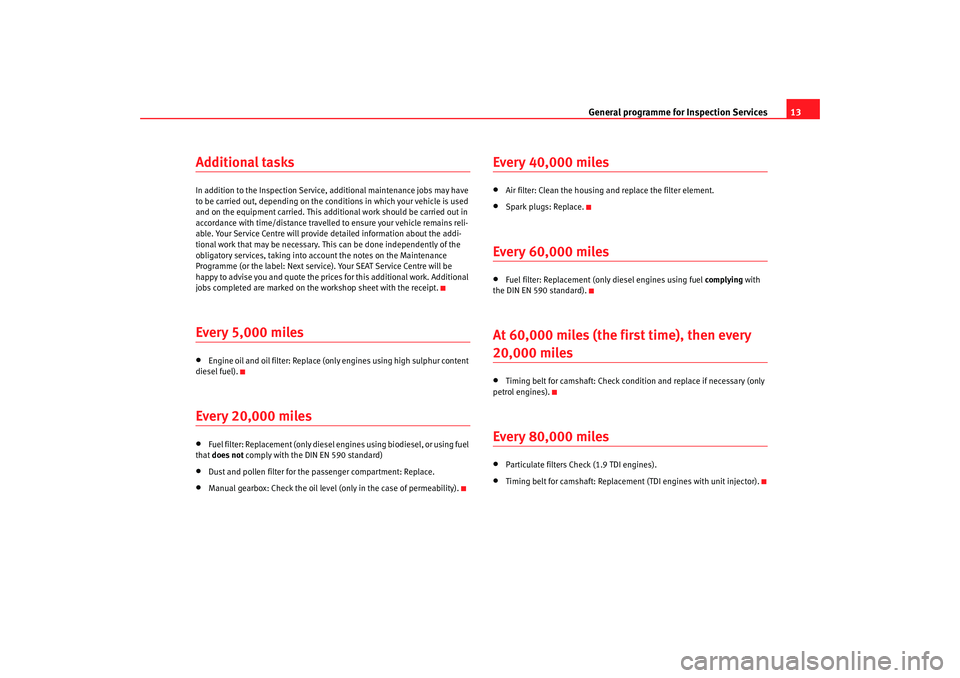

Additional tasksIn addition to the Inspection Service, additional maintenance jobs may have
to be carried out, depending on the conditions in which your vehicle is used
and on the equipment carried. This additional work should be carried out in
accordance with time/distance travelled to ensure your vehicle remains reli-
able. Your Service Centre will provide detailed information about the addi-
tional work that may be necessary. This can be done independently of the
obligatory services, taking into account the notes on the Maintenance
Programme (or the label: Next service). Your SEAT Service Centre will be
happy to advise you and quote the prices for this additional work. Additional
jobs completed are marked on the workshop sheet with the receipt.Every 5,000 miles•
Engine oil and oil filter: Replace (only engines using high sulphur content
diesel fuel).
Every 20,000 miles•
Fuel filter: Replacement (only diesel engines using biodiesel, or using fuel
that does not comply with the DIN EN 590 standard)
•
Dust and pollen filter for the passenger compartment: Replace.
•
Manual gearbox: Check the oil level (only in the case of permeability).
Every 40,000 miles•
Air filter: Clean the housing and replace the filter element.
•
Spark plugs: Replace.
Every 60,000 miles•
Fuel filter: Replacement (only diesel engines using fuel complying with
the DIN EN 590 standard).
At 60,000 miles (the first time), then every 20,000 miles•
Timing belt for camshaft : Check condition and replace if necessary (only
petrol engines).
Every 80,000 miles•
Particulate filters Check (1.9 TDI engines).
•
Timing belt for camshaft: Replacement (TDI engines with unit injector).
PM_ibiza_ibizaSC_ingles Seite 13 Montag, 1. September 2008 6:55 18
Page 16 of 43

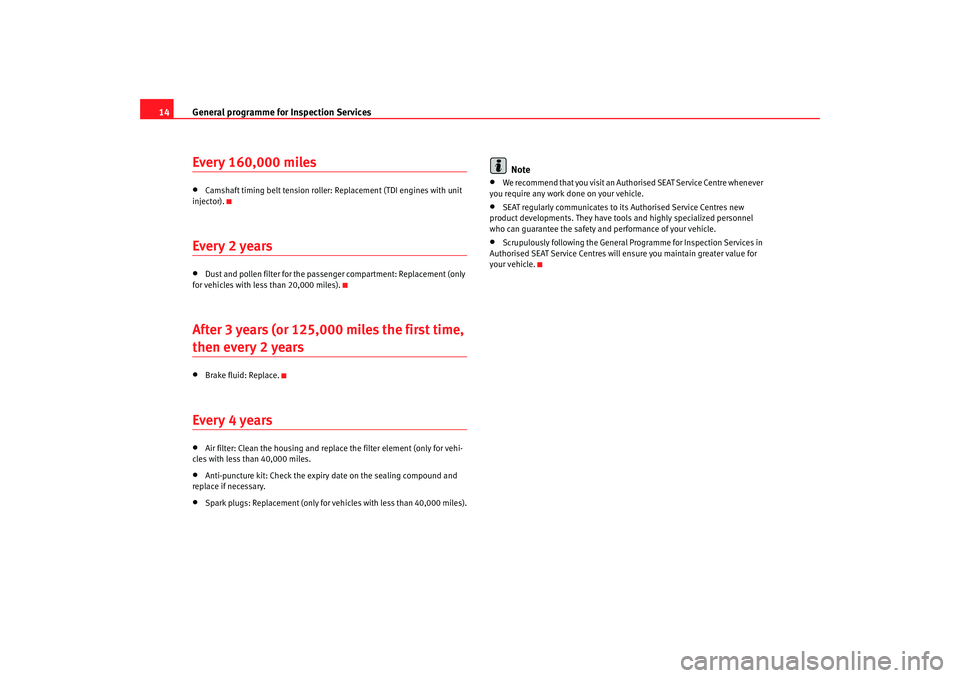

General programme for Inspection Services
14Every 160,000 miles•
Camshaft timing belt tension roller: Replacement (TDI engines with unit
injector).
Every 2 years•
Dust and pollen filter for the passenger compartment: Replacement (only
for vehicles with less than 20,000 miles).
After 3 years (or 125,000 miles the first time, then every 2 years•
Brake fluid: Replace.
Every 4 years•
Air filter: Clean the housing and replace the filter element (only for vehi-
cles with less than 40,000 miles.
•
Anti-puncture kit: Check the expiry date on the sealing compound and
replace if necessary.
•
Spark plugs: Replacement (only for vehicles with less than 40,000 miles).
Note
•
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle.
•
SEAT regularly communicates to its Authorised Service Centres new
product developments. They have tools and highly specialized personnel
who can guarantee the safety and performance of your vehicle.
•
Scrupulously following the General Programme for Inspection Services in
Authorised SEAT Service Centres will ensure you maintain greater value for
your vehicle.
PM_ibiza_ibizaSC_ingles Seite 14 Montag, 1. September 2008 6:55 18
Page 17 of 43

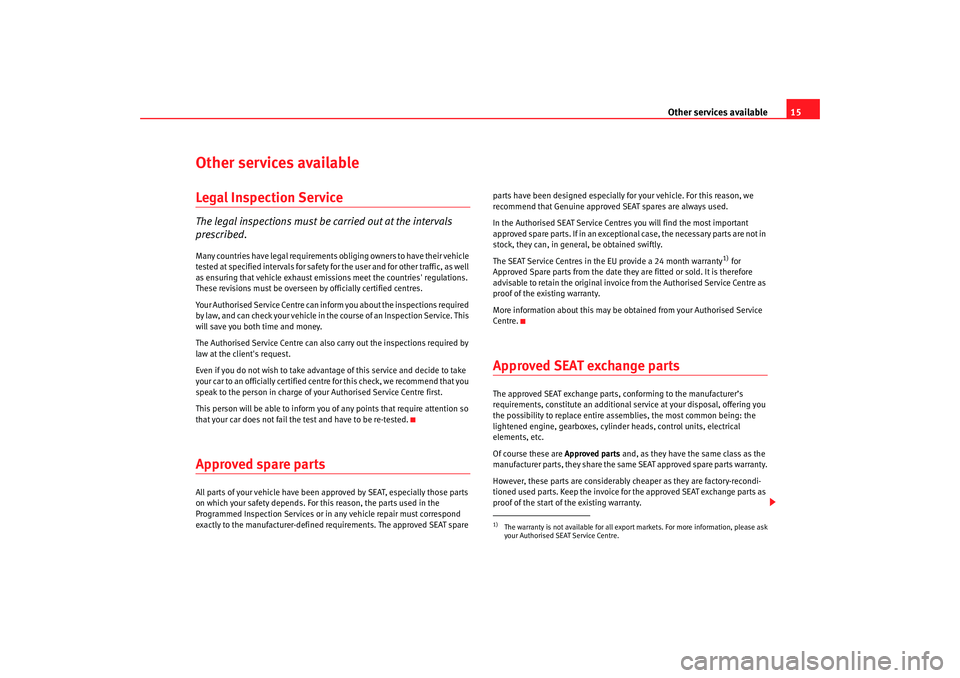

Other services available15
Other services availableLegal Inspection ServiceThe legal inspections must be carried out at the intervals
prescribed.Many countries have legal requirements obliging owners to have their vehicle
tested at specified intervals for safety for the user and for other traffic, as well
as ensuring that vehicle exhaust emissions meet the countries' regulations.
These revisions must be overseen by officially certified centres.
Your Authorised Service Centre can inform you about the inspections required
by law, and can check your vehicle in the course of an Inspection Service. This
will save you both time and money.
The Authorised Service Centre can also carry out the inspections required by
law at the client's request.
Even if you do not wish to take advantage of this service and decide to take
your car to an officially certified centre for this check, we recommend that you
speak to the person in charge of your Authorised Service Centre first.
This person will be able to inform you of any points that require attention so
that your car does not fail the test and have to be re-tested.Approved spare parts All parts of your vehicle have been approved by SEAT, especially those parts
on which your safety depends. For this reason, the parts used in the
Programmed Inspection Services or in any vehicle repair must correspond
exactly to the manufacturer-defined r equirements. The approved SEAT spare parts have been designed especially for your vehicle. For this reason, we
recommend that Genuine approved SEAT spares are always used.
In the Authorised SEAT Service Centres you will find the most important
approved spare parts. If in an exceptional case, the necessary parts are not in
stock, they can, in general, be obtained swiftly.
The SEAT Service Centres in the EU provide a 24 month warranty
1) for
Approved Spare parts from the date they are fitted or sold. It is therefore
advisable to retain the original invoice from the Authorised Service Centre as
proof of the existing warranty.
More information about this may be obtained from your Authorised Service
Centre.
Approved SEAT exchange parts The approved SEAT exchange parts, conforming to the manufacturer’s
requirements, constitute an additional service at your disposal, offering you
the possibility to replace entire assemblies, the most common being: the
lightened engine, gearboxes, cylinder heads, control units, electrical
elements, etc.
Of course these are Approved parts and, as they have the same class as the
manufacturer parts, they share the same SEAT approved spare parts warranty.
However, these parts are considerably cheaper as they are factory-recondi-
tioned used parts. Keep the invoice for the approved SEAT exchange parts as
proof of the start of the existing warranty.1)The warranty is not available for all export markets. For more information, please ask
your Authorised SEAT Service Centre.
PM_ibiza_ibizaSC_ingles Seite 15 Montag, 1. September 2008 6:55 18

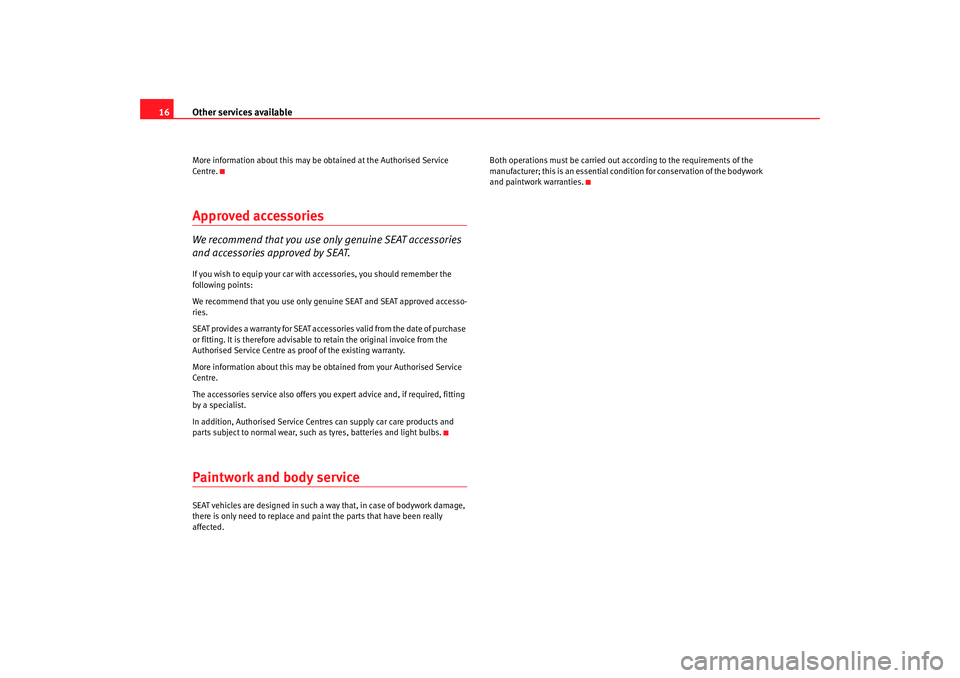

Page 18 of 43
Other services available
16More information about this may be obtained at the Authorised Service
Centre.Approved accessories We recommend that you use only genuine SEAT accessories
and accessories approved by SEAT.If you wish to equip your car with accessories, you should remember the
following points:
We recommend that you use only genuine SEAT and SEAT approved accesso-
ries.
SEAT provides a warranty for SEAT accessories valid from the date of purchase
or fitting. It is therefore advisable to retain the original invoice from the
Authorised Service Centre as proof of the existing warranty.
More information about this may be obtained from your Authorised Service
Centre.
The accessories service also offers you expert advice and, if required, fitting
by a specialist.
In addition, Authorised Service Centres can supply car care products and
parts subject to normal wear, such as tyres, batteries and light bulbs.Paintwork and body serviceSEAT vehicles are designed in such a way that, in case of bodywork damage,
there is only need to replace and paint the parts that have been really
affected. Both operations must be carried out according to the requirements of the
manufacturer; this is an essential cond
ition for conservation of the bodywork
and paintwork warranties.
PM_ibiza_ibizaSC_ingles Seite 16 Montag, 1. September 2008 6:55 18

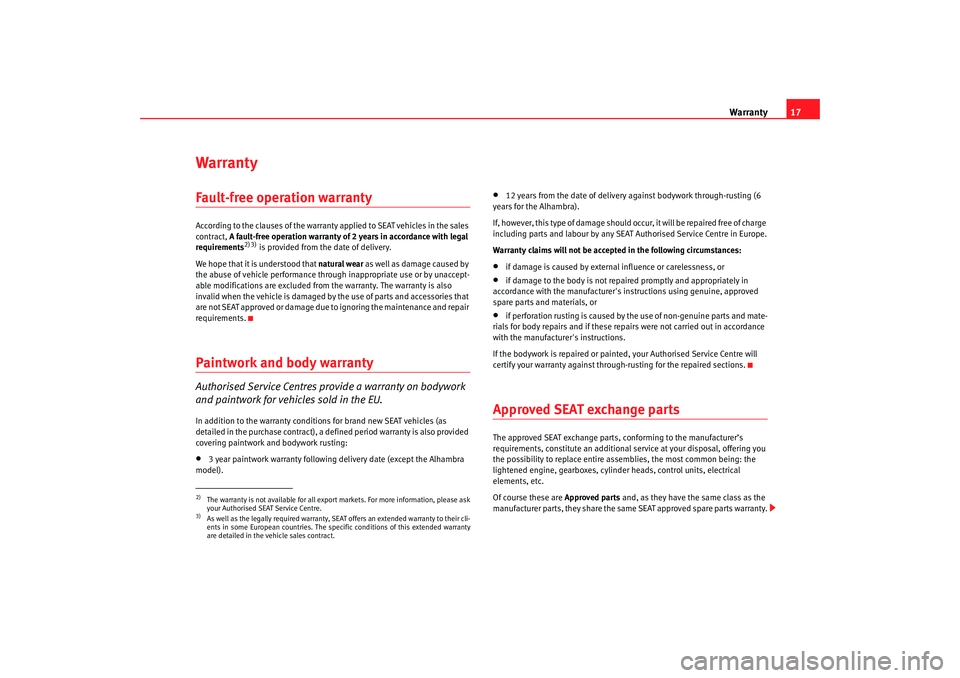

Page 19 of 43
Warranty17
WarrantyFault-free operation warrantyAccording to the clauses of the warranty applied to SEAT vehicles in the sales
contract, A fault-free operation warranty of 2 years in accordance with legal
requirements
2) 3)
is provided from the date of delivery.
We hope that it is understood that natural wear as well as damage caused by
the abuse of vehicle performance through inappropriate use or by unaccept-
able modifications are excluded from the warranty. The warranty is also
invalid when the vehicle is damaged by the use of parts and accessories that
are not SEAT approved or damage due to ignoring the maintenance and repair
requirements.
Paintwork and body warranty Authorised Service Centres provide a warranty on bodywork
and paintwork for vehicles sold in the EU.In addition to the warranty conditions for brand new SEAT vehicles (as
detailed in the purchase contract), a defined period warranty is also provided
covering paintwork and bodywork rusting:•
3 year paintwork warranty following delivery date (except the Alhambra
model).
•
12 years from the date of delivery against bodywork through-rusting (6
years for the Alhambra).
If, however, this type of damage should occur, it will be repaired free of charge
including parts and labour by any SEAT Authorised Service Centre in Europe.
Warranty claims will not be accepted in the following circumstances:
•
if damage is caused by external influence or carelessness, or
•
if damage to the body is not repaired promptly and appropriately in
accordance with the manufacturer's in structions using genuine, approved
spare parts and materials, or
•
if perforation rusting is caused by the use of non-genuine parts and mate-
rials for body repairs and if these repairs were not carried out in accordance
with the manufacturer's instructions.
If the bodywork is repaired or painted, your Authorised Service Centre will
certify your warranty against through-rusting for the repaired sections.
Approved SEAT exchange parts The approved SEAT exchange parts, conforming to the manufacturer’s
requirements, constitute an additional service at your disposal, offering you
the possibility to replace entire assemblies, the most common being: the
lightened engine, gearboxes, cylinder heads, control units, electrical
elements, etc.
Of course these are Approved parts and, as they have the same class as the
manufacturer parts, they share the same SEAT approved spare parts warranty.
2)The warranty is not available for all export markets. For more information, please ask
your Authorised SEAT Service Centre.3)As well as the legally required warranty, SEAT offers an extended warranty to their cli-
ents in some European countries. The specific conditions of this extended warranty
are detailed in the vehicle sales contract.
PM_ibiza_ibizaSC_ingles Seite 17 Montag, 1. September 2008 6:55 18

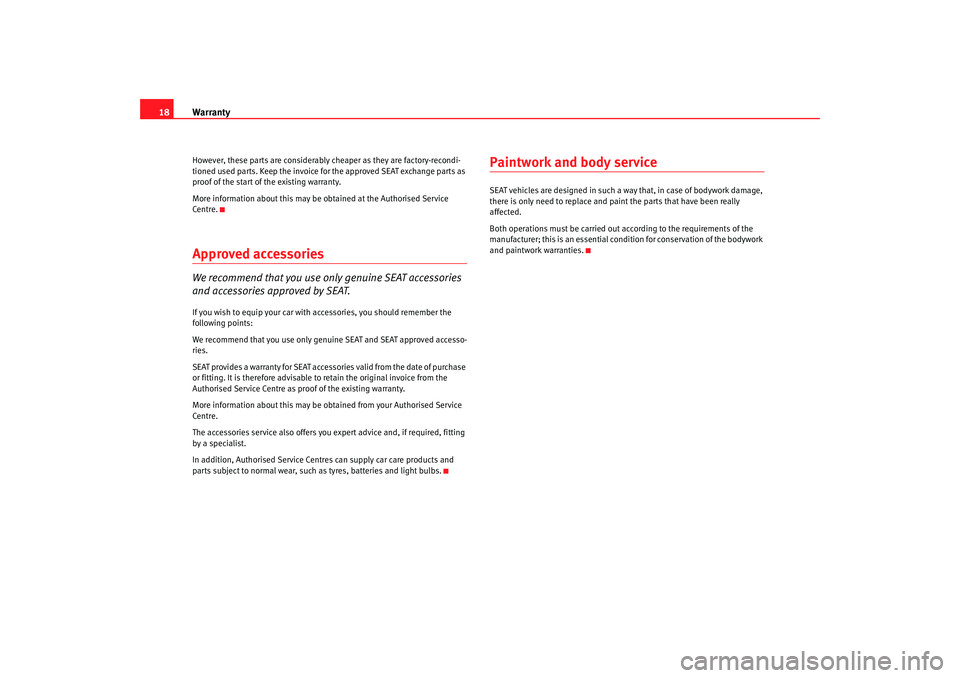

Page 20 of 43
Warranty
18However, these parts are considerably cheaper as they are factory-recondi-
tioned used parts. Keep the invoice for the approved SEAT exchange parts as
proof of the start of the existing warranty.
More information about this may be obtained at the Authorised Service
Centre.Approved accessories We recommend that you use only genuine SEAT accessories
and accessories approved by SEAT.If you wish to equip your car with accessories, you should remember the
following points:
We recommend that you use only genuine SEAT and SEAT approved accesso-
ries.
SEAT provides a warranty for SEAT accessories valid from the date of purchase
or fitting. It is therefore advisable to retain the original invoice from the
Authorised Service Centre as proof of the existing warranty.
More information about this may be obtained from your Authorised Service
Centre.
The accessories service also offers you expert advice and, if required, fitting
by a specialist.
In addition, Authorised Service Centres can supply car care products and
parts subject to normal wear, such as tyres, batteries and light bulbs.
Paintwork and body serviceSEAT vehicles are designed in such a way that, in case of bodywork damage,
there is only need to replace and paint the parts that have been really
affected.
Both operations must be carried out according to the requirements of the
manufacturer; this is an essential cond ition for conservation of the bodywork
and paintwork warranties.
PM_ibiza_ibizaSC_ingles Seite 18 Montag, 1. September 2008 6:55 18
