Seat Ibiza 5D 2008 Radio System COMPACT DISC

compact disc
owner’s manual
manual de instruções
auto emoción

G
B

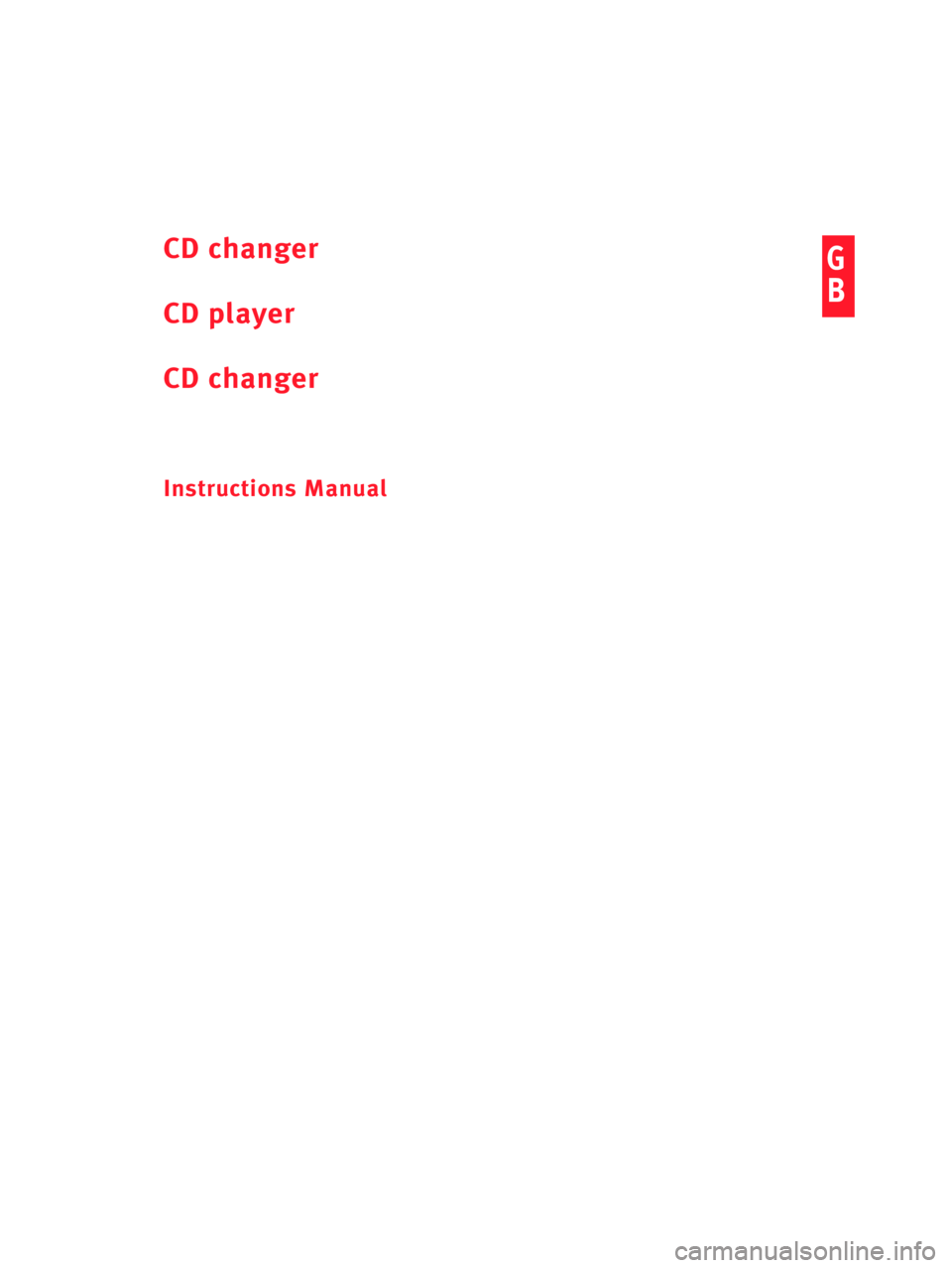

CD changer
CD player
CD changer
Instructions Manual

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––1
G
B


Introduction
Some car radio models allow you to
operate a CD changer.
Depending on your vehicle model ver-
sion, the CD changer is located either in
the glove compartment or the luggage
compartment.
Note
Only the controls needed for CD opera-
tion are described in this Owner’s
Manual.
The operation of the radio and cassette
player and further tips on the function of
the radio system are in the radio operat-
ing instructions pamphlet.

2––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––CONTENTS

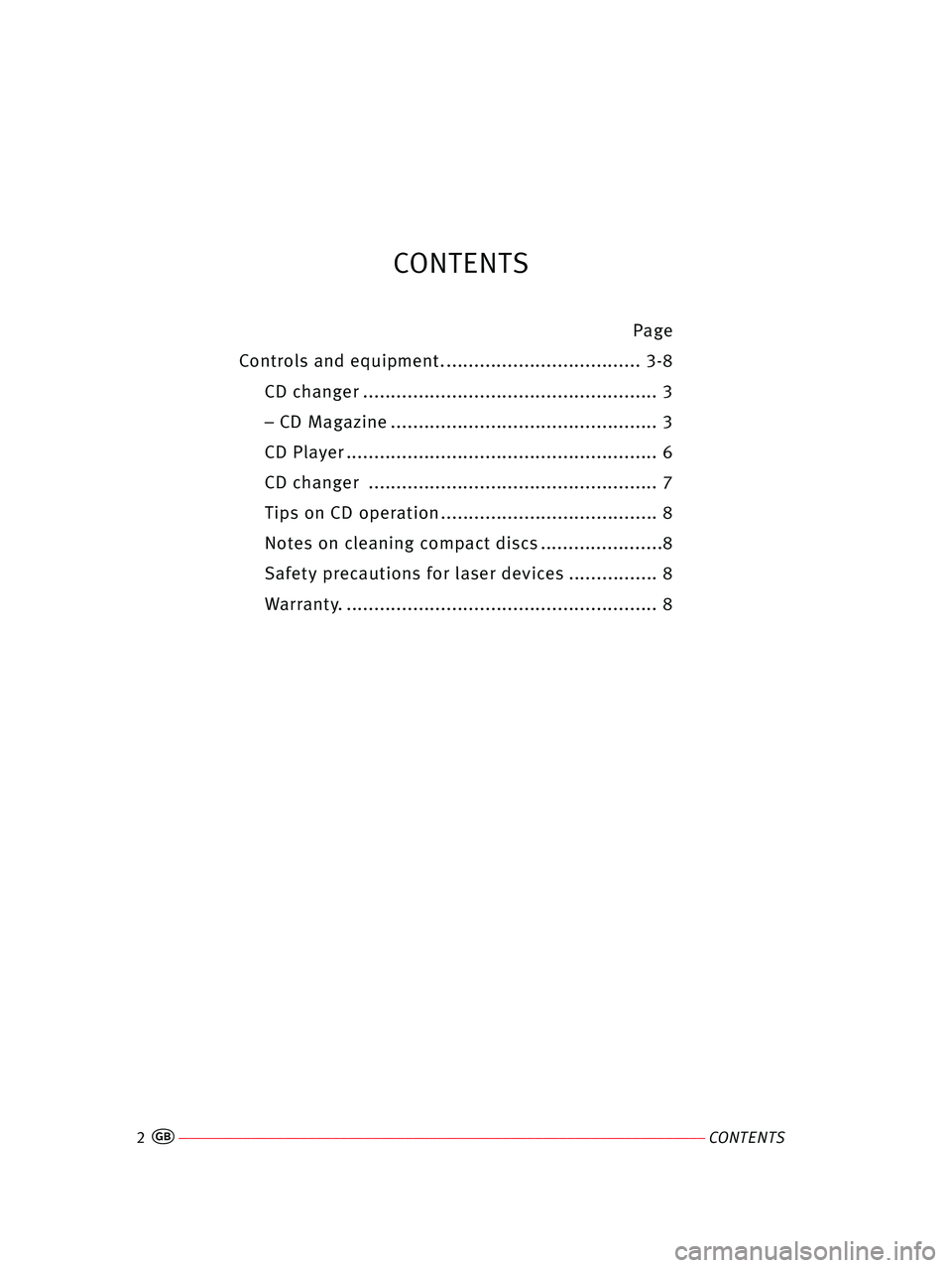

CONTENTS
Page
Controls and equipment. ................................... 3-8
CD changer ..................................................... 3
– CD Magazine ................................................ 3
CD Player ........................................................ 6
CD changer .................................................... 7
Tips on CD operation ....................................... 8
Notes on cleaning compact discs ......................8
Safety precautions for laser devices ................ 8
Warranty. ........................................................ 8

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––3

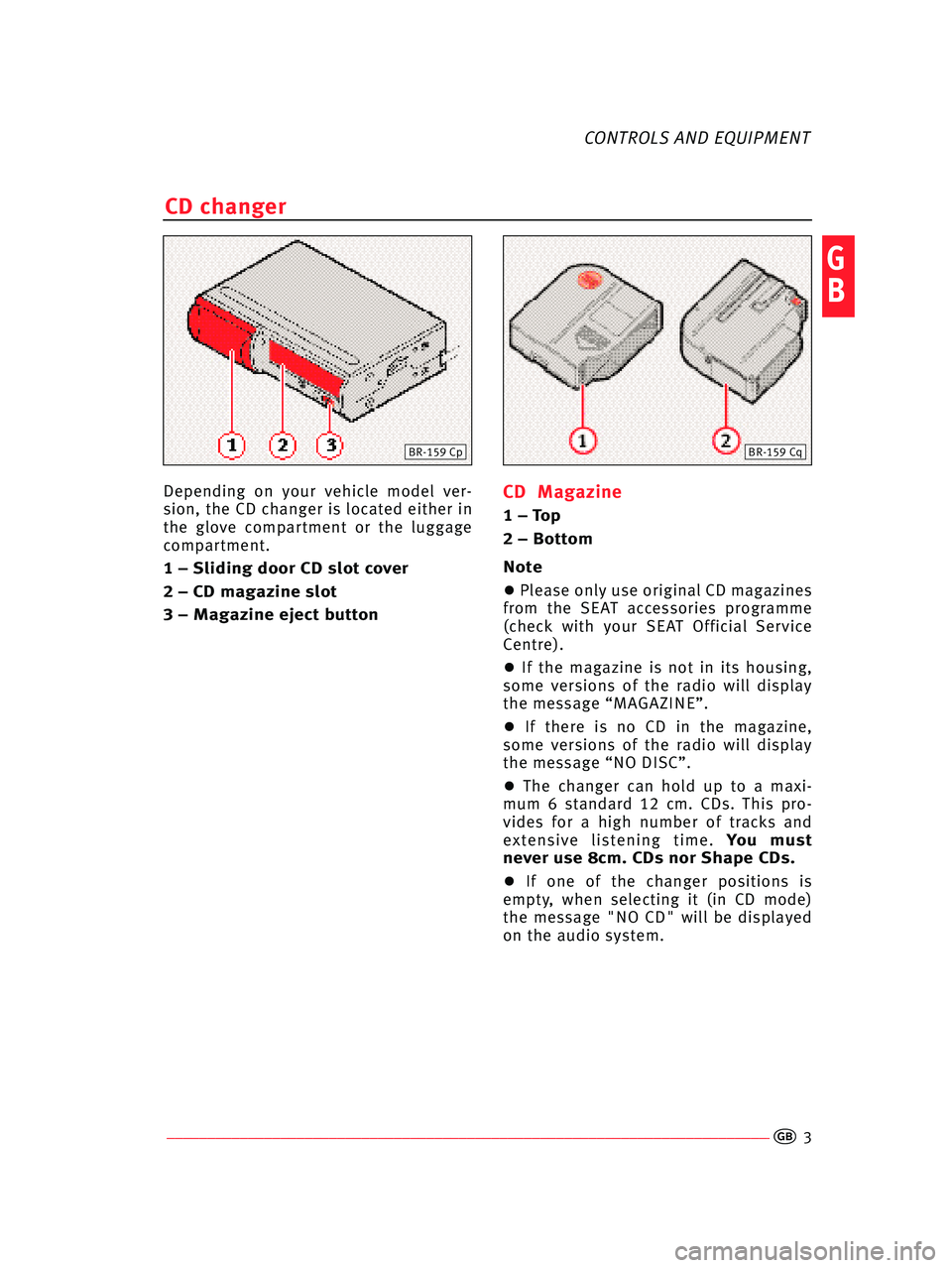

Depending on your vehicle model ver-
sion, the CD changer is located either in
the glove compartment or the luggage
compartment.
1 – Sliding door CD slot cover
2 – CD magazine slot
3 – Magazine eject button
CD Magazine
1 – Top
2 – Bottom
Note
•Please only use original CD magazines
from the SEAT accessories programme
(check with your SEAT Official Service
Centre).
•If the magazine is not in its housing,
some versions of the radio will display
the message “MAGAZINE”.
•If there is no CD in the magazine,
some versions of the radio will display
the message “NO DISC”.
•The changer can hold up to a maxi-
mum 6 standard 12 cm. CDs. This pro-
vides for a high number of tracks and
extensive listening time.
You must
never use 8cm. CDs nor Shape CDs.
•If one of the changer positions is
empty, when selecting it (in CD mode)
the message "NO CD" will be displayed
on the audio system.
CONTROLS AND EQUIPMENT
CD changer
G
B


BR-159 CqBR-159 Cp

4––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

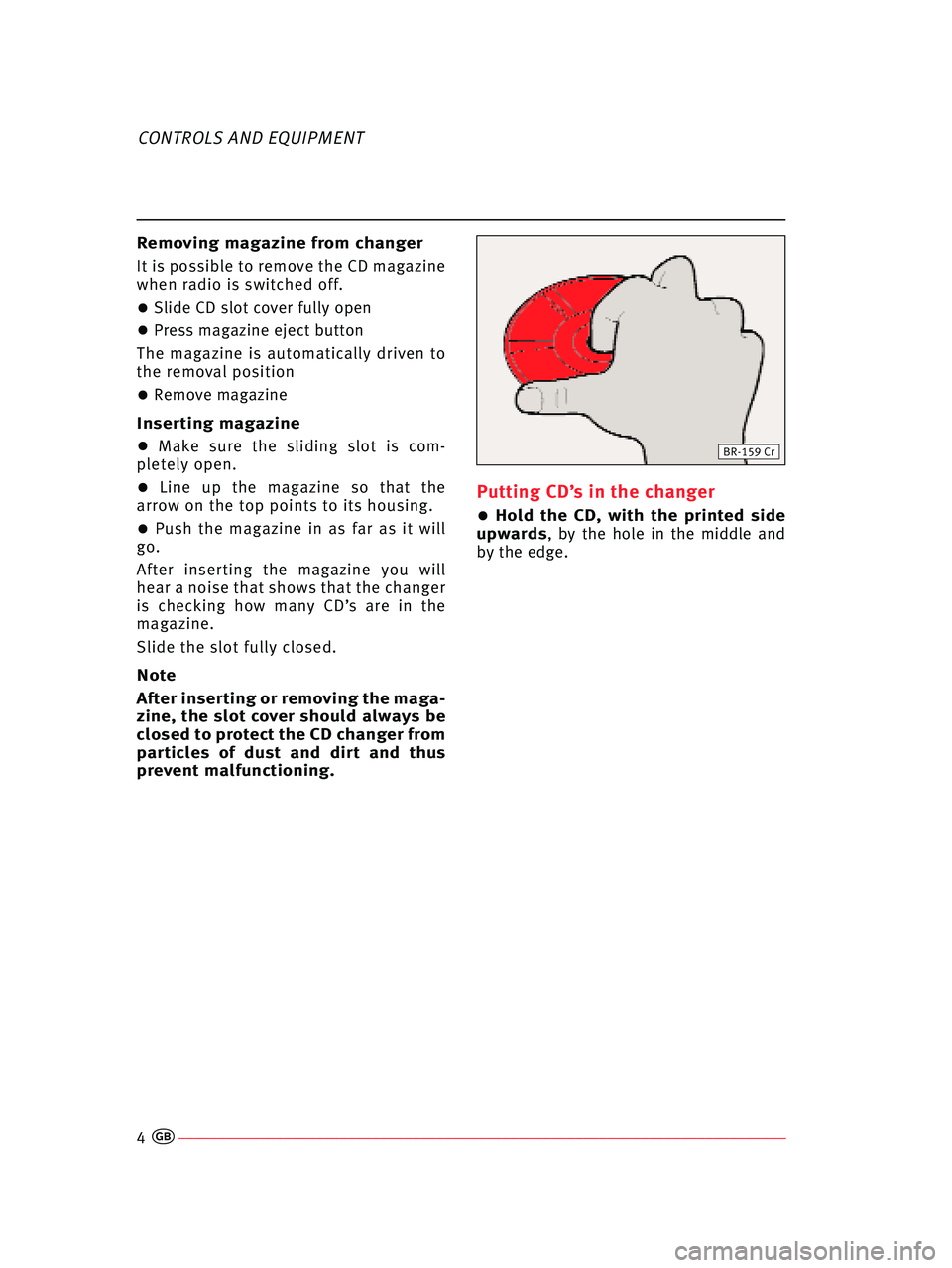

Removing magazine from changer
It is possible to remove the CD magazine
when radio is switched off.
•Slide CD slot cover fully open
•Press magazine eject button
The magazine is automatically driven to
the removal position
•Remove magazine
Inserting magazine
•Make sure the sliding slot is com-
pletely open.
•Line up the magazine so that the
arrow on the top points to its housing.
•Push the magazine in as far as it will
go.
After inserting the magazine you will
hear a noise that shows that the changer
is checking how many CD’s are in the
magazine.
Slide the slot fully closed.
Note
After inserting or removing the maga-
zine, the slot cover should always be
closed to protect the CD changer from
particles of dust and dirt and thus
prevent malfunctioning.
Putting CD’s in the changer
•Hold the CD, with the printed side
upwards,by the hole in the middle and
by the edge.
CONTROLS AND EQUIPMENT
BR-159 Cr

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––5

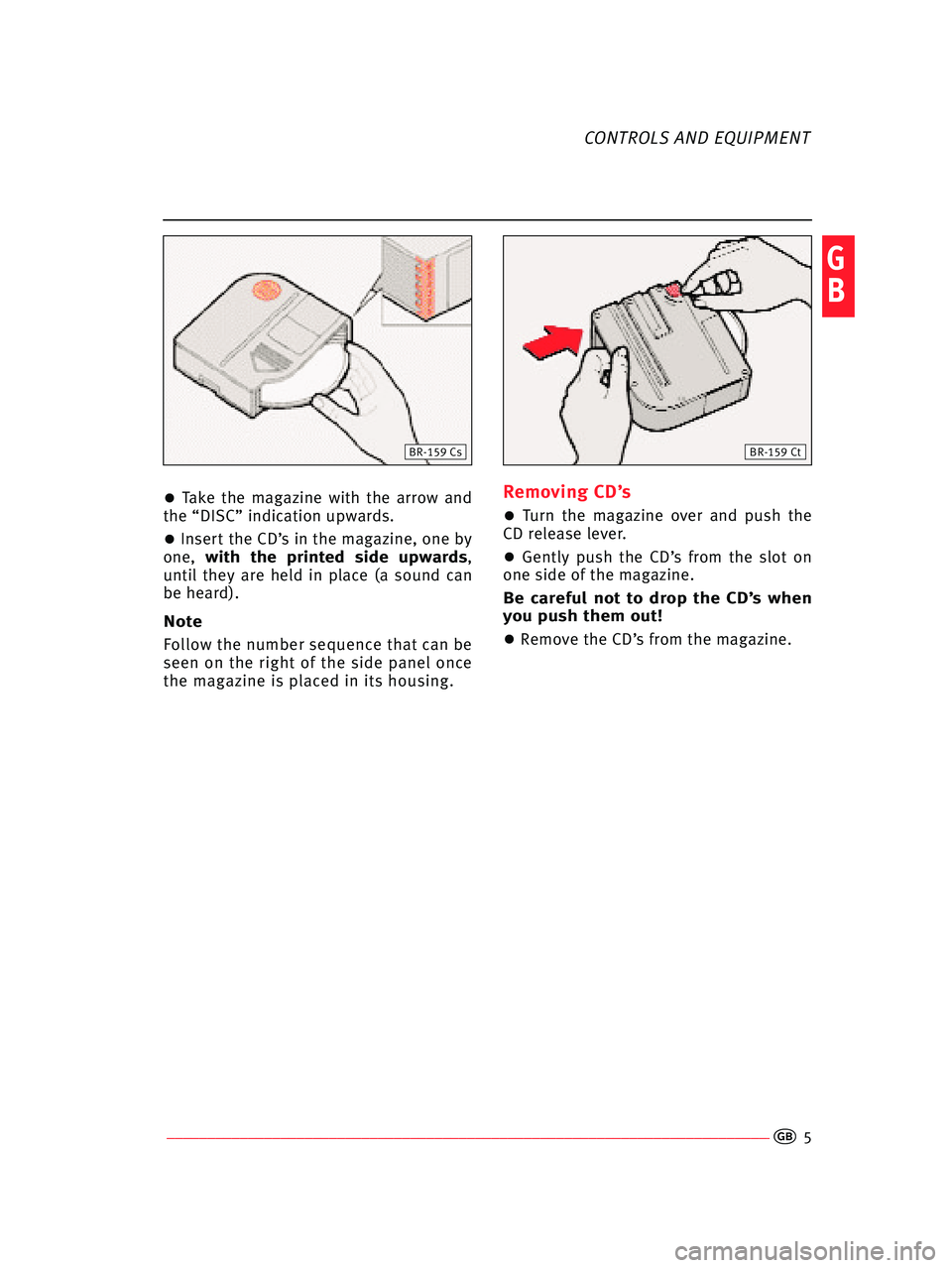

•Take the magazine with the arrow and
the “DISC” indication upwards.
•Insert the CD’s in the magazine, one by
one, with the printed side upwards,until they are held in place (a sound can
be heard).
Note
Follow the number sequence that can be
seen on the right of the side panel once
the magazine is placed in its housing.
Removing CD’s
•Turn the magazine over and push the
CD release lever.
•Gently push the CD’s from the slot on
one side of the magazine.
Be careful not to drop the CD’s when
you push them out!
•Remove the CD’s from the magazine.
CONTROLS AND EQUIPMENT
G
B


BR-159 CtBR-159 Cs

6––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

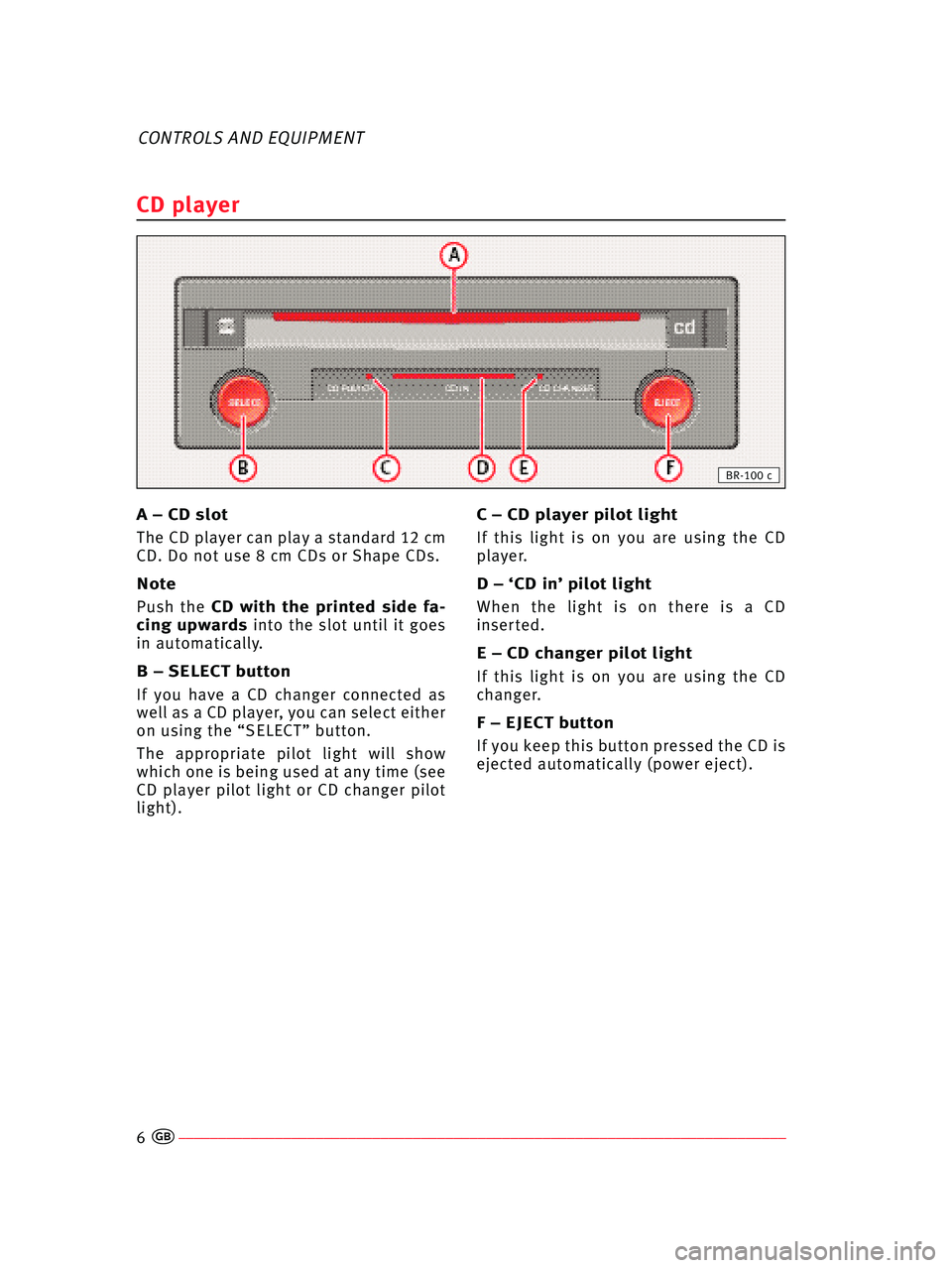

A – CD slot
The CD player can play a standard 12 cm
CD. Do not use 8 cm CDs or Shape CDs.
Note
Push the CD with the printed side fa-
cing upwardsinto the slot until it goes
in automatically.
B – SELECT button
If you have a CD changer connected as
well as a CD player, you can select either
on using the “SELECT” button.
The appropriate pilot light will show
which one is being used at any time (see
CD player pilot light or CD changer pilot
light).
C – CD player pilot light
If this light is on you are using the CD
player.
D – ‘CD in’ pilot light
When the light is on there is a CD
inserted.
E – CD changer pilot light
If this light is on you are using the CD
changer.
F – EJECT button
If you keep this button pressed the CD is
ejected automatically (power eject).
CONTROLS AND EQUIPMENT
CD player
BR-100 c
