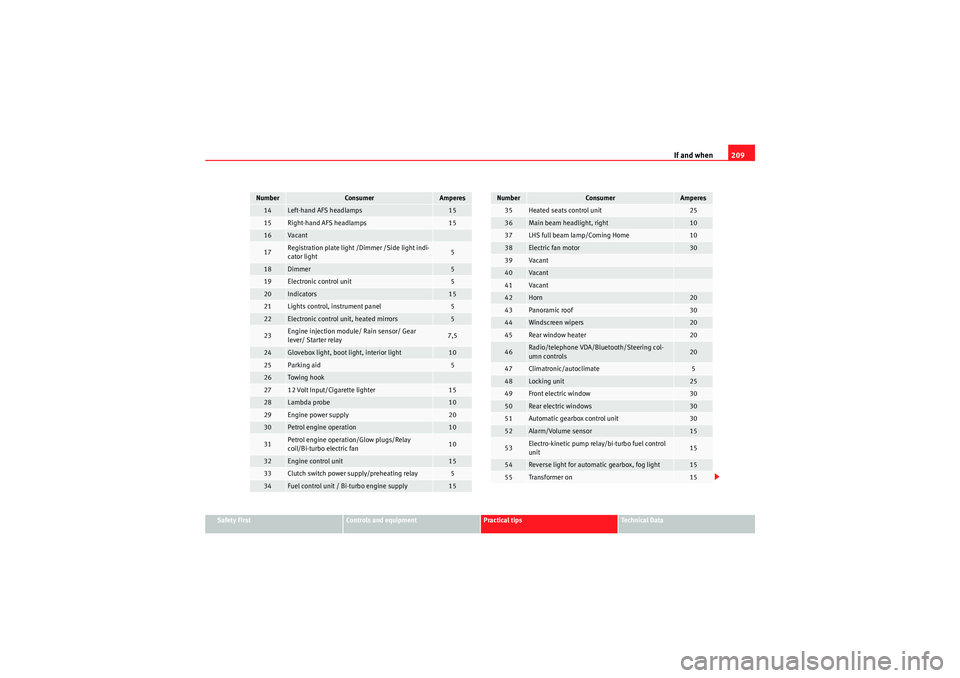

If and when209
Safety First
Controls and equipment
Practical tips
Technical Data
14
Left-hand AFS headlamps
15
15
Right-hand AFS headlamps
15
16
Va can t
17
Registration plate light /Dimmer /Side light indi-
cator light
5
18
Dimmer
5
19
Electronic control unit
5
20
Indicators
15
21
Lights control, instrument panel
5
22
Electronic control unit, heated mirrors
5
23
Engine injection module/ Rain sensor/ Gear
lever/ Starter relay
7,5
24
Glovebox light, boot light, interior light
10
25
Parking aid
5
26
Towing hook
27
12 Volt Input/Cigarette lighter
15
28
Lambda probe
10
29
Engine power supply
20
30
Petrol engine operation
10
31
Petrol engine operation/Glow plugs/Relay
coil/Bi-turbo electric fan
10
32
Engine control unit
15
33
Clutch switch power supply/preheating relay
5
34
Fuel control unit / Bi-turbo engine supply
15
Number
Consumer
Amperes
35
Heated seats control unit
25
36
Main beam headlight, right
10
37
LHS full beam lamp/Coming Home
10
38
Electric fan motor
30
39
Va can t
40
Va can t
41
Va can t
42
Horn
20
43
Panoramic roof
30
44
Windscreen wipers
20
45
Rear window heater
20
46
Radio/telephone VDA/Bluetooth/Steering col-
umn controls
20
47
Climatronic/autoclimate
5
48
Locking unit
25
49
Front electric window
30
50
Rear electric windows
30
51
Automatic gearbox control unit
30
52
Alarm/Volume sensor
15
53
Electro-kinetic pump relay/bi-turbo fuel control
unit
15
54
Reverse light for automatic gearbox, fog light
15
55
Transformer on
15
Number
Consumer
Amperes
Ibiza_EN.book Seite 209 Montag, 14. September 2009 6:19 18
Page 212 of 257

If and when

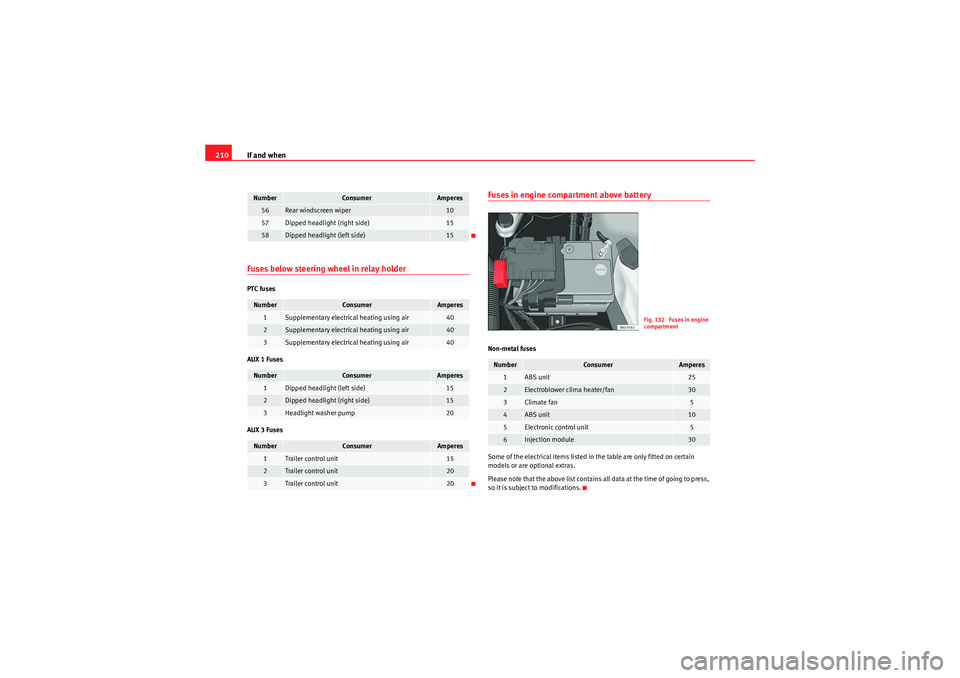

210Fuses below steering wheel in relay holderPTC fuses
AUX 1 Fuses
AUX 3 Fuses
Fuses in engine compartment above batteryNon-metal fuses
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list contains all data at the time of going to press,
so it is subject to modifications.
56
Rear windscreen wiper
10
57
Dipped headlight (right side)
15
58
Dipped headlight (left side)
15
Number
Consumer
Amperes
1
Supplementary electrical heating using air
40
2
Supplementary electrical heating using air
40
3
Supplementary electrical heating using air
40
Number
Consumer
Amperes
1
Dipped headlight (left side)
15
2
Dipped headlight (right side)
15
3
Headlight washer pump
20
Number
Consumer
Amperes
1
Trailer control unit
15
2
Trailer control unit
20
3
Trailer control unit
20
Number
Consumer
Amperes
Number
Consumer
Amperes
1
ABS unit
25
2
Electroblower clima heater/fan
30
3
Climate fan
5
4
ABS unit
10
5
Electronic control unit
5
6
Injection module
30
Fig. 132 Fuses in engine
compartment
Ibiza_EN.book Seite 210 Montag, 14. September 2009 6:19 18
Page 213 of 257

If and when211
Safety First
Controls and equipment
Practical tips
Technical Data

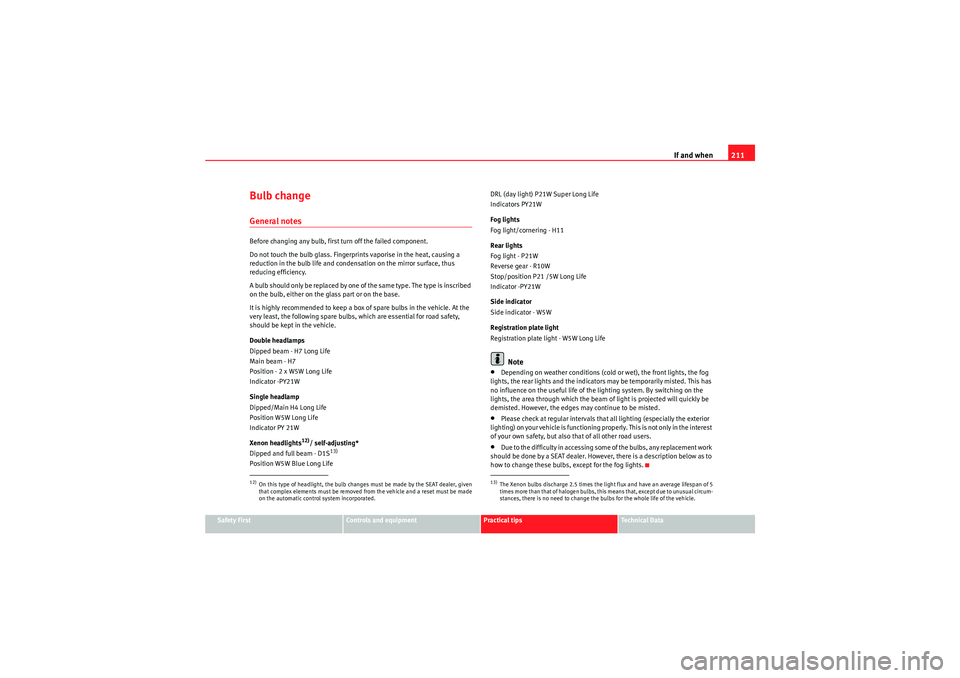

Bulb changeGeneral notesBefore changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the sam e type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the following spare bulbs, which are essential for road safety,
should be kept in the vehicle.
Double headlamps
Dipped beam - H7 Long Life
Main beam - H7
Position - 2 x W5W Long Life
Indicator -PY21W
Single headlamp
Dipped/Main H4 Long Life
Position W5W Long Life
Indicator PY 21W
Xenon headlights
12)/ self-adjusting*
Dipped and full beam - D1S
13)
Position W5W Blue Long Life DRL (day light) P21W Super Long Life
Indicators PY21W
Fog lights
Fog light/cornering - H11
Rear lights
Fog light - P21W
Reverse gear - R10W
Stop/position P21 /5W Long Life
Indicator -PY21W
Side indicator
Side indicator - W5W
Registration plate light
Registration plate light - W5W Long Life
Note
•Depending on weather conditions (cold or wet), the front lights, the fog
lights, the rear lights and the indicators may be temporarily misted. This has
no influence on the useful life of the lighting system. By switching on the
lights, the area through which the beam of light is projected will quickly be
demisted. However, the edges may continue to be misted.•Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning pr operly. This is not only in the interest
of your own safety, but also that of all other road users.•D u e t o t h e d i f f i c u l t y i n a cc e s s i n g s o m e o f t h e b u l b s , a n y r e p l a c e m e n t w o r k
should be done by a SEAT dealer. However, there is a description below as to
how to change these bulbs, except for the fog lights.
12)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.
13)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.
Ibiza_EN.book Seite 211 Montag, 14. September 2009 6:19 18
Page 214 of 257

If and when

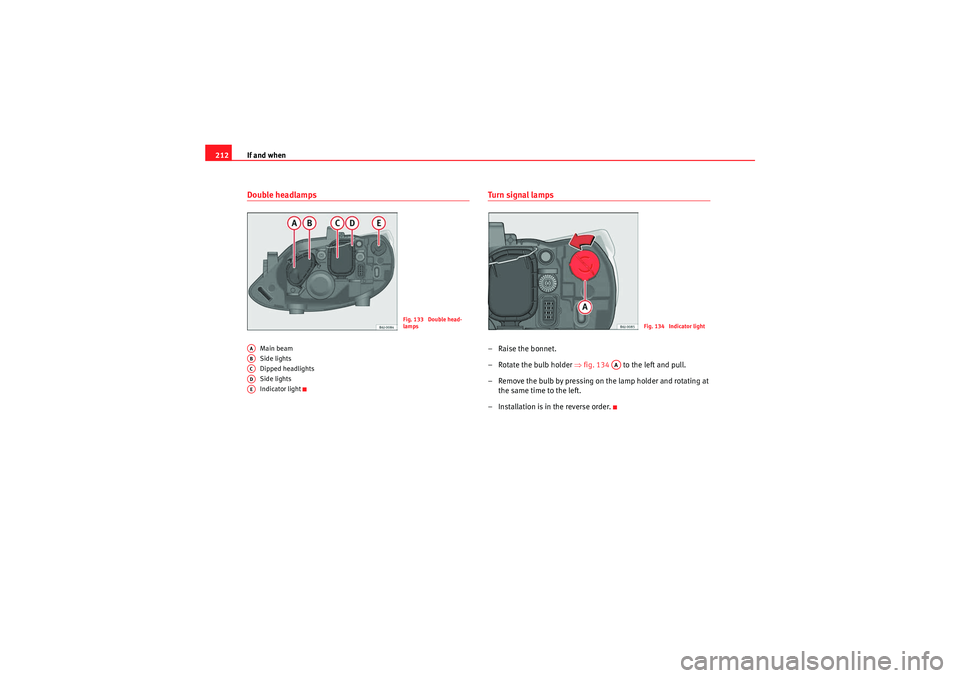

212Double headlamps
Main beam
Side lights
Dipped headlights
Side lights
Indicator light
Turn signal lamps– Raise the bonnet.
– Rotate the bulb holder ⇒fig. 134 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is in the reverse order.
Fig. 133 Double head-
lamps
AAABACADAE
Fig. 134 Indicator light
AA
Ibiza_EN.book Seite 212 Montag, 14. September 2009 6:19 18
Page 215 of 257

If and when213
Safety First
Controls and equipment
Practical tips
Technical Data

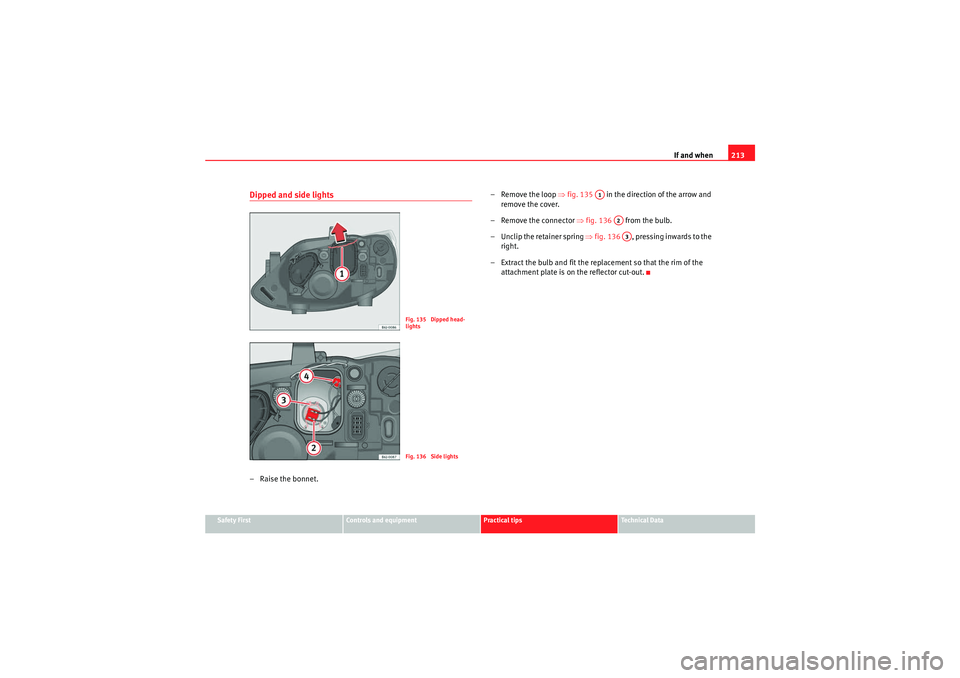

Dipped and side lights– Raise the bonnet. – Remove the loop
⇒fig. 135 in the direction of the arrow and
remove the cover.
– Remove the connector ⇒fig. 136 from the bulb.
– Unclip the retainer spring ⇒fig. 136 , pressing inwards to the
right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.
Fig. 135 Dipped head-
lightsFig. 136 Side lights
A1
A2A3
Ibiza_EN.book Seite 213 Montag, 14. September 2009 6:19 18
Page 216 of 257

If and when

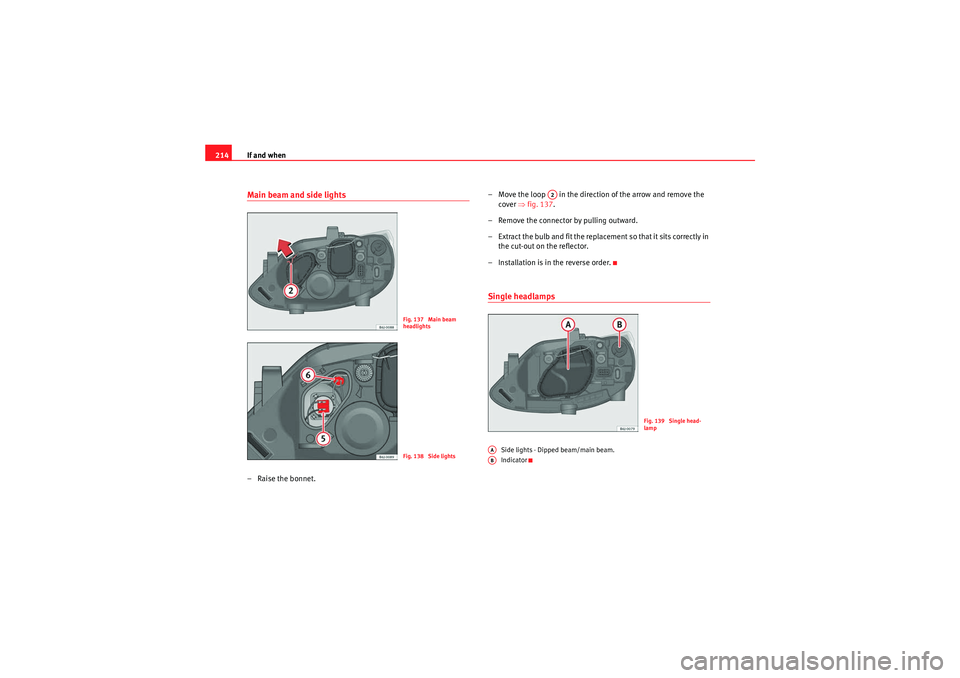

214Main beam and side lights– Raise the bonnet. – Move the loop in the direction of the arrow and remove the
cover ⇒fig. 137 .
– Remove the connector by pulling outward.
– Extract the bulb and fit the replacement so that it sits correctly in the cut-out on the reflector.
– Installation is in the reverse order.
Single headlamps
Side lights - Dipped beam/main beam.
Indicator
Fig. 137 Main beam
headlightsFig. 138 Side lights
A2
Fig. 139 Single head-
lamp
AAAB
Ibiza_EN.book Seite 214 Montag, 14. September 2009 6:19 18
Page 217 of 257

If and when215
Safety First
Controls and equipment
Practical tips
Technical Data

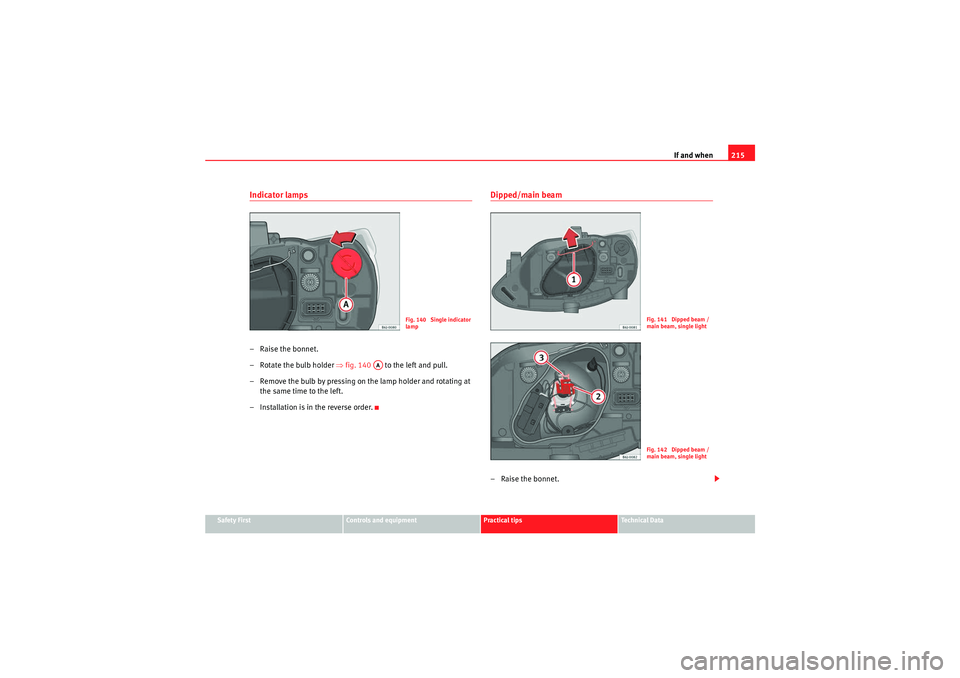

Indicator lamps– Raise the bonnet.
– Rotate the bulb holder ⇒fig. 140 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is in the reverse order.
Dipped/main beam– Raise the bonnet.
Fig. 140 Single indicator
lamp
AA
Fig. 141 Dipped beam /
main beam, single lightFig. 142 Dipped beam /
main beam, single light
Ibiza_EN.book Seite 215 Montag, 14. September 2009 6:19 18
Page 218 of 257

If and when
216

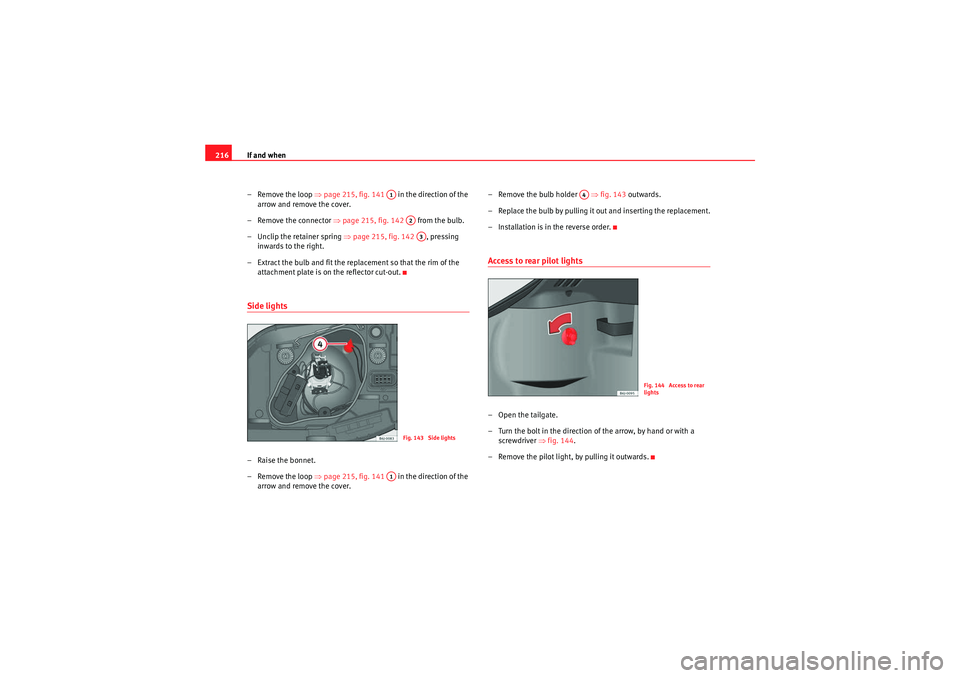

– Remove the loop ⇒page 215, fig. 141 in the direction of the
arrow and remove the cover.
– Remove the connector ⇒page 215, fig. 142 from the bulb.
– Unclip the retainer spring ⇒page 215, fig. 142 , pressing
inwards to the right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Side lights – Raise the bonnet.
– Remove the loop ⇒page 215, fig. 141 in the direction of the
arrow and remove the cover. – Remove the bulb holder
⇒fig. 143 outwards.
– Replace the bulb by pulling it out and inserting the replacement.
– Installation is in the reverse order.
Access to rear pilot lights–Open the tailgate.
– Turn the bolt in the direction of the arrow, by hand or with a screwdriver ⇒fig. 144 .
– Remove the pilot light, by pulling it outwards.
A1
A2A3
Fig. 143 Side lights
A1
A4
Fig. 144 Access to rear
lights
Ibiza_EN.book Seite 216 Montag, 14. September 2009 6:19 18
Page 219 of 257

If and when217
Safety First
Controls and equipment
Practical tips
Technical Data

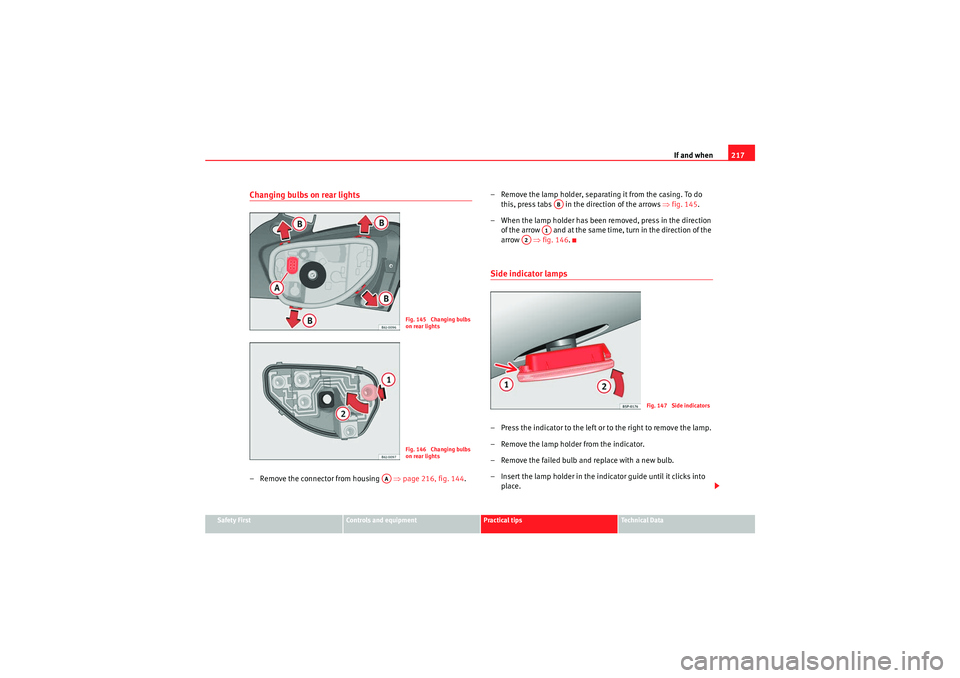

Changing bulbs on rear lights– Remove the connector from housing ⇒page 216, fig. 144 .– Remove the lamp holder, separating it from the casing. To do
this, press tabs in the direction of the arrows ⇒fig. 145 .
– When the lamp holder has been removed, press in the direction of the arrow and at the same time, turn in the direction of the
arrow ⇒fig. 146 .
Side indicator lamps– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into
place.
Fig. 145 Changing bulbs
on rear lightsFig. 146 Changing bulbs
on rear lights
AA
AB
A1
A2
Fig. 147 Side indicators
Ibiza_EN.book Seite 217 Montag, 14. September 2009 6:19 18
Page 220 of 257

If and when
218

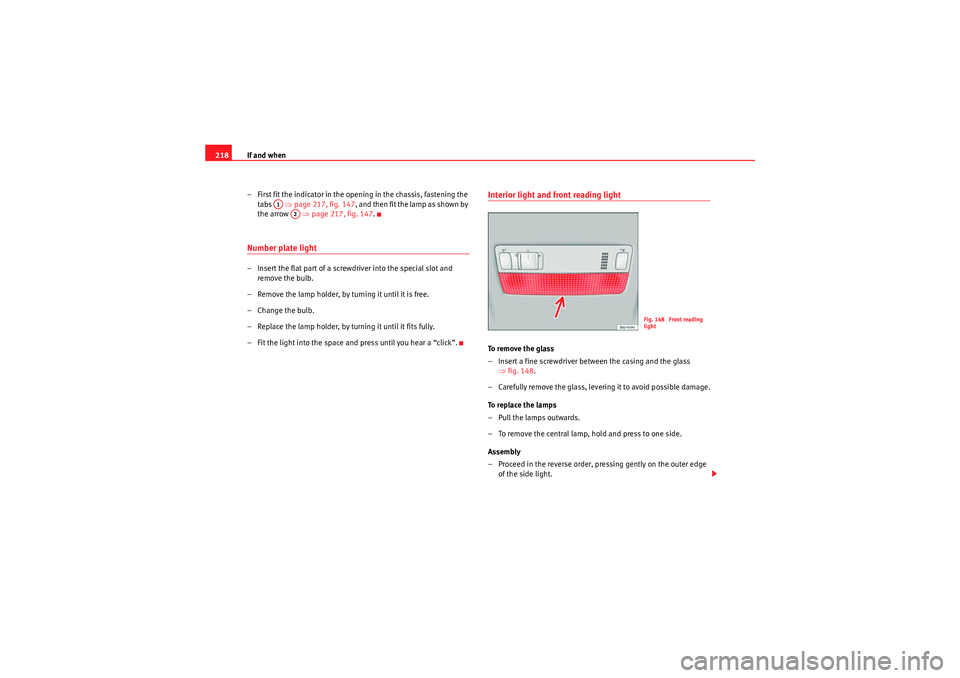

– First fit the indicator in the open ing in the chassis, fastening the
tabs ⇒page 217, fig. 147, and then fit the lamp as shown by
the arrow ⇒page 217, fig. 147 .Number plate light– Insert the flat part of a screwdriver into the special slot and
remove the bulb.
– Remove the lamp holder, by turning it until it is free.
– Change the bulb.
– Replace the lamp holder, by turning it until it fits fully.
– Fit the light into the space and press until you hear a “click”.
Interior light and front reading light To r e m o v e t h e g l a s s
– Insert a fine screwdriver between the casing and the glass ⇒fig. 148 .
– Carefully remove the glass, levering it to avoid possible damage.
To replace the lamps
– Pull the lamps outwards.
– To remove the central lamp, hold and press to one side.
Assembly
– Proceed in the reverse order, pressing gently on the outer edge of the side light.
A1
A2
Fig. 148 Front reading
light
Ibiza_EN.book Seite 218 Montag, 14. September 2009 6:19 18
