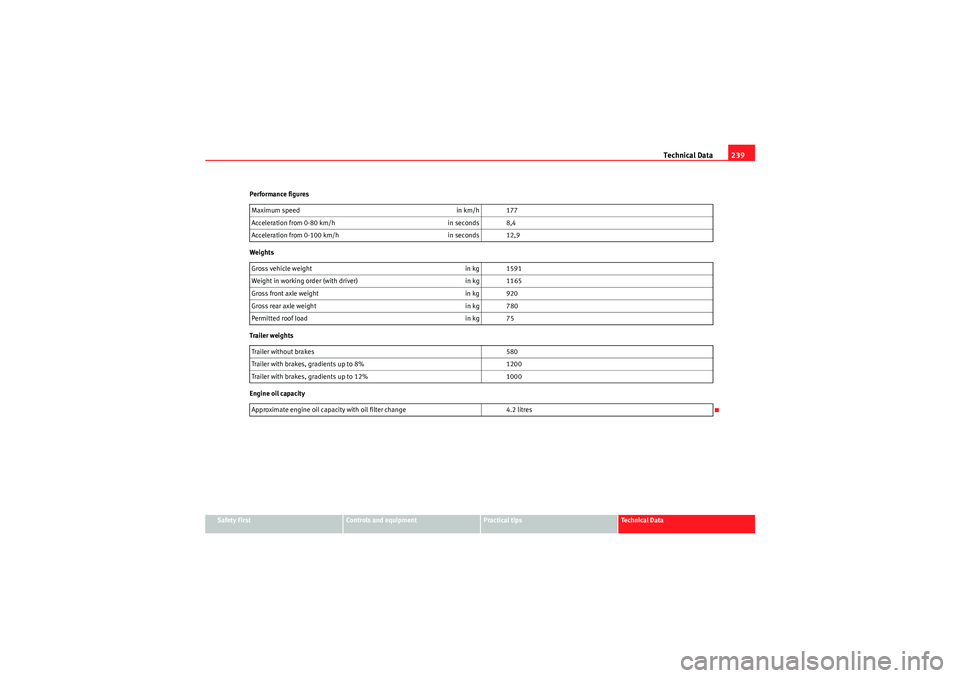

Technical Data239
Safety First
Controls and equipment
Practical tips
Technical Data
Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 177
Acceleration from 0-80 km/h in seconds 8,4
Acceleration from 0-100 km/h in seconds 12,9
Gross vehicle weight in kg 1591
Weight in working order (with driver) in kg 1165
Gross front axle weight in kg 920
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4.2 litres
Ibiza_EN.book Seite 239 Montag, 14. September 2009 6:19 18
Page 242 of 257

Technical Data

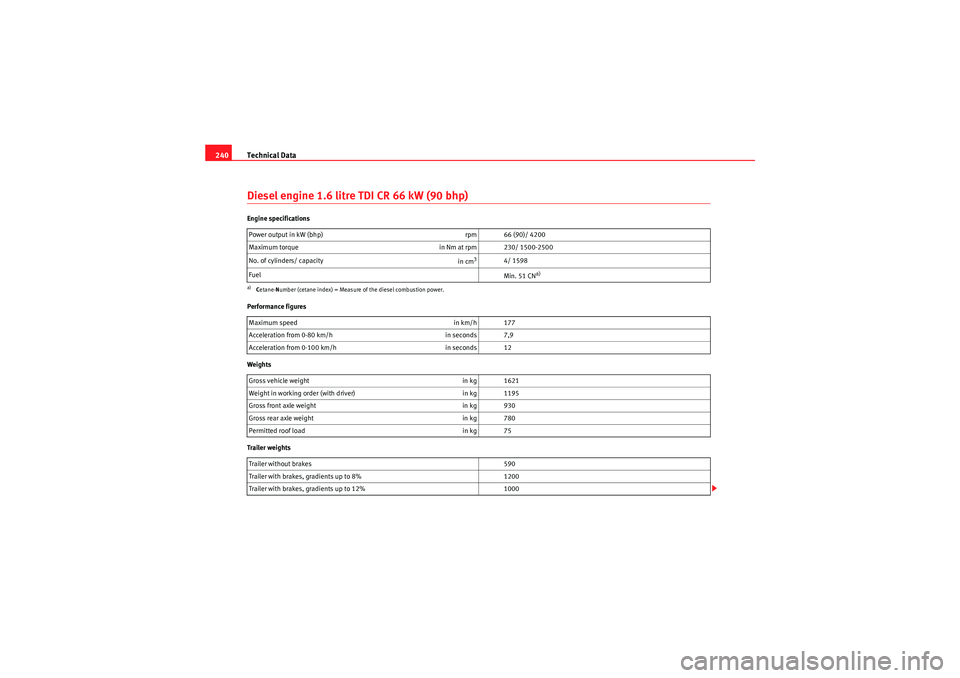

240Diesel engine 1.6 litre TDI CR 66 kW (90 bhp)Engine specifications
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 66 (90)/ 4200
Maximum torque in Nm at rpm 230/ 1500-2500
No. of cylinders/ capacity in cm
3
4/ 1598
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 177
Acceleration from 0-80 km/h in seconds 7,9
Acceleration from 0-100 km/h in seconds 12
Gross vehicle weight in kg 1621
Weight in working order (with driver) in kg 1195
Gross front axle weight in kg 930
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 590
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Ibiza_EN.book Seite 240 Montag, 14. September 2009 6:19 18
Page 243 of 257

Technical Data241
Safety First
Controls and equipment
Practical tips
Technical Data

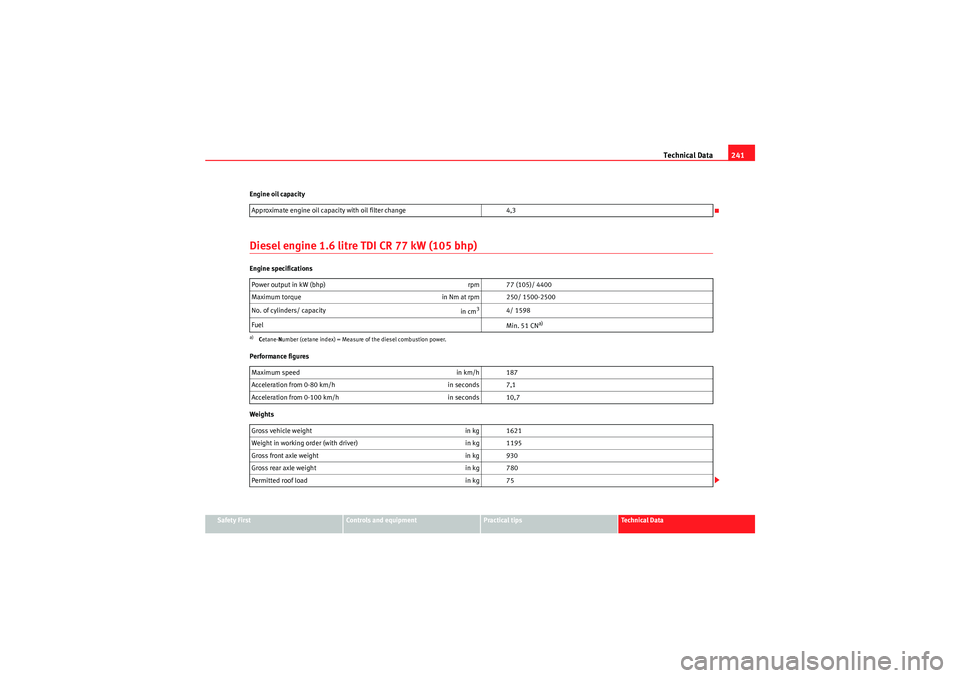

Engine oil capacity
Diesel engine 1.6 litre TDI CR 77 kW (105 bhp)Engine specifications
Performance figures
Weights
Approximate engine oil capacity with oil filter change
4,3
Power output in kW (bhp) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/ 1500-2500
No. of cylinders/ capacity in cm
3
4/ 1598
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 187
Acceleration from 0-80 km/h in seconds 7,1
Acceleration from 0-100 km/h in seconds 10,7
Gross vehicle weight in kg 1621
Weight in working order (with driver) in kg 1195
Gross front axle weight in kg 930
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Ibiza_EN.book Seite 241 Montag, 14. September 2009 6:19 18
Page 244 of 257

Technical Data

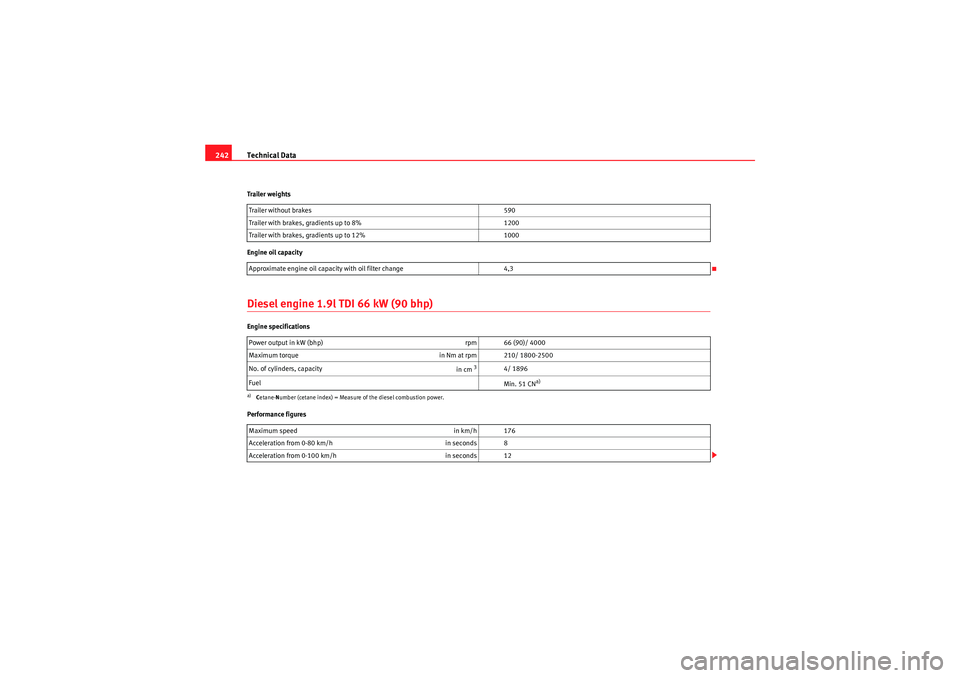

242Trailer weights
Engine oil capacityDiesel engine 1.9l TDI 66 kW (90 bhp)Engine specifications
Performance figures Trailer without brakes
590
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4,3
Power output in kW (bhp) rpm 66 (90)/ 4000
Maximum torque in Nm at rpm 210/ 1800-2500
No. of cylinders, capacity in cm
3
4/ 1896
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 176
Acceleration from 0-80 km/h in seconds 8
Acceleration from 0-100 km/h in seconds 12
Ibiza_EN.book Seite 242 Montag, 14. September 2009 6:19 18
Page 245 of 257

Technical Data243
Safety First
Controls and equipment
Practical tips

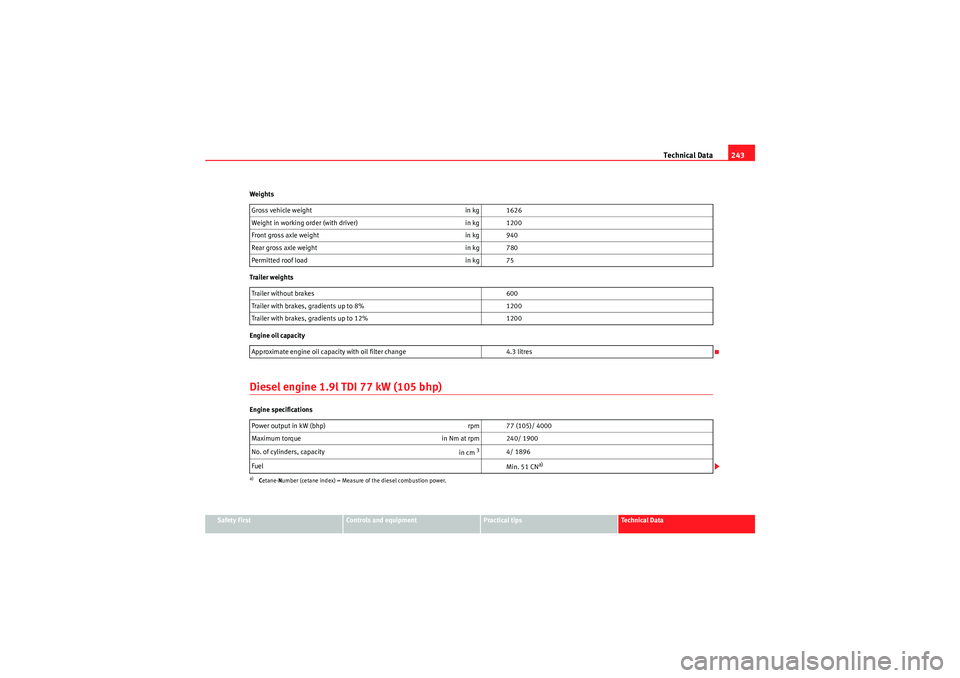

Technical Data
Weights
Trailer weights
Engine oil capacity
Diesel engine 1.9l TDI 77 kW (105 bhp)Engine specifications
Gross vehicle weight
in kg 1626
Weight in working order (with driver) in kg 1200
Front gross axle weight in kg 940
Rear gross axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 600
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 240/ 1900
No. of cylinders, capacity in cm
3
4/ 1896
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
Ibiza_EN.book Seite 243 Montag, 14. September 2009 6:19 18
Page 246 of 257

Technical Data

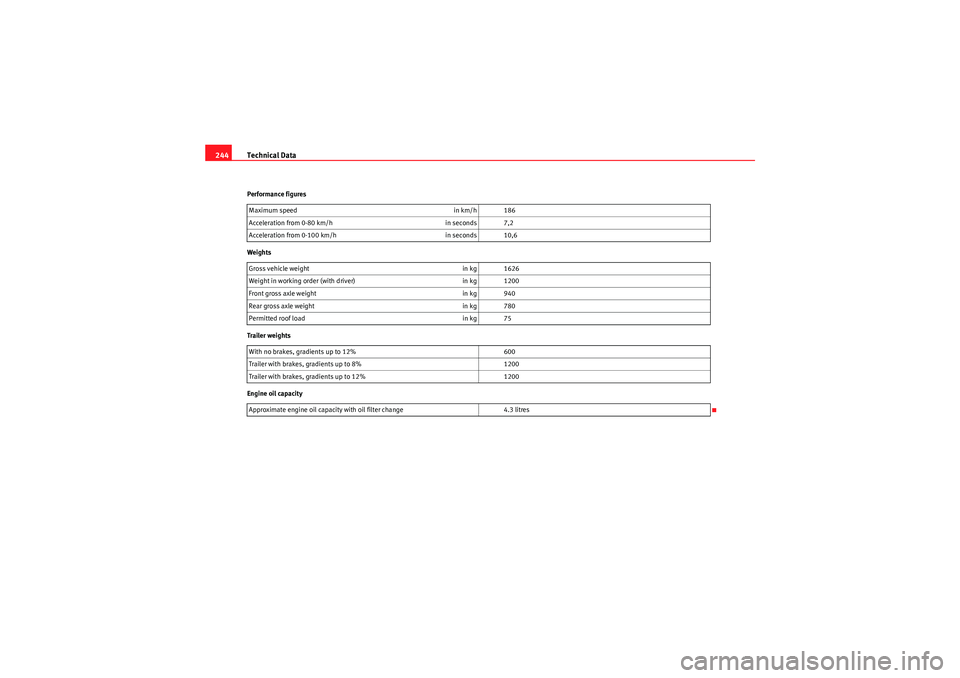

244Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 186
Acceleration from 0-80 km/h in seconds 7,2
Acceleration from 0-100 km/h in seconds 10,6
Gross vehicle weight in kg 1626
Weight in working order (with driver) in kg 1200
Front gross axle weight in kg 940
Rear gross axle weight in kg 780
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.3 litres
Ibiza_EN.book Seite 244 Montag, 14. September 2009 6:19 18
Page 247 of 257

Technical Data245
Safety First
Controls and equipment
Practical tips
Technical Data

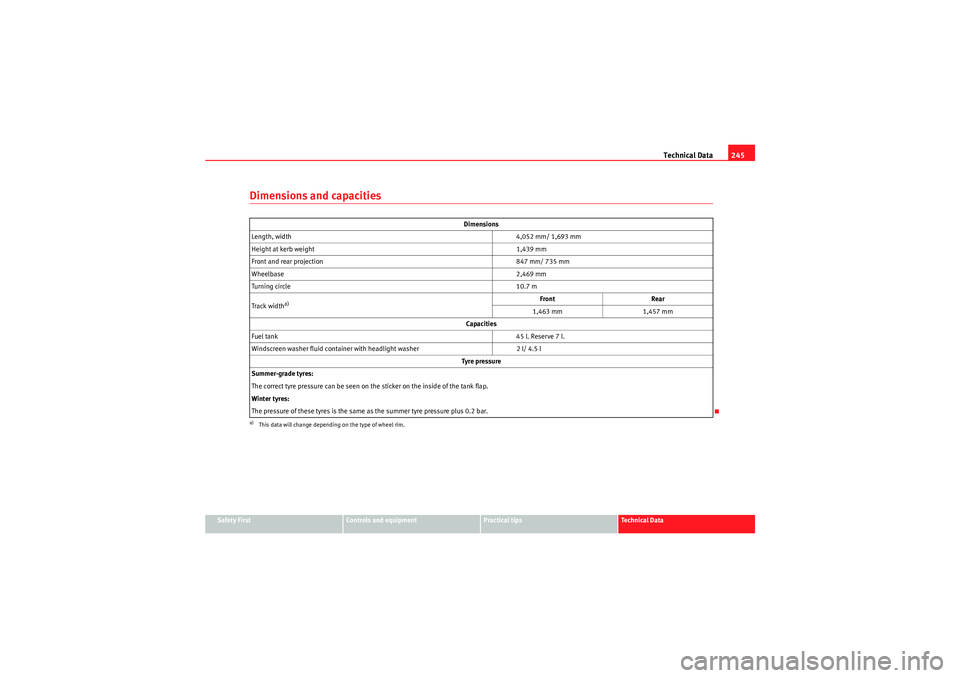

Dimensions and capacities
Dimensions
Length, width 4,052 mm/ 1,693 mm
Height at kerb weight 1,439 mm
Front and rear projection 847 mm/ 735 mm
Wheelbase 2,469 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,463 mm 1,457 mm
Capacities
Fuel tank 45 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 2 l/ 4.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
Ibiza_EN.book Seite 245 Montag, 14. September 2009 6:19 18
Page 248 of 257

Ibiza_EN.book Seite 246 Montag, 14. September 2009 6:19 18
Page 249 of 257

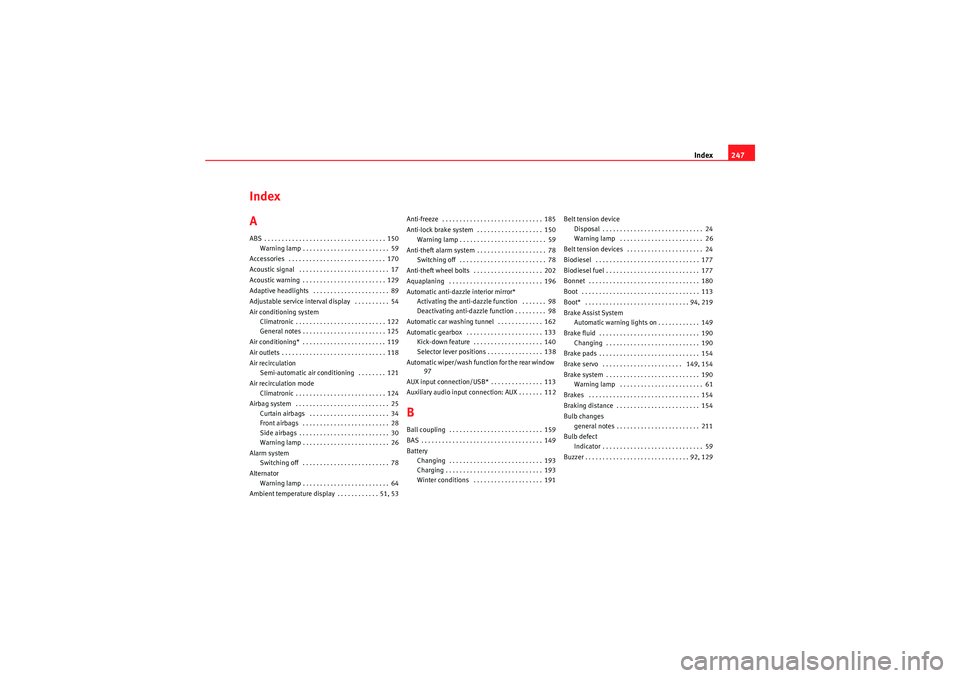

Index247
Index
AABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 59
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 129
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . . 89
Adjustable service interval display . . . . . . . . . . 54
Air conditioning system Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 122
General notes . . . . . . . . . . . . . . . . . . . . . . . . 125
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . 119
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Air recirculation Semi-automatic air conditioning . . . . . . . . 121
Air recirculation mode Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 34
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 28
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 26
Alarm system Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 78
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Ambient temperature display . . . . . . . . . . . . 51, 53 Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 150
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 59
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . 78 Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 78
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 202
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Automatic anti-dazzle interior mirror* Activating the anti-dazzle function . . . . . . . 98
Deactivating anti-dazzle function . . . . . . . . . 98
Automatic car washing tunnel . . . . . . . . . . . . . 162
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 133 Kick-down feature . . . . . . . . . . . . . . . . . . . . 140
Selector lever positions . . . . . . . . . . . . . . . . 138
Automatic wiper/wash function for the rear window 97
AUX input connection/USB* . . . . . . . . . . . . . . . 113
Auxiliary audio input connection: AUX . . . . . . . 112
BBall coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Battery Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Winter conditions . . . . . . . . . . . . . . . . . . . . 191 Belt tension device
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 26
Belt tension devices . . . . . . . . . . . . . . . . . . . . . . 24
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Boot* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94, 219
Brake Assist System Automatic warning lights on . . . . . . . . . . . . 149
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Brake servo . . . . . . . . . . . . . . . . . . . . . . . 149, 154
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 61
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 154
Bulb changes general notes . . . . . . . . . . . . . . . . . . . . . . . . 211
Bulb defect Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92, 129
Ibiza_EN.book Seite 247 Montag, 14. September 2009 6:19 18
Page 250 of 257

Index

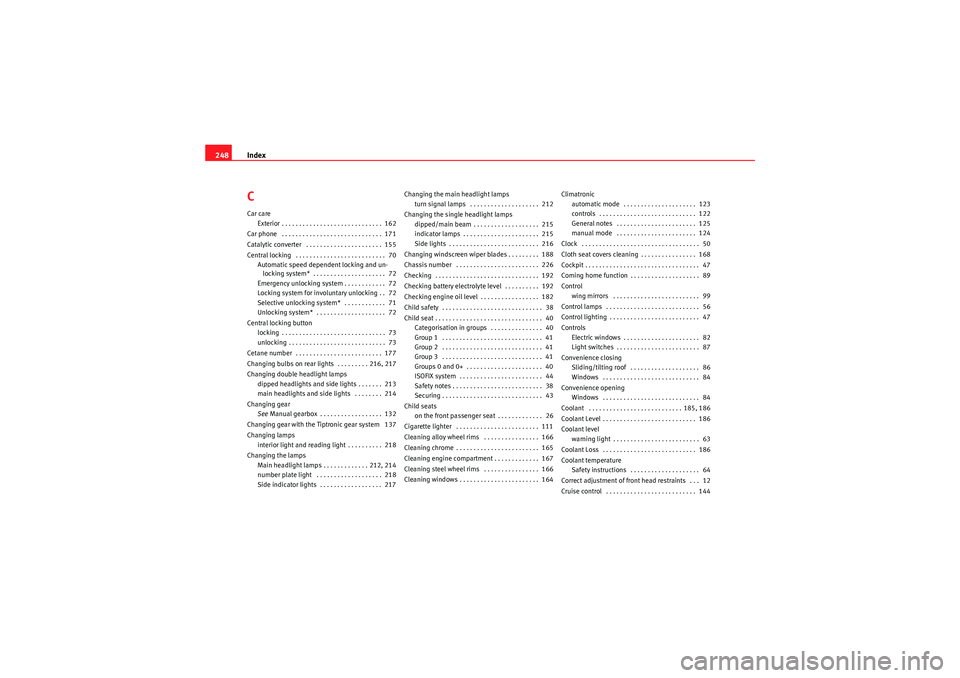

248CCar care
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Car phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 155
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Automatic speed dependent locking and un-locking system* . . . . . . . . . . . . . . . . . . . . . 72
Emergency unlocking system . . . . . . . . . . . . 72
Locking system for involuntary unlocking . . 72
Selective unlocking system* . . . . . . . . . . . . 71
Unlocking system* . . . . . . . . . . . . . . . . . . . . 72
Central locking button locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 177
Changing bulbs on rear lights . . . . . . . . . 216, 217
Changing double headlight lamps dipped headlights and side lights . . . . . . . 213
main headlights and side lights . . . . . . . . 214
Changing gear See Manual gearbox . . . . . . . . . . . . . . . . . . 132
Changing gear with the Tiptronic gear system 137
Changing lamps interior light and reading light . . . . . . . . . . 218
Changing the lamps Main headlight lamps . . . . . . . . . . . . . 212, 214
number plate light . . . . . . . . . . . . . . . . . . . 218
Side indicator lights . . . . . . . . . . . . . . . . . . 217 Changing the main headlight lamps
turn signal lamps . . . . . . . . . . . . . . . . . . . . 212
Changing the single headlight lamps dipped/main beam . . . . . . . . . . . . . . . . . . . 215
indicator lamps . . . . . . . . . . . . . . . . . . . . . . 215
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Changing windscreen wiper blades . . . . . . . . . 188
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 226
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Checking battery electrolyte level . . . . . . . . . . 192
Checking engine oil level . . . . . . . . . . . . . . . . . 182
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Categorisation in groups . . . . . . . . . . . . . . . 40
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 40
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 44
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Child seats on the front passenger seat . . . . . . . . . . . . . 26
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . 111
Cleaning alloy wheel rims . . . . . . . . . . . . . . . . 166
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 165
Cleaning engine compartment . . . . . . . . . . . . . 167
Cleaning steel wheel rims . . . . . . . . . . . . . . . . 166
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 164 Climatronic
automatic mode . . . . . . . . . . . . . . . . . . . . . 123
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
General notes . . . . . . . . . . . . . . . . . . . . . . . 125
manual mode . . . . . . . . . . . . . . . . . . . . . . . 124
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Cloth seat covers cleaning . . . . . . . . . . . . . . . . 168
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Coming home function . . . . . . . . . . . . . . . . . . . . 89
Control wing mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 99
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . . 82
Light switches . . . . . . . . . . . . . . . . . . . . . . . . 87
Convenience closing Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 86
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 185, 186
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Coolant level warning light . . . . . . . . . . . . . . . . . . . . . . . . . 63
Coolant Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Coolant temperature Safety instructions . . . . . . . . . . . . . . . . . . . . 64
Correct adjustment of front head restraints . . . 12
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Ibiza_EN.book Seite 248 Montag, 14. September 2009 6:19 18
