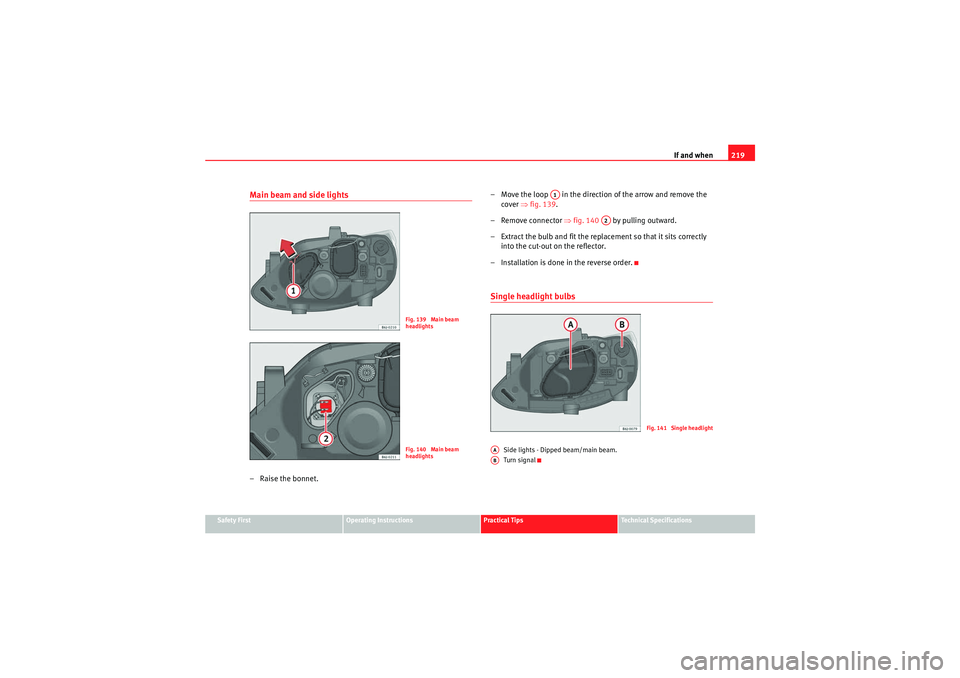

Main beam and side lights– Raise the bonnet. – Move the loop in the direction of the arrow and remove the
cover ⇒fig. 139 .
– Remove connector ⇒ fig. 140 by pulling outward.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
Single headlight bulbs
Side lights - Dipped beam/main beam.
Turn signal
Fig. 139 Main beam
headlightsFig. 140 Main beam
headlights
A1
A2
Fig. 141 Single headlight
AAAB
Ibiza_EN.book Seite 219 Mittwoch, 1. September 2010 5:24 17

If and when

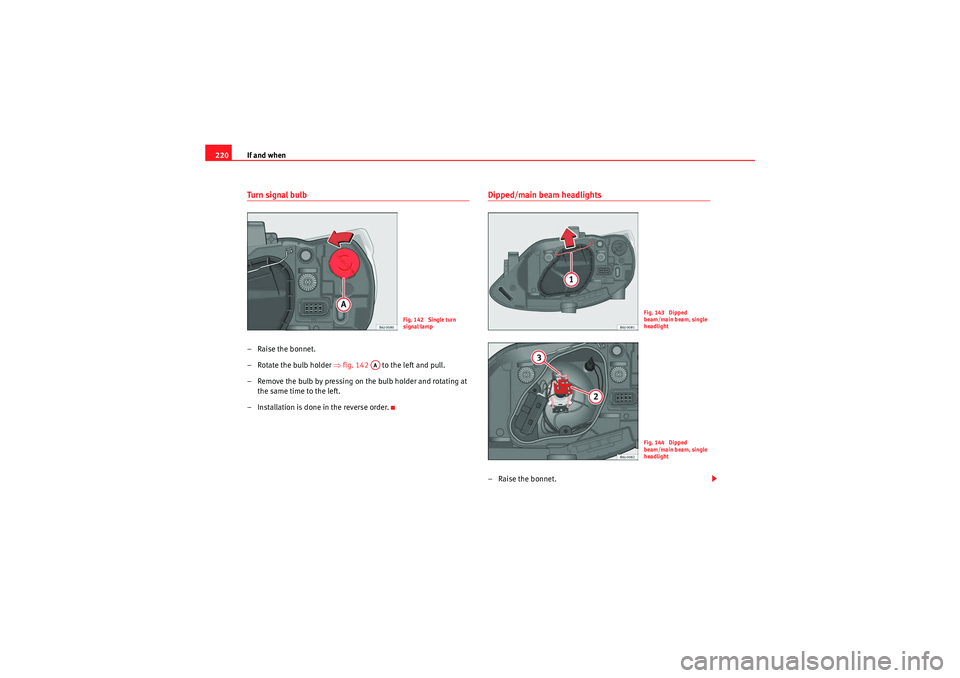

220Turn signal bulb– Raise the bonnet.
– Rotate the bulb holder ⇒fig. 142 to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped/main beam headlights – Raise the bonnet.
Fig. 142 Single turn
signal lamp
AA
Fig. 143 Dipped
beam/main beam, single
headlightFig. 144 Dipped
beam/main beam, single
headlight
Ibiza_EN.book Seite 220 Mittwoch, 1. September 2010 5:24 17

If and when221
Safety First
Operating Instructions
Practical Tips
Technical Specifications

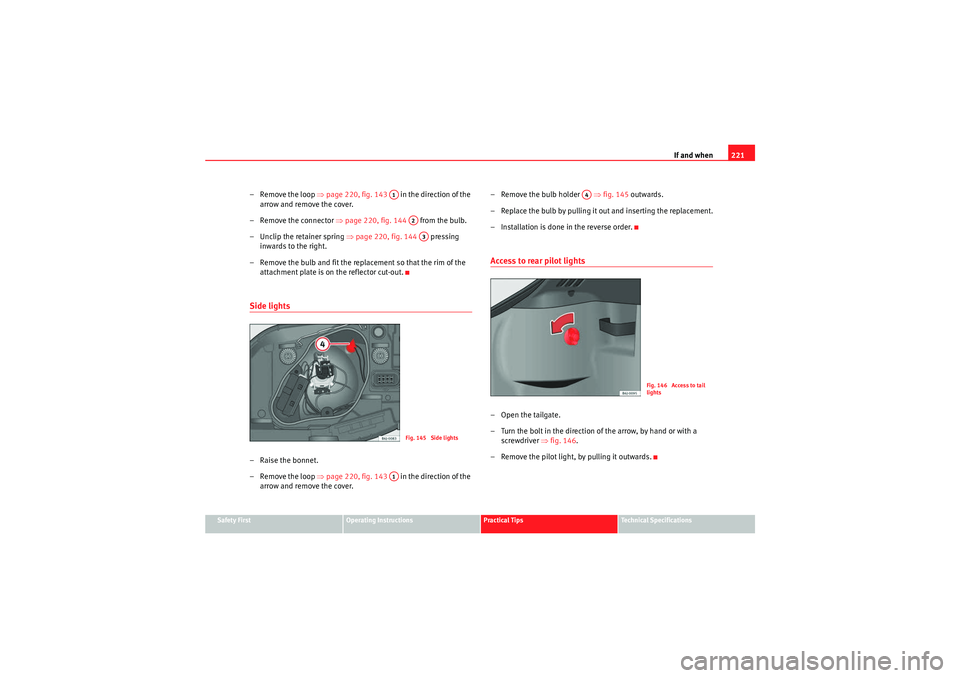

– Remove the loop ⇒ page 220, fig. 143 in the direction of the
arrow and remove the cover.
– Remove the connector ⇒page 220, fig. 144 from the bulb.
– Unclip the retainer spring ⇒page 220, fig. 144 pressing
inwards to the right.
– Remove the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Side lights – Raise the bonnet.
– Remove the loop ⇒ page 220, fig. 143 in the direction of the
arrow and remove the cover. – Remove the bulb holder
⇒fig. 145 outwards.
– Replace the bulb by pulling it out and inserting the replacement.
– Installation is done in the reverse order.
Access to rear pilot lights–Open the tailgate.
– Turn the bolt in the direction of the arrow, by hand or with a screwdriver ⇒fig. 146 .
– Remove the pilot light, by pulling it outwards.
A1
A2A3
Fig. 145 Side lights
A1
A4
Fig. 146 Access to tail
lights
Ibiza_EN.book Seite 221 Mittwoch, 1. September 2010 5:24 17

If and when

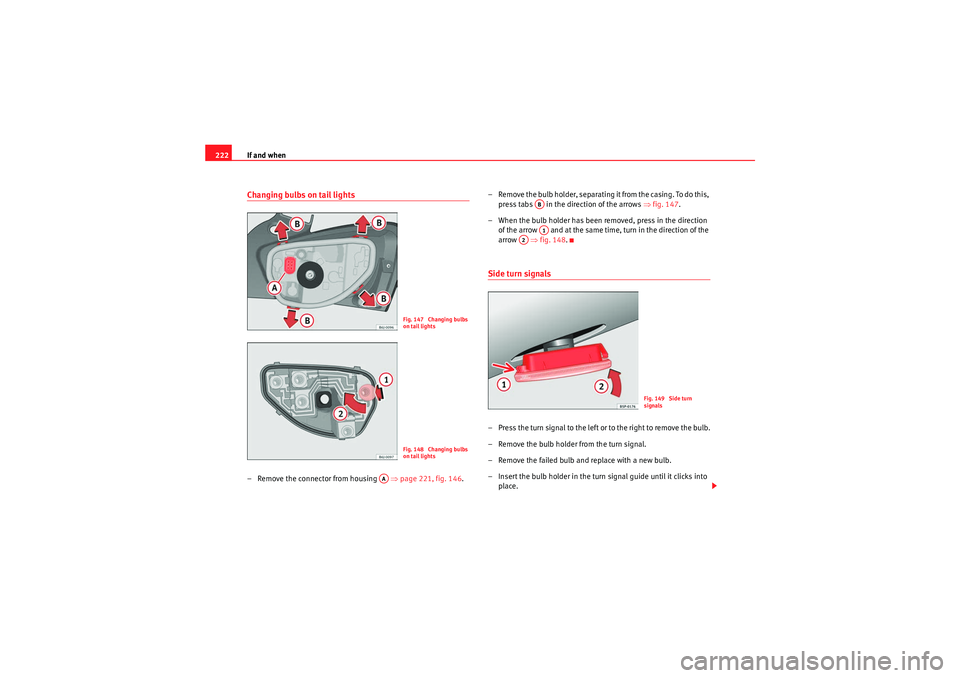

222Changing bulbs on tail lights– Remove the connector from housing ⇒page 221, fig. 146 .– Remove the bulb holder, separating it from the casing. To do this,
press tabs in the direction of the arrows ⇒fig. 147 .
– When the bulb holder has been removed, press in the direction of the arrow and at the same time, turn in the direction of the
arrow ⇒fig. 148 .
Side turn signals– Press the turn signal to the left or to the right to remove the bulb.
– Remove the bulb holder from the turn signal.
– Remove the failed bulb and replace with a new bulb.
– Insert the bulb holder in the turn signal guide until it clicks into
place.
Fig. 147 Changing bulbs
on tail lightsFig. 148 Changing bulbs
on tail lights
AA
ABA1
A2
Fig. 149 Side turn
signals
Ibiza_EN.book Seite 222 Mittwoch, 1. September 2010 5:24 17

If and when223
Safety First
Operating Instructions
Practical Tips
Technical Specifications

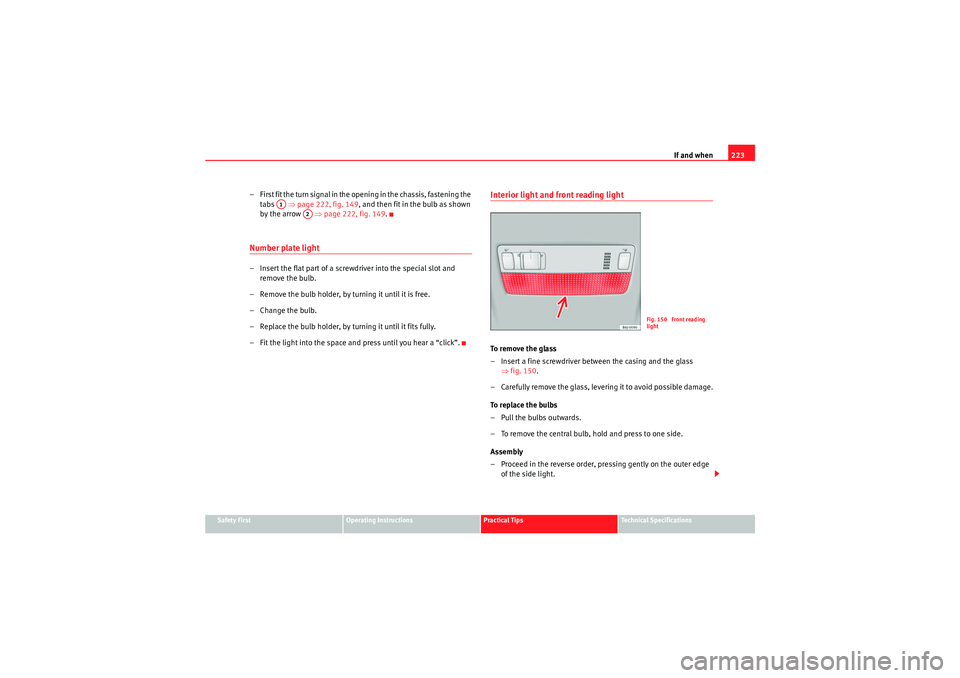

– First fit the turn signal in the op ening in the chassis, fastening the
tabs ⇒page 222, fig. 149 , and then fit in the bulb as shown
by the arrow ⇒page 222, fig. 149 .Number plate light– Insert the flat part of a screwdriver into the special slot and
remove the bulb.
– Remove the bulb holder, by turning it until it is free.
– Change the bulb.
– Replace the bulb holder, by turning it until it fits fully.
– Fit the light into the space and press until you hear a “click”.
Interior light and front reading light To r e m o v e t h e g l a s s
– Insert a fine screwdriver between the casing and the glass ⇒fig. 150 .
– Carefully remove the glass, levering it to avoid possible damage.
To replace the bulbs
– Pull the bulbs outwards.
– To remove the central bulb, hold and press to one side.
Assembly
– Proceed in the reverse order, pressing gently on the outer edge of the side light.
A1
A2
Fig. 150 Front reading
light
Ibiza_EN.book Seite 223 Mittwoch, 1. September 2010 5:24 17

If and when
224

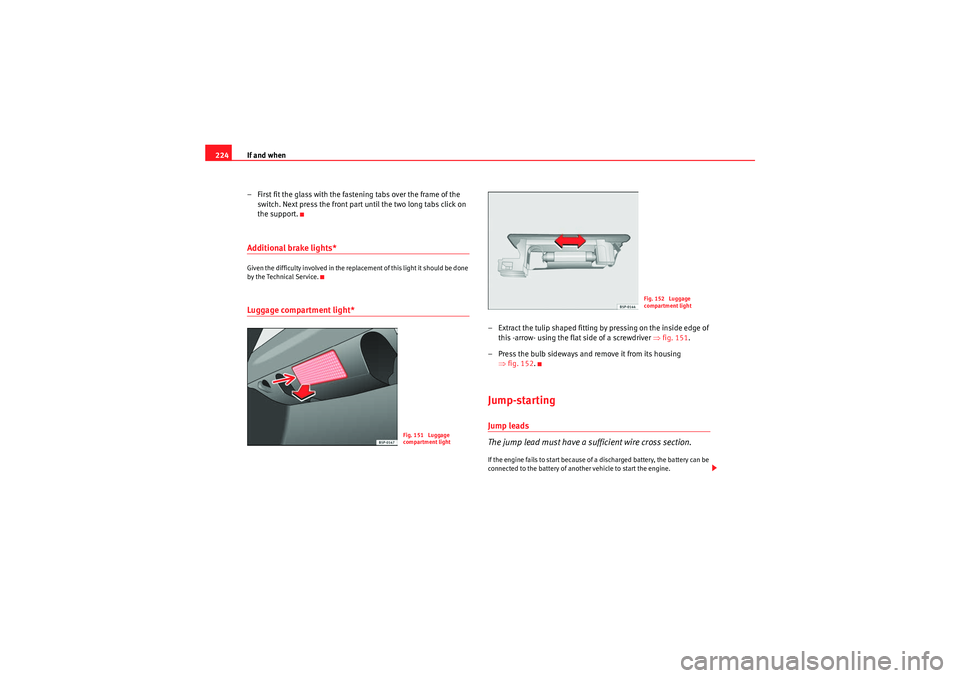

– First fit the glass with the fastening tabs over the frame of the switch. Next press the front part until the two long tabs click on
the support.Additional brake lights*Given the difficulty involved in the replacement of this light it should be done
by the Technical Service.Luggage compartment light*
– Extract the tulip shaped fitting by pressing on the inside edge of this -arrow- using the flat side of a screwdriver ⇒fig. 151 .
– Press the bulb sideways and remove it from its housing ⇒fig. 152 .Jump-startingJump leads
The jump lead must have a sufficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of another vehicle to start the engine.
Fig. 151 Luggage
compartment light
Fig. 152 Luggage
compartment light
Ibiza_EN.book Seite 224 Mittwoch, 1. September 2010 5:24 17

If and when225
Safety First
Operating Instructions
Practical Tips
Technical Specifications

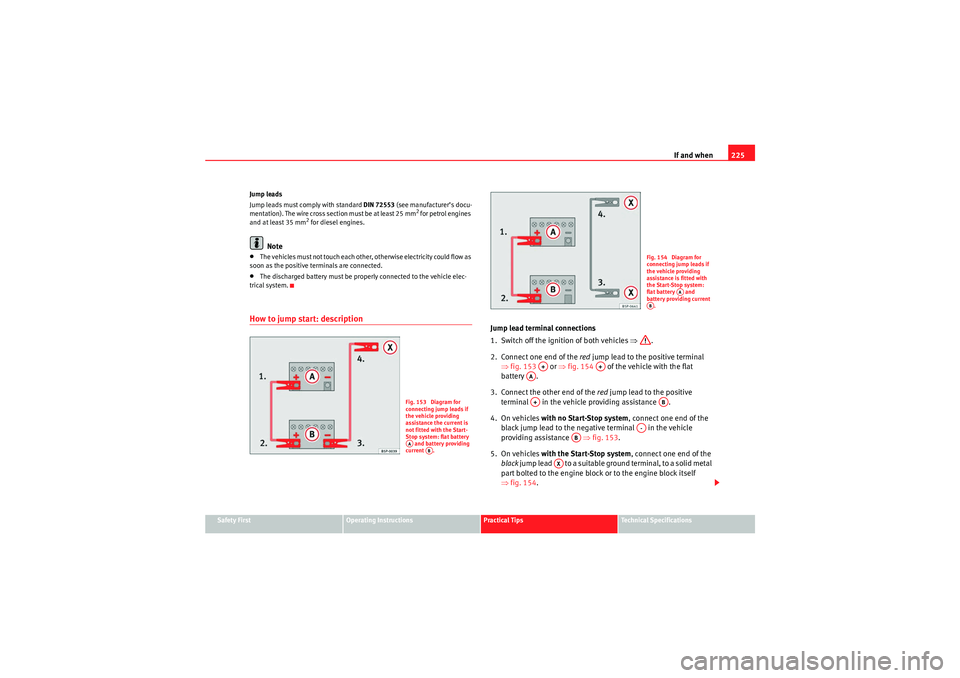

Jump leads
Jump leads must comply with standard
DIN 72553 (see manufacturer’s docu-
mentation). The wire cross section must be at least 25 mm
2 for petrol engines
and at least 35 mm
2 for diesel engines.
Note
•The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.•The discharged battery must be properly connected to the vehicle elec-
trical system.How to jump start: description
Jump lead terminal connections
1. Switch off the ignition of both vehicles ⇒.
2. Connect one end of the red jump lead to the positive terminal
⇒ fig. 153 or ⇒fig. 154 of the vehicle with the flat
battery .
3. Connect the other end of the red jump lead to the positive
terminal in the vehicle providing assistance .
4. On vehicles with no Start-Stop system, connect one end of the
black jump lead to the negative terminal in the vehicle
providing assistance ⇒fig. 153 .
5. On vehicles with the Start-Stop system , connect one end of the
black jump lead to a suitable ground terminal, to a solid metal
part bolted to the engine block or to the engine block itself
⇒ fig. 154 .
Fig. 153 Diagram for
connecting jump leads if
the vehicle providing
assistance the current is
not fitted with the Start-
Stop system: flat battery
and battery providing
current .AA
AB
Fig. 154 Diagram for
connecting jump leads if
the vehicle providing
assistance is fitted with
the Start-Stop system:
flat battery and
battery providing current .
AA
AB
A+
A+
AAA+
AB
A-
AB
AX
Ibiza_EN.book Seite 225 Mittwoch, 1. September 2010 5:24 17

If and when
226

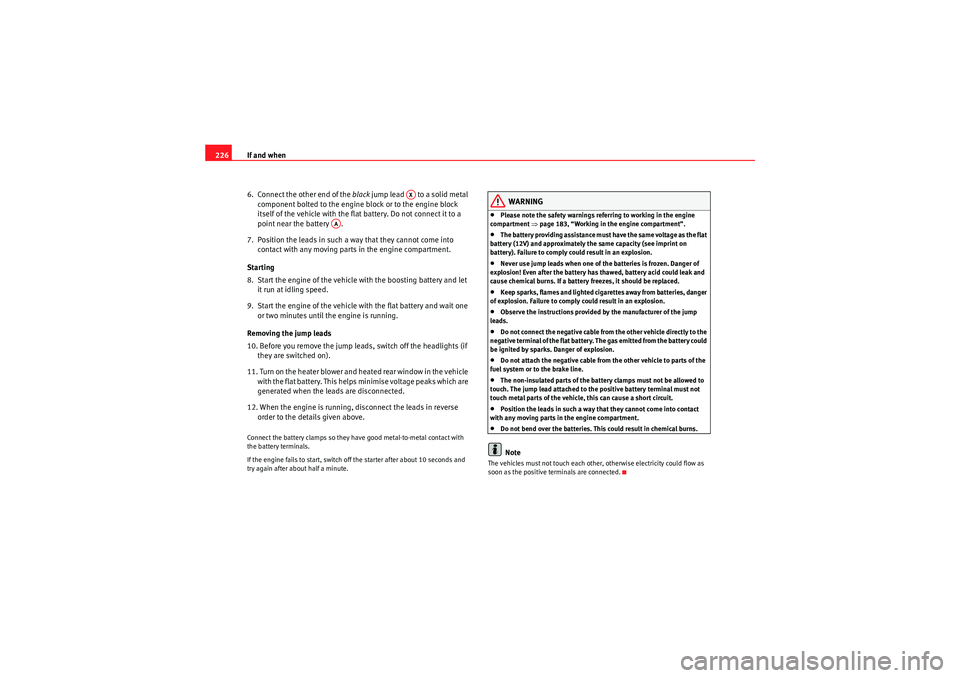

6. Connect the other end of the black jump lead to a solid metal
component bolted to the engine block or to the engine block
itself of the vehicle with the flat battery. Do not connect it to a
point near the battery .
7. Position the leads in such a way that they cannot come into contact with any moving parts in the engine compartment.
Starting
8. Start the engine of the vehicle with the boosting battery and let it run at idling speed.
9. Start the engine of the vehicle with the flat battery and wait one or two minutes until the engine is running.
Removing the jump leads
10. Before you remove the jump leads, switch off the headlights (if they are switched on).
11. Turn on the heater blower and heated rear window in the vehicle with the flat battery. This helps minimise voltage peaks which are
generated when the leads are disconnected.
12. When the engine is running, disconnect the leads in reverse order to the details given above.Connect the battery clamps so they have good metal-to-metal contact with
the battery terminals.
If the engine fails to start, switch off the starter after about 10 seconds and
try again after about half a minute.
WARNING
•Please note the safety warnings referring to working in the engine
compartment ⇒page 183, “Working in the engine compartment”.•The battery providing assistance must have the same voltage as the flat
battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.•Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.•Keep sparks, flames and lighted cigarettes away from batteries, danger
of explosion. Failure to comply could result in an explosion.•Observe the instructions provided by the manufacturer of the jump
leads.•Do not connect the negative cable from the other vehicle directly to the
negative terminal of the flat battery. The gas emitted from the battery could
be ignited by sparks. Danger of explosion.•Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.•The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead attached to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.•Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.•Do not bend over the batteries. This could result in chemical burns.Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
AX
AA
Ibiza_EN.book Seite 226 Mittwoch, 1. September 2010 5:24 17

If and when227
Safety First
Operating Instructions
Practical Tips
Technical Specifications

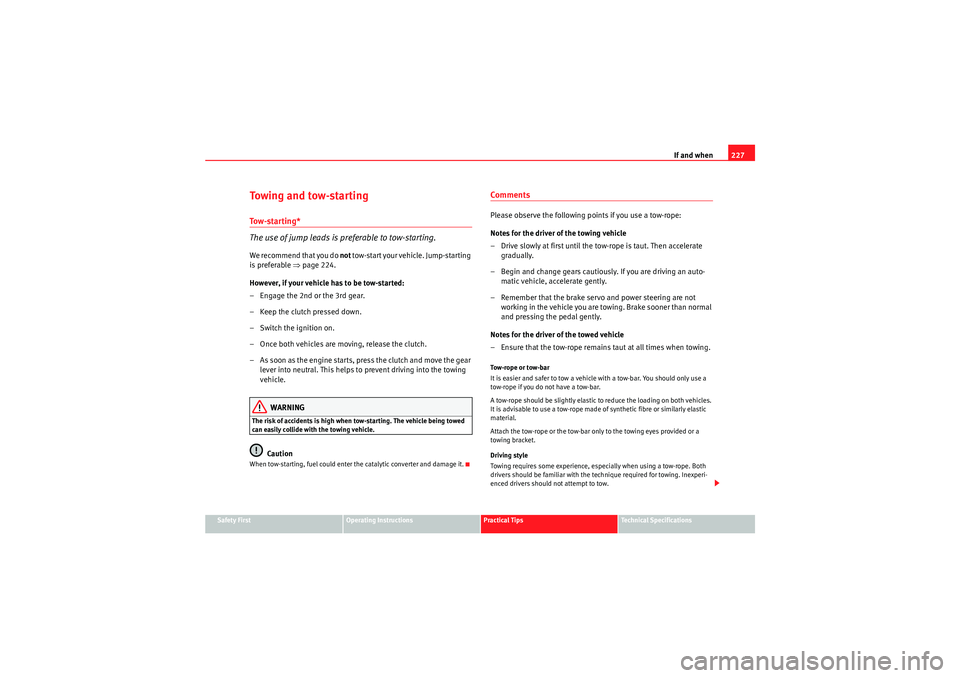

Towing and tow-startingTo w - s t a r t i n g *
The use of jump leads is pr eferable to tow-starting.We recommend that you do not tow-start your vehicle. Jump-starting
is preferable ⇒page 224.
However, if your vehicle has to be tow-started:
– Engage the 2nd or the 3rd gear.
– Keep the clutch pressed down.
– Switch the ignition on.
– Once both vehicles are moving, release the clutch.
– As soon as the engine starts, press the clutch and move the gear lever into neutral. This helps to prevent driving into the towing
vehicle.
WARNING
The risk of accidents is high when tow-starting. The vehicle being towed
can easily collide with the towing vehicle.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it.
CommentsPlease observe the following po ints if you use a tow-rope:
Notes for the driver of the towing vehicle
– Drive slowly at first until the tow-rope is taut. Then accelerate gradually.
– Begin and change gears cautiously. If you are driving an auto- matic vehicle, accelerate gently.
– Remember that the brake servo and power steering are not working in the vehicle you are towing. Brake sooner than normal
and pressing the pedal gently.
Notes for the driver of the towed vehicle
– Ensure that the tow-rope remains taut at all times when towing.Tow-rope or tow-bar
It is easier and safer to tow a vehicle with a tow-bar. You should only use a
tow-rope if you do not have a tow-bar.
A tow-rope should be slightly elastic to reduce the loading on both vehicles.
It is advisable to use a tow-rope made of synthetic fibre or similarly elastic
material.
Attach the tow-rope or the tow-bar only to the towing eyes provided or a
towing bracket.
Driving style
Towing requires some experience, especially when using a tow-rope. Both
drivers should be familiar with the technique required for towing. Inexperi-
enced drivers should not attempt to tow.
Ibiza_EN.book Seite 227 Mittwoch, 1. September 2010 5:24 17

If and when

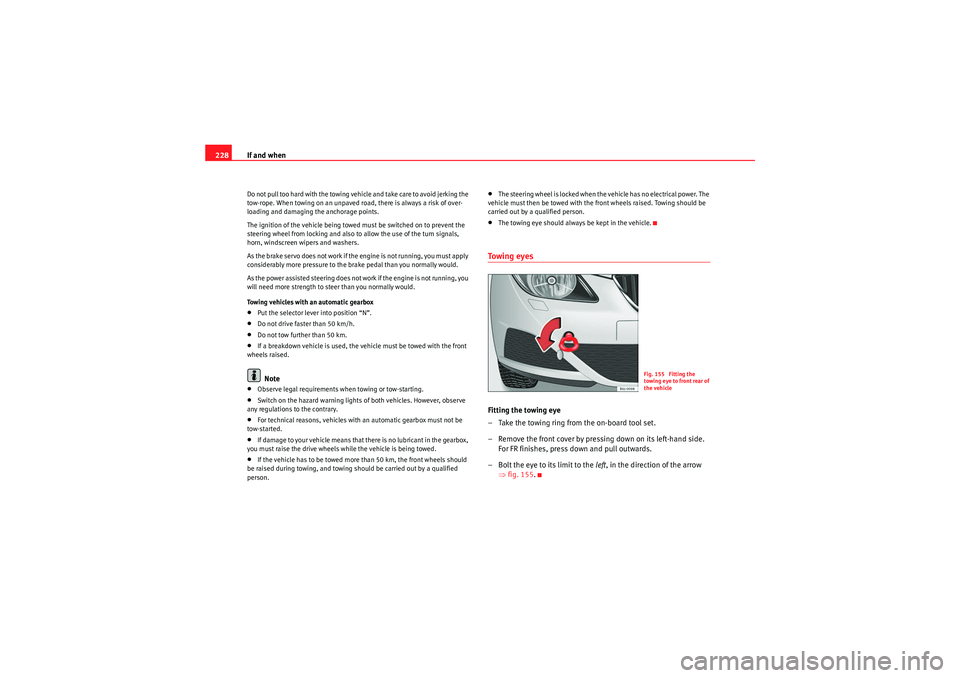

228Do not pull too hard with the towing vehicle and take care to avoid jerking the
tow-rope. When towing on an unpaved road, there is always a risk of over-
loading and damaging the anchorage points.
The ignition of the vehicle being towed must be switched on to prevent the
steering wheel from locking and also to allow the use of the turn signals,
horn, windscreen wipers and washers.
As the brake servo does not work if the engine is not running, you must apply
considerably more pressure to the brake pedal than you normally would.
As the power assisted steering does not work if the engine is not running, you
will need more strength to steer than you normally would.
Towing vehicles with an automatic gearbox•Put the selector lever into position “N”.•Do not drive faster than 50 km/h.•Do not tow further than 50 km.•If a breakdown vehicle is used, the vehicle must be towed with the front
wheels raised.Note
•Observe legal requirements when towing or tow-starting.•Switch on the hazard warning lights of both vehicles. However, observe
any regulations to the contrary.•For technical reasons, vehicles with an automatic gearbox must not be
tow-started.•If damage to your vehicle means that there is no lubricant in the gearbox,
you must raise the drive wheels while the vehicle is being towed.•If the vehicle has to be towed more than 50 km, the front wheels should
be raised during towing, and towing should be carried out by a qualified
person.
•The steering wheel is locked when the vehicle has no electrical power. The
vehicle must then be towed with the front wheels raised. Towing should be
carried out by a qualified person.•The towing eye should always be kept in the vehicle.To w i n g e y e sFitting the towing eye
– Take the towing ring from the on-board tool set.
– Remove the front cover by pressing down on its left-hand side. For FR finishes, press down and pull outwards.
– Bolt the eye to its limit to the left, in the direction of the arrow
⇒ fig. 155 .
Fig. 155 Fitting the
towing eye to front rear of
the vehicle
Ibiza_EN.book Seite 228 Mittwoch, 1. September 2010 5:24 17
