Seat Ibiza 5D 2010 Owner's manual

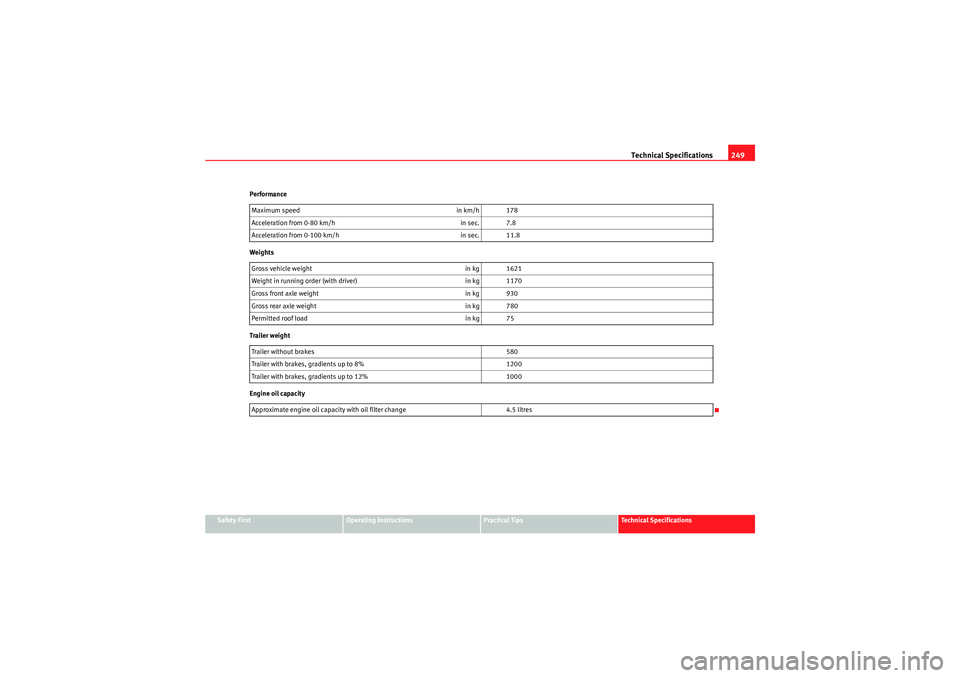

Technical Specifications249
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Performance
Weights
Trailer weight
Engine oil capacity
Maximum speed
in km/h 178
Acceleration from 0-80 km/h in sec. 7.8
Acceleration from 0-100 km/h in sec. 11.8
Gross vehicle weight in kg 1621
Weight in running order (with driver) in kg 1170
Gross front axle weight in kg 930
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 4.5 litres
Ibiza_EN.book Seite 249 Mittwoch, 1. September 2010 5:24 17

Technical Specifications

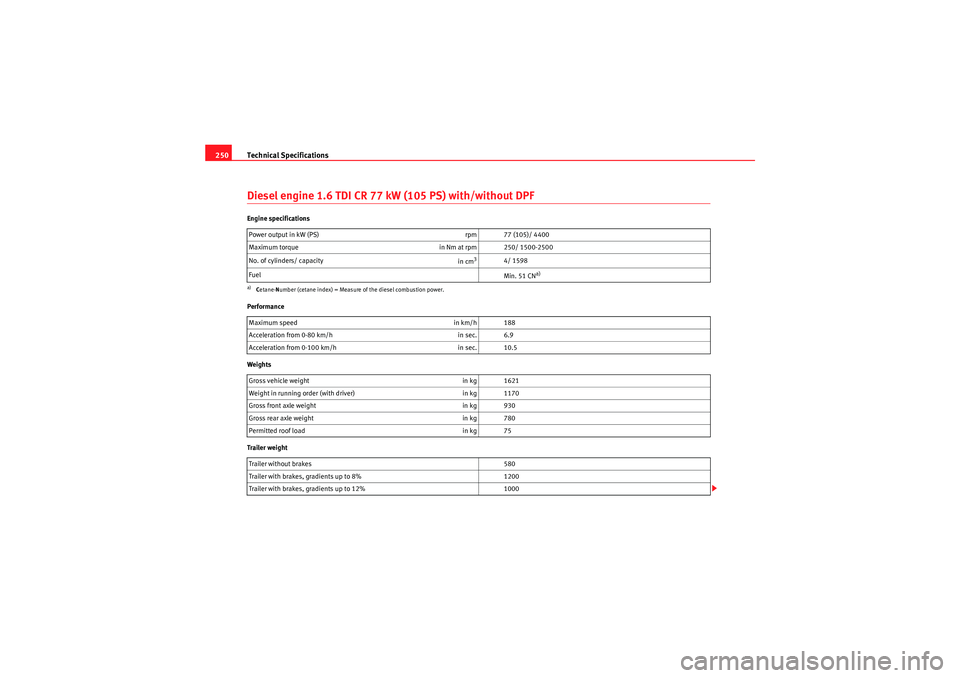

250Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPFEngine specifications
Performance
Weights
Trailer weight Power output in kW (PS)
rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/ 1500-2500
No. of cylinders/ capacity in cm
3
4/ 1598
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 188
Acceleration from 0-80 km/h in sec. 6.9
Acceleration from 0-100 km/h in sec. 10.5
Gross vehicle weight in kg 1621
Weight in running order (with driver) in kg 1170
Gross front axle weight in kg 930
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Ibiza_EN.book Seite 250 Mittwoch, 1. September 2010 5:24 17

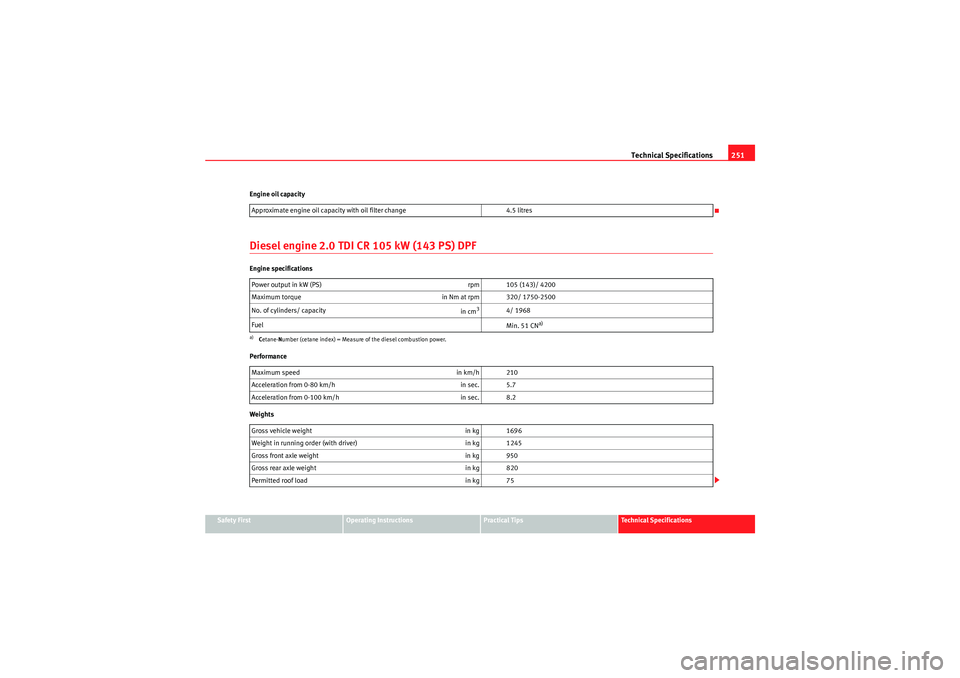

Technical Specifications251
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Engine oil capacity
Diesel engine 2.0 TDI CR 105 kW (143 PS) DPFEngine specifications
Performance
Weights
Approximate engine oil capacity with oil filter change
4.5 litres
Power output in kW (PS) rpm 105 (143)/ 4200
Maximum torque in Nm at rpm 320/ 1750-2500
No. of cylinders/ capacity in cm
3
4/ 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 210
Acceleration from 0-80 km/h in sec. 5.7
Acceleration from 0-100 km/h in sec. 8.2
Gross vehicle weight in kg 1696
Weight in running order (with driver) in kg 1245
Gross front axle weight in kg 950
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Ibiza_EN.book Seite 251 Mittwoch, 1. September 2010 5:24 17

Technical Specifications

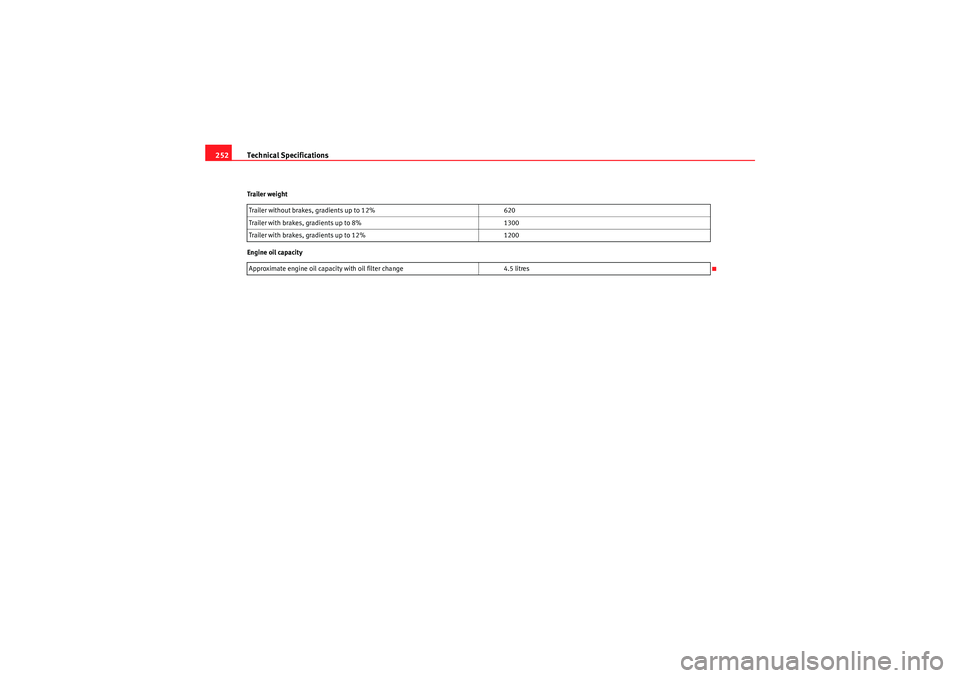

252Trailer weight
Engine oil capacity Trailer without brakes, gradients up to 12%
620
Trailer with brakes, gradients up to 8% 1300
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.5 litres
Ibiza_EN.book Seite 252 Mittwoch, 1. September 2010 5:24 17

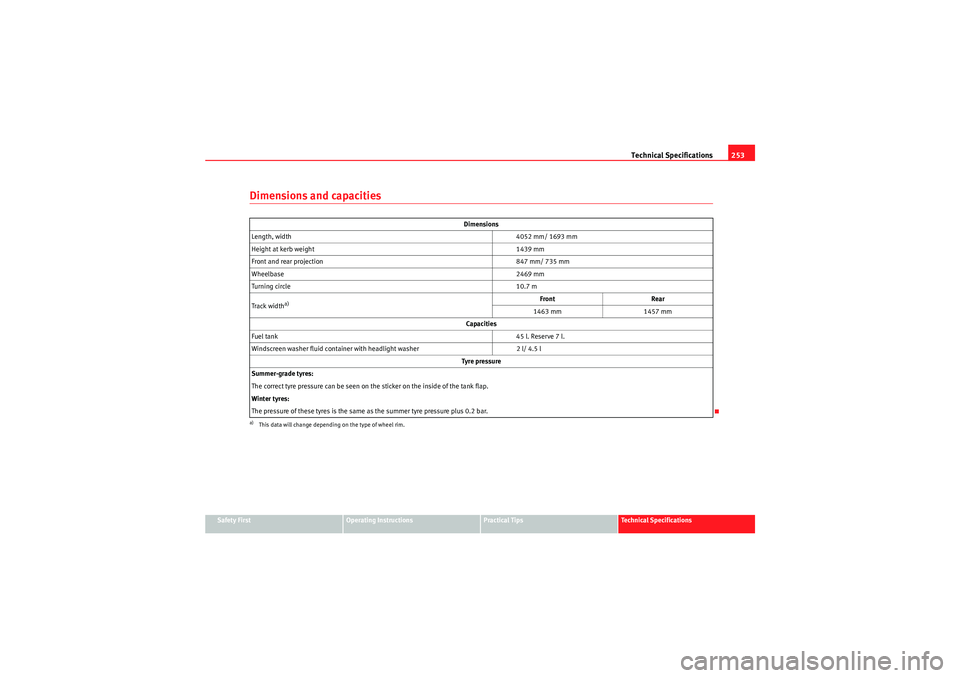

Technical Specifications253
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Dimensions and capacities
Dimensions
Length, width 4052 mm/ 1693 mm
Height at kerb weight 1439 mm
Front and rear projection 847 mm/ 735 mm
Wheelbase 2469 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1463 mm 1457 mm
Capacities
Fuel tank 45 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 2 l/ 4.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
Ibiza_EN.book Seite 253 Mittwoch, 1. September 2010 5:24 17

Ibiza_EN.book Seite 254 Mittwoch, 1. September 2010 5:24 17

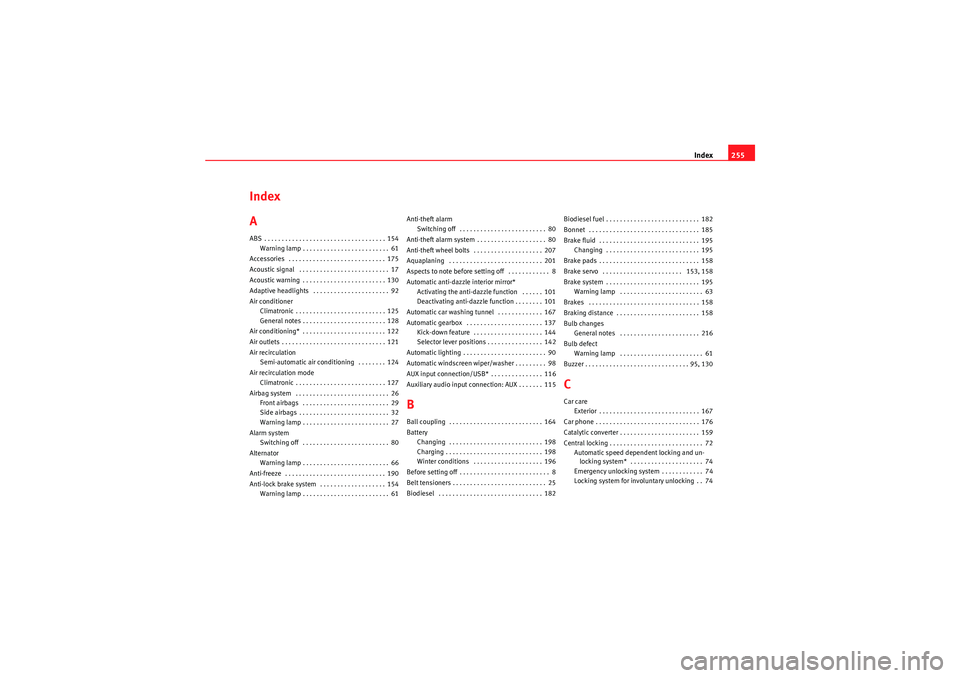

Index255
Index
AABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 61
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 130
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . . 92
Air conditioner Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 125
General notes . . . . . . . . . . . . . . . . . . . . . . . . 128
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . 122
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Air recirculation Semi-automatic air conditioning . . . . . . . . 124
Air recirculation mode Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 29
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 27
Alarm system Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 80
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 154 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 61 Anti-theft alarm
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 80
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . 80
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 207
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Aspects to note before setting off . . . . . . . . . . . . 8
Automatic anti-dazzle interior mirror* Activating the anti-dazzle function . . . . . . 101
Deactivating anti-dazzle function . . . . . . . . 101
Automatic car washing tunnel . . . . . . . . . . . . . 167
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 137 Kick-down feature . . . . . . . . . . . . . . . . . . . . 144
Selector lever positions . . . . . . . . . . . . . . . . 142
Automatic lighting . . . . . . . . . . . . . . . . . . . . . . . . 90
Automatic windscreen wiper/washer . . . . . . . . . 98
AUX input connection/USB* . . . . . . . . . . . . . . . 116
Auxiliary audio input connection: AUX . . . . . . . 115
BBall coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Battery Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Winter conditions . . . . . . . . . . . . . . . . . . . . 196
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Brake servo . . . . . . . . . . . . . . . . . . . . . . . 153, 158
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 195 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 63
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 158
Bulb changes General notes . . . . . . . . . . . . . . . . . . . . . . . 216
Bulb defect Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 61
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95, 130
CCar care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Car phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . 159
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Automatic speed dependent locking and un-locking system* . . . . . . . . . . . . . . . . . . . . . 74
Emergency unlocking system . . . . . . . . . . . . 74
Locking system for involuntary unlocking . . 74
Ibiza_EN.book Seite 255 Mittwoch, 1. September 2010 5:24 17

Index
256Selective unlocking system* . . . . . . . . . . . . 73
Unlocking system* . . . . . . . . . . . . . . . . . . . . 74
Central locking button Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 182
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . 205
Changing bulbs interior light and reading light . . . . . . . . . . 223
Changing bulbs on tail lights . . . . . . . . . . 221, 222
Changing double headlight bulbs Dipped beam headlights and side lights . 218
Main headlights and side lights . . . . . . . . 219
Changing gear See Manual gearbox . . . . . . . . . . . . . . . . . . 136
Changing gear in tiptronic mode . . . . . . . . . . . 141
Changing the bulbs Main headlight bulbs . . . . . . . . . . . . . 217, 219
Number plate light . . . . . . . . . . . . . . . . . . . 223
Side turn signals . . . . . . . . . . . . . . . . . . . . . 222
Changing the main headlight bulbs Turn signal bulbs . . . . . . . . . . . . . . . . . . . . 217
Changing the single headlight bulb turn signal bulb . . . . . . . . . . . . . . . . . . . . . . 220
Changing the single headlight bulbs dipped/main beam . . . . . . . . . . . . . . . . . . . 220
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Changing windscreen wiper blades . . . . . . . . . 193
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 232
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Checking battery electrolyte level . . . . . . . . . . 197 Checking engine oil level . . . . . . . . . . . . . . . . . 187
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Categorisation in groups . . . . . . . . . . . . . . . 39
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 39
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Child seats on the front passenger seat . . . . . . . . . . . . . 27
Top Tether system . . . . . . . . . . . . . . . . . . . . . 43
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . 114
Cleaning alloy wheels . . . . . . . . . . . . . . . . . . . . 171
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 170
Cleaning engine compartment . . . . . . . . . . . . . 172
Cleaning steel wheel rims . . . . . . . . . . . . . . . . 171
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 169
Climatronic automatic mode . . . . . . . . . . . . . . . . . . . . . 126
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
General notes . . . . . . . . . . . . . . . . . . . . . . . 128
manual mode . . . . . . . . . . . . . . . . . . . . . . . 127
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Cloth seat covers cleaning . . . . . . . . . . . . . . . . 173
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Coming home function . . . . . . . . . . . . . . . . . . . . 92
Compartment for on-board documentation . . 110 Control
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 102
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . . 84
Convenience closing Sliding/tilting sunroof . . . . . . . . . . . . . . . . . 88
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 190, 191
Coolant level . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 65
Coolant loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Coolant temperature Safety instructions . . . . . . . . . . . . . . . . . . . . 66
Correct adjustment of front head restraints . . . 12
Correct sitting position Front passenger . . . . . . . . . . . . . . . . . . . . . . 11
Incorrect sitting position . . . . . . . . . . . . . . . 13
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Cruise control system . . . . . . . . . . . . . . . . . . . . 148 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 63
DDanger of fitting a child seat on the front passenger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Dash panel cleaning . . . . . . . . . . . . . . . . . . . . . 173
Ibiza_EN.book Seite 256 Mittwoch, 1. September 2010 5:24 17

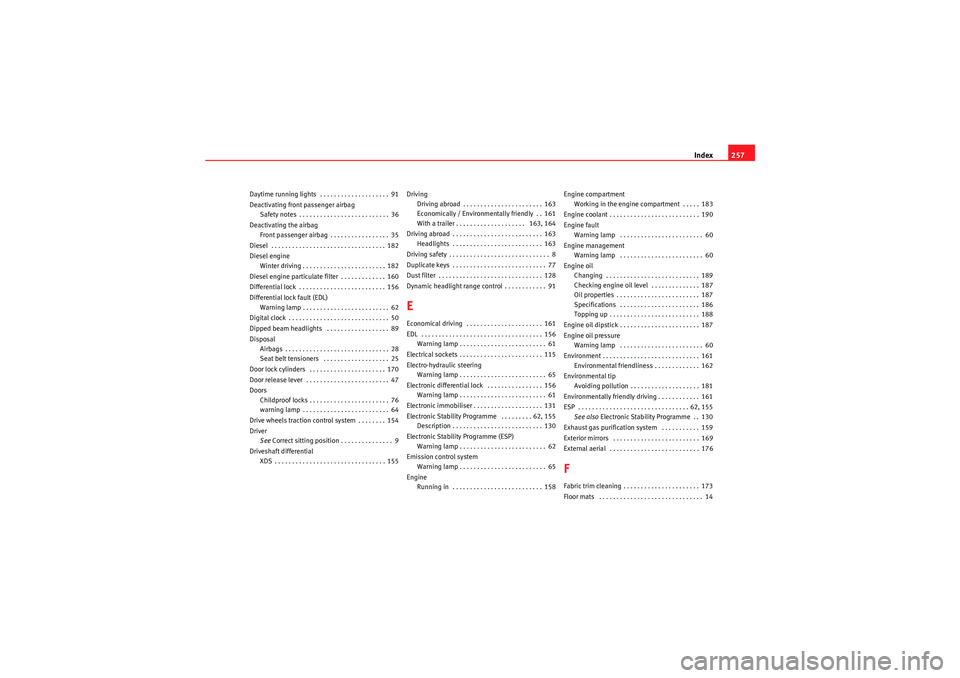

Index257
Daytime running lights . . . . . . . . . . . . . . . . . . . . 91
Deactivating front passenger airbag
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Deactivating the airbag Front passenger airbag . . . . . . . . . . . . . . . . . 35
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . . 182
Diesel engine particulate filter . . . . . . . . . . . . . 160
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . . 156
Differential lock fault (EDL) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 62
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Dipped beam headlights . . . . . . . . . . . . . . . . . . 89
Disposal Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Seat belt tensioners . . . . . . . . . . . . . . . . . . . 25
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 170
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 47
Doors Childproof locks . . . . . . . . . . . . . . . . . . . . . . . 76
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Drive wheels traction control system . . . . . . . . 154
Driver See Correct sitting position . . . . . . . . . . . . . . . 9
Driveshaft differential XDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 Driving
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 163
Economically / Environmentally friendly . . 161
With a trailer . . . . . . . . . . . . . . . . . . . . 163, 164
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 163 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Dynamic headlight range control . . . . . . . . . . . . 91
EEconomical driving . . . . . . . . . . . . . . . . . . . . . . 161
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 61
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . . 115
Electro-hydraulic steering Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 65
Electronic differential lock . . . . . . . . . . . . . . . . 156 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 61
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . 131
Electronic Stability Programme . . . . . . . . . 62, 155 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Electronic Stability Programme (ESP) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 62
Emission control system Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 65
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 158 Engine compartment
Working in the engine compartment . . . . . 183
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Engine fault Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 60
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 60
Engine oil Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Checking engine oil level . . . . . . . . . . . . . . 187
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 187
Specifications . . . . . . . . . . . . . . . . . . . . . . . 186
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . 187
Engine oil pressure Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 60
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161 Environmental friendliness . . . . . . . . . . . . . 162
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . . 181
Environmentally friendly driving . . . . . . . . . . . . 161
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62, 155 See also Electronic Stability Programme . . 130
Exhaust gas purification system . . . . . . . . . . . 159
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 169
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 176
FFabric trim cleaning . . . . . . . . . . . . . . . . . . . . . . 173
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Ibiza_EN.book Seite 257 Mittwoch, 1. September 2010 5:24 17

Index
258Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Fog lights with cornering function . . . . . . . . . . . 92
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Front ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Front cup holder* . . . . . . . . . . . . . . . . . . . . . . . 113
Front interior light . . . . . . . . . . . . . . . . . . . . . . . . 96
Front passenger airbag deactivation . . . . . . . . . 35
Front reading light . . . . . . . . . . . . . . . . . . . . . . . . 97
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . . 107
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 180
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 64
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 136
General overview of the engine compartment 235 Glove compartment . . . . . . . . . . . . . . . . . . . . . . 110
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 133
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 60
GRA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 Warning lamp . . . . . . . . . . . . . . . . . . . . 63, 145
Hazard warning lights . . . . . . . . . . . . . . . . . . . . . 94
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . . 105, 106
Adjustment of the head restraint angle . . . 106
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . . . 95
Headlight range control . . . . . . . . . . . . . . . . . . . 91
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 163
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Headlight washer . . . . . . . . . . . . . . . . . . . . 101
Heated exterior mirrors* . . . . . . . . . . . . . . . . . . 102
Heated front seats . . . . . . . . . . . . . . . . . . . . . . . 108
Heated rear window Heating element wires . . . . . . . . . . . . . . . . 170
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . 120
High pressure cleaners . . . . . . . . . . . . . . . . . . . 168
Hill-start assist . . . . . . . . . . . . . . . . . . . . . . . . . 146
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
How to jump start description . . . . . . . . . . . . . 225 Hydraulic Brake Assist
Automatic hazard warning lights activation . . .153
IIdentification number . . . . . . . . . . . . . . . . . . . . 232
Identification plate . . . . . . . . . . . . . . . . . . . . . . 232
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Information in the multifunction display
Memory displays . . . . . . . . . . . . . . . . . . . . . . 52
Instrument and switch lighting . . . . . . . . . . . . . 91
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 47
Instrument panel Service interval display . . . . . . . . . . . . . . . . 54
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Interior monitoring and anti-towing alarm* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 42JJump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 224KKeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Ibiza_EN.book Seite 258 Mittwoch, 1. September 2010 5:24 17
