Seat Ibiza 5D 2010 Workshop Manual

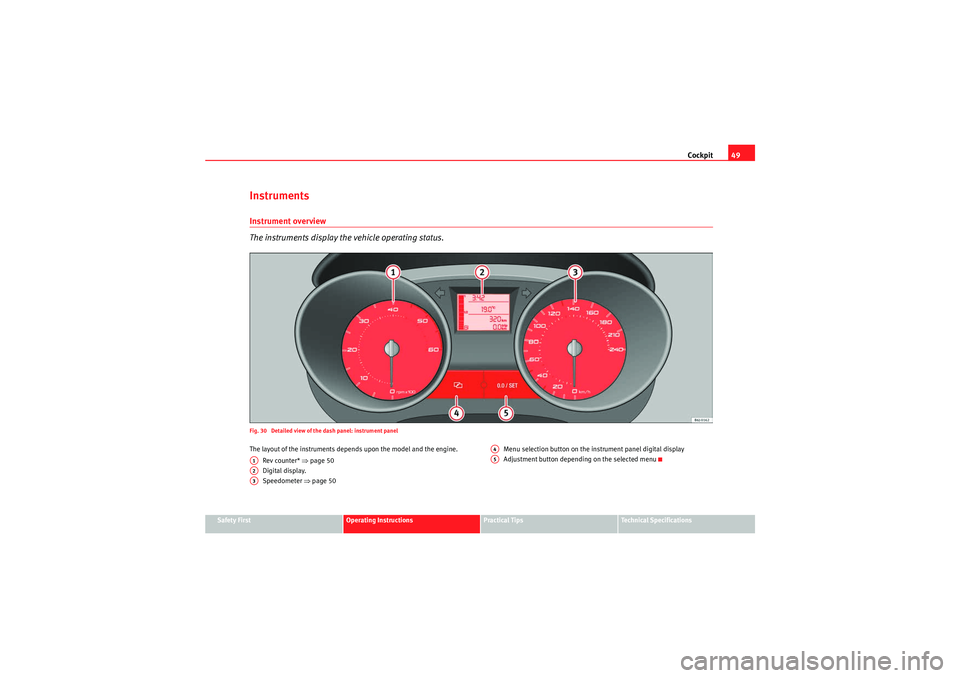

Cockpit49
Safety First
Operating Instructions
Practical Tips
Technical Specifications
InstrumentsInstrument overview
The instruments display the vehicle operating status.Fig. 30 Detailed view of the dash panel: instrument panelThe layout of the instruments depends upon the model and the engine.
Rev counter* ⇒page 50
Digital display.
Speedometer ⇒page 50 Menu selection button on the instrument panel digital display
Adjustment button depending on the selected menuA1A2A3
A4A5
Ibiza_EN.book Seite 49 Mittwoch, 1. September 2010 5:24 17

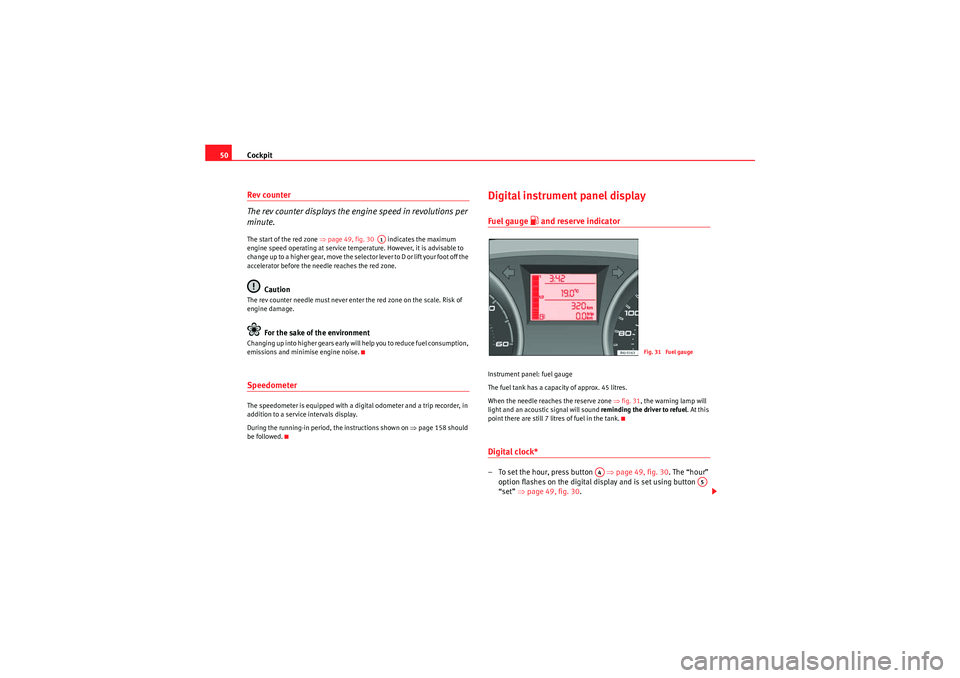

Cockpit
50Rev counter
The rev counter displays the engine speed in revolutions per
minute.The start of the red zone ⇒ page 49, fig. 30 indicates the maximum
engine speed operating at service temperature. However, it is advisable to
cha nge u p to a h igh er gear, m ove th e s el e cto r le ve r to D o r li f t your fo ot o f f th e
accelerator before the needle reaches the red zone.
Caution
The rev counter needle must never enter the red zone on the scale. Risk of
engine damage.
For the sake of the environment
Changing up into higher gears early will help you to reduce fuel consumption,
emissions and minimise engine noise.SpeedometerThe speedometer is equipped with a digital odometer and a trip recorder, in
addition to a service intervals display.
During the running-in period, the instructions shown on ⇒page 158 should
be followed.
Digital instrument panel displayFuel gauge
z and reserve indicator
Instrument panel: fuel gauge
The fuel tank has a capacity of approx. 45 litres.
When the needle reaches the reserve zone ⇒fig. 31 , the warning lamp will
light and an acoustic signal will sound reminding the driver to refuel. At this
point there are still 7 litres of fuel in the tank.Digital clock* – To set the hour, press button ⇒ page 49, fig. 30. The “hour”
option flashes on the digital display and is set using button
“set” ⇒page 49, fig. 30 .
A1
Fig. 31 Fuel gauge
A4
A5
Ibiza_EN.book Seite 50 Mittwoch, 1. September 2010 5:24 17

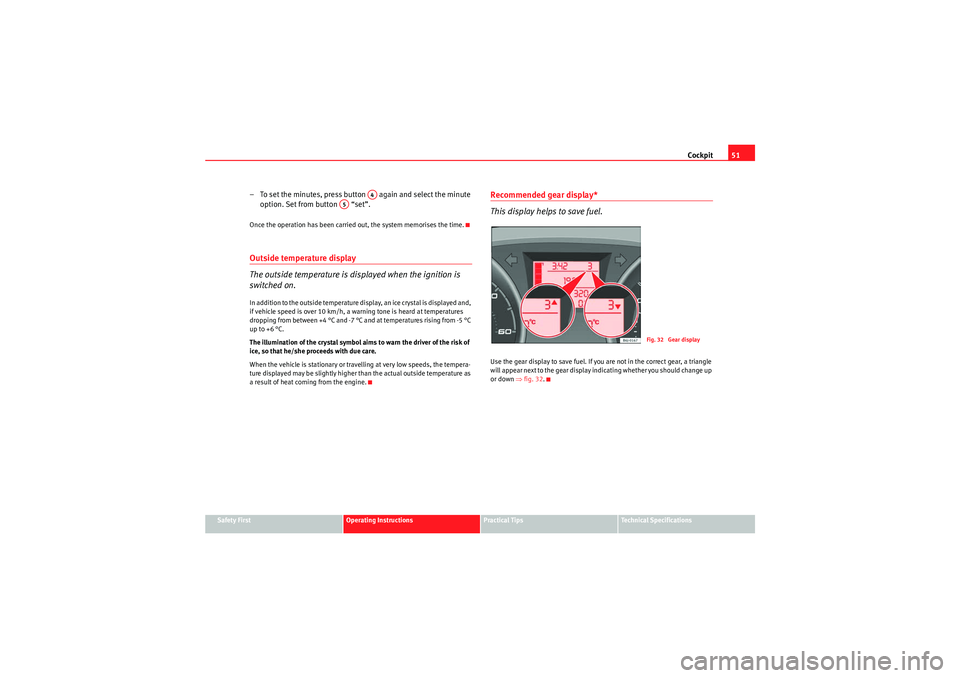

Cockpit51
Safety First
Operating Instructions
Practical Tips
Technical Specifications
– To set the minutes, press button again and select the minute
option. Set from button “set”.Once the operation has been carried out, the system memorises the time.Outside temperature display
The outside temperature is displayed when the ignition is
switched on.In addition to the outside temperature display, an ice crystal is displayed and,
if vehicle speed is over 10 km/h, a warning tone is heard at temperatures
dropping from between +4 °C and -7 °C and at temperatures rising from -5 °C
up to +6 °C.
The illumination of the crystal symbol aims to warn the driver of the risk of
ice, so that he/she proceeds with due care.
When the vehicle is stationary or travelling at very low speeds, the tempera-
ture displayed may be slightly higher than the actual outside temperature as
a result of heat coming from the engine.
Recommended gear display*
This display helps to save fuel.Use the gear display to save fuel. If you are not in the correct gear, a triangle
will appear next to the gear display indicating whether you should change up
or down ⇒ fig. 32.
A4
A5
Fig. 32 Gear display
Ibiza_EN.book Seite 51 Mittwoch, 1. September 2010 5:24 17

Cockpit

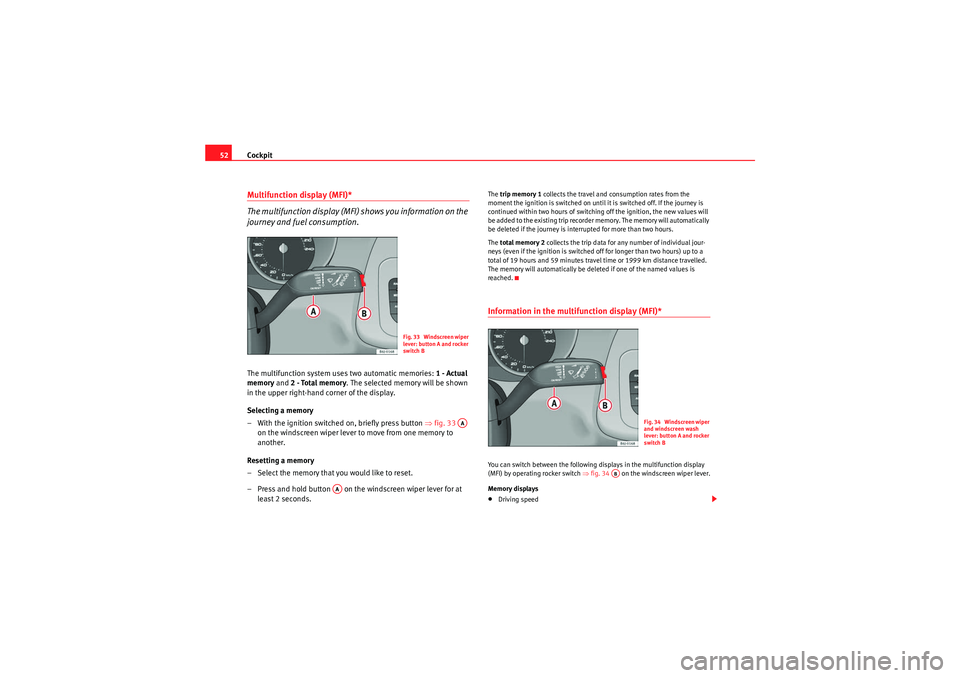

52Multifunction display (MFI)*
The multifunction display (MFI) shows you information on the
journey and fuel consumption.The multifunction system uses two automatic memories: 1 - Actual
memory and 2 - Total memory . The selected memory will be shown
in the upper right-hand corner of the display.
Selecting a memory
– With the ignition switched on, briefly press button ⇒fig. 33
on the windscreen wiper lever to move from one memory to
another.
Resetting a memory
– Select the memory that you would like to reset.
– Press and hold button on the windscreen wiper lever for at least 2 seconds.
The trip memory 1 collects the travel and consumption rates from the
moment the ignition is switched on until it is switched off. If the journey is
continued within two hours of switching off the ignition, the new values will
be added to the existing trip recorder memory. The memory will automatically
be deleted if the journey is interrupted for more than two hours.
The total memory 2 collects the trip data for any number of individual jour-
neys (even if the ignition is switched off for longer than two hours) up to a
total of 19 hours and 59 minutes travel time or 1999 km distance travelled.
The memory will automatically be deleted if one of the named values is
reached.Information in th e multifunction display (MFI)* You can switch between the following displays in the multifunction display
(MFI) by operating rocker switch ⇒fig. 34 on the windscreen wiper lever.
Memory displays•Driving speed
Fig. 33 Windscreen wiper
lever: button A and rocker
switch B
AA
AA
Fig. 34 Windscreen wiper
and windscreen wash
lever: button A and rocker
switch B
AB
Ibiza_EN.book Seite 52 Mittwoch, 1. September 2010 5:24 17

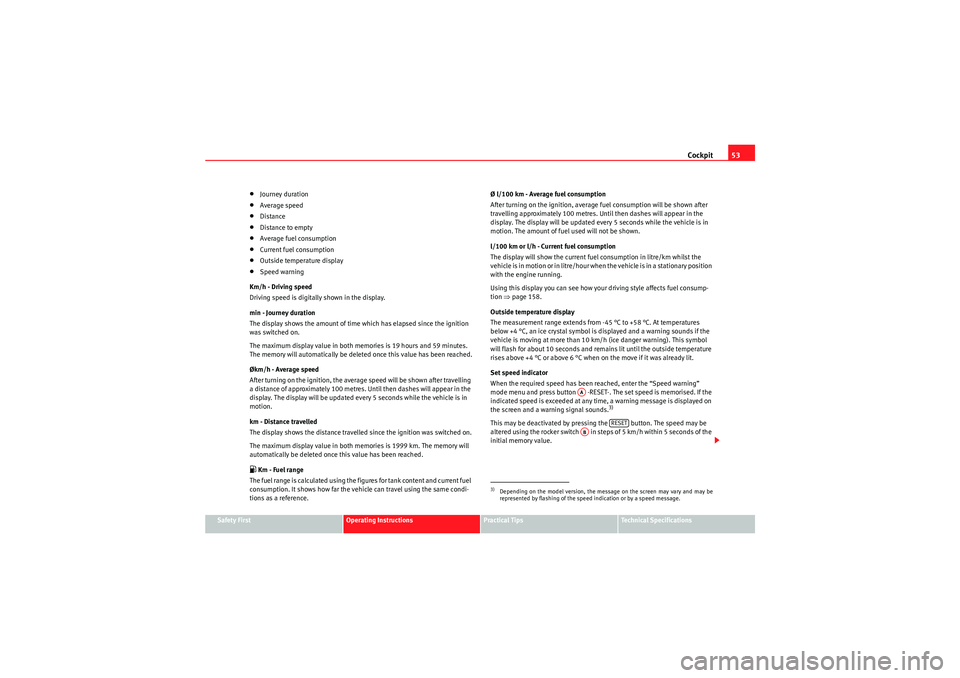

Cockpit53
Safety First
Operating Instructions
Practical Tips
Technical Specifications
•Journey duration•Average speed•Distance•Distance to empty•Average fuel consumption•Current fuel consumption•Outside temperature display•Speed warning
Km/h - Driving speed
Driving speed is digitally shown in the display.
min - Journey duration
The display shows the amount of time which has elapsed since the ignition
was switched on.
The maximum display value in both memories is 19 hours and 59 minutes.
The memory will automatically be deleted once this value has been reached.
Økm/h - Average speed
After turning on the ignition, the average speed will be shown after travelling
a distance of approximately 100 metres. Until then dashes will appear in the
display. The display will be updated every 5 seconds while the vehicle is in
motion.
km - Distance travelled
The display shows the distance travelled since the ignition was switched on.
The maximum display value in both memories is 1999 km. The memory will
automatically be deleted once this value has been reached.z Km - Fuel range
The fuel range is calculated using the figures for tank content and current fuel
consumption. It shows how far the vehicle can travel using the same condi-
tions as a reference. Ø l/100 km - Average fuel consumption
After turning on the ignition, average fuel consumption will be shown after
travelling approximately 100 metres. Until then dashes will appear in the
display. The display will be updated every 5 seconds while the vehicle is in
motion. The amount of fuel used will not be shown.
l/100 km or l/h - Current fuel consumption
The display will show the current fuel consumption in litre/km whilst the
vehicle is in motion or in litre/hour when the vehicle is in a stationary position
with the engine running.
Using this display you can see how your driving style affects fuel consump-
tion
⇒page 158.
Outside temperature display
The measurement range extends from -45 °C to +58 °C. At temperatures
below +4 °C, an ice crystal symbol is displayed and a warning sounds if the
vehicle is moving at more than 10 km/h (ice danger warning). This symbol
will flash for about 10 seconds and remains lit until the outside temperature
rises above +4 °C or above 6 °C when on the move if it was already lit.
Set speed indicator
When the required speed has been reached, enter the “Speed warning”
mode menu and press button -RESET-. The set speed is memorised. If the
indicated speed is exceeded at any time, a warning message is displayed on
the screen and a warning signal sounds.
3)
This may be deactivated by pressing the button. The speed may be
altered using the rocker switch in steps of 5 km/h within 5 seconds of the
initial memory value.3)Depending on the model version, the message on the screen may vary and may be
represented by flashing of the speed indication or by a speed message.
AA
RESET
AB
Ibiza_EN.book Seite 53 Mittwoch, 1. September 2010 5:24 17

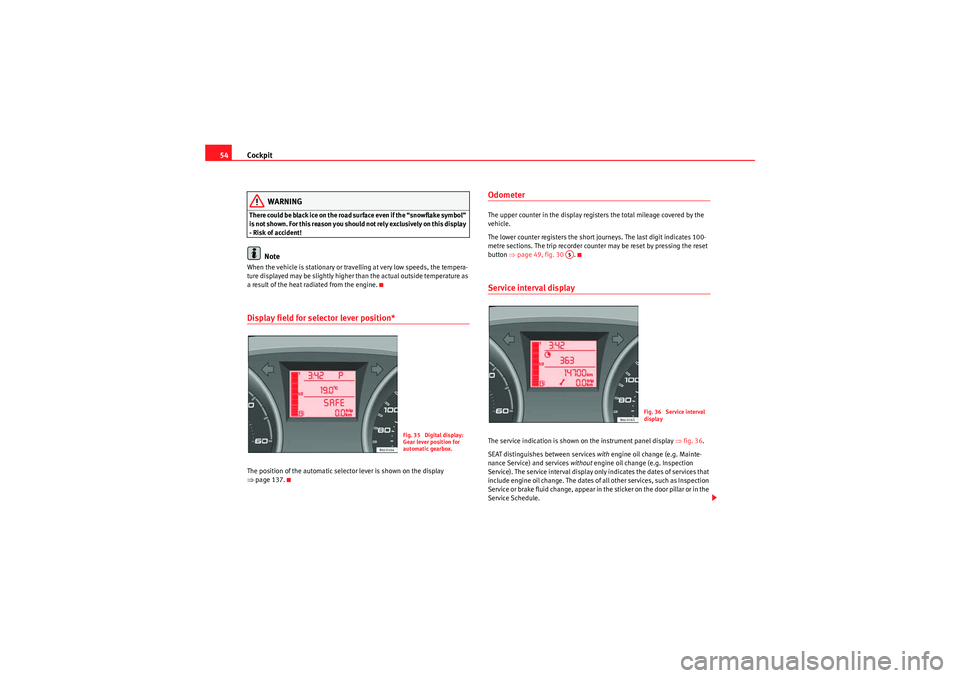

Cockpit
54
WARNING
There could be black ice on the road surface even if the “snowflake symbol”
is not shown. For this reason you should not rely exclusively on this display
- Risk of accident!
Note
When the vehicle is stationary or travelling at very low speeds, the tempera-
ture displayed may be slightly higher than the actual outside temperature as
a result of the heat radiated from the engine.Display field for selector lever position*The position of the automatic selector lever is shown on the display
⇒ page 137.
OdometerThe upper counter in the display registers the total mileage covered by the
vehicle.
The lower counter registers the short journeys. The last digit indicates 100-
metre sections. The trip recorder counter may be reset by pressing the reset
button ⇒page 49, fig. 30 .Service interval displayThe service indication is shown on the instrument panel display ⇒fig. 36 .
SEAT distinguishes between services with engine oil change (e.g. Mainte-
nance Service) and services without engine oil change (e.g. Inspection
Service). The service interval display only indicates the dates of services that
include engine oil change. The dates of all other services, such as Inspection
Ser vice or brake fluid change, appear in the sticker on the door pillar or in the
Service Schedule.
Fig. 35 Digital display:
Gear lever position for
automatic gearbox.
A5
Fig. 36 Service interval
display
Ibiza_EN.book Seite 54 Mittwoch, 1. September 2010 5:24 17

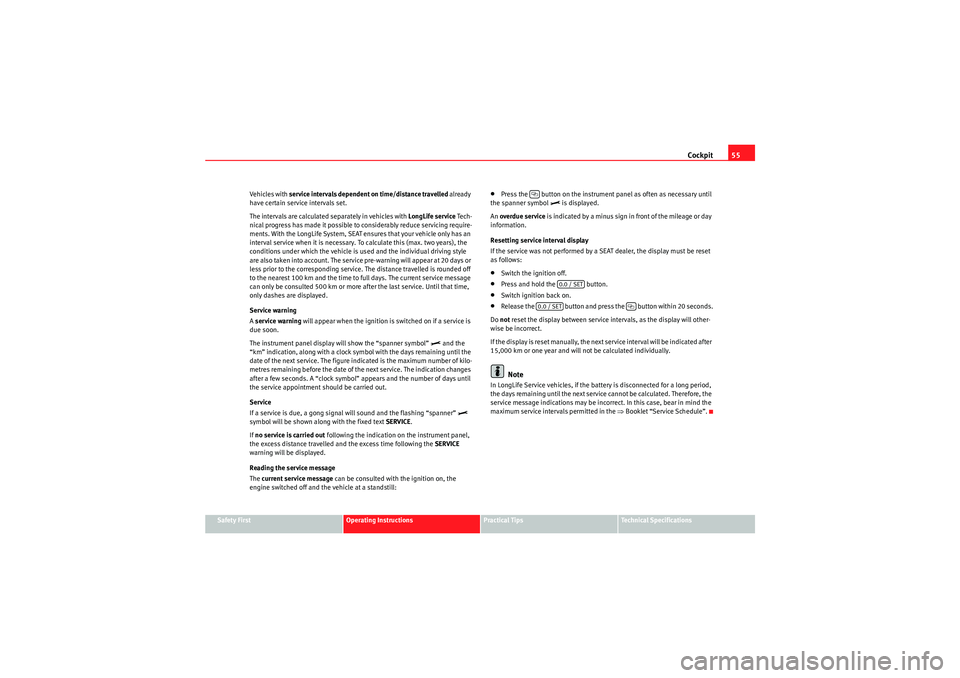

Cockpit55
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Vehicles with
service intervals dependent on time/distance travelled already
have certain service intervals set.
The intervals are calculated separately in vehicles with LongLife service Te ch-
nical progress has made it possible to considerably reduce servicing require-
ments. With the LongLife System, SEAT ensures that your vehicle only has an
interval service when it is necessary. To calculate this (max. two years), the
conditions under which the vehicle is used and the individual driving style
are also taken into account. The service pre-warning will appear at 20 days or
less prior to the corresponding service. The distance travelled is rounded off
to the nearest 100 km and the time to full days. The current service message
can only be consulted 500 km or more after the last service. Until that time,
only dashes are displayed.
Service warning
A service warning will appear when the ignition is switched on if a service is
due soon.
The instrument panel display will show the “spanner symbol”
 and the
“km” indication, along with a clock symbol with the days remaining until the
date of the next service. The figure indicated is the maximum number of kilo-
metres remaining before the date of the next service. The indication changes
after a few seconds. A “clock symbol” appears and the number of days until
the service appointment should be carried out.
Service
If a service is due, a gong signal will sound and the flashing “spanner”

symbol will be shown along with the fixed text SERVICE.
If no service is carried out following the indication on the instrument panel,
the excess distance travelled and the excess time following the SERVICE
warning will be displayed.
Reading the service message
The current service message can be consulted with the ignition on, the
engine switched off and the vehicle at a standstill:
•Press the button on the instrument panel as often as necessary until
the spanner symbol
 is displayed.
An overdue service is indicated by a minus sign in front of the mileage or day
information.
Resetting service interval display
If the service was not performed by a SEAT dealer, the display must be reset
as follows:
•Switch the ignition off.•Press and hold the button.•Switch ignition back on.•Release the button and press the button within 20 seconds.
Do not reset the display between service intervals, as the display will other-
wise be incorrect.
If the display is reset manually, the next service interval will be indicated after
15,000 km or one year and will not be calculated individually.Note
In LongLife Service vehicles, if the battery is disconnected for a long period,
the days remaining until the next service cannot be calculated. Therefore, the
service message indications may be incorrect. In this case, bear in mind the
maximum service intervals permitted in the ⇒Booklet “Service Schedule”.

0.0 / SET
0.0 / SET

Ibiza_EN.book Seite 55 Mittwoch, 1. September 2010 5:24 17

Cockpit
56Warning lampsOverview of the warning lamps
The warning lamps indicate a number of different functions and possible faults.

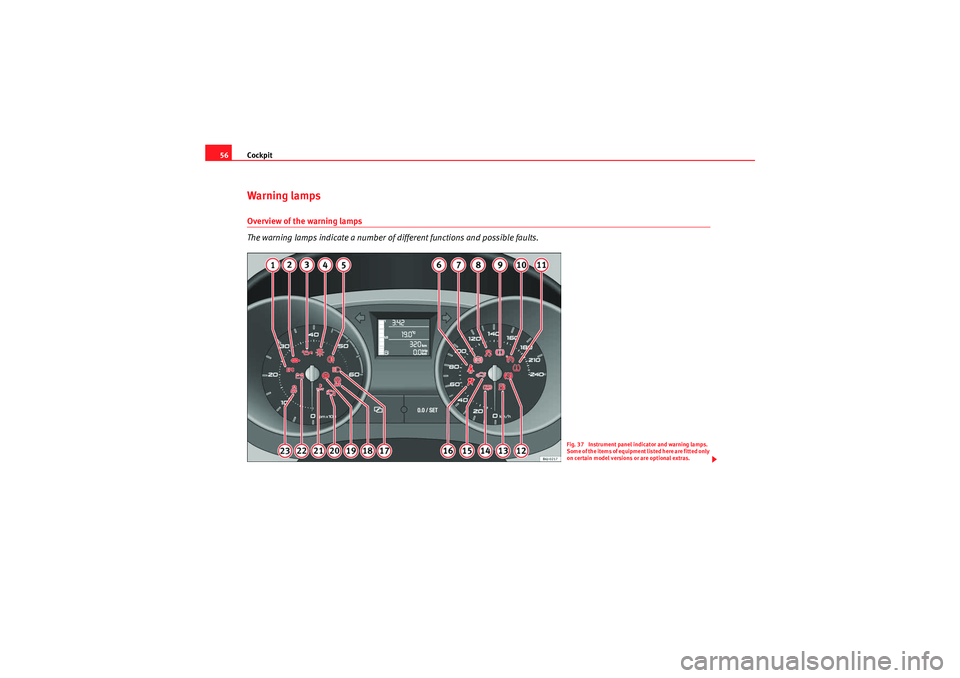

Fig. 37 Instrument panel indicator and warning lamps.
Some of the items of equipment listed here are fitted only
on certain model versions or are optional extras.
Ibiza_EN.book Seite 56 Mittwoch, 1. September 2010 5:24 17

Cockpit57
Safety First
Operating Instructions
Practical Tips
Technical Specifications

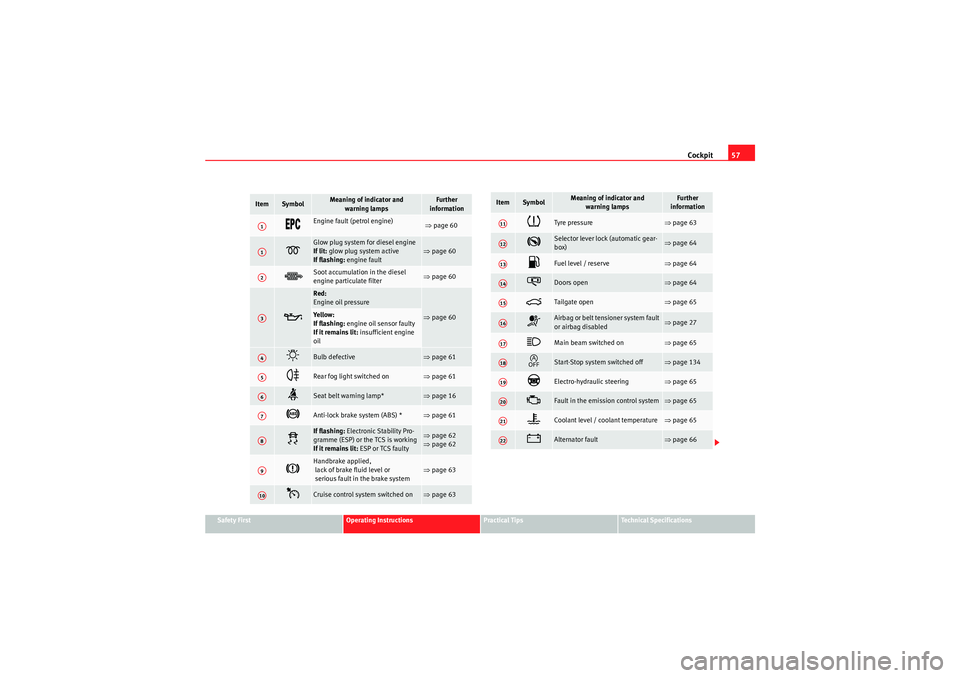

Item
Symbol
Meaning of indicator and
warning lamps
Further
information
%0#
Engine fault (petrol engine)
⇒ page 60
D
Glow plug system for diesel engine
If lit: glow plug system active
If flashing: engine fault
⇒page 60

Soot accumulation in the diesel
engine particulate filter
⇒page 60
E
Red:
Engine oil pressure
⇒ page 60
Yellow:
If flashing: engine oil sensor faulty
If it remains lit: insufficient engine
oil
“
Bulb defective
⇒ page 61


Rear fog light switched on
⇒page 61
h
Seat belt warning lamp*
⇒page 16
J
Anti-lock brake system (ABS) *
⇒page 61

If flashing: Electronic Stability Pro-
gramme (ESP) or the TCS is working
If it remains lit: ESP or TCS faulty
⇒ page 62
⇒ page 62
H
Handbrake applied,
lack of brake fluid level or
serious fault in the brake system
⇒page 63

Cruise control system switched on
⇒page 63
A1A1A2A3A4A5A6A7A8A9A10
~
Tyre pressure
⇒page 63
K
Selector lever lock (automatic gear-
box)
⇒page 64
z
Fuel level / reserve
⇒page 64
o
Doors open
⇒page 64

Tailgate o pe n
⇒page 65
T
Airbag or belt tensioner system fault
or airbag disabled
⇒page 27

Main beam switched on
⇒page 65
›
Start-Stop system switched off
⇒page 134

Electro-hydraulic steering
⇒page 65

Fault in the emission control system
⇒page 65
v
Coolant level / coolant temperature
⇒page 65
F
Alternator fault
⇒page 66
Item
Symbol
Meaning of indicator and
warning lamps
Further
information
A11A12A13A14A15A16A17A18A19A20A21A22
Ibiza_EN.book Seite 57 Mittwoch, 1. September 2010 5:24 17

Cockpit
58
WARNING
•Failure to observe warning lamps and warning messages can result in
serious personal injuries or damage to your vehicle.•The risk of an accident increases if your vehicle breaks down. Use a
warning triangle to draw the attention of other road users in order to
prevent danger to third parties.•The engine compartment is a dangerous area! Before you open the
bonnet to work on the engine or in the engine compartment, you must
switch the engine off and allow it to cool to reduce the risk of scalding or
other injuries. Read and observe the relevant warnings ⇒page 183.Note
•The appropriate warning lamp for a fault will light up in vehicles without
warning or information messages in the display.•In vehicles with warning or information texts on the screen, the appro-
priate warning lamp for a fault will light up and a warning or information
message will also appear on the screen.
Warning symbolsThere are red warning symbols (p riority 1) and yellow warning
symbols (priority 2)Warning reports, Priority 1 (red)
If one of these faults occurs, the warning lamp will flash or light up and will
be accompanied by three audible warnings . This is a danger warning. Stop
the vehicle and switch off the engine. Check the fault and correct it. Obtain
professional assistance if necessary.
If several priority 1 faults are detected at the same time, the symbols will be
displayed one after the other for about 2 seconds at a time and will continue
until the fault is corrected.
No menus will be shown in the display for the duration of a priority 1 warning
message.
Examples of priority 1 warning messages (red)•Brake system symbol
H with the warning message STOP BRAKE FLUID
SERVICE MANUAL or STOP BRAKE FAULT SERVICE MANUAL .
•Coolant symbol
v with the warning message STOP SEE COOLANT
INSTRUCTION MANUAL .
•Engine oil pressure symbol
E with the warning message STOP ENGINE
OIL PRESSURE LOW! INSTRUCTION MANUAL .
Warning reports, Priority 2 (yellow)
If one of these faults occurs, the warning lamp lights up, and is accompanied
by one audible warning . Check the corresponding function as soon as
possible although the vehicle may be used without risk.
If several priority 2 warning messages are detected at the same time, the
symbols are displayed one after the other for about 2 seconds at a time. After
a set time, the information text will disappear and the symbol will be shown
as a reminder at the side of the display.
l
If it stays lit: TCS disabled
⇒page 62
⇒ page 62

Turn signals in operation
⇒page 66
SAFE
Electronic immobiliser
⇒page 66
⇒ page 72
Item
Symbol
Meaning of indicator and
warning lamps
Further
information
A23
Ibiza_EN.book Seite 58 Mittwoch, 1. September 2010 5:24 17
