Seat Ibiza 5D 2010 Repair Manual

Cockpit59
Safety First
Operating Instructions
Practical Tips
Technical Specifications

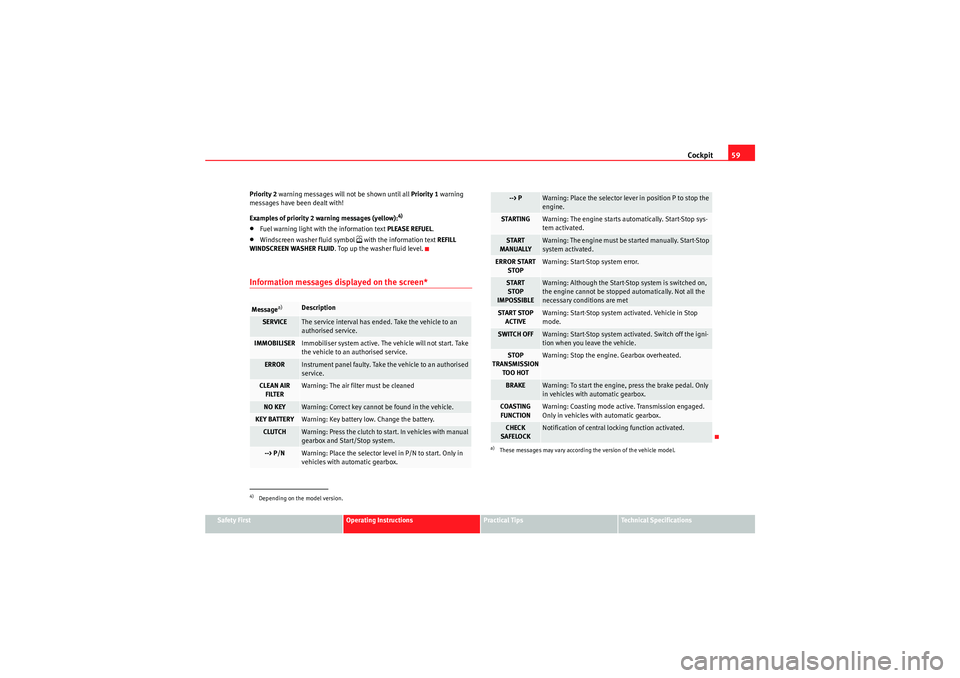

Priority 2
warning messages will not be shown until all Priority 1 warning
messages have been dealt with!
Examples of priority 2 warning messages (yellow):
4)
•Fuel warning light with the information text PLEASE REFUEL .•Windscreen washer fluid symbol
 with the information text REFILL
WINDSCREEN WASHER FLUID . Top up the washer fluid level.
Information messages displayed on the screen*4)Depending on the model version.Message
a)
Description
SERVICE
The service interval has ended. Take the vehicle to an
authorised service.
IMMOBILISER
Immobiliser system active. The vehicle will not start. Take
the vehicle to an authorised service.
ERROR
Instrument panel faulty. Take the vehicle to an authorised
service.
CLEAN AIR
FILTER
Warning: The air filter must be cleaned
NO KEY
Warning: Correct key cannot be found in the vehicle.
KEY BATTERY
Warning: Key battery low. Change the battery.
CLUTCH
Warning: Press the clutch to start. In vehicles with manual
gearbox and Start/Stop system.
--> P/N
Warning: Place the selector level in P/N to start. Only in
vehicles with automatic gearbox.
--> P
Warning: Place the selector lever in position P to stop the
engine.
STARTING
Warning: The engine starts automatically. Start-Stop sys-
tem activated.
START
MANUALLY
Warning: The engine must be started manually. Start-Stop
system activated.
ERROR START STOP
Warning: Start-Stop system error.
START
STOP
IMPOSSIBLE
Warning: Although the Start-Stop system is switched on,
the engine cannot be stopped automatically. Not all the
necessary conditions are met
START STOP ACTIVE
Warning: Start-Stop system activated. Vehicle in Stop
mode.
SWITCH OFF
Warning: Start-Stop system activated. Switch off the igni-
tion when you leave the vehicle.
STOP
TRANSMISSION
TOO HOT
Warning: Stop the engine. Gearbox overheated.
BRAKE
Warning: To start the engine, press the brake pedal. Only
in vehicles with automatic gearbox.
COASTING FUNCTION
Warning: Coasting mode active. Transmission engaged.
Only in vehicles with automatic gearbox.
CHECK
SAFELOCK
Notification of central locking function activated.
a)These messages may vary according the version of the vehicle model.
Ibiza_EN.book Seite 59 Mittwoch, 1. September 2010 5:24 17

Cockpit

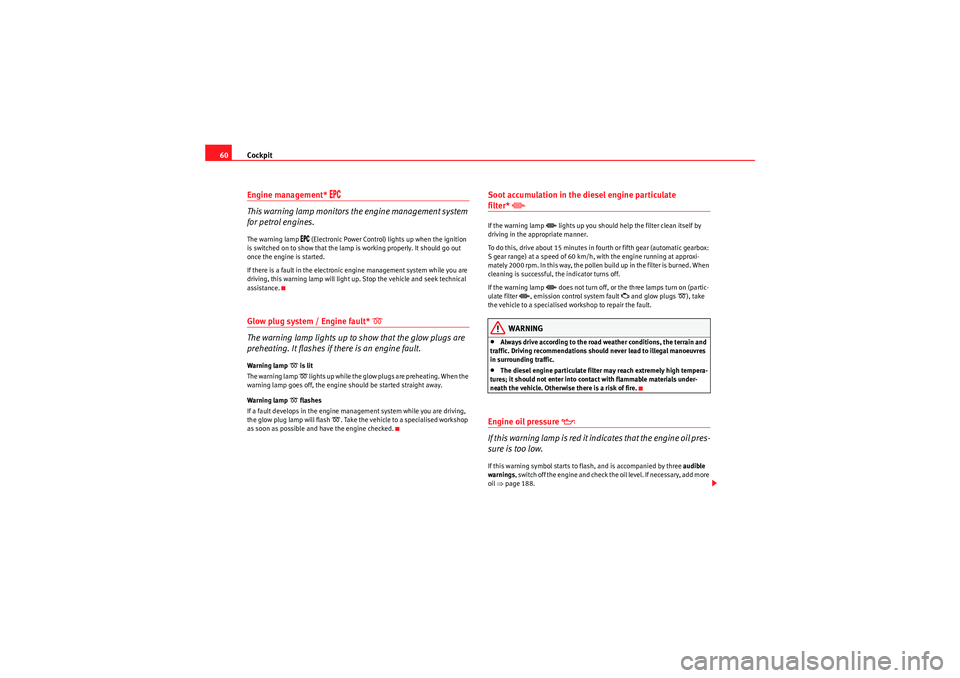

60Engine management*
%0#

This warning lamp monitors the engine management system
for petrol engines.
The warning lamp
%0# (Electronic Power Control) lights up when the ignition
is switched on to show that the lamp is working properly. It should go out
once the engine is started.
If there is a fault in the electronic engine management system while you are
driving, this warning lamp will light up. Stop the vehicle and seek technical
assistance.
Glow plug system / Engine fault*
D
The warning lamp lights up to show that the glow plugs are
preheating. It flashes if there is an engine fault.
Warning lamp
D is lit
The warning lamp D lights up while the glow plugs are preheating. When the
warning lamp goes off, the engine should be started straight away.
Warning lamp
D flashes
If a fault develops in the engine management system while you are driving,
the glow plug lamp will flash
D. Take the vehicle to a specialised workshop
as soon as possible and have the engine checked.
Soot accumulation in the diesel engine particulate filter*

If the warning lamp
 lights up you should help the filter clean itself by
driving in the appropriate manner.
To do this, drive about 15 minutes in fourth or fifth gear (automatic gearbox:
S gear range) at a speed of 60 km/h, with the engine running at approxi-
mately 2000 rpm. In this way, the pollen build up in the filter is burned. When
cleaning is successful, the indicator turns off.
If the warning lamp  does not turn off, or the three lamps turn on (partic-
ulate filter
, emission control system fault
 and glow plugs
D), take
the vehicle to a specialised workshop to repair the fault.
WARNING
•Always drive according to the road weather conditions, the terrain and
traffic. Driving recommendations should never lead to illegal manoeuvres
in surrounding traffic.•The diesel engine particulate filter may reach extremely high tempera-
tures; it should not enter into contact with flammable materials under-
neath the vehicle. Otherwise there is a risk of fire.
Engine oil pressure
E
If this warning lamp is red it indicates that the engine oil pres-
sure is too low.If this warning symbol starts to flash, and is accompanied by three audible
warnings , switch off the engine and check the oil level. If necessary, add more
oil ⇒page 188.
Ibiza_EN.book Seite 60 Mittwoch, 1. September 2010 5:24 17

Cockpit61
Safety First
Operating Instructions
Practical Tips
Technical Specifications
If the symbol flashes although the oil level is correct,
do not drive on. The
engine must not even run at idle speed. Obtain technical assistance.
Checking the oil level
E
If the warning lamp is yellow
E the engine oil level should be checked as
soon as possible. Top up the oil ⇒page 188 at the next opportunity.
Oil level sensor faulty*
E
If the
E yellow warning lamp flashes, take the vehicle to a specialised work-
shop to have the oil level sensor checked. Until then it is advisable to check
the oil level every time you refuel.
Bulb defect*
“
The indicator lights up when a bulb is not functioning.The
“ warning lamp lights up when there is a fault on the turn signals, head-
lights, side lights and fog lights.
Rear fog light*


This warning lamp lights up when the rear fog light is switched on

. For
further information see ⇒page 89.
Anti-lock brake system (ABS)*
J
A warning lamp monitors the ABS.
The indicator lamp
J should light up for a few seconds when the ignition is
switched on. It goes out again after the system has run through an automatic
test sequence.
There is a fault in the ABS if:
•The warning lamp
J does not light up when the ignition is switched on.
•The warning lamp does not go out again after a few seconds•The warning lamp lights up when the vehicle is moving
The vehicle can still be braked in the normal way, without the ABS function.
Take the vehicle to a specialised workshop as soon as possible. For further
information on the ABS go to ⇒page 154.
If there is a fault in the ABS, the ESP* and the tyre pressure warning lamp will
also light up.
Brake system fault
If the ABS warning lamp
J lights up together with the brake warning lamp
H, this indicates not only a fault in the ABS function, but also a possible fault
in the brake system ⇒.
WARNING
•Before opening the bonnet, read and observe the warnings on
⇒ page 183, “Working in the engine compartment”.•If the brake warning lamp
H should light up together with the ABS
warning lamp
J, stop the vehicle immediately and check the brake fluid
level in the reservoir ⇒ page 195, “Brake fluid”. If the fluid level has
dropped below the “MIN” mark you must not drive on. Risk of accident.
Obtain technical assistance.
Ibiza_EN.book Seite 61 Mittwoch, 1. September 2010 5:24 17

Cockpit

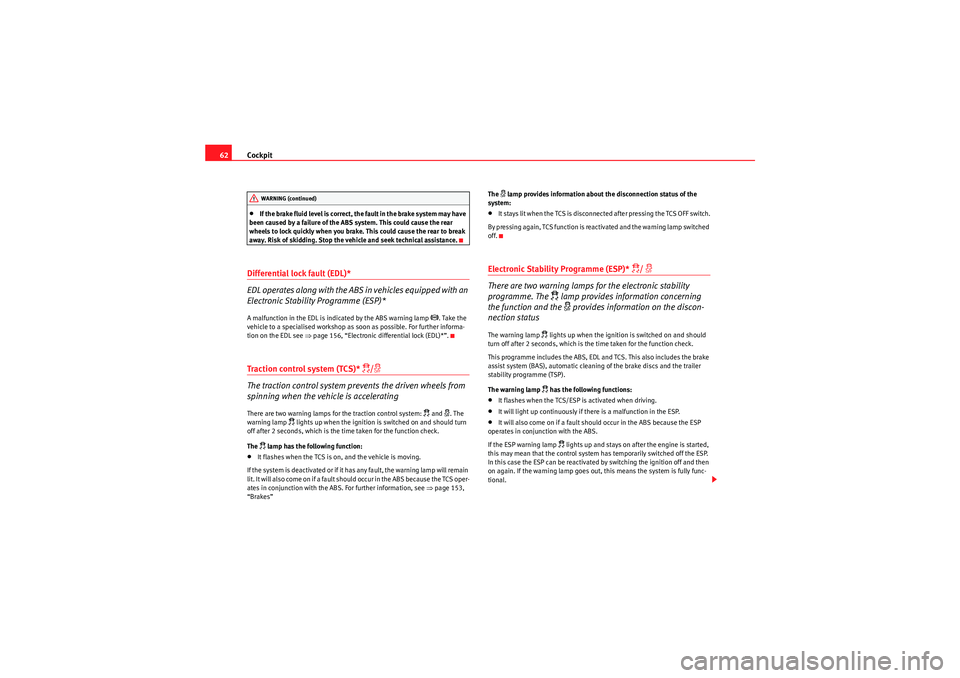

62•If the brake fluid level is correct, the fault in the brake system may have
been caused by a failure of the ABS system. This could cause the rear
wheels to lock quickly when you brake. This could cause the rear to break
away. Risk of skidding. Stop the vehicle and seek technical assistance.
Differential lock fault (EDL)*
EDL operates along with the ABS in vehicles equipped with an
Electronic Stability Programme (ESP)*A malfunction in the EDL is indicated by the ABS warning lamp
J. Take the
vehicle to a specialised workshop as soon as possible. For further informa-
tion on the EDL see ⇒page 156, “Electronic differential lock (EDL)*”.
Traction control system (TCS)*
/l
The traction control system prevents the driven wheels from
spinning when the vehicle is acceleratingThere are two warning lamps for the traction control system:
 and
l. The
warning lamp
 lights up when the ignition is switched on and should turn
off after 2 seconds, which is the time taken for the function check.
The
 lamp has the following function:
•It flashes when the TCS is on, and the vehicle is moving.
If the system is deactivated or if it has any fault, the warning lamp will remain
li t . I t will als o co m e o n i f a fa ul t s hould occur in the A B S b e caus e t he TCS o pe r -
ates in conjunction with the ABS. For further information, see ⇒page 153,
“Brakes” The
l lamp provides information about the disconnection status of the
system:
•It stays lit when the TCS is disconnected after pressing the TCS OFF switch.
By pressing again, TCS function is reactivated and the warning lamp switched
off.Electronic Stability Programme (ESP)*
/ l
There are two warning lamps for the electronic stability
programme. The
 lamp provides information concerning
the function and the l provides information on the discon-
nection status
The warning lamp
 lights up when the ignition is switched on and should
turn off after 2 seconds, which is the time taken for the function check.
This programme includes the ABS, EDL and TCS. This also includes the brake
assist system (BAS), automatic cleaning of the brake discs and the trailer
stability programme (TSP).
The warning lamp  has the following functions:
•It flashes when the TCS/ESP is activated when driving.•It will light up continuously if there is a malfunction in the ESP.•It will also come on if a fault should occur in the ABS because the ESP
operates in conjunction with the ABS.
If the ESP warning lamp
 lights up and stays on after the engine is started,
this may mean that the control system has temporarily switched off the ESP.
In this case the ESP can be reactivated by switching the ignition off and then
on again. If the warning lamp goes out, this means the system is fully func-
tional.
WARNING (continued)
Ibiza_EN.book Seite 62 Mittwoch, 1. September 2010 5:24 17

Cockpit63
Safety First
Operating Instructions
Practical Tips
Technical Specifications

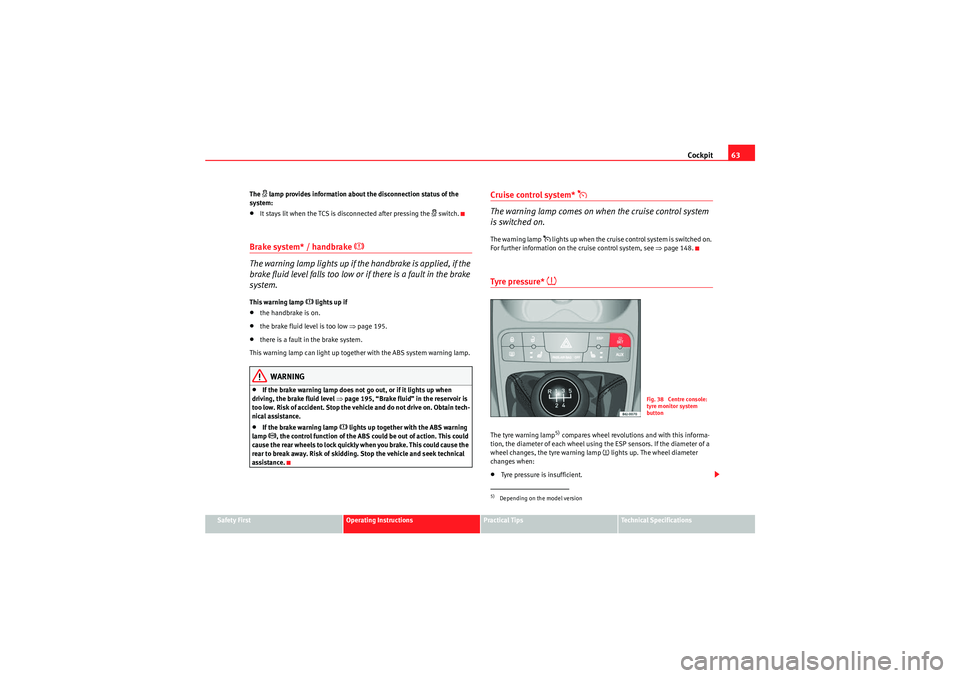

The
l lamp provides information about the disconnection status of the
system:
•It stays lit when the TCS is disconnected after pressing the
l switch.
Brake system* / handbrake
H
The warning lamp lights up if the handbrake is applied, if the
brake fluid level falls too low or if there is a fault in the brake
system.
This warning lamp
H lights up if
•the handbrake is on.•the brake fluid level is too low ⇒page 195.•there is a fault in the brake system.
This warning lamp can light up together with the ABS system warning lamp.WARNING
•If the brake warning lamp does not go out, or if it lights up when
driving, the brake fluid level ⇒page 195, “Brake fluid” in the reservoir is
too low. Risk of accident. Stop the vehicle and do not drive on. Obtain tech-
nical assistance.•If the brake warning lamp
H lights up together with the ABS warning
lamp
J, the control function of the ABS could be out of action. This could
cause the rear wheels to lock quickly when you brake. This could cause the
rear to break away. Risk of skidding. Stop the vehicle and seek technical
assistance.
Cruise control system*

The warning lamp comes on when the cruise control system
is switched on.The warning lamp
 lights up when the cruise control system is switched on.
For further information on the cruise control system, see ⇒page 148.
Tyre pressure*
~
The tyre warning lamp
5) compares wheel revolutions and with this informa-
tion, the diameter of each wheel using the ESP sensors. If the diameter of a
wheel changes, the tyre warning lamp ~ lights up. The wheel diameter
changes when:
•Tyre pressure is insufficient.5)Depending on the model version
Fig. 38 Centre console:
tyre monitor system
button
Ibiza_EN.book Seite 63 Mittwoch, 1. September 2010 5:24 17

Cockpit
64•The tyre structure is damaged.•The vehicle is unbalanced because of a load.•The wheels of one axle are under more pressure (for example, driving with
a trailer or on extreme slopes).•The vehicle is fitted with snow chains.•The temporary spare wheel is fitted.•The wheel on one axle is changed.
Tyre pressure adjustment
Following the modification to tyre pressure or changing one or more wheels,
the button ⇒page 63, fig. 38 must be kept pressed while the ignition is on
until an acoustic signal is heard.
If the wheels are under excessive load (for example, driving with a trailer or
heavy load), the tyre pressure must be increased to the recommended value
for a full load (see the sticker on the inside of the fuel flap). If the tyre m onitor
system button is pressed down, the new tyre pressures are confirmed.
The tyre pressure warning lamp
~ lights up
If the tyre pressure of a wheel is much lower than the value set by the driver,
then the tyre pressure warning lamp ⇒ will light up.
WARNING
•When the tyre pressure warning lamp lights up, reduce speed immedi-
ately and avoid any sudden manoeuvre or braking. Stop when possible,
and check the tyre pressure and status.•The driver is responsible for maintaining correct tyre pressures. For this
reason, tyre pressure must be regularly checked.•Under certain circumstances (for example, when driving in a sportslike
manner, in winter conditions or on a dirt track) the tyre warning lamp may
light up or function incorrectly.
Note
If the battery is disconnected, the yellow warning lamp
~ lights up after
turning the ignition on. This should turn off after a brief journey.
Speed selector lever lock*
K
The brake pedal must be depressed when this warning lamp lights up. This is
necessary when the automatic gearbox* selector lever is moved out of the
positions P or N.Fuel level / reserve
z
This symbol lights up to indicate that the fuel tank is under
the reserve level.It lights up when only 7 litres of fuel remain in the tank. Moreover, a warning
buzzer* is heard. It reminds you to fuel up the fuel tank as soon as possible
⇒ page 180.Indicates that the doors are open*
o
This warning lamp lights up if one of the doors or the tailgate
is open.The warning light
 should go off when all the doors are closed correctly.
Ibiza_EN.book Seite 64 Mittwoch, 1. September 2010 5:24 17

Cockpit65
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Ta i l g a t e o p e n *

The warning lamp
 should switch off when the tailgate is fully closed.
Main beam headlights

The indicator lamp lights up when the main beams are on.The warning lamp
 is switched on once main beams are on or once the
headlight flasher is operating.
For further information see ⇒page 95.
Electro-hydraulic steering*

The level of steering assistance depends on the vehicle speed and on the
steering wheel turning speed.
The warning lamp should light up for a few seconds when the ignition is
switched on. It should go out once the engine is started.
There is a fault in the electro-hydraulic steering system if the lamp does not
go out or lights up whilst the vehicle is in motion. Take the vehicle to the
Authorised Service Centre as soon as possible.
Note
When towing the vehicle with the engine stopped or due to a fault in the
power steering, this will not operate. The vehicle can still be steered, but it
will require greater force to turn the steering wheel.
Emission control system*

This warning lamp monitors the exhaust system.
Warning lamp
 flashes:
When there is misfiring that can damage the catalytic converter. Reduce
speed and drive carefully to the nearest specialised workshop to have the
engine checked.
Warning lamp  is lit:
If a fault has developed during driving which has reduced the quality of the
exhaust gas (e.g. lambda probe fault). Reduce speed and drive carefully to
the nearest specialised workshop to have the engine checked.
Coolant level* / temperature
v
The warning lamp lights up if the coolant temperature is too
high or if the coolant level is too low.There is a fault if:•The warning symbol does not go out again after a few seconds.•The warning lamp lights up or flashes while the vehicle is moving, and
three acoustic warning signals ⇒ are emitted.
This means that either the coolant level is too low or the coolant temperature
is too high.
Coolant temperature too high
If the warning light comes on, stop the vehicle, switch off the engine and wait
for it to cool down. Check the coolant level.
If the coolant level is correct, the overheating may be caused by a malfunction
of the radiator fan. Check the radiator fan fuse and have it replaced if neces-
sary ⇒page 212.
Ibiza_EN.book Seite 65 Mittwoch, 1. September 2010 5:24 17

Cockpit
66If the warning lamp lights up again after driving on for a short distance, stop
the vehicle and switch the engine off . Contact an Authorised Service Centre
or a specialised workshop.
Coolant level too low
If the warning light comes on, stop the vehicle, switch off the engine and wait
for it to cool down First check the coolant level. If the level of the coolant is
below the “MIN” mark, top up with coolant liquid ⇒.
WARNING
•If your vehicle is immobilised for technical reasons, move it to a safe
distance from traffic. Turn the engine off, turn the hazard lights on and
place the warning triangle.•Never open the bonnet if you can see or hear steam or coolant escaping
from the engine compartment. Risk of scalding. Wait until you can no
longer see or hear escaping steam or coolant.•The engine compartment is a danger ous area! Before carrying out any
work in the engine compartment, switch off the engine and allow it to cool
down. Always note the corresponding warnings ⇒page 183.
Alternator
F
This warning lamp signals a fault in the alternator.
The warning lamp
F lights up when the ignition is switched on. It should go
out when the engine has started running.
If the warning lamp F lights up while driving, the alternator is no longer
charging the battery. You should immediately drive to the nearest specialised
workshop.
You should avoid using electrical equipment that is not absolutely necessary
because this will drain the battery. If the indicator flashes the voltage is insufficient for normal vehicle
operation.
Turn signals

The indicator lamp flashes when the turn signals are in oper-
ation.Depending on which turn signal is operating, either the left
 or right

turn
signal lamp flashes. Both indicator lamps will flash at the same time when
the hazard warning lights are switched on.
If any of both turn signals fails, the indicator lamp will start flashing twice
faster than normal.
For further information on the turn signals, please see ⇒page 95.
Electronic immobiliser* “Safe”
This warning lamp flashes if an unauthorised key is used.Inside the key there is a chip that deactivates the electronic immobiliser auto-
matically when the key is inserted into the ignition. The immobiliser will be
activated again automatically as soon as you pull the key out of the ignition
lock.
The instrument panel displays the following message
6): SAFE . The vehicle
cannot be started in this case
The engine can, however, be started if the appropriate coded SEAT genuine
key is used.
6)Depending on the model version.
Ibiza_EN.book Seite 66 Mittwoch, 1. September 2010 5:24 17

Cockpit67
Safety First
Operating Instructions
Practical Tips
Technical Specifications

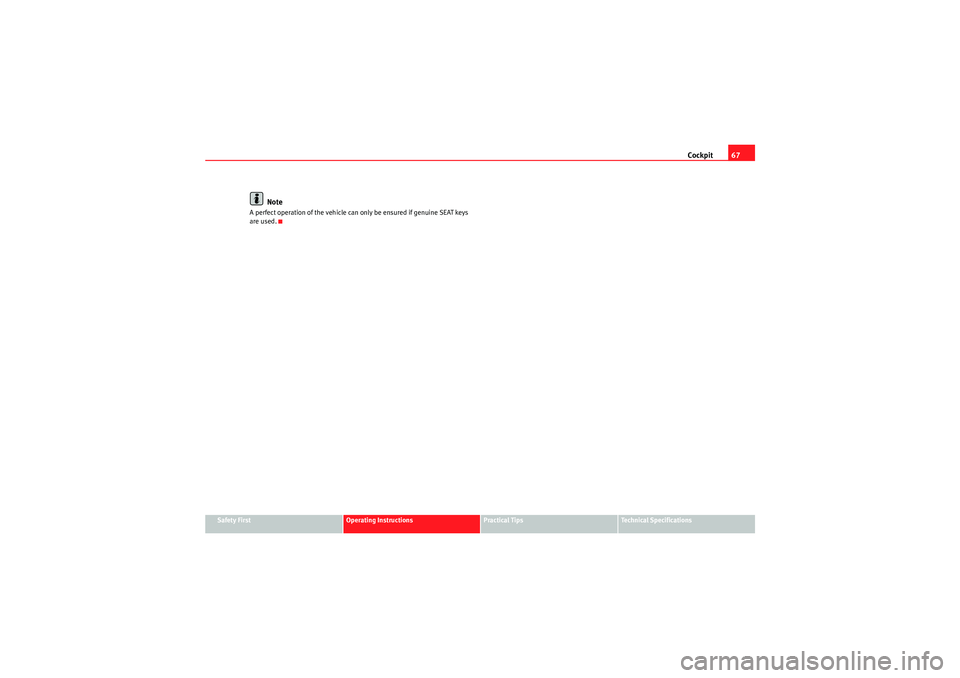

Note
A perfect operation of the vehicle can only be ensured if genuine SEAT keys
are used.
Ibiza_EN.book Seite 67 Mittwoch, 1. September 2010 5:24 17

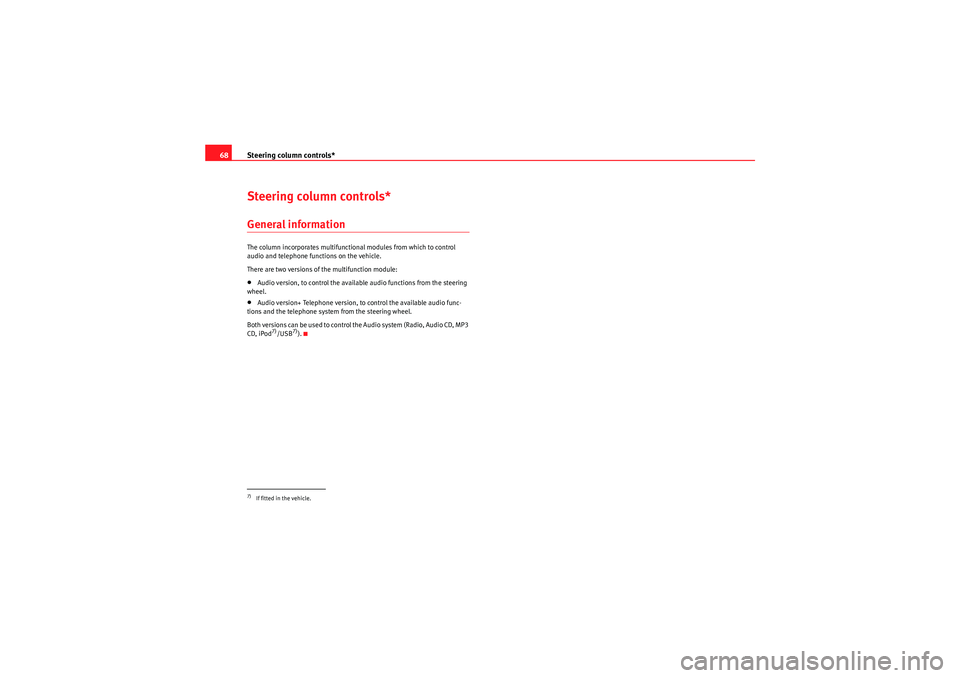

Steering column controls*
68Steering column controls*General informationThe column incorporates multifunctional modules from which to control
audio and telephone functions on the vehicle.
There are two versions of the multifunction module:•Audio version, to control the available audio functions from the steering
wheel.•Audio version+ Telephone version, to control the available audio func-
tions and the telephone system from the steering wheel.
B ot h ve rsio ns ca n b e us e d to co ntr ol th e A ud i o s yste m ( Rad io, A ud io CD, MP 3
CD, iPod
7)/USB
7)).
7)If fitted in the vehicle.
Ibiza_EN.book Seite 68 Mittwoch, 1. September 2010 5:24 17
