Page 81 of 258
Unlocking and locking79
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

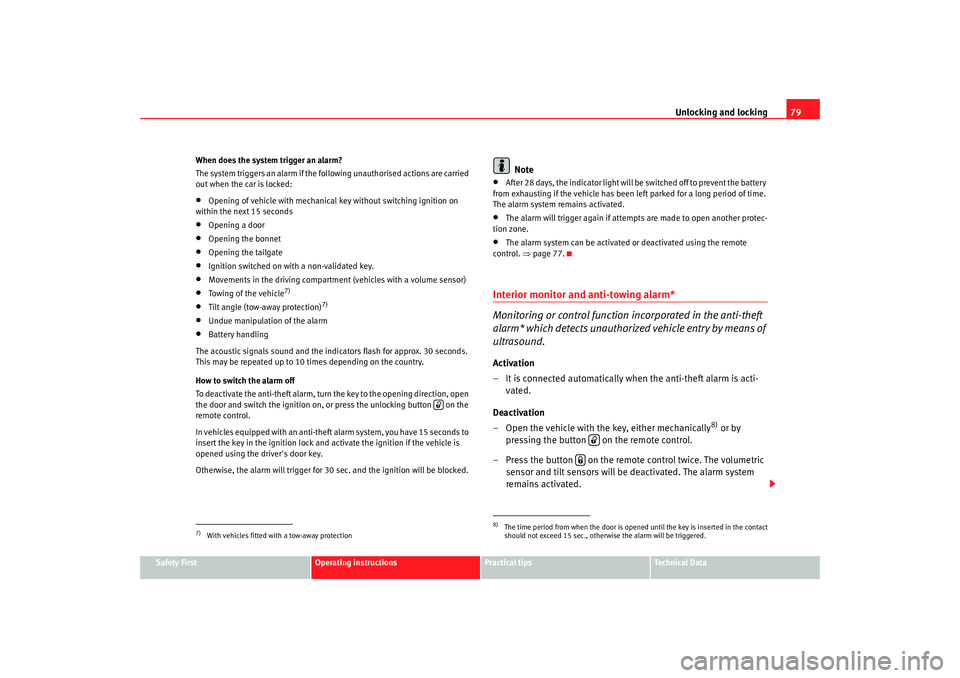

When does the system trigger an alarm?
The system triggers an alarm if the fo
llowing unauthorised actions are carried
out when the car is locked:
•
Opening of vehicle with mechanical key without switching ignition on
within the next 15 seconds
•
Opening a door
•
Opening the bonnet
•
Opening the tailgate
•
Ignition switched on with a non-validated key.
•
Movements in the driving compartment (vehicles with a volume sensor)
•
Towing of the vehicle
7)
•
Tilt angle (tow-away protection)
7)
•
Undue manipulation of the alarm
•
Battery handling
The acoustic signals sound and the indicators flash for approx. 30 seconds.
This may be repeated up to 10 times depending on the country.
How to switch the alarm off
To deactivate the anti-theft alarm, turn the key to the opening direction, open
the door and switch the ignition on, or press the unlocking button on the
remote control.
In vehicles equipped with an anti-theft alarm system, you have 15 seconds to
insert the key in the ignition lock and activate the ignition if the vehicle is
opened using the driver's door key.
Otherwise, the alarm will trigger for 30 sec. and the ignition will be blocked.
Note
•
After 28 days, the indicator light will be switched off to prevent the battery
from exhausting if the vehicle has been left parked for a long period of time.
The alarm system remains activated.
•
The alarm will trigger again if attempts are made to open another protec-
tion zone.
•
The alarm system can be activated or deactivated using the remote
control. ⇒page 77.
Interior monitor and anti-towing alarm*
Monitoring or control function incorporated in the anti-theft
alarm* which detects unauthoriz ed vehicle entry by means of
ultrasound.Activation
– It is connected automatically when the anti-theft alarm is acti-
vated.
Deactivation
– Open the vehicle with the key, either mechanically
8) or by
pressing the button on the remote control.
– Press the button on the remote control twice. The volumetric
sensor and tilt sensors will be deactivated. The alarm system
remains activated.
7)With vehicles fitted with a tow-away protection
8)The time period from when the door is opened until the key is inserted in the contact
should not exceed 15 sec., otherwise the alarm will be triggered.
Ibiza SC_EN.book Seite 79 Dienstag, 8. Juli 2008 5:36 17
Page 82 of 258

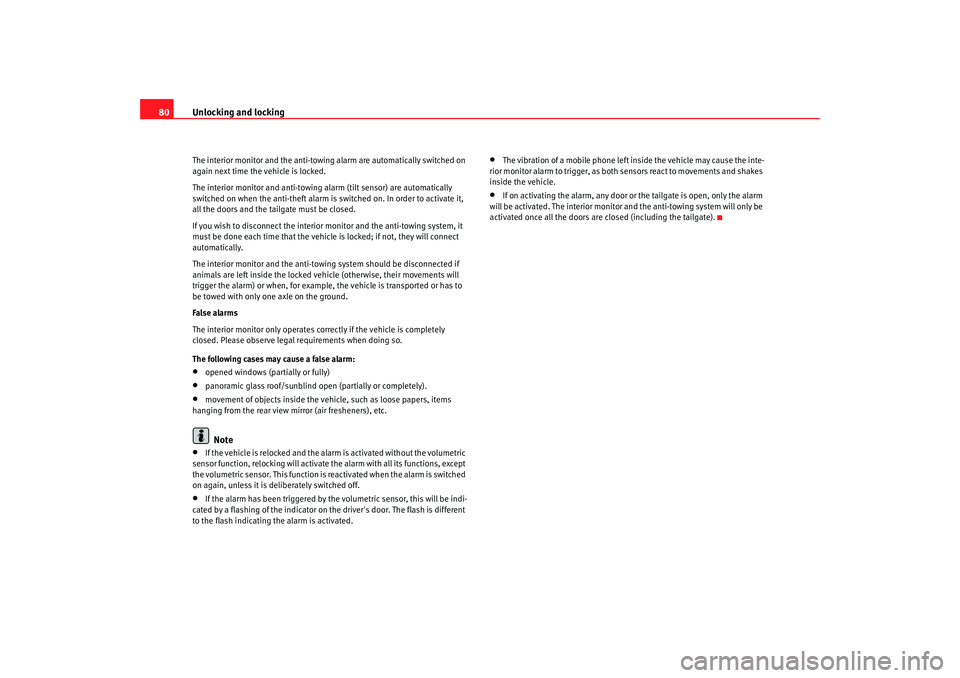

Unlocking and locking
80The interior monitor and the anti-towing alarm are automatically switched on
again next time the vehicle is locked.
The interior monitor and anti-towing alarm (tilt sensor) are automatically
switched on when the anti-theft alarm is switched on. In order to activate it,
all the doors and the tailgate must be closed.
If you wish to disconnect the interior monitor and the anti-towing system, it
must be done each time that the vehicle is locked; if not, they will connect
automatically.
The interior monitor and the anti-towing system should be disconnected if
animals are left inside the locked vehicle (otherwise, their movements will
trigger the alarm) or when, for example, the vehicle is transported or has to
be towed with only one axle on the ground.
False alarms
The interior monitor only operates co rrectly if the vehicle is completely
closed. Please observe legal requirements when doing so.
The following cases may cause a false alarm:•
opened windows (partially or fully)
•
panoramic glass roof/sunblind open (partially or completely).
•
movement of objects inside the vehicle, such as loose papers, items
hanging from the rear view mirror (air fresheners), etc.Note
•
If the vehicle is relocked and the al arm is activated without the volumetric
sensor function, relocking will activate the alarm with all its functions, except
the volumetric sensor. This function is reactivated when the alarm is switched
on again, unless it is deliberately switched off.
•
If the alarm has been triggered by the volumetric sensor, this will be indi-
cated by a flashing of the indicator on the driver's door. The flash is different
to the flash indicating the alarm is activated.
•
The vibration of a mobile phone left inside the vehicle may cause the inte-
rior monitor alarm to trigger, as both sensors react to movements and shakes
inside the vehicle.
•
If on activating the alarm, any door or the tailgate is open, only the alarm
will be activated. The inte rior monitor and the anti-towing system will only be
activated once all the doors are closed (including the tailgate).
Ibiza SC_EN.book Seite 80 Dienstag, 8. Juli 2008 5:36 17
Page 83 of 258
Unlocking and locking81
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

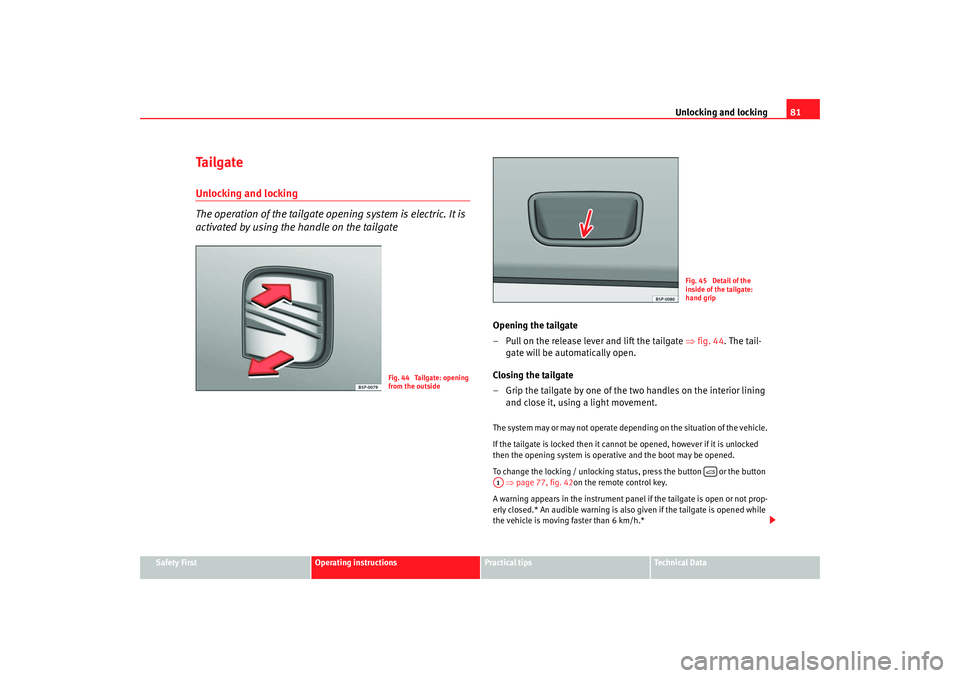

Ta i l g a t eUnlocking and locking
The operation of the tailgate opening system is electric. It is
activated by using the handle on the tailgate
Opening the tailgate
– Pull on the release lever and lift the tailgate ⇒ fig. 44. The tail-
gate will be automatically open.
Closing the tailgate
– Grip the tailgate by one of the two handles on the interior lining and close it, using a light movement.The system may or may not operate depending on the situation of the vehicle.
If the tailgate is locked then it cannot be opened, however if it is unlocked
then the opening system is operat ive and the boot may be opened.
To change the locking / unlocking status, press the button or the button ⇒ page 77, fig. 42 on the remote control key.
A warning appears in the inst rument panel if the tailgate is open or not prop-
erly closed.* An audible warning is also given if the tailgate is opened while
the vehicle is moving faster than 6 km/h.*
Fig. 44 Tailgate: opening
from the outside
Fig. 45 Detail of the
inside of the tailgate:
hand grip
A1
Ibiza SC_EN.book Seite 81 Dienstag, 8. Juli 2008 5:36 17
Page 84 of 258
Unlocking and locking
82
WARNING
•
Always close the tailgate properly. Risk of accident or injury.
•
The tailgate must not be opened when the reverse or rear fog lights are
lit. This may damage the pilot lights
•
Do not close the tailgate by pushing it down with your hand on the rear
window. The glass could smash. Risk of injury!
•
Ensure the tailgate is locked after closing it. If not, it may open unex-
pectedly while driving.
•
Never allow children to play in or around the vehicle. A locked vehicle
can be subjected to extremely high and low temperatures, depending on
the time of year, thus causing serious injuries/illness. It could even have
fatal consequences. Close and lock both the tailgate and all the other doors
when you are not using the vehicle.
•
Closing the tailgate without observin g and ensuring it is clear could
cause serious injury to you and to third parties. Make sure that no one is in
the path of the tailgate.
•
Never drive with the tailgate open or half-closed, exhaust gases may
penetrate into the interior of the vehicle. Danger of poisoning!
•
If you only open the tailgate, do not leave the key inside. The vehicle
will not be opened if the key is left inside.
Emergency opening
This allows the vehicle to be opened if the central locking
does not operate (for example, if the battery is flat)There is a groove in the boot allowing access to the emergency
opening mechanism.
Opening the tailgate from inside the luggage compartment
– Insert the key bit in the groove and unlock the locking system, turning the key from right to left, as shown by the arrow
⇒fig. 46.
Fig. 46 Tailgate: emer-
gency open
Ibiza SC_EN.book Seite 82 Dienstag, 8. Juli 2008 5:36 17
Page 85 of 258
Unlocking and locking83
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

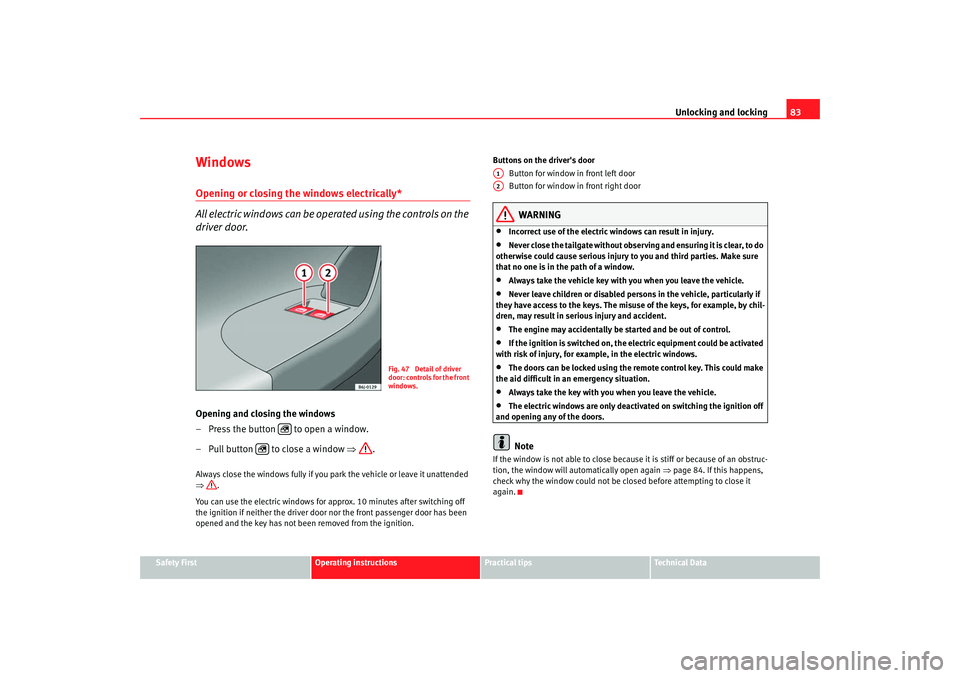

WindowsOpening or closing the windows electrically*
All electric windows can be operated using the controls on the
driver door.Opening and closing the windows
– Press the button to open a window.
– Pull button to close a window ⇒.Always close the windows fully if you park the vehicle or leave it unattended
⇒.
You can use the electric windows for approx. 10 minutes after switching off
the ignition if neither the driver door nor the front passenger door has been
opened and the key has not been removed from the ignition. Buttons on the driver's door
Button for window in front left door
Button for window in front right door
WARNING
•
Incorrect use of the electric windows can result in injury.
•
Never close the tailgate without observin g and ensuring it is clear, to do
otherwise could cause serious injury to you and third parties. Make sure
that no one is in the path of a window.
•
Always take the vehicle key with you when you leave the vehicle.
•
Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. The misuse of the keys, for example, by chil-
dren, may result in serious injury and accident.
•
The engine may accidentally be started and be out of control.
•
If the ignition is switched on, the el ectric equipment could be activated
with risk of injury, for exampl e, in the electric windows.
•
The doors can be locked using the remote control key. This could make
the aid difficult in an emergency situation.
•
Always take the key with you when you leave the vehicle.
•
The electric windows are only deactivated on switching the ignition off
and opening any of the doors.Note
If the window is not able to close becau se it is stiff or because of an obstruc-
tion, the window will automatically open again ⇒ page 84. If this happens,
check why the window could not be closed before attempting to close it
again.
Fig. 47 Detail of driver
door: controls for the front
windows.
A1A2
Ibiza SC_EN.book Seite 83 Dienstag, 8. Juli 2008 5:36 17
Page 86 of 258
Unlocking and locking

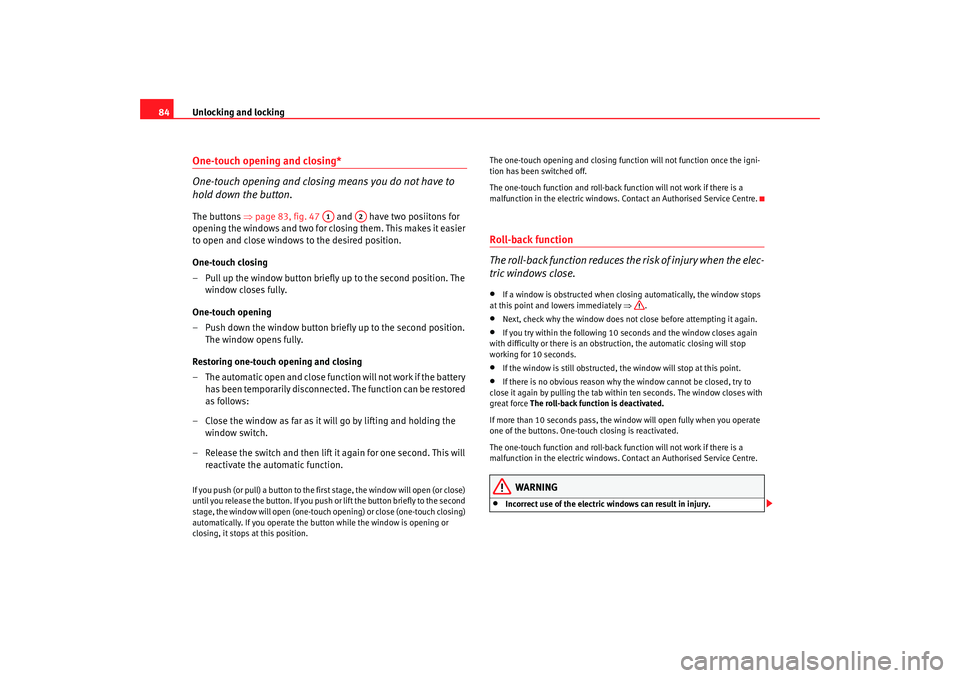

84One-touch opening and closing*
One-touch opening and closing means you do not have to
hold down the button.The buttons ⇒page 83, fig. 47 and have two posiitons for
opening the windows and two for closing them. This makes it easier
to open and close windows to the desired position.
One-touch closing
– Pull up the window button briefly up to the second position. The window closes fully.
One-touch opening
– Push down the window button briefly up to the second position. The window opens fully.
Restoring one-touch opening and closing
– The automatic open and close function will not work if the battery has been temporarily disconnected. The function can be restored
as follows:
– Close the window as far as it will go by lifting and holding the window switch.
– Release the switch and then lift it again for one second. This will reactivate the automatic function.If you push (or pull) a button to the fi rst stage, the window will open (or close)
until you release the button. If you push or lift the button briefly to the second
stage, the window will open (one-touch opening) or close (one-touch closing)
automatically. If you operate the button while the window is opening or
closing, it stops at this position. The one-touch opening and closing function will not function once the igni-
tion has been switched off.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Co
ntact an Authorised Service Centre.
Roll-back function
The roll-back function reduces the ri s k o f i n j u r y w h e n th e el ec -
tric windows close.•
If a window is obstructed when clos ing automatically, the window stops
at this point and lowers immediately ⇒.
•
Next, check why the window does not close before attempting it again.
•
If you try within the following 10 seconds and the window closes again
with difficulty or there is an obstr uction, the automatic closing will stop
working for 10 seconds.
•
If the window is still obstructed, the window will stop at this point.
•
If there is no obvious reason why the window cannot be closed, try to
close it again by pulling the tab within ten seconds. The window closes with
great force The roll-back function is deactivated.
If more than 10 seconds pass, the window will open fully when you operate
one of the buttons. One-touch closing is reactivated.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Contact an Authorised Service Centre.
WARNING
•
Incorrect use of the electric windows can result in injury.
A1
A2
Ibiza SC_EN.book Seite 84 Dienstag, 8. Juli 2008 5:36 17

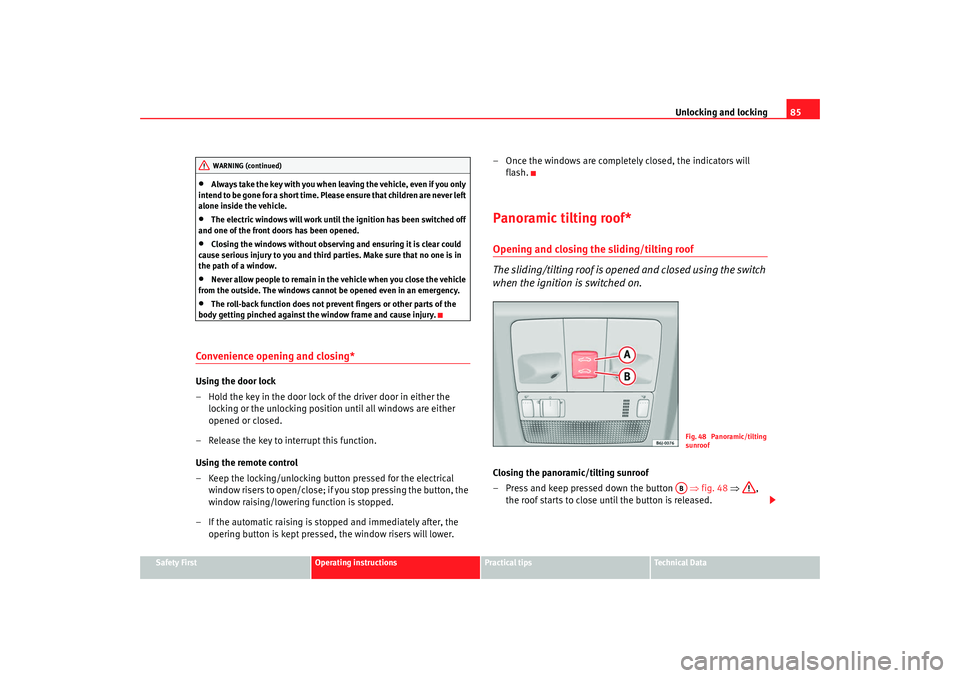

Page 87 of 258
Unlocking and locking85
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
•
Always take the key with you when leaving the vehicle, even if you only
intend to be gone for a short time. Plea se ensure that children are never left
alone inside the vehicle.
•
The electric windows will work unti l the ignition has been switched off
and one of the front doors has been opened.
•
Closing the windows without observing and ensuring it is clear could
cause serious injury to you and third parties. Make sure that no one is in
the path of a window.
•
Never allow people to remain in the vehicle when you close the vehicle
from the outside. The windows canno t be opened even in an emergency.
•
The roll-back function does not prevent fingers or other parts of the
body getting pinched against the window frame and cause injury.
Convenience opening and closing* Using the door lock
– Hold the key in the door lock of the driver door in either the locking or the unlocking position until all windows are either
opened or closed.
– Release the key to interrupt this function.
Using the remote control
– Keep the locking/unlocking button pressed for the electrical window risers to open/close; if you stop pressing the button, the
window raising/lowering function is stopped.
– If the automatic raising is stopped and immediately after, the opering button is kept pressed, the window risers will lower. – Once the windows are completely closed, the indicators will
flash.
Panoramic tilting roof*Opening and closing the sliding/tilting roof
The sliding/tilting roof is opened and closed using the switch
when the ignition is switched on.Closing the panoramic/tilting sunroof
– Press and keep pressed down the button ⇒ fig. 48 ⇒,
the roof starts to close until the button is released.
WARNING (continued)
Fig. 48 Panoramic/tilting
sunroofAB
Ibiza SC_EN.book Seite 85 Dienstag, 8. Juli 2008 5:36 17

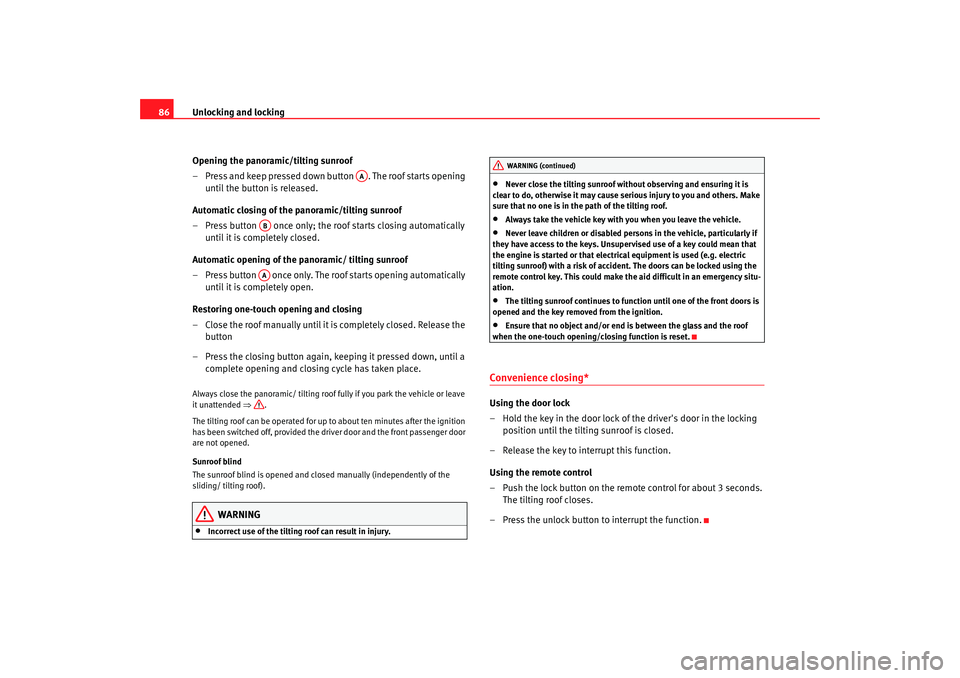

Page 88 of 258
Unlocking and locking
86
Opening the panoramic/tilting sunroof
– Press and keep pressed down button . The roof starts opening until the button is released.
Automatic closing of the panoramic/tilting sunroof
– Press button once only; the roof starts closing automatically until it is completely closed.
Automatic opening of the panoramic/ tilting sunroof
– Press button once only. The roof starts opening automatically until it is completely open.
Restoring one-touch opening and closing
– Close the roof manually until it is completely closed. Release the button
– Press the closing button again, keeping it pressed down, until a complete opening and closing cycle has taken place.Always close the panoramic/ tilting roof fully if you park the vehicle or leave
it unattended ⇒ .
The tilting roof can be operated for up to about ten minutes after the ignition
has been switched off, provided the dr iver door and the front passenger door
are not opened.
Sunroof blind
The sunroof blind is opened and clo sed manually (independently of the
sliding/ tilting roof).
WARNING
•
Incorrect use of the tilting roof can result in injury.
•
Never close the tilting sunroof without observing and ensuring it is
clear to do, otherwise it may cause serious injury to you and others. Make
sure that no one is in the path of the tilting roof.
•
Always take the vehicle key with you when you leave the vehicle.
•
Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. Unsupervised use of a key could mean that
the engine is started or that electric al equipment is used (e.g. electric
tilting sunroof) with a ri sk of accident. The doors can be locked using the
remote control key. This could make the aid difficult in an emergency situ-
ation.
•
The tilting sunroof continues to function until one of the front doors is
opened and the key removed from the ignition.
•
Ensure that no object and/or end is between the glass and the roof
when the one-touch opening/closing function is reset.
Convenience closing*Using the door lock
– Hold the key in the door lock of the driver's door in the locking
position until the tilting sunroof is closed.
– Release the key to interrupt this function.
Using the remote control
– Push the lock button on the remote control for about 3 seconds. The tilting roof closes.
– Press the unlock button to interrupt the function.
AA
ABAA
WARNING (continued)
Ibiza SC_EN.book Seite 86 Dienstag, 8. Juli 2008 5:36 17

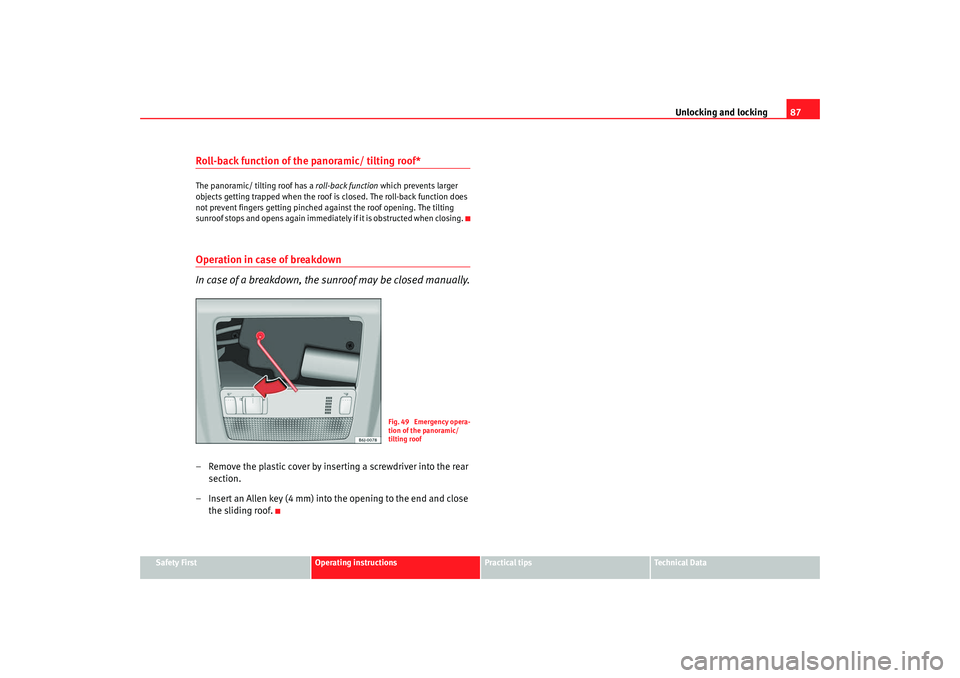

Page 89 of 258
Unlocking and locking87
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Roll-back function of the panoramic/ tilting roof*The panoramic/ tilting roof has a roll-back function which prevents larger
objects getting trapped when the roof is closed. The roll-back function does
not prevent fingers getting pinched ag ainst the roof opening. The tilting
sunroof stops and opens again immediately if it is obstructed when closing.Operation in case of breakdown
In case of a breakdown, the sunroof may be closed manually.– Remove the plastic cover by inserting a screwdriver into the rear section.
– Insert an Allen key (4 mm) into the opening to the end and close the sliding roof.
Fig. 49 Emergency opera-
tion of the panoramic/
tilting roof
Ibiza SC_EN.book Seite 87 Dienstag, 8. Juli 2008 5:36 17
Page 90 of 258
Lights and visibility
88Lights and visibilityLightsSwitching lights on and off
Switching on the side lights
– Turn the light switch ⇒fig. 50 to position
.
Switching on dipped headlights
– Turn the light switch to position
.
Switching off the lights
– Turn the light switch to position 0. Switching on the front fog lights*
– Turn the switch from position
or
to the first stop and pull
it. The symbol
in the light switch lights up.
Switching on the rear fog light (vehicles with front fog lights)
– Turn the switch from position
or
to the first stop and pull
it ⇒ . A warning lamp placed in the warning and control lamp
panel lights up.
Switching on the rear fog light (vehicles with no front fog lights)
– Turn the light control to the end from position
or
and pull
it. A warning lamp placed in the warning and control lamp panel
lights up.
WARNING
Never drive with just the side lights on . Risk of accident. The side lights are
not bright enough to illuminate the road ahead and to ensure that other
road users are able to see you. Always use your dipped headlights if it is
dark or if visibility is poor.
Note
•
The dipped beam headlights will only work with the ignition on. The side
lights come on automatically when the ignition is turned off.
Fig. 50 Detailed view of
dash panel: lights, fog
light and rear fog light
control
Ibiza SC_EN.book Seite 88 Dienstag, 8. Juli 2008 5:36 17
