Installation for mobile telephone with voice command system

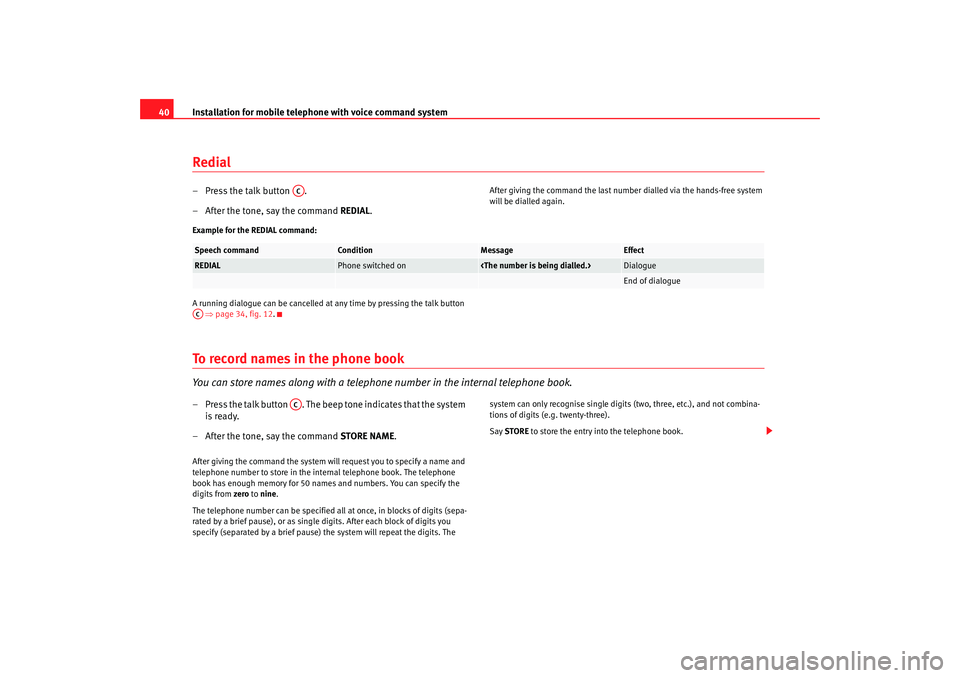

40Redial– Press the talk button .
– After the tone, say the command REDIAL.
After giving the command the last number dialled via the hands-free system
will be dialled again.
Example for the REDIAL command:
A running dialogue can be cancelled at any time by pressing the talk button ⇒ page 34, fig. 12 .
To record names in the phone bookYou can store names along with a telephone number in the internal telephone book.– Press the talk button . The beep tone indicates that the system
is ready.
– After the tone, say the command STORE NAME.After giving the command the system will request you to specify a name and
telephone number to store in the internal telephone book. The telephone
book has enough memory for 50 names and numbers. You can specify the
digits from zero to nine .
The telephone number can be specified all at once, in blocks of digits (sepa-
rated by a brief pause), or as single digits. After each block of digits you
specify (separated by a brief pause) the system will repeat the digits. The system can only recognise single digits (two, three, etc.), and not combina-
tions of digits (e.g. twenty-three).
Say
STORE to store the entry into the telephone book.
AC
Speech command
Condition
Message
Effect
REDIAL
Phone switched on

DialogueEnd of dialogue
AC
AC
Car stereo_EN.book Seite 40 Dienstag, 18. März 2008 4:15 16

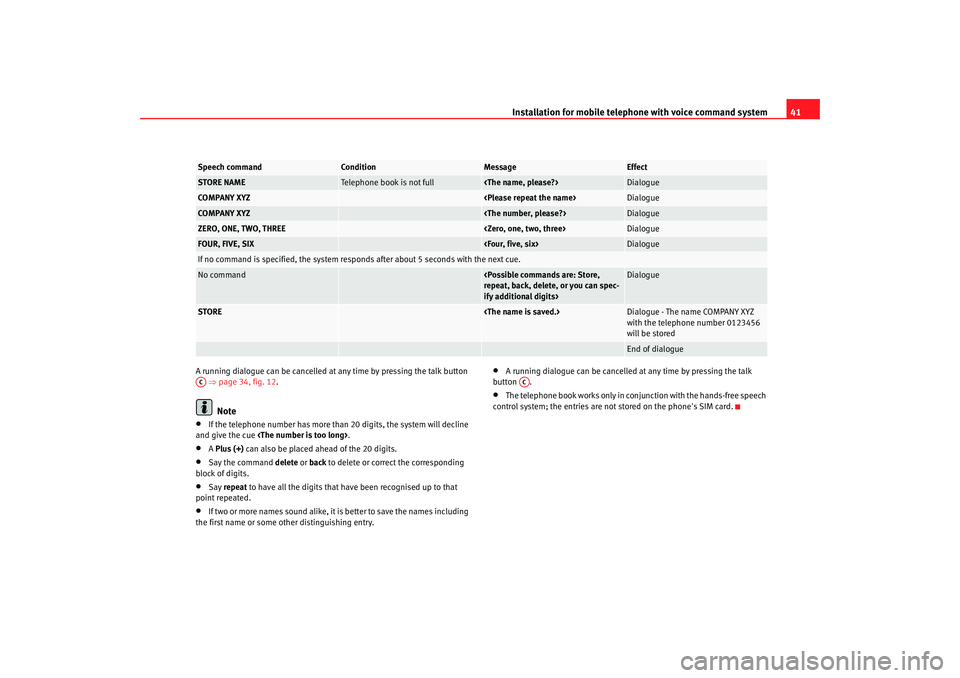

Installation for mobile telephone with voice command system41
A running dialogue can be cancelled at any time by pressing the talk button
⇒ page 34, fig. 12 .
Note
•
If the telephone number has more than 20 digits, the system will decline
and give the cue .
•
A Plus (+) can also be placed ahead of the 20 digits.
•
Say the command delete or back to delete or correct the corresponding
block of digits.
•
Say repeat to have all the digits that have been recognised up to that
point repeated.
•
If two or more names sound alike, it is better to save the names including
the first name or some other distinguishing entry.
•
A running dialogue can be cancelled at any time by pressing the talk
button .
•
The telephone book works only in conjunction with the hands-free speech
control system; the entries are not stored on the phone's SIM card.
Speech command
Condition
Message
Effect
STORE NAME
Telephone book is not full

Dialogue
COMPANY XYZ

Dialogue
COMPANY XYZ

Dialogue
ZERO, ONE, TWO, THREE

Dialogue
FOUR, FIVE, SIX

Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.No command
repeat, back, delete, or you can spec-
ify additional digits>
Dialogue
STORE

Dialogue - The name COMPANY XYZ
with the telephone number 0123456
will be storedEnd of dialogue
AC
AC
Car stereo_EN.book Seite 41 Dienstag, 18. März 2008 4:15 16

Installation for mobile telephone with voice command system
42Calling a name in the phone book– Press the talk button .
– After the tone, say the command SELECT NAME.
After the system has recognised this command, you may select a stored entry
from the telephone book to call the required number. The system best recog-
nises names spoken by the person who stored the name.
Example for selecting a name from the internal telephone book
A running dialogue can be cancelled at any time by pressing the talk button ⇒ page 34, fig. 12 .
AC
Speech command
Condition
Message
Effect
SELECT NAME
Phone is switched on, telephone book
contains entries.

Dialogue
COMPANY XYZ

Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.No command
back>
Dialogue
DIAL

Dialogue - The telephone number for
Company XYZ is being dialledEnd of dialogue
AC
Car stereo_EN.book Seite 42 Dienstag, 18. März 2008 4:15 16

Installation for mobile telephone with voice command system43

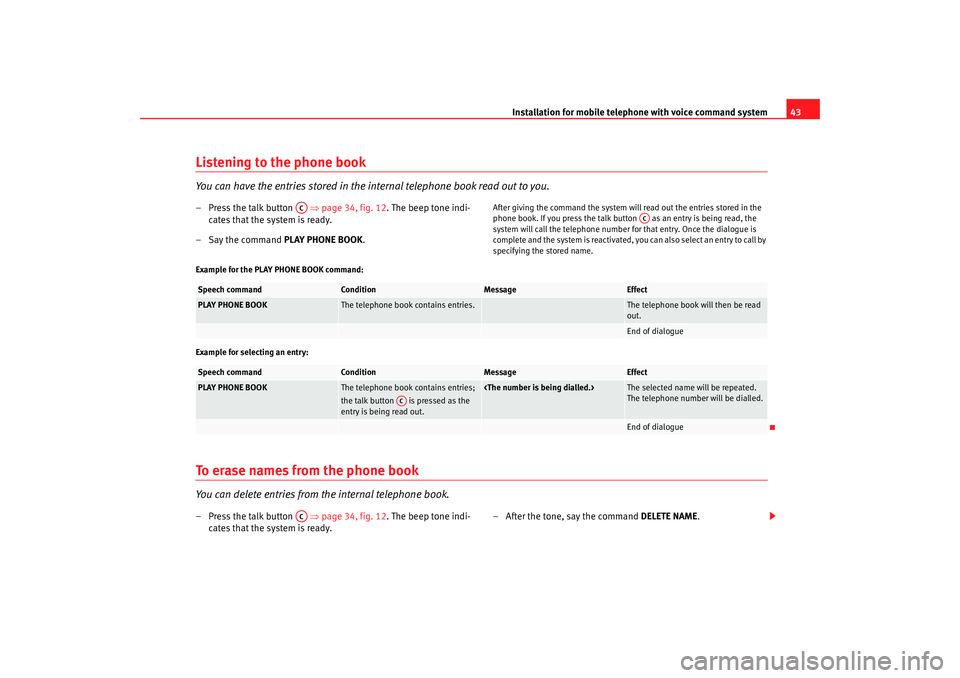

Listening to the phone bookYou can have the entries stored in the internal telephone book read out to you.– Press the talk button ⇒page 34, fig. 12 . The beep tone indi-
cates that the system is ready.
–Say the command PLAY PHONE BOOK.
After giving the command the system will read out the entries stored in the
phone book. If you press the talk button as an entry is being read, the
system will call the telephone number for that entry. Once the dialogue is
complete and the system is reactivated, you can also select an entry to call by
specifying the stored name.
Example for the PLAY PHONE BOOK command:
Example for selecting an entry:
To erase names from the phone bookYou can delete entries from the internal telephone book.– Press the talk button ⇒page 34, fig. 12 . The beep tone indi-
cates that the system is ready. – After the tone, say the command
DELETE NAME.
AC
AC
Speech command
Condition
Message
Effect
PLAY PHONE BOOK
The telephone book contains entries.
The telephone book will then be read
out.End of dialogue
Speech command
Condition
Message
Effect
PLAY PHONE BOOK
The telephone book contains entries;
the talk button is pressed as the
entry is being read out.

The selected name will be repeated.
The telephone number will be dialled.End of dialogue
AC
AC
Car stereo_EN.book Seite 43 Dienstag, 18. März 2008 4:15 16

Installation for mobile telephone with voice command system

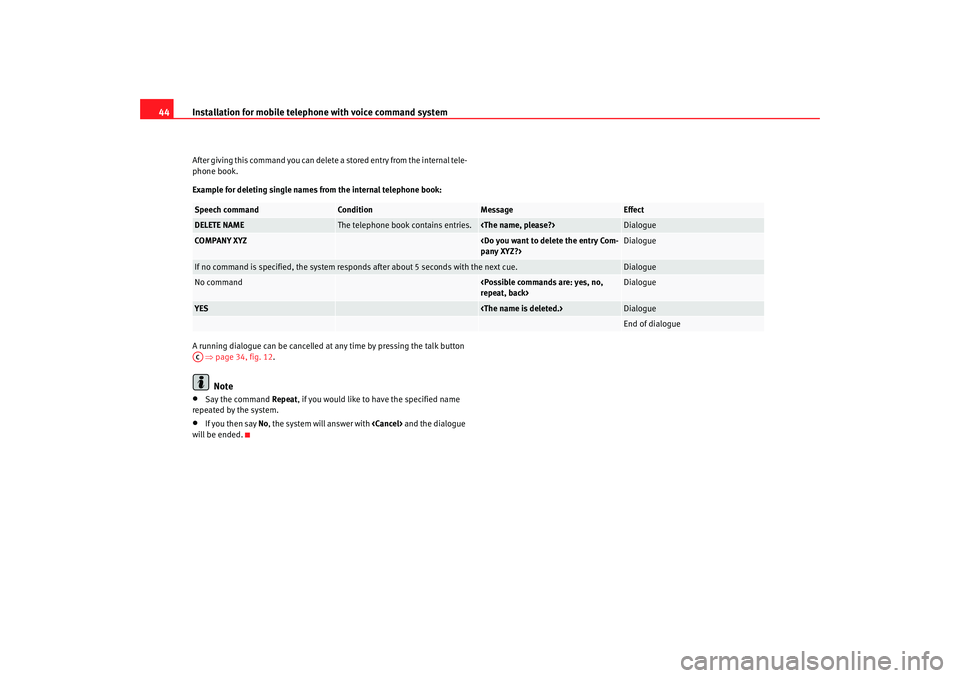

44After giving this command you can delete a stored entry from the internal tele-
phone book.
Example for deleting single names from the internal telephone book:
A running dialogue can be cancelled at any time by pressing the talk button
⇒ page 34, fig. 12 .
Note
•
Say the command Repeat , if you would like to have the specified name
repeated by the system.
•
If you then say No, the system will answer with and the dialogue
will be ended.Speech command
Condition
Message
Effect
DELETE NAME
The telephone book contains entries.

Dialogue
COMPANY XYZ
pany XYZ?>
Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
Dialogue
No command
repeat, back>
Dialogue
YES

DialogueEnd of dialogue
AC
Car stereo_EN.book Seite 44 Dienstag, 18. März 2008 4:15 16

Installation for mobile telephone with voice command system45

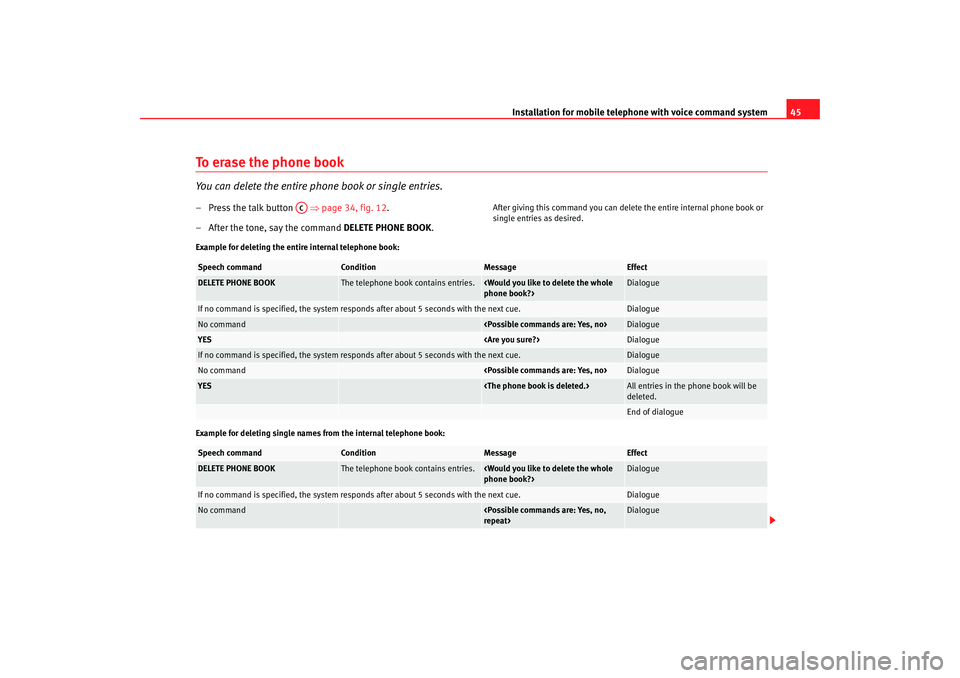

To erase the phone bookYou can delete the entire phone book or single entries.– Press the talk button ⇒page 34, fig. 12 .
– After the tone, say the command DELETE PHONE BOOK .
After giving this command you can delete the entire internal phone book or
single entries as desired.
Example for deleting the entire internal telephone book:
Example for deleting single names from the internal telephone book:
AC
Speech command
Condition
Message
Effect
DELETE PHONE BOOK
The telephone book contains entries.
phone book?>
Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
Dialogue
No command

Dialogue
YES

Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
Dialogue
No command

Dialogue
YES

All entries in the phone book will be
deleted.End of dialogue
Speech command
Condition
Message
Effect
DELETE PHONE BOOK
The telephone book contains entries.
phone book?>
Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
Dialogue
No command
repeat>
Dialogue
Car stereo_EN.book Seite 45 Dienstag, 18. März 2008 4:15 16

Installation for mobile telephone with voice command system

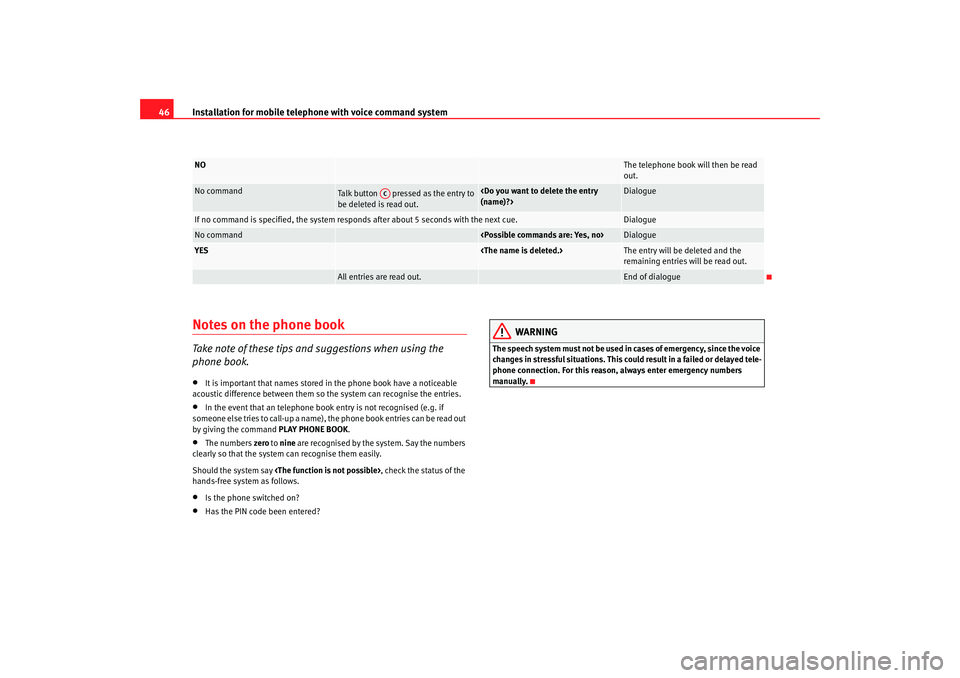

46Notes on the phone bookTake note of these tips and suggestions when using the
phone book.•
It is important that names stored in the phone book have a noticeable
acoustic difference between them so the system can recognise the entries.
•
In the event that an telephone book entry is not recognised (e.g. if
someone else tries to call-up a name), the phone book entries can be read out
by giving the command PLAY PHONE BOOK .
•
The numbers zero to nine are recognised by the system. Say the numbers
clearly so that the system can recognise them easily.
Should the system say , check the status of the
hands-free system as follows.
•
Is the phone switched on?
•
Has the PIN code been entered?
WARNING
The speech system must not be used in cases of emergency, since the voice
changes in stressful situations. This could result in a failed or delayed tele-
phone connection. For this reason, always enter emergency numbers
manually.
NO
The telephone book will then be read
out.
No command
Talk button pressed as the entry to
be deleted is read out.
(name)?>
Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
Dialogue
No command

Dialogue
YES

The entry will be deleted and the
remaining entries will be read out.
All entries are read out.
End of dialogue
AC
Car stereo_EN.book Seite 46 Dienstag, 18. März 2008 4:15 16

Installation for mobile telephone with voice command system47

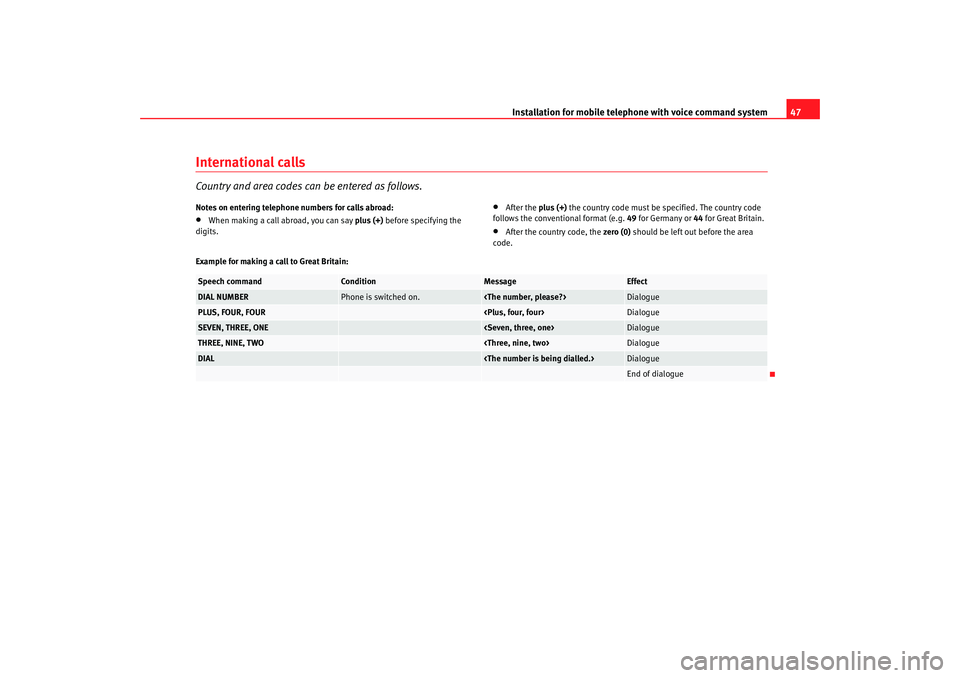

International callsCountry and area codes can be entered as follows.Notes on entering telephone numbers for calls abroad:•
When making a call abroad, you can say plus (+) before specifying the
digits.
•
After the plus (+) the country code must be specified. The country code
follows the conventional format (e.g. 49 for Germany or 44 for Great Britain.
•
After the country code, the zero (0) should be left out before the area
code.
Example for making a call to Great Britain:
Speech command
Condition
Message
Effect
DIAL NUMBER
Phone is switched on.

Dialogue
PLUS, FOUR, FOUR

Dialogue
SEVEN, THREE, ONE

Dialogue
THREE, NINE, TWO

Dialogue
DIAL

DialogueEnd of dialogue
Car stereo_EN.book Seite 47 Dienstag, 18. März 2008 4:15 16

Installation for mobile telephone with voice command system

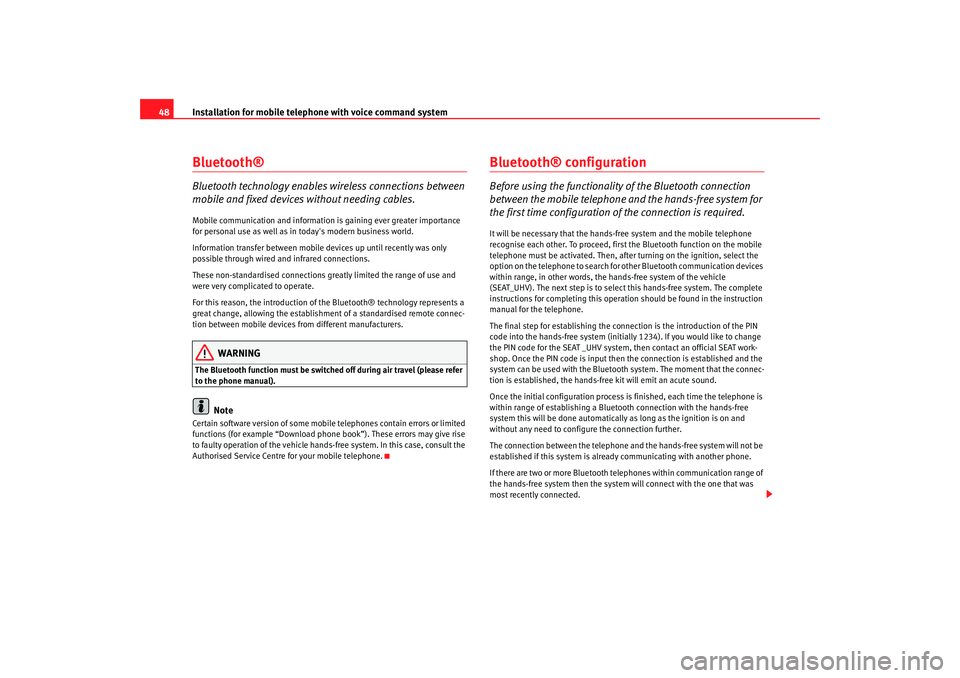

48Bluetooth®Bluetooth technology enables wireless connections between
mobile and fixed devices without needing cables.Mobile communication and information is gaining ever greater importance
for personal use as well as in today's modern business world.
Information transfer between mobile devices up until recently was only
possible through wired and infrared connections.
These non-standardised connections greatly limited the range of use and
were very complicated to operate.
For this reason, the introduction of the Bluetooth® technology represents a
great change, allowing the establishment of a standardised remote connec-
tion between mobile devices from different manufacturers.
WARNING
The Bluetooth function must be switched off during air travel (please refer
to the phone manual).
Note
Certain software version of some mobile telephones contain errors or limited
functions (for example “Download phone book”). These errors may give rise
to faulty operation of the vehicle hands-free system. In this case, consult the
Authorised Service Centre for your mobile telephone.
Bluetooth® configurationBefore using the functionality of the Bluetooth connection
between the mobile telephone and the hands-free system for
the first time configuration of the connection is required.It will be necessary that the hands-free system and the mobile telephone
recognise each other. To proceed, first the Bluetooth function on the mobile
telephone must be activated. Then, after turning on the ignition, select the
option on the telephone to search for other Bluetooth communication devices
within range, in other words, the hands-free system of the vehicle
(SEAT_UHV). The next step is to select this hands-free system. The complete
instructions for completing this operat ion should be found in the instruction
manual for the telephone.
The final step for establishing the connection is the introduction of the PIN
code into the hands-free system (initial ly 1234). If you would like to change
the PIN code for the SEAT _UHV system, then contact an official SEAT work-
shop. Once the PIN code is input then the connection is established and the
system can be used with the Bluetooth system. The moment that the connec-
tion is established, the hands-free kit will emit an acute sound.
Once the initial configuration process is finished, each time the telephone is
within range of establishing a Bluetooth connection with the hands-free
system this will be done automatically as long as the ignition is on and
without any need to configure the connection further.
The connection between the telephone an d the hands-free system will not be
established if this system is already communicating with another phone.
If there are two or more Bluetooth telephones within communication range of
the hands-free system then the system will connect with the one that was
most recently connected.
Car stereo_EN.book Seite 48 Dienstag, 18. März 2008 4:15 16

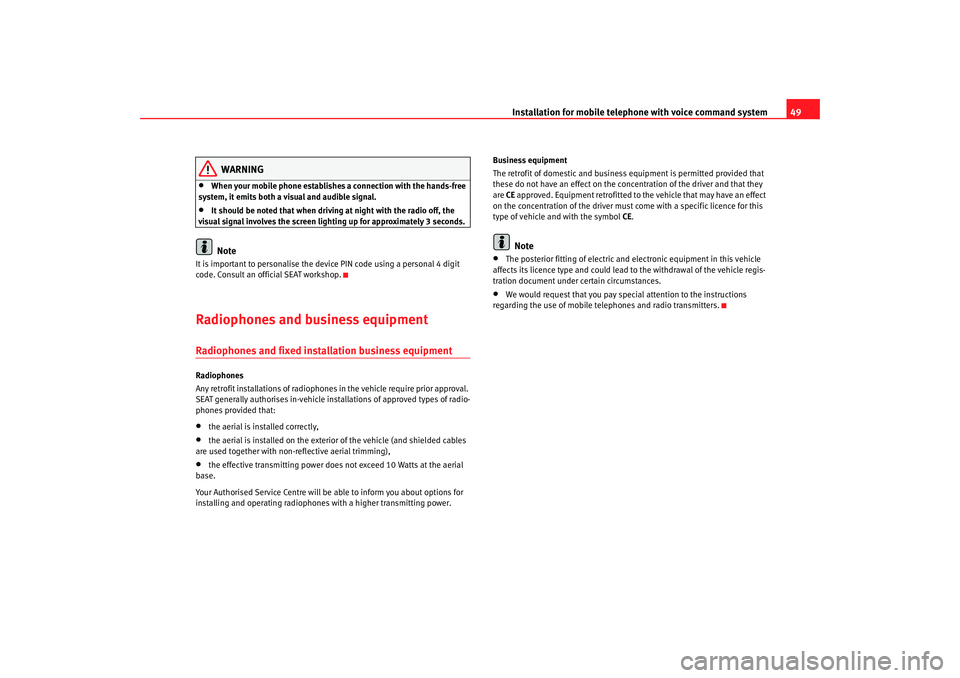

Installation for mobile telephone with voice command system49
WARNING
•
When your mobile phone establishes a connection with the hands-free
system, it emits both a visual and audible signal.
•
It should be noted that when driving at night with the radio off, the
visual signal involves the screen lighting up for approximately 3 seconds.Note
It is important to personalise the device PIN code using a personal 4 digit
code. Consult an official SEAT workshop.Radiophones and business equipmentRadiophones and fixed installation business equipmentRadiophones
Any retrofit installations of radiophones in the vehicle require prior approval.
SEAT generally authorises in-vehicle installations of approved types of radio-
phones provided that:•
the aerial is installed correctly,
•
the aerial is installed on the exterior of the vehicle (and shielded cables
are used together with non-reflective aerial trimming),
•
the effective transmitting power does not exceed 10 Watts at the aerial
base.
Your Authorised Service Centre will be able to inform you about options for
installing and operating radiophones with a higher transmitting power. Business equipment
The retrofit of domestic and business
equipment is permitted provided that
these do not have an effect on the concentration of the driver and that they
are CE approved. Equipment retrofitted to the vehicle that may have an effect
on the concentration of the driver must come with a specific licence for this
type of vehicle and with the symbol CE.
Note
•
The posterior fitting of electric and el ectronic equipment in this vehicle
affects its licence type and could lead to the withdrawal of the vehicle regis-
tration document under certain circumstances.
•
We would request that you pay special attention to the instructions
regarding the use of mobile telephones and radio transmitters.
Car stereo_EN.book Seite 49 Dienstag, 18. März 2008 4:15 16
