If and when203
Safety First
Controls and equipment
Practical tips
Technical Data
Anti-theft wheel bolts*
A special adapter is required to turn the anti-theft wheel
bolts. This is found in the tool box.– Insert the adapter onto the wheel bolt and push it on as far as it
will go ⇒ fig. 128.
– Fit the box spanner as far as it will go over the adapter.
– Loosen or tighten the wheel bolt as appropriate.Error code
The code number of the anti-theft wheel bolt is stamped onto the front part of
the adaptor.
The code number should be noted and kept in a safe place, as it is only by
using the code number that a duplicate adaptor can be obtained from an
Authorised Service Centre.
Tyres with directional tread pattern
Tyres with directional tread pattern must be fitted so that they
rotate in the correct direction.A directional tread pattern can be identified by arrows on the sidewall that
point in the direction of rotation. Always note the direction of rotation indi-
cated when fitting the wheel. This is important so that these tyres can give
maximum grip and avoid excessive noise, tread wear and aquaplaning.
If, in an emergency, you have to fit the spare wheel so it rotates in the wrong
direction, you must drive extremely carefully. The tyre will not give optimum
performance. This is particularly important when driving on wet roads.
To benefit from the advantages of tyres with this type of tread pattern, the
defective tyre should be replaced as soon as possible so that all tyres again
rotate in the correct direction.Tyre repair kit (Tyre-Mobility-System)*General information and safety notesYour vehicle is equipped with a tyre repair kit: the Ty re Mo bil it y Syste m.
In the event of a tyre puncture, a sealing compound and an air compressor are
located in the luggage compartment under the floor panel.
The Tyre Mobility System will reliably seal punctures caused by the penetra-
tion of a foreign body of up to about 4 mm in diameter.
It is not necessary to remove the foreign body from the tyre.
Instructions for the sealing compound are located on the sealing compound
container.
Fig. 128 Anti-theft wheel
bolt
IbizaSC_EN.book Seite 203 Mittwoch, 16. September 2009 12:11 12

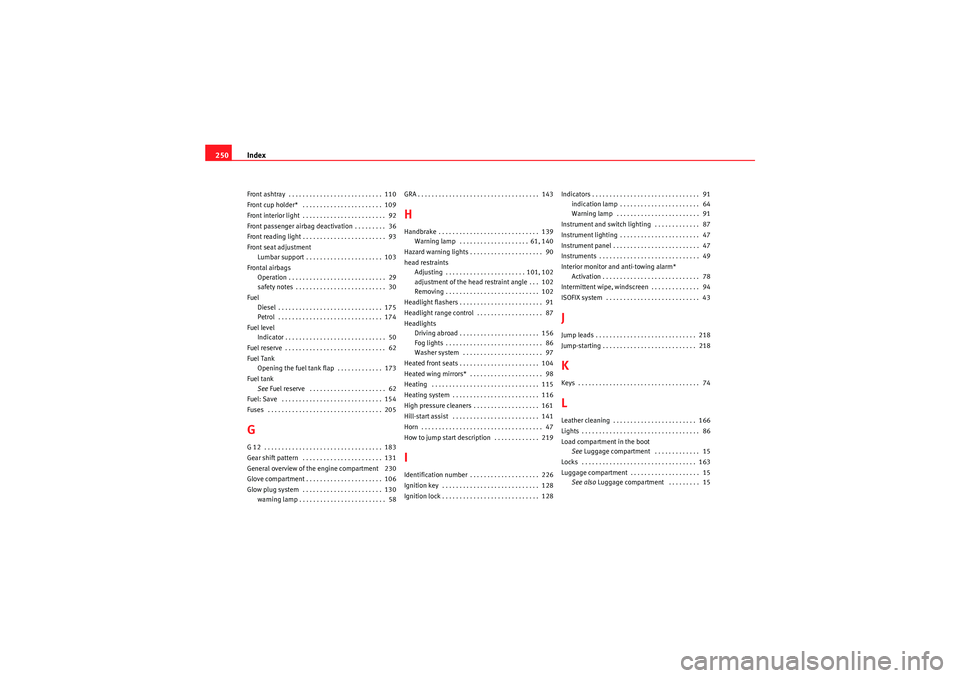

Index
250Front ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Front cup holder* . . . . . . . . . . . . . . . . . . . . . . . 109
Front interior light . . . . . . . . . . . . . . . . . . . . . . . . 92
Front passenger airbag deactivation . . . . . . . . . 36
Front reading light . . . . . . . . . . . . . . . . . . . . . . . . 93
Front seat adjustment
Lumbar support . . . . . . . . . . . . . . . . . . . . . . 103
Frontal airbags Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 173
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 62
Fuel: Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 131
General overview of the engine compartment 230
Glove compartment . . . . . . . . . . . . . . . . . . . . . . 106
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 130 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 58 GRA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Warning lamp . . . . . . . . . . . . . . . . . . . . 61, 140
Hazard warning lights . . . . . . . . . . . . . . . . . . . . . 90
head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . . 101, 102
adjustment of the head restraint angle . . . 102
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . . . 91
Headlight range control . . . . . . . . . . . . . . . . . . . 87
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 156
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Washer system . . . . . . . . . . . . . . . . . . . . . . . 97
Heated front seats . . . . . . . . . . . . . . . . . . . . . . . 104
Heated wing mirrors* . . . . . . . . . . . . . . . . . . . . . 98
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . 116
High pressure cleaners . . . . . . . . . . . . . . . . . . . 161
Hill-start assist . . . . . . . . . . . . . . . . . . . . . . . . . 141
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
How to jump start description . . . . . . . . . . . . . 219IIdentification number . . . . . . . . . . . . . . . . . . . . 226
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
indication lamp . . . . . . . . . . . . . . . . . . . . . . . 64
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 91
Instrument and switch lighting . . . . . . . . . . . . . 87
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 47
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . 47
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Interior monitor and anti-towing alarm* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Intermittent wipe, windscreen . . . . . . . . . . . . . . 94
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
JJump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 218KKeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74LLeather cleaning . . . . . . . . . . . . . . . . . . . . . . . . 166
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Load compartment in the boot See Luggage compartment . . . . . . . . . . . . . 15
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Luggage compartment . . . . . . . . . . . . . . . . . . . . 15 See also Luggage compartment . . . . . . . . . 15
