Page 261 of 280

Seat Ibiza SC 2012  Owners manual 259
Technical specifications

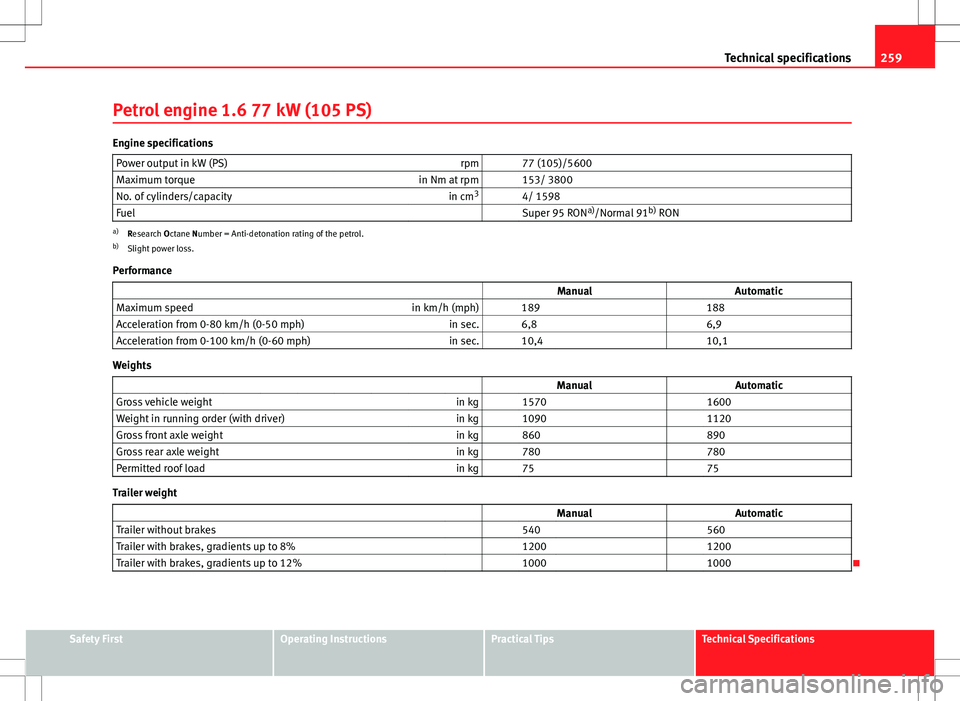

Petrol engine 1.6 77 kW (105 PS)
Engine specifications Power output in kW (PS) rpm   77 (105)/5600
Maximum torque in Nm at rpm   153/ 3800
No. of cylinders/capacity in cm3

Page 262 of 280

Seat Ibiza SC 2012  Owners manual 260Technical specifications

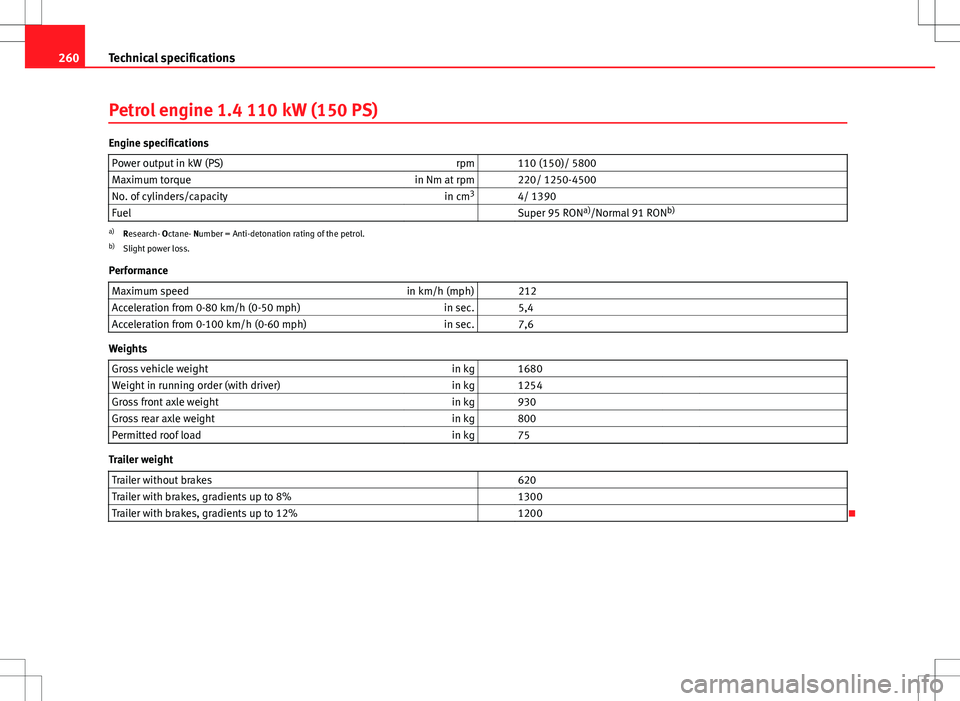

Petrol engine 1.4 110 kW (150 PS)
Engine specifications
Power output in kW (PS) rpm   110 (150)/ 5800
Maximum torque in Nm at rpm   220/ 1250-4500
No. of cylinders/capacity

Page 263 of 280

Seat Ibiza SC 2012  Owners manual 261
Technical specifications

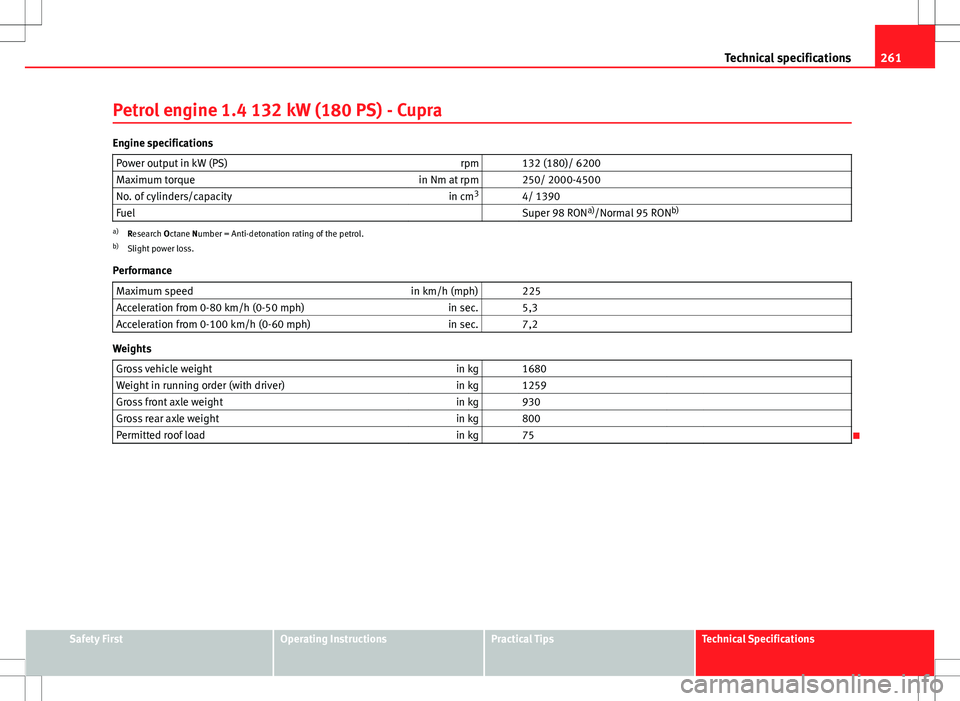

Petrol engine 1.4 132 kW (180 PS) - Cupra
Engine specifications Power output in kW (PS) rpm   132 (180)/ 6200
Maximum torque in Nm at rpm   250/ 2000-4500
No. of cylinders

Page 264 of 280

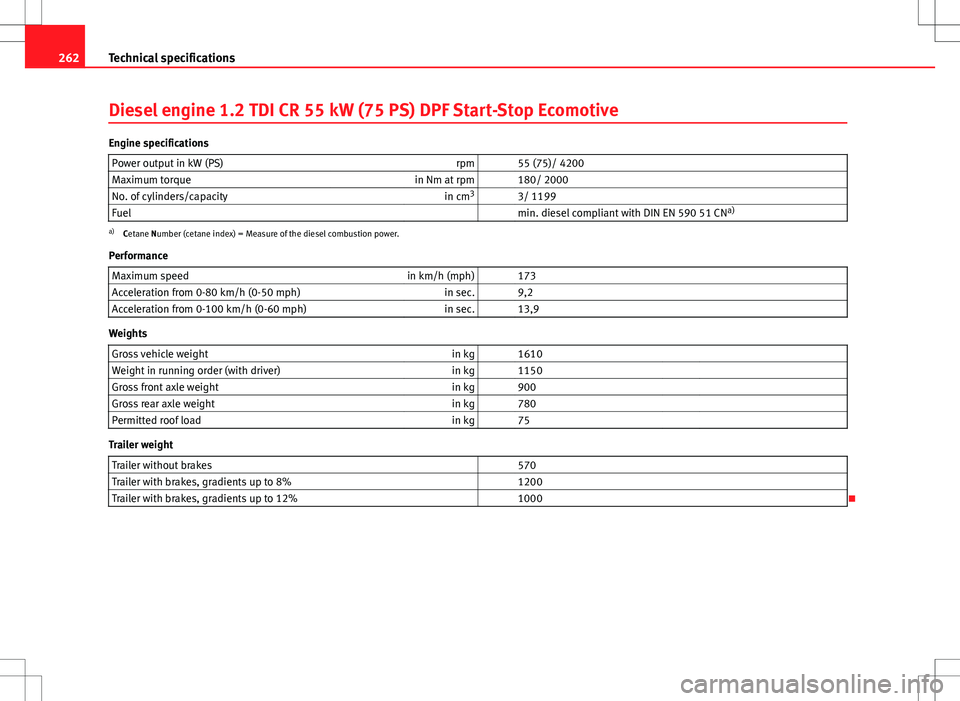

Seat Ibiza SC 2012  Owners manual 262Technical specifications
Diesel engine 1.2 TDI CR 55 kW (75 PS) DPF Start-Stop Ecomotive
Engine specifications
Power output in kW (PS) rpm   55 (75)/ 4200
Maximum torque in Nm at rpm   180/ 2000
No

Page 265 of 280

Seat Ibiza SC 2012  Owners manual 263
Technical specifications

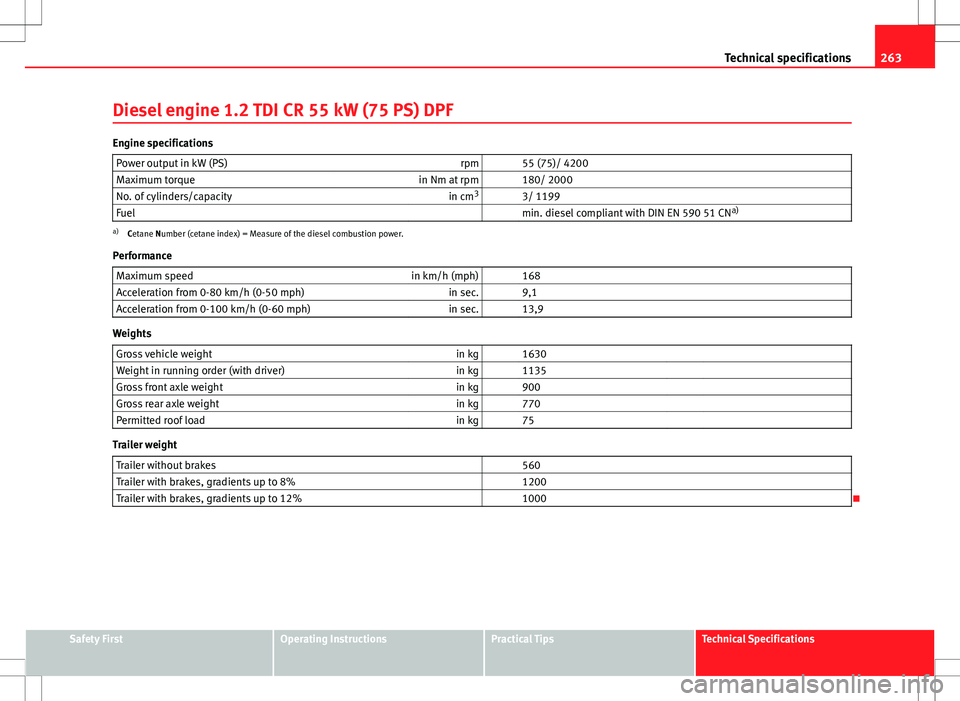

Diesel engine 1.2 TDI CR 55 kW (75 PS) DPF
Engine specifications Power output in kW (PS) rpm   55 (75)/ 4200
Maximum torque in Nm at rpm   180/ 2000
No. of cylinders/capac

Page 266 of 280

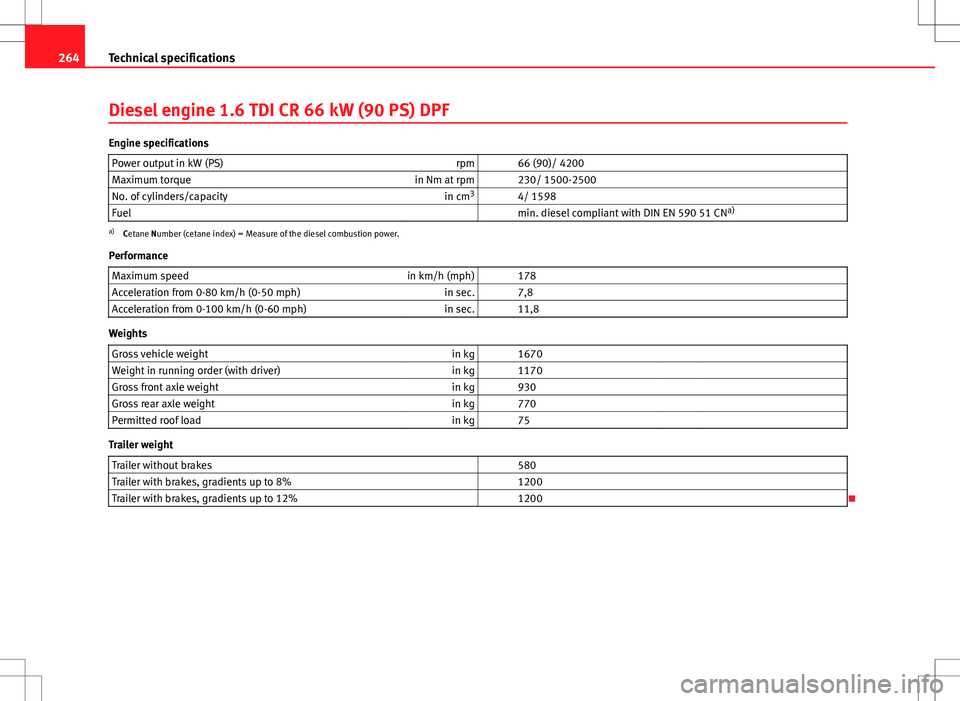

Seat Ibiza SC 2012  Owners manual 264Technical specifications
Diesel engine 1.6 TDI CR 66 kW (90 PS) DPF
Engine specifications
Power output in kW (PS) rpm   66 (90)/ 4200
Maximum torque in Nm at rpm   230/ 1500-2500
No. of cylinders/c

Page 267 of 280

Seat Ibiza SC 2012  Owners manual 265
Technical specifications

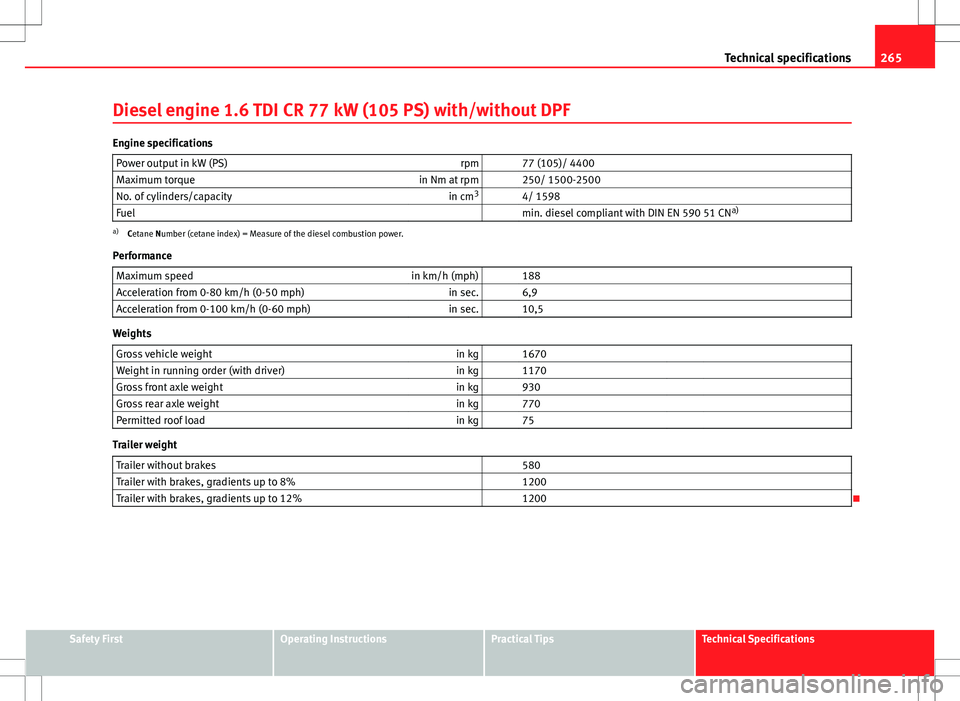

Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPF
Engine specifications Power output in kW (PS) rpm   77 (105)/ 4400
Maximum torque in Nm at rpm   250/ 1500-2500
No

Page 268 of 280

Seat Ibiza SC 2012  Owners manual 266Technical specifications

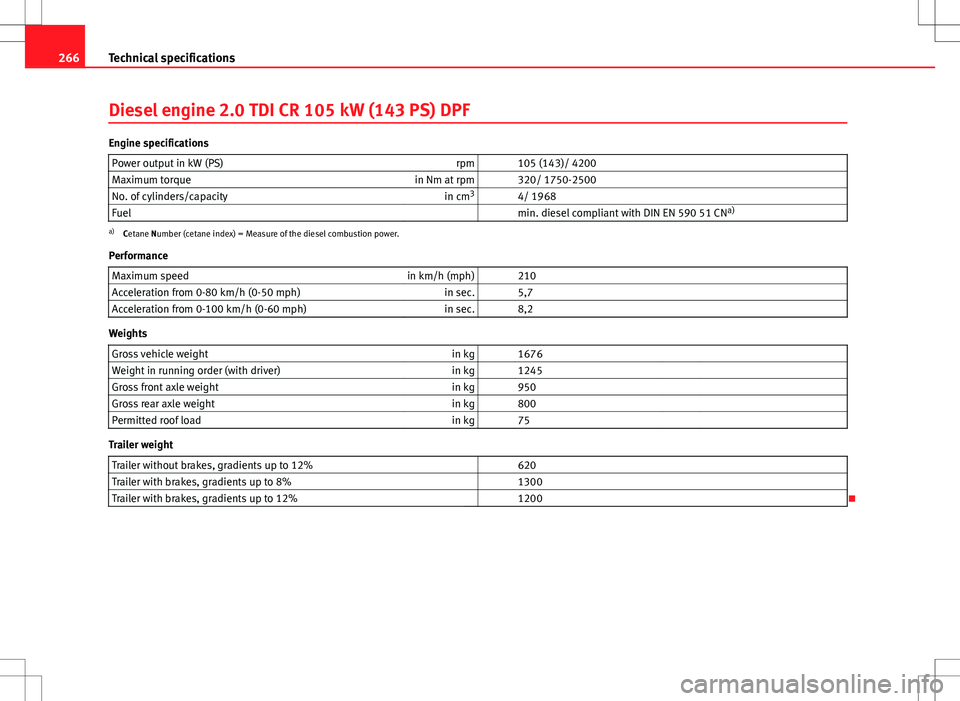

Diesel engine 2.0 TDI CR 105 kW (143 PS) DPF
Engine specifications
Power output in kW (PS) rpm   105 (143)/ 4200
Maximum torque in Nm at rpm   320/ 1750-2500
No. of cylinde

Page 269 of 280

Seat Ibiza SC 2012  Owners manual 267
Technical specifications

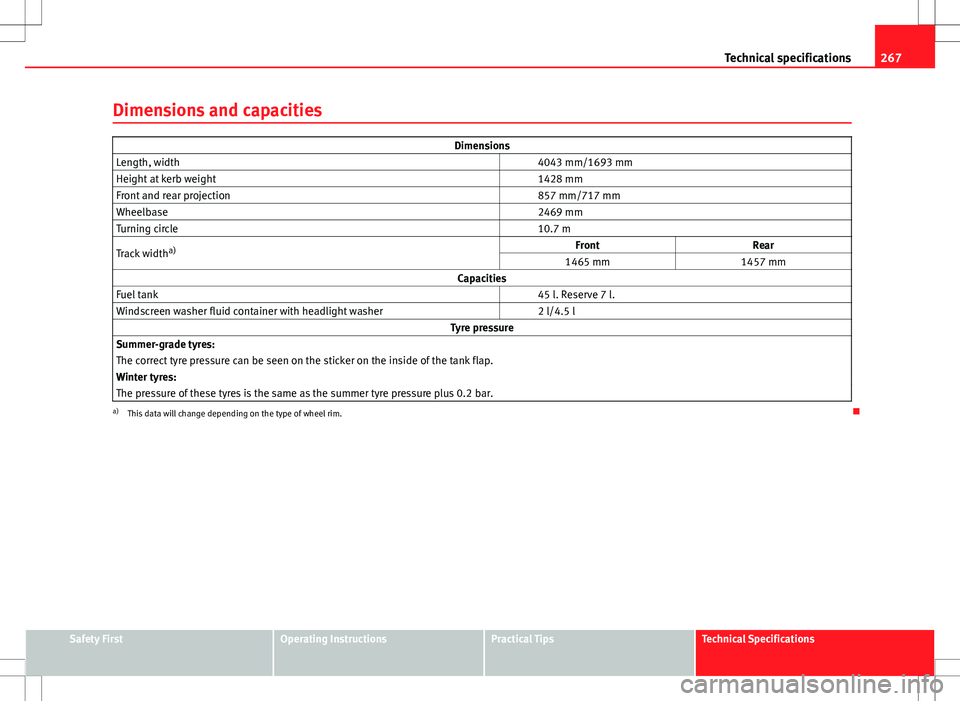

Dimensions and capacities
Dimensions
Length, width   4043 mm/1693 mm
Height at kerb weight   1428 mm
Front and rear projection   857 mm/717 mm
Wheelbase   2469 mm
Turning

Page 270 of 280
