Page 251 of 280

Seat Ibiza SC 2012  Owners manual 249
Description of specifications

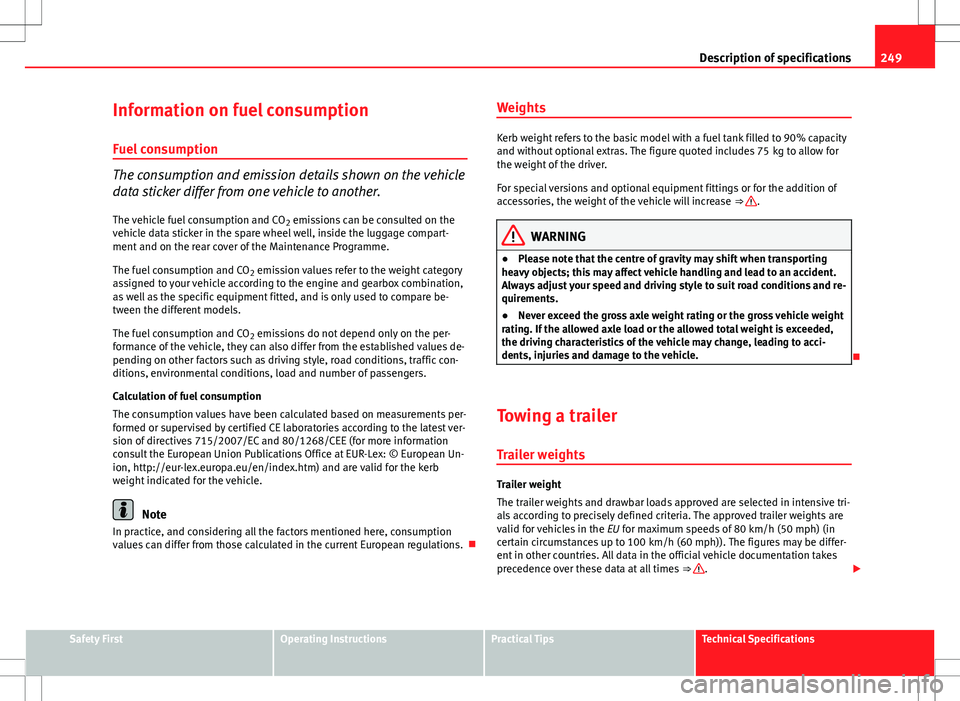

Information on fuel consumption
Fuel consumption
The consumption and emission details shown on the vehicle
data sticker differ from one vehicle to another. The vehicl

Page 252 of 280

Seat Ibiza SC 2012  Owners manual 250Description of specifications

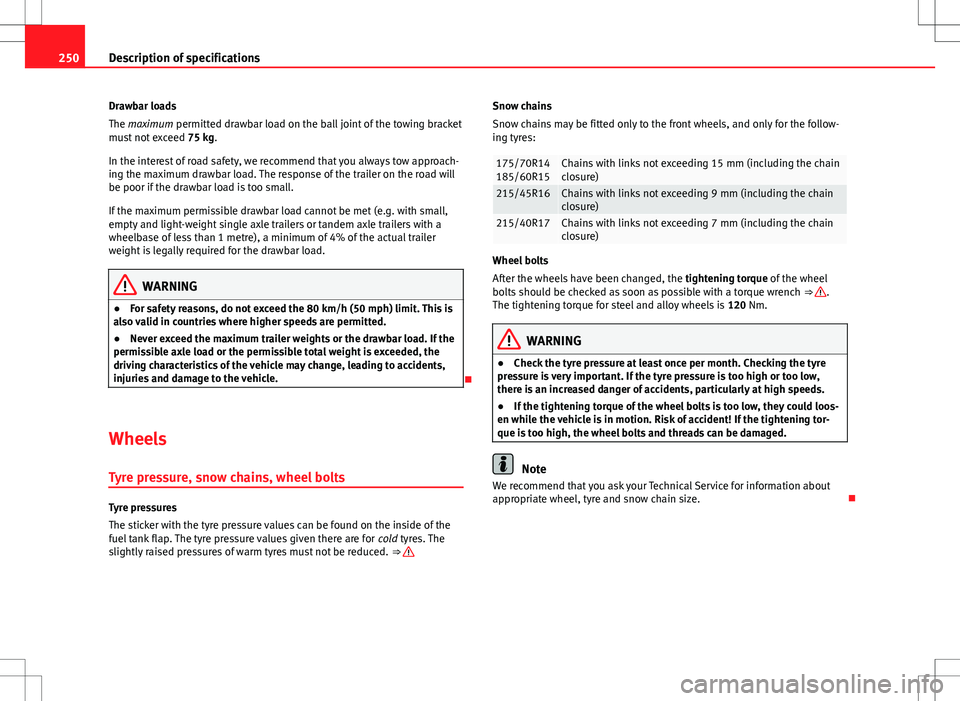

Drawbar loads
The maximum permitted drawbar load on the ball joint of the towing bracket
must not exceed  75 kg.
In the interest of road safety, we recommend that you

Page 253 of 280

Seat Ibiza SC 2012  Owners manual 251
Technical specifications
Technical specifications

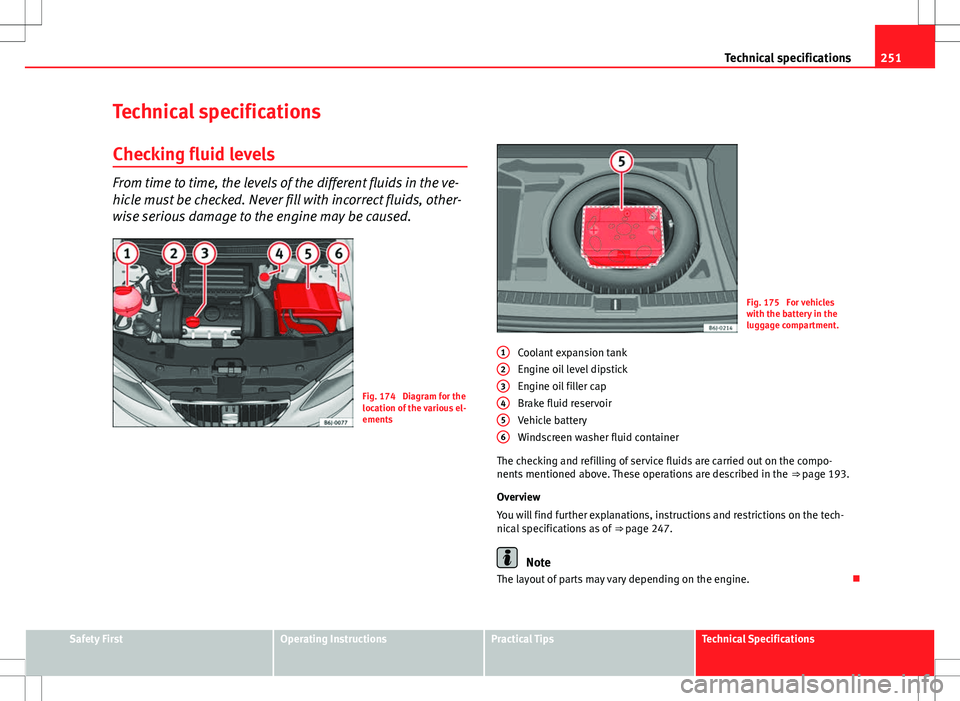

Checking fluid levels
From time to time, the levels of the different fluids in the ve-
hicle must be checked. Never fill with incorrect fluids, ot

Page 254 of 280

Seat Ibiza SC 2012  Owners manual 252Technical specifications
Petrol engine 1.2 44 kW (60 PS)
Engine specifications
Power output in kW (PS) rpm   44 (60)/ 5200
Maximum torque in Nm at rpm   108/ 3000
No. of cylinders/capacity in cm3

Page 255 of 280

Seat Ibiza SC 2012  Owners manual 253
Technical specifications

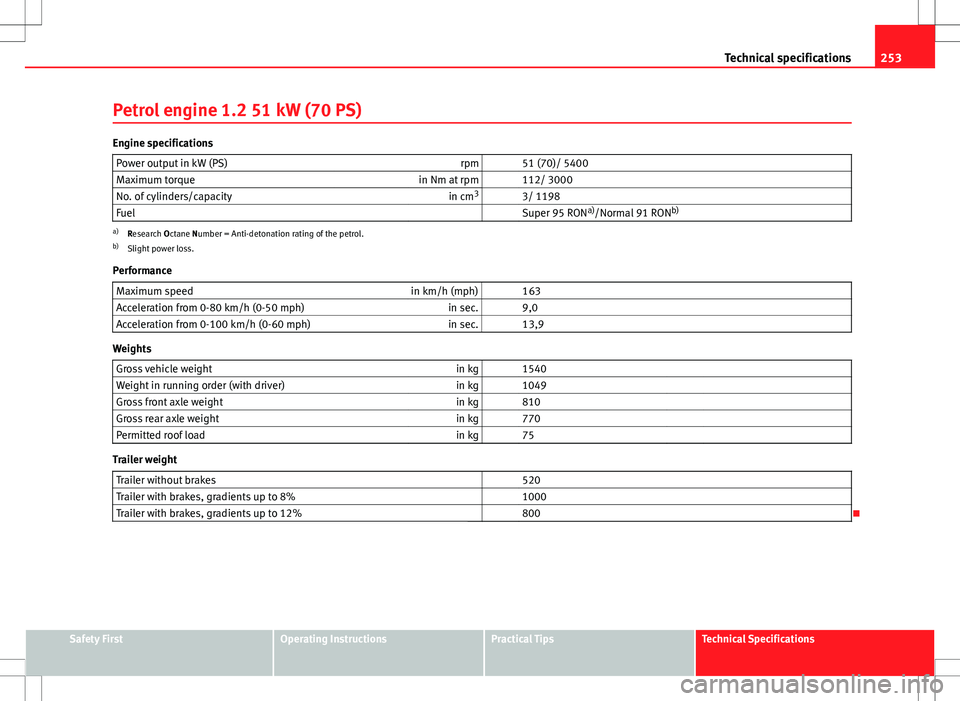

Petrol engine 1.2 51 kW (70 PS)
Engine specifications Power output in kW (PS) rpm   51 (70)/ 5400
Maximum torque in Nm at rpm   112/ 3000
No. of cylinders/capacity in cm3

Page 256 of 280

Seat Ibiza SC 2012  Owners manual 254Technical specifications

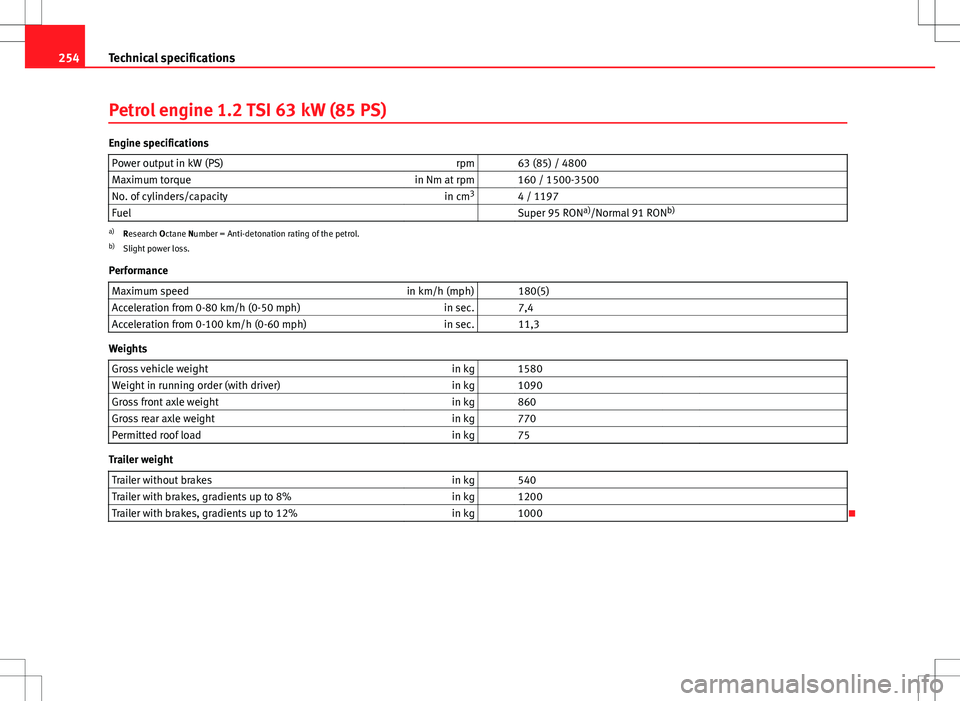

Petrol engine 1.2 TSI 63 kW (85 PS)
Engine specifications
Power output in kW (PS) rpm   63 (85) / 4800
Maximum torque in Nm at rpm   160 / 1500-3500
No. of cylinders/capaci

Page 257 of 280

Seat Ibiza SC 2012  Owners manual 255
Technical specifications

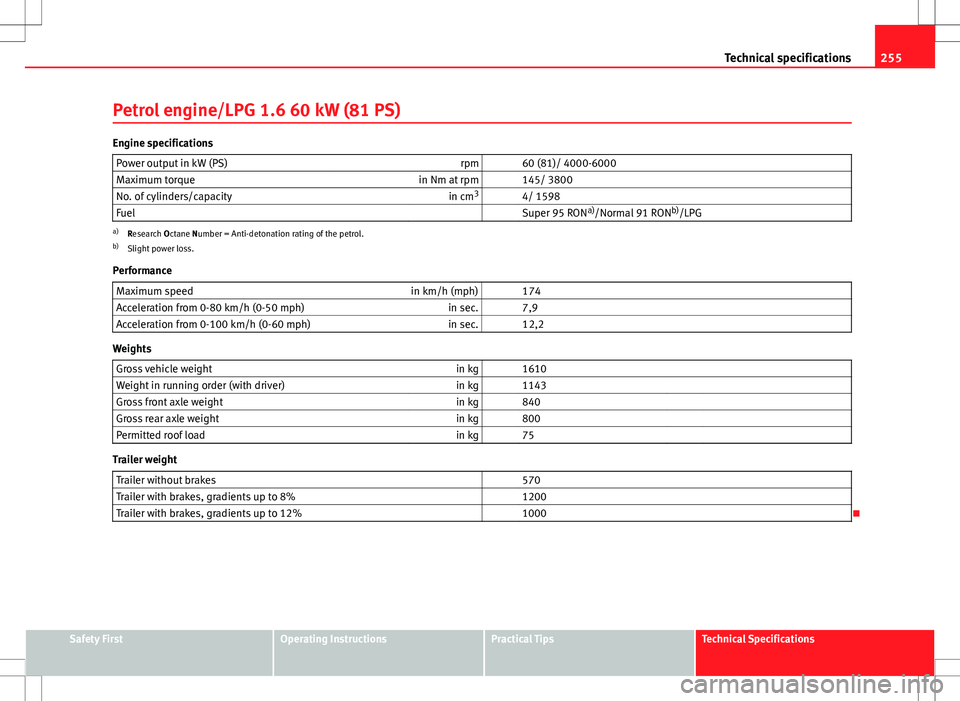

Petrol engine/LPG 1.6 60 kW (81 PS)
Engine specifications Power output in kW (PS) rpm   60 (81)/ 4000-6000
Maximum torque in Nm at rpm   145/ 3800
No. of cylinders/capacit

Page 258 of 280

Seat Ibiza SC 2012  Owners manual 256Technical specifications

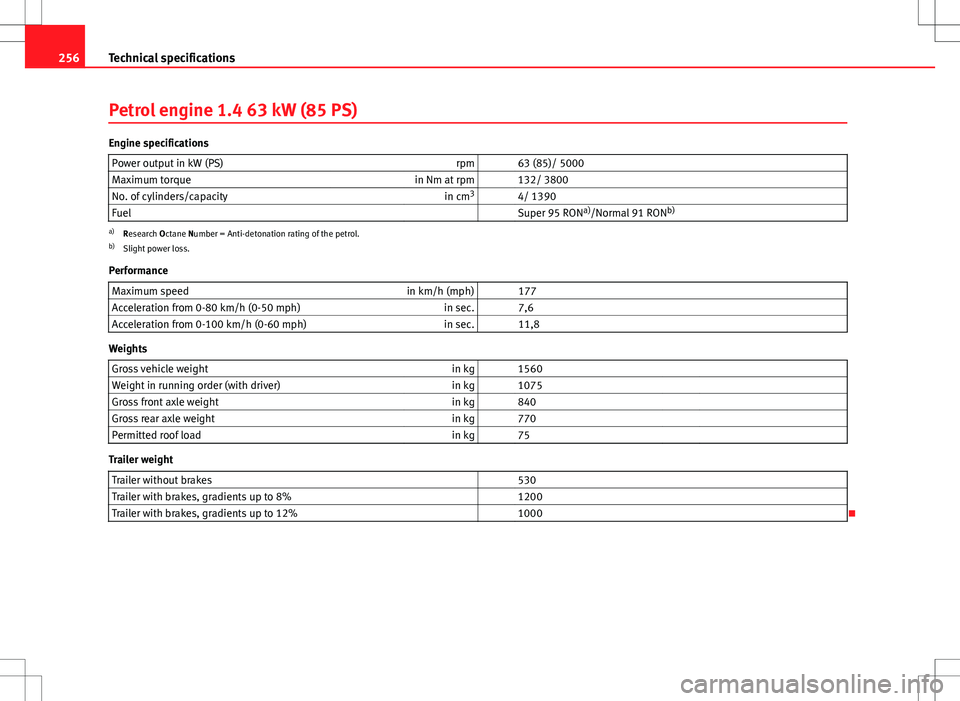

Petrol engine 1.4 63 kW (85 PS)
Engine specifications
Power output in kW (PS) rpm   63 (85)/ 5000
Maximum torque in Nm at rpm   132/ 3800
No. of cylinders/capacity in cm3

Page 259 of 280

Seat Ibiza SC 2012  Owners manual 257
Technical specifications

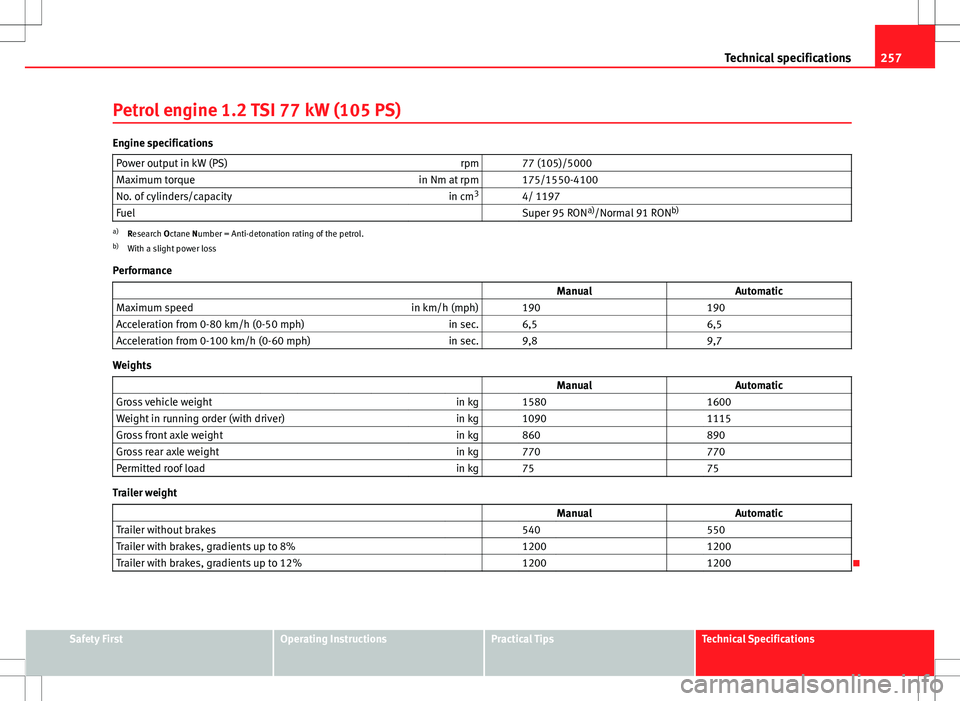

Petrol engine 1.2 TSI 77 kW (105 PS)
Engine specifications Power output in kW (PS) rpm   77 (105)/5000
Maximum torque in Nm at rpm   175/1550-4100
No. of cylinders/capacit

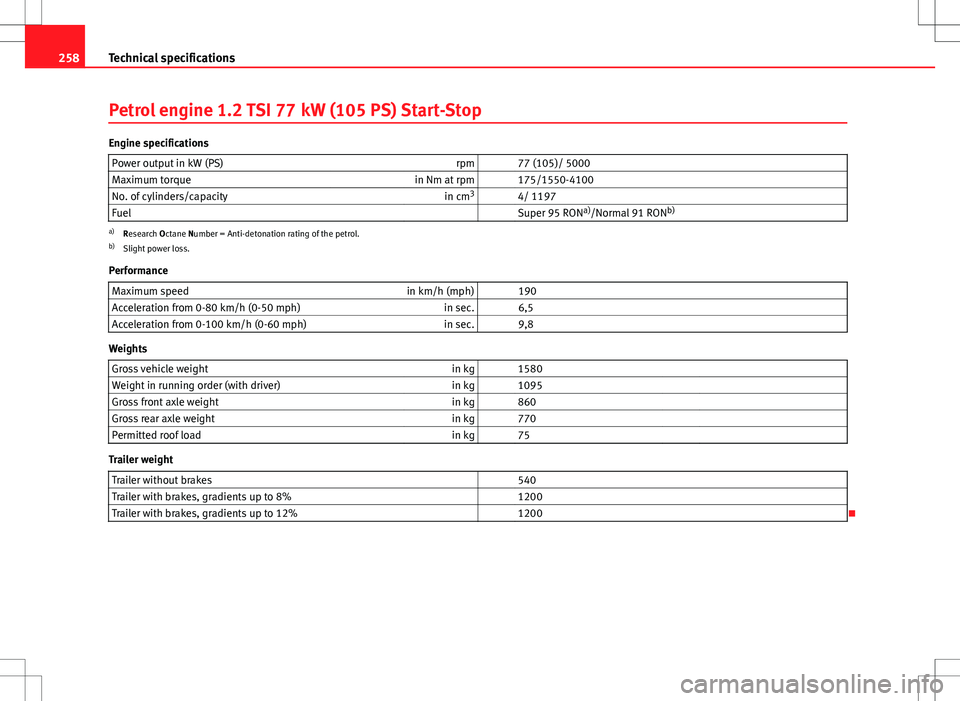

Page 260 of 280

Seat Ibiza SC 2012  Owners manual 258Technical specifications
Petrol engine 1.2 TSI 77 kW (105 PS) Start-Stop
Engine specifications
Power output in kW (PS) rpm   77 (105)/ 5000
Maximum torque in Nm at rpm   175/1550-4100
No. of cylind
