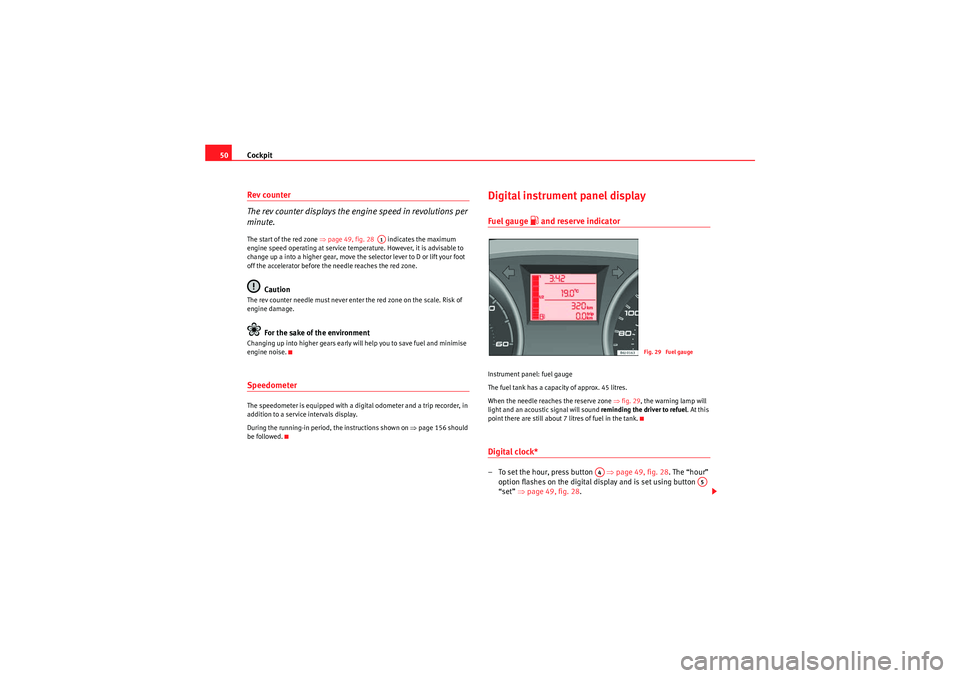

Page 51 of 250
Cockpit
50Rev counter
The rev counter displays the engine speed in revolutions per
minute.The start of the red zone ⇒ page 49, fig. 28 indicates the maximum
engine speed operating at service temperature. However, it is advisable to
change up a into a higher gear, move the selector lever to D or lift your foot
off the accelerator before the needle reaches the red zone.
Caution
The rev counter needle must never enter the red zone on the scale. Risk of
engine damage.
For the sake of the environment
Changing up into higher gears early will help you to save fuel and minimise
engine noise.SpeedometerThe speedometer is equipped with a digital odometer and a trip recorder, in
addition to a service intervals display.
During the running-in period, the instructions shown on ⇒page 156 should
be followed.
Digital instrument panel displayFuel gauge
and reserve indicator
Instrument panel: fuel gauge
The fuel tank has a capacity of approx. 45 litres.
When the needle reaches the reserve zone ⇒fig. 29 , the warning lamp will
light and an acoustic signal will sound reminding the driver to refuel. At this
point there are still about 7 litres of fuel in the tank.Digital clock* – To set the hour, press button ⇒page 49, fig. 28 . The “hour”
option flashes on the digital display and is set using button
“set” ⇒page 49, fig. 28 .
A1
Fig. 29 Fuel gauge
A4
A5
Ibiza ST_EN.book Seite 50 Dienstag, 12. Januar 2010 4:03 16

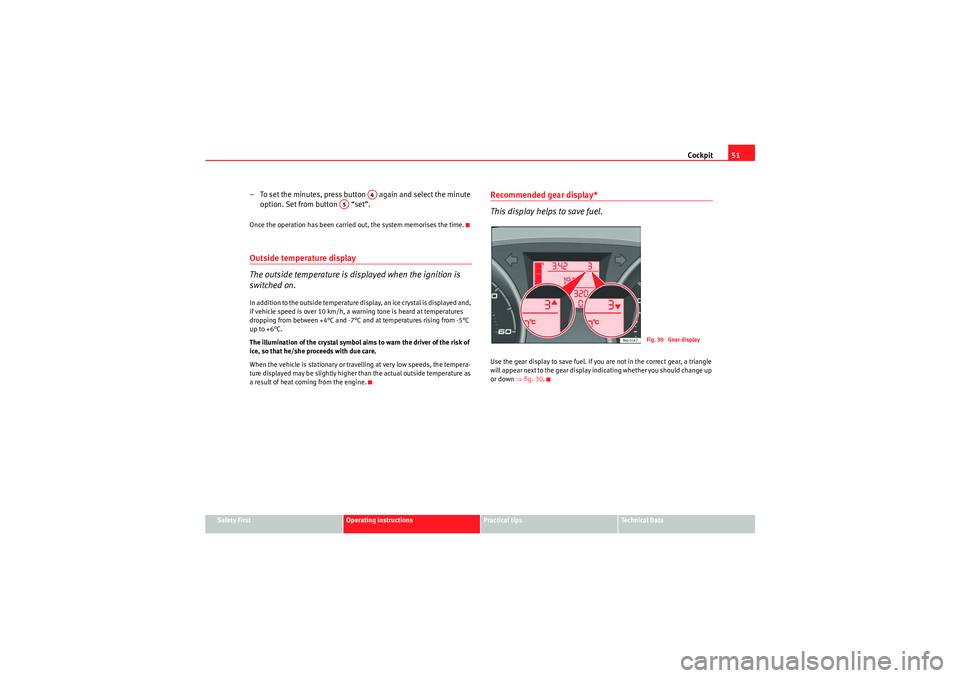

Page 52 of 250
Cockpit51
Safety First
Operating instructions
Practical tips
Technical Data
– To set the minutes, press button again and select the minute
option. Set from button “set”.Once the operation has been carried out, the system memorises the time.Outside temperature display
The outside temperature is displayed when the ignition is
switched on.In addition to the outside temperature display, an ice crystal is displayed and,
if vehicle speed is over 10 km/h, a warning tone is heard at temperatures
dropping from between +4°C and -7°C and at temperatures rising from -5°C
up to +6°C.
The illumination of the crystal symbol aims to warn the driver of the risk of
ice, so that he/she proceeds with due care.
When the vehicle is stationary or travelling at very low speeds, the tempera-
ture displayed may be slightly higher than the actual outside temperature as
a result of heat coming from the engine.
Recommended gear display*
This display helps to save fuel.Use the gear display to save fuel. If you are not in the correct gear, a triangle
will appear next to the gear display indicating whether you should change up
or down ⇒ fig. 30.
A4
A5
Fig. 30 Gear display
Ibiza ST_EN.book Seite 51 Dienstag, 12. Januar 2010 4:03 16

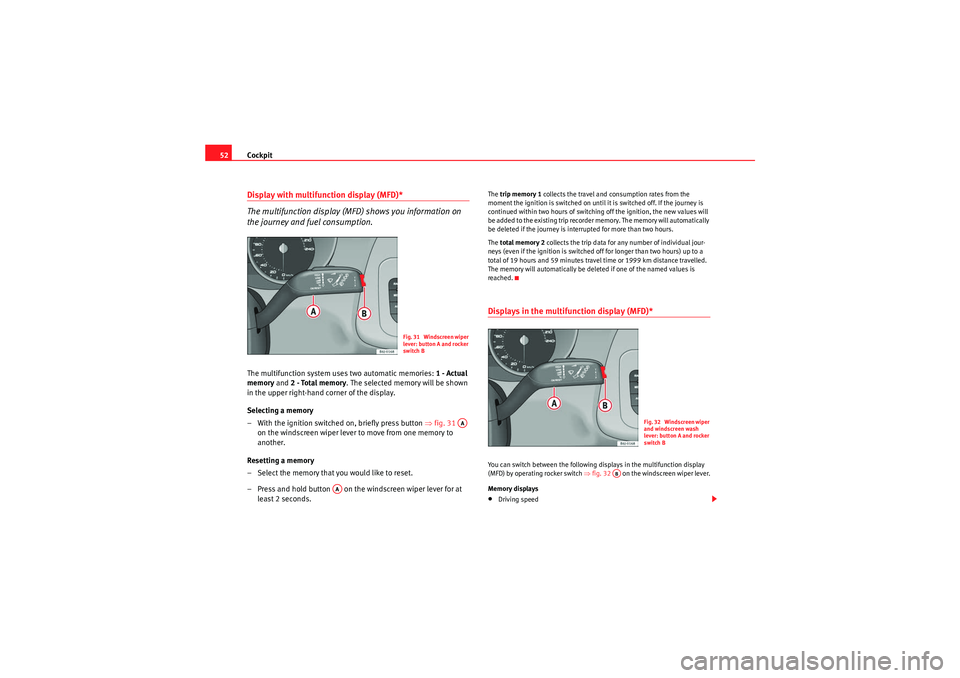

Page 53 of 250
Cockpit
52Display with multifunction display (MFD)*
The multifunction display (MFD) shows you information on
the journey and fuel consumption.The multifunction system uses two automatic memories: 1 - Actual
memory and 2 - Total memory . The selected memory will be shown
in the upper right-hand corner of the display.
Selecting a memory
– With the ignition switched on, briefly press button ⇒fig. 31
on the windscreen wiper lever to move from one memory to
another.
Resetting a memory
– Select the memory that you would like to reset.
– Press and hold button on the windscreen wiper lever for at least 2 seconds.
The trip memory 1 collects the travel and consumption rates from the
moment the ignition is switched on until it is switched off. If the journey is
continued within two hours of switching off the ignition, the new values will
be added to the existing trip recorder memory. The memory will automatically
be deleted if the journey is interrupted for more than two hours.
The total memory 2 collects the trip data for any number of individual jour-
neys (even if the ignition is switched off for longer than two hours) up to a
total of 19 hours and 59 minutes travel time or 1999 km distance travelled.
The memory will automatically be deleted if one of the named values is
reached.Displays in the multifunction display (MFD)* You can switch between the following displays in the multifunction display
(MFD) by operating rocker switch ⇒fig. 32 on the windscreen wiper lever.
Memory displays•Driving speed
Fig. 31 Windscreen wiper
lever: button A and rocker
switch B
AA
AA
Fig. 32 Windscreen wiper
and windscreen wash
lever: button A and rocker
switch B
AB
Ibiza ST_EN.book Seite 52 Dienstag, 12. Januar 2010 4:03 16

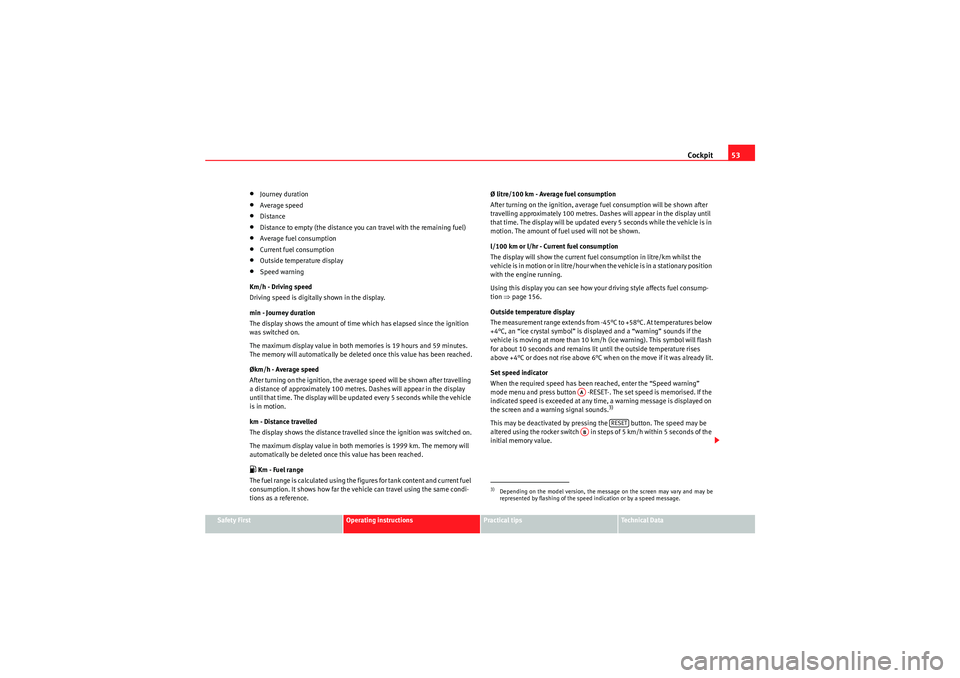

Page 54 of 250
Cockpit53
Safety First
Operating instructions
Practical tips
Technical Data
•Journey duration•Average speed•Distance•Distance to empty (the distance you can travel with the remaining fuel)•Average fuel consumption•Current fuel consumption•Outside temperature display•Speed warning
Km/h - Driving speed
Driving speed is digitally shown in the display.
min - Journey duration
The display shows the amount of time which has elapsed since the ignition
was switched on.
The maximum display value in both memories is 19 hours and 59 minutes.
The memory will automatically be deleted once this value has been reached.
Økm/h - Average speed
After turning on the ignition, the average speed will be shown after travelling
a distance of approximately 100 metres. Dashes will appear in the display
until that time. The display will be updated every 5 seconds while the vehicle
is in motion.
km - Distance travelled
The display shows the distance travelled since the ignition was switched on.
The maximum display value in both memories is 1999 km. The memory will
automatically be deleted once this value has been reached. Km - Fuel range
The fuel range is calculated using the figures for tank content and current fuel
consumption. It shows how far the vehicle can travel using the same condi-
tions as a reference. Ø litre/100 km - Average fuel consumption
After turning on the ignition, average fuel consumption will be shown after
travelling approximately 100 metres. Dashes will appear in the display until
that time. The display will be updated every 5 seconds while the vehicle is in
motion. The amount of fuel used will not be shown.
l/100 km or l/hr - Current fuel consumption
The display will show the current fuel consumption in litre/km whilst the
vehicle is in motion or in litre/hour when the vehicle is in a stationary position
with the engine running.
Using this display you can see how your driving style affects fuel consump-
tion
⇒page 156.
Outside temperature display
The measurement range extends from -45°C to +58°C. At temperatures below
+4°C, an “ice crystal symbol” is displayed and a “warning” sounds if the
vehicle is moving at more than 10 km/h (ice warning). This symbol will flash
for about 10 seconds and remains lit until the outside temperature rises
above +4°C or does not rise above 6°C when on the move if it was already lit.
Set speed indicator
When the required speed has been reached, enter the “Speed warning”
mode menu and press button -RESET-. The set speed is memorised. If the
indicated speed is exceeded at any time, a warning message is displayed on
the screen and a warning signal sounds.
3)
This may be deactivated by pressing the button. The speed may be
altered using the rocker switch in steps of 5 km/h within 5 seconds of the
initial memory value.3)Depending on the model version, the message on the screen may vary and may be
represented by flashing of the speed indication or by a speed message.
AA
RESET
AB
Ibiza ST_EN.book Seite 53 Dienstag, 12. Januar 2010 4:03 16

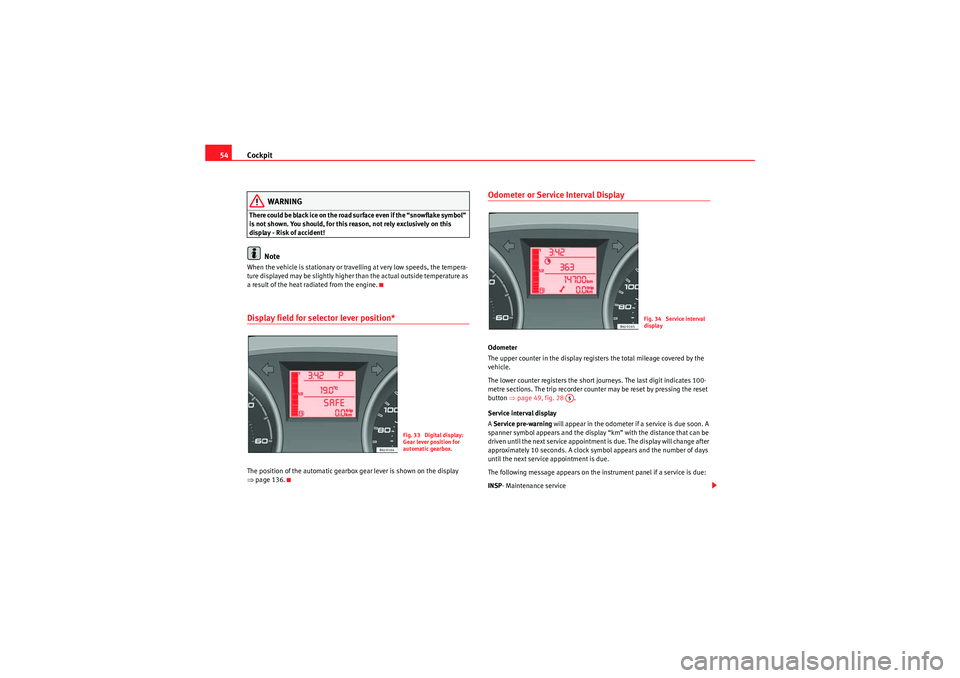

Page 55 of 250
Cockpit
54
WARNING
There could be black ice on the road surface even if the “snowflake symbol”
is not shown. You should, for this reason, not rely exclusively on this
display - Risk of accident!
Note
When the vehicle is stationary or travelling at very low speeds, the tempera-
ture displayed may be slightly higher than the actual outside temperature as
a result of the heat radiated from the engine.Display field for selector lever position*The position of the automatic gearbox gear lever is shown on the display
⇒ page 136.
Odometer or Service Interval DisplayOdometer
The upper counter in the display registers the total mileage covered by the
vehicle.
The lower counter registers the short journeys. The last digit indicates 100-
metre sections. The trip recorder counter may be reset by pressing the reset
button ⇒page 49, fig. 28 .
Service interval display
A Service pre-warning will appear in the odometer if a service is due soon. A
spanner symbol appears and the display “km” with the distance that can be
driven until the next service appointment is due. The display will change after
approximately 10 seconds. A clock symbol appears and the number of days
until the next service appointment is due.
The following message appears on the instrument panel if a service is due:
INSP - Maintenance service
Fig. 33 Digital display:
Gear lever position for
automatic gearbox.
Fig. 34 Service interval
display
A5
Ibiza ST_EN.book Seite 54 Dienstag, 12. Januar 2010 4:03 16

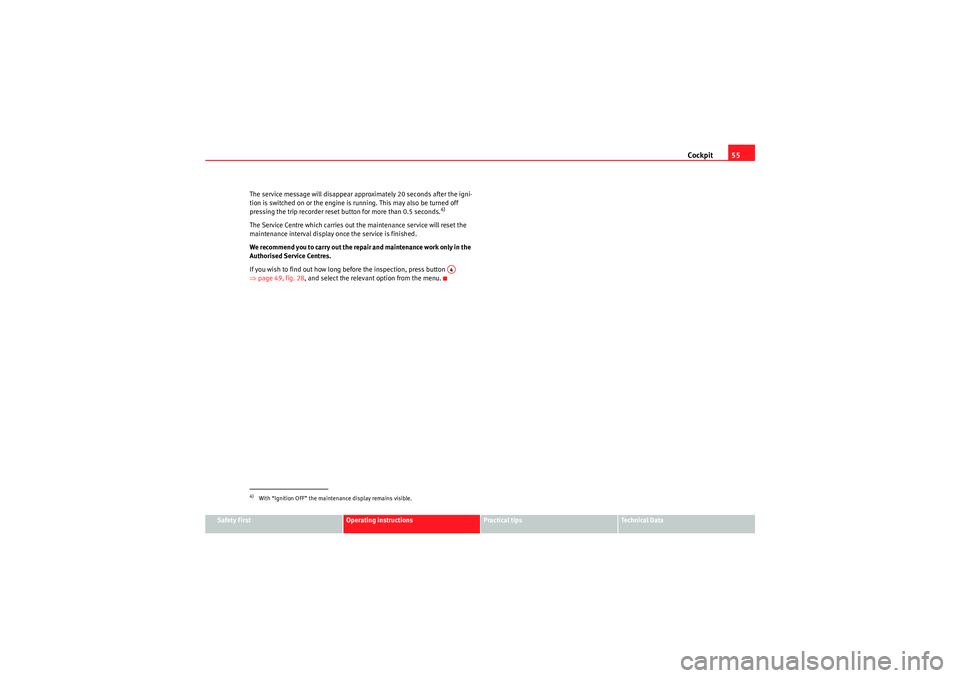

Page 56 of 250
Cockpit55
Safety First
Operating instructions
Practical tips
Technical Data
The service message will disappear approximately 20 seconds after the igni-
tion is switched on or the engine is running. This may also be turned off
pressing the trip recorder reset button for more than 0.5 seconds.
4)
The Service Centre which carries out the maintenance service will reset the
maintenance interval display once the service is finished.
We recommend you to carry out the repair and maintenance work only in the
Authorised Service Centres.
If you wish to find out how long before the inspection, press button
⇒
page 49, fig. 28, and select the relevant option from the menu.4)With “Ignition OFF” the maintenance display remains visible.
A4
Ibiza ST_EN.book Seite 55 Dienstag, 12. Januar 2010 4:03 16

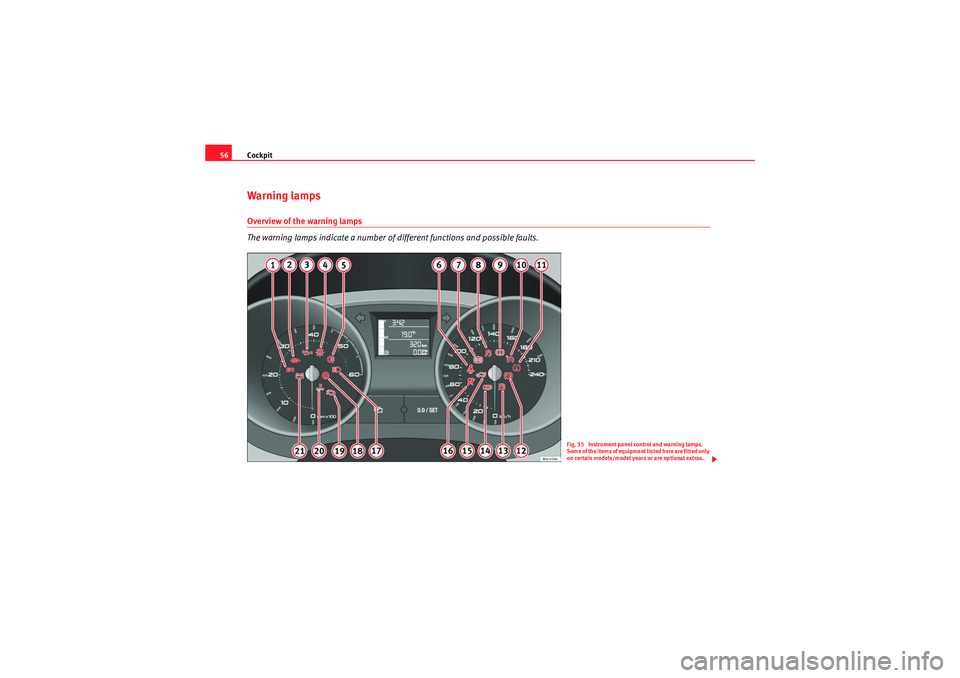

Page 57 of 250
Cockpit
56Warning lampsOverview of the warning lamps
The warning lamps indicate a number of different functions and possible faults.
Fig. 35 Instrument panel control and warning lamps.
Some of the items of equipment listed here are fitted only
on certain models/model years or are optional extras.
Ibiza ST_EN.book Seite 56 Dienstag, 12. Januar 2010 4:03 16

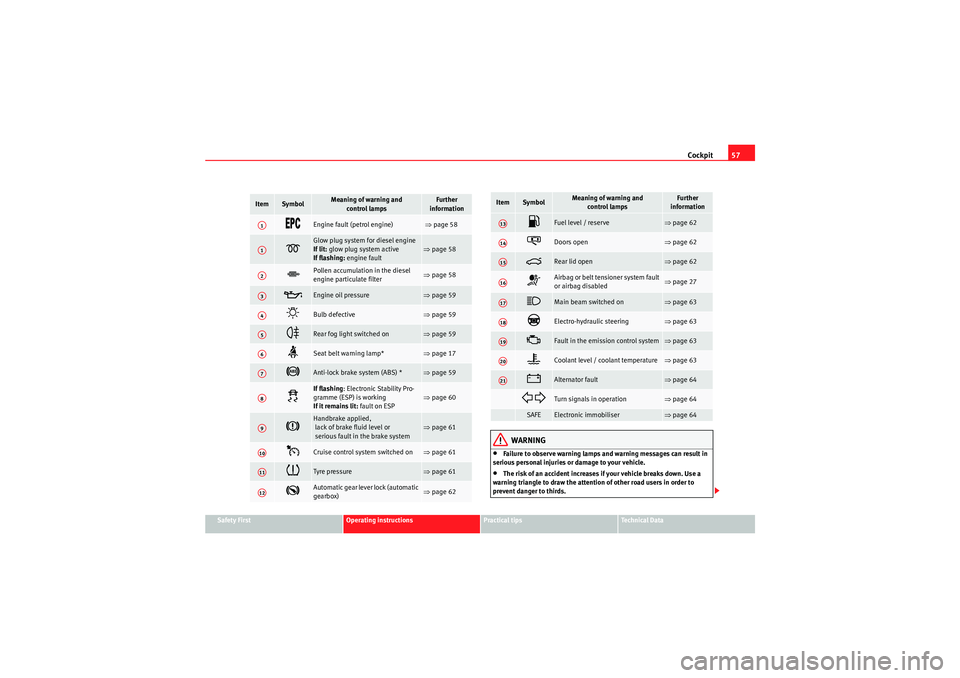

Page 58 of 250
Cockpit57
Safety First
Operating instructions
Practical tips
Technical Data
WARNING
•Failure to observe warning lamps and warning messages can result in
serious personal injuries or damage to your vehicle.•The risk of an accident increases if your vehicle breaks down. Use a
warning triangle to draw the attention of other road users in order to
prevent danger to thirds.
Item
Symbol
Meaning of warning and
control lamps
Further
information
Engine fault (petrol engine)
⇒ page 58
Glow plug system for diesel engine
If lit: glow plug system active
If flashing: engine fault
⇒page 58
Pollen accumulation in the diesel
engine particulate filter
⇒page 58
Engine oil pressure
⇒page 59
Bulb defective
⇒page 59
Rear fog light switched on
⇒page 59
Seat belt warning lamp*
⇒page 17
Anti-lock brake system (ABS) *
⇒page 59
If flashing : Electronic Stability Pro-
gramme (ESP) is working
If it remains lit: fault on ESP
⇒ page 60
Handbrake applied,
lack of brake fluid level or
serious fault in the brake system
⇒page 61
Cruise control system switched on
⇒page 61
Tyre pressure
⇒page 61
Automatic gear lever lock (automatic
gearbox)
⇒page 62
A1A1A2A3A4A5A6A7A8A9A10A11A12
Fuel level / reserve
⇒page 62
Doors open
⇒page 62
Rear lid open
⇒page 62
Airbag or belt tensioner system fault
or airbag disabled
⇒page 27
Main beam switched on
⇒page 63
Electro-hydraulic steering
⇒page 63
Fault in the emission control system
⇒page 63
Coolant level / coolant temperature
⇒page 63
Alternator fault
⇒page 64
Turn signals in operation
⇒page 64
SAFE
Electronic immobiliser
⇒page 64
Item
Symbol
Meaning of warning and
control lamps
Further
information
A13A14A15A16A17A18A19A20A21
Ibiza ST_EN.book Seite 57 Dienstag, 12. Januar 2010 4:03 16

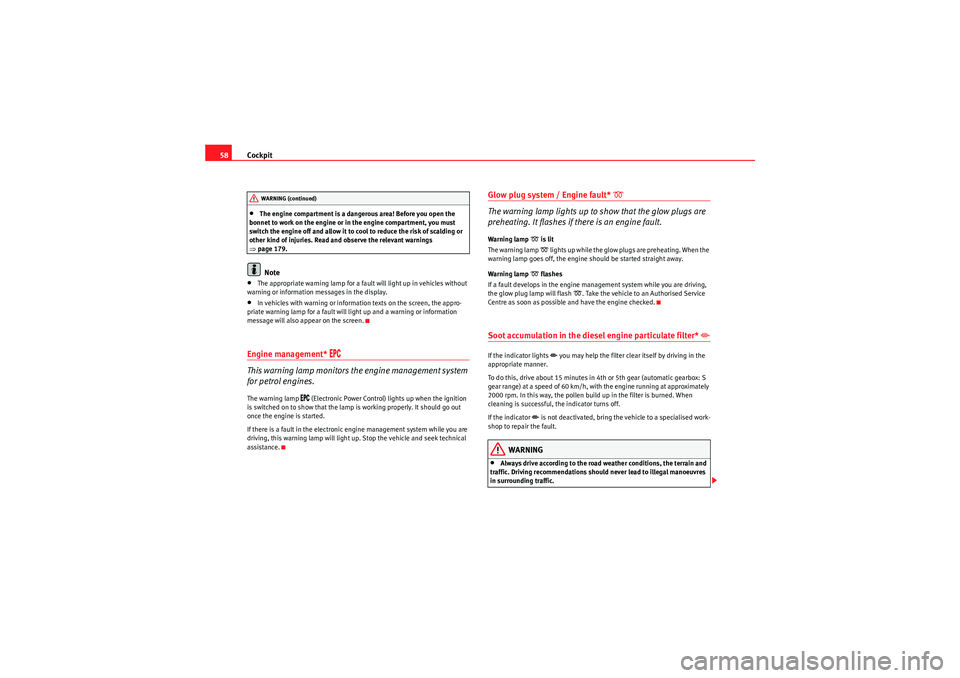

Page 59 of 250
Cockpit
58•The engine compartment is a dangerous area! Before you open the
bonnet to work on the engine or in the engine compartment, you must
switch the engine off and allow it to cool to reduce the risk of scalding or
other kind of injuries. Read and observe the relevant warnings
⇒ page 179.Note
•The appropriate warning lamp for a fault will light up in vehicles without
warning or information messages in the display.•In vehicles with warning or information texts on the screen, the appro-
priate warning lamp for a fault will light up and a warning or information
message will also appear on the screen.Engine management*
This warning lamp monitors the engine management system
for petrol engines.
The warning lamp
(Electronic Power Control) lights up when the ignition
is switched on to show that the lamp is working properly. It should go out
once the engine is started.
If there is a fault in the electronic engine management system while you are
driving, this warning lamp will light up. Stop the vehicle and seek technical
assistance.
Glow plug system / Engine fault*
The warning lamp lights up to show that the glow plugs are
preheating. It flashes if there is an engine fault.
Warning lamp
is lit
The warning lamp lights up while the glow plugs are preheating. When the
warning lamp goes off, the engine should be started straight away.
Warning lamp
flashes
If a fault develops in the engine management system while you are driving,
the glow plug lamp will flash
. Take the vehicle to an Authorised Service
Centre as soon as possible and have the engine checked.
Soot accumulation in the diesel engine particulate filter*
If the indicator lights
you may help the filter clear itself by driving in the
appropriate manner.
To do this, drive about 15 minutes in 4th or 5th gear (automatic gearbox: S
gear range) at a speed of 60 km/h, with the engine running at approximately
2000 rpm. In this way, the pollen build up in the filter is burned. When
cleaning is successful, the indicator turns off.
If the indicator
is not deactivated, bring the vehicle to a specialised work-
shop to repair the fault.
WARNING
•Always drive according to the road weather conditions, the terrain and
traffic. Driving recommendations should never lead to illegal manoeuvres
in surrounding traffic.
WARNING (continued)
Ibiza ST_EN.book Seite 58 Dienstag, 12. Januar 2010 4:03 16

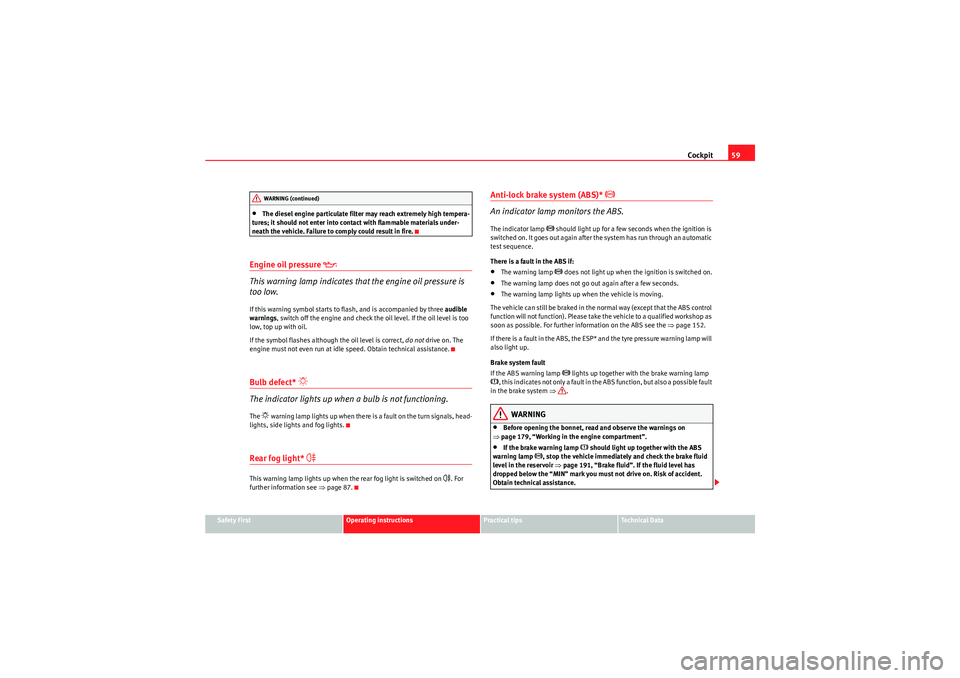

Page 60 of 250
Cockpit59
Safety First
Operating instructions
Practical tips
Technical Data
•The diesel engine particulate filter may reach extremely high tempera-
tures; it should not enter into contact with flammable materials under-
neath the vehicle. Failure to comply could result in fire.
Engine oil pressure
This warning lamp indicates that the engine oil pressure is
too low.If this warning symbol starts to flash, and is accompanied by three audible
warnings , switch off the engine and check the oil level. If the oil level is too
low, top up with oil.
If the symbol flashes although the oil level is correct, do not drive on. The
engine must not even run at idle speed. Obtain technical assistance.Bulb defect*
The indicator lights up when a bulb is not functioning.The
warning lamp lights up when there is a fault on the turn signals, head-
lights, side lights and fog lights.
Rear fog light*
This warning lamp lights up when the rear fog light is switched on
. For
further information see ⇒page 87.
Anti-lock brake system (ABS)*
An indicator lamp monitors the ABS.
The indicator lamp
should light up for a few seconds when the ignition is
switched on. It goes out again after the system has run through an automatic
test sequence.
There is a fault in the ABS if:
•The warning lamp
does not light up when the ignition is switched on.
•The warning lamp does not go out again after a few seconds.•The warning lamp lights up when the vehicle is moving.
The vehicle can still be braked in the normal way (except that the ABS control
function will not function). Please take the vehicle to a qualified workshop as
soon as possible. For further information on the ABS see the ⇒page 152.
If there is a fault in the ABS, the ESP* and the tyre pressure warning lamp will
also light up.
Brake system fault
If the ABS warning lamp
lights up together with the brake warning lamp
, this indicates not only a fault in the ABS function, but also a possible fault
in the brake system ⇒.
WARNING
•Before opening the bonnet, read and observe the warnings on
⇒ page 179, “Working in the engine compartment”.•If the brake warning lamp
should light up together with the ABS
warning lamp
, stop the vehicle immediately and check the brake fluid
level in the reservoir ⇒ page 191, “Brake fluid”. If the fluid level has
dropped below the “MIN” mark you must not drive on. Risk of accident.
Obtain technical assistance.
WARNING (continued)
Ibiza ST_EN.book Seite 59 Dienstag, 12. Januar 2010 4:03 16
