Cockpit
60•If the brake fluid level is correct, the fault in the brake system may have
been caused by a failure of the ABS system. This could cause the rear
wheels to lock quickly when you brake. This could cause the rear to break
away. Risk of skidding. Stop the vehicle and seek technical assistance.
Differential lock fault (EDL)*
EDL operates along with the ABS in vehicles equipped with an
Electronic Stability Programme (ESP)*A malfunction in the EDL is indicated by the ABS warning lamp
. Please
take the vehicle to a qualified workshop as soon as possible. For further infor-
mation on the EDL see ⇒page 154, “Electronic differential lock (EDL)*”.
Traction control system (TCS)*
The traction control system prevents the driven wheels from
spinning when the vehicle is acceleratingThe warning lamp lights up when the ignition is switched on and should turn
out after about 2 seconds.
When the TCS is operating while driving, its warning lamp flashes rapidly. If
there is a fault in the system, the warning lamp is lit permanently.
It will also come on if a fault should occur in the ABS because the TCS oper-
ates in conjunction with the ABS. For further information, see ⇒page 151,
“Brakes” If ESP* button is activated, TCS function deactivates and the warning lamp
flashes slowly. By pressing again, TCS function is reactivated and the warning
lamp switched off.
Electronic Stability Programme (ESP)*
This warning lamp monitors the Electronic Stability
Programme.This programme includes the ABS, EDL and TCS.
The warning lamp
has the following functions:
•It will light for about 2 seconds when the ignition is switched on while a
test of the function is carried out.•It flashes rapidly when the ESP is activated while driving.•It will light up continuously if there is a malfunction in the ESP.•It will also come on if a fault should occur in the ABS because the ESP
operates in conjunction with the ABS.
If the ESP warning lamp
lights up and stays on after the engine is started,
this may mean that the control system has temporarily switched off the ESP.
In this case the ESP can be reactivated by switching the ignition off and then
on again. If the warning lamp goes out, this means the system is fully
functional.
WARNING (continued)
Ibiza ST_EN.book Seite 60 Dienstag, 12. Januar 2010 4:03 16
Page 62 of 250

Cockpit61
Safety First
Operating instructions
Practical tips
Technical Data
Brake system* / handbrake
The warning lamp lights up if the handbrake is applied, if the
brake fluid level falls too low or if there is a fault in the brake
system.
This warning lamp
lights up if
•the handbrake is on.•the brake fluid level is too low ⇒page 191.•there is a fault in the brake system.
This warning lamp can light up together with the ABS system warning lamp.WARNING
•If the brake warning lamp does not go out, or if it lights up when
driving, the brake fluid level ⇒page 191, “Brake fluid” in the reservoir is
too low. Risk of accident. Stop the vehicle and do not drive on. Obtain tech-
nical assistance.•If the brake warning lamp
lights up together with the ABS warning
lamp
, the control function of the ABS could be out of action. This could
cause the rear wheels to lock quickly when you brake. This could cause the
rear to break away. Risk of skidding. Stop the vehicle and seek technical
assistance.
Cruise control system*
The warning lamp comes on when the cruise control system
is switched on.The warning lamp
lights up when the cruise control system is switched on.
For further information on the cruise control system, see ⇒page 147.
Tyre pressure*
The tyre monitor
5) co m p a r e s w h e e l r e v o l u t i o ns a n d wi t h t h is i n f o r m a t i o n , t h e
diameter of each wheel using the ESP sensors. If the diameter of a wheel
changes, the tyre monitor indicator lights . The wheel diameter changes
when:
•Tyre pressure is insufficient.•The tyre structure is damaged.•The vehicle is unbalanced because of a load.•The wheels of one axle are under more pressure (for example, driving with
a trailer or on extreme slopes).•The vehicle is fitted with snow chains.•The temporary spare wheel is fitted.•The wheel on one axle is changed.5)Depending on the model version
Fig. 36 Centre console:
tyre monitor system
button
Ibiza ST_EN.book Seite 61 Dienstag, 12. Januar 2010 4:03 16
Page 63 of 250

Cockpit

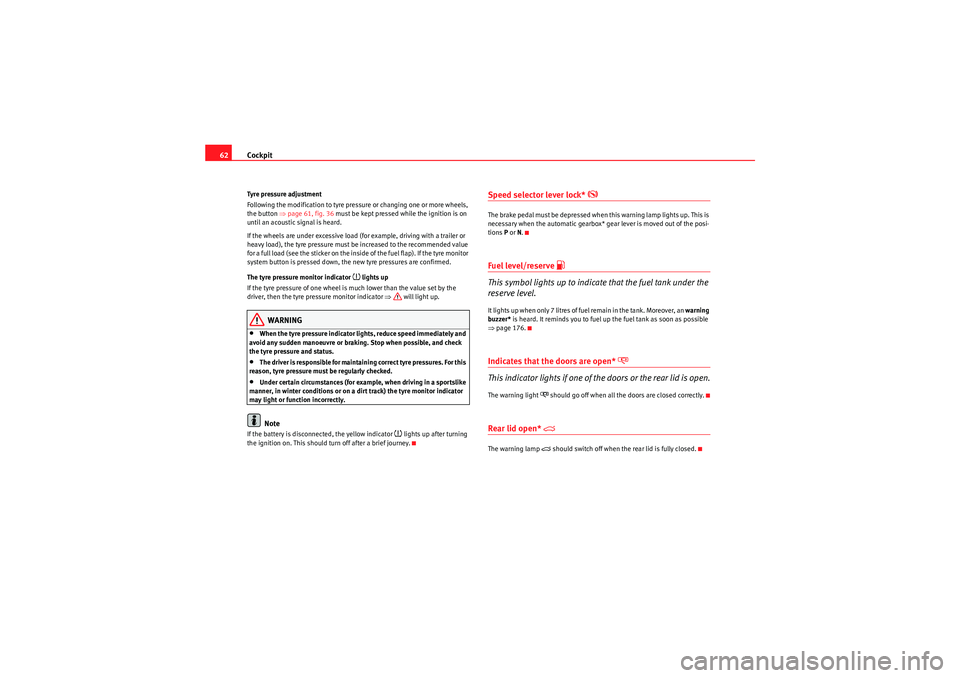

62Tyre pressure adjustment
Following the modification to tyre pressure or changing one or more wheels,
the button ⇒page 61, fig. 36 must be kept pressed while the ignition is on
until an acoustic signal is heard.
If the wheels are under excessive load (for example, driving with a trailer or
heavy load), the tyre pressure must be increased to the recommended value
for a full load (see the sticker on the inside of the fuel flap). If the tyre m onitor
system button is pressed down, the new tyre pressures are confirmed.
The tyre pressure monitor indicator
lights up
If the tyre pressure of one wheel is much lower than the value set by the
driver, then the tyre pressure monitor indicator ⇒ will light up.
WARNING
•When the tyre pressure indicator lights, reduce speed immediately and
avoid any sudden manoeuvre or braking. Stop when possible, and check
the tyre pressure and status.•The driver is responsible for maintaining correct tyre pressures. For this
reason, tyre pressure must be regularly checked.•Under certain circumstances (for example, when driving in a sportslike
manner, in winter conditions or on a dirt track) the tyre monitor indicator
may light or function incorrectly.Note
If the battery is disconnected, the yellow indicator
lights up after turning
the ignition on. This should turn off after a brief journey.
Speed selector lever lock*
The brake pedal must be depressed when this warning lamp lights up. This is
necessary when the automatic gearbox* gear lever is moved out of the posi-
tions P or N.Fuel level/reserve
This symbol lights up to indicate that the fuel tank under the
reserve level.It li ghts u p w he n o nly 7 lit res of fu el re mai n i n th e ta nk . Mo re ove r, a n warning
buzzer* is heard. It reminds you to fuel up the fuel tank as soon as possible
⇒ page 176.Indicates that the doors are open*
This indicator lights if one of the doors or the rear lid is open.The warning light
should go off when all the doors are closed correctly.
Rear lid open*
The warning lamp
should switch off when the rear lid is fully closed.
Ibiza ST_EN.book Seite 62 Dienstag, 12. Januar 2010 4:03 16
Page 64 of 250

Cockpit63
Safety First
Operating instructions
Practical tips
Technical Data

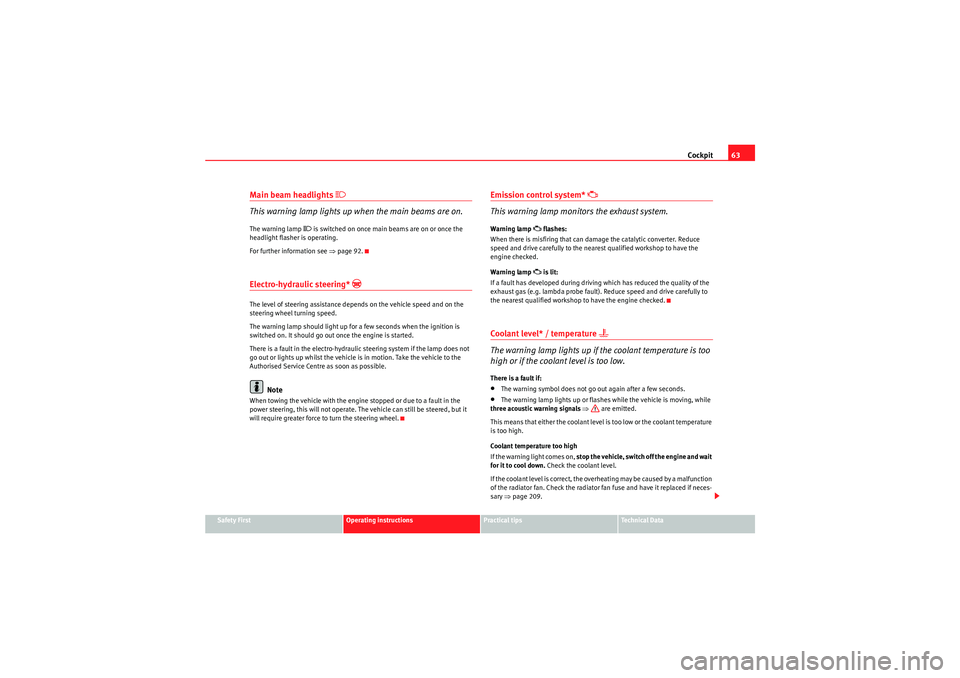

Main beam headlights
This warning lamp lights up when the main beams are on.The warning lamp
is switched on once main beams are on or once the
headlight flasher is operating.
For further information see ⇒page 92.
Electro-hydraulic steering*
The level of steering assistance depends on the vehicle speed and on the
steering wheel turning speed.
The warning lamp should light up for a few seconds when the ignition is
switched on. It should go out once the engine is started.
There is a fault in the electro-hydraulic steering system if the lamp does not
go out or lights up whilst the vehicle is in motion. Take the vehicle to the
Authorised Service Centre as soon as possible.
Note
When towing the vehicle with the engine stopped or due to a fault in the
power steering, this will not operate. The vehicle can still be steered, but it
will require greater force to turn the steering wheel.
Emission control system*
This warning lamp monitors the exhaust system.
Warning lamp
flashes:
When there is misfiring that can damage the catalytic converter. Reduce
speed and drive carefully to the nearest qualified workshop to have the
engine checked.
Warning lamp is lit:
If a fault has developed during driving which has reduced the quality of the
exhaust gas (e.g. lambda probe fault). Reduce speed and drive carefully to
the nearest qualified workshop to have the engine checked.
Coolant level* / temperature
The warning lamp lights up if the coolant temperature is too
high or if the coolant level is too low.There is a fault if:•The warning symbol does not go out again after a few seconds.•The warning lamp lights up or flashes while the vehicle is moving, while
three acoustic warning signals ⇒ are emitted.
This means that either the coolant level is too low or the coolant temperature
is too high.
Coolant temperature too high
If the warning light comes on, stop the vehicle, switch off the engine and wait
for it to cool down. Check the coolant level.
If the coolant level is correct, the overheating may be caused by a malfunction
of the radiator fan. Check the radiator fan fuse and have it replaced if neces-
sary ⇒page 209.
Ibiza ST_EN.book Seite 63 Dienstag, 12. Januar 2010 4:03 16
Page 65 of 250

Cockpit

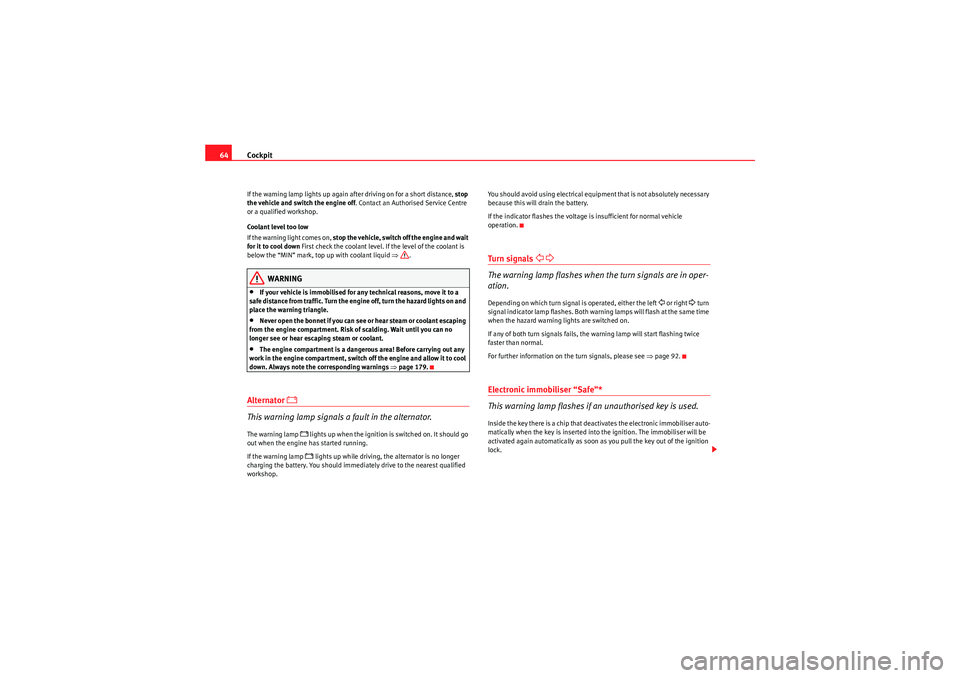

64If the warning lamp lights up again after driving on for a short distance, stop
the vehicle and switch the engine off . Contact an Authorised Service Centre
or a qualified workshop.
Coolant level too low
If the warning light comes on, stop the vehicle, switch off the engine and wait
for it to cool down First check the coolant level. If the level of the coolant is
below the “MIN” mark, top up with coolant liquid ⇒.
WARNING
•If your vehicle is immobilised for any technical reasons, move it to a
safe distance from traffic. Tur n the e ngin e off, turn t he hazard l ights on and
place the warning triangle.•Never open the bonnet if you can see or hear steam or coolant escaping
from the engine compartment. Risk of scalding. Wait until you can no
longer see or hear escaping steam or coolant.•The engine compartment is a danger ous area! Before carrying out any
work in the engine compartment, switch off the engine and allow it to cool
down. Always note the corresponding warnings ⇒page 179.
Alternator
This warning lamp signals a fault in the alternator.
The warning lamp
lights up when the ignition is switched on. It should go
out when the engine has started running.
If the warning lamp lights up while driving, the alternator is no longer
charging the battery. You should immediately drive to the nearest qualified
workshop. You should avoid using electrical equipment that is not absolutely necessary
because this will drain the battery.
If the indicator flashes the voltage is insufficient for normal vehicle
operation.
Turn signals
The warning lamp flashes when the turn signals are in oper-
ation.Depending on which turn signal is operated, either the left
or right
turn
signal indicator lamp flashes. Both warning lamps will flash at the same time
when the hazard warning lights are switched on.
If any of both turn signals fails, the warning lamp will start flashing twice
faster than normal.
For further information on the turn signals, please see ⇒page 92.
Electronic immobiliser “Safe”*
This warning lamp flashes if an unauthorised key is used.Inside the key there is a chip that deactivates the electronic immobiliser auto-
matically when the key is inserted into the ignition. The immobiliser will be
activated again automatically as soon as you pull the key out of the ignition
lock.
Ibiza ST_EN.book Seite 64 Dienstag, 12. Januar 2010 4:03 16
Page 66 of 250

Cockpit65
Safety First
Operating instructions
Practical tips
Technical Data

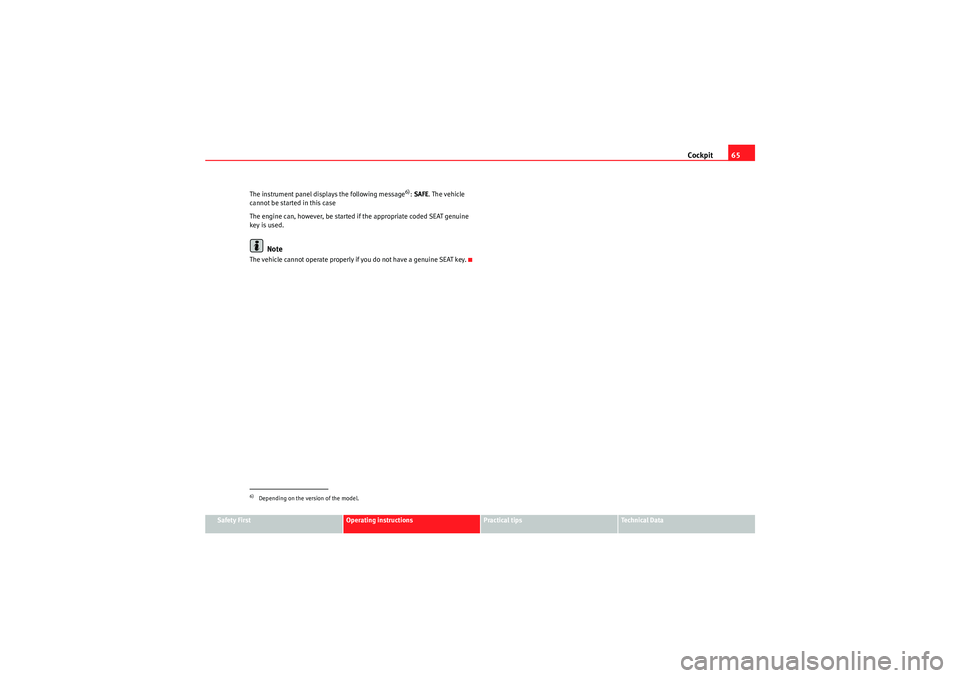

The instrument panel displays the following message
6):
SAFE . The vehicle
cannot be started in this case
The engine can, however, be started if the appropriate coded SEAT genuine
key is used.
Note
The vehicle cannot operate properly if you do not have a genuine SEAT key.6)Depending on the version of the model.
Ibiza ST_EN.book Seite 65 Dienstag, 12. Januar 2010 4:03 16
Page 67 of 250

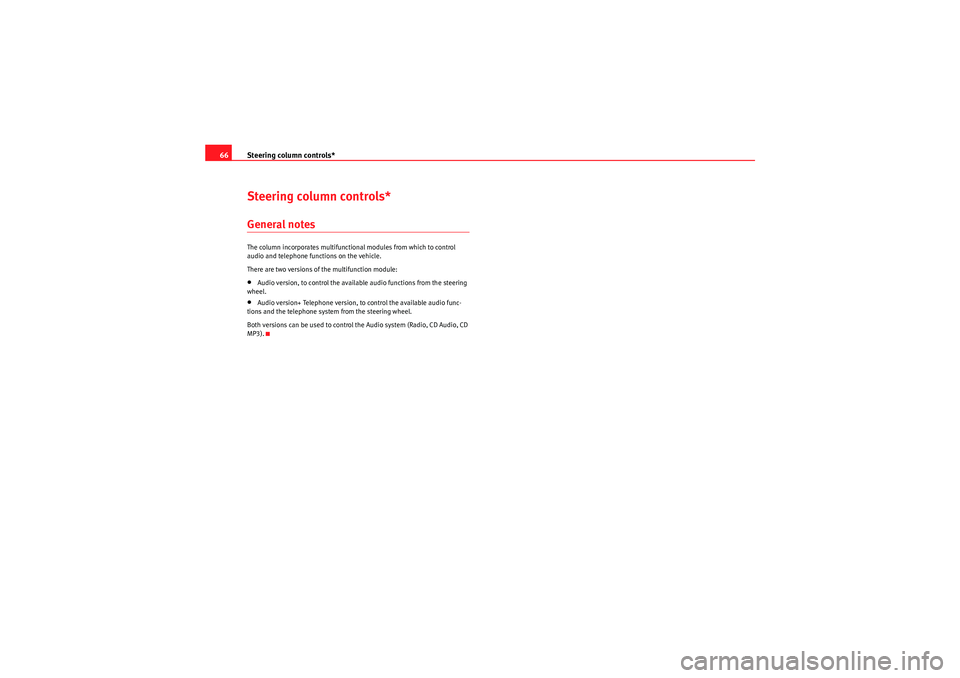

Steering column controls*
66Steering column controls*General notesThe column incorporates multifunctional modules from which to control
audio and telephone functions on the vehicle.
There are two versions of the multifunction module:•Audio version, to control the available audio functions from the steering
wheel.•Audio version+ Telephone version, to control the available audio func-
tions and the telephone system from the steering wheel.
Both versions can be used to control the Audio system (Radio, CD Audio, CD
MP3).
Ibiza ST_EN.book Seite 66 Dienstag, 12. Januar 2010 4:03 16
Page 68 of 250

Steering column controls*67
Safety First
Operating instructions
Practical tips
Technical Data

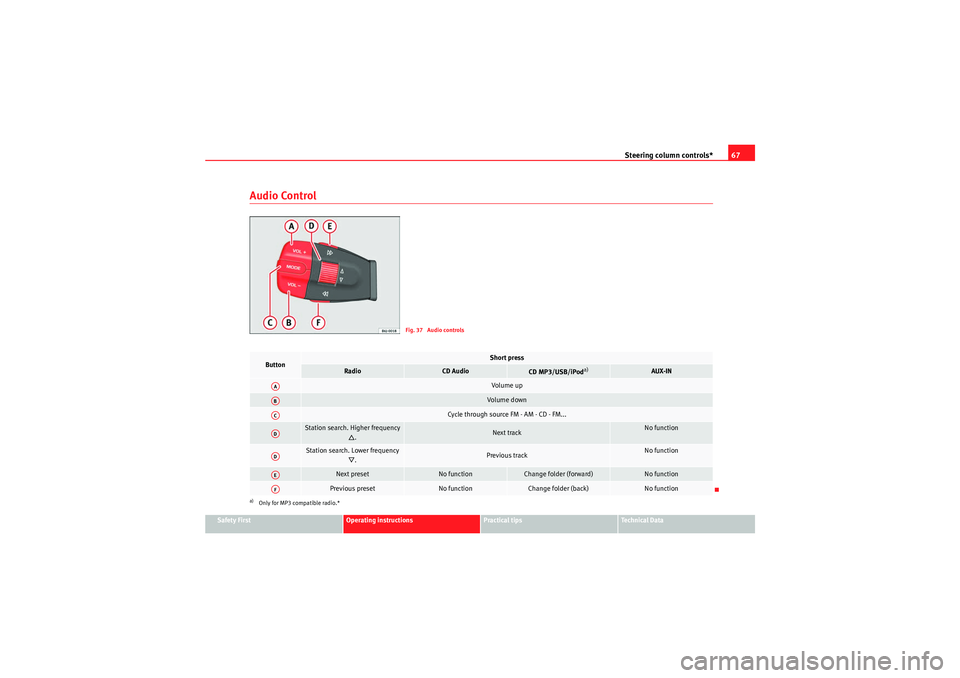

Audio Control
Fig. 37 Audio controls
Button
Short press
Radio
CD Audio
CD MP3/USB/iPod
a)
a)Only for MP3 compatible radio.*
AUX-IN
Vol u m e upVol um e d own
Cycle through source FM - AM - CD - FM...
Station search. Higher frequency
.
Next track
No function
Station search. Lower frequency
.
Previous track
No function
Next preset
No function
Change folder (forward)
No function
Previous preset
No function
Change folder (back)
No function
AAABACADADAEAF
Ibiza ST_EN.book Seite 67 Dienstag, 12. Januar 2010 4:03 16
Page 69 of 250

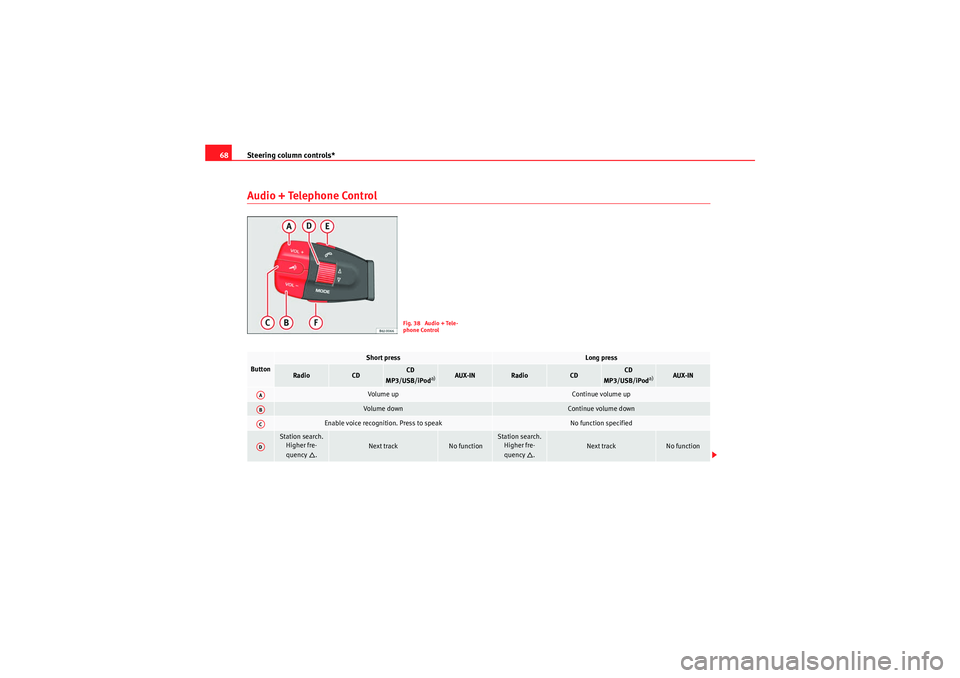

Steering column controls*
68Audio + Telephone Control
Fig. 38 Audio + Tele-
phone Control
Button
Short press
Long press
Radio
CD
CD
MP3/USB/iPod
a)
AUX-IN
Radio
CD
CD
MP3/USB/iPod
a)
AUX-IN
Vol um e up
Continue volume up
Volume down
Continue volume down
Enable voice recognition. Press to speak
No function specified
Station search. Higher fre-
quency
.
Next track
No function
Station search. Higher fre-
quency
.
Next track
No function
AAABACAD
Ibiza ST_EN.book Seite 68 Dienstag, 12. Januar 2010 4:03 16
Page 70 of 250

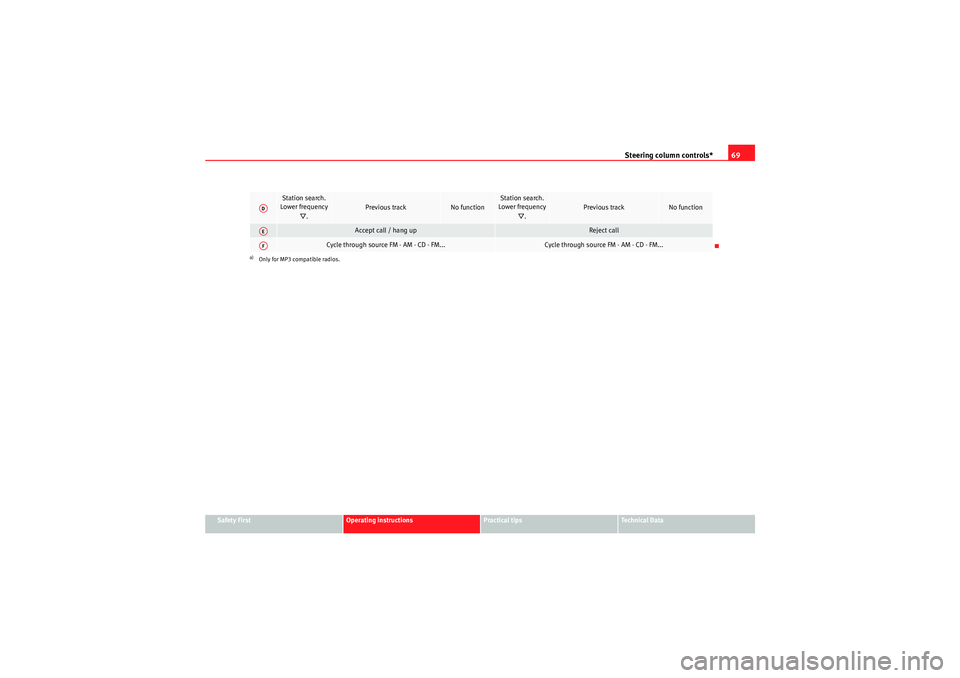

Steering column controls*69
Safety First
Operating instructions
Practical tips
Technical Data
Station search.
Lower frequency
.
Previous track
No function
Station search.
Lower frequency
.
Previous track
No function
Accept call / hang up
Reject call
Cycle through source FM - AM - CD - FM...
Cycle through source FM - AM - CD - FM...
a)Only for MP3 compatible radios.ADAEAF
Ibiza ST_EN.book Seite 69 Dienstag, 12. Januar 2010 4:03 16
