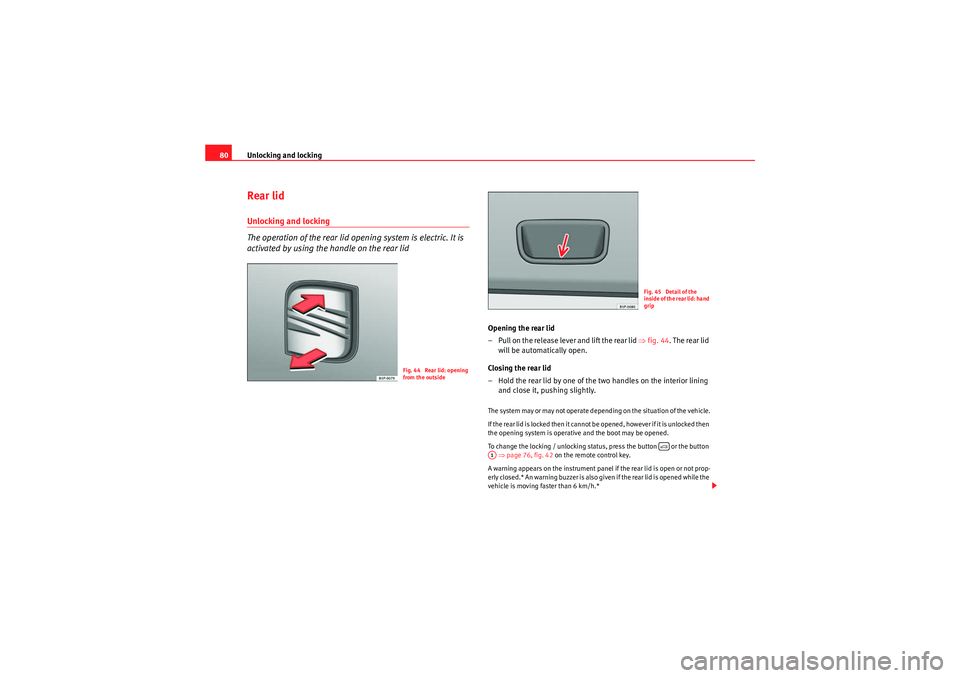

Unlocking and locking
80Rear lidUnlocking and locking
The operation of the rear lid opening system is electric. It is
activated by using the handle on the rear lid
Opening the rear lid
– Pull on the release lever and lift the rear lid ⇒fig. 44 . The rear lid
will be automatically open.
Closing the rear lid
– Hold the rear lid by one of the two handles on the interior lining and close it, pushing slightly.The system may or may not operate depending on the situation of the vehicle.
I f t h e r e a r l i d is l o cke d t h e n i t ca n n o t b e o p e n e d , h o w e v e r i f i t is u nl o cke d t h e n
the opening system is operative and the boot may be opened.
To change the locking / unlocking status, press the button or the button
⇒ page 76, fig. 42 on the remote control key.
A warning appears on the instrument panel if the rear lid is open or not prop-
e r l y c l o s e d . * A n wa r n i n g b u z ze r is a l s o g i v e n i f t h e r e a r l i d i s o p e n e d w h i l e t h e
vehicle is moving faster than 6 km/h.*
Fig. 44 Rear lid: opening
from the outside
Fig. 45 Detail of the
inside of the rear lid: hand
grip
ï‚«
A1
Ibiza ST_EN.book Seite 80 Dienstag, 12. Januar 2010 4:03 16
Page 82 of 250

Unlocking and locking81
Safety First
Operating instructions
Practical tips
Technical Data
WARNING
•Always close the rear lid properly. Risk of accident or injury.•The rear lid must not be opened when the reverse or rear fog lights are
lit. This may damage the tail lights•Do not close the rear lid by pushing it down with your hand on the rear
window. The glass could smash. Risk of injury!•Ensure the rear lid is locked after closing it. If not, it may open unex-
pectedly while driving.•Never allow children to play in or around the vehicle. A locked vehicle
can be subjected to extremely high and low temperatures, depending on
the time of year, thus causing serious injuries/illness. It could even have
fatal consequences. Close and lock both the rear lid and all the other doors
when you are not using the vehicle.•Closing the rear lid without observing and ensuring it is clear could
cause serious injur y to you and to third parties. Make sure that no one is in
the path of the rear lid.•Never drive with the rear lid open or half-closed, exhaust gases may
penetrate into the interior of the vehicle. Danger of poisoning!•If you only open the rear lid, do not leave the key inside. The vehicle will
not be opened if the key is left inside.

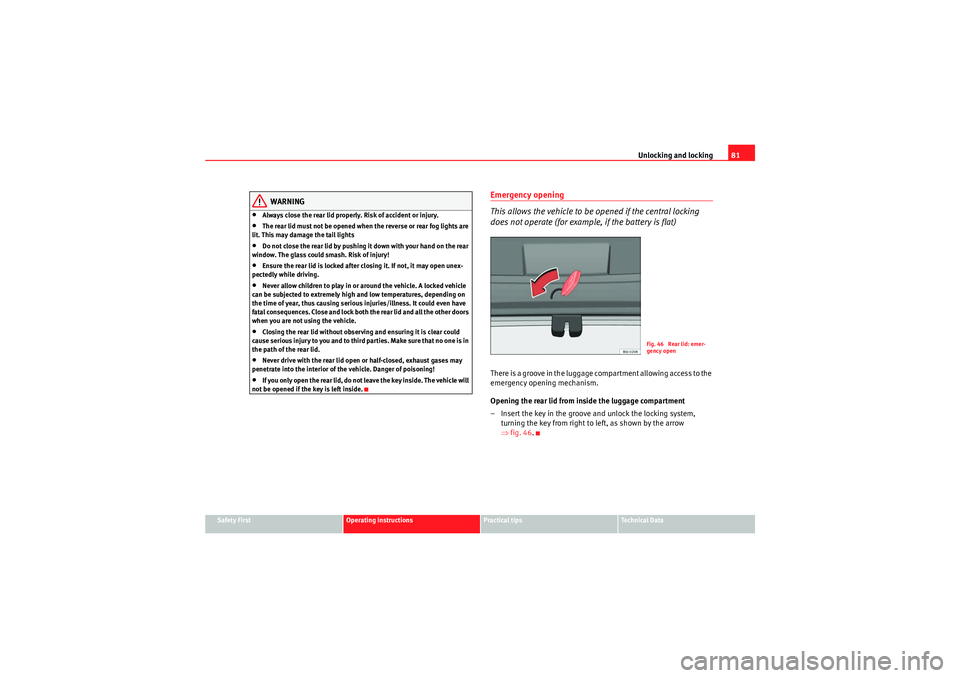

Emergency opening
This allows the vehicle to be opened if the central locking
does not operate (for exampl e, if the battery is flat)There is a groove in the luggage compartment allowing access to the
emergency opening mechanism.
Opening the rear lid from inside the luggage compartment
– Insert the key in the groove and unlock the locking system,
turning the key from right to left, as shown by the arrow
⇒fig. 46 .
Fig. 46 Rear lid: emer-
gency open
Ibiza ST_EN.book Seite 81 Dienstag, 12. Januar 2010 4:03 16
Page 83 of 250

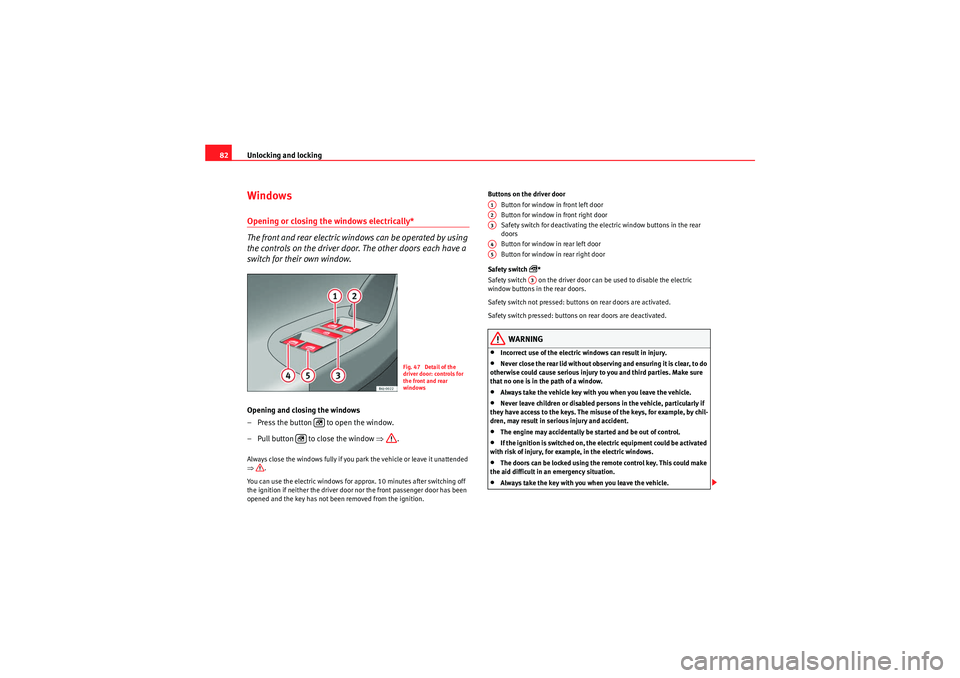

Unlocking and locking
82Windows Opening or closing the windows electrically*
The front and rear electric windows can be operated by using
the controls on the driver door. The other doors each have a
switch for their own window.Opening and closing the windows
– Press the button to open the window.
– Pull button to close the window ⇒.Always close the windows fully if you park the vehicle or leave it unattended
⇒.
You can use the electric windows for approx. 10 minutes after switching off
the ignition if neither the driver door nor the front passenger door has been
opened and the key has not been removed from the ignition. Buttons on the driver door
Button for window in front left door
Button for window in front right door
Safety switch for deactivating the electric window buttons in the rear
doors
Button for window in rear left door
Button for window in rear right door
Safety switch
*
Safety switch on the driver door can be used to disable the electric
window buttons in the rear doors.
Safety switch not pressed: buttons on rear doors are activated.
Safety switch pressed: buttons on rear doors are deactivated.
WARNING
•Incorrect use of the electric windows can result in injury.•Never close the rear lid without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and third parties. Make sure
that no one is in the path of a window.•Always take the vehicle key with you when you leave the vehicle.•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. The misuse of the keys, for example, by chil-
dren, may result in serious injury and accident.•The engine may accidentally be started and be out of control.•If the ignition is switched on, the electric equipment could be activated
with risk of injury, for example, in the electric windows.•The doors can be locked using the remote control key. This could make
the aid difficult in an emergency situation.•Always take the key with you when you leave the vehicle.
Fig. 47 Detail of the
driver door: controls for
the front and rear
windows


A1A2A3A4A5
A3
Ibiza ST_EN.book Seite 82 Dienstag, 12. Januar 2010 4:03 16
Page 84 of 250

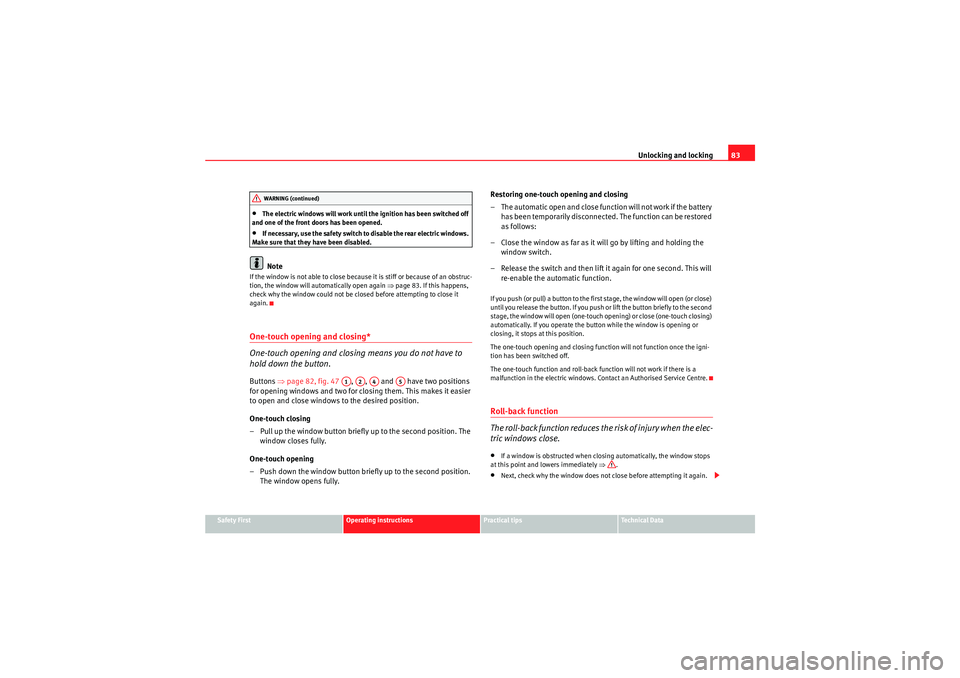

Unlocking and locking83
Safety First
Operating instructions
Practical tips
Technical Data
•The electric windows will work until the ignition has been switched off
and one of the front doors has been opened.•If necessary, use the safety switch to disable the rear electric windows.
Make sure that they have been disabled.Note
If the window is not able to close because it is stiff or because of an obstruc-
tion, the window will automatically open again ⇒ page 83. If this happens,
check why the window could not be closed before attempting to close it
again.One-touch opening and closing*
One-touch opening and closing means you do not have to
hold down the button.Buttons ⇒page 82, fig. 47 , , and have two positions
for opening windows and two for closing them. This makes it easier
to open and close windows to the desired position.
One-touch closing
– Pull up the window button briefly up to the second position. The window closes fully.
One-touch opening
– Push down the window button briefly up to the second position. The window opens fully. Restoring one-touch opening and closing
– The automatic open and close function will not work if the battery
has been temporarily disconnected. The function can be restored
as follows:
– Close the window as far as it will go by lifting and holding the window switch.
– Release the switch and then lift it again for one second. This will re-enable the automatic function.
If you push (or pull) a button to the first stage, the window will open (or close)
until you release the button. If you push or lift the button briefly to the second
stage, the window will open (one-touch opening) or close (one-touch closing)
automatically. If you operate the button while the window is opening or
closing, it stops at this position.
The one-touch opening and closing function will not function once the igni-
tion has been switched off.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Contact an Authorised Service Centre.Roll-back function
The roll-back function reduces the risk of injury when the elec-
tric windows close.•If a window is obstructed when closing automatically, the window stops
at this point and lowers immediately ⇒.•Next, check why the window does not close before attempting it again.
WARNING (continued)
A1A2A4
A5
Ibiza ST_EN.book Seite 83 Dienstag, 12. Januar 2010 4:03 16
Page 85 of 250

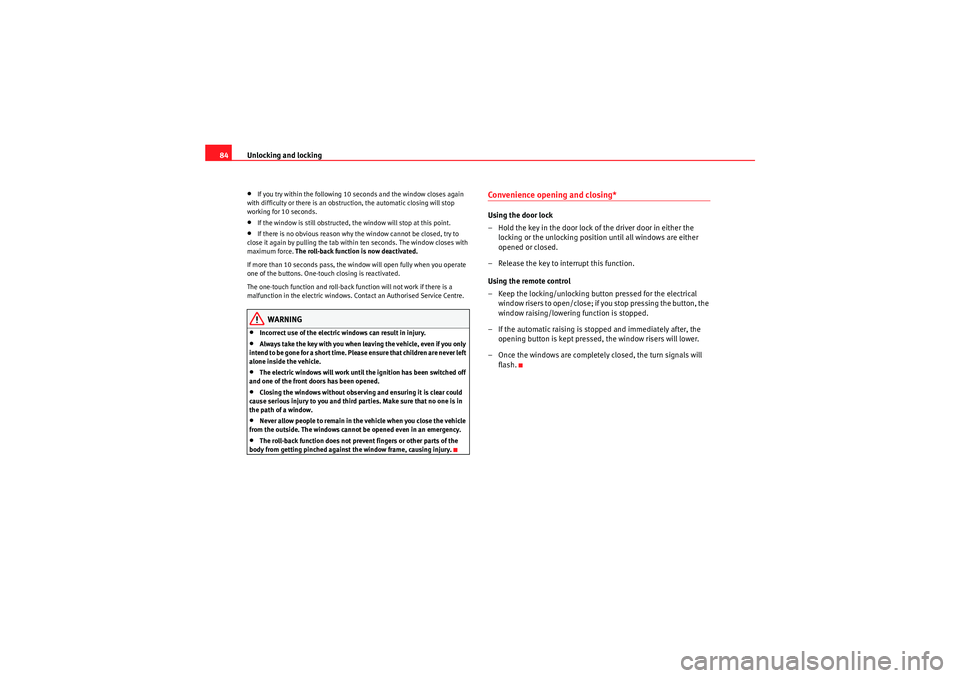

Unlocking and locking
84•If you try within the following 10 seconds and the window closes again
with difficulty or there is an obstruction, the automatic closing will stop
working for 10 seconds.•If the window is still obstructed, the window will stop at this point.•If there is no obvious reason why the window cannot be closed, try to
close it again by pulling the tab within ten seconds. The window closes with
maximum force. The roll-back function is now deactivated.
If more than 10 seconds pass, the window will open fully when you operate
one of the buttons. One-touch closing is reactivated.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Contact an Authorised Service Centre.WARNING
•Incorrect use of the electric windows can result in injury.•Always take the key with you when leaving the vehicle, even if you only
intend to be gone for a short time. Please ensure that children are never left
alone inside the vehicle.•The electric windows will work until the ignition has been switched off
and one of the front doors has been opened.•Closing the windows without observing and ensuring it is clear could
cause serious injury to you and third parties. Make sure that no one is in
the path of a window.•Never allow people to remain in the vehicle when you close the vehicle
from the outside. The windows cannot be opened even in an emergency.•The roll-back function does not prevent fingers or other parts of the
body from getting pinched against the window frame, causing injury.
Convenience opening and closing* Using the door lock
– Hold the key in the door lock of the driver door in either the locking or the unlocking position until all windows are either
opened or closed.
– Release the key to interrupt this function.
Using the remote control
– Keep the locking/unlocking button pressed for the electrical window risers to open/close; if you stop pressing the button, the
window raising/lowering function is stopped.
– If the automatic raising is stopped and immediately after, the opening button is kept pressed, the window risers will lower.
– Once the windows are completely closed, the turn signals will flash.
Ibiza ST_EN.book Seite 84 Dienstag, 12. Januar 2010 4:03 16
Page 86 of 250

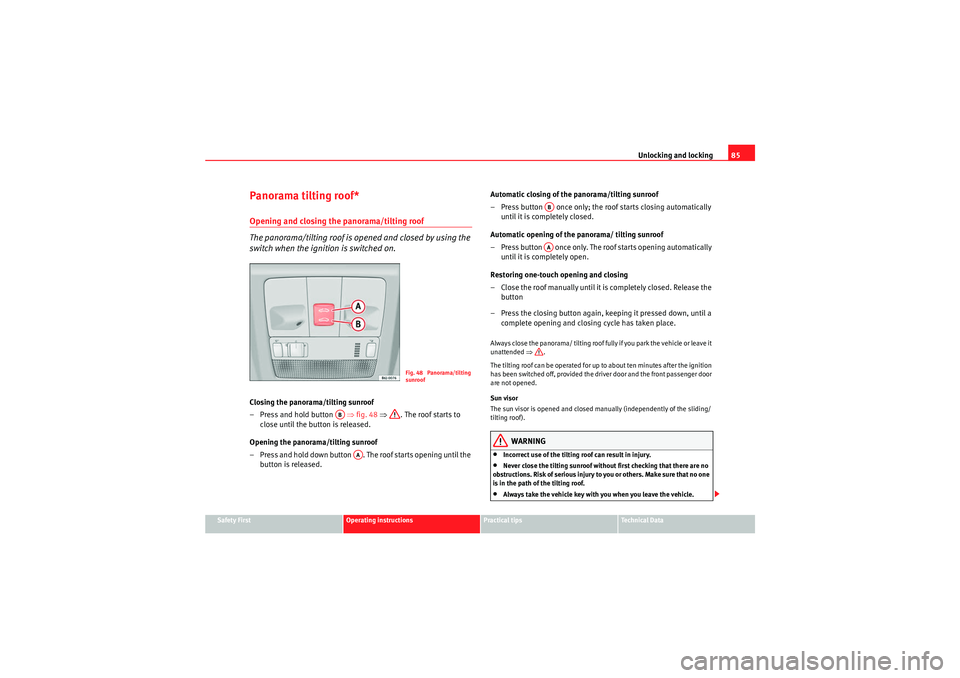

Unlocking and locking85
Safety First
Operating instructions
Practical tips
Technical Data
Panorama tilting roof*Opening and closing the panorama/tilting roof
The panorama/tilting roof is opened and closed by using the
switch when the ignition is switched on.Closing the panorama/tilting sunroof
– Press and hold button ⇒fig. 48 ⇒ . The roof starts to
close until the button is released.
Opening the panorama/tilting sunroof
– Press and hold down button . The roof starts opening until the button is released. Automatic closing of the panorama/tilting sunroof
– Press button once only; the roof starts closing automatically
until it is completely closed.
Automatic opening of the panorama/ tilting sunroof
– Press button once only. The roof starts opening automatically until it is completely open.
Restoring one-touch opening and closing
– Close the roof manually until it is completely closed. Release the button
– Press the closing button again, keeping it pressed down, until a
complete opening and closing cycle has taken place.
Always close the panorama/ tilting roof fully if you park the vehicle or leave it
unattended ⇒.
The tilting roof can be operated for up to about ten minutes after the ignition
has been switched off, provided the driver door and the front passenger door
are not opened.
Sun visor
The sun visor is opened and closed manually (independently of the sliding/
tilting roof).
WARNING
•Incorrect use of the tilting roof can result in injury.•Never close the tilting sunroof without first checking that there are no
obstructions. Risk of serious injury to you or others. Make sure that no one
is in the path of the tilting roof.•Always take the vehicle key with you when you leave the vehicle.
Fig. 48 Panorama/tilting
sunroof
AB
AA
ABAA
Ibiza ST_EN.book Seite 85 Dienstag, 12. Januar 2010 4:03 16
Page 87 of 250

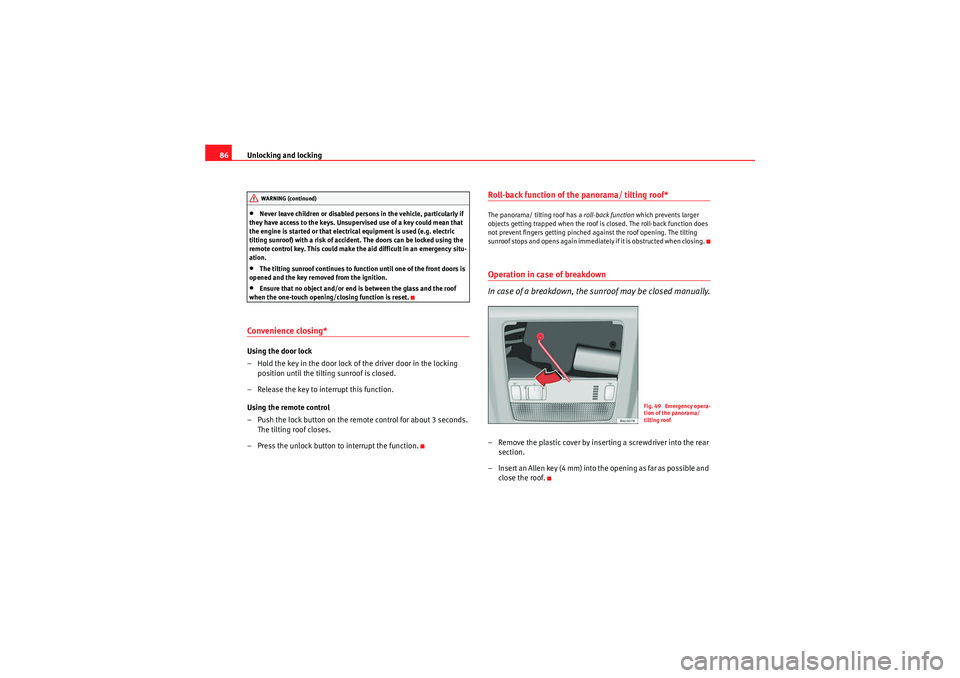

Unlocking and locking
86•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. Unsupervised use of a key could mean that
the engine is started or that electrical equipment is used (e.g. electric
tilting sunroof) with a risk of accident. The doors can be locked using the
remote control key. This could make the aid difficult in an emergency situ-
ation.•The tilting sunroof continues to function until one of the front doors is
opened and the key removed from the ignition.•Ensure that no object and/or end is between the glass and the roof
when the one-touch opening/closing function is reset.
Convenience closing* Using the door lock
– Hold the key in the door lock of the driver door in the locking position until the tilting sunroof is closed.
– Release the key to interrupt this function.
Using the remote control
– Push the lock button on the remote control for about 3 seconds. The tilting roof closes.
– Press the unlock button to interrupt the function.
Roll-back function of the panorama/ tilting roof*The panorama/ tilting roof has a roll-back function which prevents larger
objects getting trapped when the roof is closed. The roll-back function does
not prevent fingers getting pinched against the roof opening. The tilting
sunroof stops and opens again immediately if it is obstructed when closing.Operation in case of breakdown
In case of a breakdown, the sunroof may be closed manually.– Remove the plastic cover by inserting a screwdriver into the rear section.
– Insert an Allen key (4 mm) into the opening as far as possible and close the roof.
WARNING (continued)
Fig. 49 Emergency opera-
tion of the panorama/
tilting roof
Ibiza ST_EN.book Seite 86 Dienstag, 12. Januar 2010 4:03 16
Page 88 of 250

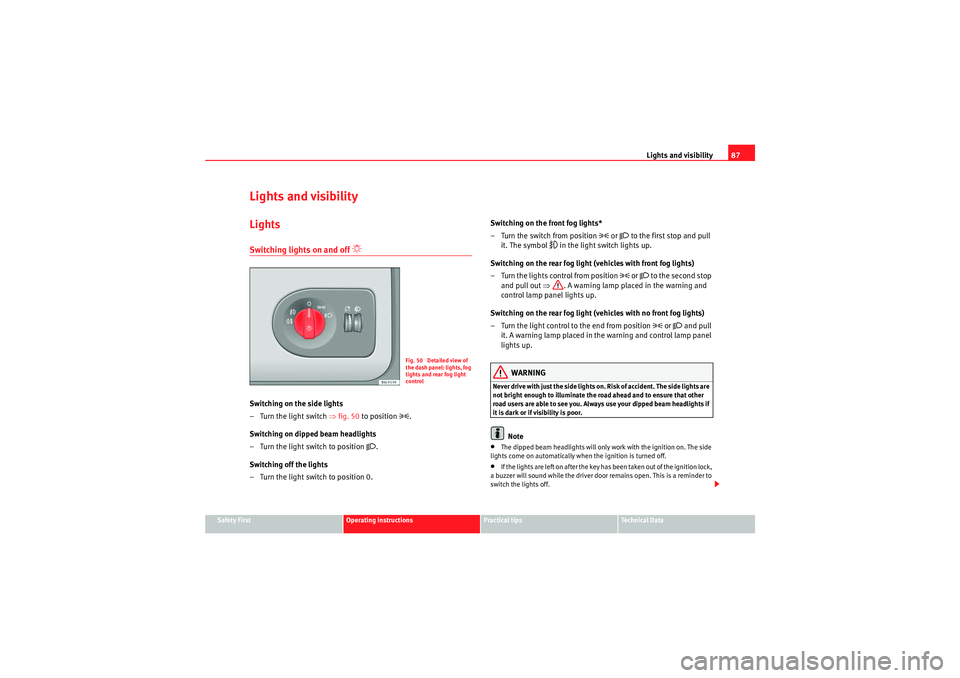

Lights and visibility87
Safety First
Operating instructions
Practical tips
Technical Data
Lights and visibilityLightsSwitching lights on and off

Switching on the side lights
– Turn the light switch ⇒fig. 50 to position
.
Switching on dipped beam headlights
– Turn the light switch to position
.
Switching off the lights
– Turn the light switch to position 0. Switching on the front fog lights*
– Turn the switch from position
 or  to the first stop and pull
it. The symbol
 in the light switch lights up.
Switching on the rear fog light (vehicles with front fog lights)
– Turn the lights control from position
 or  to the second stop
and pull out ⇒. A warning lamp placed in the warning and
control lamp panel lights up.
Switching on the rear fog light (vehicles with no front fog lights)
– Turn the light control to the end from position  or  and pull
it. A warning lamp placed in the warning and control lamp panel
lights up.
WARNING
Never drive with just the side lights on. Risk of accident. The side lights are
not bright enough to illuminate the road ahead and to ensure that other
road users are able to see you. Always use your dipped beam headlights if
it is dark or if visibility is poor.
Note
•The dipped beam headlights will only work with the ignition on. The side
lights come on automatically when the ignition is turned off.•If the lights are left on after the key has been taken out of the ignition lock,
a buzzer will sound while the driver door remains open. This is a reminder to
switch the lights off.
Fig. 50 Detailed view of
the dash panel: lights, fog
lights and rear fog light
control
Ibiza ST_EN.book Seite 87 Dienstag, 12. Januar 2010 4:03 16
Page 89 of 250

Lights and visibility
88•The rear fog light is so bright that it can dazzle drivers behind you. You
should use the rear fog light only when visibility is very poor.•The use of the lighting described here is subject to the relevant statutory

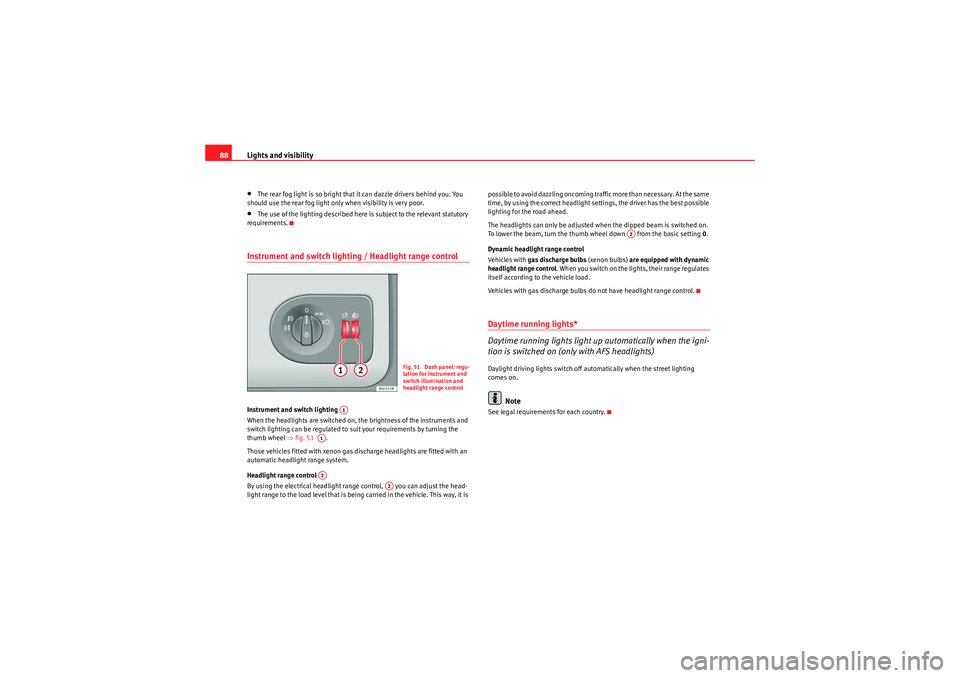

requirements.Instrument and switch lighting / Headlight range controlInstrument and switch lighting
When the headlights are switched on, the brightness of the instruments and
switch lighting can be regulated to suit your requirements by turning the
thumb wheel ⇒fig. 51 .
Those vehicles fitted with xenon gas discharge headlights are fitted with an
automatic headlight range system.
Headlight range control
By using the electrical headlight range control, you can adjust the head-
light range to the load level that is being carried in the vehicle. This way, it is possible to avoid dazzling oncoming traffic more than necessary. At the same
time, by using the correct headlight settings, the driver has the best possible
lighting for the road ahead.
The headlights can only be adjusted when the dipped beam is switched on.
To lower the beam, turn the thumb wheel down from the basic setting
0.
Dynamic headlight range control
Ve hi cle s wi th gas discharge bulbs (xenon bulbs) are equipped with dynamic
headlight range control . When you switch on the lights, their range regulates
itself according to the vehicle load.
Vehicles with gas discharge bulbs do not have headlight range control.
Daytime running lights*
Daytime running lights light up automatically when the igni-
tion is switched on (only with AFS headlights)Daylight driving lights switch off automatically when the street lighting
comes on.
Note
See legal requirements for each country.
Fig. 51 Dash panel: regu-
lation for instrument and
switch illumination and
headlight range control
A1
A1A2
A2
A2
Ibiza ST_EN.book Seite 88 Dienstag, 12. Januar 2010 4:03 16
Page 90 of 250

Lights and visibility89
Safety First
Operating instructions
Practical tips
Technical Data

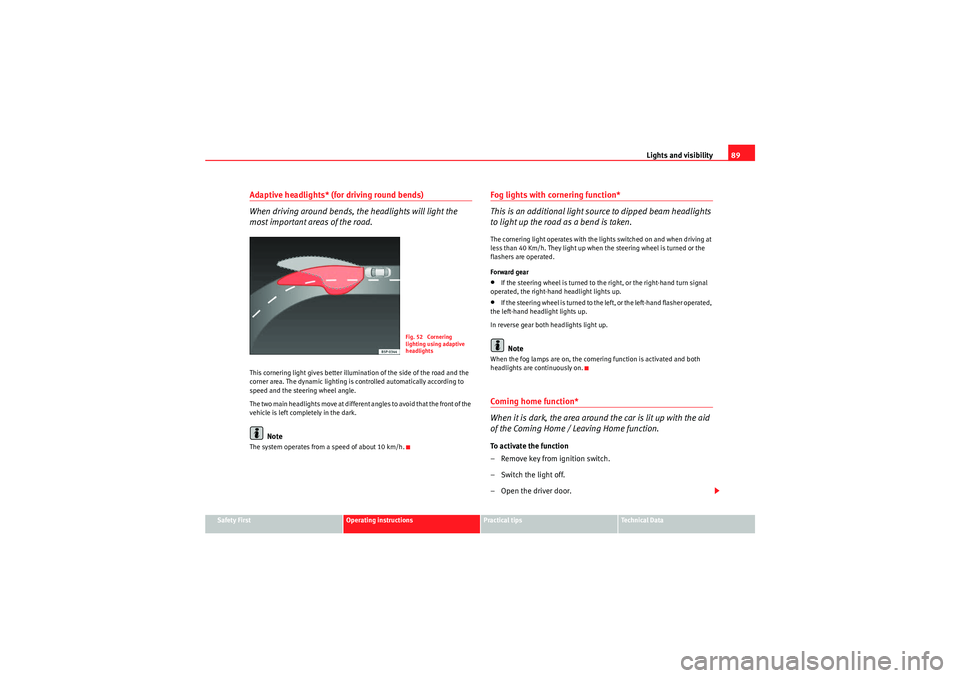

Adaptive headlights* (for driving round bends)
When driving around bends, the headlights will light the
most important areas of the road.This cornering light gives better illumination of the side of the road and the
corner area. The dynamic lighting is controlled automatically according to
speed and the steering wheel angle.
The two main headlights move at different angles to avoid that the front of the
vehicle is left completely in the dark.
Note
The system operates from a speed of about 10 km/h.
Fog lights with cornering function*
This is an additional light source to dipped beam headlights
to light up the road as a bend is taken.The cornering light operates with the lights switched on and when driving at
less than 40 Km/h. They light up when the steering wheel is turned or the
flashers are operated.
Forward gear•If the steering wheel is turned to the right, or the right-hand turn signal
operated, the right-hand headlight lights up.•If the steering wheel is turned to the left, or the left-hand flasher operated,
the left-hand headlight lights up.
In reverse gear both headlights light up.Note
When the fog lamps are on, the cornering function is activated and both
headlights are continuously on.Coming home function*
When it is dark, the area around the car is lit up with the aid
of the Coming Home / Leaving Home function.To activate the function
– Remove key from ignition switch.
– Switch the light off.
– Open the driver door.
Fig. 52 Cornering
lighting using adaptive
headlights
Ibiza ST_EN.book Seite 89 Dienstag, 12. Januar 2010 4:03 16
