Page 151 of 240

Seat Ibiza ST 2014  Owners manual Driver assistance systems
The driver should then not reverse any fur-
ther.
The warning tone volume decreases by 30%
3 seconds after it is triggered if the detected
obstacle stays at a constant distan

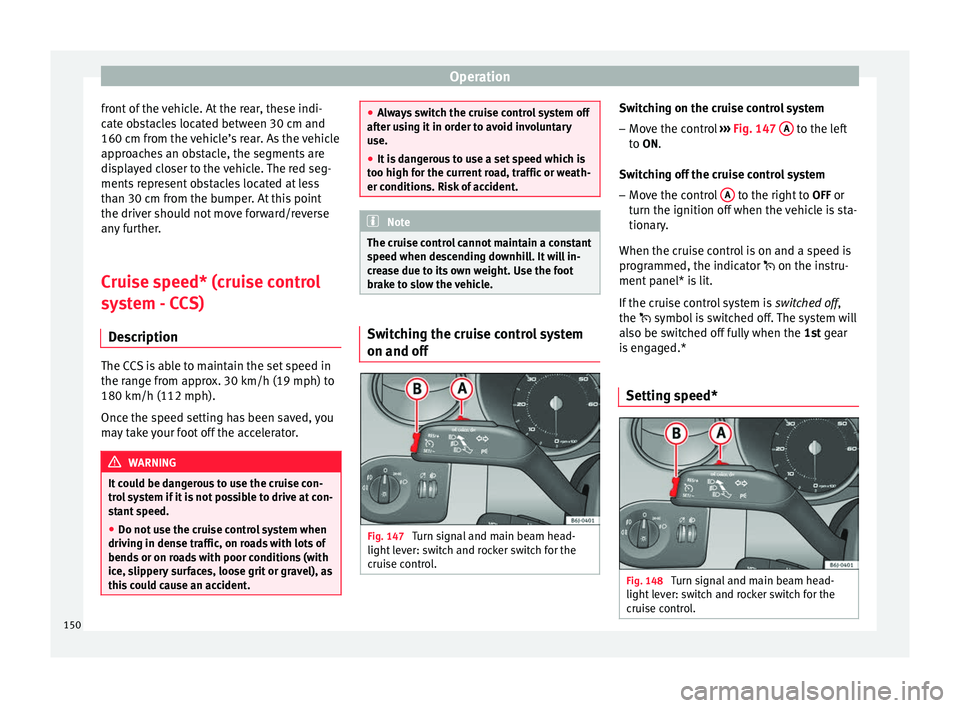

Page 152 of 240

Seat Ibiza ST 2014  Owners manual Operation
front of the vehicle. At the rear, these indi-
cate obstacles located between 30 cm and
160 cm from the vehicle’s rear. As the vehicle
approaches an obstacle, the segments are
displayed cl

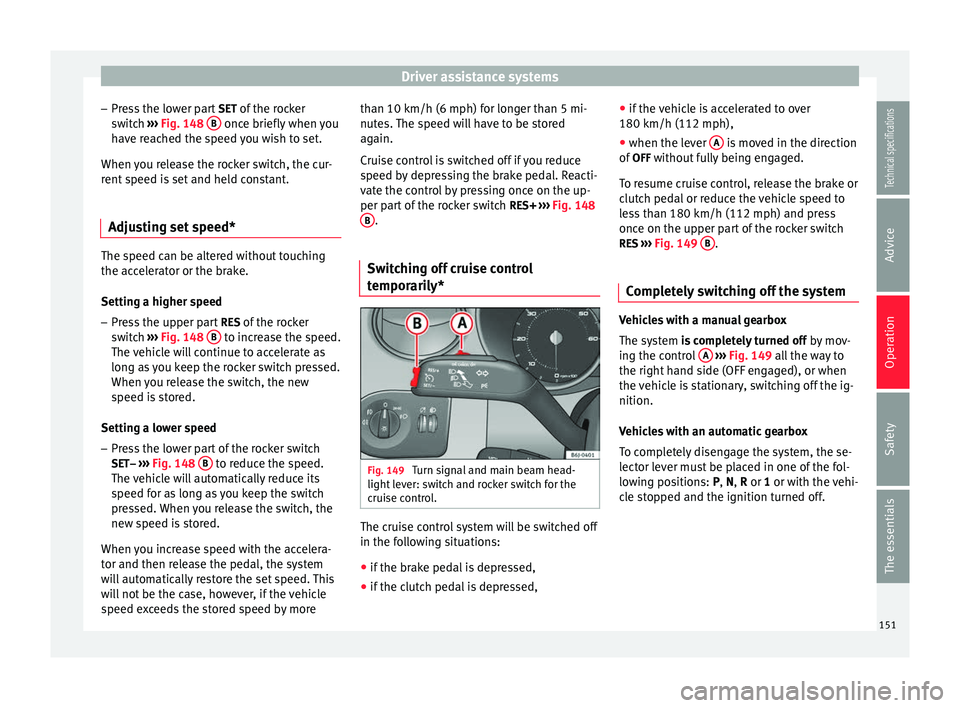

Page 153 of 240

Seat Ibiza ST 2014  Owners manual Driver assistance systems
– Press the lower part  SET of the rocker
switch  ››› Fig. 148  B  once briefly when you
have reached the speed you wish to set.
When you release the rocker switch, t

Page 154 of 240

Seat Ibiza ST 2014  Owners manual Operation
Towing bracket device
Trailer towing What do you need to bear in mind
when towing a trailer? Your vehicle may be used to tow a trailer
when fitted with the correct equipment.
If the car is s

Page 155 of 240

Seat Ibiza ST 2014  Owners manual Towing bracket device
WARNING
The towing bracket ball coupling must be
stored securely in the luggage compartment
to prevent them being flung through the vehi-
cle and causing injury. Note
● By law,

Page 156 of 240

Seat Ibiza ST 2014  Owners manual Operation
The attachment points  A  for the towing
bracket are underneath the vehicle.
The distance between the centre of the ball
coupling and the ground should never be
lower than the indicated valu

Page 157 of 240

Seat Ibiza ST 2014  Owners manual Care and maintenance
Advice
Care and maintenance
Accessories and modifications to the vehicle
Accessories, replacement of parts and
modifications Your vehicle is designed to offer a high
standard of a

Page 158 of 240

Seat Ibiza ST 2014  Owners manual Advice
To fold
Unscrew the aerial rod, tilting it backwards
into a horizontal position and then screw in
again.
To return to working position
Continue in the reverse order to the previous
instruction.

Page 159 of 240

Seat Ibiza ST 2014  Owners manual Care and maintenance
Products for vehicle maintenance
Car-care products are available in your Tech-
nical Services. Keep the product instructions
until you have used them up. WARNING
● Car-care prod

Page 160 of 240

Seat Ibiza ST 2014  Owners manual Advice
– Rinse the vehicle thoroughly with water.
– Dry the vehicle surface gently with a cha-
mois leather.
– In  cold temperature
, dry the rubber seals
and their s
urfaces to prevent them fro
