Seat Ibiza ST 2016 Owner's Guide

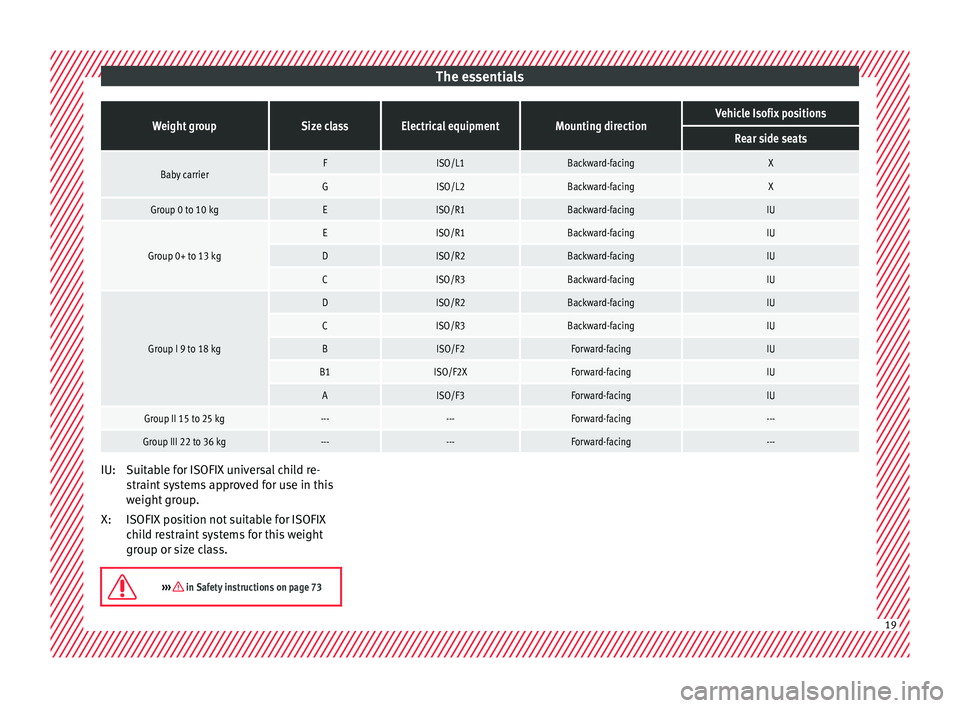

The essentialsWeight groupSize classElectrical equipmentMounting directionVehicle Isofix positions
Rear side seats
Baby carrierFISO/L1Backward-facingX
GISO/L2Backward-facingX
Group 0 to 10 kgEISO/R1Backward-facingIU
Group 0+ to 13 kg
EISO/R1Backward-facingIU
DISO/R2Backward-facingIU
CISO/R3Backward-facingIU
Group I 9 to 18 kg
DISO/R2Backward-facingIU
CISO/R3Backward-facingIU
BISO/F2Forward-facingIU
B1ISO/F2XForward-facingIU
AISO/F3Forward-facingIU
Group II 15 to 25 kg------Forward-facing---
Group III 22 to 36 kg------Forward-facing---
Suitable for ISOFIX universal child re-
s
tr
aint sy

stems approved for use in this
weight group.
ISOFIX position not suitable for ISOFIX
child restraint systems for this weight
group or size class.

››› in Safety instructions on page 73 IU:
X:
19

The essentials

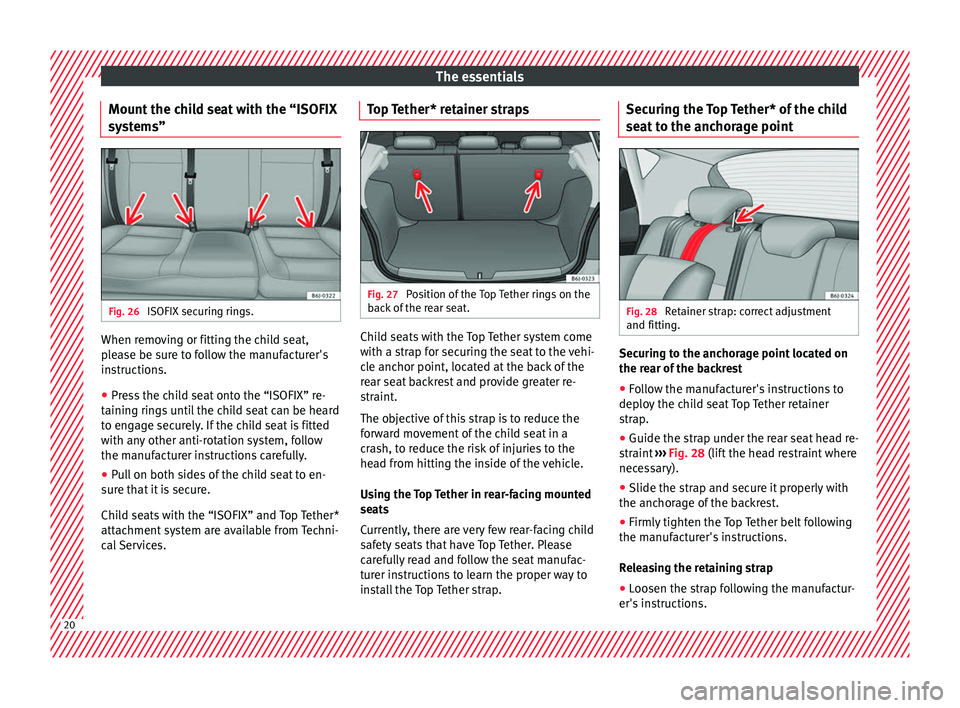

Mount the child seat with the “ISOFIX
sy s
tems” Fig. 26
ISOFIX securing rings. When removing or fitting the child seat,
p
l
e a
se be sure to follow the manufacturer's
instructions.
● Press the child seat onto the “ISOFIX” re-
taining ring
s until the child seat can be heard
to engage securely. If the child seat is fitted
with any other anti-rotation system, follow
the manufacturer instructions carefully.
● Pull on both sides of the child seat to en-
sure that
it is secure.
Child seats with the “ISOFIX” and Top Tether*
attachment system are available from Techni-
cal Services. Top Tether* retainer straps
Fig. 27
Position of the Top Tether rings on the
b ac
k of

the rear seat. Child seats with the Top Tether system come
w
ith a s
trap f

or securing the seat to the vehi-
cle anchor point, located at the back of the
rear seat backrest and provide greater re-
straint.
The objective of this strap is to reduce the
forward movement of the child seat in a
crash, to reduce the risk of injuries to the
head from hitting the inside of the vehicle.
Using the Top Tether in rear-facing mounted
seats
Currently, there are very few rear-facing child
safety seats that have Top Tether. Please
carefully read and follow the seat manufac-
turer instructions to learn the proper way to
install the Top Tether strap. Securing the Top Tether* of the child
seat to the anc

horage point Fig. 28
Retainer strap: correct adjustment
and fittin g. Securing to the anchorage point located on
the r
e
ar of the b

ackrest
● Follow the manufacturer's instructions to
deploy the c
hild seat Top Tether retainer
strap.
● Guide the strap under the rear seat head re-
straint ›

›› Fig. 28 (lift the head restraint where
necessary).
● Slide the strap and secure it properly with
the anchorage of
the backrest.
● Firmly tighten the Top Tether belt following
the manufactur
er's instructions.
Releasing the retaining strap
● Loosen the strap following the manufactur-
er's instruction
s.20

The essentials
● Pu
sh the loc k
and release it from the an-
choring support.


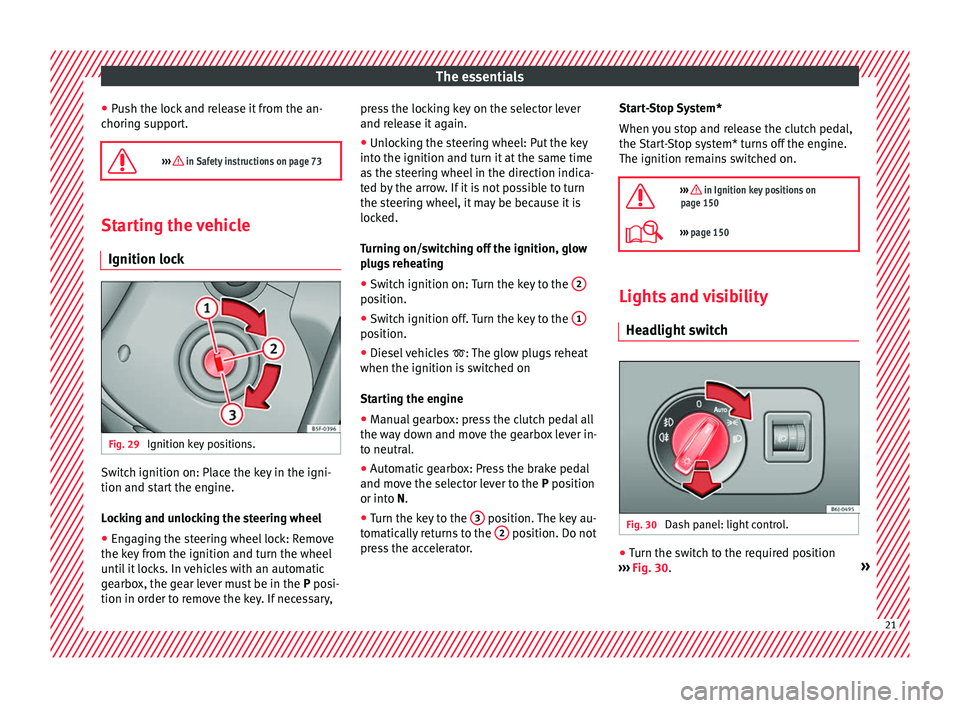

››› in Safety instructions on page 73 Starting the vehicle
Ignition lock Fig. 29
Ignition key positions. Switch ignition on: Place the key in the igni-
tion and s
t
ar t

the engine.
Locking and unlocking the steering wheel
● Engaging the steering wheel lock: Remove
the key from the ignition and t
urn the wheel
until it locks. In vehicles with an automatic
gearbox, the gear lever must be in the P posi-
tion in order to remove the key. If necessary, press the locking key on the selector lever
and relea

se it again.
● Unlocking the steering wheel: Put the key
into the ignition and turn it at
the same time
as the steering wheel in the direction indica-
ted by the arrow. If it is not possible to turn
the steering wheel, it may be because it is
locked.
Turning on/switching off the ignition, glow
plugs reheating
● Switch ignition on: Turn the key to the 2 position.
●
Switch ignition off. Turn the key to the 1 position.
●
Diesel vehicles : The glo
w plug

s reheat
when the ignition is switched on
Starting the engine
● Manual gearbox: press the clutch pedal all
the way do
wn and move the gearbox lever in-
to neutral.
● Automatic gearbox: Press the brake pedal
and move the select
or lever to the P position
or into N.
● Turn the key to the 3 position. The key au-
t om
atic al

ly returns to the 2 position. Do not
pr e
ss
the accelerator. Start-Stop System*
When you st

op and release the clutch pedal,
the Start-Stop system* turns off the engine.
The ignition remains switched on.

››› in Ignition key positions on
page 150
››› page 150 Lights and visibility
He a
dlight sw

itch Fig. 30
Dash panel: light control. ●
Turn the switch to the required position
› ›
›
Fig. 30

. » 21

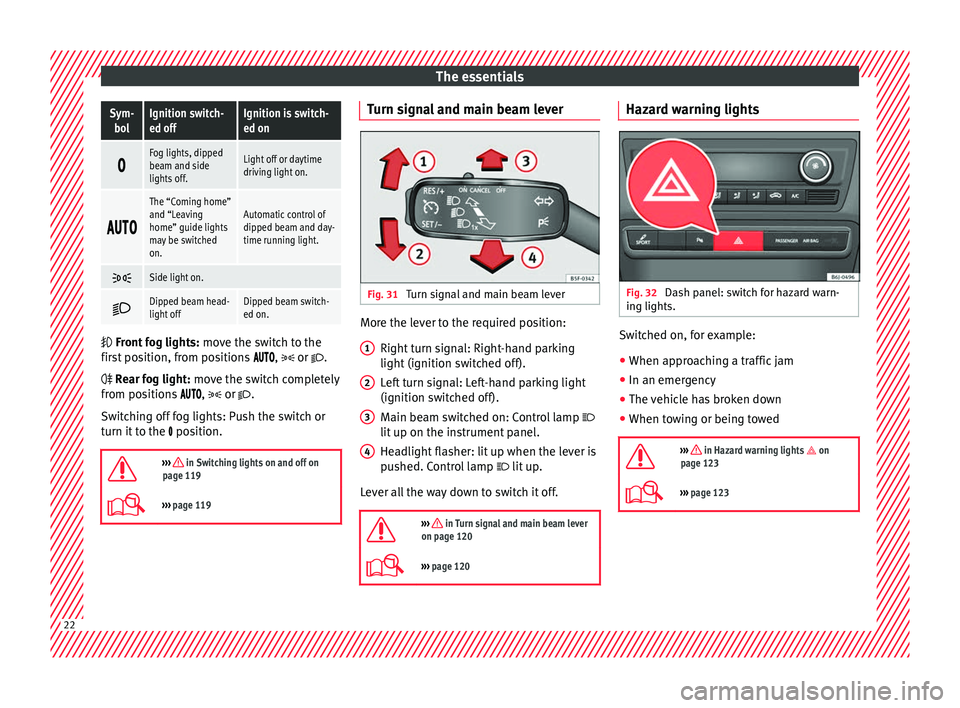

The essentialsSym-
bolIgnition switch-
ed offIgnition is switch-
ed on 
Fog lights, dipped
beam and side
lights off.Light off or daytime
driving light on.

The “Coming home”
and “Leaving
home” guide lights
may be switched
on.Automatic control of
dipped beam and day-
time running light.

Side light on.

Dipped beam head-
light offDipped beam switch-
ed on.
 Front fog lights:
mov
e the switch to the
first position, from positions  ,  or .
 Rear fog light: move the switch completely
from positions ,  or  .
Switching off fog lights: Push the switch or
turn it to the  position.

››› in Switching lights on and off on
page 119
››› page 119 Turn signal and main beam lever
Fig. 31
Turn signal and main beam lever More the lever to the required position:
Right t
urn s ign

al: Right-hand parking
light (ignition switched off).
Left turn signal: Left-hand parking light
(ignition switched off).
Main beam switched on: Control lamp 
lit up on the instrument panel.
Headlight flasher: lit up when the lever is
pushed. Control lamp  lit up.
Lever all the way down to switch it off.

››› in Turn signal and main beam lever
on page 120
››› page 120 1
2
3
4 Hazard warning lights
Fig. 32
Dash panel: switch for hazard warn-
in g lights. Switched on, for example:
●
When approaching a traffic jam
● In an emergency
● The vehicle has broken down
● When towing or being towed

››› in Hazard warning lights  on
page 123
››› page 123 22

The essentials

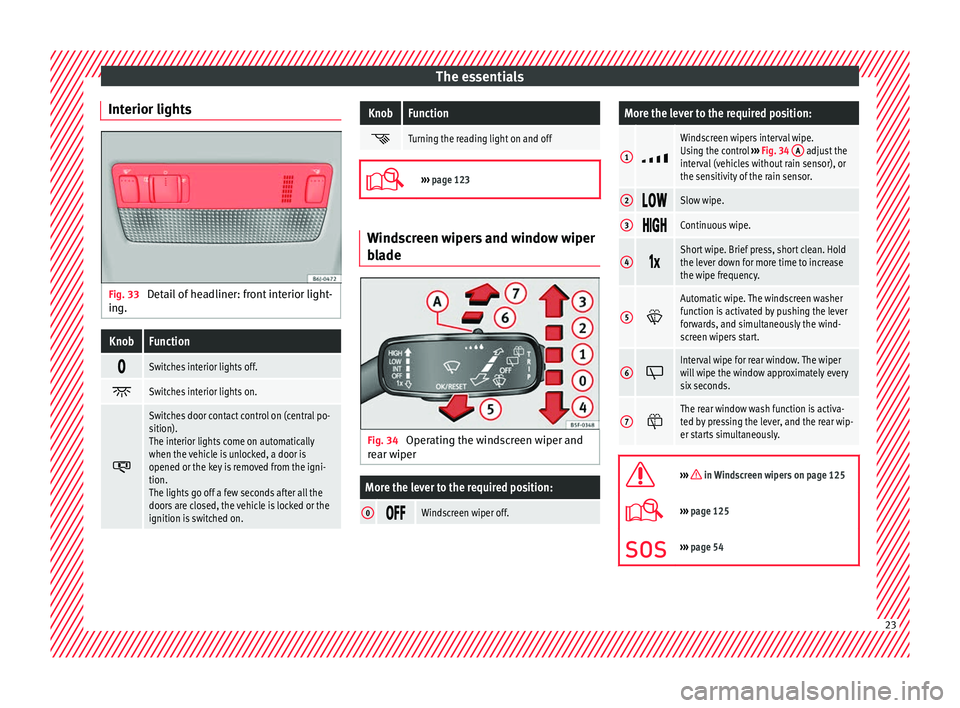

Interior lights Fig. 33
Detail of headliner: front interior light-
in g.KnobFunction 
Switches interior lights off.

Switches interior lights on.

Switches door contact control on (central po-
sition).
The interior lights come on automatically
when the vehicle is unlocked, a door is
opened or the key is removed from the igni-
tion.
The lights go off a few seconds after all the
doors are closed, the vehicle is locked or the
ignition is switched on.
KnobFunction 
Turning the reading light on and off

›››
page 123 Windscreen wipers and window wiper
bla
de Fig. 34
Operating the windscreen wiper and
r e
ar w iper
More the lever to the required position:
0 Windscreen wiper off.
More the lever to the required position:
1 
Windscreen wipers interval wipe.
Using the control
››› Fig. 34 A adjust the
interval (vehicles without rain sensor), or
the sensitivity of the rain sensor.
2 Slow wipe.
3
Continuous wipe.
4
Short wipe. Brief press, short clean. Hold
the lever down for more time to increase
the wipe frequency.
5

Automatic wipe. The windscreen washer
function is activated by pushing the lever
forwards, and simultaneously the wind-
screen wipers start.
6
Interval wipe for rear window. The wiper
will wipe the window approximately every
six seconds.
7
The rear window wash function is activa-
ted by pressing the lever, and the rear wip-
er starts simultaneously.

››› in Windscreen wipers on page 125
›››
page 125
››› page 54 23

The essentials

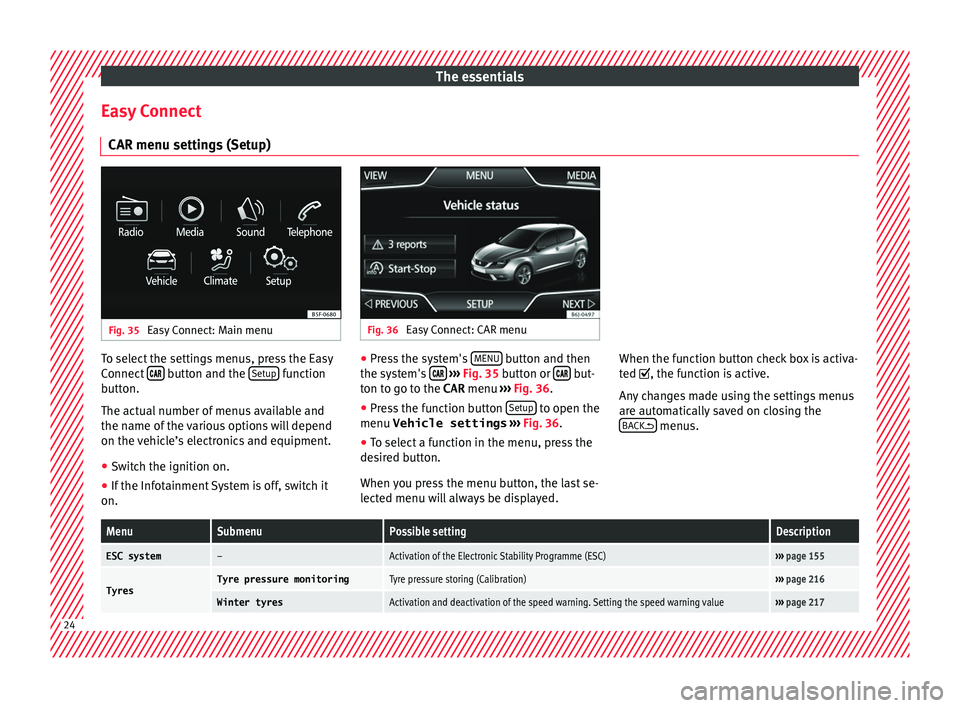

Easy Connect CAR menu settin g
s (Set
up)Fig. 35
Easy Connect: Main menu Fig. 36
Easy Connect: CAR menu To select the settings menus, press the Easy
C
onnect

 button and the
Set
up function
b utt
on.
The act ual

number of menus available and
the name of the various options will depend
on the vehicle’s electronics and equipment.
● Switch the ignition on.
● If the Infotainment System is off, switch it
on. ●
Press the system's MENU button and then
the sy s
tem's

› ››
Fig. 35
button or   but-
t on t
o go t
o the CAR menu ››› Fig. 36.
● Press the function button Setup to open the
menu Vehicle settings › ›
›
Fig. 36

.
● To select a function in the menu, press the
desired b
utton.
When you press the menu button, the last se-
lected menu will always be displayed. When the function button check box is activa-
ted , the f

unction is active.
Any changes made using the settings menus
are automatically saved on closing the BACK menus.

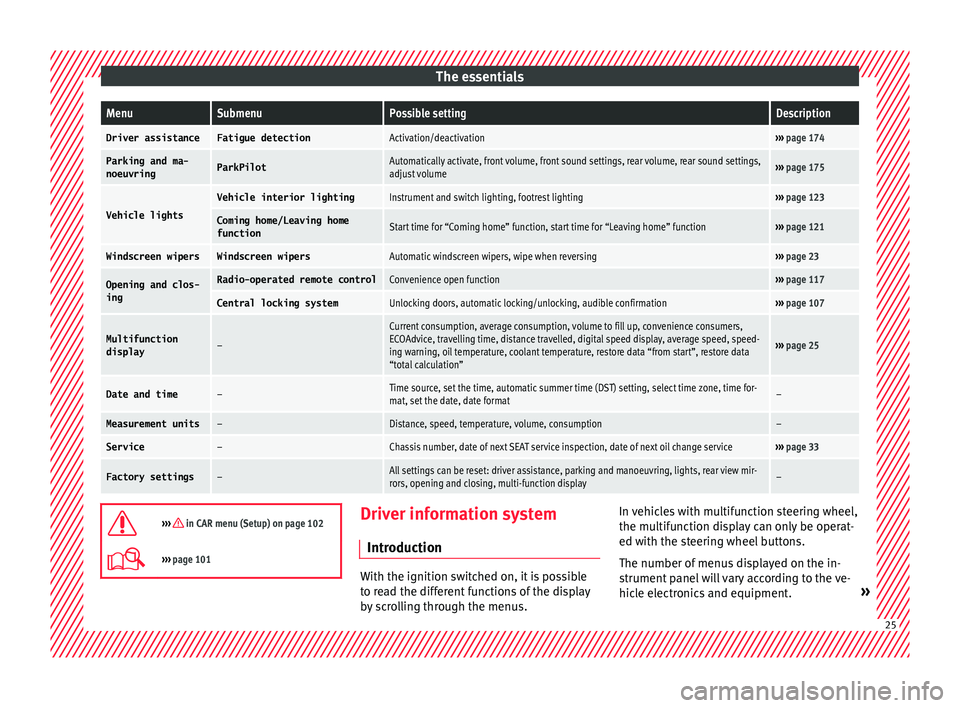

MenuSubmenuPossible settingDescription
ESC system–Activation of the Electronic Stability Programme (ESC)›››
page 155
TyresTyre pressure monitoringTyre pressure storing (Calibration)››› page 216
Winter tyresActivation and deactivation of the speed warning. Setting the speed warning value››› page 217 24

The essentialsMenuSubmenuPossible settingDescription
Driver assistanceFatigue detectionActivation/deactivation›››
page 174
Parking and ma-
noeuvringParkPilotAutomatically activate, front volume, front sound settings, rear volume, rear sound settings,
adjust volume››› page 175
Vehicle lights
Vehicle interior lightingInstrument and switch lighting, footrest lighting››› page 123
Coming home/Leaving home
functionStart time for “Coming home” function, start time for “Leaving home” function››› page 121
Windscreen wipersWindscreen wipersAutomatic windscreen wipers, wipe when reversing››› page 23
Opening and clos-
ingRadio-operated remote controlConvenience open function››› page 117
Central locking systemUnlocking doors, automatic locking/unlocking, audible confirmation››› page 107
Multifunction
display–
Current consumption, average consumption, volume to fill up, convenience consumers,
ECOAdvice, travelling time, distance travelled, digital speed display, average speed, speed-
ing warning, oil temperature, coolant temperature, restore data “from start”, restore data
“total calculation”
››› page 25
Date and time–Time source, set the time, automatic summer time (DST) setting, select time zone, time for-
mat, set the date, date format–
Measurement units–Distance, speed, temperature, volume, consumption–
Service–Chassis number, date of next SEAT service inspection, date of next oil change service››› page 33
Factory settings–All settings can be reset: driver assistance, parking and manoeuvring, lights, rear view mir-
rors, opening and closing, multi-function display– 
››› in CAR menu (Setup) on page 102
›››
page 101 Driver information system
Intr oduction With the ignition switched on, it is possible
to re
a
d the different functions of the display
by scrolling through the menus. In vehicles with multifunction steering wheel,
the multifu
nction di

splay can only be operat-
ed with the steering wheel buttons.
The number of menus displayed on the in-
strument panel will vary according to the ve-
hicle electronics and equipment. » 25

The essentials

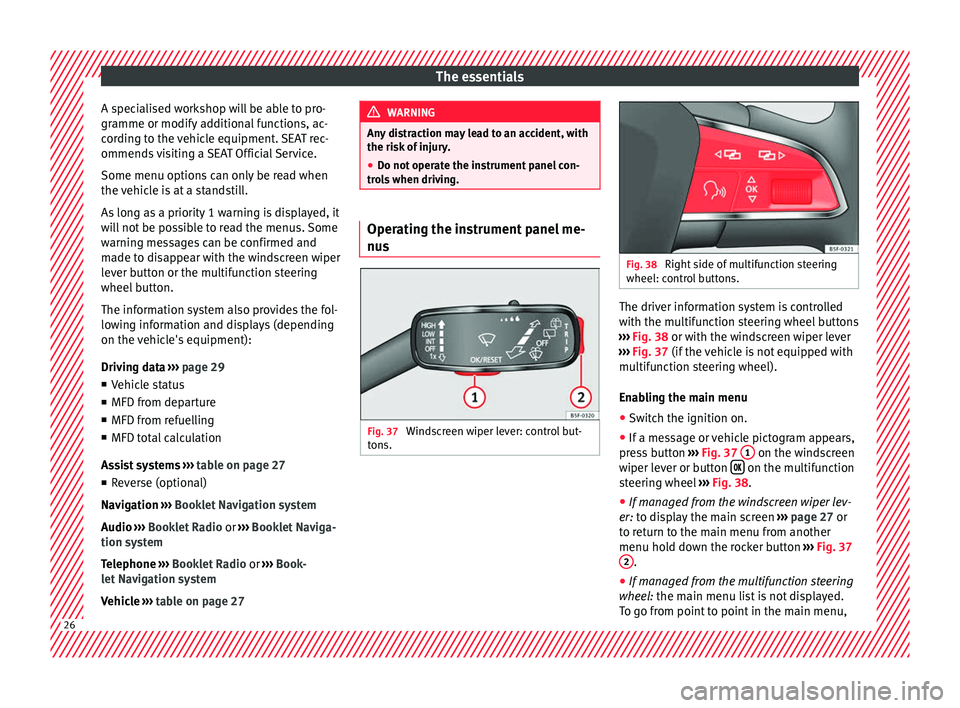

A specialised workshop will be able to pro-
gr amme or modif
y a
dditional functions, ac-
cording to the vehicle equipment. SEAT rec-
ommends visiting a SEAT Official Service.
Some menu options can only be read when
the vehicle is at a standstill.
As long as a priority 1 warning is displayed, it
will not be possible to read the menus. Some
warning messages can be confirmed and
made to disappear with the windscreen wiper
lever button or the multifunction steering
wheel button.
The information system also provides the fol-
lowing information and displays (depending
on the vehicle's equipment):
Driving data ››› page 29
■ Vehicle status
■ MFD from departure
■ MFD from refuelling
■ MFD total calculation
Assist systems ››› table on page 27
■ Reverse (optional)
Navigation ››› Booklet Navigation system
Audio ››› Booklet Radio or ››› Booklet Naviga-
tion system
Telephone ››› Booklet Radio or ››› Book-
let Navigation system
Vehicle ››› table on page 27 WARNING
Any distraction may lead to an accident, with
the risk of injur

y.
● Do not operate the instrument panel con-
trols
when driving. Operating the instrument panel me-
nus
Fig. 37
Windscreen wiper lever: control but-
t on
s. Fig. 38
Right side of multifunction steering
wheel: contro l

buttons. The driver information system is controlled
w
ith the mu
ltifu

nction steering wheel buttons
››› Fig. 38 or with the windscreen wiper lever
››› Fig. 37 (if the vehicle is not equipped with
multifunction steering wheel).
Enabling the main menu
● Switch the ignition on.
● If a message or vehicle pictogram appears,
press
button ››› Fig. 37 1 on the windscreen
w iper l
ever or b
utton  on the multifunction
s t
eerin g wheel
››› Fig. 38.
● If managed from the windscreen wiper lev-
er: to disp
lay the main screen ››› page 27 or
to return to the main menu from another
menu hold down the rocker button ››› Fig. 37
2 .
● If managed from the multifunction steering
wheel: the m

ain menu list is not displayed.

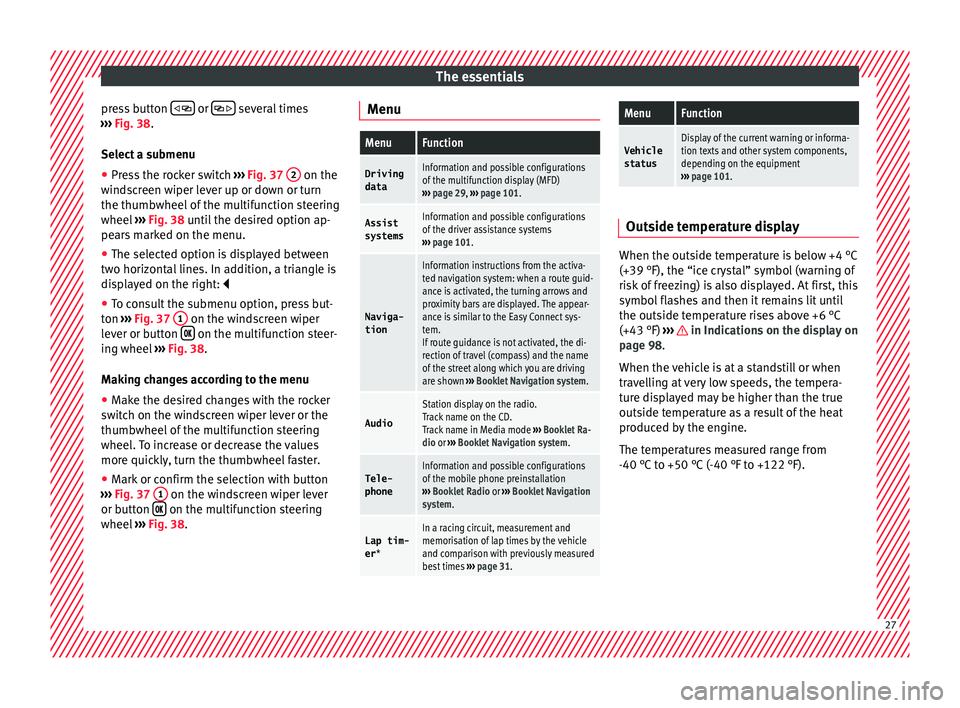

To go from point to point in the main menu, 26

The essentials
press button 
 or
  several times
› ›
›
Fig. 38
.
Select a submenu ● Press the rocker switch ››› Fig. 37
2 on the
w ind
sc
reen wiper lever up or down or turn
the thumbwheel of the multifunction steering
wheel ››› Fig. 38 until the desired option ap-
pears marked on the menu.
● The selected option is displayed between
two horizontal
lines. In addition, a triangle is
displayed on the right: 
● To consult the submenu option, press but-
ton ›››

Fig. 37 1 on the windscreen wiper
l ev
er or b utt
on  on the multifunction steer-
in g wheel
› ›
› Fig. 38.
Making changes according to the menu ● Make the desired changes with the rocker
switch on the w
indscreen wiper lever or the
thumbwheel of the multifunction steering
wheel. To increase or decrease the values
more quickly, turn the thumbwheel faster.
● Mark or confirm the selection with button
››› Fig. 37

1 on the windscreen wiper lever
or b utt
on  on the multifunction steering
wheel
›
››

Fig. 38. Menu
MenuFunction
Driving
dataInformation and possible configurations
of the multifunction display (MFD)
››› page 29, ››› page 101.
Assist
systemsInformation and possible configurations
of the driver assistance systems
››› page 101.
Naviga-
tion
Information instructions from the activa-
ted navigation system: when a route guid-
ance is activated, the turning arrows and
proximity bars are displayed. The appear-
ance is similar to the Easy Connect sys-
tem.
If route guidance is not activated, the di-
rection of travel (compass) and the name
of the street along which you are driving
are shown ››› Booklet Navigation system.
Audio
Station display on the radio.
Track name on the CD.
Track name in Media mode ››› Booklet Ra-
dio or ››› Booklet Navigation system.
Tele-
phoneInformation and possible configurations
of the mobile phone preinstallation
››› Booklet Radio or ››› Booklet Navigation
system.
Lap tim-
er *In a racing circuit, measurement and
memorisation of lap times by the vehicle
and comparison with previously measured
best times ››› page 31.
MenuFunction
Vehicle
statusDisplay of the current warning or informa-
tion texts and other system components,
depending on the equipment
››› page 101. Outside temperature display
When the outside temperature is below +4 °C
(+39 °F), the “ice cr
y

stal” symbol (warning of
risk of freezing) is also displayed. At first, this
symbol flashes and then it remains lit until
the outside temperature rises above +6 °C
(+43 °F) ››› in Indications on the display on
p ag
e 98 .
When the

vehicle is at a standstill or when
travelling at very low speeds, the tempera-
ture displayed may be higher than the true
outside temperature as a result of the heat
produced by the engine.
The temperatures measured range from
-40 °C to +50 °C (-40 °F to +122 °F). 27

The essentials

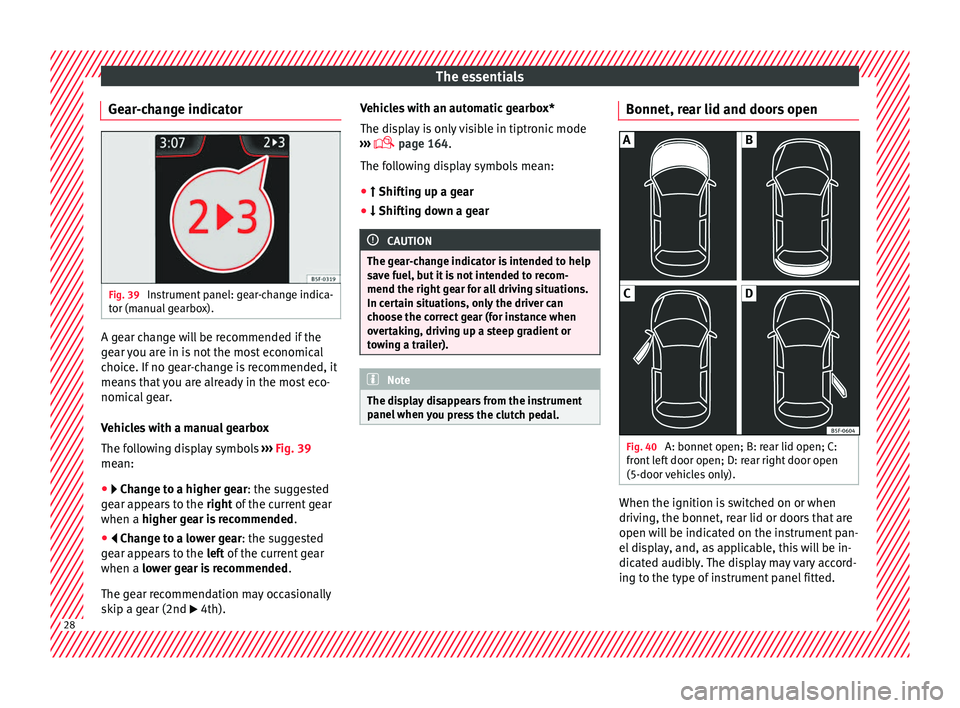

Gear-change indicator Fig. 39
Instrument panel: gear-change indica-
t or (m
anual g
earbox). A gear change will be recommended if the
g
e
ar y

ou are in is not the most economical
choice. If no gear-change is recommended, it
means that you are already in the most eco-
nomical gear.
Vehicles with a manual gearbox
The following display symbols ››› Fig. 39
mean:
●  Change to a higher gear: the suggested
g e

ar appears to the right of the current gear
when a higher gear is recommended .
●  Change to a lower gear: the suggested
ge
ar appears to the left of the current gear
when a lower gear is recommended .
The gear recommendation may occasionally
skip a gear (2nd  4th). Vehicles with an automatic gearbox*
The disp
l

ay is only visible in tiptronic mode
›››  page 164.
The following display symbols mean:
●  Shifting up a gear
●  Shif

ting down a gear CAUTION
The gear-change indicator is intended to help
save f uel, b

ut it is not intended to recom-
mend the right gear for all driving situations.
In certain situations, only the driver can
choose the correct gear (for instance when
overtaking, driving up a steep gradient or
towing a trailer). Note
The display disappears from the instrument
panel when y

ou press the clutch pedal. Bonnet, rear lid and doors open
Fig. 40
A: bonnet open; B: rear lid open; C:
fr ont
lef

t door open; D: rear right door open
(5-door vehicles only). When the ignition is switched on or when
driv
in
g, the bonnet, r e

ar lid or doors that are
open will be indicated on the instrument pan-
el display, and, as applicable, this will be in-
dicated audibly. The display may vary accord-
ing to the type of instrument panel fitted. 28
