Seat Leon 5D 2007 Owner's manual

Technical data279
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Trailer weights
Engine oil capacity
Diesel engine 1.9l TDI 77 kW (105 bhp)General engine data
Performance figures
With no brakes, gradients up to 12%
680
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4,3
Power output in kW (bhp) rpm 77 (105) 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression ratio 19 ± 0,5
Fuel Min. 51 CZ
Maximum speed in km/h 185
Acceleration from 0-80 km/h in sec. 7,6
Acceleration from 0-100 km/h in sec. 11,3
leon ingles.book Seite 279 Dienstag, 11. September 2007 1:47 13

Technical data
280Weights
Trailer weights
Engine oil capacityDiesel engine 1.9 TDI 77 kW (105 bhp). AutomaticGeneral engine data Gross vehicle weight
in kg 1860
Weight in working order (with driver) in kg 1365
Gross axle weight, front in kg 1015
Gross axle weight, rear in kg 894
Permitted roof load in kg 75
With no brakes, gradients up to 12% 680
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4,3
Power output in kW (bhp) rpm 77 (105) 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression ratio 19 ± 0,5
Fuel Min. 51 CZ
leon ingles.book Seite 280 Dienstag, 11. September 2007 1:47 13

Technical data281
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 185
Acceleration from 0-80 km/h in sec. 7,7
Acceleration from 0-100 km/h in sec. 11,7
Gross vehicle weight in kg 1890
Weight in working order (with driver) in kg 1395
Gross axle weight, front in kg 1044
Gross axle weight, rear in kg 894
Permitted roof load in kg 75
With no brakes, gradients up to 12% 690
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4,3
leon ingles.book Seite 281 Dienstag, 11. September 2007 1:47 13

Technical data
282Diesel engine 2.0l 103 kW (140 bhp). ManualGeneral engine data
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression ratio 18,5 ± 0,5
Fuel Min. 51 CZ
Maximum speed in km/h 205
Acceleration from 0-80 km/h in sec. 6,3
Acceleration from 0-100 km/h in sec. 9,3
Gross vehicle weight in kg 1885
Weight in working order (with driver) in kg 1390
Gross axle weight, front in kg 1042
Gross axle weight, rear in kg 885
Permitted roof load in kg 75
With no brakes, gradients up to 12% 690
With brakes, gradients up to 12% 1400
leon ingles.book Seite 282 Dienstag, 11. September 2007 1:47 13

Technical data283
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Engine oil capacity
Diesel engine 2.0l 103 kW (140 bhp). AutomaticGeneral engine data
Performance figures
Weights
Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (bhp) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression ratio 18,5 ± 0,5
Fuel Min. 51 CZ
Maximum speed in km/h 205
Acceleration from 0-80 km/h in sec. 6,3
Acceleration from 0-100 km/h in sec. 9,3
Gross vehicle weight in kg 1925
Weight in working order (with driver) in kg 1430
Gross axle weight, front in kg 1077
Gross axle weight, rear in kg 890
Permitted roof load in kg 75
leon ingles.book Seite 283 Dienstag, 11. September 2007 1:47 13

Technical data
284Trailer weights
Engine oil capacityDiesel engine 2.0l 100 kW (136 bhp). ManualGeneral engine data
Performance figures With no brakes, gradients up to 12%
710
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 100 (136)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression ratio 18,5 ± 0,5
Fuel Min. 51 CZ
Maximum speed in km/h 203
Acceleration from 0-80 km/h in sec. 6,4
Acceleration from 0-100 km/h in sec. 9,4
leon ingles.book Seite 284 Dienstag, 11. September 2007 1:47 13

Technical data285
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Diesel engine 2.0l 100 kW (136 bhp). AutomaticGeneral engine data
Gross vehicle weight
in kg 1885
Weight in working order (with driver) in kg 1390
Gross axle weight, front in kg 1042
Gross axle weight, rear in kg 885
Permitted roof load in kg 75
With no brakes, gradients up to 12% 690
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 100 (136)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression ratio 18,5 ± 0,5
Fuel Min. 51 CZ
leon ingles.book Seite 285 Dienstag, 11. September 2007 1:47 13

Technical data
286Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 203
Acceleration from 0-80 km/h in sec. 6,4
Acceleration from 0-100 km/h in sec. 9,4
Gross vehicle weight in kg 1925
Weight in working order (with driver) in kg 1430
Gross axle weight, front in kg 1077
Gross axle weight, rear in kg 890
Permitted roof load in kg 75
With no brakes, gradients up to 12% 710
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
leon ingles.book Seite 286 Dienstag, 11. September 2007 1:47 13

Technical data287
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Diesel engine 2.0l 125 kW (170 bhp)General engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression ratio 18,5 ± 0,5
Fuel Min. 51 CZ
Maximum speed in km/h 214
Acceleration from 0-80 km/h in sec. 5,9
Acceleration from 0-100 km/h in sec. 8,2
Gross vehicle weight in kg 1901
Weight in working order (with driver) in kg 1406
Gross axle weight, front in kg 1048
Gross axle weight, rear in kg 894
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 1400
leon ingles.book Seite 287 Dienstag, 11. September 2007 1:47 13

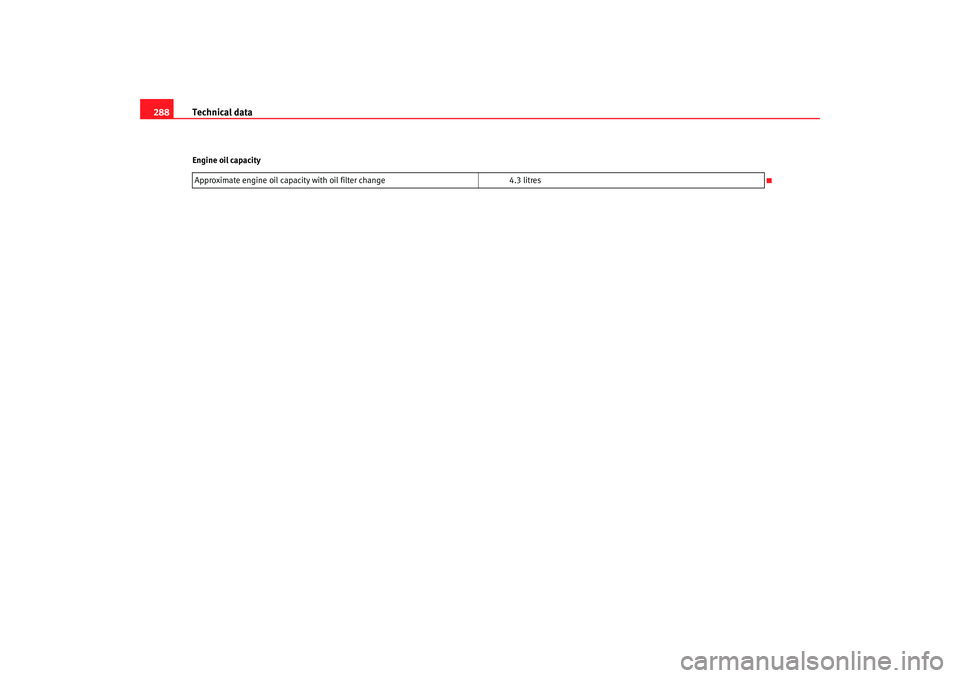

Technical data
288Engine oil capacity
Approximate engine oil capacity with oil filter change 4.3 litres
leon ingles.book Seite 288 Dienstag, 11. September 2007 1:47 13
