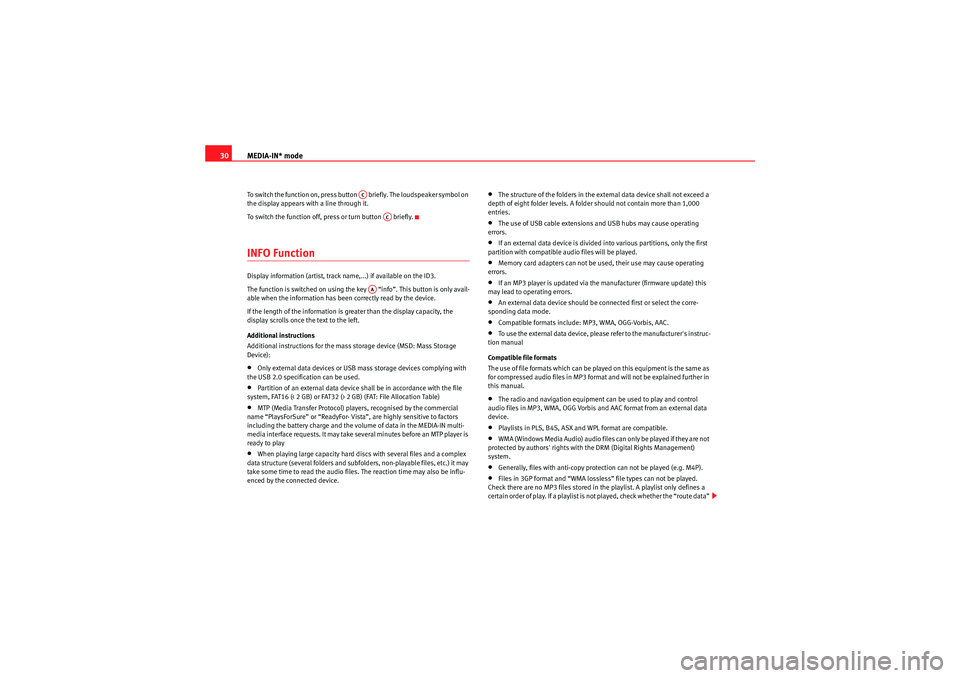

MEDIA-IN* mode
30To switch the function on, press button briefly. The loudspeaker symbol on
the display appears with a line through it.
To switch the function off, press or turn button briefly.INFO FunctionDisplay information (artist, track name,...) if available on the ID3.
The function is switched on using the key “info”. This button is only avail-
able when the information has been correctly read by the device.
If the length of the information is greater than the display capacity, the
display scrolls once the text to the left.
Additional instructions
Additional instructions for the mass storage device (MSD: Mass Storage
Device):•Only external data devices or USB mass storage devices complying with
the USB 2.0 specification can be used.•Partition of an external data device shall be in accordance with the file
system, FAT16 (< 2 GB) or FAT32 (> 2 GB) (FAT: File Allocation Table)•MTP (Media Transfer Protocol) players, recognised by the commercial
name “PlaysForSure” or “ReadyFor- Vista”, are highly sensitive to factors
including the battery charge and the volume of data in the MEDIA-IN multi-
media interface requests. It may take several minutes before an MTP player is
ready to play•When playing large capacity hard discs with several files and a complex
data structure (several folders and subfolders, non-playable files, etc.) it may
take some time to read the audio files. The reaction time may also be influ-
enced by the connected device.
•The structure of the folders in the external data device shall not exceed a
depth of eight folder levels. A folder should not contain more than 1,000
entries.•The use of USB cable extensions and USB hubs may cause operating
errors.•If an external data device is divided into various partitions, only the first
partition with compatible audio files will be played.•Memory card adapters can not be used, their use may cause operating
errors.•If an MP3 player is updated via the manufacturer (firmware update) this
may lead to operating errors.•An external data device should be connected first or select the corre-
sponding data mode.•Compatible formats include: MP3, WMA, OGG-Vorbis, AAC.•To use the external data device, please refer to the manufacturer's instruc-
tion manual
Compatible file formats
The use of file formats which can be played on this equipment is the same as
for compressed audio files in MP3 format and will not be explained further in
this manual.•The radio and navigation equipment can be used to play and control
audio files in MP3, WMA, OGG Vorbis and AAC format from an external data
device.•Playlists in PLS, B4S, ASX and WPL format are compatible.•WMA (Windows Media Audio) audio files can only be played if they are not
protected by authors' rights with the DRM (Digital Rights Management)
system.•Generally, files with anti-copy protection can not be played (e.g. M4P).•Files in 3GP format and “WMA lossless” file types can not be played.
Check there are no MP3 files stored in the playlist. A playlist only defines a
certain order of play. If a playlist is not played, check whether the “route data”
AC
AC
AA
Car Stereo MP3_EN.book Seite 30 Montag, 20. April 2009 1:56 13
Page 32 of 75
MEDIA-IN* mode31
is correct, that is, whether the MP3 files are stored in the data device to which
the playlist refers.

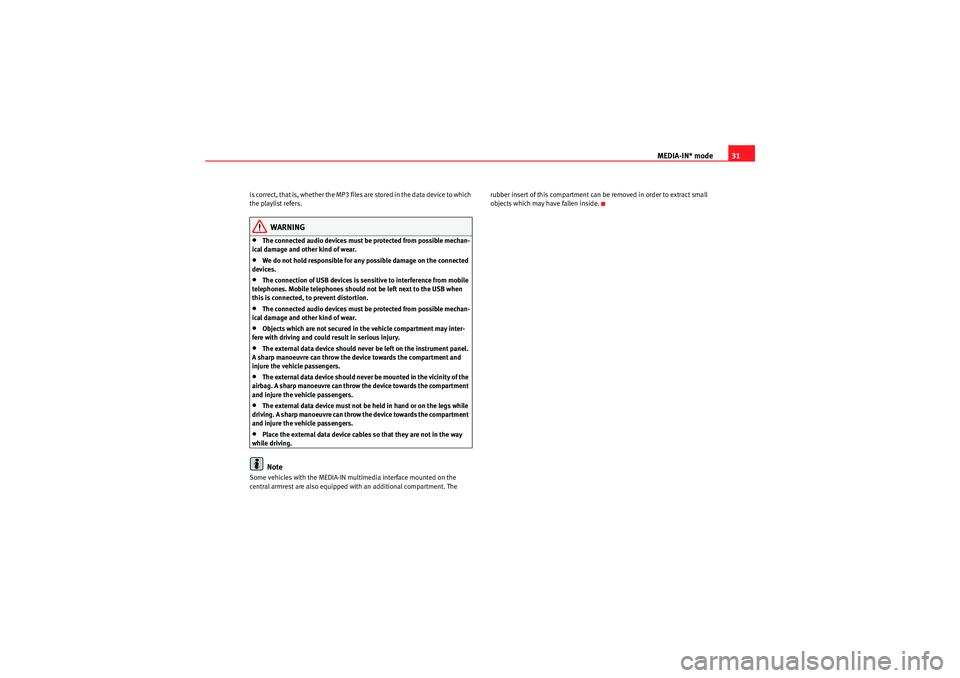

WARNING
•The connected audio devices must be protected from possible mechan-
ical damage and other kind of wear.•We do not hold responsible for any possible damage on the connected
devices.•The connection of USB devices is sensitive to interference from mobile
telephones. Mobile telephones should not be left next to the USB when
this is connected, to prevent distortion.•The connected audio devices must be protected from possible mechan-
ical damage and other kind of wear.•Objects which are not secured in the vehicle compartment may inter-
fere with driving and could result in serious injury.•The external data device should never be left on the instrument panel.
A sharp manoeuvre can throw the device towards the compartment and
injure the vehicle passengers.•The external data device should never be mounted in the vicinity of the
airbag. A sharp manoeuvre can throw the device towards the compartment
and injure the vehicle passengers.•The external data device must not be held in hand or on the legs while
driving. A sharp manoeuvre can throw the device towards the compartment
and injure the vehicle passengers.•Place the external data device cables so that they are not in the way
while driving.Note
Some vehicles with the MEDIA-IN multimedia interface mounted on the
central armrest are also equipped with an additional compartment. The rubber insert of this compartment can be removed in order to extract small
objects which may have fallen inside.
Car Stereo MP3_EN.book Seite 31 Montag, 20. April 2009 1:56 13
Page 33 of 75
Important information concerning the CD reader

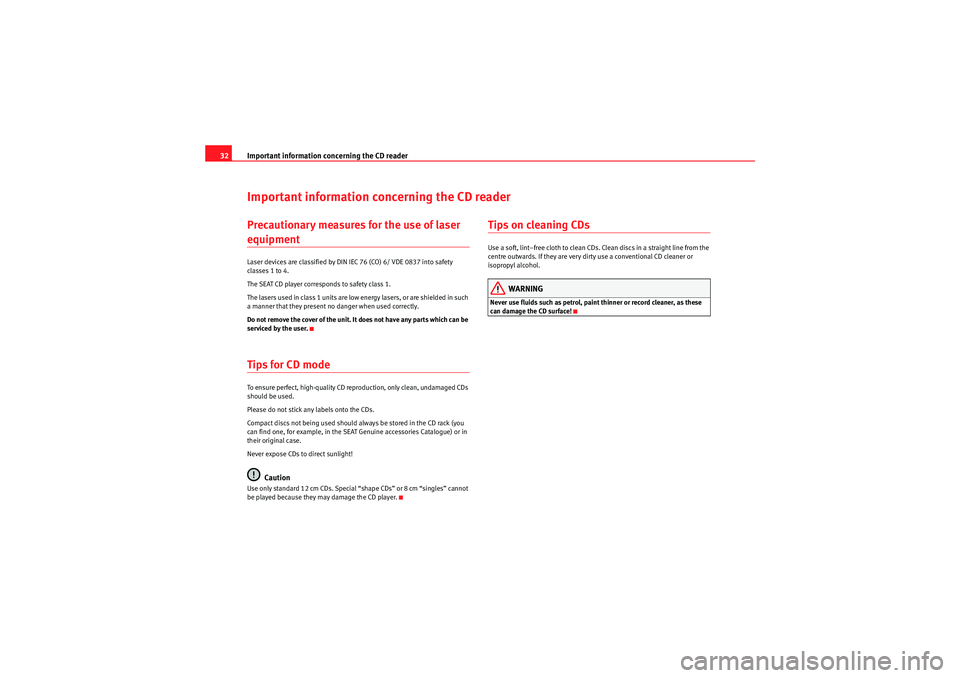

32Important information concerning the CD readerPrecautionary measures for the use of laser equipmentLaser devices are classified by DIN IEC 76 (CO) 6/ VDE 0837 into safety
classes 1 to 4.
The SEAT CD player corresponds to safety class 1.
The lasers used in class 1 units are low energy lasers, or are shielded in such
a manner that they pres ent no danger when used correctly.
Do not remove the cover of the unit. It does not have any parts which can be
serviced by the user.Tips for CD modeTo ensure perfect, high-quality CD reproduction, only clean, undamaged CDs
should be used.
Please do not stick any labels onto the CDs.
Compact discs not being used should always be stored in the CD rack (you
can find one, for example, in the SEAT Genuine accessories Catalogue) or in
their original case.
Never expose CDs to direct sunlight!
Caution
Use only standard 12 cm CDs. Special “shape CDs” or 8 cm “singles” cannot
be played because they may damage the CD player.
Tips on cleaning CDsUse a soft, lint–free cloth to clean CDs. Clea n discs in a straight line from the
centre outwards. If they are very dirty use a conventional CD cleaner or
isopropyl alcohol.
WARNING
Never use fluids such as petrol, paint thinner or record cleaner, as these
can damage the CD surface!
Car Stereo MP3_EN.book Seite 32 Montag, 20. April 2009 1:56 13
Page 34 of 75

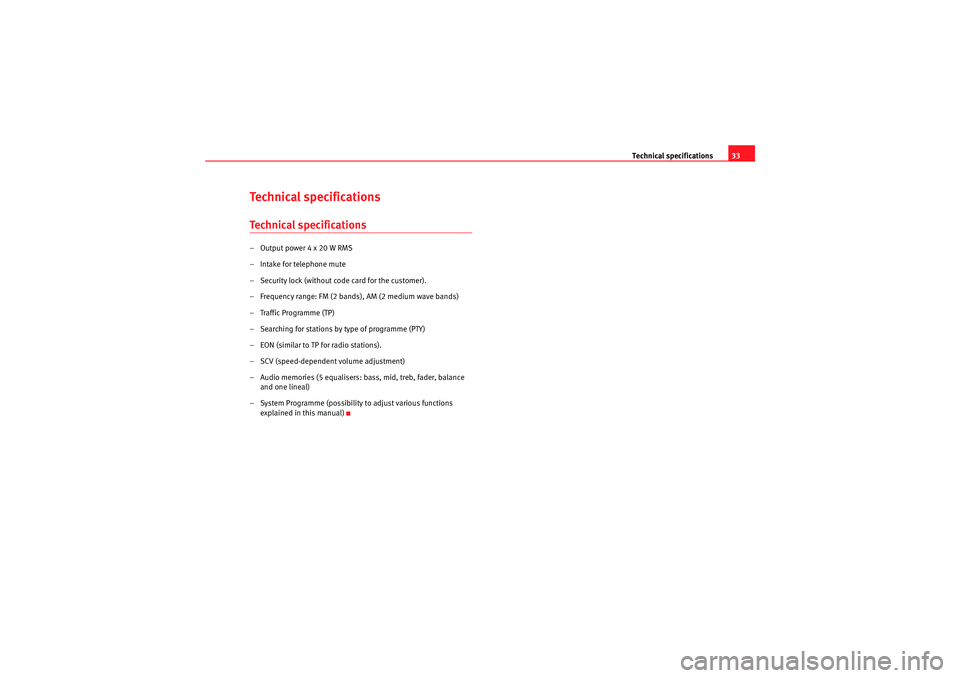

Technical specifications33
Technical specificationsTechnical specifications– Output power 4 x 20 W RMS
– Intake for telephone mute
– Security lock (without code card for the customer).
– Frequency range: FM (2 bands), AM (2 medium wave bands)
– Traffic Programme (TP)
– Searching for stations by type of programme (PTY)
– EON (similar to TP for radio stations).
– SCV (speed-dependent volume adjustment)
– Audio memories (5 equalisers: bass, mid, treb, fader, balance
and one lineal)
– System Programme (possibility to adjust various functions explained in this manual)
Car Stereo MP3_EN.book Seite 33 Montag, 20. April 2009 1:56 13
Page 35 of 75

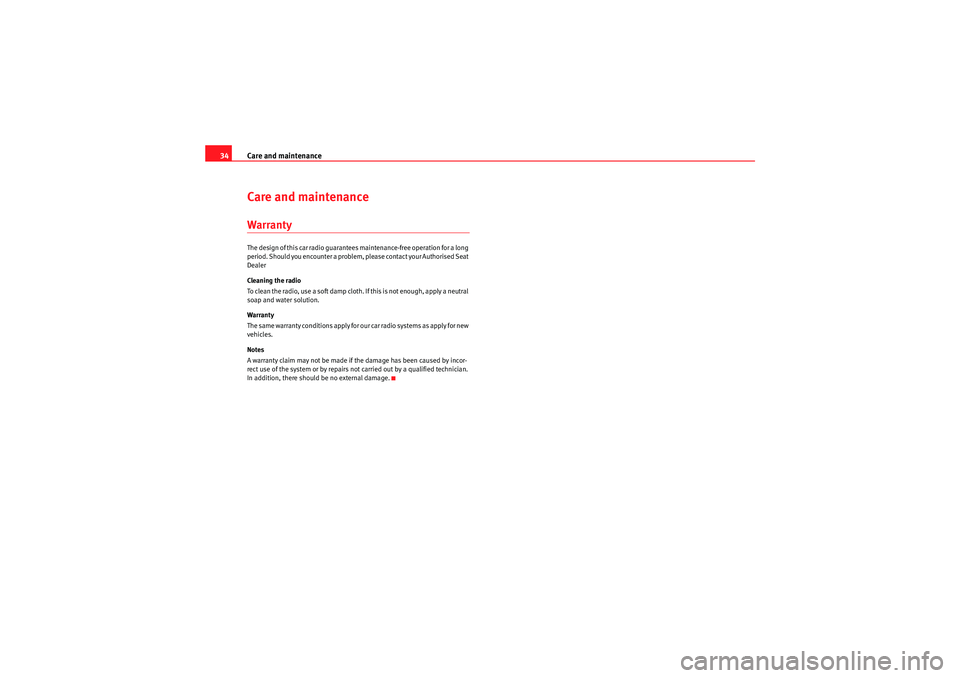

Care and maintenance
34Care and maintenanceWarrantyThe design of this car radio guarantees maintenance-free operation for a long
period. Should you encounter a problem, please contact your Authorised Seat
Dealer
Cleaning the radio
To clean the radio, use a soft damp cloth. If this is not enough, apply a neutral
soap and water solution.
Warranty
The same warranty conditions apply for our ca r radio systems as apply for new
vehicles.
Notes
A warranty claim may not be made if the damage has been caused by incor-
rect use of the system or by repairs not carried out by a qualified technician.
In addition, there should be no external damage.
Car Stereo MP3_EN.book Seite 34 Montag, 20. April 2009 1:56 13
Page 36 of 75
Index35

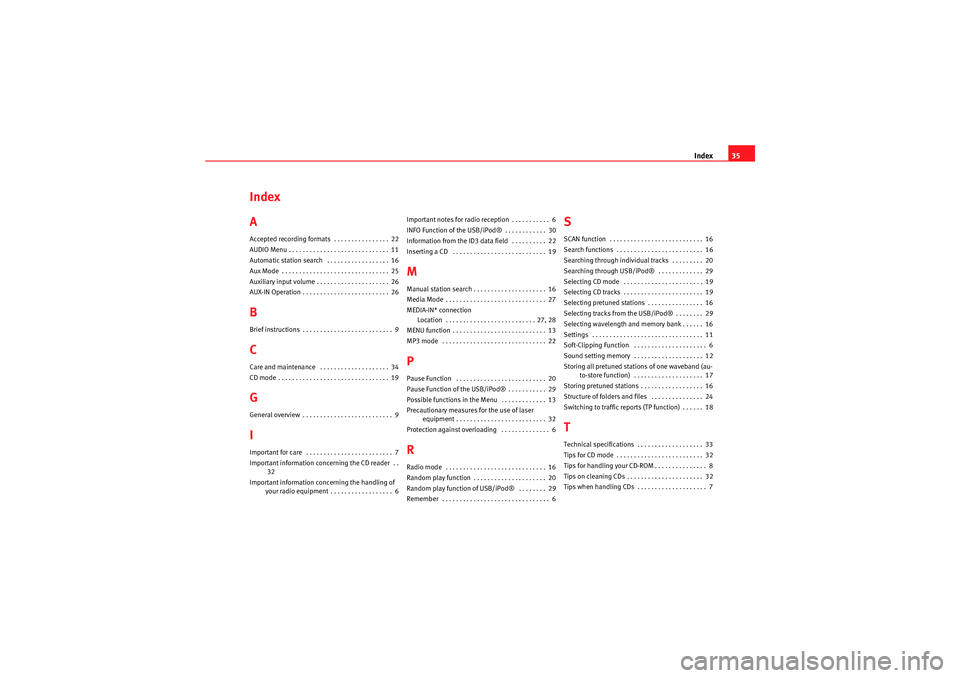

Index
AAccepted recording formats . . . . . . . . . . . . . . . . 22
AUDIO Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Automatic station search . . . . . . . . . . . . . . . . . . 16
Aux Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Auxiliary input volume . . . . . . . . . . . . . . . . . . . . . 26
AUX-IN Operation . . . . . . . . . . . . . . . . . . . . . . . . . 26BBrief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 9CCare and maintenance . . . . . . . . . . . . . . . . . . . . 34
CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19GGeneral overview . . . . . . . . . . . . . . . . . . . . . . . . . . 9IImportant for care . . . . . . . . . . . . . . . . . . . . . . . . . 7
Important information concerning the CD reader . .
32
Important information concerning the handling of your radio equipment . . . . . . . . . . . . . . . . . . 6 Important notes for radio reception . . . . . . . . . . . 6
INFO Function of the USB/iPod® . . . . . . . . . . . . 30
Information from the ID3 data field . . . . . . . . . . 22
Inserting a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
MManual station search . . . . . . . . . . . . . . . . . . . . . 16
Media Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
MEDIA-IN* connection
Location . . . . . . . . . . . . . . . . . . . . . . . . . . 27, 28
MENU function . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
MP3 mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22PPause Function . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Pause Function of the USB/iPod® . . . . . . . . . . . 29
Possible functions in the Menu . . . . . . . . . . . . . 13
Precautionary measures for the use of laser equipment . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Protection against overloading . . . . . . . . . . . . . . 6RRadio mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Random play function . . . . . . . . . . . . . . . . . . . . . 20
Random play function of USB/iPod® . . . . . . . . 29
Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SSCAN function . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Search functions . . . . . . . . . . . . . . . . . . . . . . . . . 16
Searching through individual tracks . . . . . . . . . 20
Searching through USB/iPod® . . . . . . . . . . . . . 29
Selecting CD mode . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting CD tracks . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting pretuned stations . . . . . . . . . . . . . . . . 16
Selecting tracks from the USB/iPod® . . . . . . . . 29
Selecting wavelength and memory bank . . . . . . 16
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Soft-Clipping Function . . . . . . . . . . . . . . . . . . . . . 6
Sound setting memory . . . . . . . . . . . . . . . . . . . . 12
Storing all pretuned stations of one waveband (au- to-store function) . . . . . . . . . . . . . . . . . . . . 17
Storing pretuned stations . . . . . . . . . . . . . . . . . . 16
Structure of folders and files . . . . . . . . . . . . . . . 24
Switching to traffic reports (TP function) . . . . . . 18TTechnical specifications . . . . . . . . . . . . . . . . . . . 33
Tips for CD mode . . . . . . . . . . . . . . . . . . . . . . . . . 32
Tips for handling your CD-ROM . . . . . . . . . . . . . . . 8
Tips on cleaning CDs . . . . . . . . . . . . . . . . . . . . . . 32
Tips when handling CDs . . . . . . . . . . . . . . . . . . . . 7
Car Stereo MP3_EN.book Seite 35 Montag, 20. April 2009 1:56 13
Page 37 of 75
Index

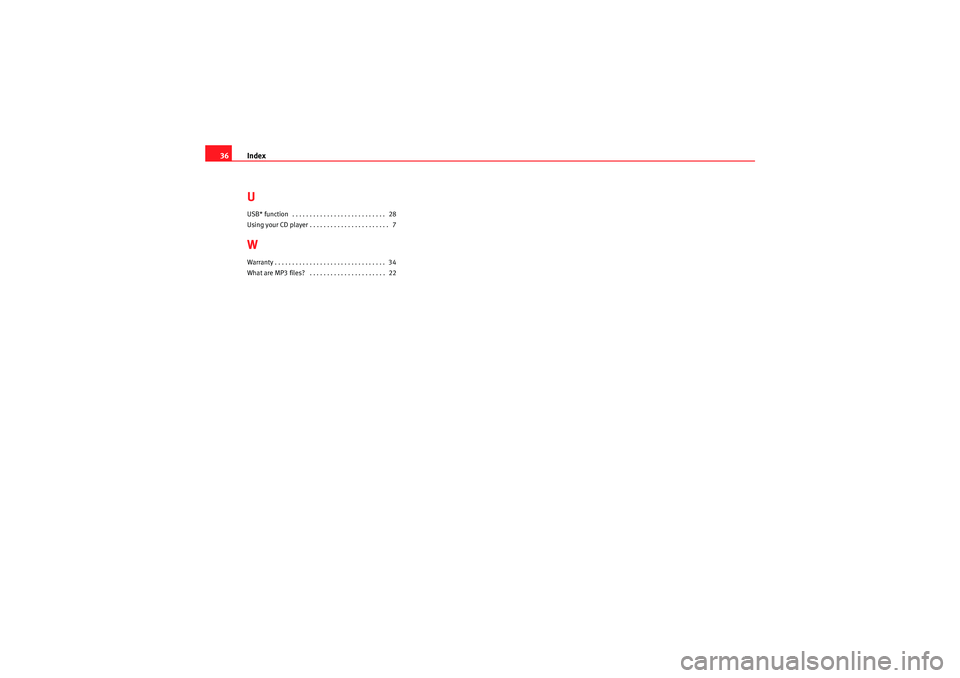

36UUSB* function . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Using your CD player . . . . . . . . . . . . . . . . . . . . . . . 7WWarranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
What are MP3 files? . . . . . . . . . . . . . . . . . . . . . . 22
Car Stereo MP3_EN.book Seite 36 Montag, 20. April 2009 1:56 13
Page 38 of 75
RADIO CAR STEREO MP3OWNER’S MANUALInglés 6J0012006T (07.09) (GT9)
6J0012006T
Portada_CarStereoMP3_81%.qxd:Maquetación 1 5/10/09 09:11 Página 3
Page 39 of 75

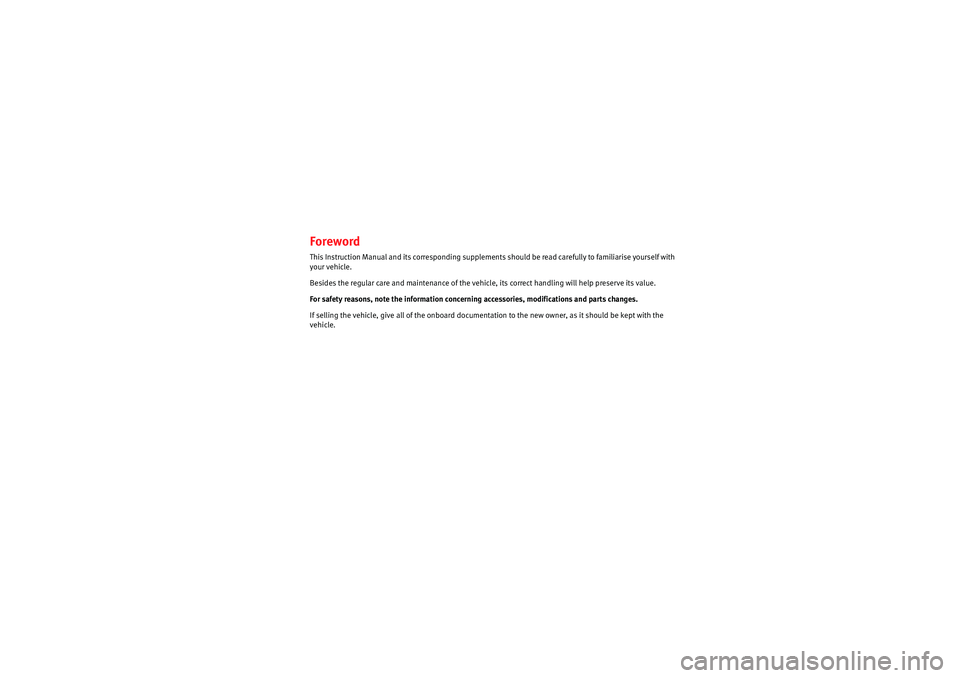

ForewordThis Instruction Manual and its corresponding supplements should be read carefully to familiarise yourself with
your vehicle.
Besides the regular care and maintenance of the vehicle, its correct handling will help preserve its value.
For safety reasons, note the information concerning accessories, modifications and parts changes.
If selling the vehicle, give all of the onboard documentation to the new owner, as it should be kept with the
vehicle.
Car Stereo MP3_EN.book Seite 1 Montag, 20. April 2009 1:56 13
Page 40 of 75

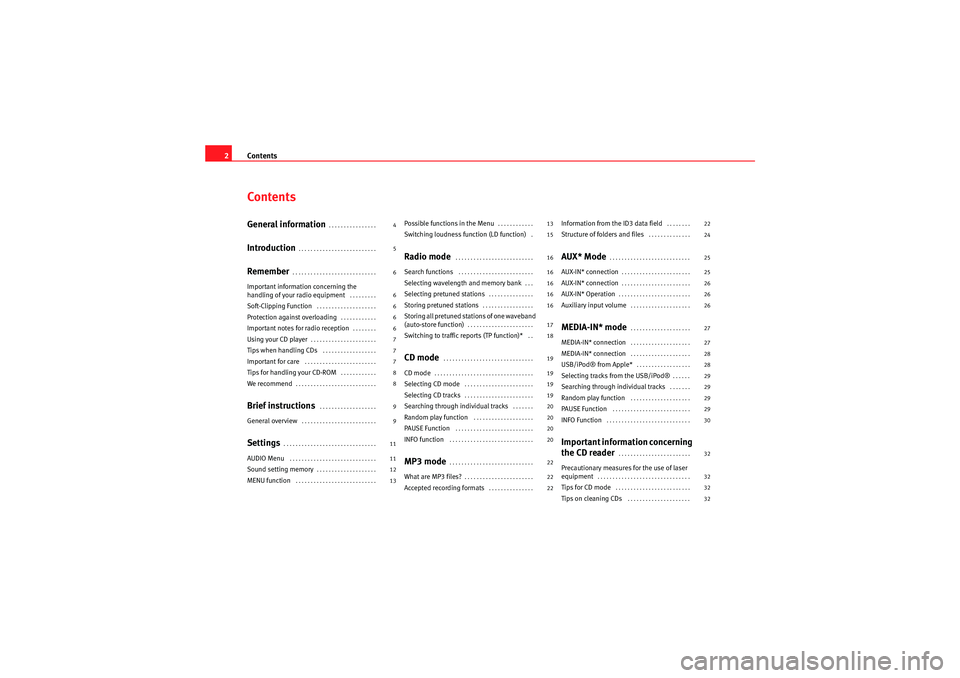

Contents
2ContentsGeneral information
. . . . . . . . . . . . . . . .
Introduction
. . . . . . . . . . . . . . . . . . . . . . . . . .
Remember
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important information concerning the
handling of your radio equipment
. . . . . . . . .
Soft-Clipping Function
. . . . . . . . . . . . . . . . . . . .
Protection against overloading
. . . . . . . . . . . .
Important notes for radio reception
. . . . . . . .
Using your CD player
. . . . . . . . . . . . . . . . . . . . . .
Tips when handling CDs
. . . . . . . . . . . . . . . . . .
Important for care
. . . . . . . . . . . . . . . . . . . . . . . .
Tips for handling your CD-ROM
. . . . . . . . . . . .
We recommend
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief instructions
. . . . . . . . . . . . . . . . . . .
General overview
. . . . . . . . . . . . . . . . . . . . . . . . .
Settings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUDIO Menu
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound setting memory
. . . . . . . . . . . . . . . . . . . .
MENU function
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Possible functions in the Menu
. . . . . . . . . . . .
Switching loudness function (LD function)
.
Radio mode
. . . . . . . . . . . . . . . . . . . . . . . . . .
Search functions
. . . . . . . . . . . . . . . . . . . . . . . . .
Selecting wavelength and memory bank
. . .
Selecting pretuned stations
. . . . . . . . . . . . . . .
Storing pretuned stations
. . . . . . . . . . . . . . . . .
Storing all pretuned stations of one waveband
(auto-store function)
. . . . . . . . . . . . . . . . . . . . . .
Switching to traffic reports (TP function)*
. .
CD mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting CD mode
. . . . . . . . . . . . . . . . . . . . . . .
Selecting CD tracks
. . . . . . . . . . . . . . . . . . . . . . .
Searching through individual tracks
. . . . . . .
Random play function
. . . . . . . . . . . . . . . . . . . .
PAUSE Function
. . . . . . . . . . . . . . . . . . . . . . . . . .
INFO function
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
MP3 mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
What are MP3 files?
. . . . . . . . . . . . . . . . . . . . . . .
Accepted recording formats
. . . . . . . . . . . . . . .
Information from the ID3 data field
. . . . . . . .
Structure of folders and files
. . . . . . . . . . . . . .
AUX* Mode
. . . . . . . . . . . . . . . . . . . . . . . . . . .
AUX-IN* connection
. . . . . . . . . . . . . . . . . . . . . . .
AUX-IN* connection
. . . . . . . . . . . . . . . . . . . . . . .
AUX-IN* Operation
. . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary input volume
. . . . . . . . . . . . . . . . . . . .
MEDIA-IN* mode
. . . . . . . . . . . . . . . . . . . .
MEDIA-IN* connection
. . . . . . . . . . . . . . . . . . . .
MEDIA-IN* connection
. . . . . . . . . . . . . . . . . . . .
USB/iPod® from Apple*
. . . . . . . . . . . . . . . . . .
Selecting tracks from the USB/iPod®
. . . . . .
Searching through individual tracks
. . . . . . .
Random play function
. . . . . . . . . . . . . . . . . . . .
PAUSE Function
. . . . . . . . . . . . . . . . . . . . . . . . . .
INFO Function
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important information concerning
the CD reader
. . . . . . . . . . . . . . . . . . . . . . . .
Precautionary measures for the use of laser
equipment
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for CD mode
. . . . . . . . . . . . . . . . . . . . . . . . .
Tips on cleaning CDs
. . . . . . . . . . . . . . . . . . . . .
4
5
6
6
6
6
6
7
7
7
8
8
9
9
11
11
12
13 13
15
16
16
16
16
16
17
18
19
19
19
19
20
20
20
20
22
22
22 22
24
25
25
26
26
26
27
27
28
28
29
29
29
29
30
32
32
32
32
Car Stereo MP3_EN.book Seite 2 Montag, 20. April 2009 1:56 13
