General information

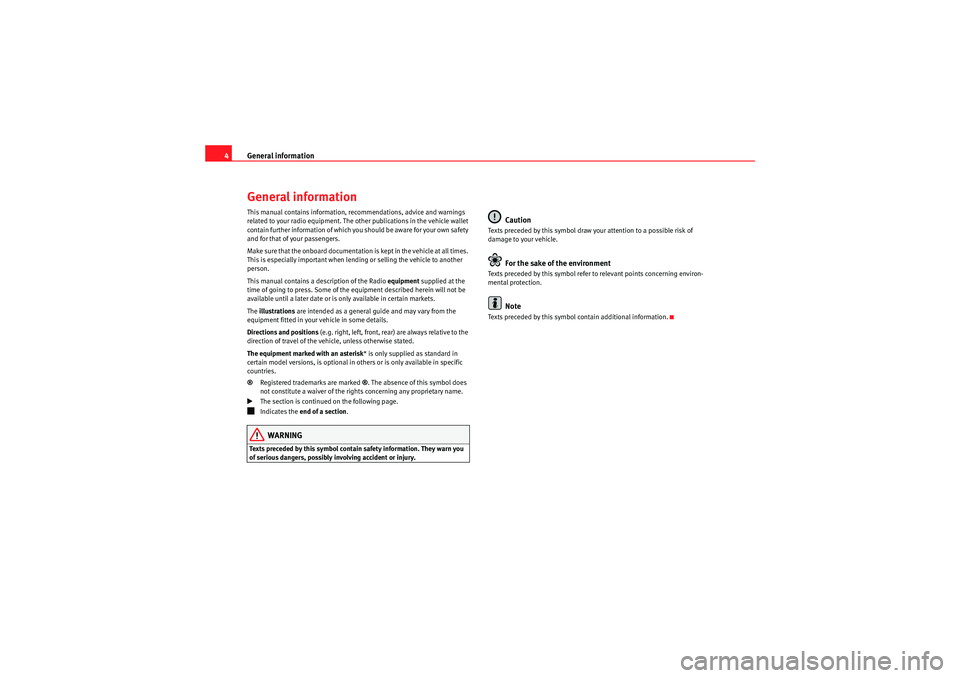

4General informationThis manual contains information, recommendations, advice and warnings
related to your radio equipment. The other publications in the vehicle wallet
contain further information of which you should be aware for your own safety
and for that of your passengers.
Make sure that the onboard documentation is kept in the vehicle at all times.
This is especially important when lending or selling the vehicle to another
person.
This manual contains a description of the Radio equipment supplied at the
time of going to press. Some of the equipment described herein will not be
available until a later date or is only available in certain markets.
The illustrations are intended as a general guide and may vary from the
equipment fitted in your vehicle in some details.
Directions and positions (e.g. right, left, front, rear) are always relative to the
direction of travel of the vehicle, unless otherwise stated.
The equipment marked with an asterisk * is only supplied as standard in
certain model versions, is optional in others or is only available in specific
countries.
® Registered trademarks are marked ®. The absence of this symbol does
not constitute a waiver of the rights concerning any proprietary name.b
The section is continued on the following page.
ž
Indicates the end of a section .WARNING
Texts preceded by this symbol contain safety information. They warn you
of serious dangers, possibly involving accident or injury.
Caution
Texts preceded by this symbol draw your attention to a possible risk of
damage to your vehicle.
For the sake of the environment
Texts preceded by this symbol refer to relevant points concerning environ-
mental protection.
Note
Texts preceded by this symbol contain additional information.
Car Stereo MP3_EN.book Seite 4 Montag, 20. April 2009 1:56 13

Introduction5

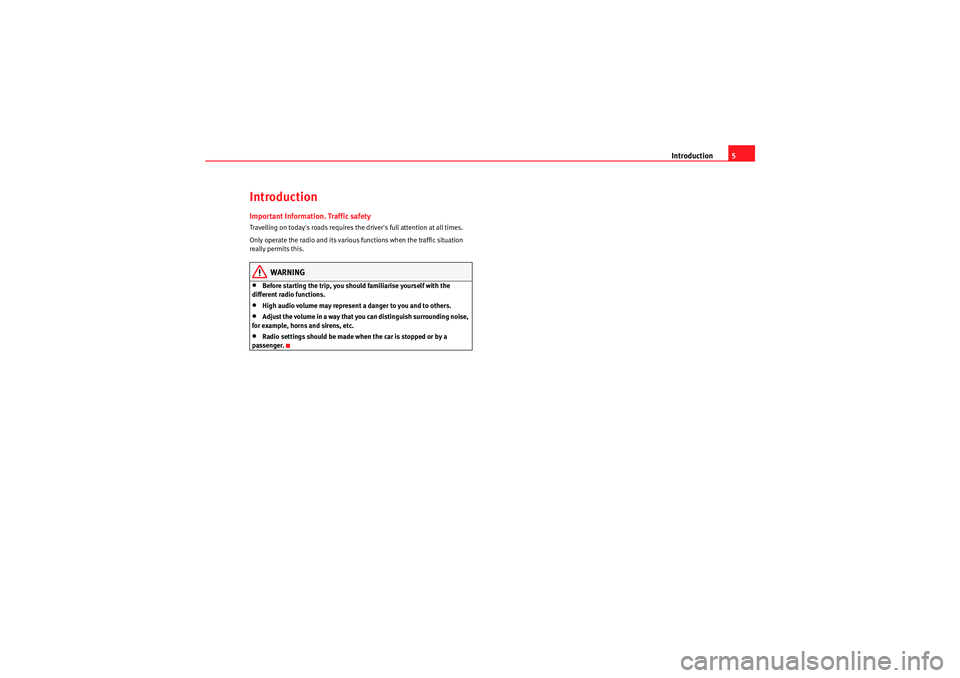

IntroductionImportant Information. Traffic safetyTravelling on today's roads requires the driver's full attention at all times.
Only operate the radio and its various functions when the traffic situation
really permits this.
WARNING
•Before starting the trip, you should familiarise yourself with the
different radio functions.•High audio volume may represent a danger to you and to others.•Adjust the volume in a way that you can distinguish surrounding noise,
for example, horns and sirens, etc.•Radio settings should be made when the car is stopped or by a
passenger.
Car Stereo MP3_EN.book Seite 5 Montag, 20. April 2009 1:56 13

Remember

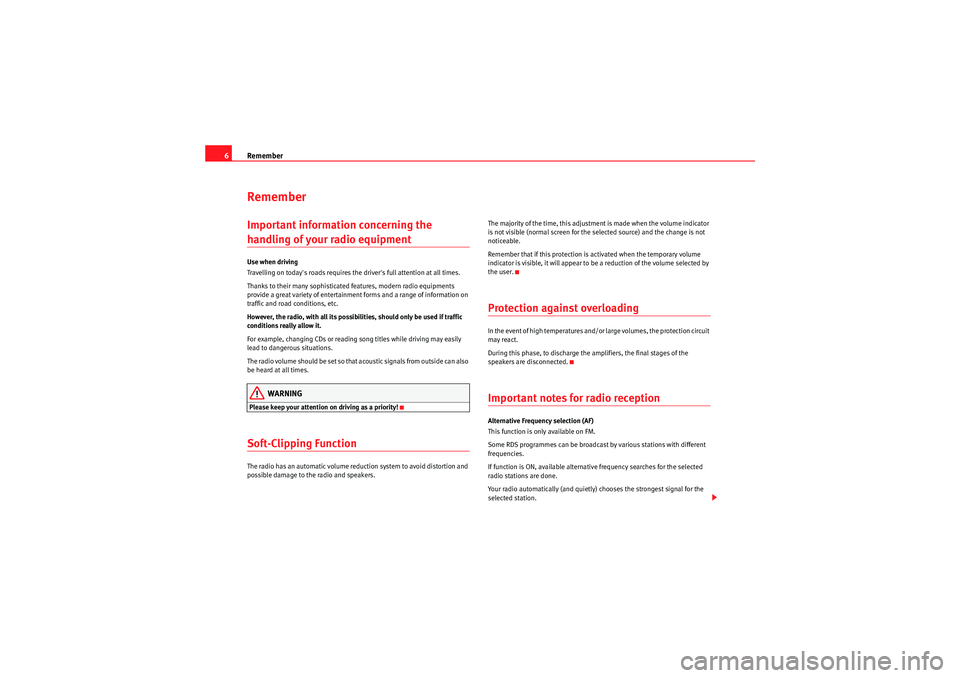

6RememberImportant information concerning the handling of your radio equipmentUse when driving
Travelling on today's roads requires the dri ver's full attention at all times.
Thanks to their many sophisticated features, modern radio equipments
provide a great variety of entertainment forms and a range of information on
traffic and road conditions, etc.
However, the radio, with all its possibilities, should only be used if traffic
conditions really allow it.
For example, changing CDs or reading song titles while driving may easily
lead to dangerous situations.
The radio volume should be set so that acoustic signals from outside can also
be heard at all times.
WARNING
Please keep your attention on driving as a priority!Soft-Clipping FunctionThe radio has an automatic volu me reduction system to avoid distortion and
possible damage to the radio and speakers. The majority of the time, this adjustment is made when the volume indicator
is not visible (normal screen for the selected source) and the change is not
noticeable.
Remember that if this protection is activated when the temporary volume
indicator is visible, it will appear to be a reduction of the volume selected by
the user.
Protection against overloadingIn the event of
high temperatures and/or large volumes, the protection circuit
may react.
During this phase, to discharge the amplifiers, the final stages of the
speakers are disconnected.Important notes for radio receptionAlternative Frequency selection (AF)
This function is only available on FM.
Some RDS programmes can be broadcast by various stations with different
frequencies.
If function is ON, available alternative frequency searches for the selected
radio stations are done.
Your radio automatically (and quietly) chooses the strongest signal for the
selected station.
Car Stereo MP3_EN.book Seite 6 Montag, 20. April 2009 1:56 13

Remember7
If you are driving through an area with bad coverage, each automatic re-tune
will result in short breaks or slight changes in volume in the audio source.
Signal reflected
When driving in built-up or mountainous areas, the signal may be affected.
Interference is normal and is not a fault in the radio.Using your CD player– Do not insert credit cards, coins or other objects inside the CD
unit.
– Do not insert irregular-shaped discs, discs with anti-scratch protection or discs with labels attached inside the unit.
– Do not insert DVDs, Dual-Disc, DVD+, Flip Disc as these contain large quantities of information and can not be read.
– Only use standard 12 cm diameter CDs.
– Some anti-copy CDs cannot be played in the unit.
– Store discs in their cases when not in use.
– Insert the CD into the unit until the mechanism automatically pulls it.
– Insert CD with the printed side facing upwards and at the correct angle into the front opening of the radio.
– Do not try to insert a CD when there is already a CD in the unit. – The radio is fitted with a disconnection protective device and
when the temperature of the CD unit is too high, the radio
switches to the last selected source.
– The playing time of files recorded with a variable bit rate may not be accurate
Tips when handling CDs– Hold the CD by the edge or by the edges and through the central hole. Figure prints and scratches reduce sound quality.
– CDs left in direct sunlight or very high temperatures may be damaged or may block the CD player.
– Normally CD-R/CD-RW discs have an operating temperature of -5 to 55ºC. Please, see the manufacturer specifications for the CD.Important for care– Do not use fluids such as benzene or solvents to clean CDs as these may scratch the surface of the disc.
– Use soft non-fray cloths and clean in straight lines from the centre to the outer edge. If dirt is very incrusted, use commercial
CD cleaners and check manufacturer information.
– CDs recorded using Windows Vista in UDF format can not normally be played. The ISO-9660 format should be used.
Car Stereo MP3_EN.book Seite 7 Montag, 20. April 2009 1:56 13

Remember

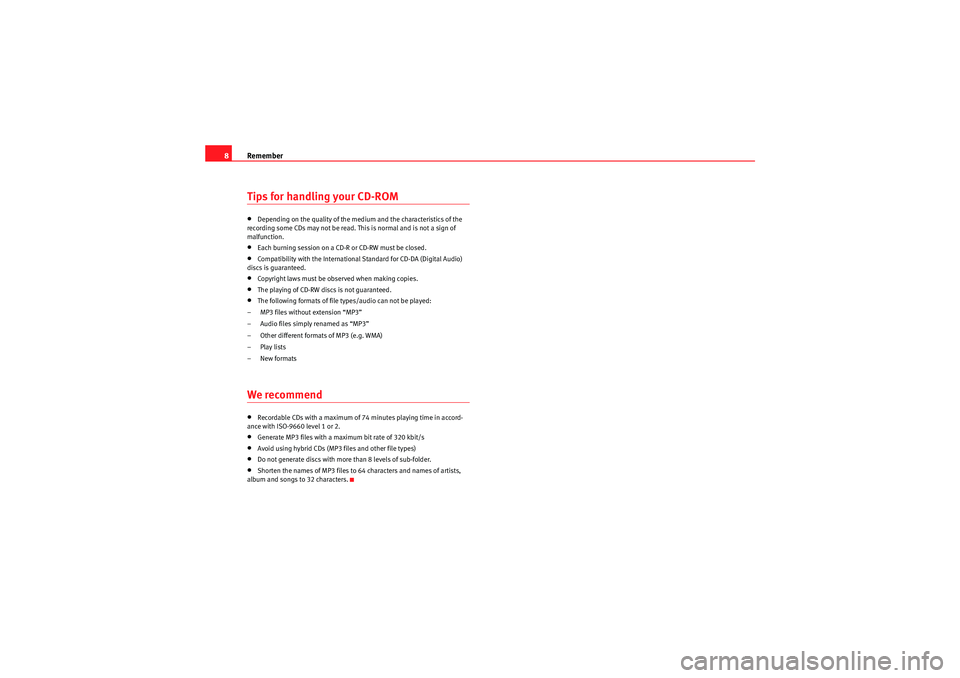

8Tips for handling your CD-ROM•Depending on the quality of the medium and the characteristics of the
recording some CDs may not be read. This is normal and is not a sign of
malfunction.•Each burning session on a CD-R or CD-RW must be closed.•Compatibility with the Internati onal Standard for CD-DA (Digital Audio)
discs is guaranteed.•Copyright laws must be observed when making copies.•The playing of CD-RW discs is not guaranteed.•The following formats of file types/audio can not be played:
– MP3 files without extension “MP3”
– Audio files simply renamed as “MP3”
– Other different formats of MP3 (e.g. WMA)
–Play lists
– New formatsWe recommend•Recordable CDs with a maximum of 74 minutes playing time in accord-
ance with ISO-9660 level 1 or 2.•Generate MP3 files with a maximum bit rate of 320 kbit/s•Avoid using hybrid CDs (MP3 files and other file types)•Do not generate discs with more than 8 levels of sub-folder.•Shorten the names of MP3 files to 64 characters and names of artists,
album and songs to 32 characters.
Car Stereo MP3_EN.book Seite 8 Montag, 20. April 2009 1:56 13

Brief instructions9

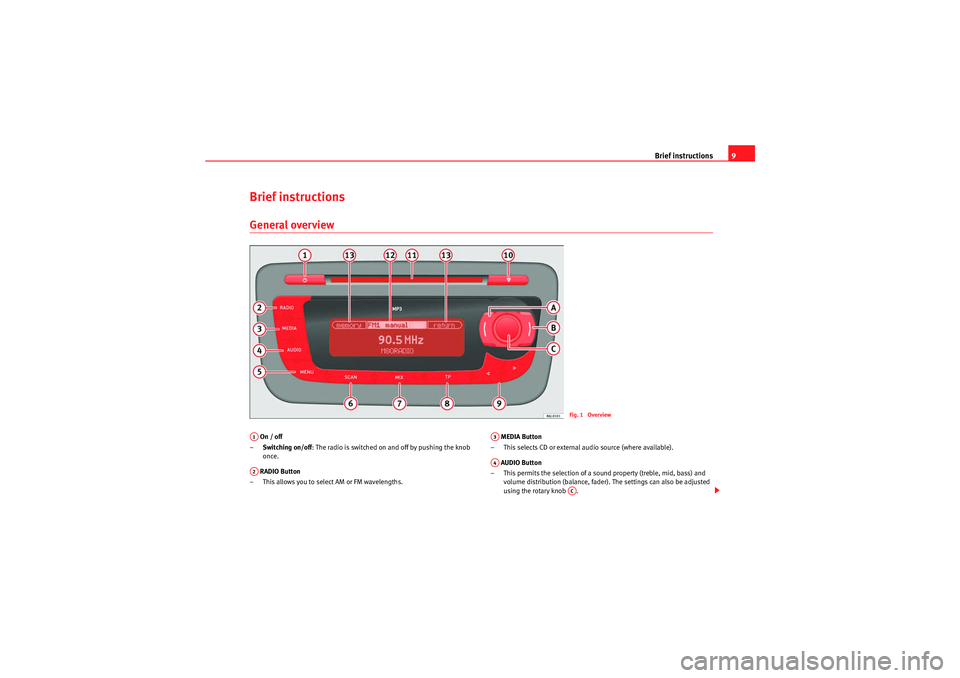

Brief instructions General overview On / off
– Switching on/off : The radio is switched on and off by pushing the knob
once.
RADIO Button
– This allows you to select AM or FM wavelengths. MEDIA Button
– This selects CD or external audio source (where available).
AUDIO Button
– This permits the selection of a soun d property (treble, mid, bass) and
volume distribution (balance, fader). The settings can also be adjusted
using the rotary knob .
Fig. 1 Overview
A1A2
A3A4
AC
Car Stereo MP3_EN.book Seite 9 Montag, 20. April 2009 1:56 13

Brief instructions

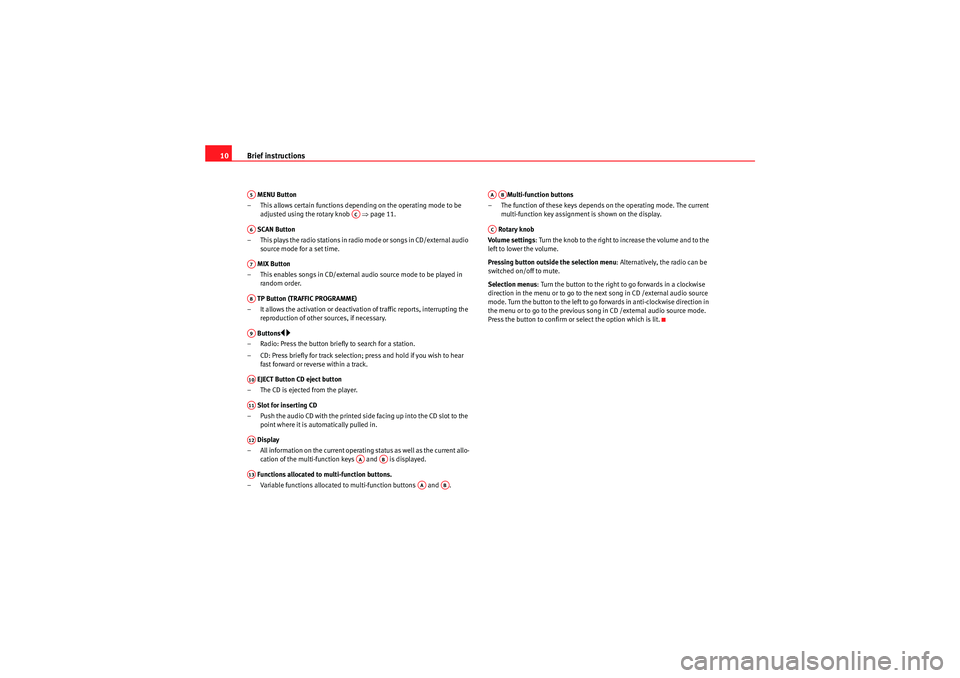

10 MENU Button
– This allows certain functions depending on the operating mode to be adjusted using the rotary knob Ÿpage 11.
SCAN Button
– This plays the radio stations in radio mode or songs in CD/external audio source mode for a set time.
MIX Button
– This enables songs in CD/external audio source mode to be played in random order.
TP Button (TRAFFIC PROGRAMME)
– It allows the activation or deactivation of traffic reports, interrupting the reproduction of other sources, if necessary.
Buttons
y…
– Radio: Press the button briefly to search for a station.
– CD: Press briefly for track selection; press and hold if you wish to hear fast forward or reverse within a track.
EJECT Button CD eject button
– The CD is ejected from the player.
Slot for inserting CD
– Push the audio CD with the printed side facing up into the CD slot to the point where it is automatically pulled in.
Display
– All information on the current operating status as well as the current allo- cation of the multi-function keys and is displayed.
Functions allocated to multi-function buttons.
– Variable functions allocated to multi-function buttons and . Multi-function buttons
– The function of these keys depends on the operating mode. The current multi-function key assignment is shown on the display.
Rotary knob
Volume settings : Turn the knob to the right to increase the volume and to the
left to lower the volume.
Pressing button outside the selection menu : Alternatively, the radio can be
switched on/off to mute.
Selection menus : Turn the button to the right to go forwards in a clockwise
direction in the menu or to go to the next song in CD /external audio source
mode. Turn the button to the left to go forwards in anti-clockwise direction in
the menu or to go to the previous so ng in CD /external audio source mode.
Press the button to confirm or select the option which is lit.A5
AC
A6A7A8A9A10A11A12
AA
AB
A13
AA
AB
AAAB
AC
Car Stereo MP3_EN.book Seite 10 Montag, 20. April 2009 1:56 13

Settings11

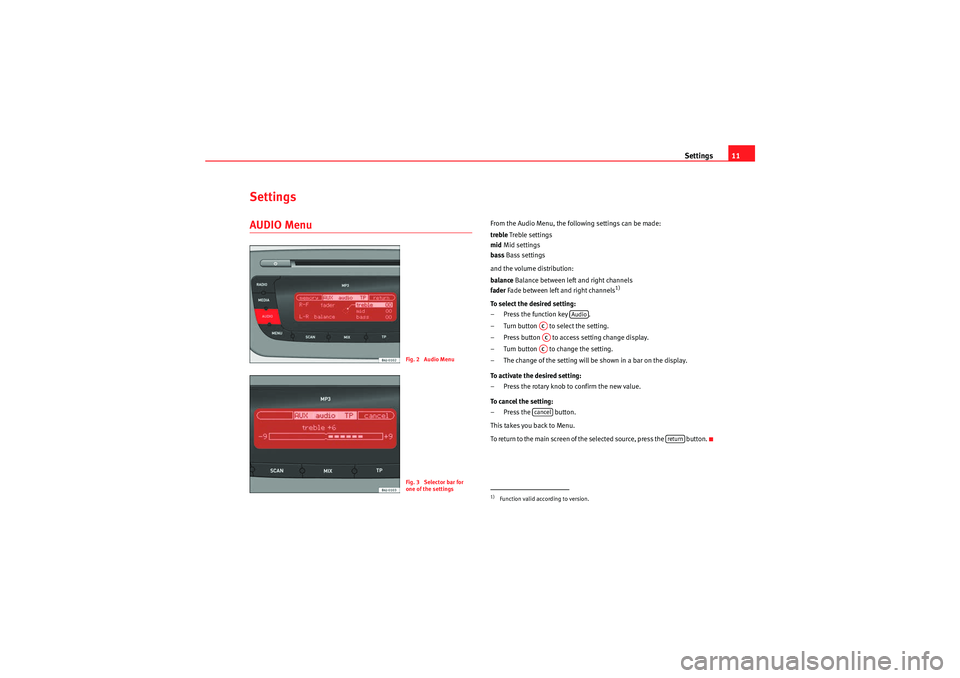

SettingsAUDIO Menu
From the Audio Menu, the following settings can be made:
trebleTreble settings
mid Mid settings
bass Bass settings
and the volume distribution:
balance Balance between left and right channels
fader Fade between left and right channels
1)
To select the desired setting:
– Press the function key .
– Turn button to select the setting.
– Press button to access setting change display.
– Turn button to change the setting.
– The change of the setting will be shown in a bar on the display.
To activate the desired setting:
– Press the rotary knob to confirm the new value.
To cancel the setting:
– Press the button.
This takes you back to Menu.
To return to the main screen of the selected source, press the button.
Fig. 2 Audio MenuFig. 3 Selector bar for
one of the settings
1)Function valid according to version.
Audio
ACACACcancel
return
Car Stereo MP3_EN.book Seite 11 Montag, 20. April 2009 1:56 13

Settings

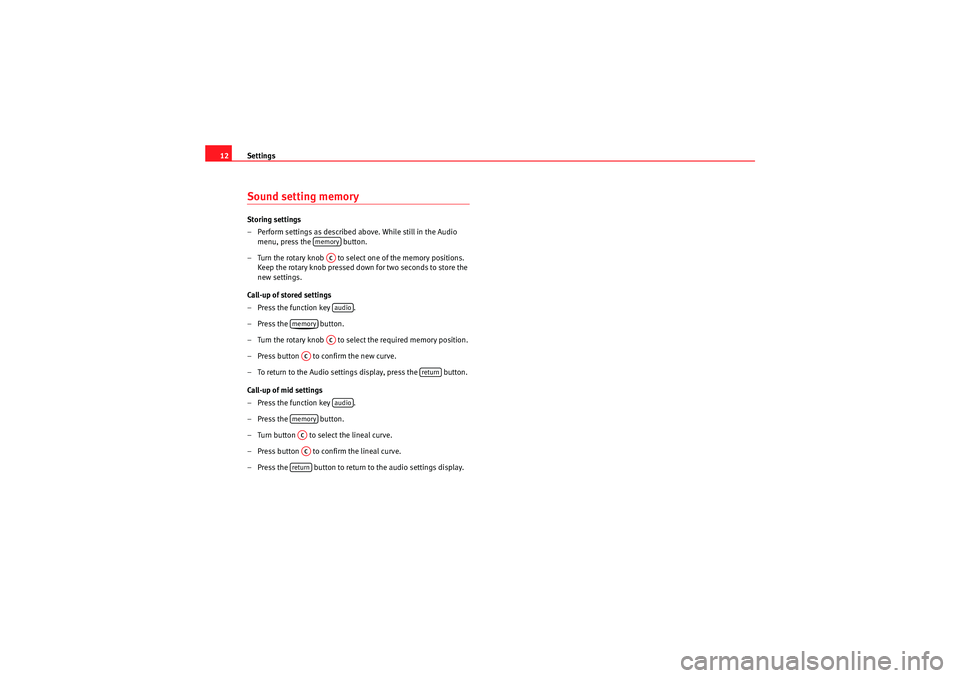

12Sound setting memory Storing settings
– Perform settings as described above. While still in the Audio
menu, press the button.
– Turn the rotary knob to select one of the memory positions. Keep the rotary knob pressed down for two seconds to store the
new settings.
Call-up of stored settings
– Press the function key .
– Press the button.
– Turn the rotary knob to select the required memory position.
– Press button to confirm the new curve.
– To return to the Audio settings display, press the button.
Call-up of mid settings
– Press the function key .
– Press the button.
– Turn button to select the lineal curve.
– Press button to confirm the lineal curve.
– Press the button to return to the audio settings display.
memoryACaudio
memory
AC
AC
return
audio
memoryACAC
return
Car Stereo MP3_EN.book Seite 12 Montag, 20. April 2009 1:56 13
